05) 2024 SAW Seats & Pedestals

2024 - Seats & Pedestals

Please Note:

Table pedestals & tables can be found in Deck Fittings & Hardware section of the catalogue.

Commercial Seats Pilot Seats

Pilot Seats - Relaxn Seafarer

The Relaxn Seafarer Seat is stylish with a sleek profile. Each Relaxn Seafarer Seat uses plush, high-density foam cushions covered in premium grade vinyl. The high backrest, headrest, foot rest and armrests are all adjustable, giving complete customisation. Ergonomically designed to provide optimal posture, with lateral and lumbar support reducing fatigue and improving comfort.

The suspension system absorbs wave impact and allows the seat to move with the occupant increasing stability and safety.

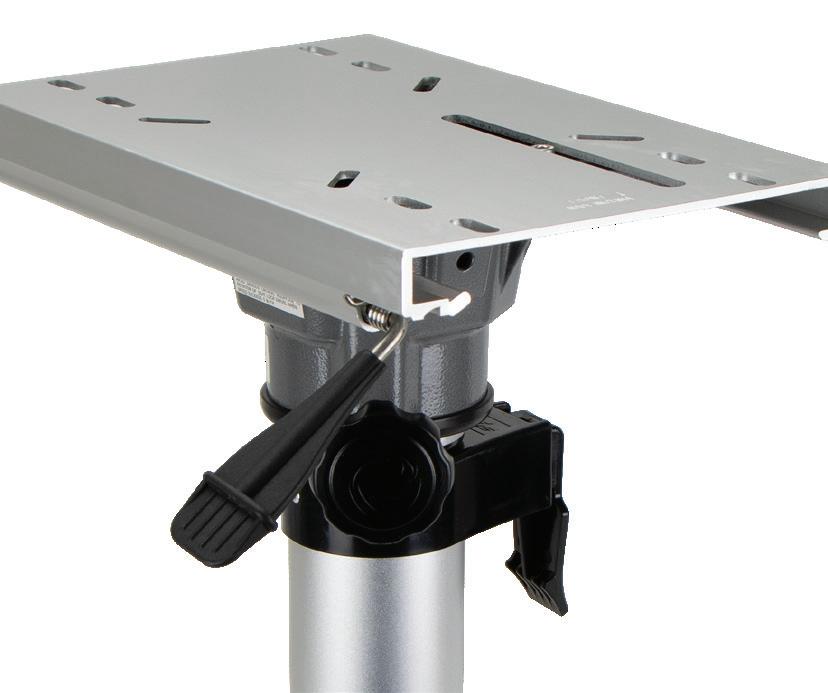

Starting at the base, the aluminium pedestal assembly is height adjustable with a full-length foldable footrest, commercial slide and swivel top with 360° rotation.

Each Relaxn Seafarer Seat is built to the toughest standards, using weather, water and corrosion-resistant material. Available in Black Carbon vinyl as standard or custom colour options.

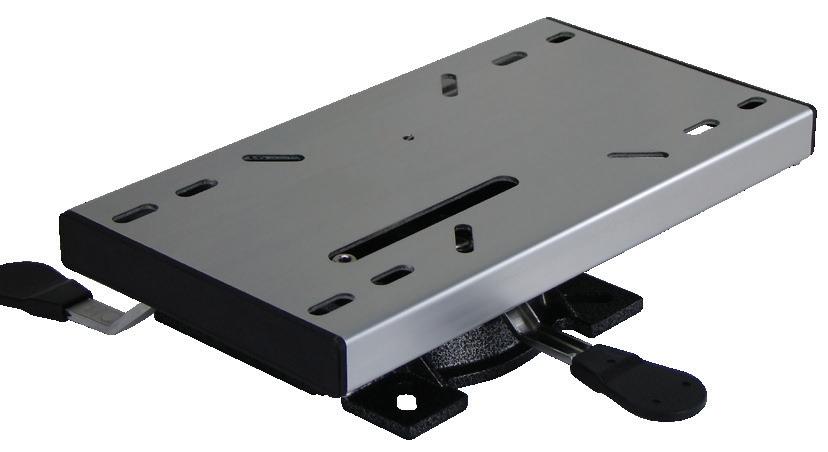

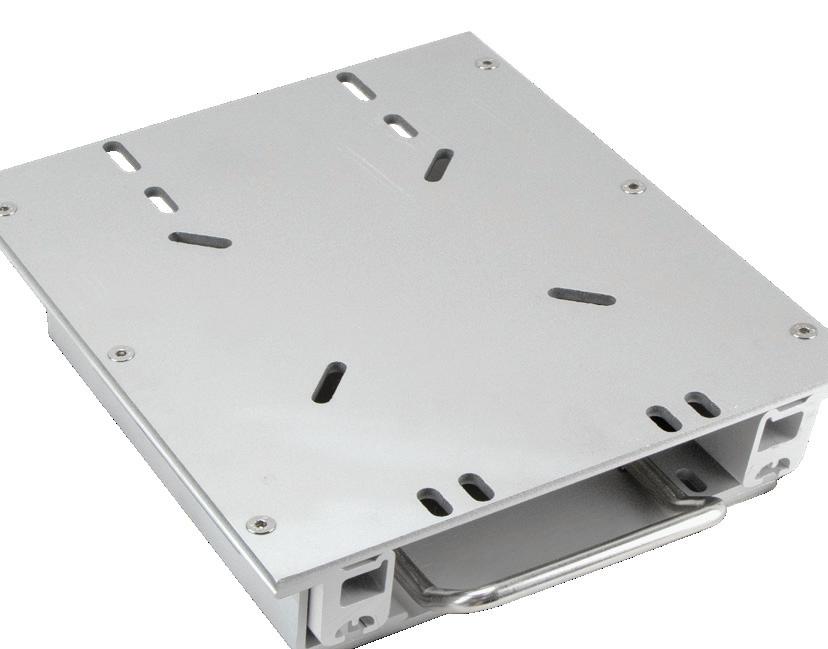

An optional, floor mounting slide is available to optimise access and seating position.

293598

• Plush high-density foam padding providing ultimate comfort.

• Premium quality UV stabilised upholstery.

• Robust reinforced frame.

• Adjustable backrest, headrest, seat rest and armrests.

• High back and contoured sides offer excellent support and comfort.

• Height adjustable Air Ride Pedestal.

• Pedestal top, fore and aft seat slide with 360° swivel.

• Full-length foldable footrest integrated into the seat base.

NOTE: For custom colours (293621-C) allow up to 4 months lead time.

Email sales@samallen.com.au to confirm availability.

293598

293601

293600 / 293621

Pilot Seats

Pilot Seats - Relaxn Voyager

The Relaxn Voyager Seat is designed for palatial comfort with a touch of elegance. Each Voyager Seat utilises deluxe, high-density foam cushions covered in premium grade vinyl. The backrest includes an overlapping style headrest. The backrest, seat rest and armrests are all adjustable providing complete customisation, immersing you in luxurious comfort. The back rest includes and over lapping style headrest.

The aluminium pedestal assembly is height adjustable with a full-length foldable footrest, commercial fore and aft slide and swivel top with 360° rotation.

Each Relaxn Voyager Seat is built to the toughest marine standards, using weather, water and corrosion-resistant material. Available in plush premium black vinyl as standard or custom colour options.

An optional, floor mounting slide is available to optimise access and seating position.

•

• Premium quality UV stabilised upholstery.

• Robust reinforced frame.

• Adjustable backrest, head rest, seat rest and armrests.

• High back and contoured sides offer excellent support and comfort.

• Height adjustable Air Ride Pedestal incorporating full-length foldable footrest.

• Pedestal top, fore and aft seat slide with 360° swivel.

NOTE: For custom colours (293623-C) allow up to 4 months lead time. Email sales@samallen.com.au to confirm availability.

www.samallen.com.au

Seats

Nautilus Series Seats

Introducing Relaxn’s new Nautilus Series Seat. Cruise the oceans in comfort and style, the Nautilus features high-density thick foam padding with UV stabilised vinyl delivering comfort, support and durability.

The heavy-duty high back rest with side support gives lateral support over long distances of travel and the stainless steel thigh rise hinges will last the ages. Flip up arms offer more space when it is needed.

The dual point ergonomic flip-up bolster offers more space and comfort whilst standing.

Plush Foam Padding

Plush foam padding providing complete comfort when in use.

High Quality Vinyl

High quality UV stabilised upholstery.

Perfectly Moulded

High back and contoured sides offer excellent support.

Flip Up Thigh Support

Flip up thigh support, giving more space and comfort while standing.

Robust Frame

Heavy-duty poly board and alloy frame with robust stainless steel hinges on the thigh support.

293944 Replacement Seat Cover

• Thick plush foam padding providing the ultimate comfort.

• High quality Marine grade UV stabilised upholstery and stitching.

• High back and sides offer excellent support.

• Flip up thigh support, giving more space and comfort while standing.

• Large storage pocket on the back.

• Robust reinforced back rest and base.

• Stainless steel thigh rise hinge.

• Alloy arm rest hinge, black powder coat (Camel Tan version) or brushed alloy (White/Grey version).

• Includes bolts, washers and spring washers for mounting.

• Seat cover included.

NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Photo courtesy of Reefrunner Boats Seats - Nautilus Series Seat

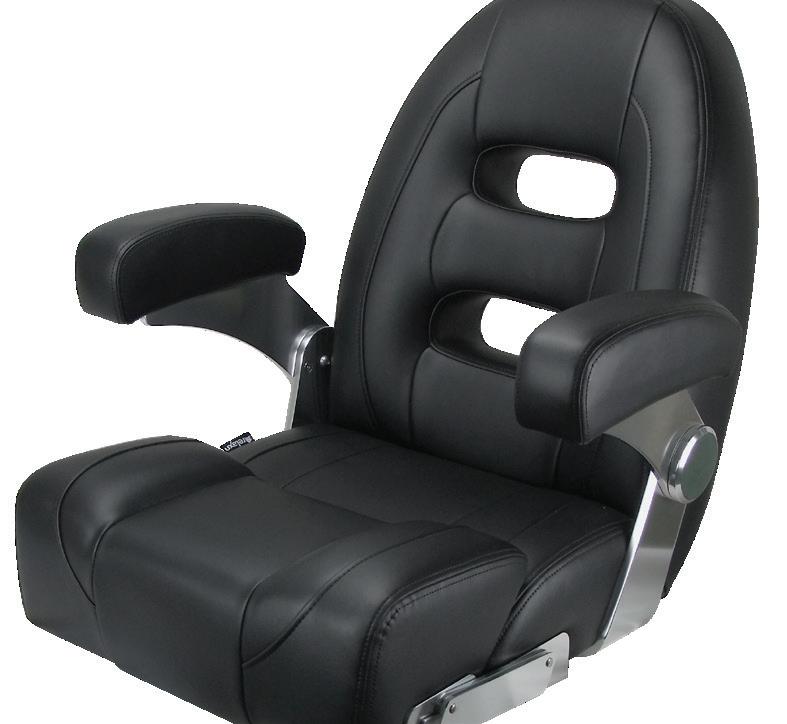

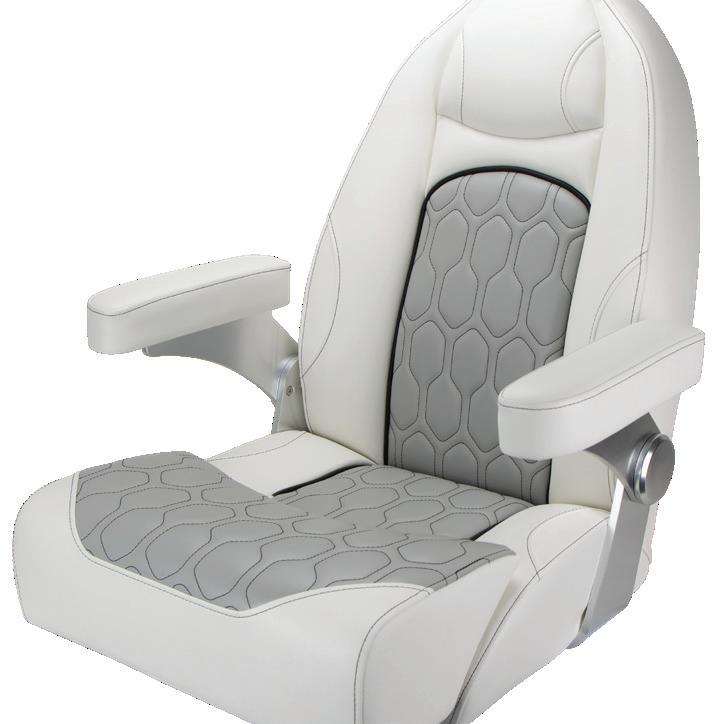

Seats - Cruiser Series - High Back

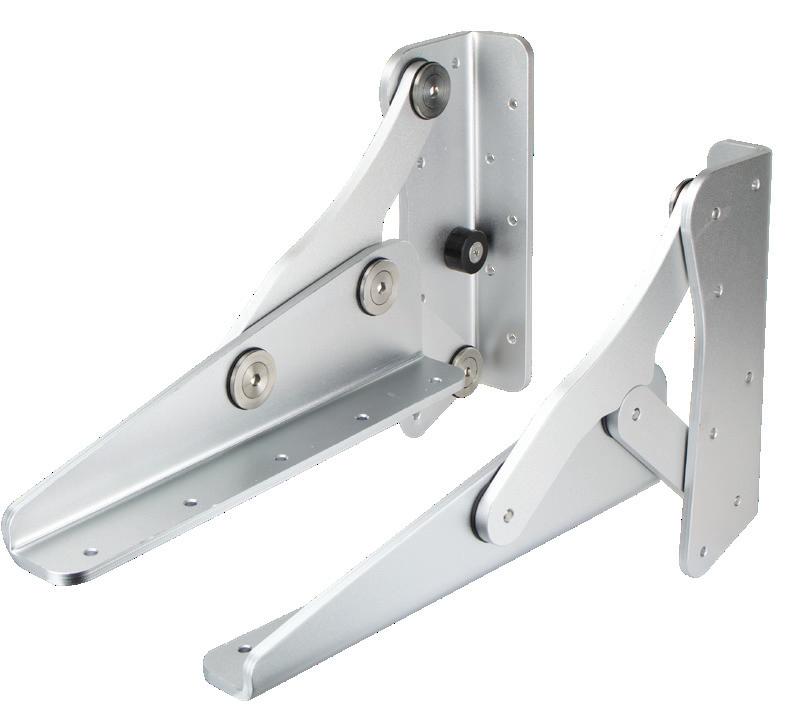

Replacement Thigh Rise Hinge

• High-density foam padding.

• Marine grade UV stabilised upholstery and stitching.

• Flip up thigh support, provides more space and comfort while standing.

• Marine grade anodised alloy, parallel hinged mechanism with silicon pivot washers on thigh rise.

• Flip up padded armrests on heavy-duty anodised alloy frame with silicon pivot washers.

• High back support for extra comfort.

• Laser etched stainless steel Relaxn® badge.

• Includes bolts, washers and spring washers for mounting.

• Seat cover included.

NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Seat

Replacement Thigh Rise Hinge

• High-density foam padding.

• Marine grade UV stabilised upholstery and stitching.

• Flip up thigh support, provides more space and comfort while standing.

• Marine grade anodised alloy, parallel hinged mechanism with silicon pivot washers on thigh rise.

• Flip up padded armrests on heavy-duty anodised alloy frame with silicon pivot washers.

• High back support for extra comfort.

• Laser etched stainless steel Relaxn® badge.

• Includes bolts, washers and spring washers for mounting.

• Seat cover included.

NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

293715

293714

293716

293717

293631 Replacement Seat Cover

293691 Replacement Thigh Rise Hinge

• Ideal for centre console boats.

• Deluxe twin seat designed for two passengers.

• High-density foam padding.

• Marine grade UV stabilised upholstery and stitching.

• Flip up thigh support, provides more space and comfort while standing.

• Marine grade anodised alloy, parallel hinged mechanism with silicon pivot washers on thigh rise.

• Flip up padded armrests on heavy-duty anodised alloy frame with silicon pivot washers.

• High back support for extra comfort.

• Laser etched stainless steel Relaxn® badge.

• Includes bolts, washers and spring washers for mounting.

• Seat cover included.

NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

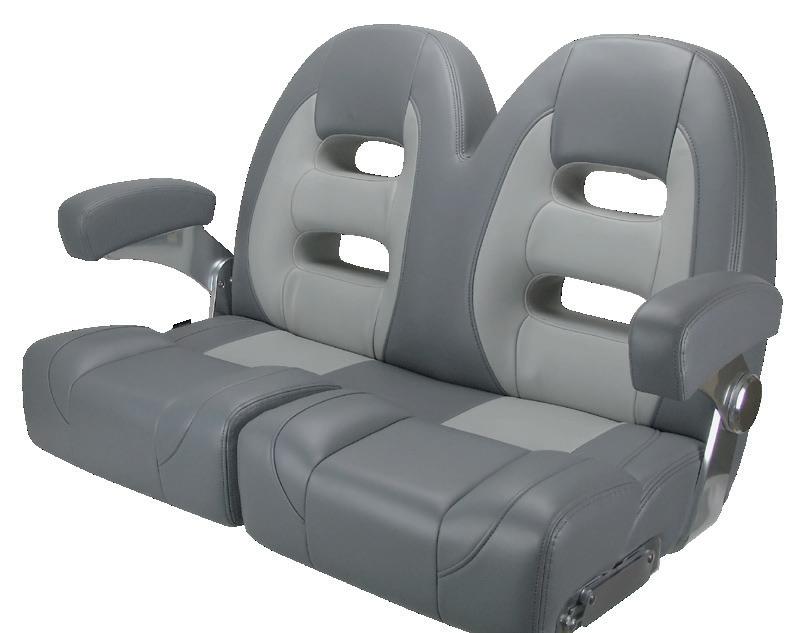

Cruiser Series Seats Double

Machined alloy hinging mechanism

293620

293627

293628

Photo courtesy of Hooker Boats

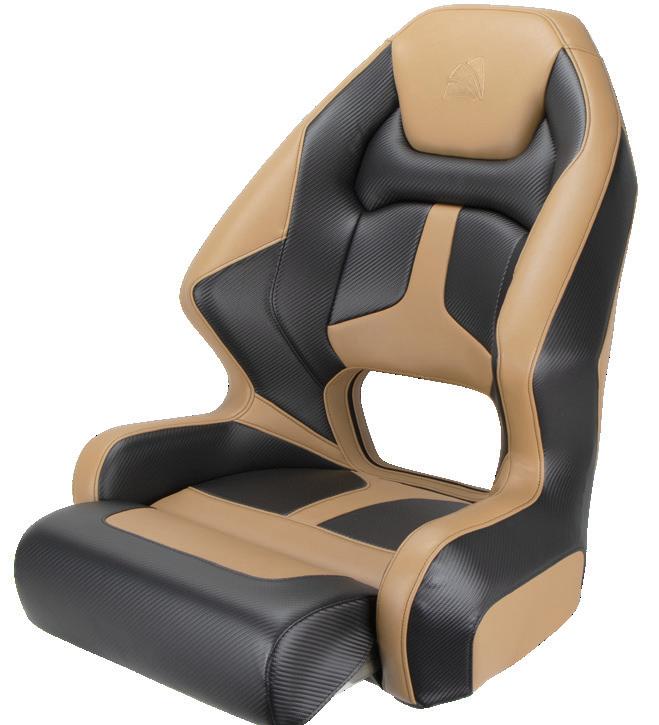

Mako Series Bucket Seats

Introducing Relaxn’s Mako Series Bucket Seat. The Mako Series Bucket Seat is the apex of bucket seats, featuring high-density and high-quality foam padding, and covered with premium UV stabilised vinyl which delivers the ultimate in comfort, support and durability.

The heavy-duty frame with perfectly moulded contoured sides and high back support offers exceptional lateral support, giving you outstanding comfort when spending a solid day on the water.

The Mako Series Bucket Seat features a two-position robust ergonomic flip-up bolster for more space and comfort whilst standing.

Bag yourself a Mako today and be the envy of all your mates!

Plush Foam Padding

Plush foam padding providing complete comfort when in use.

High Quality Vinyl

High quality UV stabilised upholstery developed for the marine environment.

Perfectly Moulded

High back and contoured sides offer excellent support.

Flip Up Thigh Support

Flip up thigh support, giving more space and comfort while standing.

Robust Frame

Heavy-duty frame and robust anodised alloy hinges on the thigh support.

Carbon Fibre Vinyl

Carbon fibre vinyl accents for a stylish design.

293709 Replacement Seat Cover

293693 Replacement Thigh Rise Hinge

• Thick plush foam padding providing the ultimate comfort.

• High quality UV stabilised upholstery and stitching.

• High back and contoured sides offer excellent support.

• Flip up thigh support, giving more space and comfort while standing.

• Robust reinforced ribbed base.

• Includes bolts, washers and spring washers for mounting.

• Seat cover included.

NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Mako Series Bucket Seats

Plush foam padding

Photo courtesy of Stejcraft

Bucket Seats

Replacement Seat Cover

• Thick plush foam padding.

• High quality UV stabilised upholstery and stitching.

• High back and contoured sides offer excellent support.

• Robust reinforced base.

• Includes bolts, washers and spring washers for mounting.

• Seat cover included.

Replacement Seat

Replacement Thigh Rise Hinge

• Thick plush foam padding.

• High quality UV stabilised upholstery and stitching.

• High back and contoured sides offer excellent support.

• Flip up thigh support, giving more space and comfort while standing.

• Includes bolts, washers and spring washers for mounting.

• Seat cover included.

NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Optional Seat Cover

• Plush foam padding providing.

• High quality UV stabilised upholstery and stitching.

• High back and contoured sides offer excellent support.

• Flip up thigh support, giving more space and comfort while standing.

• Robust aluminium frame with heavy-duty bolster hinges on the thigh support.

• Carbon fibre print vinyl.

NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Bucket & Framed Seats

Seats - Off Shore Series

Seat

Replacement Thigh Rise Hinge

• Thick plush foam padding.

• High quality UV stabilised upholstery and stitching.

• Flip up thigh support, giving more space and comfort while standing.

• Marine grade machined alloy parallel hinging mechanism on thigh rise.

• High back and contoured sides offer excellent support.

• Soft rubber covering a stainless steel handle on the back.

• Includes bolts, washers and spring washers for mounting.

• Seat cover included.

NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Seats - Bluewater Series

293709 Seat Cover

• Thick plush foam padding.

• High quality UV stabilised upholstery and stitching.

• High back offers excellent support.

• Grab rail on the back

• Back pocket for extra storage.

• Aluminium powder coated frame.

Seats - Pelagic Series - High Back

• Thick plush foam padding.

• High quality UV stabilised upholstery and stitching.

• Flip up thigh support, giving more space and comfort while standing.

• Silicon washers provides smooth movement of the thigh support.

• Marine grade machined alloy parallel hinging mechanism on thigh rise.

• High back support for extra comfort and lateral support.

• Back pocket for extra storage.

• Stainless steel grab handle.

• 316G stainless steel frame.

• Laser etched stainless steel Relaxn® badge.

• Includes bolts, washers and spring washers for mounting.

• Seat cover included.

NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Seats & Pedestals

Tinnie Seats

Seats - Snapper Series

• Plush foam padding.

• High quality UV stabilised upholstery and stitching.

• Offers contoured support for extra comfort while in use for long periods of time.

• Robust aluminium frame.

• Includes bolts, washers and spring washers for mounting.

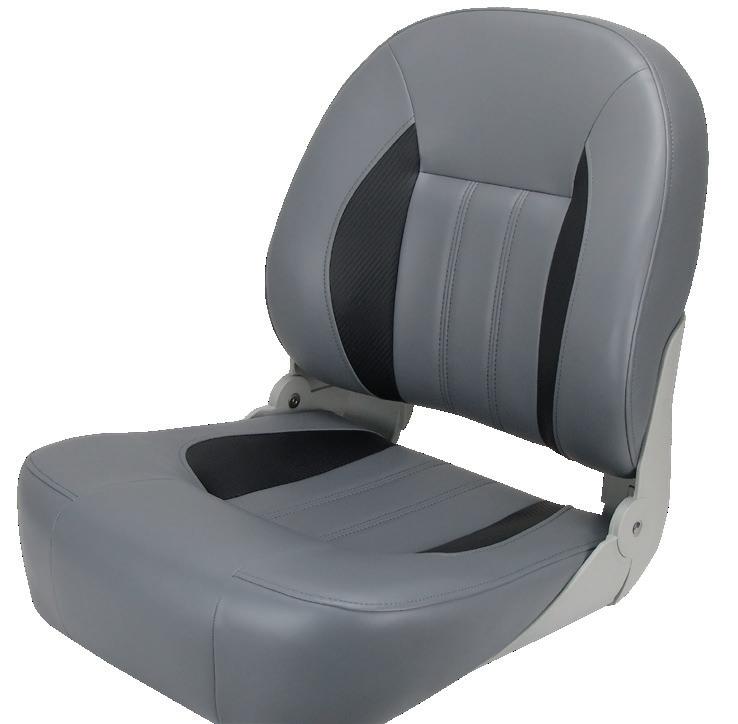

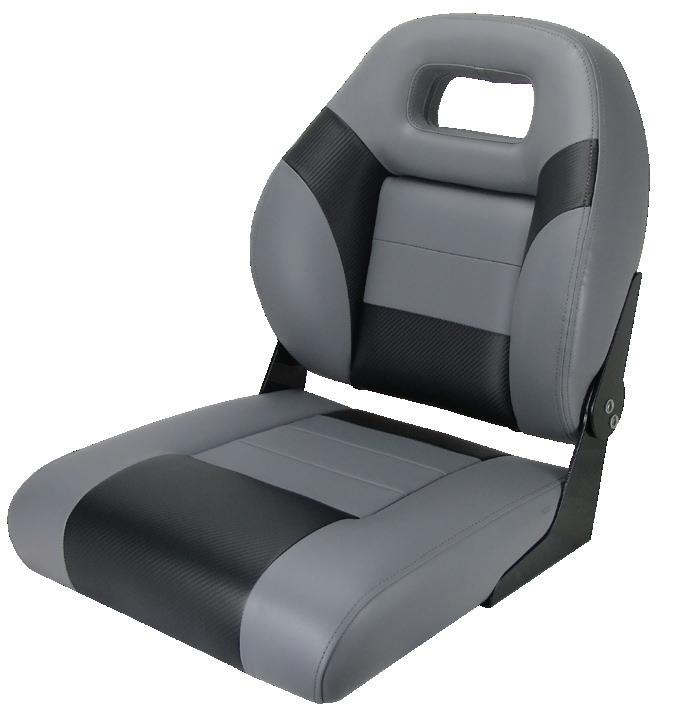

Seats - Deluxe Bay Series

• Plush foam padding.

• High quality UV stabilised upholstery and stitching.

• Back pocket for added storage.

• High back support offers extra comfort and lateral support.

• Robust black powder coated alloy hinges.

• Folds down when not in use.

• Includes bolts, washers and spring washers for mounting.

Seats - Barra Series

• Plush foam padding.

•

quality UV stabilised upholstery and stitching.

• Reinforced ribbed poly base.

• High back support offers extra comfort.

• Folds down when not in use.

• Includes bolts, washers and spring washers for mounting.

Optional Seat Cover

• Plush foam padding.

• High quality UV stabilised upholstery and stitching.

• Reinforced ribbed poly base.

• High back support offers extra comfort.

• Robust grey powder coated alloy hinges.

• Includes bolts, washers and spring washers for mounting.

Seats - Bay Series

Tinnie Seats & Vinyl Rolls

• Fully upholstered tinnie seat cushion is perfectly designed for bench seats or even ice box lids.

• High quality UV stabilised upholstery and stitching.

• High density foam.

• Supplied with stainless steel press studs for mounting and for easy removal when cleaning.

• Press stud mounting flap - 55mm both sides.

Vinyl Rolls

• Ideal for matching your trim to your seat for a complete theme.

• UV stabilised upholstery suitable for all marine environments.

NOTE: Sold in complete rolls, no cuts.

Seats

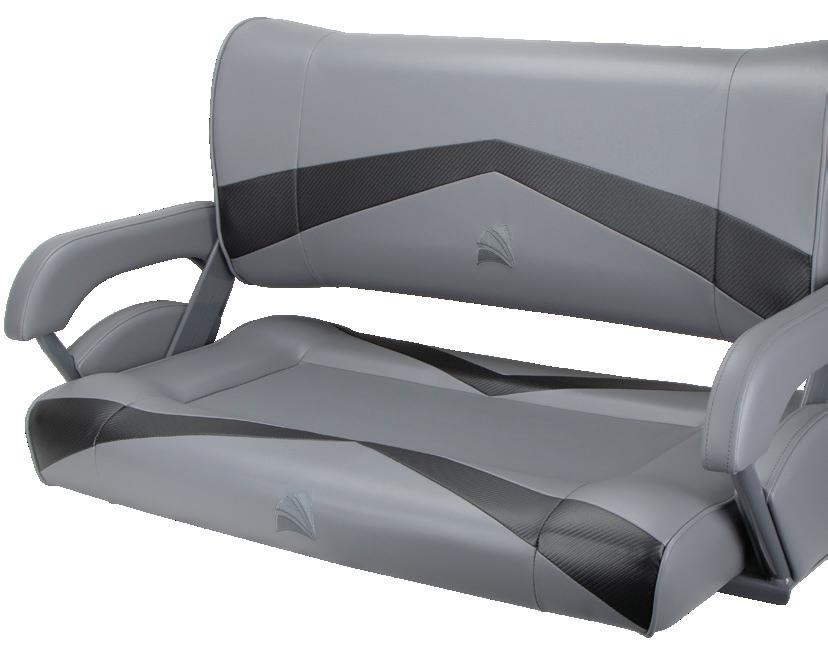

Flip-Back Seats

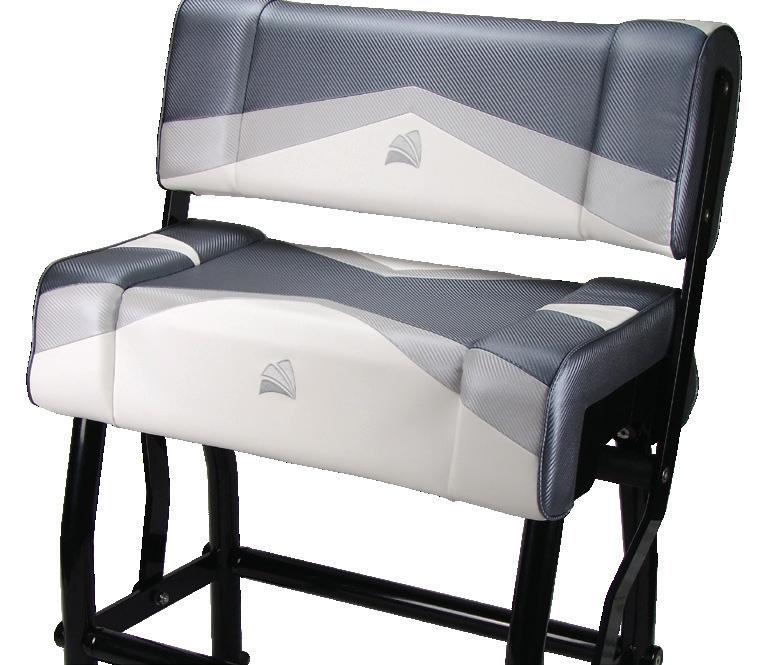

Seats - Tasman Series

• Perfect for multipurpose boats that require flexible fore and aft facing positions along with a design which allows side by side mounting.

• Plush foam padding providing the complete comfort.

• High quality UV stabilised upholstery and stitching.

• Robust aluminium swing arms.

• Silicon washers and sleeves provide effortless hinge movement.

• Includes bolts, washers and spring washers for mounting.

Seats - Deluxe Tasman Series

• Plush foam padding providing the ultimate comfort.

• High quality UV stabilised upholstery and stitching.

• Fully padded arm rests.

• Flip up thigh support, giving more space and comfort while standing.

• Silicon washers and sleeves provide effortless hinge movement.

• Includes bolts, washers and spring washers for mounting.

NOTE: The thigh rise is designed for extra standing space, if sat on will void the warranty.

Seats - Console Series - Double Flip Back

• Perfect for multipurpose boats that require flexible fore and aft facing positions.

• Plush foam padding providing.

• High quality UV stabilised upholstery and stitching.

• High strength composite substrate base.

• Powder coated alloy frame.

• Includes bolts, washers and spring washers for mounting.

Note: Can be installed onto "Pedestal - Double SpaceFrame" on page 134

293625

293626

Alloy Leaning Posts

Alloy Leaning Posts

• Perfect for multipurpose boats that require fore and aft positioning.

• Engineered and built to last, using aerospace 6061 aluminium.

• Strong and rugged 2" (50.8mm) tubing.

• Thick plates offer generous cross bracing and structural support.

• Black or white powder coated finished frame.

• Rubber stoppers to prevent rattling.

• Washers provide smooth travel of the back rest front and back.

• Rear bar can be removed and used as a cooler box storage area.

• Easy to install.

White 018 Grey Carbon 046 Dark Grey Carbon

293485

293484

293460

Alloy Leaning Posts

293903

• Perfect for multipurpose boats that require fore and aft positioning.

• Engineered and built to last, using aerospace 6061 aluminium.

• Strong and rugged 2" (50.8mm) tubing.

• Thick plates offer generous cross bracing and structural support.

• Anodised aluminium or black powder coat finish.

• Rubber stoppers to prevent rattling.

• Washers provide smooth travel of the back rest front and back.

• Fits up to an 80ltr cooler box with rear bar removed.

• Easy to install.

293906 Anodised

293904 Black Powder Coat

Fits up to an 80ltr cooler box with rear bar removed

293902

Alloy Leaning Posts

Centre Console - Leaning Post

• Back rest mounting bar allows accessories to be mounted like the Alloy

Launcher Rod Rack

• Engineered and built to last, using aerospace 6061 aluminium.

• Strong and rugged 2" (50.8mm) tubing.

• Thick plates offer generous cross bracing and structural support.

• Anodised aluminium or black powder coat finish.

• Adjustable and removable back rest.

• Foot rest bar also doubles as a cooler box holder.

• Easy to install.

293914 Anodised

293908

293920 Black Powder Coat

White 018 Dark Grey Crosshatch 050-5 Dark Grey 023 Black Carbon 035

Photo courtesy of Cruise Craft

293918

Pedestal - SpaceFrame

• The seat frame is designed as a space saver which economically utilises space under the frame.

• Heavy-duty highly polished 32mm 304G stainless steel frame.

• The seat plate has 20mm increment mounting holes for optimal positioning when mounting a seat. The seat can be mounted direct to plate or used with a seat slide or swivel*.

• Adjustable height in 20mm increments provides perfect seat positioning.

• Footrest bar also doubles as a cooler box holder (293816 only).

• 50mm stainless steel saddles with a polyester strap, quick release buckle and velcro adjustment.

• Mounting holes - 8 x 8mm countersunk.

• Patented - Australian Registered Design.

*NOTE: The 293809 slide/swivel or 293804 slide mount are recommended for slide/swivel adjustments on the Relaxn SpaceFrame.

Heavy-duty 6mm thick mounting base with rounded ends.

Highly polished 32mm stainless steel frame. Adjustable height in 20mm increments provides perfect seat positioning.

Precision welded heavyduty frame offers years of trouble free use.

50mm stainless steel saddles with a polyester strap, quick release buckle and velcro adjustment.

Double SpaceFrame

Pedestal - Narrow SpaceFrame

• The seat frame is designed as a space saver which economically utilises space under the frame.

• Heavy-duty highly polished 32mm 304G stainless steel frame.

• The seat plate has 20mm increment mounting holes for optimal positioning when mounting a seat. The seat can be mounted direct to plate or used with a seat slide or swivel*.

• Footrest bar also doubles as a cooler box holder.

• 50mm stainless steel saddles with a polyester strap, quick release buckle and velcro adjustment.

• Mounting holes - 8 x 8mm countersunk.

• Patented - Australian Registered Design.

*NOTE: The 293809 slide/swivel or 293804 slide mount are recommended for slide/swivel adjustments on the Relaxn SpaceFrame.

Pedestal - Double SpaceFrame

• The Relaxn double seat frame is ideal for the centre console boat market.

• The seat frame is designed as a space saver which economically utilises space under the frame.

• Heavy-duty highly polished 32mm 304G stainless steel frame.

• Adjustable height in 20mm increments provides perfect seat positioning.

• Footrest bar also doubles as a cooler box holder.

• 50mm stainless steel saddles with a polyester strap, quick release buckle and velcro adjustment.

• Mounting holes - 8 x 8mm countersunk.

• Patented - Australian Registered Design.

Adjustable & Fixed Pedestals

• Heavy-duty marine grade cast anodised aluminium base with 6 x 8mm mounting holes.

• Anodised cast aluminium post.

• Adjustable height.

• Welded base.

• STD Seat mount Centres - 140mm x 140mm.

NOTE: 293864 does not fit the Cruiser Series Seats. 293868 & 293869 suit 72.6mm inner post.

• Heavy-duty marine

6 x 8mm mounting holes.

• Mechanical mechanism provides height adjustment in 30mm increments.

• Anodised cast aluminium post.

• Welded base.

• STD Seat mount Centres - 140mm x 140mm.

•

•

•

293859

293862 293865

Locking Swivel

Locking Swivel

Fixed Pedestals, Swivel & Slide Mounts

Pedestal - Stainless Steel - Fixed Height

• Highly polished marine 316G cast stainless steel pedestal and base.

• Strong and durable construction.

• Fixed height.

• Stainless steel base with 6 x 6.9mm countersunk mounting holes.

• Fits all 73mm swivel and universal slide seat mounts.

NOTE: Top suits 293798, 293794.

Pedestal - Columbia - Swivel Top

• Heavy-duty cast aluminium base with 6 x 8mm countersunk mounting holes.

• Anodised cast aluminium post.

• Welded base.

Pedestal Seat Base - Swivel

• High-strength aluminium powder coated finish.

• Friction locking swivel.

• Moulded nylon cup insert provides smooth swivel performance and a tight fit.

• Rotates 360°

.

• 293797A Locking handle.

• Increases height of the pedestal by 19mm (3/4").

• Standard mount pattern.

Pedestal - Regatta - Low Profile

• Low profile base with 6 x 8mm countersunk mounting holes for a solid support.

• Anodised base.

Pedestal Seat Slide - Locking

• Slide mount allows the best positioning.

• High-strength aluminium swivel with powder coated finish.

• Friction locking swivel base.

• Moulded nylon cup insert provides smooth swivel performance.

• 360° rotation.

• STD Seat mount Centres - 140mm x 140mm.

Pedestal Seat Slide

• Slide mount allows the best positioning.

• High-strength aluminium swivel with powder coated finish.

• Friction locking swivel base.

• Moulded nylon cup insert provides smooth swivel performance.

• 360° rotation.

• Slide mount pattern.

• STD Seat mount Centres140mm x 140mm.

293786

293784

Locking Swivel

Locking Swivel

Locking Swivel

Swivel & Slide Mounts

Seat Slide & Swivel

• Designed for salt water use with a rust resistant powder coated base and anodised slide.

• Zero degree tilt.

• 360° rotation.

• 8 position side locking swivel lever (45°) increments.

• Universal slide mount pattern.

• Lower plate dimensions: 168mm x 168mm.

Mount pattern

Seats & Pedestals

• High strength aluminium.

• Suits most seats and pedestals.

• 293804: Moves in 10mm increments. Adds 50mm in height.

• Universal slide mount pattern.

• 360° rotation.

• Nylon slide runners for smooth and silent performance.

• Non-locking.

• Standard mount pattern.

• Standard mount pattern. Mount pattern Mount pattern

Seat Swivel - Standard Mount Locking

• Locking handle extends out 175mm from swivel providing an easy to reach lock.

• Nylon slide runners for smooth and silent performance.

• Fits most standard seats and pedestals.

• 12 lock positions.

Seat Swivel - Clamp-On

• Rugged all steel construction with black EDC coating making it suitable for all marine environments.

Pedestal Mount Base

293810:

• Suitable for fixed or removable mounting, providing extra support to the pedestal.

• Cast anodised aluminium.

• Suits 6 equally spaced holes on a 203mm diameter pattern.

• 6 x 5/16" UNC threaded and 6 x 3/8"Ø bolt mounting holes.

• 2 x 5/16" UNC threaded holes to join the 2 pieces together.

• No in deck holes required if you can access under the deck, If you can't the hole needs to be big enough to fit your hand through to reach the fixing holes.

• 2 piece construction minimises hole size when there is no access to below the deck.

293812:

• Designed for extra support to the pedestal when mounted.

• Cast Anodised aluminium.

• Suits 6 equally spaced holes on a 203mm diameter pattern.

• 6 x 5/16" UNC threaded and 6 x 3/8"Ø bolt mounting holes.

Pedestal Footrest

• Split design allows mounting without the removal of the post.

• Internal nylon bushing prevents the footrest from scratching the post and acts as a friction lock.

• Bottom ring provides height adjustment.

• Swivels out of the way when required.

• Heavy-duty cast aluminium.

Plug-In Pedestals

• Anodised.

• Posts have a moulded groove to stop movement.

• Swivel is high-strength aluminium with a powder coated finish.

• Friction locking swivel.

• Heavy-duty cast aluminium base for a solid support in the cabin or cockpit.

• Base has a 1 way mounting lock position.

• Suit Ø 60mm plug-in Pedestal post only.

KingPin Pedestals

• 293738 Seat mount is constructed with black autophoretic coating.

• 293746 has a Posi-Lock (spring loaded) lever to adjust height.

• Heavy-duty cast aluminium base for a solid support in a cabin or cockpit.

• Nylon sleave in mounting hole provides anti rattle and smooth performance.

• Rotates 360°

Stand-Up Seat

• Plush foam padding.

• High quality UV stabilised upholstery and stitching.

• Substrate completely covers all stitching and staples.

• Perfect for fly fishing or lure casting.

• High-strength composite base.

• Ideal for the Kingpin Pedestals. Light Grey Mount Pattern

293738

293740 - 293744

293746

• Robust 8mm CNC machined alloy.

• Anodised finish.

• Self supporting.

• No support legs needed.

• Clears floor space.

• Stainless steel hardware for strength and durability.

• Nylon bushes offer a smooth folding action.

• Folds up when not in use.

• Easy installation.

• 293828BRK allows 293828 to become removable.

NOTE: Sold in pairs.

• Ideal for jump seats and tables.

• Robust construction.

• Spring loaded hinges.

• Black plastic protective covers.

• Stows in down position.

• Extra room without sacrificing comfort and support.

• Easy installation.

• Patent pending new J hook design.

• 293803BRK allows the table and seat bracket to become removable.

NOTE: Sold in pairs. 293803 is designed for internal use only.

Nylon washers provide a smooth close and open action

steel hardware offers strength

293828BRK

Summer Loungers & Folding Legs

Folding Summer Lounger

• Plush foam padding providing the ultimate comfort.

• Heavy-duty UV stabilised marine grade fabric.

• Water repellent fabric.

• 6 adjustable back rest settings.

• Lays flat for easy transport and storage.

• Carry handle.

• Back pocket for extra storage.

• Nylon under lay with non-slip base.

• Galvanised frame.

Folding Seat Leg - Aluminium

• Alloy leg with heavy-marine grade plastic hinge with a moulded lock.

• Suitable for the marine environment.

• Plastic end cap for stability.

• Replacement Bracket suits O.D. 25mm Seat Leg.

Folding Seat Leg - Stainless Steel

• Spring loaded catch.

• Rubber base cap for stability.

29860/29866

293643

293644

29851

25168

29852

Bean Bags & Vinyl Cleaner

• Ideal for lounging around the deck, pool, beach or long trips on the boat.

• Floats.

• 3mm neoprene material.

• Heavy-duty threads and tapes.

• Heavy-duty safety zip.

• UV resistant.

• Easy to clean.

NOTE: 150 to 200 litres of bean bag filling. This is not a floatation device and will absorb water over a period of time. Children can suffocate if bean bag filling is swallowed or inhaled. Do not let children climb inside the bean bag. A bean bag is not a safe sleeping surface for an infant under 12 months of age.

• Ideal for cleaning chrome, polished wood, venetian blinds, grained plastics, plastic, vinyl and leather.

• Contains no bleaching agents, ammonia, acids, alkalies or abrasives.

• Does not discolour.

• Safe on hands.

• Wipe on, wipe off.

• No need for water.

Neoprene Bean Bag

Arco Vinyl Cleaner

Suspension Pedestals

Shark Seating

Shark Flex Shock Mitigation System

Take one look at Sharks back-saving suspension and you will see it right away… Only one moving part (the shock absorber) mounted to two rugged, but elegant injection moulded leaf-springs which have a massive 200mm of movement without any of the sharp edges and pinch-points found on other suspension set ups. There is also nothing to rust or oxidise or peel since Shark uses no coatings – just hi-tech UV protected plastics with colour that is all the way through.

Sharks unique “Flex” design absorbs impact on three-axis since waves don’t just pitch straight up or down! The proprietary Flexanite composite plastic makes the Shark Flex system very light, yet robust with very low maintenance.

The same approach can be seen with the Shark seats which have a tiny footprint and light weight, however caters for all sizes of passenger and allows both sitting and standing without any need for mechanical adjustments.

The Shark Flex system has been tested to withstand one million 10 G impacts at 200mm displacement, 100ms duration at 100kg payloads, this test complies with test protocols defined by the UK Ministry of Defence.

The Shark Flex shock mitigation system provides a smooth and comfortable ride!

Suspension Base - Shark Ultra Plus

• Ideal for making your ride softer.

• The Flex suspension unit is simple and has only 3 unique parts.

• Self adjusts for passengers from 40kg to 120kg.

• Exclusive stainless steel shock absorber.

• 3 axis shock mitigation for reduced whiplash from lateral and fore-aft forces.

• Small foot print.

• Non corroding 316G stainless and Flexanite.

• Polycarbonate rubber foam seat.

• Easy to clean seat.

• Seat has side grab handles.

• Low maintenance.

• Tested 1 million full 10G impacts (200mm displacement, 100ms duration at 100kg payload).

• Light weight and easy to install.

• Complies with HSC 2000 Annex 10.

• Includes Jockey seat, Shark Flex and Standard Plinth.

293888

293887

• Polycarbonate and rubber foam seat.

• Easy to clean seat.

• Side grab handles.

• Low maintenance.

• Light weight and easy to install.

• 293895 is treated with waterproof and fireproof coatings.

• Seat has side grab handles.

• Low maintenance.

• Light weight and easy to install.

• 293895 is treated with waterproof and fireproof coatings.

Shark - Accessories

• Polycarbonate and urethane closed-cell foam seat with Neoprene upholstery.

• Easy to clean seat.

• Low maintenance.

• Light weight and easy to install.

• Robust rubber foam arm rests (optional).

• Rubber foam High Back Extension (optional).

Note: Armrests and High Back Extension sold separately.

Shark - Suspension Pedestal

Suspension Base - Shark Flex

Seats & Pedestals

293876 Replacement Bushing Set

293877 Replacement Shock Absorber Suits 293884

293877HD Heavy Duty Shock Absorber Suits 293884HD

• Ideal for making your ride softer.

• The Flex suspension unit is simple with only one moving part.

• Exclusive stainless steel shock absorber.

• Three-axis shock mitigation for reduced whiplash from lateral and foreaft forces.

• Small foot print.

• Non-corroding 316G stainless and Flexanite.

• Low maintenance.

• Tested 1 million full 10G impacts (200mm displacement, 100ms duration at 100kg payload).

• Light weight and easy to install.

• Complies with HSC 2000 Annex 10.

NOTE: Suitable with Shark seats only.

Top/Bottom Diagram

In the graph shown (z1), the 70kg payload would experience a shock of 10 times its weight (or 700kg) for a tenth of a second, In the second test (z2) you can see the Shark Flex significantly reducing that impact, as well as slowing the impact, which allows a person’s body to respond to it.

Suspension Base - Shark FLEXpod-HD

• Ideal for making your ride softer.

• 2 solid 5052 black powder coated alloy plates top and bottom.

• The Flex suspension unit is simple with only one moving part.

• Exclusive stainless steel shock absorber.

• Three-axis shock mitigation for reduced whiplash from lateral and foreaft forces.

• Small foot print.

• Non-corroding 316G stainless and Flexanite.

• Low maintenance.

• Light weight and easy to install.

www.samallen.com.au

293884

293884HD

293877HD

293876

293877

Shark - Plinths

Suspension Base - Shark Flex Plus

• Ideal for making your ride softer.

• The Flex suspension unit is simple and has only 3 unique parts.

• Self adjusts for passengers from 40kg to 120kg.

• Exclusive stainless steel shock absorber.

• 3 axis shock mitigation for reduced whiplash from lateral and fore-aft forces.

• Small footprint.

• Non corroding 316G stainless and Flexanite.

• Low maintenance.

• Tested 1 million full 10G impacts (200mm displacement, 100ms duration at 100kg payload).

• Light weight and easy to install.

• Storage compartment in plinth.

• Complies with IMO - HSC 2000 Annex 10.

• Includes Shark Flex and Standard Plinth.

NOTE: Suitable with Shark seats only.

Shark - Plinths
