2024 - Boat Building & Maintenance

Boat Building & Maintenance

28 www.samallen.com.au Contents Propspeed® 29 Propspeed® 30 Lightspeed™ / Foulfree™ 32 Propspeed® 33 Epoxy Adhesives & Fillers 34 Techniglue 34 Rapid Cure, Techifill & Technirez 35 West System 36 - 39 Epoxy Resins & Hardeners 36 - 37 Speciality Epoxies 37 Additives & Fillers 38 Dispensing Pumps 39 Application Tools & Technical Publications 39 Paints, Varnishes & Coatings 40 Wood Varnish & Thinners 40 - 41 Owatrol Teak Olje, Deks Olje & Cleaner & Brightener 42 Owatrol C I P , Marine Oil, Polytrol Surface Restorer & Penetrol 43 Paint Equipment 44 Paint Brushes & Form Brushes 44 Roller Kits, Trays & Liners 45 Roller Handles, Frame & Covers 46 Masking Tapes 47 Masking Film, Paper, Foil Tape, Sheet Insulation & Fasteners 48 Personal Protection 49 Sanding Blocks, Sponge, Sandpaper & Paint Scraper 50 Cleaners, Polishes, Waxes, Adhesives & Sealants 51 Bling Sauces 51 - 52 Clearview Products 53 - 54 Arco Vinyl Cleaner & Relaxn Seat Care Package 54 3M Products - Cleaning Supplies & Waxes 55 3M Products - Compounds & Polishes & Aqua Buff 56 3M Products - Perfect-It™ 57 - 58 3M Products - Pads, Adaptor & Detailing Cloth 59 3M Products - Adhesives, Sealants & Fillers 60 Sika Products 61 - 63 Caulking Guns & Sika Bond 64 CRC Lubricants, Corrosion Inhibitors, Cleaners & Primers 65 - 66 CRC Part Cleaners and Adhesives 67 Mako Oil 68 Tef-Gel™ Corrosion Eliminator & Passive Jointing Compound 68 Anodes 69 Aluminium Block Anodes with Strap 69 Zinc Block Anodes with Strap 70 Zinc Block Anodes 71 - 72 Zinc Condenser Block Anodes 72 Zinc Pot Anodes 73 Zinc Portable Anodes 73 Zinc Rudder Anodes 73 Zinc & Magnesium Anodes 73 Zinc Propeller Anodes 74 Zinc Shaft Anodes 75 Zinc Side Power Bow Thruster / Pencil / Universal Engine Anodes 76 Zinc Engine Anodes 77 - 79 Zinc Outboard Anodes 79 - 81 Zinc Sterndrive Anodes 81 - 82 Zinc Saildrive Anodes 83 Anode Kits - Outboard 84 - 85 Anode Kits - Sterndrive 85 Propeller Shaft Cutlass Bearings 86 Brass Rubber and Nitrile Rubber/Composite Shell Cutlass Bearings 86 PVC and Synthetic Rubber Cutlass Bearings 87 Oil Safe® 88 Oil Safe® Drums 88 Oil Safe® Lids 89 - 90 Oil Safe® Accessories 90 - 91 Brass Sump Pump 91 Oil Extractor Pumps 92

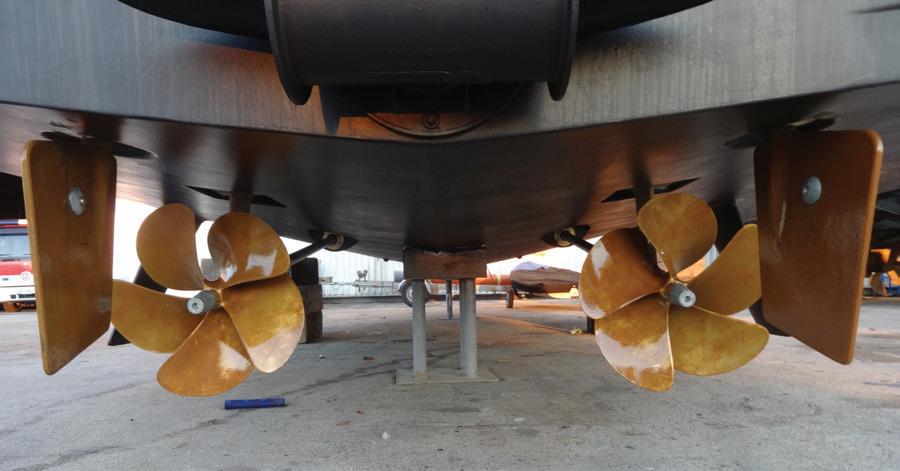

Propspeed provides defence against marine growth and corrosion for all underwater metal assets.

Fouling of running gear is a constant headache for boat owners, requiring expensive and timeconsuming grinding and sanding to remove marine growth at every haul-out.

Take control with Propspeed; the cost effective way to keep your vessel performing at its peak.

Propspeed has been tried and tested around the world, consistently delivering customers the same result - improved boat performance, lower fuel and operational costs, sustained value of their investment, all while keeping the vessel’s running gear operating and looking its best.

• For use on: Propellers, Rudders, Shafts, Bow Thrusters, Trim Tabs, Zeus Drives, Pod Drives and many more.

• Reduces drag and thereby fuel consumption.

• Protects all underwater metals from marine growth, corrosion and stray currents.

• Long-lasting solution that, when applied and maintained correctly, protects underwater metal assets for 12-24 months.

• Excellent adhesion to metals.

• Foul-release, not antifoul. Foul-release coatings use physical means to reduce fouling, creating a surface that’s tough for marine organisms to adhere to.

Propspeed has been protecting underwater assets for over 21 years, and has built a passionate team to offer superior in-field technical support.

The Propspeed Commercial Kit has been created specifically for the commercial marine trade professional. Corrosion and biofouling are a constant threat to the consistent performance of commercial vessels. Ensure your vessels operational readiness and sustained performance, while reducing maintenance and fuel costs.

Commercial Kit Includes: 2 x 960ml Etching primer base 2 x 240ml Etching primer hardener

• 1 x 500ml Propprep • 2 x Stirring sticks

www.samallen.com.au
Propspeed® 29 Part No. Description 322057 Propspeed
Propspeed® Commercial Kit
Foul-Release Coating Commercial Kit
Coverage Guide 2 x Propellers Size 165 - 203cm 65” - 80” 14.2m2 Surface Area

322050

322052

322054

• 2 x Proprep wipes

Propspeed® Kits

www.samallen.com.au 30
Propspeed Kits Part No. Description Kit Size 322050 Propspeed Foul-Release Coating Small - 200ml 322052 Propspeed Foul-Release Coating Medium - 500ml 322054 Propspeed Foul-Release Coating Large - 920ml
Propspeed®
Large Kit Coverage Guide 2 x Propellers Size 79 - 117cm 31” - 46” 3.4m2 Surface Area
Large Kit
Kit Medium Kit Coverage Guide 2 x Propellers Size 36 - 76cm 13” - 30” 1.7m2 Surface Area
Medium

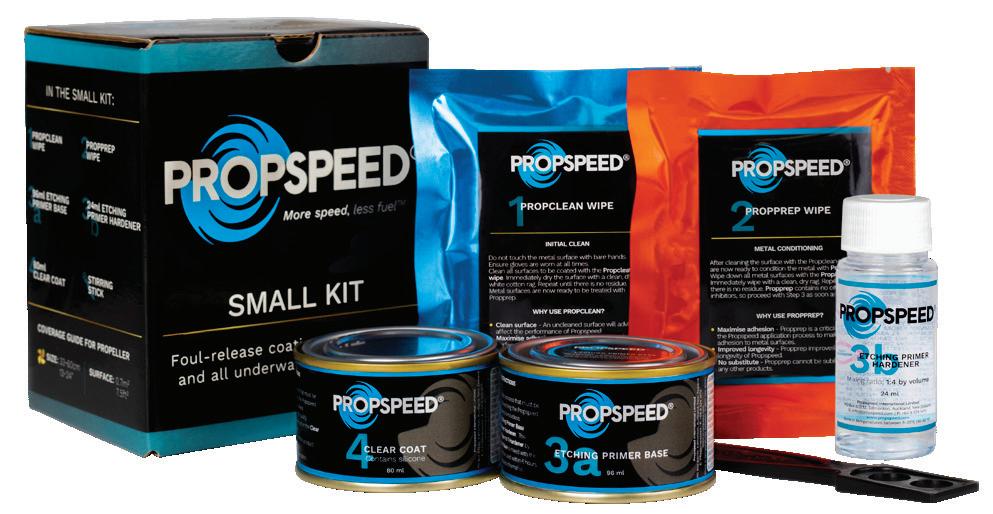

Kit Small Kit Coverage Guide 1 x Propeller Size 33 - 60cm 12” - 24” 0.7m2 Surface Area
Small
Small Kit Includes:
1 x Propclean wipe
1 x Propprep wipe
base
1 x 96ml Etching primer
1 x 24ml
primer hardener
Etching
1 x 80ml Clear coat
1 x Stirring stick

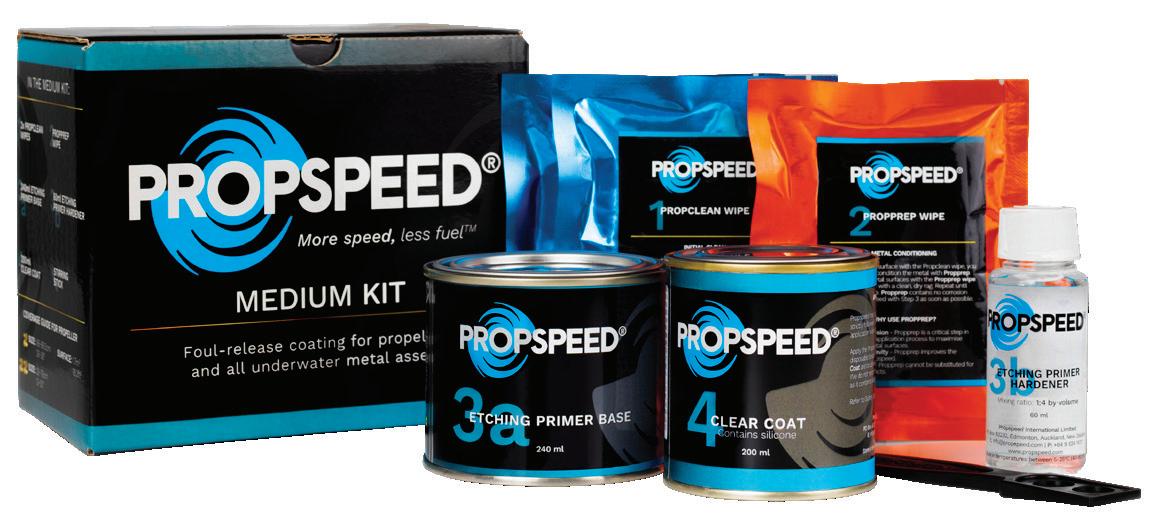

Medium Kit Includes:
2
Propclean wipes
x
1 x Propprep wipe
1
240ml Etching primer base
x
1 x 60ml Etching primer hardener
1 x 200ml Clear coat
1 x Stirring stick
Large Kit Includes:
4 x Propclean wipes
2 x 240ml Etching primer base
2
60ml
primer hardener
x
Etching
Clear coat
1 x 320ml
sticks
2 x Stirring

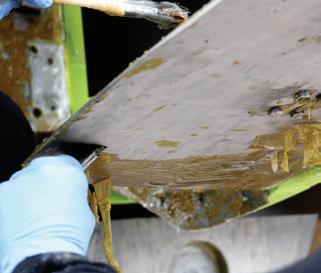

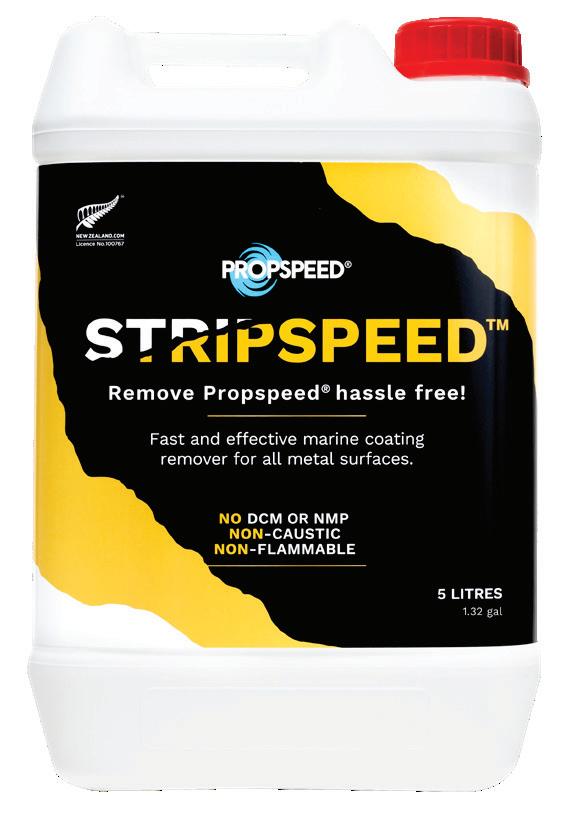

REMOVE PROPSPEED & SIMILAR FOUL-RELEASE COATINGS HASSLE FREE!

AVOID THE GRIND, USE STRIPSPEED™

Developed to help Propspeed applicators prepare metal surfaces for reapplication, Stripspeed removes foul-release coatings in 30* minutes or less. The thick consistency easily hangs on vertical and overhead surfaces, making it easy to use and there is no mixing required. Just shake, pour and go. Stripspeed is non-flammable, non-caustic, DCM and NMP free. Unlike grinding or using abrasives, Stripspeed doesn't cause mechanical wear through multiple refits, and doesn't create toxic dusts or debris, increasing the lifetime of the metal.

Save time and money on Propspeed applications with STRIPSPEED™!

*Timing is subject to atmospheric conditions. Ideal temperature is 15-27°C (60-80°F)

SUITABLE FOR USE ON:

All metal surfaces where Propspeed, or similar running gear coatings, have been applied.

EASY TO USE

Easy to apply, easy to remove. Scrape and then scrub with an abrasive pad.

STRIPS SWIFTLY

Stripspeed works within 30 minutes or less, speeding up the Propspeed removal process.

APPLY AT ANY ANGLE

Stripspeed's unique formula can be applied at any angle without sliding off.

NO AIRBORNE PARTICLES

With no grinding required, there will be no airborne particles, making Propspeed removal harmless.

DO NOT USE ON:

• Transducers

• Underwater lights

• Hull

Propspeed® Stripspeed™

• Foulfree

• Lightspeed

• Powder coat

HOW MUCH DO I NEED?

1 x Propspeed Large Kit = 2L Stripspeed

1 x Propspeed Medium Kit = 1L Stripseed

1 x Propspeed Small Kit = 0.5L Stripspeed

Boat Building & Maintenance 31 Propspeed® www.samallen.com.au
Part No. Description Size (Ltr) Coverage 322076 Propspeed Stripspped 1 1L = 2m² 322078 Propspeed Stripspped 5 5L = 10m²

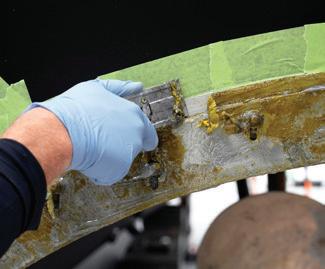

STRIPSPEED WORKS ON ALL HARD TO REACH SPOTS

322074 Lightspeed Kit

Lightspeed® Kit

1

Lightspeed is an easy-to-use foul-release coating, specifically designed to protect underwater lights from marine growth.

• Does not interfere with the light transmittance.

• Long lasting 1-2 years.

• Clear coat.

• Low maintenance.

• 3 easy steps to apply.

Kit Includes:

• 1 x Lightclean wipe

• 1 x 15ml tube of Lightspeed

• 1 x Brush

322072 Foulfree Kit 15ml 1

Foulfree is an easy to use foul release coating specifically designed to protect your transducer from marine growth, which will negatively affect its performance, reducing the detail on the sonar image you receive. If you had a stereo speaker with something in front of it, absorbing the sound, you’d still hear the music, but you’d lose some of the definition and detail. A transducer works in a similar way.

• Long lasting 1-2 years.

• Clear coat.

• Keeps transducer signal clear.

• Low maintenance.

• Airmar® certified.

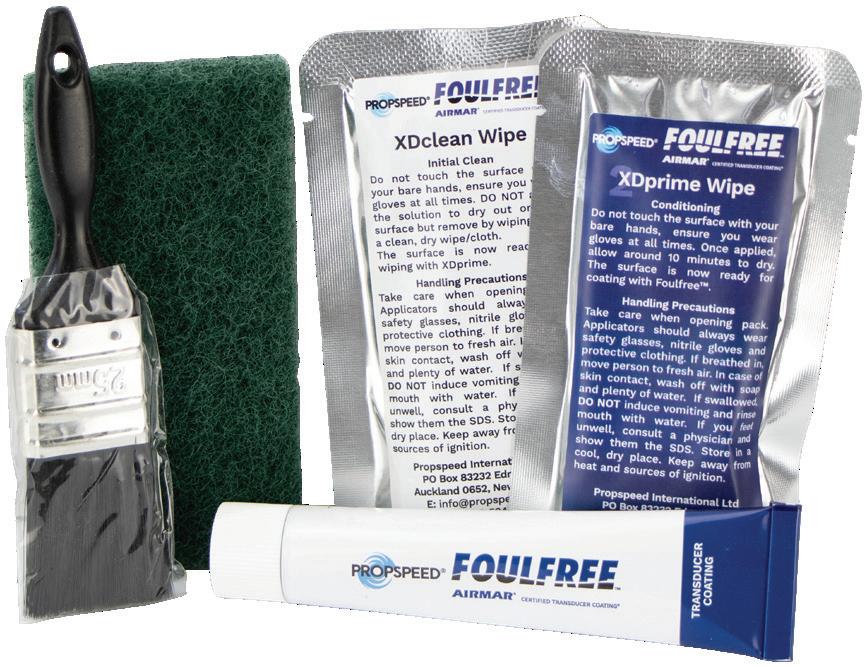

Kit Includes:

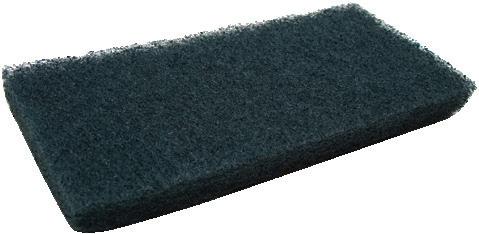

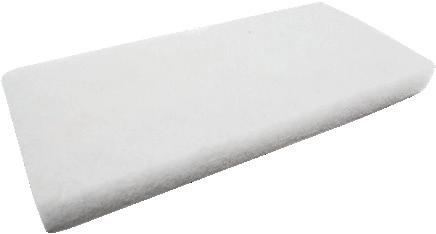

• 1 x Scrubbing pad

• 1 x 15ml tube of Foulfree

• 1 x XDclean wipe

• 1 x XDprime wipe

• 1 x Brush

32 Boat Building & Maintenance www.samallen.com.au Propspeed®
Part No. Description Size Pack Qty
Lightspeed™ / Foulfree™
15ml
Coverage Guide Lightspeed 1 x 15ml Kit Part No. Description Size Pack Qty
Counter top display pack available Counter top display pack available
Fouled Foulfree Foulfree™ Kit

Propspeed® Etching Primer Kit

322058 Propspeed Etching Primer Kit - Base/ Hardener

• 1 x 240ml etching primer base

• 2 x 60ml etching primer hardener

322060

Propspeed® Clear Cloat

Clear Coat 320ml

• Replacement clear coat, should a can be spilt during application.

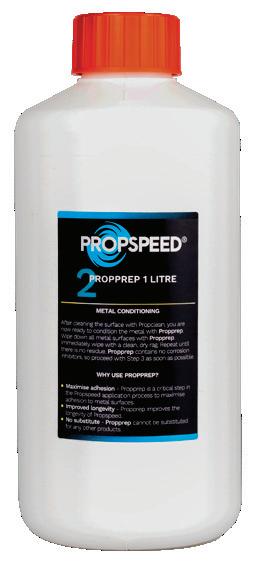

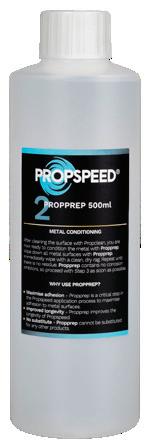

Propspeed® Propprep

Propspeed® Wipes

• Used in the preparation treatment of bare metal prior to the application of Propspeed finish coatings.

• Clean the bare metal surface with Propclean wipes and then with Propprep wipes.

Disposable Propspeed® Paint Stirring Wheels

• Used in the initial preparation of bare metal after the application of Propclean and prior to Propspeed etching primer and Propspeed Clear Coat.

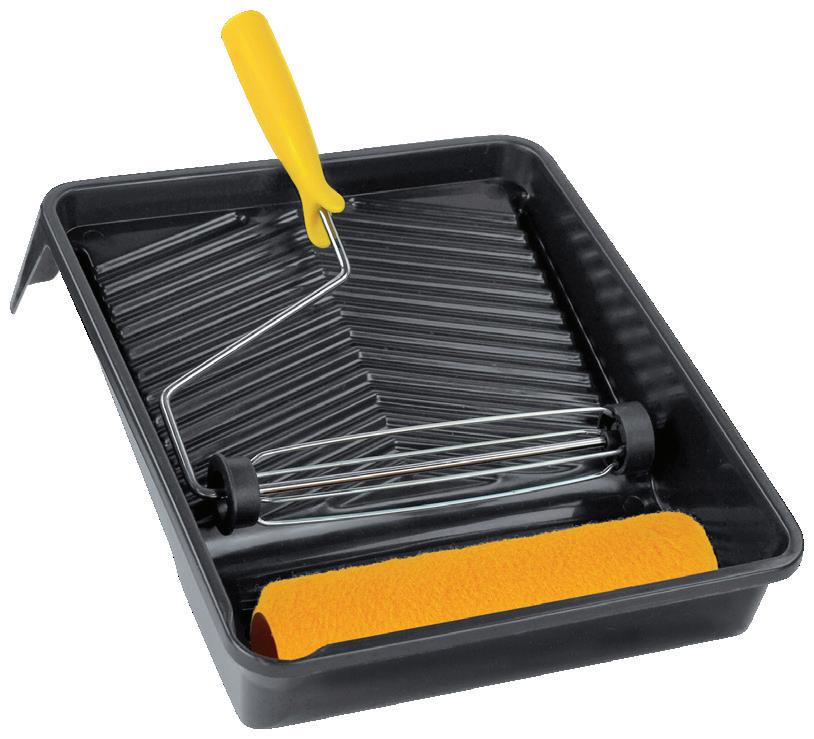

Applicator Kits

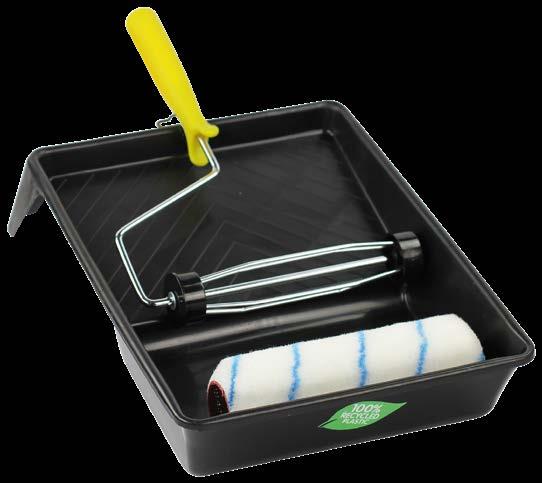

322080 Applicator Kit for Propspeed Kit Includes:

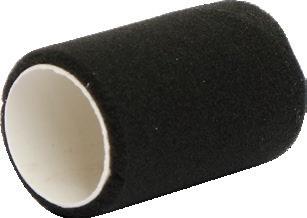

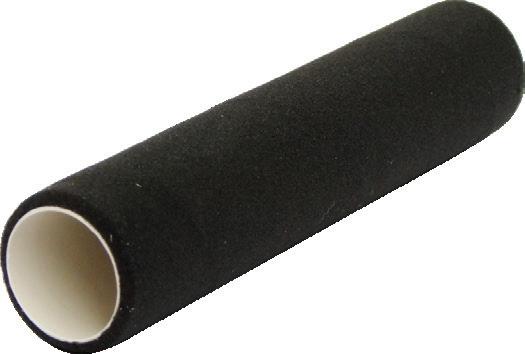

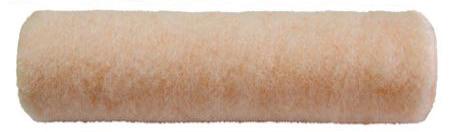

• 1 x Pack of 10 Heavy-duty 100mm foam roller covers.

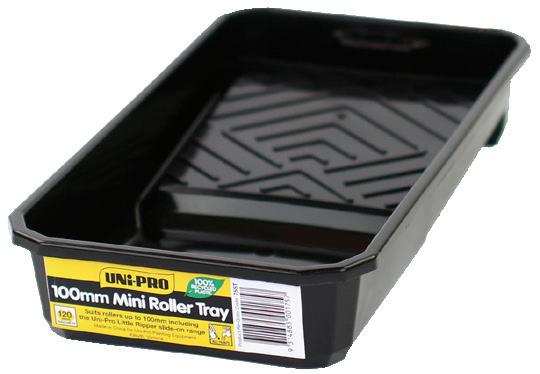

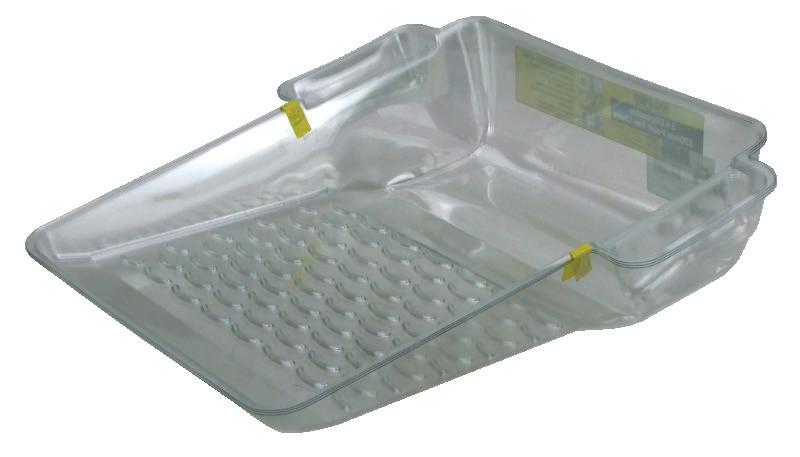

• 1 x 100mm Roller tray.

• 10 x 100mm Disposable tray liner.

• 1 x 100mm x 300mm slide on Roller frame.

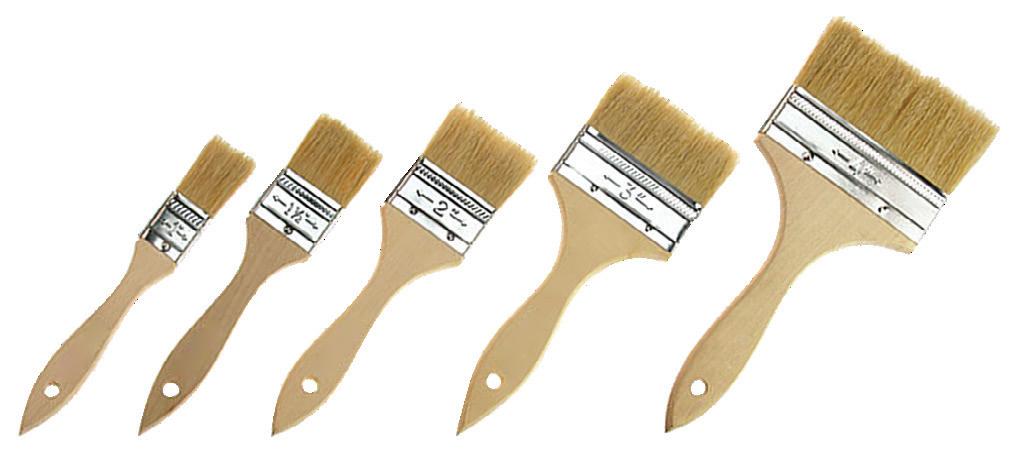

• 10 x 38mm General purpose brush.

Boat Building & Maintenance 33 Propspeed® www.samallen.com.au
Part No. Description Size
300ml Kit
Includes:
Part No. Description Size
Propspeed
Part No. Description Pack Qty 322064 Propclean Wipes 10 322066 Propprep Wipes 10
Part No. Description Size 322062 Propspeed Propprep 500ml 322063 Propspeed Propprep 1Ltr
Part No. Description
Part No. Description
322070 Paint Stirring Wheels - Pack of 10 Wheels / 1 Shaft

Techniglue

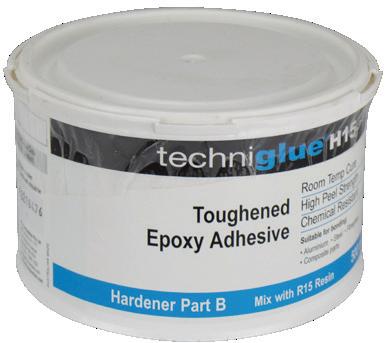

Techniglue R15 / H15

• Soft, thixotropic, solvent free, epoxy paste, formulated to cure at room temperature and produce a high strength structural adhesive for bonding of metals, particularly aluminium and steel.

• Formulated to overcome the problem of peeling failure in a metal-resin interface.

• High chemical resistance, high compressive & tensile strengths, and also has excellent adhesion to all normal substrates.

• Mix Ratio 1 part hardener to 1 part resin by weight or volume.

Techniglue R60 / H60

• Solvent free, Techniglue R60 epoxy resin, specifically formulated for use with Techniglue H60 fast or slow hardeners to cure at room temperature.

• The thixotropic nature of the adhesive provides good gap filling and hold-up on vertical surfaces.

• Techniglue is suitable for bonding structural elements fabricated from wood, concrete, fibreglass, stone & marble, pottery, metal (ferrous and non-ferrous) and some plastics.

• Mix Ratio 1 part hardener to 2 parts resin by volume.

34 Boat Building & Maintenance www.samallen.com.au Propspeed®
Epoxy Adhesives & Fillers
Slow Hardener Part No. Description Size 321016 Techniglue H60S Slow Hardener Only 2Ltr 321028 Techniglue H60S Slow Hardener Only 10Ltr Pack Part No. Description Size 320998 Techniglue R60 / H60F Pack (Resin 100ml / Fast Hardener 50ml) 150ml 320999 Techniglue R60 / H60F Pack (Resin 200ml / Fast Hardener 100ml) 300ml 321000 Techniglue R60 / H60F Pack (Resin 500ml / Fast Hardener 250ml) 750ml 321004 Techniglue R60 / H60F Pack (Resin 1Ltr / Fast Hardener 500ml) 1.5Ltr Resin Part No. Description Size 321001 Techniglue R60 Resin Only 500ml 321005 Techniglue R60 Resin Only 1Ltr 321008 Techniglue R60 Resin Only 4Ltr 321020 Techniglue R60 Resin Only 20Ltr Fast Hardener Part No. Description Size 321002 Techniglue H60F Fast Hardener Only 250ml 321006 Techniglue H60F Fast Hardener Only 500ml 321012 Techniglue H60F Fast Hardener Only 2Ltr 321024 Techniglue H60F Fast Hardener Only 10Ltr Resin Part No. Description Size 321033 Techniglue R15 Resin Only 500ml 321030 Techniglue R15 Resin Only 1Ltr 321037 Techniglue R15 Resin Only 4Ltr Pack Part No. Description Size 321034 Techniglue R15 / H15 Pack (Resin 500ml / Hardener 500ml) 1Ltr 321029 Techniglue R15 / H15 Pack (Resin 1Ltr / Hardener 1Ltr) 2Ltr 321038 Techniglue R15 / H15 Pack (Resin 4Ltr / Hardener 4Ltr) 8Ltr
Hardener Part No. Description Size 321035 Techniglue H15 Hardener Only 500ml 321031 Techniglue H15 Hardener Only 1Ltr 321039
H15 Hardener Only 4Ltr
Techniglue

Rapid Cure, Techifill & Technirez

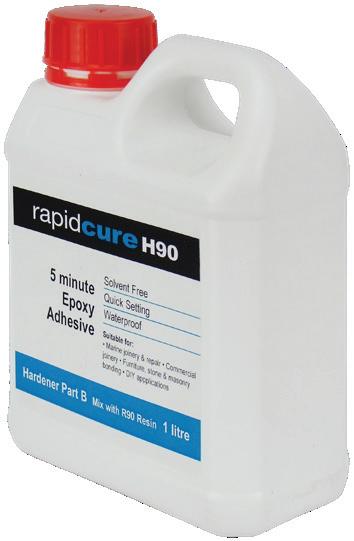

Rapid Cure R90 / H90

• Specifically formulated R90 resin for use with H90 hardener to provide thin film or glue joint gelation in approximately four minutes at 25C.

• Used in marine joinery and repair, commercial joinery, furniture manufacture, stone and masonry bonding and home handyman applications.

• Will successfully bond to soft woods, hard woods, particle board, custom wood, Formica, glass, leather, ceramics, most metals & some plastics.

• Mix Ratio 1 part hardener to 1 part resin by volume.

• R1160 / H1160 is a pre-thickened, two part fairing compound suitable for fairing in marine and industrial applications.

• Designed with good hold-up on vertical surfaces, it will bond well to a variety of substrates.

• Mix Ratio 1 part hardener to 1 part resin by volume.

• Technirez R1300 is a solvent free, epoxy resin specifically formulated for use with H1300 hardener that will cure at room temperature for flow-coating.

• One coat application.

• Tintable

• Good brush ability, self-levelling and easy to mix.

• Mix Ratio 1 part hardener to 2 parts resin by weight.

Boat Building & Maintenance 35 www.samallen.com.au

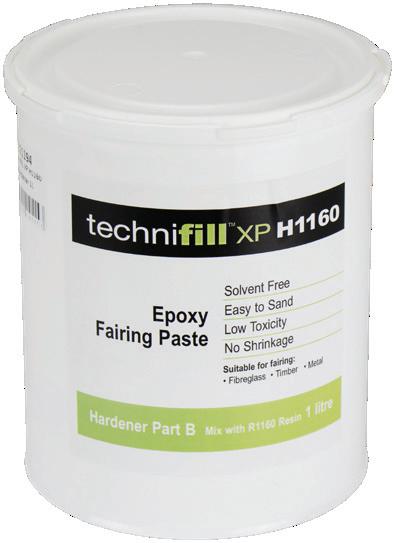

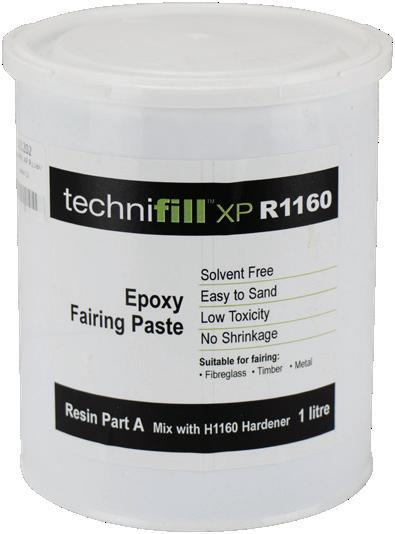

Technifill XP R1160 / H1160
Pack Part No. Description Size 321040 Rapid Cure R90 Pack (Resin Part A 125ml / Hardener Part B 125ml) 250ml Resin Part No. Description Size 321044 Rapid Cure R90 Resin Only 250ml 321052 Rapid Cure R90 Resin Only 1Ltr Hardener Part No. Description Size 321048 Rapid Cure H90 Hardener Only 250ml 321056 Rapid Cure H90 Hardener Only 1Ltr
Resin Part No. Description Size 321202 Technifill XP R1160 - Resin Only 1Ltr 321206 Technifill XP R1160 - Resin Only 4Ltr Hardener Part No. Description Size 321194 Technifill XP H1160 - Hardener Only 1Ltr 321198 Technifill XP H1160 - Hardener Only 4Ltr Resin Part No. Description Size 321350 Technirez R1300 Flowcoat Resin 1kg 321354 Technirez R1300 Flowcoat Resin 4kg Flowcoat Hardener Part No. Description Size 321352 Technirez H1300 Flowcoat Hardener 0.5kg 321356 Technirez H1300 Flowcoat Hardener 2kg
Pack Part No. Description Size 321208 Technifill XP R1160 Pack (Resin Part A 20Ltr / Hardener Part B 20Ltr) 40Ltr

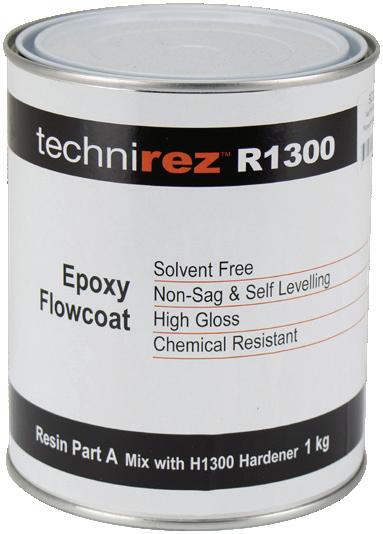

Technirez R1300 / H1300 Flowcoat

STEP 1. Start with 105 Epoxy Resin, the basic ingredient of all WEST SYSTEM epoxy compounds.

STEP 2. Control the cure time or adjust to the working temperature or working time required with one of four specially formulated WEST SYSTEM hardeners.

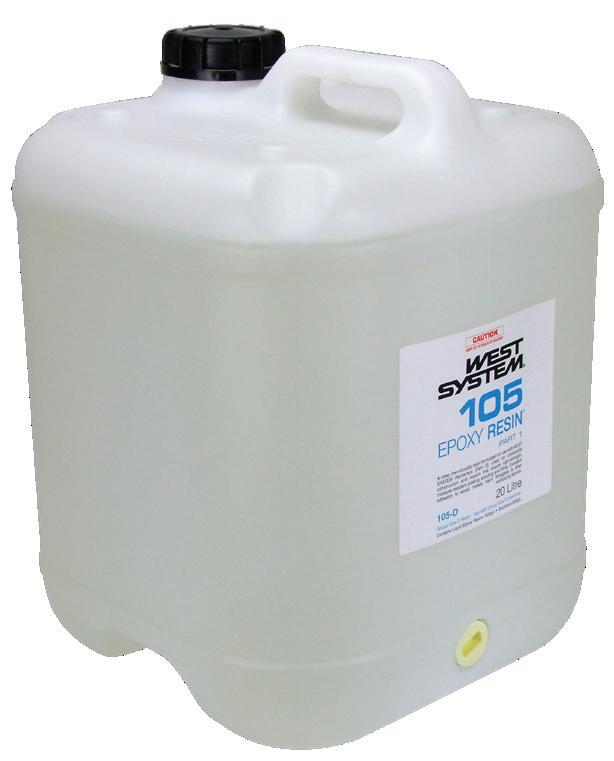

105 Resin is a low viscosity, solvent-free epoxy resin. Formulated for use with WEST SYSTEM hardeners. It can be cured in a wide temperature range to form a high-strength solid with excellent moisture resistance. It is designed specifically to wet out and bond with wood, fibreglass, reinforcing fabrics and a variety of metals.

HARDENERS

West System Epoxy Resins & Hardeners

STEP 3. Adjust the strength, weight, texture, sandability and colour of the cured epoxy with one of four WEST SYSTEM fillers. Adjust the viscosity of the resin / hardener mixture by the amount of filler added. Alternatively, provide specific coating properties with WEST SYSTEM additives.

SPECIALTY ADHESIVE

650

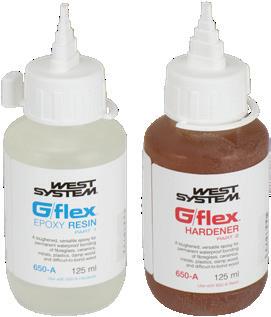

G/flex® 650 is a toughened epoxy, suitable for permanent waterproof bonding of fibreglass, ceramics, metals, plastics, damp and difficult-to-bond timbers. 1:1 Mix Ratio

ADDITIVES

206 205

205 Fast Hardener is used at lower temperatures to produce a fast cure that develops it's physical proper ties quickly Not intended for clear coating. 5:1 Mix Ratio

207 Special Coating Hardener is used for coating applications where moisture resistant, natural wood finish is desired. 3:1 Mix Ratio

413 Microfibre Blend is a high density filler used to create a multi-purpose adhesive. Excellent gap-filling qualities while retaining wetting and penetrating capabilities.

410 MicrolightTM is the ideal low density filler for creating a light, easily-worked fairing compound especially for fairing large areas. Can be troweled to a feather edge.

206 Slow Hardener is used when extended working and cure time is needed. Not intended for clear coating. 5:1 MixRatio

209 Extra Slow Hardener is used for general coating and bonding applications in extremely warm and / or humid conditions. 3:1 Mix Ratio

411 Microsphere Blend is a low density filler used to create a lightweight filling putty, with excellent filleting characteristics. Suitable for edge-gluing for strip plank construction

417 is a low density microballoon-based filler used to make fairing putties that are easy to sand or carve. The preferred filler under dark coloured surfaces.

423

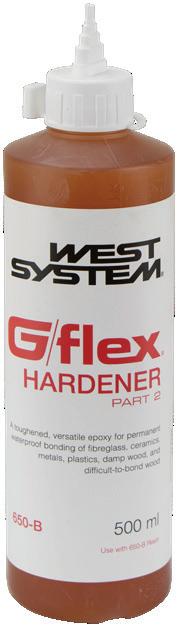

• G/flex® 650 is a toughened epoxy adhesive that is simple to use, viscous enough not to drain out of a joint, and is resilient enough to absorb the stress of expansion, contraction, shock and vibration. It offers superior adhesion to a variety of materials including aluminium and other metals, plastics, fibreglass, ceramic, masonry, glass, damp wood, difficult-tobond wood species and dissimilar materials.

• G/flex 650 is ideal for repairing leaks in aluminium boats, repairs to polyethylene and ABS canoes and kayaks, wooden boats, household or sporting equipment.

• Mix ratio 1 part hardener to 1 part resin by volume.

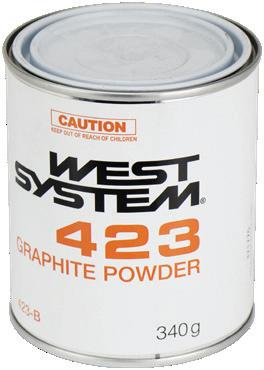

423 Graphite Powder is used to produce a low friction coating with increased scuff resistance and durability. 502

• A waterproof COATING

• A high-strength ADHESIVE

501

• An easy-to-sand SURFACE FILLER

403 Microfibres

404 High Density

405 Filleting

406 Colloidal Silica

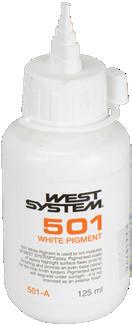

501 White and 502 Black Pigments are used to tint epoxy mixtures and provide an even colour base to highlight surface flaws and imperfections, prior to the final finish system.

Microfibre Blend

Microsphere Blend

Microfibre Blend

Low Density Filler

Microlight

36 Boat Building & Maintenance www.samallen.com.au For
411
New Boat Construction, Fibreglass Repair & Maintenance & Wooden Boat Restoration EPOXY RESIN FILLERS 413
105 417
410
207
209
USA West System Fillers Australian West System Fillers
407
410 Microlight
413
411
Low Density Filler
413 Microfibre Blend
413
417
410
Resin Part No. Description Size 321334 G/Flex 650 Epoxy Resin Only 125ml 321338 G/Flex 650 Epoxy Resin Only 500ml 321340 G/Flex 650 Epoxy Resin Only 4Ltr Hardener Part No. Description Size 321342 G/Flex 650 Epoxy Hardener Only 125ml 321346 G/Flex 650 Epoxy Hardener Only 500ml 321348 G/Flex 650 Epoxy Hardener Only 4Ltr
Pack
Description Size
Part No.
321333 G/Flex 650 Epoxy Resin 125ml/Hardener 125ml (Pack)
250ml
Resin Hardener 321333 GLUES PLASTIC
YouTube Video
G/flex Epoxy

Epoxy Resins, Hardeners & Speciality Epoxies

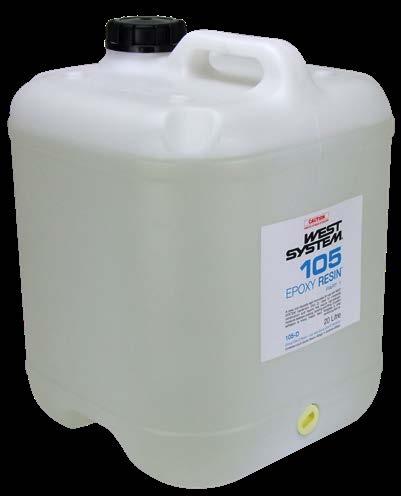

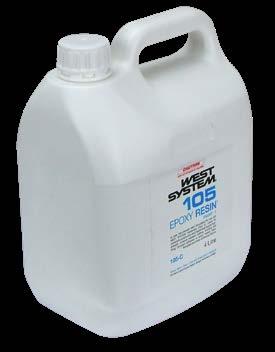

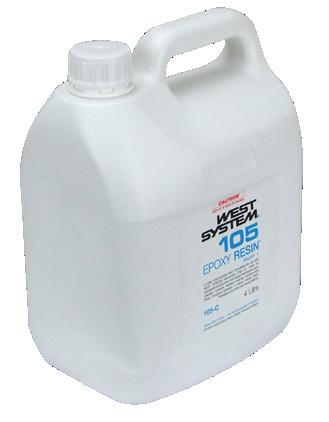

Epoxy Resin - 105

Hardener - 205 Fast

• R105 Formulated for use with WEST SYSTEM® hardeners, it can be cured in a wide temperature range to form a high-strength solid mix with excellent moisture resistance.

• It is designed specifically to wet and bond with wood, fibreglass, reinforcing fabrics, metals and a variety of other materials.

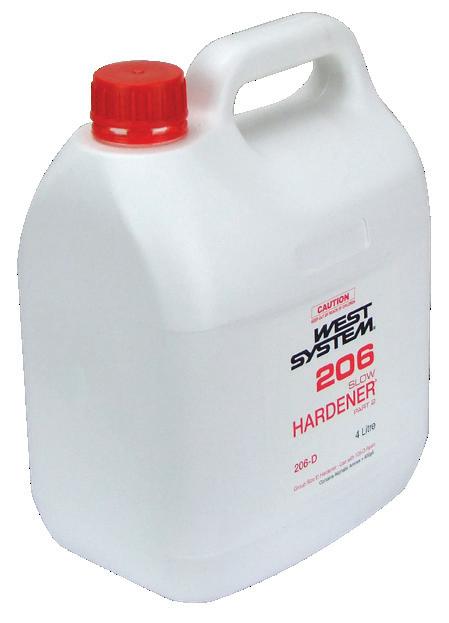

Hardener - 206 Slow

• H205 Fast Hardener is used, in the majority of situations, at lower temperatures to produce a rapid cure that develops its physical properties quickly at room temperature.

Mix ratio 1 part hardener, 5 parts resin.

Hardener - 207 Special Clear

• H206 Slow Hardener is used when extended working and cure time is needed, or to provide adequate working time at higher temperatures.

• Mix ratio 1 part hardener, 5 parts resin.

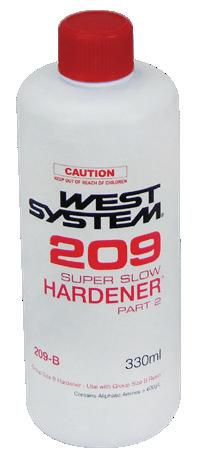

Hardener - 209 Super Slow

• H207 Special Clear Hardener has been specifically developed for coating applications where moisture resistant, natural wood finish is desired. An uLtraviolet inhibiting additive improves resistance of a R105/H207 mixture to sunlight.

• H207 also works well in humid conditions.

• Mix ratio 1 part hardener, 3 parts resin.

NOTE: Must be poured in layers less than 6mm thick to retain clarity

• H209 Super Slow Hardener is formulated for general coating and bonding applications in extremely warm and/or humid conditions, or when extended working time is desired at room temperature.

• H209 Super Slow provides approximately twice the working time of H206 Slow.

• Mix ratio 1 part hardener, 3 parts resin.

Boat Building & Maintenance 37 www.samallen.com.au
Part No. Description Size 321072 205 Fast Hardener Only 100ml 321080 205 Fast Hardener Only 200ml 321092 205 Fast Hardener Only 800ml 321108 205 Fast Hardener Only 4Ltr Part No. Description Size 321076 206 Slow Hardener Only 100ml 321084 206 Slow Hardener Only 200ml 321096 206 Slow Hardener Only 800ml 321112 206 Slow Hardener Only 4Ltr
Part No. Description Size 321087 207 Special Clear Hardener Only 160ml 321088 207 Special Clear Hardener Only 330ml 321100 207 Special Clear Hardener Only 1.33Ltr 321114 207 Special Clear Hardener Only 6.7Ltr
Part No. Description Size 321086 209 Super Slow Hardener Only 160ml 321089 209 Super Slow Hardener Only 330ml 321104 209 Super Slow Hardener Only 1.33Ltr 321113 209 Super Slow Hardener Only 6.7Ltr
Part No. Description Size 321116 105 Resin Only 500ml 321120 105 Resin Only 1Ltr 321124 105 Resin Only 4Ltr 321128 105 Resin Only 20Ltr

Microlight 410 Microsphere Blend 411

• The ideal low-density filler for creating a light, easily-worked fairing compound especially suited for cosmetic or surface applications like shaping, filling or fairing.

• Mixes to a very smooth creamy texture that can be trowelled to a feather edge, and is less porous than other filling compounds.

• 411 Microsphere Blend is a low density filler which cures to a lightweight filling putty with excellent filleting characteristics.

• Also used as a low density adhesive for edge gluing in strip plank construction.

Low Density Fairing Filler 417 Microfibre Blend 413

• A high density filler used to create a multi-purpose, high strength adhesive used for structural applications like bonding, filleting and hardware bonding, while retaining excellent wetting and penetrating capabilities.

• As a blended filler, 413 Microfibre Blend, offers an added degree of thixotropy and substantially improved spreading and working properties.

Epoxy Graphite Powder 423

• 423 Graphite Powder is a fine black powder that can be mixed with WEST SYSTEM epoxy to produce a low friction coating with increased scuff resistance and durability.

• Often used as a low-load, low-speed bearing surface, and as a coating on rudders and centreboards, or on the bottoms of racing craft that are dry sailed. It does not provide antifouling qualities.

• A low density microballoonbased filler used as a thickening agent with epoxy fairing systems to make fairing putties that are easy to sand or carve.

• 417 has a reasonably strong strength to weight ratio, and is recommended as the preferred filler under dark coloured surfaces.

Epoxy Pigment 501 / 502

• Pigments are epoxy-based pastes used to tint the epoxy mixture and provide an even colour base, or to highlight surface flaws and imperfections, prior to the final finish system.

38 Boat Building & Maintenance www.samallen.com.au
Part No. Description Size 321250 410 Microlight Fairing Filler 4Ltr 321254 410 Microlight Fairing Filler 12Ltr 321258 410 Microlight Fairing Filler 20Ltr
Part No. Description Size 321266 411 Microsphere Blend Filleting Filler 4Ltr 321270 411 Microsphere Blend Filleting Filler 12Ltr 321274 411 Microsphere Blend Filleting Filler 20Ltr
Part No. Description Size 321234 413 Microfibre Blend Adhesive Filler 4Ltr 321238 413 Microfibre Blend Adhesive Filler 12Ltr 321242 413 Microfibre Blend Adhesive Filler 20Ltr
Additives & Fillers
Part No. Description Size 321244 417 Low Density Fairing Filler 4Ltr
Part No. Description Size 321222 423 Graphite Powder 170g 321226 423 Graphite Powder 340g
Part No. Description Colour Size 321210 501 Pigment White 125ml 321211 501 Pigment White 250ml 321212 501 Pigment White 500ml 321214 502 Pigment Black 125ml 321215 502 Pigment Black 250ml 321216 502 Pigment Black 500ml

Dispensing Pumps

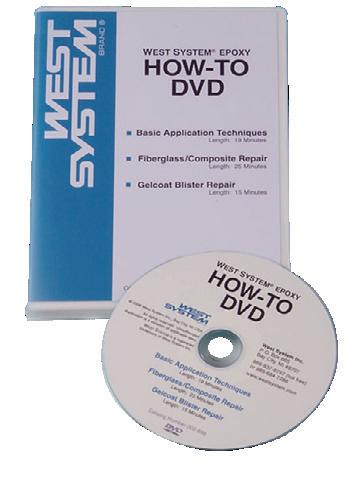

Application Tools & Technical Publications

Boat Building
Maintenance 39 www.samallen.com.au

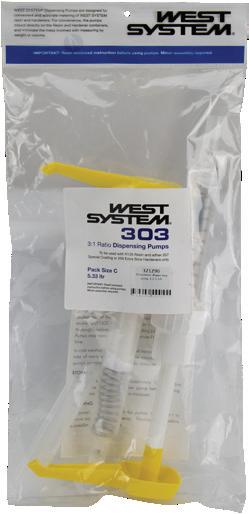

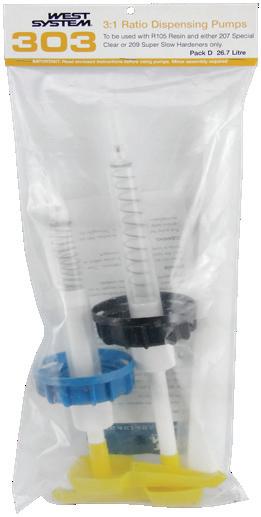

Pumps Part No. Description Mix Ratio Size 321278 Dispensing Pump Set 5:1 1.2Ltr 321286 Dispensing Pump Set 5:1 4.8Ltr 321290 Dispensing Pump Set 3:1 5.33Ltr 321294 Dispensing Pump Set 5:1 24Ltr 321295 Dispensing Pump Set 3:1 26.7Ltr
&
Dispensing
A comprehensive range of dispensing equipment for convenient and accurate metering of liquid resins to ensure efficient and safe use of WEST SYSTEM® epoxy products. 321278 321286 321290 321294 321295 Part No. Description Size 321132 Foam Roller Cover Twin Pack 180mm 321136 Plastic Mixing Container 500ml 321138 Re-Usable Mixing Stick Pack of 8 321139 Re-Usable Mixing Stick Pack of 60 321140 Mini Syringes Pack of 2 321144 White Rubber Squeegee 150mm 321146 Yellow Plastic Spreader Pack of 2 321298 Disposable Mixing Stick Box of 100 321136 321132 Part No. Description 321150 The Gougeon Brothers On Boat Construction 321152 West System How-To DVD 321162 Fibreglass Boat Repair & Maintenance 321166 Gelcoat Blisters - Diagnostics, Repair & Prevention 321178 Wooden Boat Restoration 321150 321152 321166 321178 321162 321144 321298 321146 321140 321138 321139

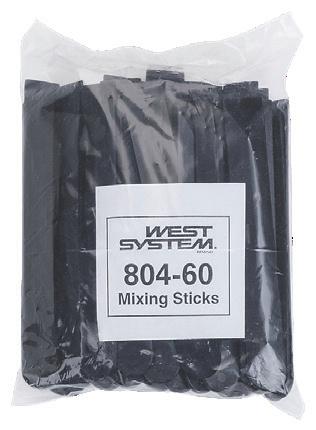

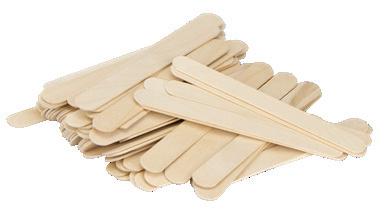

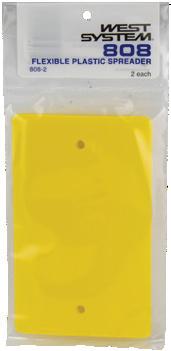

Applicators & Mixing Instruction Manuals

Clear High-Gloss Varnish

• Added UV filter protects wood from discolouration.

• Renowned for its high gloss retention and durability, even in tropical climates.

• Unique flow, high build, and excellent outdoor durability.

• Excellent UV resistance and flexibility to prevent cracking.

• Suitable for above-waterline use in both fresh and saltwater environments.

Polyurethane Clear Gloss

• Has excellent outdoor durability and is resistant to weathering, chemicals, scratching and loss of gloss.

• Outstanding flow characteristics for both brush and spray applications.

• Clear gloss finish.

• UV filter protects from discolouration.

• 2 part mix ratio by weight.

• Excellent adhesion.

• Apply by brush or spray.

Polyurethane Speedcoat Clear Gloss

• Two-component finishing varnish that is resistant to weathering, chemicals, scratching and loss of gloss.,

• Outstanding flow characteristics, this system is most suited for spray application.

• Suitable as an outdoor (clear gloss) finishing varnish.

• UV Resistant.

• Protective Finishing Coat.

• Professional Use.

321524 Epifanes Woodfinish Matte Exterior 1 Ltr

• Clear, satin finish coating used for all fine timbers like teak and iroco, giving years of protection against alcohol and other aggressive household chemicals.

• Suitable for Fine Furniture.

• Clear, Satin Finish.

• Dries to a Transparent Amber Colour.

Paints, Varnishes & Coatings

Wood Varnish & Thinners

• Professional, quick drying, 2 pack high-gloss build up varnish for all types of wood.

• Resistant to water, alcohol and various household chemicals, it is recommended as a sealer for oily wood, i.e., Teak and Iroko.

• Excellent flow.

• Abrasion resistant.

• Rapid build-up.

• High-quality UV filter.

• Provides superior protection against alcohol and other aggressive household chemicals.

• It is preferably used as an interior stain finish coat over several build up coats of Epifanes PU Clear High Gloss or epoxy resin.

• Chemical Resistant.

• Clear Satin Finish.

• 2 part Mix Ratio by Weight.

• Apply by Roller.

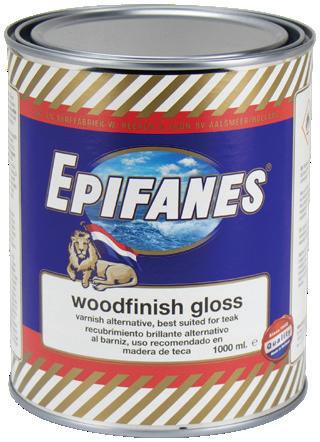

321522 Epifanes Woodfinish Gloss Exterior 1 Ltr

• Excellent adhesion to de-greased and sanded new teak and other exotic woods. It is used where a glossy, varnished look is desired. Suitable for teak. iroco, oak, mahogany and meranti.

• Excellent UV resistance.

• Suitable for Interior and Exterior Applications.

• Ideal for Continuous Maintenance of Wood Oil Systems.

• Dries to a Transparent Amber Colour.

• Provides superior protection against alcohol and other aggressive household chemicals in interior applications.

• Apply as a finish coat over several build-up coats of Epifanes Clear Gloss Varnish or Woodfinish Gloss.

• Single Component.

• Clear Satin Finish.

• Cures to a Transparent Amber Colour.

• Brush or Spray Applications.

40 Boat Building & Maintenance www.samallen.com.au
Rubbed Effect Varnish Woodfinsh Matte Woodfinsh Gloss Polyurethane Clear Satin
Part No. Description Size 321502 Epifanes Clear Varnish Exterior High Gloss 500ml 321504 Epifanes Clear Varnish Exterior High Gloss 1 Ltr

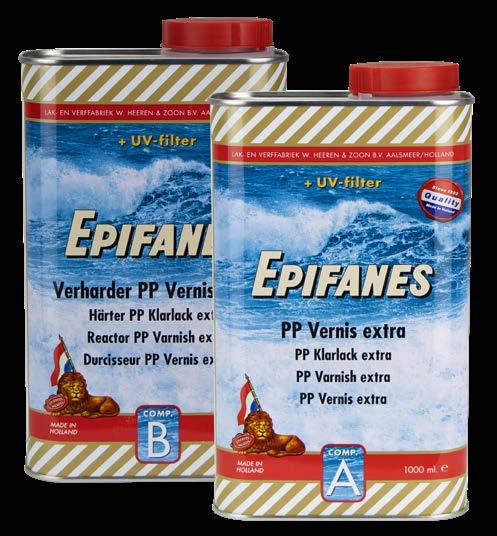

Part No. Description Size 321506 Epifanes PP Varnish Extra Build-Up High Gloss Professional 2 Ltr
Part No. Description Size 321512 Epifanes Polyurethane Clear Gloss External 2-Part 750g
Part No. Description Size 321514 Epifanes Polyurethane Clear Satin Internal 2-Part 750g
Part No. Description Size 321516 Epifanes Polyurethane Speedcoat Clear Gloss External 2-part 3kg
Part No. Description Size
Part No. Description Size
Part No. Description Size 321526 Epifanes Rubbed Effect Clear Interior Satin Varnish 1 Ltr
PP
Varnish Extra

Wood Varnish & Thinners

Teak Stain

• Quick drying teak coloured stain providing in depth tinting power on bare wood.

• Ideally suited to provide a warm colour on (faded) wood and/or to camouflage discoloured wood patches prior to applying Epifanes one or two-component varnishes.

• For Interior and Exterior use above the waterline on bare solid wood and plywood.

• May also be used as colour enhancer in almost all Epifanes one and twocomponent clear varnishes and/or epoxy resin.

RapidClear

• UV resistant semi-gloss wood finish. The answer for a quick and easy alternative to conventional varnish.

• It bonds extremely well to teak and other oily woods, preventing discolouration and emphasising the natural grain of the wood.

• Quick Drying.

• Maximum Durability and Longevity.

• Cures to a Transparent Amber Colour.

Brush Thinner for Paint and Varnish

• High quality thinner for brushing or rolling most one-component primers, paints and varnishes.

• The double distillation of this thinner provides maximum purity.

Mahogany Stain

• Quick drying warm, rich red/brown coloured stain providing in depth tinting power on bare wood.

• Provides a warm colour on (faded) wood and/or to camouflage discoloured wood patches prior to applying Epifanes one or two-component varnishes.

• For Interior and Exterior use above the waterline on bare solid wood and plywood.

• May also be used as colour enhancer in almost all Epifanes one and two-component clear varnishes and/or epoxy resin.

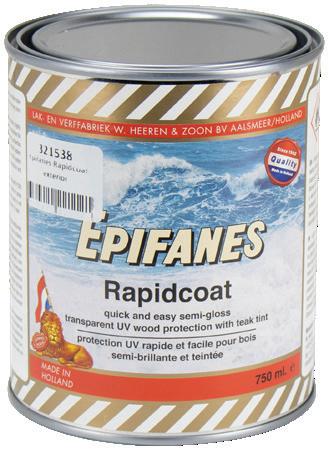

Rapidcoat

• Used for a quick and easy alternative to conventional varnish, and also as a quickdrying primer coat prior to Epifanes Clear Varnish and Woodfinish Gloss.

• Bonds Extremely Well to Teak and Oily Timbers.

• Can be Brushed or Sprayed - Note : Use of Correct Thinner is essential.

• Rapidcoat is Teak pigmented and Cures to a Light Teak Colour.

• UV Resistant.

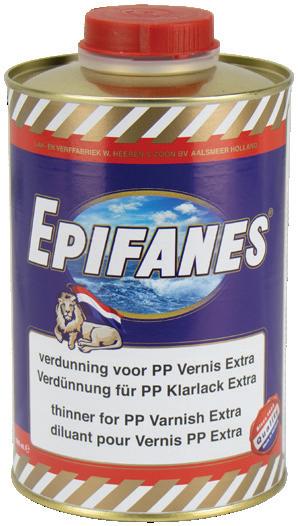

Brush Thinner for Polyurethane

• Slow evaporating thinner for brushing and rolling Epifanes polyurethane varnishes.

• Also suitable as a slow evaporating thinner for Epifanes PP Varnish Extra.

• Fast evaporating thinner for use with

• It is also suitable for degreasing teak wood.

Boat Building & Maintenance 41 www.samallen.com.au Thinner PP Extra Thinner Slow
Part No. Description Size
Epifanes Mahogany Stain 500ml
321534
Part No. Description Size 321536 Epifanes Rapidclear Exterior SemiGloss Varnish 750ml
Part No. Description Size 321538 Epifanes Rapidcoat Exterior Semi-Gloss Teak Tinted 750ml
Part No. Description Size 321552 Epifanes Brush Thinner suit Single Pack Varnishes 1 Ltr
Part No. Description Size 321532 Epifanes Teak Stain 500ml
Part No. Description Size 321554 Epifanes Brush Thinner suit 2-Pack Polyurethane Varnishes 1 Ltr
Part No. Description Size 321556 Epifanes Thinner Slow suit Speedcoat Clear Gloss 1 Ltr • Used with the Epifanes Speedcoat Clear Gloss (321516). Part No. Description Size 321558 Epifanes Thinner suit PP Varnish Extra 1 Ltr
PP Varnish Extra.
Epifanes

Owatrol

Teak Olje, Deks Olje & Cleaner & Brightener

Owatrol Deks Olje - Matte / Gloss Finish

• Deks Olje is a penetrating oil that can be used as an alternative to varnish.

• Penetrates deep into the heart of the wood for a rich, natural long lasting finish.

• Keeps wood in pristine condition and protects it with powerful fungus and rot inhibitors.

• Deks Olje D.2 is applied over D.1 to produce a high gloss finish.

• Lightens and restores colour to all greyed,

• Non-aggressive and easily rinsed with water.

• Can clean and rejuvenate plastic, gel coats and GRP.

• Fast-acting - restores wood to its natural colour in just 15 minutes.

Ideal Uses for Deck Cleaner

• Reviving neglected decks and handrails.

• Neutralizing stripped surfaces before applying a finish.

• Degreasing tropical hardwoods to aid penetration of your chosen finish.

• Cleaning previously coated wood surfaces which are dirty.

• Lightening and restoring greyed weathered marine wood.

• Clear protection giving a rich, matt finish.

• Perfect for protecting teak and exotic hardwoods.

• Maintains & enhances the wood’s natural beauty.

• Easy maintenance with no sanding or stripping.

• Will not blacken due to UV exposure.

42 Boat Building & Maintenance www.samallen.com.au
Gloss Finishes Part No. Description Size Coverage Per Coat Application Temp Dry Time 322025 Deks Olje - D.2 1Ltr 15m2/l 8°C - 35°C 24h 322026 Deks Olje - D.2 2.5Ltr 15m2/l 8°C - 35°C 24h 322027 Deks Olje - D.2 10Ltr 15m2/l 8°C - 35°C 24h
Part No. Description Size Coverage Per Coat Application Temp Dry Time 322020 Deks Olje - D.1 1Ltr 8-12m2/l 5°C - 35°C 12h - 24h 322021 Deks Olje - D.1 2.5Ltr 8-12m2/l 5°C - 35°C 12h - 24h 322022 Deks Olje - D.1 10Ltr 8-12m2/l 5°C - 35°C 12h - 24h
Matt Finishes
Part No. Description Size Coverage Per Coat Application Temp Dry Time 322017 Owatrol Teak Olje 1Ltr 10-14 m2/l 5°C - 35°C 24h 322018 Owatrol Teak Olje 2.5Ltr 10-14 m2/l 5°C - 35°C 24h
Matt Finishes Gloss Finishes
Part No. Description Size Coverage Per Litre Working Time 322028 Owatrol Deck Cleaner & Brightener 2.5Ltr 5-10m2/l 10-20 mins
weathered marine wood without bleaching.
Owatrol Deck Cleaner & Brightener Owatrol Teak Olje - Premium Hardwood Oil Interior / Exterior

Owatrol C.I.P., Marine Oil, Polytrol Surface Restorer & Penetrol

Owatrol Marine C.I.P. - Corrosive Inhibiting Primer

• Can be overcoated with all paint types - Polyurethane, Epoxy, Chlorinated Rubber, Car paints, etc.

• Ideal for difficult conditions such as marine environments.

• Stabilises the surface whilst penetrating the substrate, driving out excess moisture and air.

• Provides a solid stable layer that other paints can firmly adhere to.

• Minimal preparation required - eliminates the need for sandblasting.

• Restores the colour and appearance of dull and faded surfaces caused by exposure to sunlight, rain and pollution.

• Long lasting and penetrates deep into the gelcoat.

• Protects against corrosion and blemishes.

• Eliminates the need for waxes and polishes that sit on surfaces and dry out quickly.

• Dry time 10-20 mins (leave for 24h before use.

• Suitable for use on fibreglass (GRP).

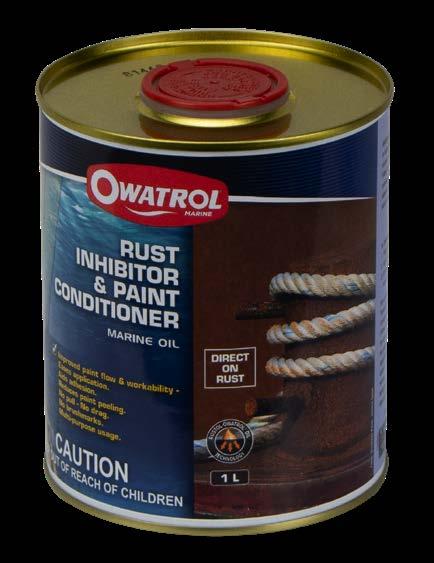

Owatrol Marine Oil - Rust Inhibitor & Paint Conditioner

• Deeply penetrating rust inhibitor.

• Pushes out moisture and air from within, stabilising rust and preventing it from returning.

• Paint conditioner which improves paint flow and eliminates brush marks.

• Improves adhesion of oil-based paints and prevents peeling.

• Improves coverage and uniformity of paint, up to 25% more.

• Eases application of finishes in difficult conditions.

• Restores lustre to faded fibreglass.

• Primes, seals and bonds.

• Can be used alone or as a paint additive for oil based paints, metal or wood primers, varnishes and stains to make paint stick.

• Low odour, non-toxic when dry and colourless.

Boat Building & Maintenance 43 www.samallen.com.au Penetrol Aerosol and Primer Owatrol Marine Polytrol Surface
Part No. Description Size Coverage Per Coat Application Temp Dry Time 322036 Marine Polytrol 500ml 18m2/l 5°C - 35°C 10-20 mins
Restorer
Part No. Description Size 322030 Penetrol Aerosol - Rust Treatment 300g 322031 Penetrol - Primer 500ml 322032 Penetrol - Primer 1Ltr 322033 Penetrol - Primer 4Ltr
Part No. Description Size Coverage Per Coat Application Temp Dry Time 322010 Owatrol Marine Oil 500ml 18 m2/l 5°C - 35°C 24h 322011 Owatrol Marine Oil 1Ltr 18 m2/l 5°C - 35°C 24h 322012 Owatrol Marine Oil 5Ltr 18 m2/l 5°C - 35°C 24h
Part No. Description Size Coverage Per Coat Application Temp Dry Time 322013 Owatrol Marine C.I.P. 750ml 15 m2/l 5°C - 35°C 6h 322014 Owatrol Marine C.I.P. 2.5Ltr 15 m2/l 5°C - 35°C 6h

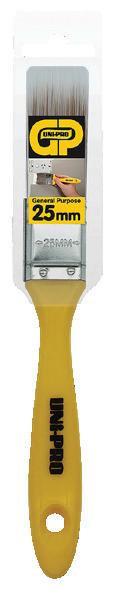

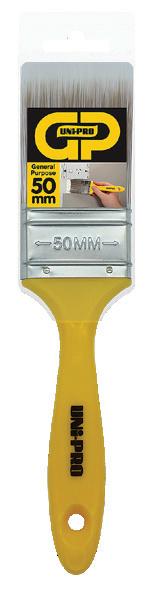

Paint Brushes - Economy Unpainted

• Pure bristle.

• Ideal for use with fibreglass resins.

• Unpainted timber handle.

• 100% synthetic filament bristles.

• Plastic handle.

• Ideal for general purpose.

• Suits all paints, propspeed and smooth surfaces.

• Resistant to common solvents including acetone.

• Plastic handle.

Paint Equipment

Paint Brushes & Form Brushes

• Blended bristle.

• Painted handle. Economical.

44 Boat Building & Maintenance www.samallen.com.au
Foam Brushes - Wood Handle Paint Brushes - Radiator Angled
Part No. Size (mm) 201110 25 201111 38 201112 50 201114 75 201115 100
Part No. Size (mm) 201100 12 201101 25 201102 38 201103 50 201104 63 201105 75 201106 100
Part No. Size (mm) 201180 25 201181 38 201182 50 201183 63 201184 75 201185 100
Part No. Size (mm) 201117 50 201120 75
Part No. Size (mm) 201125 25 201126 50 201128 75 201129 100
Perfect for use with oil-based paints and stains. Part No. Size (mm) 201123 50
• Pure bristle.
to get to places.
Wooden
handled offset brush for hard

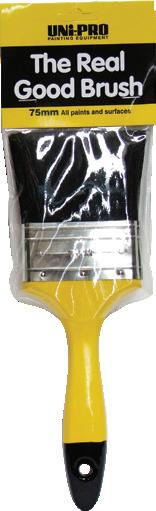

Paint Brushes - 'Real Good' Paint Brushes - General Purpose Paint Brushes - Solvent / Acetone Resistant

Roller Kits, Trays & Liners

Roller Kits - Anti-Foul Roller Kits - Standard

• Commonly used with anti-fouling paint.

• Kit contains tray, roller frame and 12mm nap nylon roller cover.

• Contains plastic tray, roller frame and 10mm nap polyester roller cover.

• Suitable for use with most paints on smooth or lightly textured surfaces.

45 Part No. Width (mm) 201140 180 201141 230
Roller Tray Boat Building & Maintenance
Part No. Suits Roller (mm) 201145 100 201146 180 201147 230
Plastic tray suitable for use with most paints.
201146 / 201147
201145
Part No. Suits Tray (mm) Pack Qty 201148 230 3 201149 100 10
Suits plastic roller trays opposite. 201149 Part No. Width (mm) 201144 230
201148
www.samallen.com.au
Disposable Tray Liner

Roller Handles, Frame & Covers

Roller Frame - Slide On - Mini Excel Roller Handle

• Long reach frame ideal for hard to reach areas.

• Slide-on frame compatible with all 100mm slide-on mini roller covers.

• The threaded handle fits most standard extension poles.

Fibreglass Compression Roller

• For use with chopped strand fibreglass.

• Wooden handle with stainless steel disc roller.

Roller Covers - HD Foam - Mini

• Combines quality components with trade fabrics.

• Best

• Compatible with slide-on mini roller frames.

Roller Covers - Resin/Lay Up

• Suitable for satin and gloss painting applications.

• Short nap, mohair blend, also ideal for resin layup.

• Foam roller cover produces an even finish.

• Suitable for acrylic and enamel

• Can be used with gloss and satin finishes.

• Metal slide-on frame with sturdy plastic handle.

- Polyester Fabric

• Suitable for most paints on smooth or lightly

• Solvent resistant core.

• Suitable for all acrylic and enamel based paints.

• Can be used on flat, low sheen and semi-gloss finishes.

• Also suitable for anti-fouling paints.

www.samallen.com.au Dispos-A-Roller
Roller Covers - Synthetic Fabric Roller Covers
46 Boat Building & Maintenance
Part No. Width (mm) 201152 75 201153 130 201154 180 201155 230
Part No. Width (mm) Diameter (mm) 201174 75 19
Part No. Size (mm) 201150 100 x 300 201151 100
400
x
201150 Part No. Width (mm) Nap (mm) 201160 75 10 201161 130 10 201162 180 10 201163 230 10
textured surfaces.
Part No. Width (mm) Nap (mm) 201170 180 5
Part No. Width (mm) Nap (mm) 201171 180 10 201172 230 10
Part No. Width (mm) Nap (mm) Pack Qty 201158 100 9 2 201159 100 9 10
suited for use with high gloss and satin paints.
201158 201159 Part No. Width (mm) 201165 75 201166 230
based paints.
201151

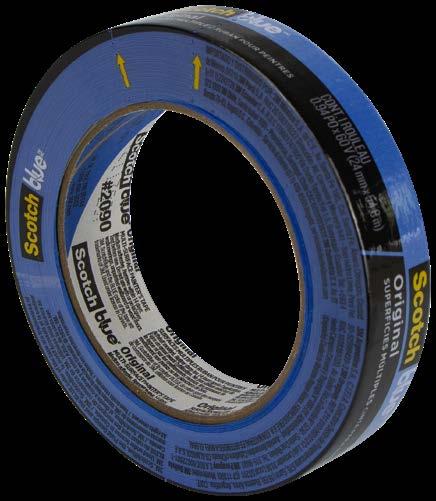

Masking Tapes

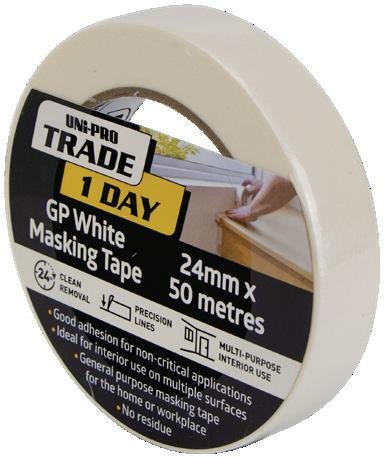

Masking Tape - General Purpose

• Tear resistant general purpose masking

• Leaves no residue.

Masking Tape - 14 Day

• Tear resistant.

• Ideal for timber, glass, plaster, metal and brick.

• Leaves no residue.

• 14 day UV resistant.

• Suitable for indoor and outdoor use.

Masking Tape - PVC Outdoor Long Life

• Recommended when a smooth edge is required.

• Ideal for long term external painting, rendering and textured coat applications.

• Clean removal for up to 14 days.

• Strong adhesion to withstand moisture.

Masking Tape - 3M™ 233+ Scotch Paint

• Flexible to hug

• Not for extended

Masking Tape - Trade Painters

• Flexible enough to conform to curves, whilst preventing bleed through to ensure clean, sharp lines.

• Professional grade suitable for most painting applications.

• Removes clean within 24 hours.

Masking Tape - 3M™ 2055 Scotch Paint

• Removes cleanly for up to five days after application.

• Conforms well to most surfaces.

• Easy to apply.

• Contains 30% post consumer recycled fibres.

Masking Tape - 3M™ Longlife

• UV stable and cleanly removed for up to seven days after application.

• Crepe paper backing suitable for paint and varnish masking applications.

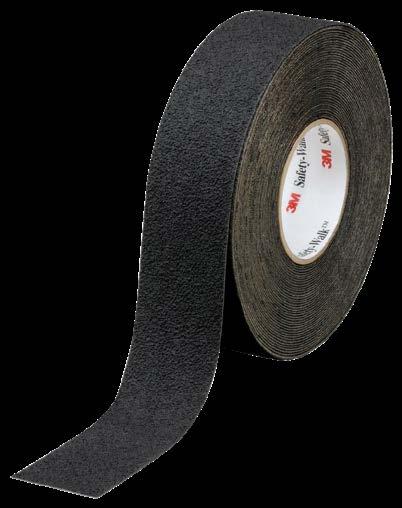

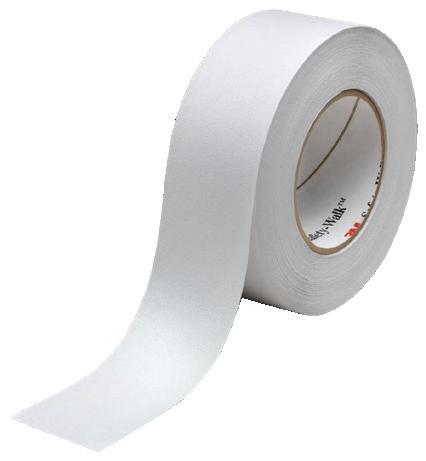

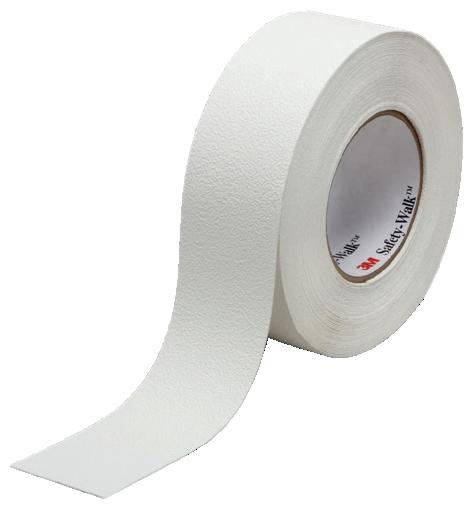

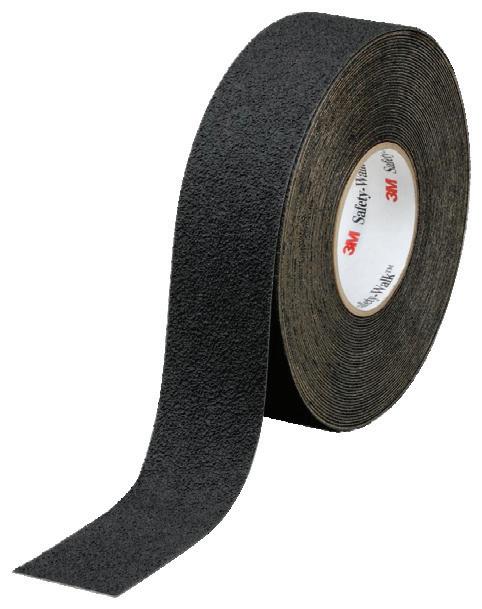

Slip-Resistant Tapes

• Textured, slip-resistant material.

• Reverse side coated with pressure-sensitive adhesive protected by a removable liner.

• Ideal for wet, foot traffic areas.

Boat Building & Maintenance 47 www.samallen.com.au 3M™ Safety-Walk™
Part No. Length (m) Width (mm) 201032 55 24
Part No. Length (m) Width (mm) 201026 50 24
Part No. Length (m) Width (mm) 201010 50 18 201012 50 24 201016 50 48
Part No. Length (m) Width (mm) 201024 55 48
Part No. Length (m) Width (mm) 201000 50 18 201002 50 24 201004 50 36 201006 50 48
tape.
Part No. Length (m) Width (mm) 201020 50 24
Part No. Length (m) Width (mm) 201040 55 18 201042 55 24 201046 55 48
curves and contours.
outdoor use. Part No. Colour Width (mm) Length (m) 30114 Clear 25 18.2 30115 Black 25 18.2 30116 White 25 18.2 30117 Black 50 18.2 30118 White 50 18.2 30119 Black 100 18.2 30120 White 100 18.2

Masking Film, Paper, Foil Tape, Sheet Insulation & Fasteners

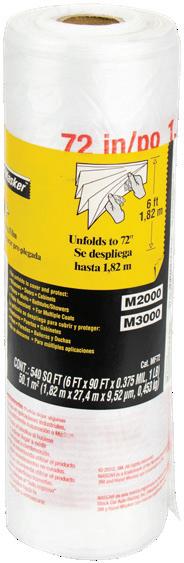

Masking Film - 3M™ Pre-Folded

• Flake-resistant masking film for multiple coat use.

• Pre-folded, high-density, translucent nonporous film.

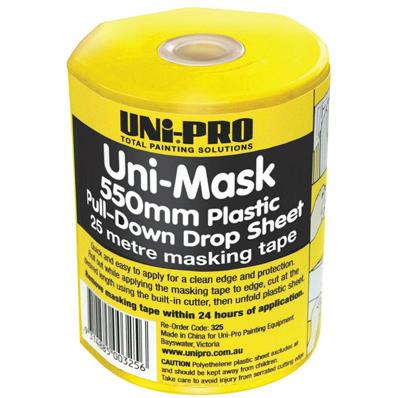

Masking Tape/Plastic Drop Sheet Dispenser

• Provided on plastic hand held dispenser with cutter.

• 18mm wide masking tape with integral 550mm wide plastic drop sheet.

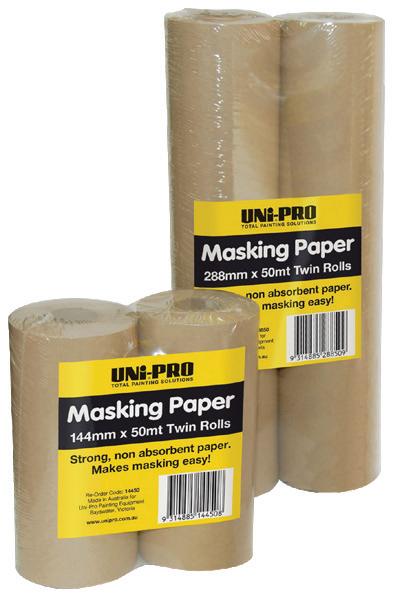

Masking Paper Twin Pack

• Thick brown craft paper.

• Used for masking large surfaces for painting.

• Non absorbent.

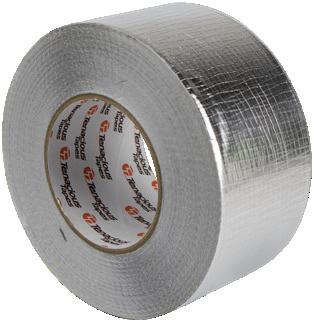

Foil Tape - Aluminium

• Easy to apply.

• Good adhesion to plastic, glass, steel, polycarbonate, wood and most other common materials.

Engine Insulation Sheet

• Noise absorption layer.

• Commonly used to insulate engine rooms.

• Water resistant, polyurethane foam.

• Specialised fire retarders built in to the foam.

• Use Foil Tape over sheet joints.

• 3X stronger than conventional hook and loop fastening tape.

• For indoor and outdoor use.

• Works on most surfaces that are clean, dry and sealed with paint or varnish, including, wood, brick, metal, concrete, bare glass and many plastics.

• Heavy duty clear fastener with mushroom shaped stems backed with a clear, acrylic pressure sensitive adhesive.

• Designed to bond to metals, glass and high surface energy plastics.

• Up to 5X stronger than conventional hook and loop fastening tape.

48 Boat Building & Maintenance www.samallen.com.au

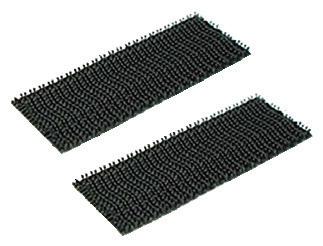

3M™ Dual Lock SJ3560

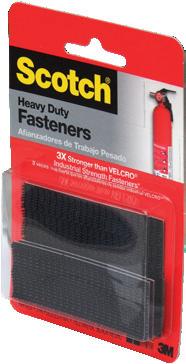

Scotch Heavy Duty Fastener
Part No. Length (m) Width (m) 6852 25 1.8
Part No. Length (m) Width (mm) 201054 25 550
Part No. Length (m) Width (mm) 201050 50 144 201052 50 288
Part No. Length (mm) Width (mm) Height (mm) AM24BF4 2300 1400 30
Part No. Length (m) Width (mm) 201059 50 24 201060 50 48 201062 50 72
Part No. Description Dimensions (mm) Pack Qty. 9731 Scotch Heavy Duty Fastener 76 x 25 2
Part No. Description Dimensions Colour 323176 Dual Lock SJ3560 45m x 25mm Clear

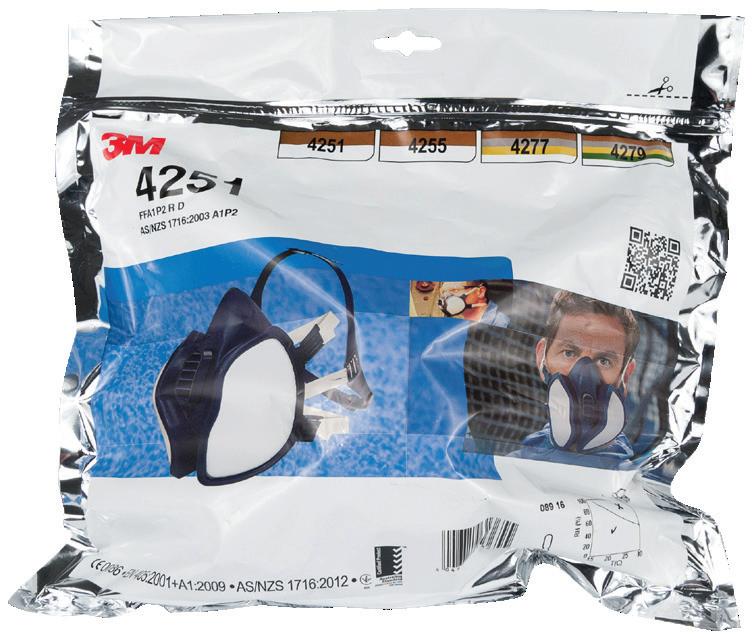

3M™ Disposable Half Face Respirator

201096 3M™ Disposable Half Face Respirator Blue / White

• Lightweight, compact design.

• Textured face seal minimises slippage and improves comfort.

• One piece, maintenance-free construction; built in filters.

• Re-sealable bag provides convenient and clean storage between uses.

• Protects against organic vapour & particulates.

• Complies with AS/NZS 1716:2012 Standards/Approvals.

Disposable Dust and Spray Masks

• Protects against non-toxic dusts, powders, pollens,

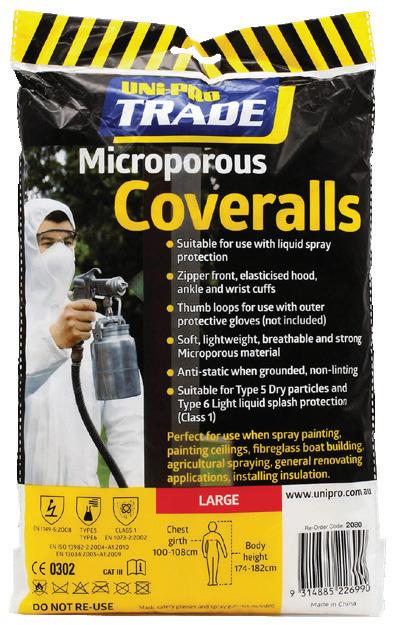

Microporous Coveralls

• Suitable for sanding, painting, fibreglass boat building and general repair work.

• Light weight, strong and breathable microporous material.

• Suitable for liquid spray protection.

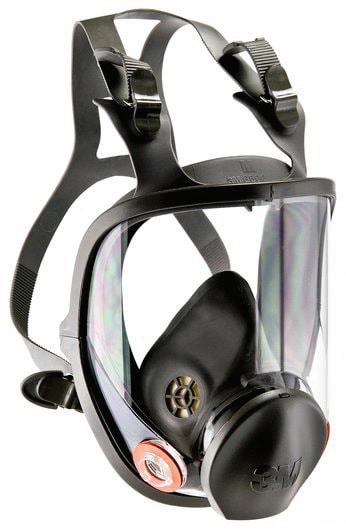

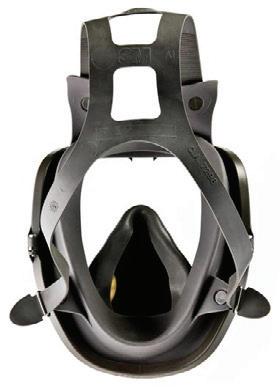

3M™ Full Face Respirator

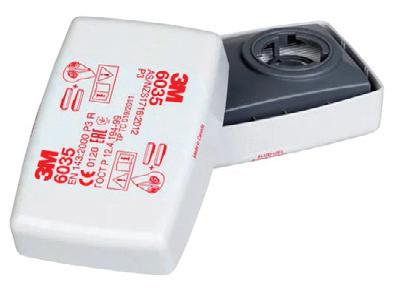

201098 3M™ 6800 Full Face Respirator Grey 201099-10 3M™ 6035 Respirator Filters 10 Pair

• Soft, silicone face seal for greater comfort and durability.

• Wide field of vision.

• Polycarbonate, high impact visor.

• Well balanced, four strap head suspension which is easy to put on and take off.

• Combine with a broad range of twin, lightweight 3M™ filters or cartridges to provide respiratory protection against particulates and a variety of gases and vapours

• Complies with ANSI Z87.1-2010 Standards/Approvals high impact eye protection.

NOTE: Mask does not come with filters. Filters are sold separately.

Disposable Hooded Coveralls

XX - Large

• Suitable for general sanding, painting and repair work.

• Light weight.

• Tear resistant.

Disposable Dusk Mask

• Protects from non-toxic

and particles.

• Moisture resistant paper style.

• Not suitable for painting applications.

Boat Building & Maintenance 49 www.samallen.com.au
Protection Part No. Description Colour
Personal
Part No. Size 201080 Medium 201081 Large 201082
- Large 201083
X
Part No. Size 201084 Large 201085
- Large
X
Part No. Description Colour
201099 201092 Part No. Pack Size 201090 Pack of 5 201092 Box of 50
paints
201090 Part No. Pack Size 201094 Box of 20
and sprays.
dusts

Sanding Blocks, Sponge, Sandpaper & Paint Scraper

3M™ Doodlebug™ Pads

• Used for general cleaning.

• 8440: White - Ideal for light duty on most painted surfaces, flexible plastics and delicate surfaces.

• 8242: Blue - Ideal for general purpose scrubbing.

• Flexible foam pad enables user to sand hard-to-reach areas.

• Helps to eliminate finger marks and can be used wet or dry.

Sandpaper - Norton Master Painters

• Suitable for maintenance applications such as sanding wood or painted surfaces.

• Heavy weight paper for extra strength and durability.

• Perforated every metre for easy tear off lengths.

• Stainless steel blade.

• Durable timber handle with brass fittings.

• Ideal for wet or dry sanding.

• Used in conjunction with sandpaper sheets wrapped around for sanding flat surfaces.

50 Boat Building & Maintenance www.samallen.com.au
Sanding Blocks - Cork

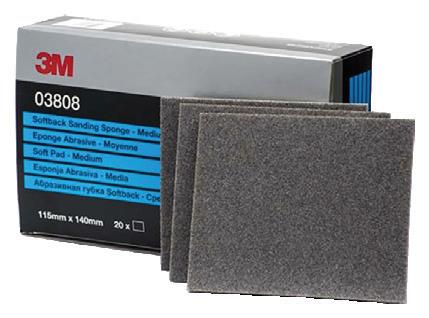

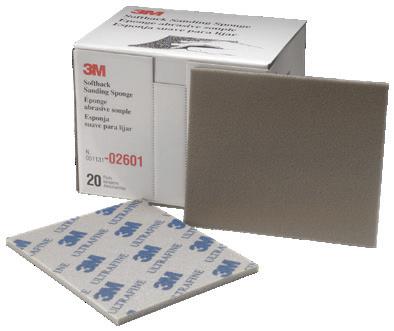

Paint Scraper 3M™ Softback Sanding Sponge
Part No. Width (mm) 201130 25 201132 50 201134 75 201135 100
201130 201132 201134 Part No. Dimensions L x W x H (mm) 201190 100 x 60 x 30
Part No. Type Grade Length (mm) Width (mm) Pack Qty 323150 Medium 120-180 114 140 20 323151 Fine 320-400 114 140 20 323152 Superfine 500-600 114 140 20 323153 ULtrafine 800-1000 114 140 20 323154 Microfine 1200-1500 114 140 20
323150
Part No. Type Width (mm) Length (m) CE015946 Very Coarse 115 25 CE015954 Coarse 115 32 CE015962 Medium 115 36 CE015970 Fine 115 40
323153 CE015946 CE015954 CE015962 CE015970
Part No. Description Length (mm) Width (mm) Colour Pack Qty. 8440 Doodlebug™ Cleaning Pad 254 117 White 5 8242 Doodlebug™ Scrub Pad 254 117 Blue 5
8242 8440

Cleaners, Polishes, Waxes, Adhesives & Sealants

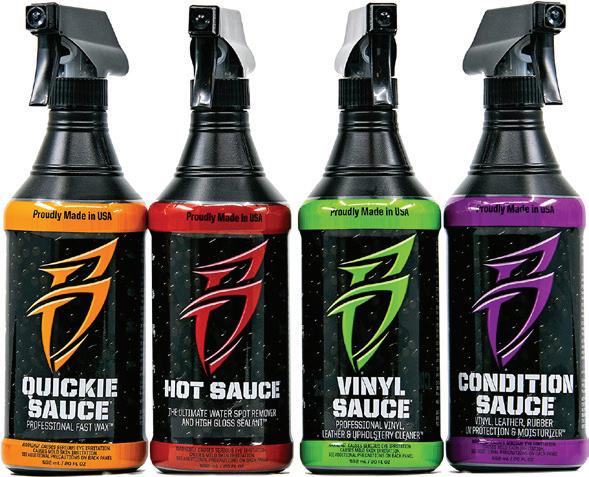

Bling Sauce - Sample Pack

• Simple spray on, wipe off application.

• Removes hard water spots.

• Will NOT strip your wax, adds sealant with every use.

• Apply wet or dry for streak-free shine.

• Safe for fibreglass, paint, stainless steel, glass and plastic.

• Perfect for boats, RVs, ATVs, motorcycles, autos and more.

Sauce Sample Pack

• Simple spray on, wipe off application.

• Effectively cleans dirt, sunscreen, body oils and food stains without compromising safety.

• Perfect for cleaning vinyl seats, clear vinyl windows, leather, rubber, inflatable boats and carpet.

• Approved by leading OEM vinyl manufactures.

• Simple spray on, wipe off application.

• Provides UV protection for vinyl, leather, rubber and plastic.

• Protects against fading, cracking and discolouration.

• Contains moisturisers for the stunning 'like new' look without a slippery or greasy appearance.

• Perfect for rubber tyres, mouldings, rubrails and RV roof seams.

Boat Building & Maintenance 51 www.samallen.com.au Bling Sauce

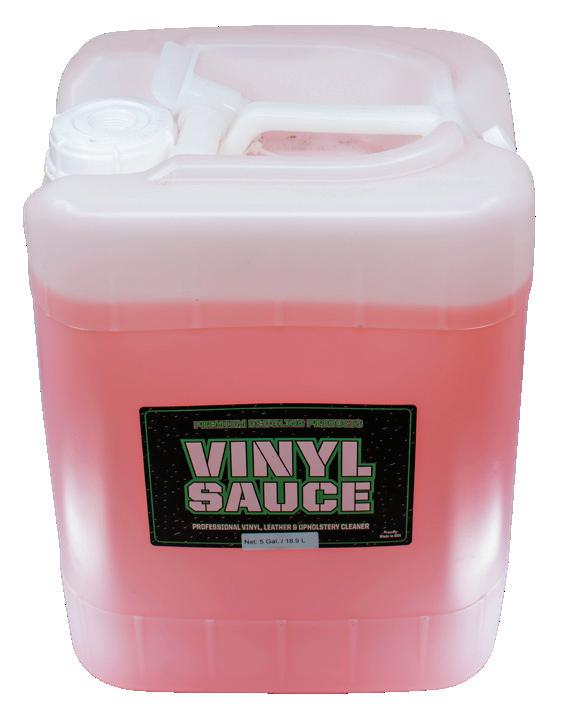

Vinyl Sauce Bling Sauce
Hot Sauce Part No. Description Size 324002 Bling Hot Sauce Spray 60ml 324003 Bling Hot Sauce Spray 946ml 324004 Bling Hot Sauce Refill 3.79Ltr 324005 Bling Hot Sauce Refill 18.92Ltr
-
-
Part No. Description Size 324008 Bling Vinyl Sauce Spray 60ml 324009 Bling Vinyl Sauce Spray 946ml 324010 Bling Vinyl Sauce Refill 3.79Ltr 324011 Bling Vinyl Sauce Refill 18.92Ltr
Professional Vinyl & Leather Cleaner VINYL SAUCE WORLD CLASS CARE PRODUCTS HOT SAUCE Water Spot Remover 324005 324004 324003 324002 WORLD CLASS CARE PRODUCTS 324011 324010 324009 324008 Part No. Description Size 324020 Bling Condition Sauce Spray 60ml 324021 Bling Condition Sauce Spray 946ml 324022 Bling Condition Sauce Refill 3.79Ltr 324023 Bling Condition Sauce Refill 18.92Ltr
WORLD CLASS CARE PR Professional Moisturising Conditioner with UV Sun Protection CONDITION SAUCE 324023 324021 324022 324020 Part No. Description 324000 Bling Sauce Sample Set
Set
5 contains - Hot Sauce, Vinyl Sauce, Condition Sauce, Quickie Sauce and Green Sauce. Bling
WORLD CLASS CARE PRODUCTS
of
Bling
Sauces
Bling Sauce - Condition Sauce

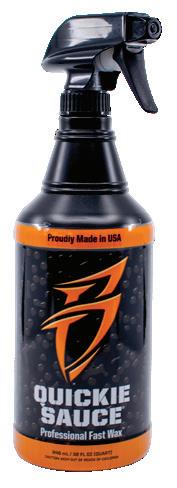

Bling Sauce - Green Sauce Bling Sauce - Quickie Sauce

• Advanced natural bio-enzymatic formula.

• Removes mould and mildew stains.

• Safe for fibreglass, vinyl, outdoor fabric, canvas and carpet.

• Colour safe formula.

• Helps prevent mould and mildew stains from reoccurring.

• Does NOT contain Chlorine, Bleach or Ammonia.

• Simple spray on, wipe off application.

• Unique blend of Montan wax and sealants.

• Safe for fibreglass, paint, vinyl mouldings and decals.

• Provides a high gloss shine with 3-4 months of UV protection.

• Wax your 22' boat, caravan or vehicle in about an hour.

• Holds up to demanding environments and extreme temperatures.

• Won't yellow like a Carnauba wax.

QUICKIE SAUCE

• Cleans and protects glass longer.

• Polymer technology helps repel water and oil residue.

• Polymer bonds to surface to help resist scratching.

• Ideal for electronic screens and displays.

• Anti-Static.

• Safe for all surfaces.

• Powerful soap provides a durable barrier resistant to oil and water based stains.

• Leaves a ceramic coating making surfaces easier to clean.

• Hose off and watch the sheeting action evenly flow down the surface.

• Perfect for fibreglass, painted surfaces, plastic, Lexan, aluminium, glass, clear coats and ceramics.

• Speciality Upholstery Cleaner for Cool Touch Vinyl & Synthetic Leathers.

• Safe to use when mild soap is required by manufacturer's warranty.

• Recommended and approved for Chill Cool Technology vinyl

• Repels mould, mildew, and fungal stains.

• UV inhibitors with no fragrance and dye.

• Rinses residue free and will not change colour of vinyl or fabric.

• Safe for all fabrics and fabric canvas except dry clean ONLY materials.

• Does not contain solvents, ammonia, chlorine, and is non-abrasive.

• Perfect for EVA foam flooring of boats.

• Includes 4 top-selling products packaged in a convenient kit

• Hot Sauce - Hard water spot remover with polymer sealants. Finally a solution for removing spots without damaging wax!

• Vinyl Sauce - Premium vinyl, leather and plastic cleaner. Safe and effective in removing tough grime from interior surfaces.

• Condition Sauce - Ultimate UV protectant and conditioner for your interior. Great for rubber, plastic and leather surfaces.

• Quickie Sauce - Professional wax with show sealant and UV protection. Montan wax blend is easy to apply and ideal for exterior painted and fibreglass surfaces.

52 Boat Building & Maintenance www.samallen.com.au Bling Sauce - Mixed Kit Bling Sauce - Mild Soap Spray Bling Sauce - Bubble Sauce Bling Sauce - Glass Sauce Elite High Gloss Fast Wax
Bling
Part No. Description Size 324026 Bling Quickie Sauce Spray 60ml 324027 Bling Quickie Sauce Spray 946ml
Sauces

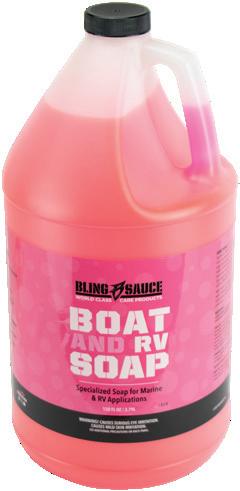

Part No. Description Size 324041 Bling Bubble Sauce Boat & RV Wash 946ml
Part No. Description Size 324014 Bling Green Sauce Spray 60ml 324015 Bling Green Sauce Spray 946ml
WORLD CLASS CARE PRODUCTS Advanced Sheeting Technology bubble SAUCE Enzyme Based Mould & Mildew Stain Remover & Treatment GREEN SAUCE Part No. Description Size 324030 Bling Glass Sauce Spray/Towel 118ml
Glass Treatment and Cleaner Kit GLASS
324014 324015 324026 324027 Part No. Description Size 324032 Bling Mild Soap Sauce Spray 60ml 324033 Bling Mild Soap Sauce Spray 946ml
SAUCE
Part No. Description Size 324035 Bling Sauce Mixed Kit HS/VS/CS/QS 592ml x 4
WORLD CLASS CARE PRODUCTS WORLD CLASS CARE PRODUCTS WORLD CLASS CARE PRODUCTS WORLD CLASS CARE PRODUCTS WORLD CLASS CARE PRODUCTS Speciality Upholstery Cleaner MILD SOAP SAUCE 324032 324033

• Ideal for boats, jet skis, kayaks, and other watercraft.

• PH neutral.

• Non hazardous.

• Protects paint.

• Ceramic based leaving a protective hydrophobic coating over the top of the paint.

• Breaks down salt.

• Hose off with water.

• Australian made.

• Ideal for any glass surface that has a chance of getting wet.

• Can be used on electrical screens.

• Hydrophobic coating.

• PH neutral.

• Non hazardous.

• Ceramic based leaving a protective layer over the glass.

• Protects paint.

• Resistant to salt & UV.

• Australian made.

• Ideal for vehicles, RV’s, buses, motor homes, caravans, motorbikes, and ATV's.

• PH neutral.

• Non hazardous.

• Ceramic based leaving a protective hydrophobic coating over the top of the paint.

• Breaks down dirt and grime.

• Hose off with water.

• Australian made.

Holds everything inside

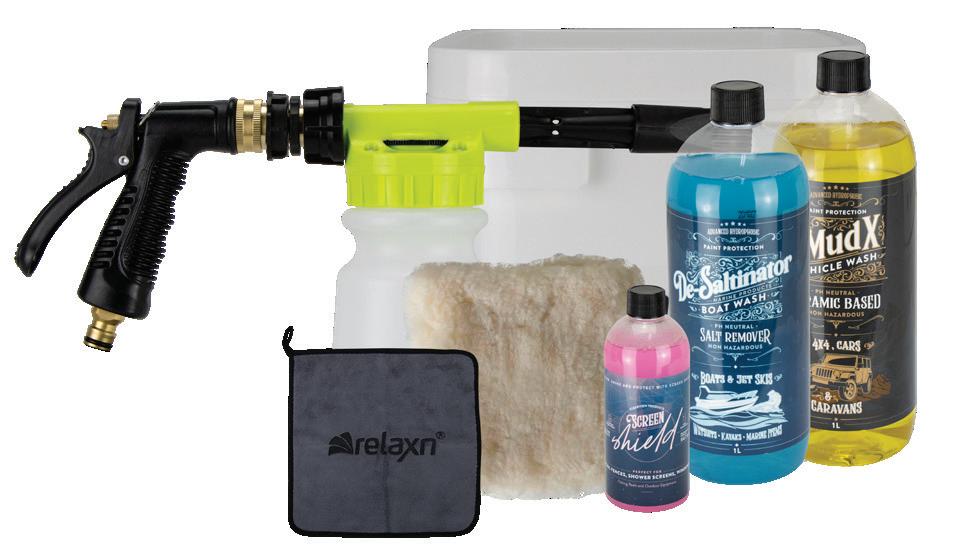

Boat Building & Maintenance 53 www.samallen.com.au MudX Wash Kit De-Saltinator Wash Kit Ultimate Clearview Wash Kit Screen Shield - Ceramic Spray Clearview Clearview Products Part No. Description Size 324100 De-Saltinator Salt Remover 1ltr 324102 De-Saltinator Re-fill Bottle 5ltr Part No. Description Size 324110 MudX 4x4, Caravan & Car Wash 1Ltr 324112 MudX Re-fill Bottle 5Ltr Part No. Description Size 324120 Screen Shield Spray Bottle 250ml 324121 Screen Shield Spray Bottle 500ml 324122 Screen Shield Spray Bottle 1ltr Part No. Description 324130 Ultimate Clearview Wash Kit Kit Contents: 1 x 1ltr De-Saltinator bottle 1 x 1ltr MudX bottle 1 x 250ml Screen Shield bottle 1 x Foam Cannon 1 x Gold Nugget Wash Cloth 1 x Relaxn Micro Fibre Cloth 1 x 10ltr Square Bucket -
Part No. Description 324135 De-Saltinator Wash Kit Kit Contents: 1 x 1ltr De-Saltinator bottle Part No. Description
MudX Wash Kit Kit Contents: 1 x
324140
1ltr MudX bottle YouTube Video YouTube Video

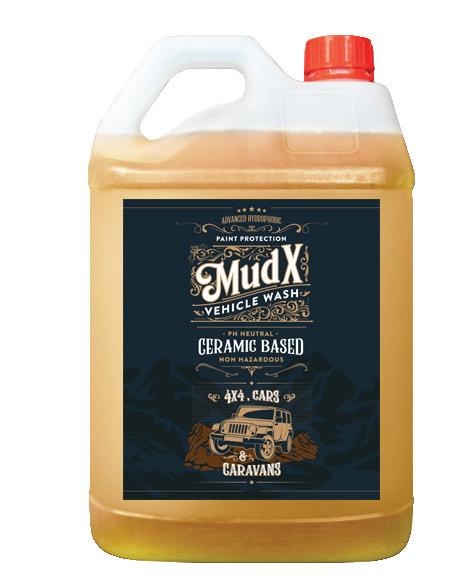

MudX - Vehicle Wash Clearview
YouTube Video

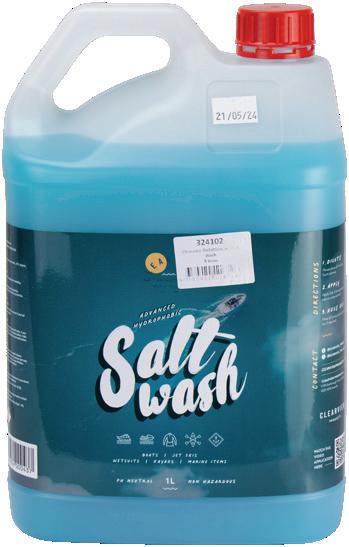

De-Saltinator - Boat Wash Clearview

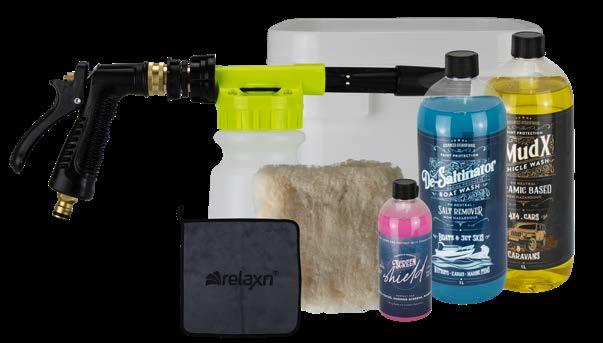

Clearview Products, Arco Vinyl Cleaner & Relaxn Seat Care Package

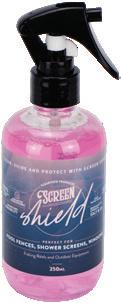

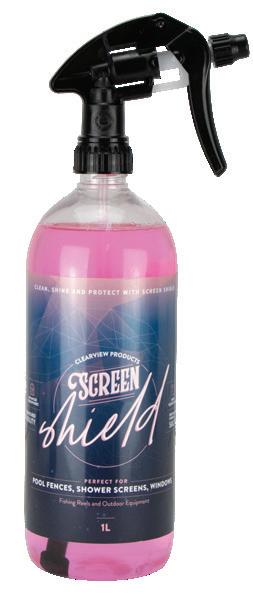

Screen Shield Kit

• Simply attach your hose via the connection.

• UV stabilised

• Convenient square shape.

• Ideal for cleaning chrome, polished wood, venetian blinds, grained plastics, plastic,

and leather.

• Contains no bleaching agents, ammonia, acids, alkalines or abrasives.

• Does not discolour.

• Safe on hands.

• Wipe on, wipe off.

• No need for water.

• Detach the trigger from the bottle and use as a normal spray gun.

• Multiple foam spread options.

• Luxuriously soft.

• Not affected by heat, detergents or solvents.

• Long lasting wash pad.

• Hold an incredible amount of water.

• Machine washable.

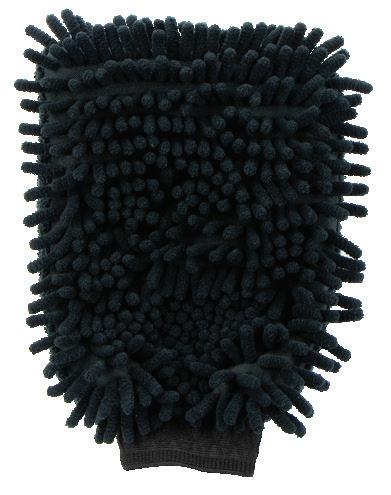

• Highly absorbent woven microfibre noddle mitt.

• 2-in-1: Soft chenille noodle great for lifting and trapping dirt and grime. Plush side is great for removing more stubborn marks.

• Designed to fit over your hand with a comfortable elastic wristband.

• Made of 100% microfibre and machine washable.

• Contains no

or

• Double sided microfibre cloth.

• Safe on hands and will not discolour.

• No water required. Kit Includes:

• 1 x Premium microfibre cloth.

• 1 x 100ml Arco Cleaner.

54 Boat Building & Maintenance www.samallen.com.au Seat Care Package - Relaxn Arco Vinyl Cleaner Micro Fibre Cloth - Relaxn® Noodle Wash Mitt Wash Bucket
Part No. Description Size (cm) 324154 Gold Nugget Wash Cloth 22 x 22
Part No. Description Size L x W (cm) 324156 Noodle Wash Mitt 27 x 18

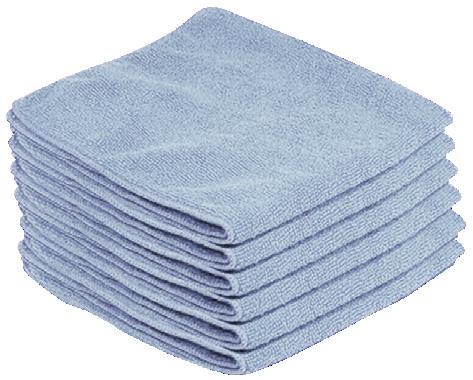

Part No. Description Dimensions W x H (mm) RLMF Relaxn Micro Fibre Cloth 290 x 290
Perfect addition with any cleaning product.
Double sided. Part No. Description 324150
Clearview Foam Cannon
Part No. Description Size 324145 Screen Shield & Relaxn Microfibre Cloth 250ml 324146 Screen Shield & Relaxn Microfibre Cloth 500ml 324147 Screen Shield & Relaxn Microfibre Cloth 1ltr Kits Contents: 1 x Screen Shield bottle 1 x Relaxn Microfibre Cloth Part No. Description Size 324152 Wash Bucket 10ltr
plastic.
Part No. Description Size 322040 Arco Vinyl & Leather Cleaner 100ml 322042 Arco Vinyl & Leather Cleaner 500ml 322044 Arco Vinyl & Leather Cleaner 1Ltr 322046 Arco Vinyl & Leather Cleaner 5Ltr
vinyl

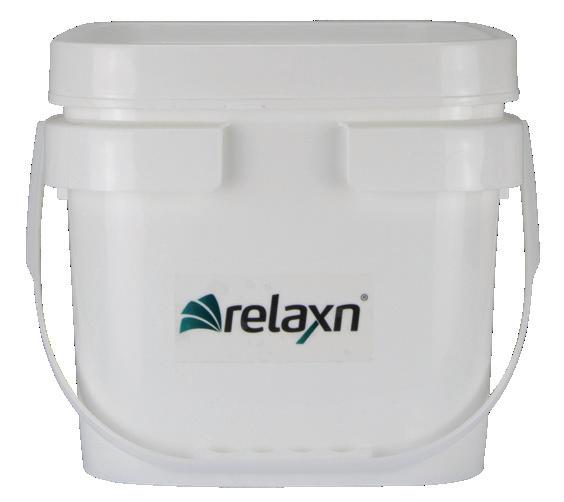

322042 322040 Part No. Description 293990 Relaxn Seat Care Package
Wipe on
wipe off.
and
bleaching
acids,
abrasives.
agents, ammonia,
alkalines
Clearview Foam Cannon Gold Nugget Wash Cloth

3M Products - Cleaning Supplies & Waxes

• Cleans and polishes in one easy operation.

• Finger print resistant.

• Masks surface blemishes.

• Metal restorer removes rust stains and corrosion.

• Formula reverses the effects of oxidisation.

• Polish brings out a lustrous shine.

• Recommended for stainless steel, brass, bronze, copper, chrome and aluminium.

• Cleans, shines, conditions and protects vinyl, rubber and plastic surfaces.

• Deep cleans dirt and grime.

• Fresh lemon scent.

• Just toss the pillow in the bilge and it soaks up oil and fuel, but repels water.

• The bilge water can then be pumped overboard.

• The pillow includes a special grommeted hole which can be used to tie it in place.

• Used for general cleaning.

• 8440: White - Ideal for light duty on most painted surfaces,

plastics and delicate surfaces.

• 8242: Blue -

for general purpose scrubbing.

Boat Building & Maintenance 55 www.samallen.com.au
3M™ Doodlebug™ Pads
Part No. Description Size 557807 Stainless Steel Cleaner and Polish 600g
Part No. Description Size 9029 Vinyl Cleaner & Restorer 500ml
Part No. Description Size 9019 Metal Restorer & Polish 510g
Part No. Description Length (mm) Width (mm) Colour Pack Qty. 8440 Doodlebug™ Cleaning Pad 254 117 White 5 8242 Doodlebug™ Scrub Pad 254 117 Blue 5
flexible
8242 8440 Part No. Description Length (mm) Width (mm) 29026 Bilge Pillow 381 178
Ideal
3M™ Stainless
3M™ Bilge Pillow 3M™ Vinyl Cleaner & Restorer
3M™ Metal Restorer & Polish
Steel Cleaner and Polish

3M Products - Compounds & Polishes & Aqua Buff

3M™ Fibreglass Cleaner & Wax

• Designed to clean and protect lightly oxidised fibreglass/ gelcoat and marine topside paints.

• Produces high gloss, protective finish.

• Repels ultraviolet light damage.

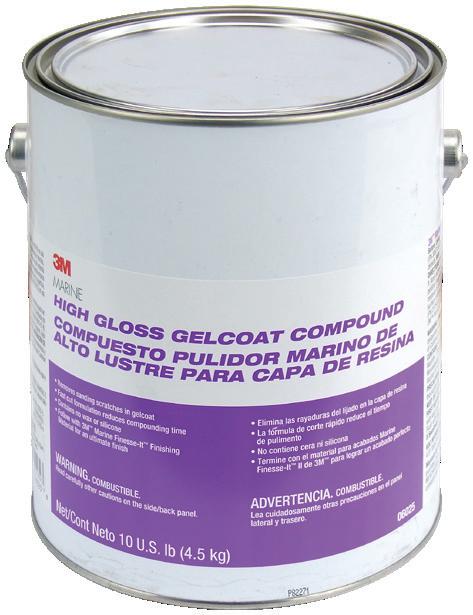

3M™ High Gloss Gelcoat Compound

• This paste compound is designed to quickly remove P600 dry or 1000 wet sanding scratches from production gelcoat.

• Contains no wax or silicone.

• Leaves a high gloss finish without swirls or wheel marks.

• Unique formulation which reduces slinging while buffing.

• Designed for use on OEM and fully cured marine paints.

• Removes abrasive sand scratches and other paint surface defects when used with 3M™ polishing pads.

3M™ Fibreglass Restorer & Wax

• Designed to remove heavy oxidation, chalking, fading, minor scratches, rust and exhaust stains.

• Unique formulation combines a rubbing compound with a special blend of waxes that restore, shine and protect in one application.

• Provides protection on fibreglass/gelcoat and marine topside paints.

• Produces a high gloss, lustrous, durable wet look finish.

Compound

• Designed specifically for aggressive polishing of gelcoated fibreglass surfaces.

• Suited for boat reconditioning of heavily oxidised surfaces and finishes.

• Used to remove scratches and oxidation from FRP parts, metal and painted surfaces. Also suitable to clean and polish composite patterns, plugs and product moulds.

• Economical, easy to use and produces superior results.

56 Boat Building & Maintenance www.samallen.com.au
Aqua
Buff Compound and Polish 3M™ Finesse-It™ II Machine Polish 3M™ Finesse-It™ Paste
Part No. Description Size 6025 High Gloss Gelcoat Compound 4.53kg
Part No. Description Size 5928 Finesse-It™ II Machine Polish 946ml
321300 321304 Part No. Description Size 321300 Aqua Buff 1000 Fast Cut Compound 7.6Ltr 321304 Aqua Buff 2000 Polish 7.6Ltr
Part No. Description Size 9007 Fibreglass Restorer & Wax 3.7Ltr
Part No. Description Size 9011 Fibreglass Cleaner & Wax 3.7Ltr
Part No. Description Size 6039 Finesse-It ™ Paste Compound 3.7Ltr

Gelcoat Finishing System

• Cleans from stem to stern without stripping wax.

• Cleans grime, algae, dirt and other common marine contaminants.

• Professional strength concentrate makes up to 3.7Ltr per 30ml.

• Important first step in cleaning and refinishing your surfaces.

• Using this product prior to restoring and waxing will greatly improve reconditioning outcomes.

P 1 2 W

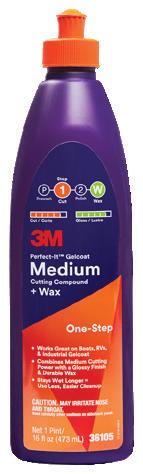

Cutting Compound + Wax (One-Step)

• Cuts through heavy oxidation, scratches, and other defects fast.

• Protects with durable wax coating.

• Removes P800 and finer scratches.

• Great for marine, RV and industrial gelcoat surfaces.

• Stays wet longer so operators can use less and see easier.

Gelcoat Finishing System

• Cuts through heavy oxidation, scratches, and other defects fast.

• Removes P800 and finer scratches.

• Great for marine, RV and industrial gelcoat surfaces.

• Stays wet longer so operators can use less and see easier.

Cutting Polish + Wax (One-Step)

• One step combines light cutting power with a glossy finish and durable wax.

• Removes P1500 and finer scratches and protects the surface.

• Great for marine, RV and industrial gelcoat surfaces.

• Stays wet longer so operators can use less, and see easier.

Boat Building & Maintenance 57 www.samallen.com.au Light
Medium
3M Products - Perfect-It™ Part No. Description Size 323108 Perfect-It™ Gelcoat Medium Cutting Compound + Wax (One-Step) 473ml 323109 Perfect-It™ Gelcoat Medium Cutting Compound + Wax (One-Step) 946ml 323110 Perfect-It™ Gelcoat Medium Cutting Compound + Wax (One-Step) 3.7Ltr
Step Prewash Cut Polish Wax 2 P 1 W 323108 323109 323110 Part No. Description Size 323112 Perfect-It™ Gelcoat Light Cutting Polish + Wax (One-Step) 473ml 323113 Perfect-It™ Gelcoat Light Cutting Polish + Wax (One-Step) 946ml 323114 Perfect-It™ Gelcoat Light Cutting Polish + Wax (One-Step) 3.7Ltr
Step
Cut Polish Wax 1 P 2 W 323113 323114 323112 Step Prewash Cut Polish Wax W 2 P 1 323104 323105 323106 Part No. Description Size 323104 Perfect-It™ Gelcoat Heavy Cutting Compound 473ml 323105 Perfect-It™ Gelcoat Heavy Cutting Compound 946ml 323106 Perfect-It™ Gelcoat Heavy Cutting Compound 3.7Ltr
Prewash
Part No. Description Size 323101 Perfect-It™ Boat Wash 473ml 323102 Perfect-It™ Boat Wash 946ml
Step Prewash Cut Polish Wax 323101 323102 Gelcoat Finishing System Gelcoat Finishing System

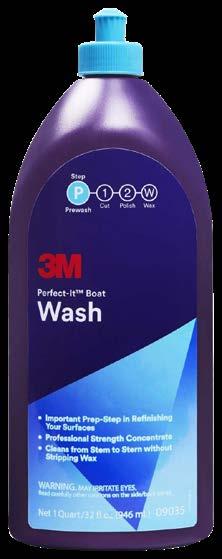

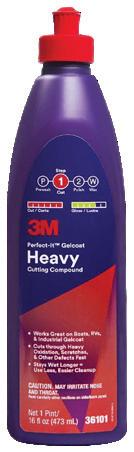

3M™ Perfect-It™ Boat Wash 3M™ Perfect-It™ Gelcoat Heavy Cutting Compound

Gelcoat Compound +

Gelcoat Finishing System

• Leaves a brilliant, pure wax finish.

• Long lasting protection for gelcoat, paint, fibreglass and metals.

• Important final step in refinishing your surfaces.

• Removes P1000 and finer scratches on gelcoat while offering a high gloss and fine finish (even on darker coloured gelcoat), reducing time and expense.

• Formula provides longer wet time for extended product life and easier cleanup.

• Suitable for all gelcoat surfaces including marine, RV and industrial.

Finishing System

• Unique formula quickly removes

scratches and other surface defects.

• Produces a swirl

grade and finer

• Quickly and effectively removes

• Outstanding

• Quickly and effectively removes compound swirl marks.

• Wetter formulation allows for longer work time without drying.

• Slings less so it is working on the pad longer.

• Wipes off easily, requiring less clean up time.

• Less product needed both initially and at reapplication.

• Fast finish formula that easily removes swirl marks.

• Doesn’t smear or cake on panels.

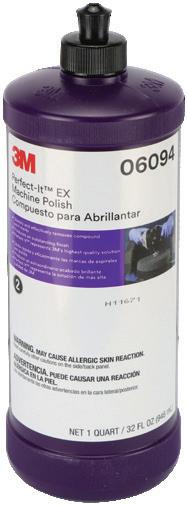

58 Boat Building & Maintenance www.samallen.com.au 3M™ Perfect-It™ EX Ultrafine Machine Polish 3M™ Perfect-It™ EX Machine Polish 3M™ Perfect-It™ EX Rubbing Compound 3M™ Perfect-It™ Boat Wax 3M Products - Perfect-It™ Part No. Description Size 323120 Perfect-It™ EX Rubbing Compound 946ml 323121 Perfect-It™ EX Rubbing Compound 3.7Ltr
P1200
sand
323120 323121 Part No. Description Size 323116 Perfect-It™ Boat Wax 473ml 323117 Perfect-It™ Boat Wax 946ml
W 1 2 P Step Prewash Cut Polish Wax 323116 323117 Gelcoat
Paint
Part No. Description Size 323122 Perfect-It™ EX Machine Polish 946ml
Finishing System
Finishing System
Paint
Paint Finishing
Part No. Description Size 323107 Perfect-It™ Gelcoat Cutting Compound & Polish 946ml
System
Part No. Description Size 323124 Perfect-It™ EX ULtrafine Machine Polish 946ml
finish
on dark
free
even
surfaces.
fine machine polish swirls.
finish. 3M™ Perfect-It™
Polish

3M Products - Pads, Adaptor & Detailing Cloth

3M™ Superbuff 100% Wool Compound Pad

• 100% wool double-sided, screw-on, pad with a stiffer central hub for more cutting power.

• This pad has untwisted yarn construction, which allows for more surface contact, while giving aggressive cut and finish.

• Excellent for all paints and clears.

• Use with 323136 3M™ screw on adapter.

Paint Finishing System

323140 Foam Compound Pad Cutting White 203

323142 Foam Polishing Pad Polishing Gray 203

323144 ULtrafine Foam Polishing Pad Polishing Blue 203

• Unique quick connect design using 323146 adaptor.

• Double sided.

• 323140: White - Cured paint, fresh paint finishes, hardest paint finishes, medium paint finishes, sand scratch removal and scratch removal.

• 323142: Grey - Removes compound swirl marks and fine paint surface defects.

• 323144: Blue - Eliminates swirl marks on painted surfaces; even on difficult dark coloured surfaces.

3M™ Marine Superbuff Pad

3M™ Superbuff Wool Polishing Pad

• Double sided, soft edge polishing pad designed for use with a polisher and glaze.

• Made with extremely fine fibres to produce a high gloss on paint surfaces.

• Pad has its own built in, lightweight support system.

• Use with 323136 3M™ screw on adapter.

• Part of a complete assembly for cutting and polishing.

• Designed to attach buffing pads or backup pads to machine polishers.

• Helps reduce wear and vibration.

• Users can change screw-on pads without removing the adapter, saving time.

• Provides hassle-free centering with 3M double-sided wool compounding and polishing pads.

9038 Marine Superbuff Pad Polishing 152

• A double-sided buff pad supplied with spindle to suit a drill chuck.

• Produces professional results when cutting, waxing or polishing your boat.

• Allows quick changes of 3M™ brand foam cutting and polishing pads.

• Makes it easy to change between cutting and polishing pads.

• Provides a reliable connection between pad and polisher.

• Non-scratching cloth* quickly and completely removes oily films or residues including waxes, polishes, glazes and fingerprints.

• Great for paint, chrome, glass dashboards and more.

• Non-linting.

• Clear coat safe.

• Paint shop safe.

NOTE: *Cloth itself does not scratch, but may pick up and hold particles that do.

Boat Building & Maintenance 59 www.samallen.com.au 3M™ Perfect-It™ Detailing Cloth 3M™ Perfect-It™
3M™ Superbuff
3M™ Perfect-It
Gelcoat
Quick Connect Adaptor
Pad Threaded Connector
Foam Pads
Finishing System Gelcoat Finishing System
Part No. Description Pad Type Size (mm) 323134 Superbuff Wool Polishing Pad Polishing 228
Part No. Description Pad Type Size (mm) 323132 Superbuff 100% Wool Compound Pad Cutting 228
Part No. Description Diameter (mm) Thread Size (in) 323136 Superbuff Pad Threaded Connector 14 5/8"
Part No. Description Diameter (mm) Thread Size (in) 323146 Perfect-It™ Quick Connect Adaptor 14 5/8"
Part No. Description Size (mm) Pack Qty 323130 Perfect-It™ Detailing Cloth 304.8 x 355.6 6
Part No. Description Pad Type Size (mm)
Part No. Description Pad Type Colour Size (mm)

3M Products - Adhesives, Sealants & Fillers

• Fast curing polyurethane sealant that chemically reacts with moisture to quickly deliver strong flexible bonds with wood and fibreglass.

• Provides water tight seals above and below the waterline.

3M™ Marine Grade Silicone

• Can be used on painted metal, fibreglass, glass, non-oily woods and many types of plastic.

• Mildew resistant.

• Moisture curing silicone rubber sealant.

• Remains flexible with excellent resistance to the marine environment.

• Slow curing polyurethane sealant that chemically reacts with moisture to deliver strong flexible bonds with wood and fibreglass.

• Provides water tight seals above and below the waterline.

77™ Multipurpose Spray Adhesive

• Improved safety with no CFCs or methyl chloroform.

• High tack, high coverage, fast drying transparent, high adhesive strength.

• Suitable for use on most surfaces.

• Works on most surfaces that are clean, dry and

60 Boat Building & Maintenance www.samallen.com.au Scotch Heavy Duty Fastener
Part No. Description Colour Size 8027 Marine Grade Silicone White 378ml
Part No. Description Colour Size 6500 Adhesive Sealant Slow Cure 5200 White 296ml 6504 Adhesive Sealant Slow Cure 5200 Black 296ml
6504 Part No. Description Colour Size 5220 Adhesive Sealant Fast Cure 5200 White 88.7ml 6520 Adhesive Sealant Fast Cure 5200 White 296ml
6500
5220 6520 3M™
Part No. Description Size 323180 Super 77™ Multipurpose Spray Adhesive 375g
Super
3M™ Marine Adhesive Sealant Fast Cure 5200 3M™ Marine Adhesive Sealant Slow Cure 5200 Part No. Description Dimensions (mm) Pack Qty. 9731 Scotch Heavy Duty Fastener 76 x 25 2
3X stronger than conventional hook and loop fastening tape.
For indoor and outdoor use.
varnish, including, wood, brick, metal, concrete,
glass and
plastics.
sealed with paint or
bare
many

Sika Products

Sika® Marine Solutions

Sikaflex® 291 Multipurpose polyurethane adhesive sealant

Sikasil® Marine Multipurpose silicone adhesive sealants Sikaflex® 295 UV Direct glazing polyurethane adhesive for plastic glass

Sikasil® 670 Fire Fire-rated, 1 compound, moisture-curing, lowmodulus elastic joint sealant

Sikaflex® 291 Multipurpose Adhesive Sealant

• Multipurpose polyurethane sealant use in marine construction.

• Resistant to salt and fresh water.

• Suitable for use above or below the waterline.

• Cures to a high strength, durable elastic material.

• Excellent shock absorbing and vibration dampening properties.

• Cured surface is paintable and sandable.

• SOLAS approved.

290 DC PRO Weather resistant deck caulking polyurethane sealant Sikaflex® Pro

• Premium, neutral-curing clear silicone sealant.

• Manufactured in accordance with ISO 9001 quality assurance system.

• Excellent thermal, vibration, UV and weathering resistance.

• Adheres well to fibreglass, metals, glass, most plastics, varnished wood and painted surfaces.

• Sanitary grade (long-term mould resistance).

• Non-corrosive.

• Fast-curing and highly effective.

• Easy to apply.

• 670 fire is a Fire Rating 1 compound, moisturecuring, low-modulus elastic joint sealant.

• Neutral cure silicone.

• Up to 4 hours fire resistance according to EN 1366-4.

• Very good resistance to weathering.

• Movement capability of ± 35% (ASTM C 719).

• Easy to smooth and very good workability.

• Good adhesion to many different substrates.

• Used exclusively for caulking of joints in traditional timber decking on boats and yachts.

• Resistant to UV light and weathering.

• Can be sanded.

• Non-corrosive and easy to apply.

• SOLAS approved.

• Use with Sika primer 215.

Boat Building & Maintenance 61 www.samallen.com.au
290 DC Pro
Sikaflex®
Fire
Sikasil®
670
Sikasil® Marine Multipurpose Silicone
Part No. Description Colour Size Pack Qty 70447 Sikaflex® 290 DC Pro Cartridge Black 310ml 1 70470-20 Sikaflex® 290 DC Pro Sausage Black 600ml 20
Sikaflex®
70448 / 70450 70465 / 70471 70447 70470-20 Part No. Description Colour Size Pack Qty 70448 Sikaflex® 291 Multipurpose Adhesive Sealant Cartridge Black 310ml 1 70450 Sikaflex® 291 Multipurpose Adhesive Sealant Cartridge White 310ml 1 70465 Sikaflex® 291 Multipurpose Adhesive Sealant Tube White 150ml 1 70471 Sikaflex® 291 Multipurpose Adhesive Sealant Tube Black 150ml 1
Part No. Description Colour Size Pack Qty 70422 Sikasil® Marine Multipurpose Silicone Cartridge Clear 300g 1 70423 Sikasil® Marine Multipurpose Silicone Tube Clear 75g 1 70422 70423
Description Colour Size Pack Qty
Part
No.
70428-12 Sikasil® 670 Fire Cartridge Grey 300ml 12

Sikaflex® 295 UV Glazing Sealant Sikaflex® Pro

70455 Sikaflex® 295 UV Glazing Sealant Black 300ml 1

70455W Sikaflex® 295 UV Glazing Sealant White 300ml 1

• Used as UV resistant adhesive with a high degree of elasticity.

• Resistant to ageing and weathering.

• Suitable for organic glasses.

• SOLAS approved.

• Use with Sika cleaner 205 and primer 209.

Sikaflex® 11FC Construction Adhesive

70458 Sikaflex® Pro Cartridge White 310ml 1

70460-12 Sikaflex® Pro Cartridge Black 310ml 12

70462-12 Sikaflex® Pro Cartridge Grey 310ml 12

70461-20 Sikaflex® Pro Sausage White 600ml 20

• Suitable for sealing joints.

• Resistance to ageing and weathering.

• Bubble free curing.

• High tear strength.

70456-12 Sikaflex® 11FC Construction Adhesive Cartridge Grey 310ml 12

70456B-12 Sikaflex® 11FC Construction Adhesive Cartridge Black 310ml 12

70456W-12 Sikaflex® 11FC Construction Adhesive Cartridge

70626-20 Sikaflex® 11FC Construction Adhesive Sausage

20

70627-20 Sikaflex® 11FC Construction Adhesive Sausage Grey 600ml 20

70628-20 Sikaflex® 11FC Construction Adhesive Sausage White

• Excellent adhesion to all cementbased materials, brick, ceramics, glass, metals, wood, epoxy, polyester and acrylic resin.

• Fast cure rate.

• Good weathering and water resistance.

• Non-corrosive.

• Can be over painted with water, oil, and rubber-based paints. (Preliminary tests recommended).

• High durability and ageing resistance.

• High pick resistance.

20

Sikaflex® 521 UV Sealant Cartridge White 310ml 12

70610-20 Sikaflex® 521 UV Sealant Sausage White 600ml 20

70611-20 Sikaflex® 521 UV Sealant Sausage Grey 600ml 20

• Ageing and weather resistant.

• Bonds well to a wide variety of substrates without the need for special pre-treatment.

• Can be sanded and painted.

• Low odour.

• Isocyanate and solvent-free.

• Silicone and PVC-free.

62 Boat Building & Maintenance www.samallen.com.au
Sikaflex® 521 UV Sealant
70455 Part No. Description Colour Size Pack Qty
Sika Products
Part No. Description Colour Size Pack Qty
70455W 70458 / 70460 / 70462
Part No. Description Colour Size Pack Qty
70461
White
310ml 12
Black 600ml
600ml
70456
/ 70456B / 70456W 70626 / 70627 / 70628
Part No. Description Colour Size Pack Qty 70608-12
70608
70610 / 70611

Sika Products

Sikaflex® 227 Automotive & Construction

70620-12

70621-12

• Short cut-off string.

• Fast skinning.

• Low odour.

• Overhead work possible.

• Bonds well to a wide variety of substrates.

• Can be sanded and painted.

• Resistant to ageing.

• Silicone free.

Sika® Primer 210

• Used to improve adhesion on many metals such as aluminium, steel and non-ferrous metals.

• A solvent-based, colourless to slightly yellow primer that reacts with moisture and forms a thin layer. This layer acts as a link between substrates and adhesives.

• Specifically formulated for the treatment of bond faces prior to application of Sika’s 1-component Polyurethanes.

• Suitable to enhance the adhesion of Sikasil® sealants and adhesives on porous and non-porous substrates.

• One-component.

• Fast drying.

Sika® Primer 206

• Used to improve adhesion on substrates such as float glass, ceramic-coated glass, pre-coatings, painted surfaces and some plastics and metals.

• A solvent-based black primer reacts with moisture and forms a thin layer which acts as a link between substrates and adhesives.

• Specifically formulated for the treatment of bond faces prior to application of Sika's 1-component Polyurethanes.

• Enhanced adhesion on a wide variety of substrates.

• Easy to apply.

Sika® Primer 209

• Used to improve adhesion on many plastics and paints such as GRP, epoxy resins, PVC, ABS, PMMA, PC, PS, acrylics, alkyds/melamine, powder coatings and baking varnishes.

• A solvent-based, black primer that reacts with moisture and forms a thin layer.

• This layer acts as a link between substrates and adhesives.

• Specifically formulated for the treatment of bond faces prior to application of Sika's 1-component Polyurethanes.

• Provides excellent adhesion without previous activation step on certain plastic substrates.

• Fast drying.

Sika® Primer 215

• Used to improve adhesion on many plastics such as GRP, epoxy resins, PVC, ABS and timber.

• A solvent-based, colourless to slightly yellow primer, which reacts with moisture and forms a thin layer.

• This layer acts as a link between substrates and adhesives.

• Specifically formulated for the treatment of bond faces prior to application of Sika's 1-component Polyurethanes.

• Used to improve adhesion on non-porous substrates such as metals, plastics, ceramic screen prints and painted surfaces.

• Enhanced adhesion on a wide variety of non-porous substrates.

• Short flash-off time.

• Transparent.

• Easy to use.

Boat Building & Maintenance 63 www.samallen.com.au Sika® Cleaner / Aktivator 205
70620 / 70621 70623 Part No. Description Size 70433 Sika® Primer 210 250ml
Part No. Description Colour Size Pack Qty
Sikaflex® 227 Automotive & Construction Cartridge Black 310ml 12
Sikaflex® 227 Automotive & Construction Cartridge White 310ml 12
Sikaflex® 227 Automotive & Construction Tube Black 150ml 6 70623-6 Sikaflex® 227 Automotive & Construction Tube White 150ml 6
70622-6
Description Size
Part No. 70339 Sika® Primer 209 250ml
Part No. Description Size 70454 Sika® Primer 215 250ml 70472 Sika® Primer 215 1ltr
Part No. Description Size 70441 Sika® Cleaner / Aktivator 205 1ltr
70622 Part No. Description Size 70440 Sika® Primer 206 250ml
70472 70454

70430 Skeleton Caulking Gun

• Skeleton style caulking gun.

• For use with silicone and polyethylene sealant tubes.

• Comfortable pistol grip.

70431 Standard Caulking Guns

• Grip trigger.

• Solid construction.

Sausage Caulking Gun

• Top quality construction.

• Easy trigger action.

• Will dispense both sausages and cartridges.

• Very short flash-off time.

• 1C adhesive.

• High initial strength.

• Easy to apply and broad adhesion range.

• Resistant against ageing.

Caulking Guns & Sika Bond

SikaBond® 105 ContactFix - Contact Adhesive

64 Boat Building & Maintenance www.samallen.com.au
Caulking Gun - Sausage Caulking Gun - Standard
No. Description
Part
Part No. Description
Part No. Description
70474
Part No. Description Size 70482 Sikabond 105 ContactFix 500ml 70483 Sikabond 105 ContactFix 1Ltr 70484 Sikabond 105 ContactFix 4Ltr
Caulking Gun - Skeleton

CRC Lubricants, Corrosion Inhibitors, Cleaners & Primers

808 Silicone Spray Dry Glide

• Multi-purpose silicone spray.

• Non-corrosive formula that provides a thin, durable, clear, odourless film that lubricates, protects and eliminates squeaking and binding caused by friction.

• Excellent mould release.

• Industrial strength, low viscosity lubricant and penetrant designed to quickly loosen and free seized, bound or frozen fasteners.

• Quickly permeates rust, scale, gum, grease and corrosion with a low surface tension formula that creeps into cracks, seams, threads and joints with greater efficiency.

• Eases the disassembly of plant machinery, tools and equipment for routine maintenance and emergency repairs.

• Technically advanced multi-purpose long term dry film lubricant.

• Penetrates and bonds to metal, wood, rubber, glass and most surfaces, forming a non-staining micro thin film that prevents sticking, reducing friction and wear.

• Seals out moisture and inhibits corrosion, resisting dust and dirt build-up.

• Will not melt, freeze or wash off.

• Specifically formulated for the use on all fishing tackle.

• Ideal for protecting and lubricating whilst with its superior penetrating power drives out moisture leaving a long lasting film that will not dry out.

• Protects all types of fresh and salt water reels without damaging monofilament, EVA grips and seals against corrosion.

• Multi-purpose oil for the protection of marine engines and boating equipment.

• Lubricates for smooth action – silences annoying squeaks and squeals.

• Includes corrosion protection.

• Penetrates quickly – breaks away rust and corrosion, frees components bonded by dirt.

• Recommended to prevent damage due to water and salt atmosphere in marine engines and boating equipment.

• Two part epoxy putty packaged in a convenient one piece stick for immediate long lasting repairs.

• Bonds to both wet and dry surfaces. Can be applied underwater.

• Versatile, multiple uses – can be tapped, sawn, drilled, machined, stained or painted. Bonds to wood, steel, fibreglass, glass, ceramics, plastics, concrete and aluminium.

• Unique high quality, natural, non-evaporative lanolin formula with superior lubrication and corrosion protection properties.

• Known for its ability to combine the power of long term protection, penetration, resistance to mineral acids – salt – sulphur compounds and moisture without harming metal, plastics, paints, fibreglass, rubber or neoprene seals.

• Highly concentrated, self-emulsifying solvent degreaser. Specially formulated to quickly cut and remove grease, oil and dirt on all types of equipment.

Boat Building & Maintenance 65 www.samallen.com.au
Lanoshield Tackle Guard Marine 5.56 Penetr8
Hot Shot Degreaser Minute Mend Epoxy Putty
Part No. Description Size 324200 CRC 808 Silicon Spray General Purpose Aerosol 330g / 500ml
Part No. Description Size 324201 CRC Dry Glide with PTFE Aerosol 150g
Part No. Description Size 324210 CRC Penetr8 - High Speed Penetrant Aerosol 400g
Part No. Description Size
CRC
300g
324220
Marine 5.56 Multi Purpose Lubricant Aerosol
/ 350ml
Part No. Description Size
CRC
Guard Aerosol 100g
130ml
324225
Tackle
/
Part No. Description Size 324265 CRC Lanoshield Rust Prevention Lanolin Lubricant Aerosol 350g Part No. Description Size 324280 CRC Hot Shot Degreaser Aerosol 500g
Description Size
Part No.
324305 CRC Minute Mend Epoxy Putty 114g

CRC Lubricants, Corrosion Inhibitors, Cleaners & Primers

White Lithium Grease Red Lithium Grease

324242

• Advanced lubricant and protectant containing an additive package for superior performance and durability in any weather and most temperatures.

• This versatile grease is designed for light duty applications requiring a long grease life.

• Contains oxidation inhibitors to counter corrosion, and protects with a tough, high viscosity film.

Prime-It Red Oxide Primer For Steel

• Single pack penetrating shop primer with a redoxide finish and high levels of anti-corrosive zinc complexes.

• Forms a durable protective coating on steel with excellent anti-corrosive properties.

• Formulated for the protection of structural steel and iron and can be applied over clean or lightly rusted surfaces.

• Does not require immediate overcoating, but can be overcoated at a later stage if desired.

• Ongoing protection can be achieved through overcoating or simple recoating with CRC Prime It – Red Oxide Primer after 3 years, depending on conditions.

• Protection in extreme conditions may require re-application more frequently.

Prep-It Metal Primer

• Single pack high build, easy-sanding metal primer with a grey finish.

• Formulated with anti-corrosive zinc complexes, it outlasts most high build primers by inhibiting corrosion and forms a quick-drying protective coating with excellent adhesion to bare metal.

• Ideal as a general purpose primer and filler coat over bare metal or as an intermediate coat over CRC Zinc It, Prime It, Rust Converter or Etch It or to facilitate high build and prepare surface prior to finish coating.

• It can be applied directly over most polyester fillers.

• Unique fast drying coating formulated for treatment of lightly rusted or correctly prepared metal surfaces.

• CRC Rust Converter neutralises rust and converts it to a tough black primer in one easy step.

• It binds to the surface and provides a waterproof barrier by sealing out moisture and other outside elements for effective long-lasting rust protection.

• No more sandblasting, heavy scraping, or grinding.

• Multi-purpose, red lithium complex grease that withstands extreme pressures and temperature ranges.

• Formulated with anti-oxidation, anti-rust, and anti-wear additives, it is a highly versatile grease for use in marine, automotive and industrial applications.

• Single component zinc rich compound with a special epoxy binder. Contains 95% of the highest purity zinc in the dried film, to give galvanic rust prevention.

• Single pack etch primer with excellent adhesion to bare metal.

• It is formulated for etching and key-coating bare aluminium, stainless steel, brass, copper and galvanised metal surfaces and forms a tenacious key coat to provide adhesion for a paint system.

• Advanced technology water based lubricant that provides a quick and efficient coating to prevent welding spatter from adhering to surrounding metal surfaces.

• Saves time and makes clean up easy by eliminating the need to chisel, grind or wire brush spatter after welding.

• The water based film is easily removed by wiping with a cloth or rag, leaving surface ready for paint or protective coatings such as CRC Zinc-It®.

66 Boat Building & Maintenance www.samallen.com.au
Anti-Spatter Rust Converter
Etch-It Primer Zinc-It Galvanic Rust Protection
Part No. Description Size
CRC White Lithium Grease Aerosol 300g
Part No. Description Size 324244 CRC Red Lithium Grease Cartridge 450g
Description Size
CRC Zinc-It Galvanic Rust Protection Aerosol 350g
Part
No.
324250
Part No. Description Size 324254 CRC Prime-It Red Oxide Primer For Steel Aerosol 400ml
Description Size
CRC Etch-It Primer Aerosol 400ml
Part
No.
324261
Part No. Description Size 324262 CRC Prep-It Metal Primer Aerosol 400ml
Part No. Description Size 324268 CRC Rust Converter Aerosol 425g
Part No. Description Size 324310 CRC Anti-Spatter for Welding Aerosol 300g

CRC Part Cleaners and Adhesives

Sta-Lube Brake Calliper Grease Brakleen

324240 CRC Sta-Lube Synthetic Brake & Calliper Grease Tube 71g

• High quality, synthetic brake calliper grease that is manufactured with a combination of Polyalphaolefin and Pentaerythritol Esters which are then thickened with fumed silica.

• Contains EP (extreme pressure) and anti-wear agents, plus anti-oxidants and corrosion inhibitors.

• A product engineered to maximise carburettor performance and control pollution.

• An effective in place cleaner that removes deposits, gum, varnish, lacquer, resin, paraffin, metallic salts, oil oxides, tar and gasoline stains.

• Will not harm catalytic converters or oxygen sensors.

Ultra High Strength Aerosol Adhesive

• Spray an even layer of adhesive to both surfaces.

• Adjust nozzle for width of spray required.

• Allow solvents to evaporate away. In 5-10 minutes, the solvent should have evaporated and the adhesive should be ‘tacky’ enough to bond the surfaces together.

• A useful indication is to touch the surfaces (all over) with a clean finger: if they are ‘sticky’ to the touch, without transferring to your finger, they are ready to bond together.

• On non porous surfaces it is imperative that no solvent is trapped.

• Position components accurately, as when contact is made, the bond will be immediate.

• Apply maximum overall instant pressure, taking care to expel any air bubbles, to ensure a complete bond.

• Use of a hand pressure roller, e.g. a vinyl-flooring roller, provides good direct pressure.

• A dry adhesive surface may be reactivated by wiping over with solvent.

One Step Tyre Care

• Formulated to quickly and safely remove brake fluid, grease, oil and other contaminants from brake linings, pads, drums and callipers.

• Selected solvents, controlled evaporation, low surface tension and high density ensure superior cleaning and degreasing properties. Can even lift and remove oil and grease that has already penetrated linings.

Contact Cleaner

• Unique, plastic safe, scientifically formulated, technically proven, stable, inert high purity cleaning solvent.

• Non-corrosive, non-staining, rapid complete evaporation and contains no lubricants.

• Contains COZOL – a special proprietary blend of solvents which enhances the cleaning power without damaging plastics.

Throttle Body & Air Intake Cleaner

• Regular cleaning with CRC Throttle Body & Air Intake Cleaner restores engine performance, improves fuel economy and reduces engine wear.

• Penetrates the rubber tyre wall and dries to a clear protective film.

• No rinsing, no wiping, no rubbing.

• So Easy makes tyres look like new again.

• Designed to protect battery terminals from corrosion, the leading cause of battery failure, and to maintain the batteries peak performance level.

• Provides a dry, lead free protective coating that keeps moisture, salts and grime from corroding metal contacts.

• Maximises performance, provides long lasting protection and extends battery life.

Boat Building & Maintenance 67 www.samallen.com.au Battery
Terminal Protector
Part No. Description Size 324285 CRC Brakleen Brake & Parts Cleaner Aerosol 500g
CO
Clean-R-Carb
Part No. Description Size 324291 CRC Clean-R-Carb - Carburetor Cleaner Aerosol 400g
Part No. Description Size 324295 CRC Battery Terminal Protector Aerosol 300g
Part No. Description Size 324290 CRC Throttle Body & Air Intake Cleaner Aerosol 400g
Part No. Description Size 324300 CRC Ultra High Strength Aerosol Adhesive Spray 550ml
Part No. Description Size 324320 CRC One Step Tyre Cleaner & Shine Aerosol 400g
No. Description Size 324230 CRC CO Contact Cleaner Aerosol 350g
Part
Part No. Description Size

• Lubricates and displaces moisture.

• Fast acting.

• Protects by leaving thin film.

• Does not evaporate.

• Penetrates deeply.

• Not tacky or sticky.

• Aerosol is a Class 2 flammable gas, all other products are non flammable and safely transported.

Tef-Gel™ Corrosion Eliminator & Passive Jointing Compound

Tef-Gel™ Corrosion

• Prevents corrosion between dissimilar metals and carton fibre.

• Prevents galling of all grades of stainless steel.

• Industrial grade, non hazardous, assembly lubricant.

• Protects electrical connectors.

• Resistant to saltwater and detergents.

• Will not cold flow or dry out, giving long term protection of hardware for future disassembly.

• Contains PTFE (Teflon®) and 0% volatile solvents, no silicones or petroleum solvents to evaporate.

• Indefinite shelf life.

Duralac Passive Jointing Compound Green

• Duralac Green is a paste featuring excellent protective properties that consistently prevents any possible

• Contains no barium chromate and is therefore universally applicable.

• Ideal for masts, winches, aerials, batteries, bolts, screws, rivets etc.

68 Boat Building & Maintenance www.samallen.com.au
Without Tef-Gel With Tef-Gel Part No. Description Size 70660 Tef-Gel™ Corrosion Eliminator Tube 10g 70662 Tef-Gel™ Corrosion Eliminator Tube 30g 70664 Tef-Gel™ Corrosion Eliminator Tub 60g 70666 Tef-Gel™ Corrosion Eliminator Tube 120g 70668 Tef-Gel™ Corrosion Eliminator Cartridge 320g 70670 Tef-Gel™ Corrosion Eliminator Tub 500g 70672 Tef-Gel™ Corrosion Eliminator Tub 1kg
Part No. Description Size 70596 Duralac Passive Jointing Compound Green 115ml
corrosion and can be used to join dissimilar metals of all types such as stainless steel and aluminium.
Part No. Description Size 322000 Mako Oil Aerosol 150g 322002 Mako Oil Aerosol 400g 322004 Mako Oil Bottle with Trigger 750ml 322006 Mako Oil Bottle 5Ltr 322008 Mako Oil Drum 20Ltr
322006 322004 322000 322002 Mako Oil 70672 70670 70664 70668 70666 70662 70660 Mako Oil
322008
Eliminator

Anodes Aluminium Block Anodes with Strap

Used to protect a vessel's engine or running gear from the effects of galvanic corrosion due to dissimilar metals in a marine environment. Aluminium anodes are effective in both salt and brackish water. Zinc anodes are only suitable in salt water, whilst magnesium anodes are the most effective, but only suitable for fresh water.

Anodes - Alloy Block Elliptical with Strap

Anodes - Alloy Block Square with Strap

Anodes - Alloy Block Oval with Strap

Anodes - Alloy Divers Dream

Anodes - Alloy Block Rectangle with Strap

Boat Building & Maintenance 69 www.samallen.com.au
Part No. Shape A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg) 21101 Elliptical 295 210 75 40 25 3 1 B C A E F Part No. Shape A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg) 21101A Square 275 155 155 25 25 3 1.8 C D B A E F Part No. Length (mm) Width (mm) Height (mm) Hole Centre Distance (mm) Hole Ø (mm) Weight (kg) 21236 150 99 13 69 35 x 11 0.4 21237 304 152 13 140 89 x 13 1.58 21237 21236
Part No. Shape A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg) 21100 Oval 350 240 75 36 30 3 1.6 21102 Oval 450 300 80 40 25 5 2.3 21103 Oval 450 300 130 35 32 5 3.2 21104 Oval 405 250 125 38 32 5 3.1 21105 Oval 500 350 150 40 40 5 5 B D C A E F 21102 21100 21103 21104 21105 B D C A E F 21100 Part No. Shape A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg) 21108 Rectangle 800 510 130 50 40 5 8 B D C A E F

Zinc Block Anodes with Strap

Anodes - Zinc Tear Drop Block with Strap Anodes - Zinc Elliptical Block with Strap

Anodes - Zinc Round Block with Strap

Anodes - Zinc Oval Block with Strap

Anodes - Zinc Square Block with Strap

Anodes - Zinc Rectangle Block with Strap

Anodes - Zinc Oval Riviera Aftermarket

70 Boat Building & Maintenance www.samallen.com.au
Part No. Shape A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg) 21147A Rectangle 195 103 38 25 20 2 0.74 21146 Rectangle 195 100 75 25 25 3 1.45 21143 Rectangle 290 160 80 25 25 3 2.1 21101B Rectangle 450 300 100 32 32 5 7 21188 Rectangle 800 515 130 45 40 5 18 B D C A Part No. Shape A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg) 21249 Oval 400 200 145 32 25 5 5.4 21248 Oval 500 300 150 35 25 5 8.9 B D C E F Part No. Shape A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg) 21141 Square 275 155 155 25 25 3 4.2 C D B A E F Part No. Shape A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg) 21150 Tear Drop 275 127 60 30 25 3 1 21150A Tear Drop 295 160 80 35 25 3 1.7 21152 Tear Drop 295 180 80 42 25 3 2.2 B D C A F Part No. Shape A (mm) B Ø (mm) C (mm) D (mm) E (mm) Weight (kg) 21135 Round 190 85 48 25 3 1.3 B C A D E B D C A E F Part No. Shape A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg) 21128 Elliptical 295 215 75 40 25 3 2.5 B D C A E F 21136 B D C A E F 21127 / 21186 / 21126 Part No. Shape A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg) 21136 Oval 295 170 85 50 25 3 3.1 21127 Oval 295 175 77 33 25 3 2.8 21129 Oval 350 245 75 32 32 3 3.6 21186 Oval 405 250 125 38 32 5 7 21126 Oval 510 305 148 32 40 5 8.5 21129 B D C A E F

Anodes - Zinc Plain Tear Drop Block

Anodes - Zinc Tear Drop Bolt-On Block

Anodes - Zinc Rectangle Bolt-On Block

Boat Building & Maintenance 71 www.samallen.com.au
Anodes
Anodes
Zinc Square Bolt-On Block Anodes
- Zinc Divers Dream
-
- Zinc Plain Rectangle Block Anodes - Zinc Plain Square Block
Part No. Shape A (mm) B (mm) C (mm) Weight (kg) 21148 Tear Drop 90 38 24 0.3 21149 Tear Drop 125 60 30 0.9 A C B A C B A B D Part No. Shape Holes A (mm) B (mm) C (mm) D (mm) Hole Ø (mm) Weight (kg) 21124 Rectangle 1 155 80 25 - 22 2 21138 Rectangle 2 145 68 18 75 13 x 25 1 21133 Rectangle 2 150 75 35 70 17.5 x 28 2 21137 Rectangle 2 198 85 25 75 14.5 x 28 2.4 21137A Rectangle 2 200 100 32 110 17.5 x 28 3.7 21225 Rectangle 2 300 60 30 200 13 3.45 21230 Rectangle 2 300 100 45 150 22 x 28 8.6 Part No. Shape Holes A (mm) B (mm) C (mm) D (mm) Hole Ø (mm) Weight (kg) 21148A Tear Drop 2 90 38 24 32 6 0.2 21149A Tear Drop 2 125 60 30 40 6 0.7 21153 Tear Drop 2 345 130 70 160 20 11.5 D A C B Part No. Length (mm) Width (mm) Height (mm) Hole Centre Distance (mm) Hole Ø (mm) Weight (kg) 21234 150 99 13 69 35 x 11 1.02 21235 304 152 13 140 89 x 13 3.41 21235 21234 Part No. Shape Holes A (mm) B (mm) C (mm) Hole Ø (mm) Weight (kg) 21220 Square 1 90 90 19 15 0.9 21221 Square 1 90 90 32 15 1.35 A C B Part No. Shape A (mm) B (mm) C (mm) Weight (kg) 21140 Square 155 155 25 4 A C B 21146A Part No. Shape A (mm) B (mm) C (mm) Weight (kg) 21147 Rectangle 100 38 25 0.7 21146A Rectangle 100 75 25 1.4 21145 Rectangle 150 100 20 2 21142 Rectangle 160 80 25 2 A C B 21147
Zinc Block Anodes

Zinc Block Anodes

72 Boat Building & Maintenance www.samallen.com.au
Anodes - Zinc Condenser with Stud Anodes - Zinc Condenser No Bolt Part No. Shape Holes A (mm) B (mm) C (mm) D (mm) Hole Ø (mm) Weight (kg) 21227 Oval 2 250 125 40 110 18 x 28 6.5 21228 Oval 2 305 145 32 158 24 7.3 21258 Oval 2 300 80 40 200 18 x 28 4.7 D A C B
Anodes - Zinc Condenser with Stud - Tapered
Part No. Shape Holes A (mm) B (mm) C (mm) D (mm) Hole Ø (mm) Weight (kg) 21231 Oval 2 305 145 38 100-200 17.5 x 70 8 A B D Zinc
Part No. A Ø (mm) B Ø (mm) C (mm) D (mm) Bolt Size Weight (kg) 21161 50 38 30 25 5/16" UNC 0.35 21162 75 63 30 25 5/16" UNC 0.8 Part No. A Ø (mm) B (mm) C (mm) Bolt Size Weight (kg) 21160A 40 40 25 M10 0.35 Part No. A Ø (mm) B Ø (mm) C (mm) Weight (kg) 21134 75 63 30 0.8 Part No. Length (mm) Width (mm) Height (mm) Stud Weight (kg) 21128A 155 120 60 3/8" UNC 4 A C B B C A B C A D Anodes - Zinc Oval Bolt-On Block Anodes - Zinc Oval Bolt-On Slotted Holes Block Anodes - Zinc Tear Drop with Stud
Condenser Block Anodes

Anodes - Zinc Pot No Wire

Zinc Portable Anodes

Anodes - Zinc Pot Anodes - Zinc Portable

Zinc Rudder Anodes

Zinc & Magnesium Anodes

• For the added protection of moored vessels where the problem of stray current exists, or where extra protection is needed.

• Complete with 3 metres of plastic coated steel cable and clip.

Clip to grounding strap where possible or wire all items as shown with copper wire and clip to wire

Anodes - Zinc Rudder

Clip to bolt on outdrive

Anodes - Magnesium with Strap

Boat Building & Maintenance 73 www.samallen.com.au
B D A E C Part No. Description A (mm) B (mm) C (mm) Weight (kg) 21139 Pot Anode - No Wire 125 38 25 0.8 Part No. Dimensions (mm) Weight (kg) 21240 300 x 120 x 40 3.3
Zinc Pot Anodes Part No. Sold as A (mm) B (mm) C (mm) D (mm) E (mm) Weight (kg) 21130A Pair 50 11 - - 7 0.08 21130 Pair 70 13 - - 9 0.18 21160 Pair 90 17 - - 9 0.42 21132 Pair 125 21 - - 11 0.95 21131 Single 130 34 34 18 14 1.9 A B D E C 21131 21130A / 21130 / 21160 / 21132 Part No. A (mm) B (mm) C (mm) D (mm) E Ø (mm) Weight (kg) 21178 300 100 27 27 3 0.5 21180 400 200 27 27 3 1 A C B
Part No. Overall Length (mm) Length (mm) Width (mm) Depth (mm) Strap Width (mm) Strap Depth (mm) Weight (kg) 21274 260 155 75 40 25 5 0.8
Only suitable for use in fresh water. • More effective than alloy anodes.

Anodes - Zinc Propeller

Zinc Propeller Anodes

Anodes - Zinc Propeller with Nut Insert

• Anode with propeller nut insert (silicon bronze alloy) cast to C87500 composition.

NOTE: Dimension C is at the widest point. Dimension D is at the small end of the tapered hex.

74 Boat Building & Maintenance www.samallen.com.au Anodes - Zinc Propeller Max-Prop Uni Part No. A (mm) B (mm) C (mm) D (mm) Propeller Shaft Ø (in) Propeller Nut Thread Size (in) Weight (kg) 21106 6 38 32 23 3/4" 1/2" UNC 0.09 21107 6 52 42 26 7/8" 5/8" UNC 0.227 21109 8 68 50 30 1-1/8" 3/4" UNF/UNC 0.45 21110 8 75 58 35 1-1/4" 7/8" UNC 0.68 21112 9 80 63 39 1-3/8" 1" UNC 0.8 21113 9 84 65 42 1-1/2" 1-1/8" UNC 0.91 21114 9 86 79 46 1-3/4" 1-1/4" UNC 1.3 21116A 9 100 85 56 2" 1-1/2" UNC 1.5
D C B A Part No. A (mm) B (mm) C (mm) D (mm) Propeller Shaft Ø (in) Propeller Nut Thread Size (in) Weight (kg) 21107B 6 52 42 26 7/8" 5/8" UNC 0.37 21109B 8 68 50 30 1-1/8" 3/4" UNF 0.7 21112B 9 80 63 39 1-3/8 " 1" UNC 1.1
D C B A Part No. Suits Blade Propellers (in) Height (mm) O.D. (mm) I.D. (mm) Hole Detail Weight (kg) Replaces Genuine Part No. 21219 2 13 - 18 40 97 80 4 x 7mm 0.57 1567000000 Part No. A (mm) B (mm) C (mm) D (mm) Weight (kg) 21203 60 83 47 55 0.82 A B C D Part No. A (mm) B (mm) C (mm) D (mm) Weight (kg) 21201U 43 & 46 60 39 32 0.27 21202U 50 68 44 43 0.36 21203U 55 & 60 80 46 45 0.9 A B C D
Zinc
Max-Prop Anodes
Zinc
Gori®
Anodes -
Propeller
-
Propeller

Anodes - Zinc Shaft Imperial and Metric

Anodes - Zinc Heavy Duty Imperial Shaft

Anodes - Zinc Donut Imperial Shaft

Boat Building & Maintenance 75 www.samallen.com.au Zinc Shaft Anodes Part No. A Shaft Size B (mm) C (mm) Weight (kg) 21154 3/4" 52 51 0.36 21154A 7/8 " 54 53 0.41 21155 1" 55 55 0.42 21156A 1-1/8" 60 57 0.52 21156 1-1/4" 61 60 0.53 21157A 1-3/8" 67 60 0.67 21157 1-1/2" 70 63 0.76 21158 1-3/4" 82 73 1.13 21159 2" 82 73 1.41 21282 20mm 58 52 0.55 21283 25mm 56 55 0.49 21284 30mm 61 61 0.55 21285 35mm 66 65 0.69 21286 40mm 82 73 1.20 21287 50mm 82 73 0.95 21290 2-1/4" 103 96 2.82 21291 2-1/2" 103 96 2.45 21293 2-3/4" 121 93 3.45 • Available to suit imperial or metric shaft sizes. B A C Part No. A Shaft Size (in) B (mm) C (mm) Weight (kg) 21205 3/4" 54 25 0.30 21206 7/8" 54 25 0.29 21207 1" 63 32 0.55 21208 1-1/8" 63 32 0.50 21209 1-1/4" 63 32 0.52 21210 1-1/2" 76 32 0.67 21211 1-3/4" 89 35 1.03 21212 2" 89 35 0.95 212280 2-1/4" 100 57 0.75 212281 2-1/2" 130 40 2.27 A C B B A C B A C 21286 - 21287 21282 - 21285 B A C 21154 / 21154A / 21156A / 21157A 21155 / 21156 / 21157 / 21158 / 21159 Part No. A Shaft Size (in) B (mm) C (mm) Weight (kg) 21159HD 2" 103 120 4.60 21190 2-1/4" 107.5 120 4.30 21191 2-1/2" 107.5 120 3.92 21192 2-3/4" 122.8 130 5.60 21193 3" 116 130 5.00 21193A 3-1/4" 138 164 9.80 B A C

Zinc Side Power Bow Thruster / Pencil / Universal Engine Anodes

Anodes - Zinc Side Power Bow Thruster

7

20 1180

Bow thruster anode to suit models: SP125Ti, 125T, SP155Tci,155Tc, SP200Tci, 200Tc, SP220Tc, SP240Tci, 15HP (20150), SP285Tci,285Tc, 20HP (2200)

61180

Anodes - Zinc Pencil Rod

• To suit water jackets, pumps, heat exchangers, stock material for marine engine anodes.

76 Boat Building & Maintenance www.samallen.com.au Anodes - Zinc Engine Bukh® Anodes
Engine Universal
Brass Plug Anodes
- Zinc
with
- Zinc Engine Universal
Part No. Length (mm) Exposed Length (mm) Ø (mm) Thread Weight (kg) Replaces Genuine Part No. 21117 54 44 10 5/16" UNC 0.02 Universal 21119 62 52 13 3/8" UNC 0.04 Universal 21121 63 50 16 7/16" UNC 0.07 Detroit® 8517479 GM® 8517480 Yanmar® 119574-18790 Universal 21123 67 51 19 1/2" UNC 0.11 Detroit® 8515842 GM® 8515842 Universal Part No. Length (mm) Exposed Length (mm) Ø (mm) Anode to Plug Thread External Plug Thread Weight (kg) Replaces Genuine Part No. 21116 60 44 10 5/16" UNC 1/4" NPT 0.04 Universal 21118 73 52 13 3/8" UNC 3/8" NPT 0.07 Universal 21120 76 51 16 7/16" UNC 1/2" NPT 0.13 Cummins® 68241 Yanmar® 119574-18790 Universal 21122 78 51 19 1/2" UNC 3/4" BSPT 0.21 Universal 21199X 62 48 6 1/4" UNC 1/8" NPT 0.02 Universal Part No. Image Suits Engine Height (mm) Diameter (mm) Hole Size (mm) Hex Size (mm) Weight (kg) Replaces Genuine Part No. 21276 Side Power Bow Thruster 20 44 6 19.5 x 22.5 0.12
1190
suit models: SP55Si, 55S, 75Ti, 95T, 100 Hyd 21277 Side Power Bow Thruster 42 48 6 24.5 x 28mm 0.3
Bow thruster anode To
21278 Side Power Bow Thruster 20 26 6 - 0.04
SP30, S2i, 30S, 40Si, 40S Part No. Type Ø (mm) Length (mm) Weight (kg) 21168 Extruded 10 305 0.17 21165 Extruded 13 300 0.28 21166 Extruded 16 300 0.43 21164 Extruded 19 305 1.5 21164A Extruded 22 305 6.1 Part No. Type Ø (mm) Length (mm) Weight (kg) 21163 Extruded 25 305 1.05 21169 Cast 30 305 1.45 21165A Extruded 38 305 2.48
Bow thruster to suit models:
Part No. Image Suits Engine Length (mm) Exposed Length (mm) Diameter (mm) Thread Material Weight (kg) Replaces Genuine Part No. 21172 Bukh® 45 35 12 M5 Zinc 0.03 B00E0450

Zinc Engine Anodes

Anodes - Zinc Engine Caterpillar®

Boat Building & Maintenance 77 www.samallen.com.au Anodes - Zinc Engine Detroit® Anodes - Zinc Engine Cummins®
Part No. Image Suits Engine Length (mm) Exposed Length (mm) Diameter (mm) Thread Material Weight (kg) Replaces Genuine Part No. 21181 Caterpillar® 50 38 10 1/4" UNC Zinc 0.02 6L3104 21174 Caterpillar® 69 57 10 1/4" UNC Zinc 0.03 6L2283 21184 Caterpillar® 40 30 13 3/8" UNC Zinc 0.03 6L2281 21183 Caterpillar® 53 43 13 3/8" UNC Zinc 0.04 6L2280 21176 Caterpillar® 76 63 16 3/8" UNC Zinc 0.1 6L2288 21185A Caterpillar® 71 58 32 3/4" UNC Zinc 0.32 6L2284 21197D Caterpillar® 32 20 22 5/8" UNF Zinc 0.065 6L2016 21197E Caterpillar® 30 30 16 1/4" UNC Zinc 0.04 Air - con Condenser Part No. Image Suits Engine Length (mm) Exposed Length (mm) Diameter (mm) Anode to Plug Thread External Plug Thread Material Weight (kg) Replaces Genuine Part No. 21120 Cummins® 76 51 16 7/16" UNC 1/2" NPT Zinc 0.13 68241 Part No. Image Suits Engine Length (mm) Exposed Length (mm) Diameter (mm) Thread Material Weight (kg) Replaces Genuine Part No. 21183 Detroit® 53 43 13 3/8" UNC Zinc 0.04 8925832 21121 Detroit® 63 50 16 7/16" UNC Zinc 0.07 8517479 21123 Detroit® 67 51 19 1/2" UNC Zinc 0.11 8515842 21199Y Detroit® 105 92 19 1/2" UNC Zinc 0.18 8515850
78 Boat Building & Maintenance www.samallen.com.au Part No. Image Suits Engine Length (mm) Exposed Length (mm) Diameter (mm) Thread Material Weight (kg) Replaces Genuine Part No. 21173A GM® 63 50 10 3/8" UNC Zinc 0.03 Oil Cooler 21121 GM® 63 50 16 7/16" UNC Zinc 0.07 8517480 21123 GM® 67 51 19 1/2" UNC Zinc 0.11 8515842 21177 GM® 97 82 19 5/8" UNC Zinc 0.18 8515851 21199Y GM® 105 92 19 1/2" UNC Zinc 0.18 8515850 Zinc Engine Anodes Part No. Image Suits Engine Length (mm) Exposed Length (mm) Diameter (mm) Thread Material Weight (kg) Replaces Genuine Part No. 21184 Onan® 40 30 13 3/8" UNC Zinc 0.03 130-4434 Part No. Image Suits Engine Length (mm) Exposed Length (mm) Diameter (mm) Thread Material Weight (kg) Replaces Genuine Part No. 21199W Scania® 58 58 17 M6 Zinc 0.07 C1331818 Part No. Image Suits Engine Length (mm) Exposed Length (mm) Diameter (mm) Thread Material Weight (kg) Replaces Genuine Part No. 21179 Volvo Penta® 42 30 16 7/16" UNC (Male) M8 (Female) Zinc 0.04 838929 21199 Volvo Penta® 55 43 27 3/8" UNC Zinc 0.14 823661-4 Part No. Image Suits Engine Length (mm) Exposed Length (mm) Diameter (mm) Thread Material Weight (kg) Replaces Genuine Part No. 21263 Iveco 34 26 14 10 Press Fit Zinc 0.03 8105277 Anodes - Zinc Engine GM® Anodes - Zinc Engine Iveco Anodes - Zinc Engine Onan® Anodes - Zinc Engine Scania® Anodes - Zinc Engine Volvo Penta®

Zinc Outboard Anodes

Boat Building & Maintenance 79 www.samallen.com.au
Anodes
Anodes - Zinc Outboard Mercury®
- Zinc Engine Yanmar®
Part No. Image Suits Engine Length (mm) Exposed Length (mm) Diameter (mm) Thread Material Weight (kg) Replaces Genuine Part No. 21199WW Yanmar® 50 37 20 M8 Zinc 0.08 27210-200370 21184 Yanmar® 40 30 13 3/8" UNC Zinc 0.03 119574-44150-01 21170 Yanmar® 41 30 20 M8 Zinc 0.07 27210-200300 21121 Yanmar® 63 50 16 7/16" UNC Zinc 0.07 119574-18790 21170A Yanmar® 33 22 20 M8 Zinc 0.05 27210-200200
Part No. Image Suits Engine Type of Anode Dimensions (mm) Hole Centre Distance (mm) Mounting Material Weight (kg) Replaces Genuine Part No. 21196D Mercury® Round Plate Ø 90 x 25 - 7/16" UNC Zinc 0.3 76214-5 21198 Mercury® Trim Tab Short Leg Ø 90 x 85 - 7/16" UNC Zinc 0.48 31640 21199N Mercury® Block 77 x 28 x 23 - 1/4" Zinc 0.24 826134 21199S Mercury® Plate 192 x 50 x 11 178 & 168 4 x 1/4" Zinc 0.64 818298 Part No. Image Suits Engine Type of Anode O.D. (mm) Height (mm) Thread Suits Engine Material Weight (kg) Replaces Genuine Part No. 21384 Mercury® Cylinder Head 22 32 M6 80-100 HP Die Cast Alloy 0.025 804079002
Zinc Engine Anodes

Zinc Outboard Anodes

Anodes - Zinc & Alloy Outboard Yamaha®

80 Boat Building & Maintenance www.samallen.com.au
Part No. Image Suits Engine Type of Anode Length (mm) Overall Width (mm) Height (mm) Mounting Holes Material Weight (kg) Replaces Genuine Part No. 21171 OMC® Cavitation Plate 60 22 12 2 x 10-24mm UNC Zinc 0.07 41106-935 23009 (Threaded) 327606 (Unthreaded) 21197B OMC® Cube 38 38 25 8mm Zinc 0.21 393023 Part No. Image Suits Engine Type of Anode Diameter (mm) Height (mm) Mounting Material Weight (kg) Replaces Genuine Part No. 21199A Yamaha® Trim Tab LH Gearbox Rotation 90 75 M10 Fine Zinc 0.41 6K1-45371-00 21199B Yamaha® Trim Tab RH Gearbox Rotation 90 70 M10 Fine Zinc 0.41 6E5-45371-01 21199C Yamaha® Trim Tab 90 70 M10 Fine Zinc 0.46 688-45371-02 21199D Yamaha® Trim Tab 95 70 M10 Fine Zinc 0.49 6J9-45371-00 21199E Yamaha® Trim Tab 95 55 8mm Zinc 0.22 664-45371-01 21199G Yamaha® Button Block 24 14 1/4" Zinc 0.04 688-45251-01 Part No. Image Suits Engine Type of Anode Length (mm) Overall Width (mm) Height (mm) Hole Centre Distance (mm) Mounting Holes Material Weight (kg) Replaces Genuine Part No. 21199F Yamaha® Block 45 23 23 23 2 x 1/4" Zinc 0.13 6E5-45251-00 21199H Yamaha® Bracket 205 48 52 180 & 25 4 x 7mm x 11mm Slotted Zinc 0.89 6G5-45251-01 21199I Yamaha® Bar 202 36 16 100 2 x 7mm Zinc 0.89 6H1-45251-02 Part No. Image Suits Engine Type of Anode O.D. (mm) Height (mm) Thread Suits Engine Material Weight (kg) Replaces Genuine Part No. 21380 Yamaha® Cylinder 49 11.4 M5 25-70 HP Diecast Alloy 0.011 62Y-11325-00 21384 Yamaha® Cylinder Head 22 32 M6 80-100 HP Diecast Alloy 0.025 67F-11325-00
Anodes - Zinc Outboard OMC®
Boat Building & Maintenance 81 www.samallen.com.au Zinc Outboard Anodes
Sterndrive Anodes Part No. Image Suits Engine Type of Anode Diameter (mm) Height (mm) O.D. / I.D. (mm) Hole Centre Distance (mm) Mounting Holes Material Weight (kg) Replaces Genuine Part No. 21179A Volvo Penta® Outdrive Ring 156 35 120 / 61 80 2 x 8mm Zinc 0.7 "839388 875815-3" 21179F Volvo Penta® Outdrive Ring 123 27 96 / 40 72 2 x 1/4" Zinc 0.47 851983 21197G Volvo Penta® Outdrive Ring 116 10 116 / 58 80 2 x 10mm Zinc 0.26 V17 / 875 805-4 Part No. Image Suits Engine Type of Anode Length (mm) Overall Width (mm) Height (mm) Hole Centre Distance (mm) Mounting Holes Material Weight (kg) Replaces Genuine Part No. 21179B Volvo Penta® Bar 186 42 22 147 2 x 8mm Zinc 0.89 832598 Part No. Image Suits Engine Type of Anode Dimensions (mm) Mounting Material Weight (kg) Replaces Genuine Part No. 21198 Honda® Trim Tab Ø 90 x 85 7/16" UNC Zinc 0.48 41107 ZWI-003-ZA 21199E Honda® Trim Tab Ø 95 x 55 8mm Zinc 0.22 41107-ZV5-000 21199N Honda® Block 77 x 28 x 23 1/4" Zinc 0.24 41109-ZW1-003 Part No. Image Suits Engine Type of Anode Dimensions (mm) Mounting Material Weight (kg) Replaces Genuine Part No. 21199K Suzuki® Trim Tab Ø 70 x 50 8mm Zinc 0.13 55125-96310 21199JJ Suzuki® Button Ø 21 x 10 1/4" Alloy 0.02 55320-87-JOO 21199J Suzuki® Block 40 x 30 x 12 1/4" Zinc 0.08 55320-95310 21199L Suzuki® Trim Tab Ø 90 x 85 M10 Fine Zinc 0.3 55125-87D00
Anodes - Zinc
Alloy
Suzuki®
- Zinc Sterndrive Volvo Penta®
Zinc
Anodes - Zinc Outboard Honda®
&
Outboard
Anodes

Anodes - Zinc Sterndrive Mercruiser®

82 Boat Building & Maintenance www.samallen.com.au Anodes - Zinc Sterndrive OMC® Cobra Part No. Image Suits Engine Type of Anode Length (mm) Overall Width (mm) Height (mm) Hole Centre Distance (mm) Mounting Holes Material Weight (kg) Replaces Genuine Part No. 21196A Mercruiser® Gimbal Plate 63 63 10 51 2 x 1/4" Zinc 0.25 34762 21199T Mercruiser® Alpha Cavitation Plate 190 72 15 82 2 x 1/4" UNC Zinc 0.73 821269 21199Z Mercruiser® Bravo II Cavitation Plate 178 108 16 36 2 x 11mm Zinc 0.96 821630
Sterndrive
Part No. Image Suits Engine Type of Anode Diameter (mm) Height (mm) Hole Centre Distance (mm) Mounting Holes Material Weight (kg) Replaces Genuine Part No. 21198A Mercruiser® Bearing Carrier 73 24 74 2 x 5mm Zinc 0.22 806105 21199O Mercruiser® Alpha Trim Ram 50 13 39 2 x 5mm Zinc 0.1 806189 21199U Mercruiser® Bravo Trim Ram 50 50 39 2 x 5mm Zinc 0.3 806190 Part No. Image Suits Engine Type of Anode Diameter (mm) Height (mm) Thread Material Weight (kg) Replaces Genuine Part No. 21196B Mercruiser® Alpha Prop Nut 32 28 1/2" UNC Zinc 0.11 55989 Part No. Image Suits Engine Type of Anode Length (mm) O.D. (mm) Hole (mm) Int Hex (mm) Material Weight (kg) Replaces Genuine Part No. 211001 Mercruiser® Bravo 3 62 52 9 38 Alloy 0.19 00836AL Part No. Image Suits Engine Type of Anode Length (mm) Overall Width (mm) Height (mm) Hole Centre Distance (mm) Mounting Holes Material Weight (kg) Replaces Genuine Part No. 21199P OMC® Cobra Gimbal Plate 112 97 30 58 2 x 3/8" Zinc 0.94 984547 21199Q OMC® Cobra Gimbal Plate 112 108 46 58 2 x 10mm Zinc 1.1 983952
Zinc
Anodes
Boat Building & Maintenance 83 www.samallen.com.au Anodes - Martyr™ Aluminium Zeus Pod Drive Mercury® Anodes - Zinc Saildrive Volvo Penta® Zinc Saildrive Anodes Part No. Image Suits Engine Type of Anode Diameter (mm) Height (mm) O.D. / I.D. (mm) Material Weight (kg) Replaces Genuine Part No. 21179G Volvo Penta® Sail Drive 2 Piece Split 141.1 39 109 / 45 Zinc 1.46 3888305 Part No. Image Suits Engine Type of Anode Diameter (mm) Height (mm) Mounting Fits Weight (kg) Replaces Genuine Part No. 21338 Volvo Penta® Sail Drive 3 Piece Split 95 15 3 x M5 Folding Prop S-drives D255A, B, C, D, E, F 0.36Part No. Image Suits Engine Type of Anode Height (mm) O.D. / I.D. (mm) Hole Centre Distance (mm) Mounting Holes Material Weight (kg) Replaces Genuine Part No. 21170C Yanmar® Sail Drive SD 20/31/40/50 25 108 / 66 85 4 x 1/4" Zinc 0.85 19642002652Z 21170D Yanmar® Sail Drive Split SD 20/31/40/50 25 108 / 66 122 2 x 8mm Zinc 0.75 196440-02660 Part No. Image Suits Engine Type of Anode Length (mm) Width (mm) Height (mm) Mounting Holes Weight (kg) Replaces Genuine Part No. 21309 Mercury® Zeus Pod Drive 160 148 13 5 x M8 1.92 00843AL 879150A65 8M0039340 Part No. Image Suits Engine Type of Anode Length (mm) Overall Width (mm) Height (mm) Mounting Holes Material Weight (kg) Replaces Genuine Part No. 21199V OMC® Sail Drive Leg 45 30 32 1/4" UNC Zinc 0.19 C389999 Anodes - Zinc Saildrive OMC® Anodes - Zinc Saildrive Yanmar®

Martyr™ anodes are pressure die-cast and manufactured to strict quality standards through an ISO 9001 Quality Management System. In addition, each alloy is guaranteed to be manufactured to the latest US Military Alloy Specification and is chemically tested regularly to ensure consistency. Poorly manufactured anodes may contain high levels of impurities such as iron, which will leave your investment unprotected. Their aluminium anodes are proven to be effective in salt and brackish water.

Anode Kits - Martyr™ Aluminium Outboard Mercury®

Anode Kits - Martyr™ Aluminium Outboard Yamaha®

84 Boat Building & Maintenance www.samallen.com.au Anode Kits - Outboard
Part No. Suits Engine Fits Weight (kg) 21310 Mercury® Verado 4 Cylinder / Optimax 0.79 21312 Mercury® Verado 6 Cylinder 0.90 21313 Mercury® Verado MMP 350 HP 0.85 21350 Mercury® 75-80-90-100-115 HP 0.83 21352 Mercury® F30-F40-F60 0.80
21312 21313
21352 Part No. Suits Engine Fits Weight (kg) 21315 Yamaha® 40-50HP 0.49 21316 Yamaha® 4T 40-60 HP 0.42 21318 Yamaha® 60-90 HP 0.52 21319 Yamaha® 80-100 HP 0.53 21320 Yamaha® 150-200 HP 0.82 21324 Yamaha® 200-250 HP 0.83 21326 Yamaha® High Performance 200-300 HP 0.81 21328 Yamaha® 300-350 HP 0.59 21329 Yamaha® 300-350XP HP 0.98 21315 21319 21326 21316 21320 21328 21318 21324 21329
21310
21350
Boat Building & Maintenance 85 www.samallen.com.au Anode Kits - Martyr™ Zinc Sterndrive Volvo Penta® Anode Kits - Martyr™ Aluminium IPS Sterndrive Volvo Penta® Anode Kits - Martyr™ Aluminium Sterndrive Mercruiser® Anode Kits - Outboard & Sterndrive 21342 21340 Part No. Suits Engine Fits Weight (kg) 21340 Volvo Penta® SX Engine 2.31 21342 Volvo Penta® SX-A/DPS Engine 2.55 Part No. Suits Engine Fits Weight (kg) 21337 Volvo Penta® IPS Sterndrive 1.90 Part No. Suits Engine Type of Anode Suits Engine Weight (kg) 21300 Mercruiser® Alpha 1 Gen 1 1983-1990 0.75 21302 Mercruiser® Alpha 1 Gen 2 1991 to date 1.18 21306 Mercruiser® Bravo 2 Bravo 3 1989 to date 1989-2003 1.06 21308 Mercruiser® Bravo 3 2004 to date 1.31 21300 21302 21306 21308 Part No. Suits Engine Fits Weight (kg) 21330 Suzuki® 40-50 HP 0.39 21332 Suzuki® 90-100-115-140 HP 0.39 21335 Suzuki® 300-350 HP 0.47 21330 21332 21335 Anode Kits - Martyr™ Aluminium Outboard Suzuki®

Propeller Shaft Cutlass Bearings

Brass Rubber and Nitrile Rubber/Composite Shell Cutlass Bearings

Prop

Shaft Cutlass Bearings - Metric / Imperial

Prop Shaft Cutlass Bearings - Imperial

Prop Shaft Cutlass Bearings - Metric

Cutlass Bearings - Nitrile Rubber/Composite Shell

86 Boat Building & Maintenance www.samallen.com.au
Part No. Shaft Ø (in) External Ø (in) Length (in) 271430 1" 1-3/8" 4" 271260 1" 1-1/2" 4" 271432 1" 1-5/8" 4" 271434 1" 2" 4" 271436 1-1/8" 1-1/2" 4-1/2" 271262 1-1/8" 1-5/8" 4-1/2" 271438 1-1/8" 1-3/4" 4-1/2" 271440 1-1/8" 2" 4-1/2" 271264 1-1/4" 1-3/4" 5" 271444 1-1/4" 1-5/8" 5" 271270 1-5/8" 2-1/8" 6-1/2" Part No. Shaft Ø (in) External Ø (in) Length (in) 271274 1-7/8" 2-5/8" 7-1/2" 271464 2" 2-3/4" 8" 271476 2-1/4" 3-1/8" 9" 271282 2-3/8" 3-1/4" 9-1/2" 271486 2-1/2" 3" 10" 271488 2-1/2" 3-1/8" 10" 271490 2-1/2" 3-3/8" 10" 271498 2-3/4" 3-1/2" 11" 271308 4" 5-1/4" 16" 271312 4-1/4" 5-1/2" 17" Part No. Shaft Ø (mm) External Ø (in) Length (in) 271224 25 1-1/4" 4" 271230 30 1-3/4" 5" 271234 35 1-7/8" 5-1/2" 271238 40 2-1/8" 6" 271240 45 2-3/8" 7" 271246 60 3-1/4" 9-3/4" Shaft Diameter External Diameter Length Brass outer casing with rubber core Shaft Diameter External Diameter Length Brass outer casing with rubber core Part No. Shaft Ø (mm) External Ø (mm) Length (mm) 271192 35 48 140 271193 35 50 140 271199 40 55 160 271200 40 56 160 271206 50 70 200 271207 55 75 220 271208 65 83 260 271211 65 85 260 271212 75 96 300 271213 80 100 320 271214 80 102 320 Shaft Diameter External Diameter Length Brass outer casing with rubber core Part No. Shaft Ø (in) External Ø (in) Length (in) 271703 1" 1-11/16" 4" 271706 1-1/8" 1-7/8" 12" 271709 1-1/4" 2" 12" 271711 1-1/4" 2-1/2" 8" 271716 1-1/2 " 2" 12" 271726 2" 3" 9" 271733 2-1/2 " 3-1/2 " 12" Shaft Diameter External Diameter Length Composite outer casing with Nitrile rubber core

PVC and Synthetic Rubber Cutlass Bearings

Cutlass Bearings - PVC Metric / Imperial

Cutlass Bearings - PVC Imperial

271424P 7/8" 1-1/4" 3-1/2"

271426P 7/8" 1-3/8" 3-1/2"

271428P 7/8" 1-1/2" 3-1/2"

271430P 1" 1-3/8" 4"

271436P 1-1/8" 1-1/2" 4-1/2"

271262P 1-1/8" 1-5/8" 4-1/2"

271444P 1-1/4" 1-5/8" 5"

271448P 1-1/4" 2-1/8" 5"

271266P 1-3/8" 1-7/8" 5-1/2" 271450P 1-3/8" 2" 5-1/2"

271456P 1-1/2" 2-3/8" 6" 271270P 1-5/8" 2-1/8" 6-1/2"

271272P 1-3/4" 2-3/8" 7" 271464P 2" 2-3/4" 8"

2-1/2" 3-1/2" 10"

2-5/8" 3-3/8" 10-1/2"

2-3/4" 3-3/8" 11"

3-1/2" 4-1/4" 14"

3-1/2" 4-1/2" 14"

Cutlass Bearings - PVC Metric

Rudder Shaft Bearings - Synthetic Rubber Metric

Boat Building & Maintenance 87 www.samallen.com.au
Part No. Shaft Ø (mm) External Ø (mm) Length (mm) 500700K 22 29 75 500701K 22 36 80 500705K 35 54 140 500706K 40 54 140 Shaft Diameter External Diameter Length Shaft Diameter External Diameter Length Part No. Shaft Ø (mm) External Ø (mm) Length (mm) 271168P 25 40 400 271170P 28 38 112 271175P 28 42 112 271199P 40 55 160 271200P 40 56 160 271202P 45 61 180 271203P 45 65 180 271204P 50 66 200 271206P 50 70 200 271207AP 60 78 240 271208P 65 83 260 Part No. Shaft Ø (mm) External Ø (in) Length (in) 271220P 20 1-1/4" 3" 271222P 22 1-1/4" 3" 271224P 25 1-1/4" 4" 271226P 25 1-1/2" 4" 271228P 28 1-5/8" 4-1/2" 271232P 32 1-3/4" 5" 271236P 38 2" 6" 271242P 50 2-5/8" 8" 271252P 75 4" 12" Shaft Diameter External Diameter Length Part No. Shaft Ø (in) External Ø (in) Length (in)
Part No. Shaft Ø (in) External Ø (in) Length (in) 271466P
3" 8" 271472P
271280P
271282P
271492P
271286P
271290P
271498P
271502P
12" 271296P
271508P
271512P
271300P
Shaft Diameter External Diameter Length
2"
2-1/8" 3-1/8" 8-1/2"
2-1/4" 3" 9"
2-3/8" 3-1/4" 9-1/2"
271496P
2-3/4" 3-3/4" 11"
2-3/4" 3-1/2" 11"
3" 3-3/4"
3-1/4" 4" 12"
3-1/4" 4-1/4" 13"

• Ideal for small top-up work such as small reservoirs and oil filler bottles, particularly when mated with the Mini Spout Lid.

• Fully interchangeable with any Oil Safe lid, these drums have an extra wide neck opening for rapid pouring and easy cleaning.

• Measurements on drum start at 0.5 litre and continue to 1.5 litres in 0.25 increments.

NOTE: The 1.5 litre drum cannot be used with 180106 Oil Transfer Pump

Not suitable for use with fuels or solvents.

• Ideal for top-up work on small to mid-sized sumps.

• Fully interchangeable with Oil Safe lids these drums have an extra wide neck opening for rapid pouring and easy cleaning.

• Measurements on drum start at 0.5 litre and continue to 2 litres in 0.25 increments.

NOTE: The 2 litre drum cannot be used with 180106 Oil Transfer Pump. Not suitable for use with fuels or solvents.

• Ideal for servicing small to mid-range equipment filler applications.

• Fully interchangeable with Oil Safe lids these drums have an extra wide neck opening for rapid pouring and easy cleaning.

• Measurements on drum start at 0.5 litre and continue to 3 litres in 0.25 increments.

NOTE: Not suitable for use with fuels or solvents.

• Ideal for a host of standard applications from engines and pumps to turbines and gearboxes.

• Fully interchangeable with Oil Safe lids these drums have an extra wide neck opening for rapid pouring and easy cleaning.

• Measurements on drum start at 0.5 litre and continue to 5 litres in 0.5 increments.

NOTE: Not suitable for use with fuels or solvents.

• Ideal size for large sump fill applications while still maintaining mobility and ease of use without all the heavy lifting and potential back injuries from lifting larger impractical drums.

• Fully interchangeable with Oil Safe lids these drums have an extra wide neck opening for rapid pouring and easy cleaning.

• Measurements on drum start at 0.5 litre and continue to 10 litres in 0.5 increments.

NOTE: Not suitable for use with fuels or solvents.

88 Boat Building & Maintenance www.samallen.com.au
Part No. Width (mm) Height (mm) Outlet Size (mm) Weight (g) Capacity (Ltr) 180052 160 220 120 325 2
Oil Safe® Drum - 2 Litre
Part No. Width (mm) Height (mm) Outlet Size (mm) Weight (g) Capacity (Ltr) 180056 160 269 120 400 3
Part No. Width (mm) Height (mm) Outlet Size (mm) Weight (g) Capacity (Ltr) 180060 196 271 120 440 5
Part No. Width (mm) Height (mm) Outlet Size (mm) Weight (g) Capacity (Ltr) 180044 252 348 120 860 10
Oil Safe® Oil Safe® Drums
Part No. Width (mm) Height (mm) Outlet Size (mm) Weight (g) Capacity (Ltr) 180048 158 178 120 318 1.5
Oil Safe® Drum - 1.5 Litre
Oil Safe® Drum - 3 Litre Oil Safe® Drum - 5 Litre Oil Safe® Drum - 10 Litre

Oil Safe® Lids

Oil Safe® Mini Spout Pouring Lid

• Ideal for lubricating jobs with small filler holes.

• 7mm outlet spout opening.

• Large hook handle for ease of carrying and to provide the ability to hang containers where needed.

• 140mm heat-resistant spout.

• Auto-shut off breather valve to avoid accidental spillage or contamination through breathers left open.

• Advanced thread design ensures secure sealed fit.

• Durable construction which will not warp, leak, bend or break.

• Fits any 1.5, 2, 3, 5 or 10 litre Oil Safe® drums.

• Available in multiple colours for easy and comprehensive fluid identification.

• Ideal for applications where a higher lubricant flow is required, such as for engine oils and gear oils.

• 25mm outlet spout opening.

• Large hook handle for ease of carrying and to provide the ability to hang containers where needed.

• 150mm heat-resistant spout.

• Auto-shut off breather valve to avoid accidental spillage or contamination through breathers left open.

• Advanced thread design ensures secure sealed fit.

• Durable construction which will not warp, leak, bend or break.

• Fits any 1.5, 2, 3, 5 or 10 litre Oil Safe® drums.

• Available in multiple colours for easy and comprehensive fluid identification.

Spout Pouring Lid

• Designed for use where precise pouring of lubricants is required, including hard to reach areas.

• Ideal for lower viscosity oils less than ISO 220.

• 12.5mm outlet spout opening.

• Large hook handle for ease of carrying and to provide the ability to hang containers where needed

• 225mm heat-resistant spout.

• Auto-shut off breather valve to avoid accidental spillage or contamination through breathers left open.

• Advanced thread design ensures secure sealed fit.

• Ultra durable construction which will not warp, leak, bend or break.

• Fits any 1.5, 2, 3, 5 or 10 litre Oil Safe® drums.

• Available in multiple colours for easy and comprehensive fluid identification.

Boat Building & Maintenance 89 www.samallen.com.au Oil
Safe® Stretch
Part No. Colour 180064 Black 180068 Blue 180072 Dark Green 180076 Grey 180080 Light Green Part No. Colour 180084 Orange 180088 Purple 180092 Red 180096 Tan 180100 Yellow
Part No. Colour 180152 Black 180156 Blue 180160 Dark Green 180164 Grey 180172 Light Green Part No. Colour 180174 Orange 180176 Purple 180180 Red 180184 Tan 180188 Yellow
Part No. Colour 180192 Black 180196 Blue 180200 Dark Green 180212 Light Green Part No. Colour 180224 Red 180228 Tan 180232 Yellow
Oil Safe® Stumpy Spout Pouring Lid

Oil Safe® Storage Lid

• Ideal for on-site fluid storage and transporting applications.

• Safer and more convenient alternative to handling larger, bulkier drums.

• Advanced thread design ensures secure fully sealed fit.

• Ultra durable construction which will not warp, leak, bend or break.

• Fits any 1.5, 2, 3, 5 or 10 litre Oil Safe® drums.

• Available in multiple colours providing broad choice for easy and comprehensive fluid identification.

• Large outlet ensures fast and controlled pouring of lubricants.

• Advanced thread design ensures secure fully sealed fit.

• Ultra durable construction which will not warp, leak, bend or break.

• Use with a 1.5, 2, 3, 5 or 10 litre Oil Safe® drum to take care of hard to reach and time consuming pumping applications such as gearboxes and transmissions.

• Can be used with 180106 oil transfer pump.

• Available in multiple colours providing broad choice for easy and comprehensive fluid identification.

• Replacement black screw cap for Oil

• Label Pocket: 50.4mm x 90mm double-sided pocket accommodates content labels and card stock and provides ample space for comprehensive identification information on containers and equipment.

• Label Pocket Frame: Industrial-grade frame protects label pockets — connect to Oil Safe® containers via Label Safe™ drum rings.

• Lockable Drum Ring: Attach industrial-grade drum ring around neck of Oil Safe® containers.

90 Boat Building & Maintenance www.samallen.com.au
Oil Safe® Utility Lid
Part No. Colour 180236 Black 180240 Blue 180242 Dark Green 180244 Grey 180246 Light Green Part No. Colour 180248 Orange 180252 Purple 180256 Red 180260 Tan 180264 Yellow Part No. Description Dimensions Ø x H (mm) 180235 Utility Lid Cap Black 63.5 x 12.7
Safe utility lid. Oil Safe®
Part No. Colour 180112 Black 180116 Blue 180120 Dark Green 180124 Grey 180128 Light Green Part No. Colour 180132 Orange 180140 Red 180144 Tan 180148 Yellow
Lids
Oil Safe® Accessories Label Pocket Label Pocket Frame Lockable Drum Ring Part No. Description 180042 Oil Safe® Label Pocket & Frame / Lockable Drum Ring
180235 Oil Safe® Label Pocket & Frame / Lockable Drum Ring

Oil Safe® Accessories & Brass Sump Pump

180102 Oil Safe® Mini Spout Valve Kit

• Replacement black spout components on an Oil Safe Mini Spout lid.

• Twist top spouts on Oil Safe Lids provide for secure sealing of the containers and make it easy to get the lid into position for pouring without accidental spills.

• Kit contains: Mini Spout Shroud and Mini Spout Valve Inner with two Nitrile O-rings.

Brass Sump Pump

• A brass bodied engine oil pump with inlet and outlet hoses.

• Internal rubber components are made from nitrile rubber.

• Extremely resilient and can withstand higher temperatures which is ideal for oil changes.

• Inlet hose: 8mm diameter x 620mm.

• Outlet hose: 12mm diameter x 270mm.

Stumpy Spout Valve Kit

180234 Oil Safe® Stumpy Spout Valve Kit

• Replacement black spout components on an Oil Safe Stumpy Spout Lid.

• Twist top spouts provide for secure sealing of the containers and make it easy to get the lid into position for pouring without accidental spills.

• Kit contains: Stumpy Spout Shroud and Stumpy Spout Valve Inner with two Nitrile O-rings.

Safe® Stumpy Extension Hose

Oil Safe® Stumpy Extension Hose 260

• Ideal for awkward or hard to reach areas.

• The hose can be pulled from the fitting so that it can be cut to suit the application.

• Easily attaches to Oil Safe® 'Stumpy Spout Pouring Lid'.

• Can be used instead of a funnel.

Transfer Pump Reducer Nozzle

• Pump reducer nozzle reduces the fitting on the pump hose from 9mm to 6mm allowing you to fill small openings.

• Suits 180106 oil transfer pump.

• The only manual transfer pump of its kind that is supplied with a removable discharge hose for easy cleaning and drainage.

• Perfect for quickly and easily accessing hard to reach and time consuming top up points such as gearboxes and transmission applications.

• Can be used with Oil Safe® utility lid on 3 litre, 5 litre and 10 litre Oil Safe® Drums.

• Fits most standard 20L drums.

• Pick up depth - 330mm.

• 170cm hose and spout.

Boat Building
Maintenance 91 www.samallen.com.au
Oil
Part No. Description
&
Sump Pump - Brass
Part No. Description
Part No. Description 180106
Oil Transfer Pump - 20 Litre
Part No. Description 23084
Part No. Description 180108 Oil Transfer Pump
Reducer Nozzle
Part No. Description Length (mm) 180208
Oil Safe®
Oil
Oil
Oil Safe® Mini Spout Valve Kit
Transfer Pump - 20 Litre

Oil Extractor Pump - 6.5 Litre

180008 Pela® 650 Oil Extractor Pump Seal / O-ring Kit

180009 Pela® 650 Oil Extractor Pump Tube Set

• Popular with technicians because of its power and durability.

• Requires just 4 to 15 strokes to create a powerful vacuum.

• The integrated container (6.5 litres) then neatly captures the oil preventing messy spills.

• Easily viewed calibrated wall measurement.

• A built-in float switch automatically stops extraction as soon as capacity is reached.

• A pour spout facilitates emptying.

• With the pump housed inside the container, the Big Pela® is a durable, maintenance free unit.

NOTE: Not for use with gasoline or other flammables.

180004

Oil Extractor Pumps

Oil Extractor Pump - 2.5 Litre

• Ideal for oil changes on small 4-stroke outboard engines, lawn mowers, generators and other outdoor power equipment.

• Requires just 5 to 10 strokes to create a powerful vacuum.

Oil Extractor Pump - 14 Litre

& 1/4" 14

• Designed to facilitate oil changes on boats with larger engines (inboards & 4-stroke outboards) as well as those with twin engines.

• Ideal in the workshop for servicing small engine powered equipment.

• Just pump 20 to 25 times in a row to create a powerful vacuum.

• Easily viewed calibrated wall measurement.

• Automatic shut-off when full.

NOTE: Not for use with gasoline or other flammables.

• Oil is neatly captured inside the container.

• Easily viewed calibrated wall measurement.

• Pump is removable for compact storage.

NOTE: Not for use with gasoline or other flammables.

Oil Extractor Pump - 6 Litre

Pela® 6000 Oil Extractor Pump Only

• This unit is designed to vacuum fluids from inaccessible or confined areas.

• It is ideal for oil changes on boats, cars, RV's, outdoor power equipment and industrial machinery.

• Also handy to remove bilge water from boats or trapped water in plumbing systems.

• Requires just 10 to 20 strokes to create a powerful vacuum.

• Oil is neatly captured inside the container.

• Easily viewed calibrated wall measurement.

• Pump is removable for compact storage.

NOTE: Not for use with gasoline or other flammables.

92 Boat Building & Maintenance www.samallen.com.au
Part No. Cylinder Ø (mm) Height (mm) Tube Length (mm) Tube Ø Capacity (L)
220 648 1549
3/16"
Pela® Pro 14 180008
Part No. Cylinder Ø (mm) Height (mm) Tube Length (mm) Tube Ø Extension Tube (mm) Capacity (L) 180002 160 635 1200 3/16" & 1/4" 1000 6.5
180009 180002 Pela® 650 180016
Part No. Container Ø (mm) Height (mm) Tube Length (mm) Tube Probe Outside Ø Clear Tube Outside Ø Capacity (L) 180012 230 546 1092 3/16" 3/8" 6 180016
Pela® 6000
Part No. Container Ø (mm) Height (mm) Tube Length (mm) Tube Probe Outside Ø Clear Tube Outside Ø Capacity (L) 180003 180 445 1092 3/16" 3/8" 2.5
Pela® 2000
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
