01) 2024 SAW Anchors & Mooring Equipment

2024 - Anchors & Mooring

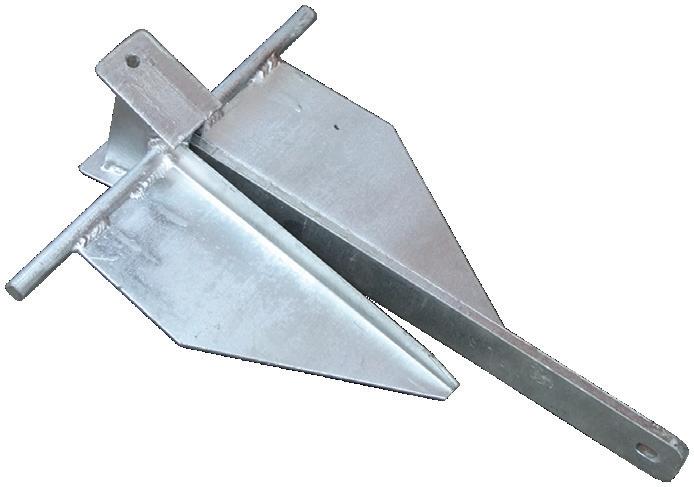

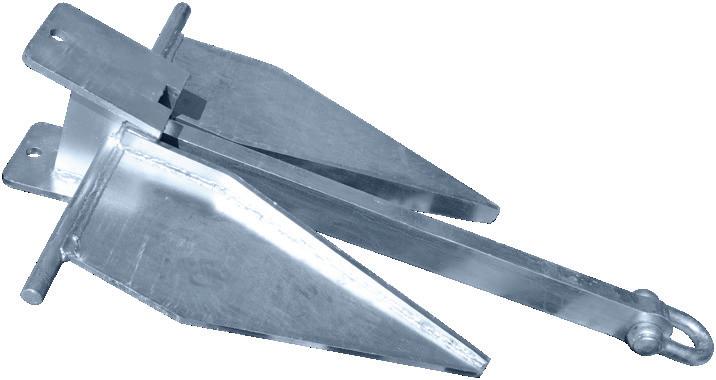

Anchors - Sand

Anchors - Sand Heavy Duty

•

•

•

•

•

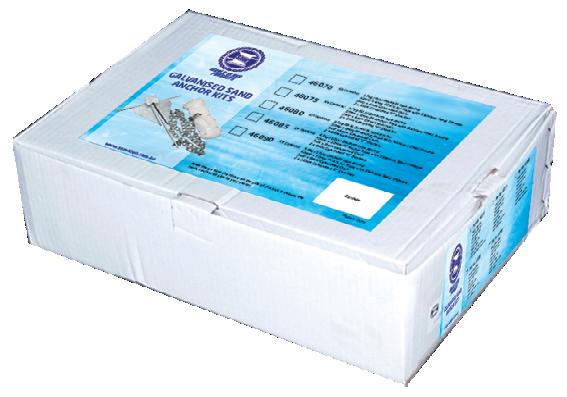

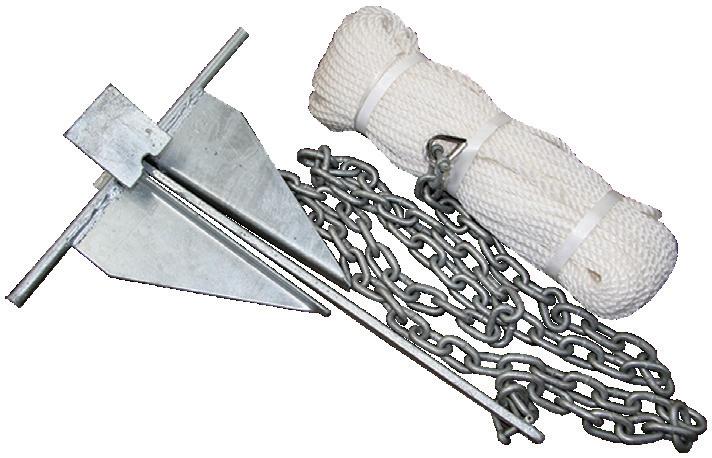

Anchor Kits - Sand

•

• Best suited to soft seabeds.

• Ideal in mud.

• Most common anchor for moored craft.

• Fitted with eye to attach retrieval line.

• Hot dipped galvanised finish.

Anchors - Plough

• Best suited to soft seabeds.

• Ideal in mud .

• Fitted with eye to attach retrieval line.

• 316G stainless steel high polished.

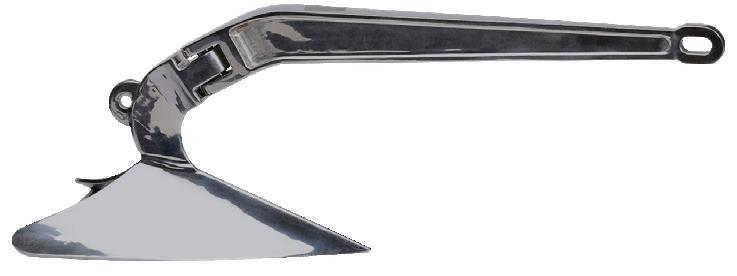

Anchors - Plough Stainless Steel

Anchors & Mooring

Delta Style Anchors & Sea Anchors

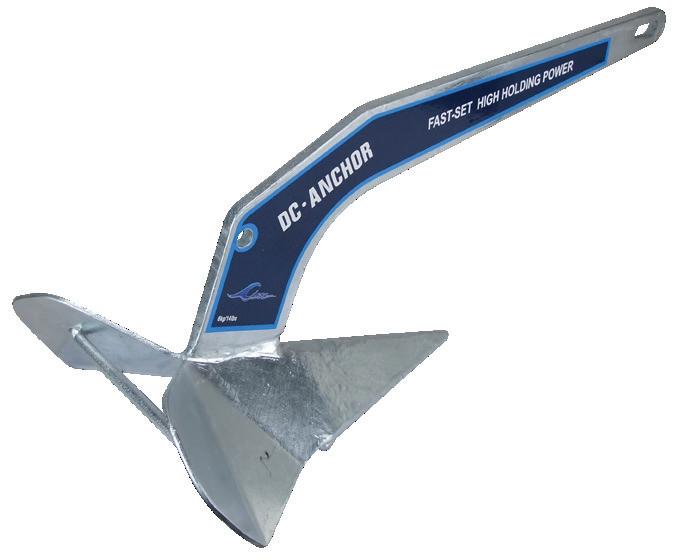

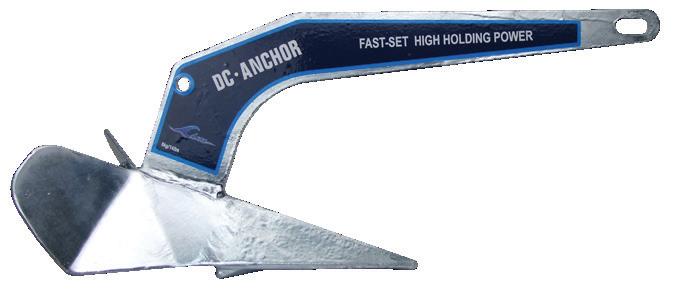

Anchors - DC Delta Style

• Lloyds Type Approval.

• High holding power.

• Weighted tip.

• Low centre of gravity and unique shape facilitates fast setting.

• Hole to attach retrieval line.

• High tensile steel.

• Hot dipped galvanised.

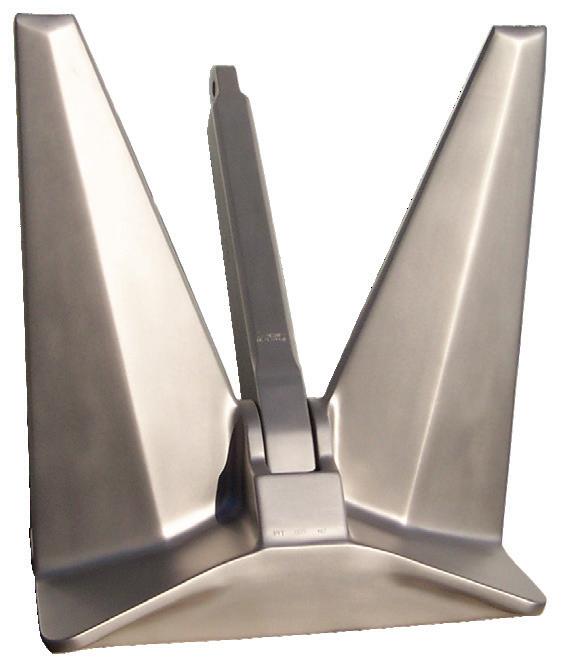

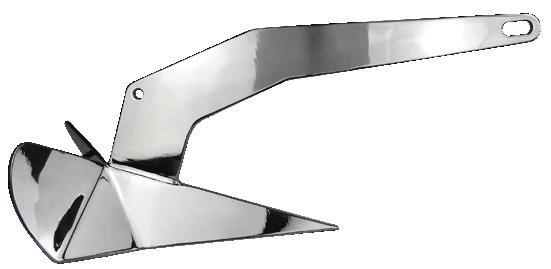

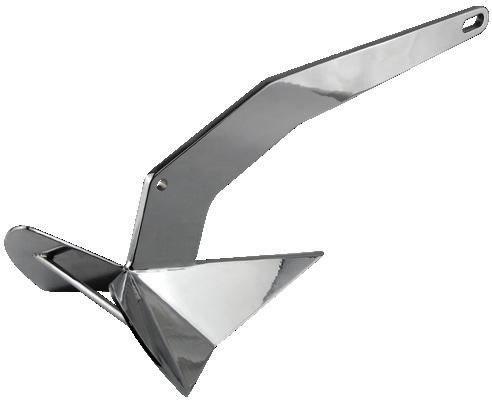

Anchors - Delta Style Stainless Steel

• Lloyds Type Approval.

• High holding power.

• Weighted tip.

• Low centre of gravity and unique shape facilitates fast setting.

• Hole to attach retrieval line.

• 316G stainless steel highly polished.

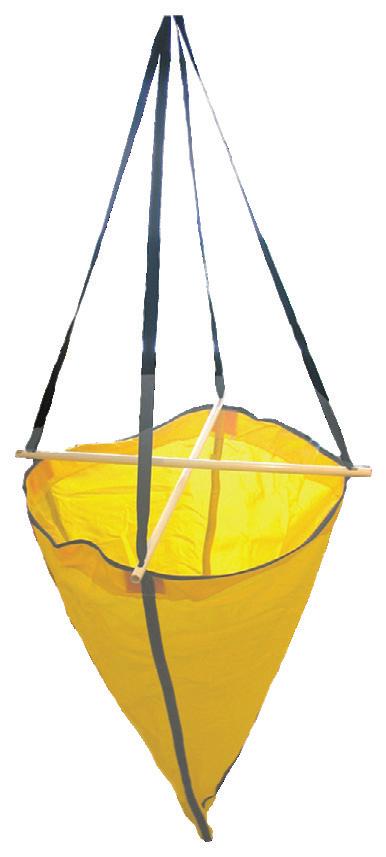

Sea Anchors - Collapsible

• Controls your boats movements and reduces wind drift in open water when resting, fishing or riding out rough weather. Keeps your boat in the target area longer.

• The Collapsible Sea Anchor comes with its own bag and is easily stored in a small space by simply collapsing the 2 diagonal support struts.

• Made from tough nylon fabric.

• High strength 25mm continuous synthetic webbing.

• Reinforced attachment top.

• Retriever tag.

NOTE: Refer to page 704 for Burke Seabrake drogues and Easy Stow drift anchors.

www.samallen.com.au

Anchors - Self Aligning

• Best suited to soft seabeds.

• Self align anchors are designed to roll upright, irrespective of initial drop altitude, within two shank lengths of engaging the seabed.

• High holding power is obtained by the highly efficient fluke and shank design.

• Low retrieval force results from the short, broad, single fluke. Retrieval force is generally 30% of the prior holding power.

• Hot dipped galvanised.

Anchors - Self Aligning Stainless Steel

• Best suited to soft seabeds.

• Self align anchors are designed to roll upright, irrespective of initial drop altitude, within two shank lengths of engaging the seabed.

• High holding power is obtained by the highly efficient fluke and shank design.

• Low retrieval force results from the short, broad, single fluke. Retrieval force is generally 30% of the prior holding power.

• 316G stainless steel highly polished.

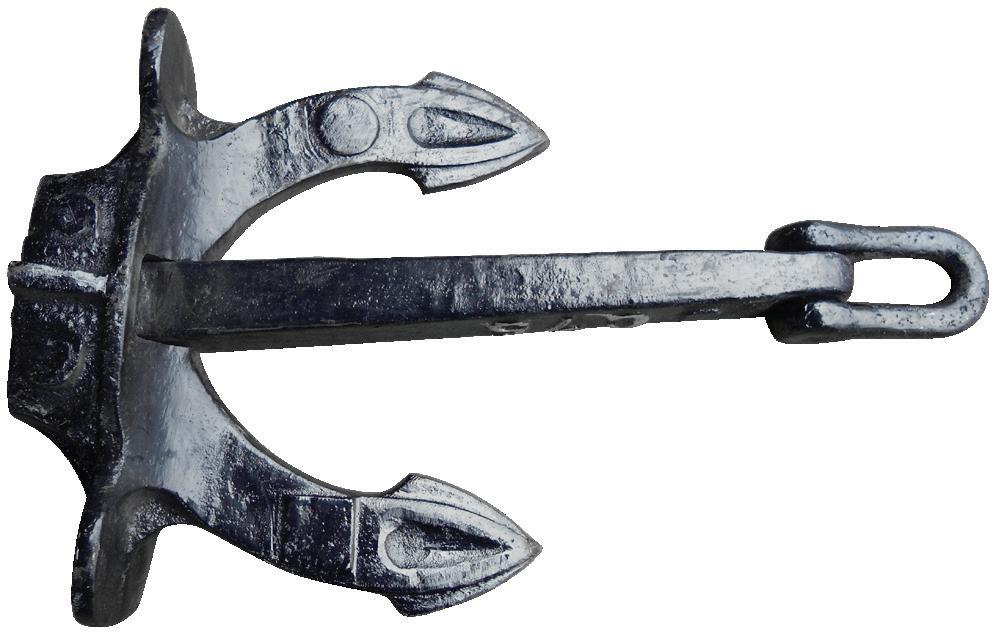

Anchors - Halls Stockless Style

• Halls Stockless style anchor is most commonly used as a conventional ship anchor.

• Black oxide finish.

NOTE: No certification available for use on commercial vessels.

Anchors & Mooring

Reef Anchors & Kits

12164 / 12165

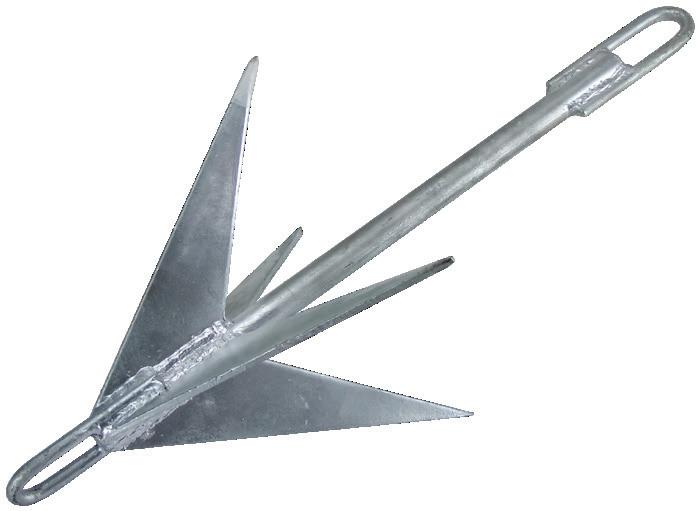

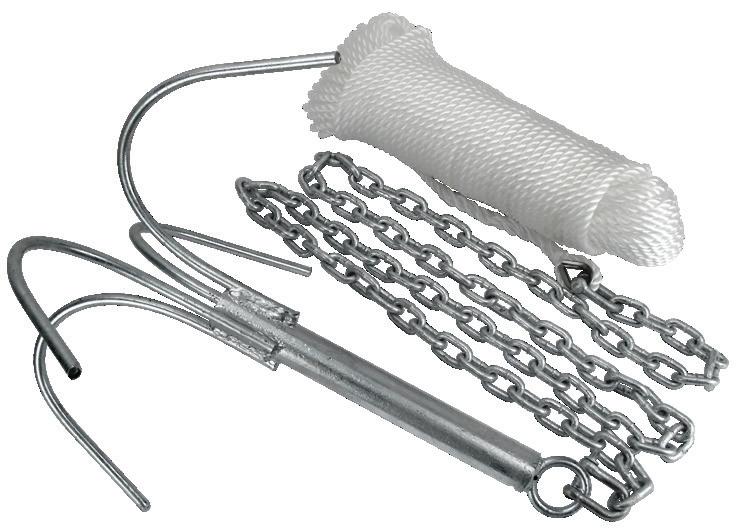

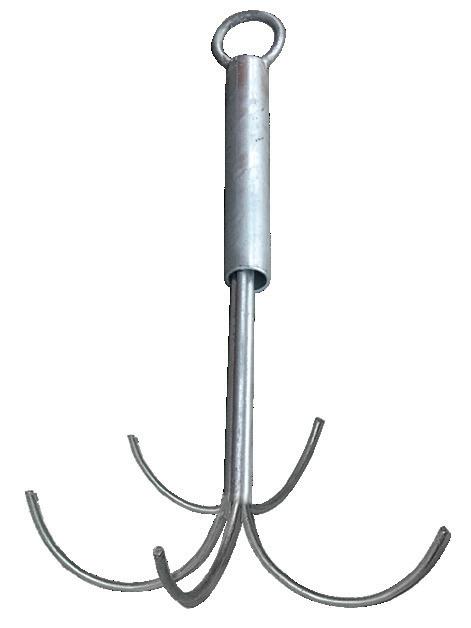

Anchors - Reef

• When snagged on a reef, prongs are designed to straighten to release.

• Hot dipped galvanised.

NOTE: Supplied with straight prongs for freight purposes.

-

HD Solid

• When snagged on a reef, prongs are designed to straighten to release.

• Solid anchor shaft, facilitates faster sinking.

• Prongs welded to shaft.

• Hot dipped galvanised.

NOTE: Supplied with straight prongs for freight purposes.

• Best suited to reef and rocky seabeds.

• Easy to retrieve design.

• Solid construction with heavy duty rigid prongs.

• Hot dipped galvanised.

Anchors - Mooloolaba Pick

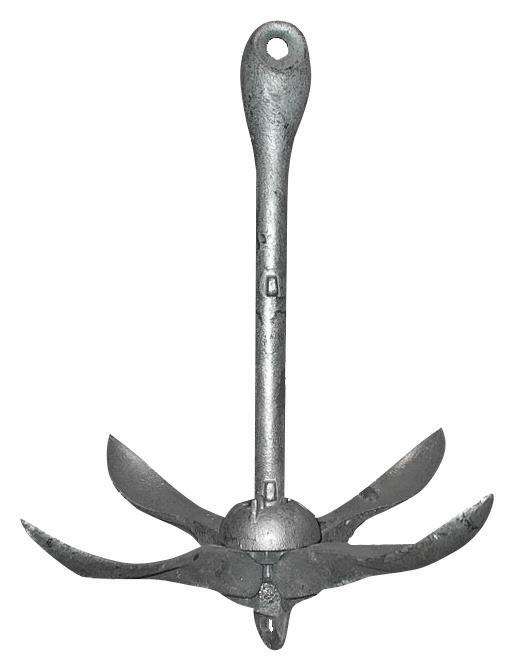

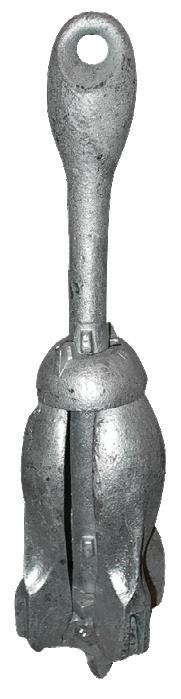

Anchors - Folding Grapnel

• Fold easily for storage & include a locking collar at open and closed positions.

• Ideal for inflatable boats, jet skis and kayaks as they are compact and there are no sharp edges.

• Fitted with retrieval eye for easy removal if snagged.

• Hot dipped galvanised.

• Perfect compact size for pwc, kayaks and small tenders.

• Anchor folds for convenient storage with rope and chain in bag supplied.

• Anchor locks open for use and closed when stored.

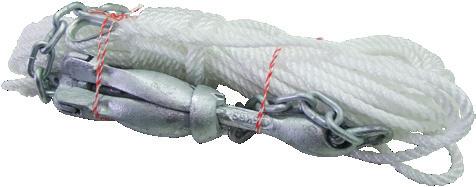

Kits Include:

• 1.5kg (46058) or 3.2kg (46057) galvanised anchor.

• 1m x 6mm short link galvanized chain.

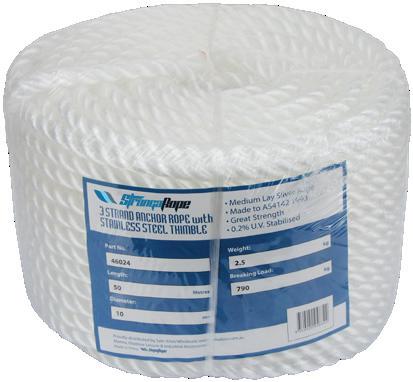

• 8mm silver rope and with stainless steel thimble.

• 2 x 6mm galvanised bow shackles.

• Storage bag.

B1

Anchor Kits - Folding Grapnel

1. Global Leader, World-class Technology

For nearly 50 years Manson Anchors has been keeping boaties safe, ensuring a good night sleep while anchored in every condition imaginable. Manson Anchors are the desired anchor brand, chosen by recreational and commercial skippers all over the world; from Sydney Harbour and Western Australian’s rugged coastlines to Florida and the Mediterranean. Manson anchors are designed and manufactured by seasoned and proven experts that know how to keep you safe.

2. Supporting our Local Industry with Australasian Made

The complete Manson anchor range has been designed by marine engineers who understand how to anchor safely in the harsh waters of the Pacific. They are proudly crafted in New Zealand by Lloyd’s Register approved welders using certified Lloyd’s Register approved materials in a specialist facility, under the highest level of quality control. This means your anchor is not made cheaply by a company who has little respect for quality, the environment, or most importantly, what it means to anchor safely. Manson anchors are made by highly skilled craftsmen who build a safety product you can rely on, fabricated in either robust galvanized steel or exquisitely polished stainless steel.

3. World’s Largest Range of Anchors

Not all boats are equal, so Manson Anchors make anchors to suit every situation - from small boats through to superyachts. Manson Anchors understand the unique challenges of anchoring and that big vessel or small, the most important thing is building a reliable anchor. The following pages illustrate the most common models Manson produce. Their superyacht range includes 5 models of which the Kedge is the most popular.

4. Quality Assurance

Manson Anchors are trusted to make anchors for the best shipyards in the world, building the most impressive superyachts and sophisticated Royal Australian Navy and US Navy vessels.

5. Instant Setting & Instant Holding

You go boating to enjoy, not be frustrated trying 3-4 times to set your anchor. The Manson team are experts in anchoring and have spent years building, testing and optimizing anchors for the fastest set and strongest possible hold in all conditions. When you anchor you need to be able to rely on your anchor. It should be a worryfree experience. You should be able to drop it, set it and forget it. When you use a Manson Anchor, you can take the fuss out of anchoring, sit back and enjoy your boating experience.

6. Lifetime Warranty

Manson's assembly techniques exceed all certification companies, and this means all Manson Anchors are given a lifetime warranty against breakage under normal use. Damage by deformation or bending is not covered by this guarantee.

7. New Generation and Traditional Anchors

Manson respect and understand old and new boat designs. This means Manson have a design that will suit your needs. Their new generation anchor range use materials and anchor designs suited to the latest boat designs. The traditional anchor range uses classic anchor designs like the Plough (CQR-type) or Ray (Bruce-type) anchor, which are more suited to older vessel designs.

8. Environmentally Conscious

Boating is only made possible by having a beautiful water playground to enjoy cruising, fishing and sailing. At Manson Anchors they are committed to playing their part in looking after this precious ecosystem. Manson's workplace complies with strict environmental regulations ensuring processes tuned to be as clean as possible. Strict controls prevent hazardous waste dumping, pollution of the air, sea and protected ecosystems. These regulations include the techniques and chemicals used. Manson Anchors galvanizing contains low levels of lead. High levels of lead are often used in the galvanization of anchors by other companies as it makes the galvanized anchor look shinier. This amount of exposure can have metamorphosis, neurological, and other developmental progressions on aquatic organisms. Additionally, Manson recycles all its waste. So, purchasing a Manson anchor means you are making a sustainable anchoring choice, choosing a brand that is committed to ensuring future generations will have the same idyllic boating memories that you do.

9. Class Society Type Approval

This means the material used to build Manson anchors has been supplied with certificates proving it is from a Lloyd’s Register certified steel mill. It means the welders that fabricate the product are all individually Lloyd’s Register certified and undergo yearly inspections and testing on their performance. The Manson Anchors welding procedures have been scrutinized by the Naval Architects at Lloyd’s Register EMEA. Manson Anchors realize using cheap material could cost lives. They manufacture both stainless steel and galvanized anchors to all major classification societies.

10. Superyacht Class Certification

The classification classes to which Manson can build to are:

LR - Lloyd’s Register

GL - Germanischer Lloyd

ABS - American Bureau of Shipping

DNV - Det Norske Veritas

RINA

BV- Bureau Veritas

Manson can meet new-build and refit class requirements.

11. Icons Represent

Certified to Lloyd’s Register as a Super High Holding Power (SHHP) or High Holding Power (HHP) anchor.

Built by experts in New Zealand for the challenging waters that Australian boaties have to endure; quality and certified workmanship and material.

Guaranteed for life against breakage. Damage by deformation or bending is not covered by this guarantee.

Built in a country that puts the environment first and by a company that is committed to ensuring our future generations can enjoy creating memories in nature’s water playground.

Manson Anchors

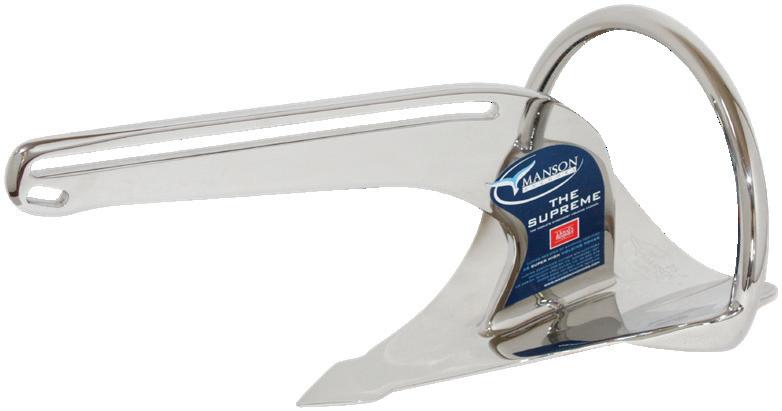

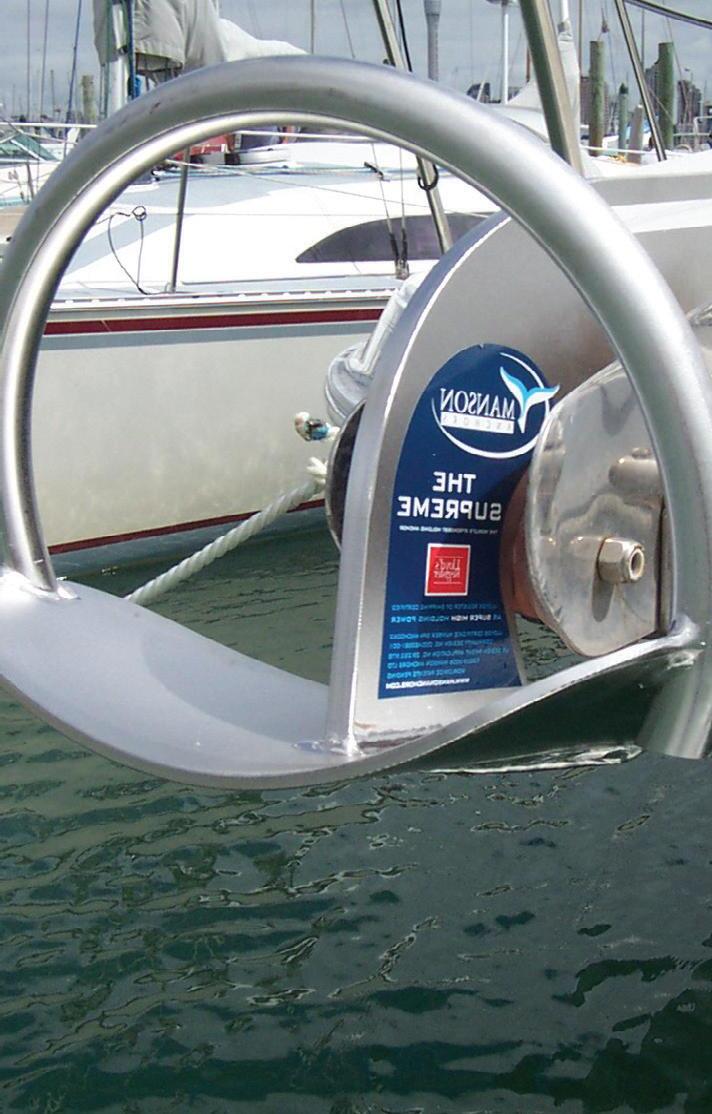

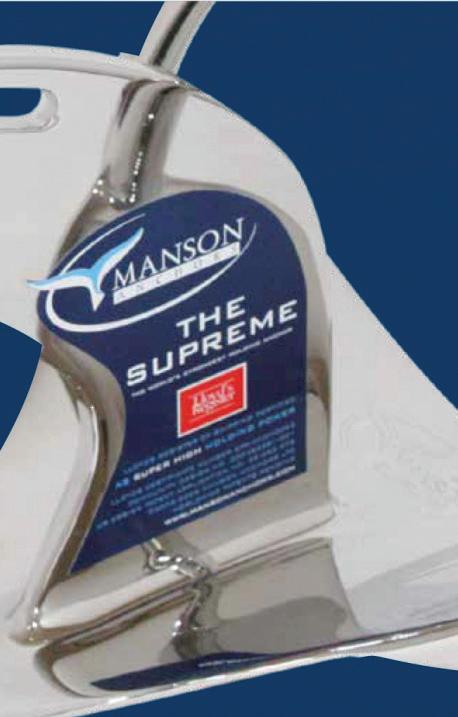

Manson Supreme Anchor (SHHP)

NOTE: Multihull and offshore cruising vessels should use one size up from the recommendation.

• Conforms to most common bow roller designs and self-launches.

• Rollbar ensures anchor rolls itself to adopt the correct setting position.

• Twin slots on the fixed shank enable use in all seabeds. If using the rockslot, (long slot) the shackle can slide forward and lift the anchor out forward if it becomes fouled.

• High tensile steel shank made from 800mpa steel - 25% stronger than any other anchor.

• Sharp spearhead assists anchor to pierce the toughest seafloors, ensuring greater penetration.

• Lateral flaps enable the anchor to set immediately.

• Reinforced double-skinned laminated nose, strengthens the forward section where most loading is concentrated.

• Certified to Lloyd’s Register as a Super High Holding Power (SHHP) anchor.

• Available in galvanised or highly polished stainless steel.

NOTE: Some sizes of the stainless steel versions are buy-in only (lead time approx. 16 weeks).

www.samallen.com.au

Lloyd’s Register rules apply to anchor sizes This guide is not intended to replace or supercede any class or maritime sizing recommendations and they need to be checked before final selection is made.

Anchor - Manson Supreme (SHHP)

Boat Weight (T)

NOTE: Multihull and offshore cruising vessels should use one size up from the recommendation.

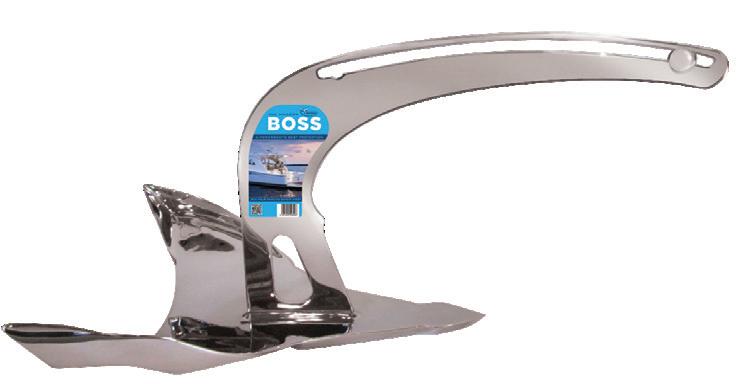

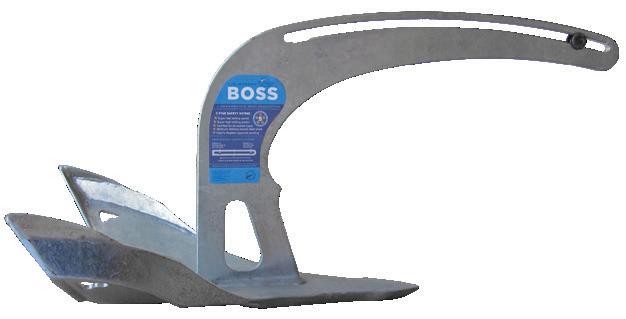

Anchors - Manson Boss

• Fits most common bow rollers, designed specifically for powerboats.

• Angled winglets dig the anchor into the seabed for immediate alignment and setting.

• Reinforced double-skinned laminated toe, strengthens the forward section of the anchor when it attacks the seabed.

• The anchor presses the concave shape into the fluke, ensuring the anchor cups the seabed and sets much faster.

• Raised trim flaps improve the holding power by forcing the flukes downwards creating a 28% deeper setting than other new-generation anchors.

• Manson Shackle PreventorTM has one slot in the shank with two docking stations for use in all sea beds. It quickly unscrews and docks on the alternate station to transform the anchor from a fixed shank to a sliding shank for operation in foul ground.

• The shank clearance is streamlined to conform to power boat fairleads and bow rollers.

• High tensile steel shank made from 800mpa steel.

• Regularly available in galvanised steel, but also in black painted steel or highly polished stainless steel to order.

NOTE: Stainless steel versions, large galvanised and black painted anchors are buy-in only (lead time approx. 16 weeks).

Manson Boss Anchor

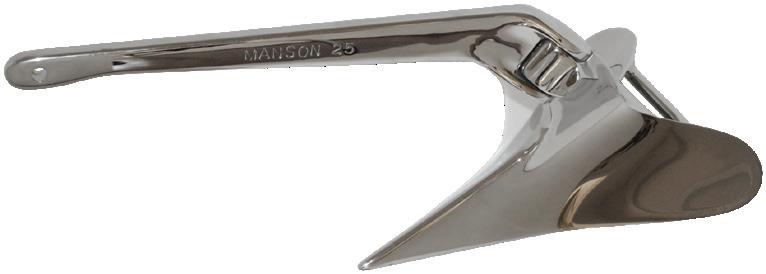

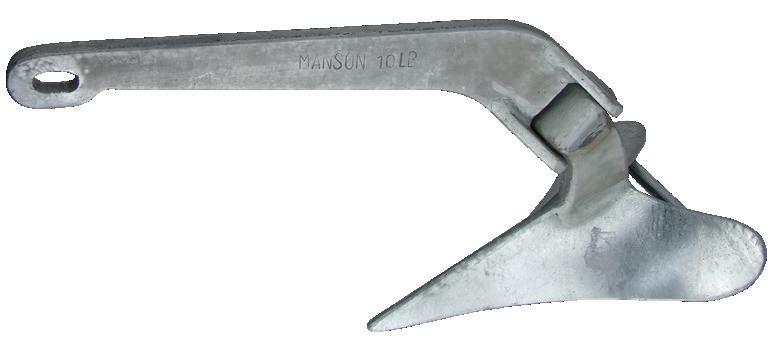

Manson Plough Anchor (HHP)

Lloyd’s Register rules apply to anchor sizes This guide is not intended to replace or supercede any class or maritime sizing recommendations and they need to be checked before final selection is made.

NOTE: Multihull and offshore cruising vessels should use one size up from the recommendation.

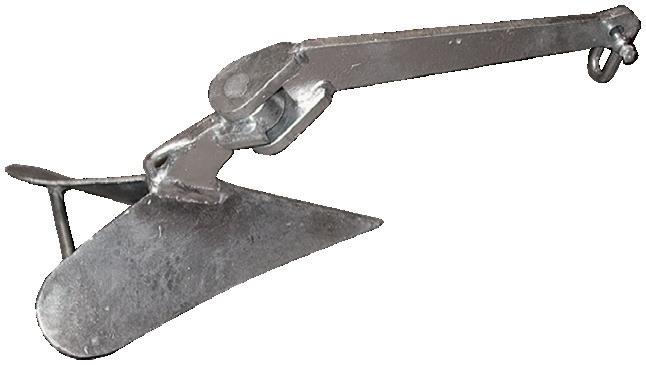

Anchor - Manson Plough (HHP)

• Traditional anchor with proven performance in the widest variety of weather and seabeds.

• Hinged shank improves the scope of movement of chain.

• Weighted tip ensures the anchor digs in on the first attempt and resets if dislodged in strong conditions.

• Wings ensure the anchor self corrects.

• Certified to Lloyd’s Register as a High Holding Power (HHP) anchor.

NOTE: Stainless steel versions and larger galvanised anchors are buy-in only (lead time approx. 16 weeks).

NOTE: Multihull and offshore cruising vessels should use one size up from the recommendation.

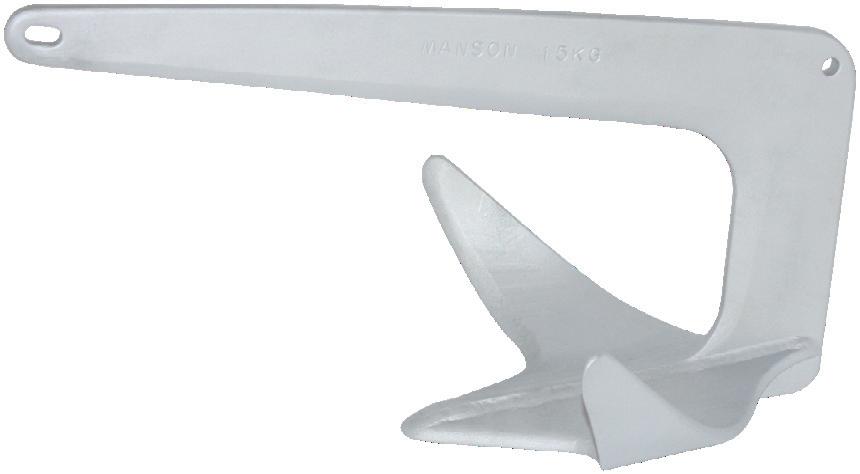

Anchor - Manson Ray (HHP)

Manson Ray Anchor (HHP)

Lloyd’s Register rules apply to anchor sizes. This guide is not intended to replace or supercede any class or maritime sizing recommendations and they need to be checked before final selection is made.

• Wings ensure the anchor sets quickly and resets in a variety of bottom conditions.

• Fabricated in the highest quality steel plate - not cast.

• Weighted toe and curved flukes to ensure the anchor lands the right way up for immediate setting.

• Certified to Lloyd’s Register as a High Holding Power (HHP) anchor.

NOTE: Stainless steel versions and larger galvanised anchors are buy-in only (lead time approx. 16 weeks).

B A C

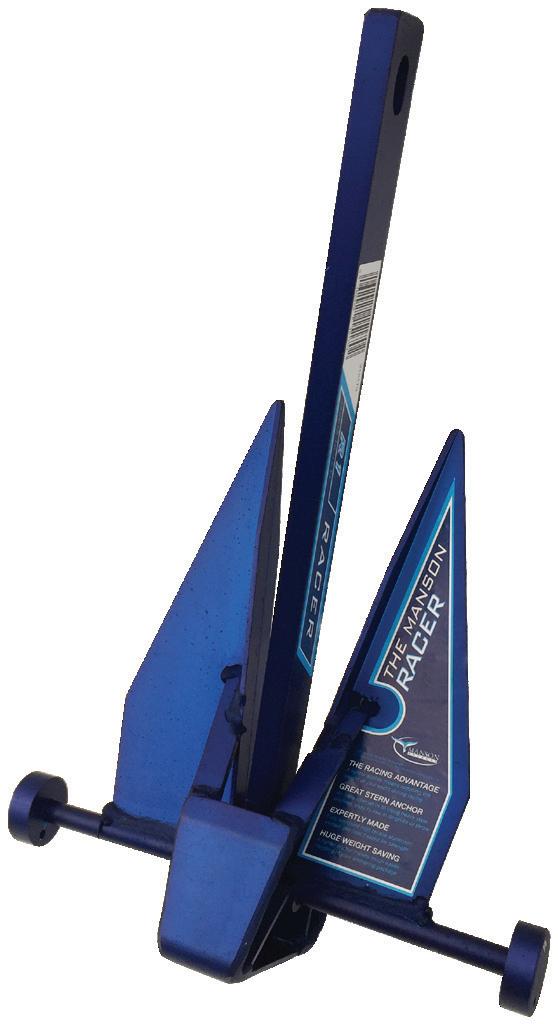

Manson Racer Anchor

Anchor - Manson Racer

• High-tensile anodised aluminium anchor, specifically tailored for racing yachts of all sizes.

• Reduced weight assures easier handling, storage and great weight saving potential.

• Hard wearing stability discs reduce the width of the lower balance bar and encourage the anchor to set faster and resist rotation when embedded in the sea floor.

• Folds flat for easy storage.

• The sharpened tips assist the anchor to pierce the toughest seabeds, ensuring greater penetration.

NOTE: R9 and R10 sizes are buy-in only (lead time approx. 16 weeks).

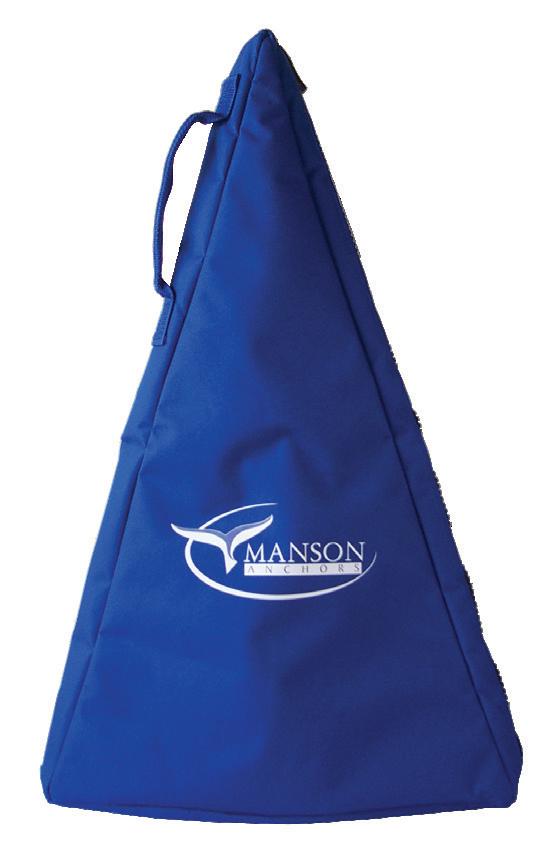

• Heavy duty woven nylon fabric bag foam padded and polyester fabric lined.

• Protects both the anchor and the vessel from sharp flute tips.

• Heavy duty nylon zip closure.

• Webbing carry handle.

Galvanised

Anchor - Manson Kedge (HHP)

Also available in sizes 100kg to 200kg - POA.

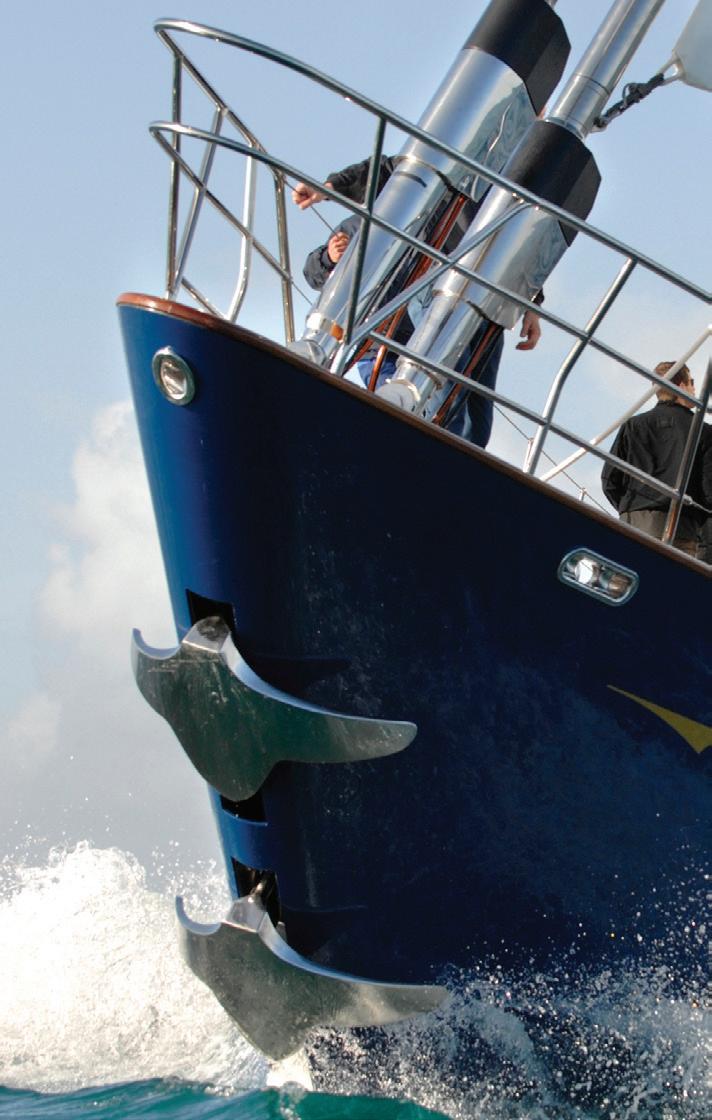

Manson produces 5 styles of Superyacht anchors of which the Kedge is the most popular design.

• Ideal for larger craft and specified by many of the world’s finest superyachts the Manson Kedge Anchor is manufactured within exacting standards to exceed all certifying requirements.

• Manufactured in both stainless steel and galvanised, these anchors perform exceptionally well on larger vessels.

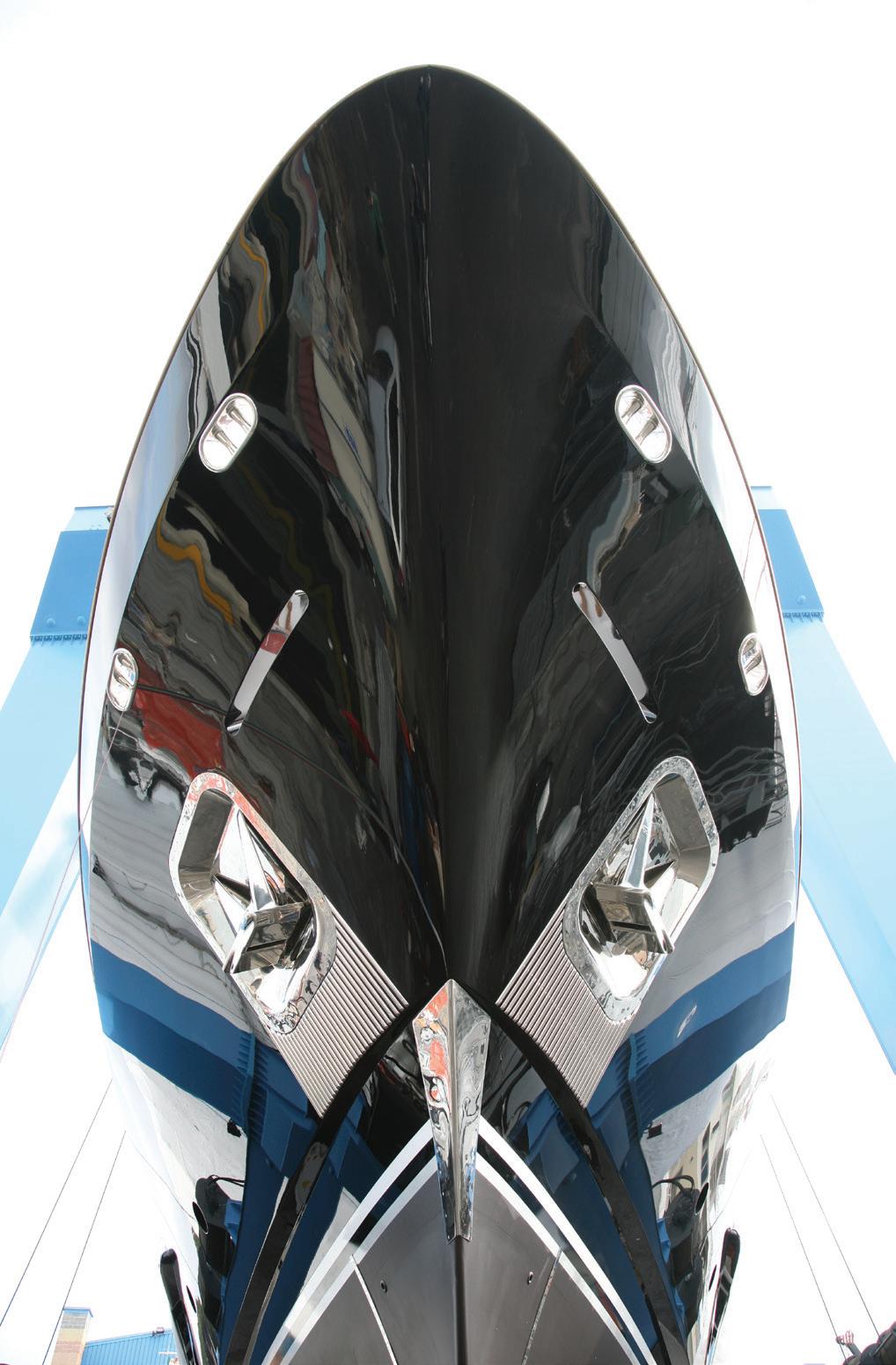

• Traditionally stowed on either side of the bow on larger craft, these anchors can be a real showcase – housed in one of the most visible parts of a vessel. The Manson Kedge Anchor has been tested and proven all around the world.

• Manson Kedge Anchors are Lloyd’s Register Type Approved as HHP (High Holding Power).

NOTE: Manson Kedge Anchors are buy-in only (lead time approx. 16 weeks).

Also available in sizes 100kg to 200kg - POA.

Manson produces 5 styles of Superyacht anchors of which the Kedge is the most popular design.

Manson Kedge Anchor (HHP)

Anchors & Mooring

Mooring Accessories

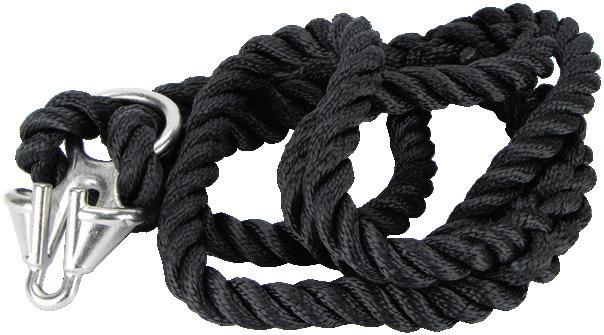

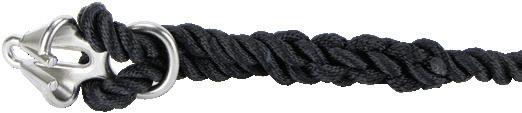

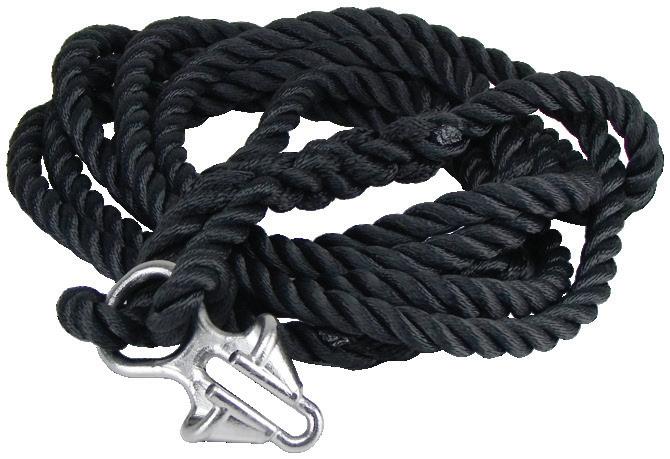

Mooring Snubbers & Lines

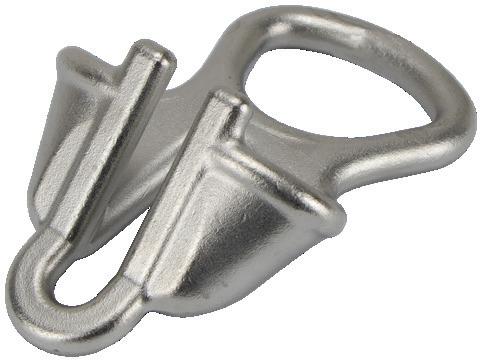

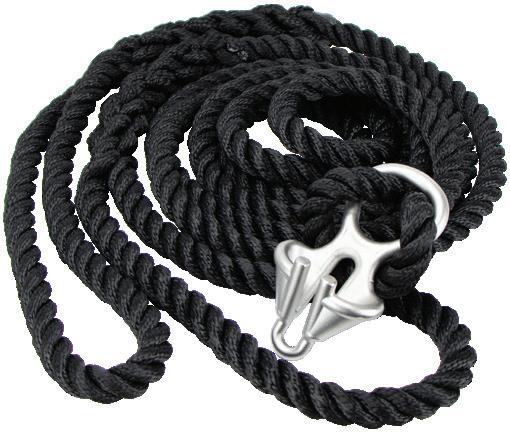

• Cast 316G stainless steel anchor chain claw.

• 3 strand black polyester rope.

• Used to take the load off the anchor winch.

• Stops the anchor chain grinding noise on the bow roller.

• Fixed length with spliced eye to fit over the bow bollard or cleat.

• Cast 316G stainless steel anchor chain claw.

• 3 strand black polyester rope.

• Used to take the load off the anchor winch.

• Stops the anchor chain grinding noise on the bow roller.

• Bare end to facilitate length adjustment over bow bollard or cleat.

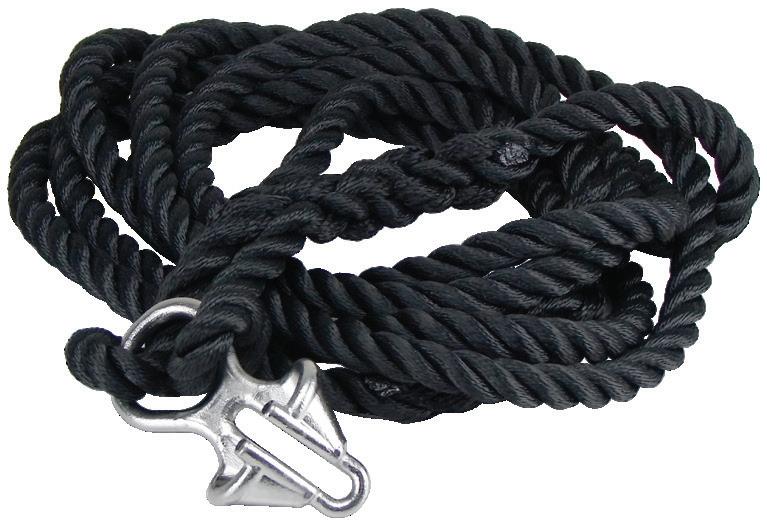

Mooring Snubber & Eye - Bridle Tether

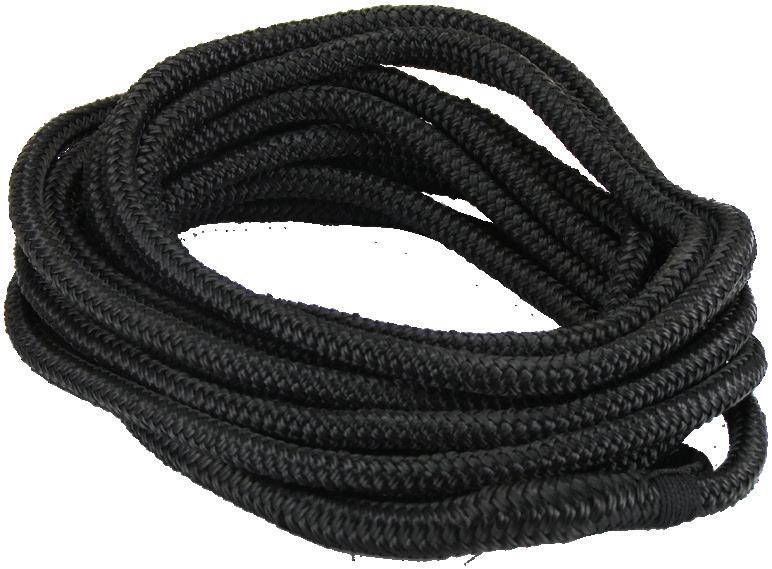

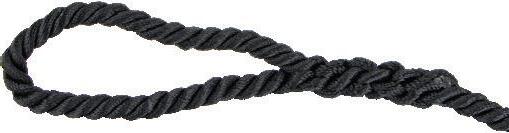

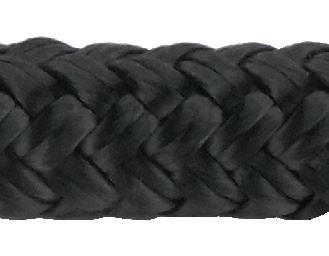

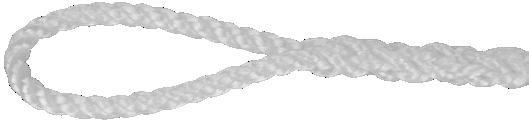

Mooring Lines - Soft Braided Polyester

• Black Braided UV stabilised polyester.

• 300mm spliced eye in one end.

•

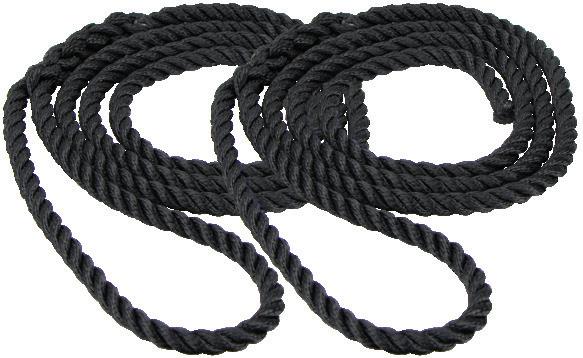

• 3 strand black polyester rope.

• Used to take the load off the anchor winch.

• Stop the anchor chain grinding noise on the bow roller.

• The rope length of the bridle tether is the length of each arm from the claw.

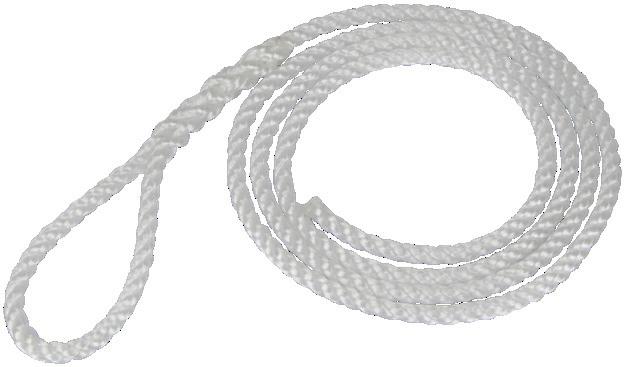

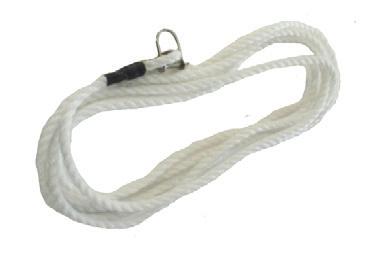

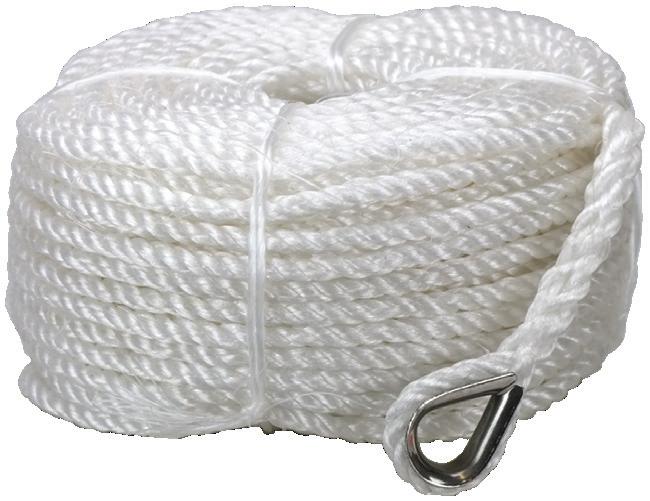

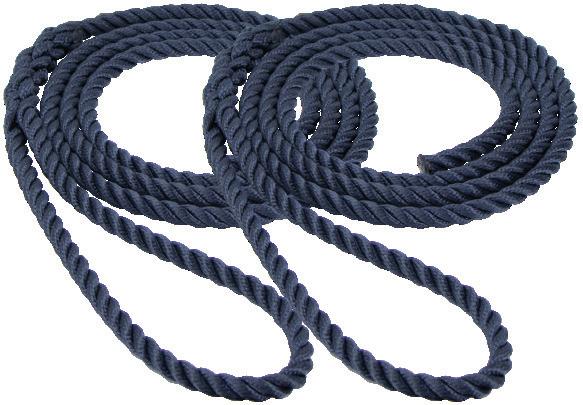

Mooring Lines - 3 Strand Silver

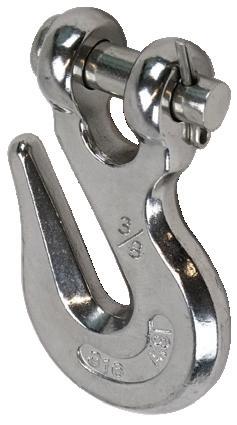

Mooring Spring, Chain Claw, Chain Links, Grab Hooks & Swivel

• Used as a shock absorber in mooring lines.

• Suitable for multiple uses in industrial applications.

• 304G stainless steel.

• Cast 316G stainless steel.

• Easily fitted to the anchor chain below the bow roller with a line attached from the eye of the claw to a bollard or cleat.

• Used to take the load off the anchor winch and reduce chain noise on the bow roller.

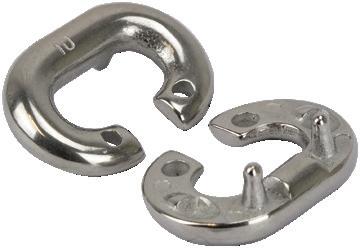

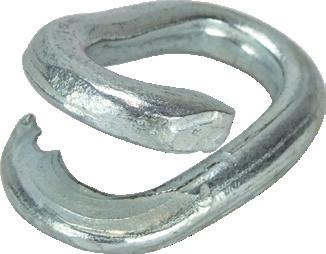

• Used to join chain links or for attaching chains to closed eyes.

• Commonly hammered closed and welded.

• Requires anti-corrosive treatment if used to join anchor chain.

NOTE: Not for lifting applications.

Chain Links - Stainless Steel Anchor Chain Claw

• 316G stainless steel.

• Matches short link anchor chain.

Anchors & Mooring

• Cast 316G stainless steel.

• Used to connect an anchor snubber line to short link anchor chain.

• Hot dipped galvanised.

*Key: SWL

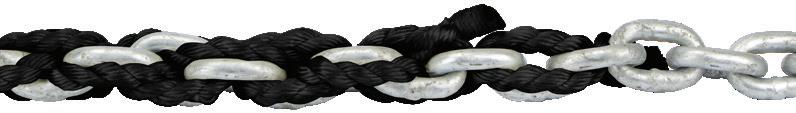

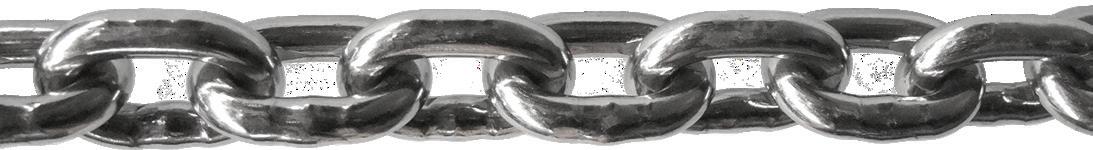

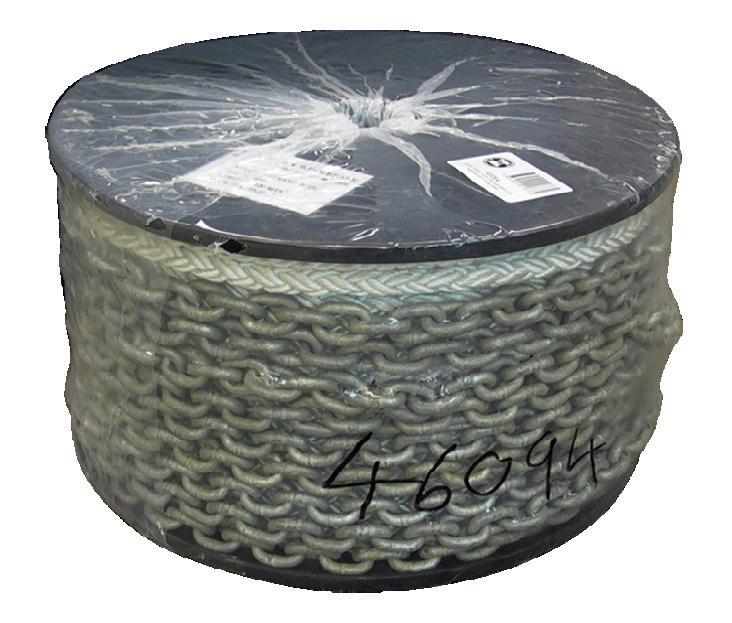

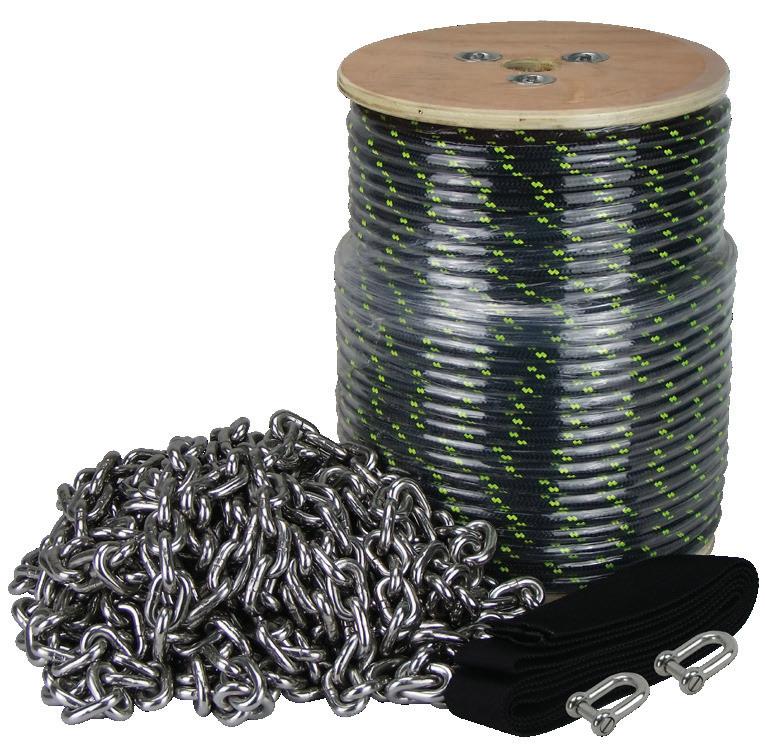

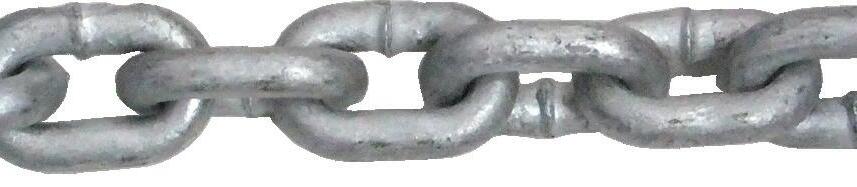

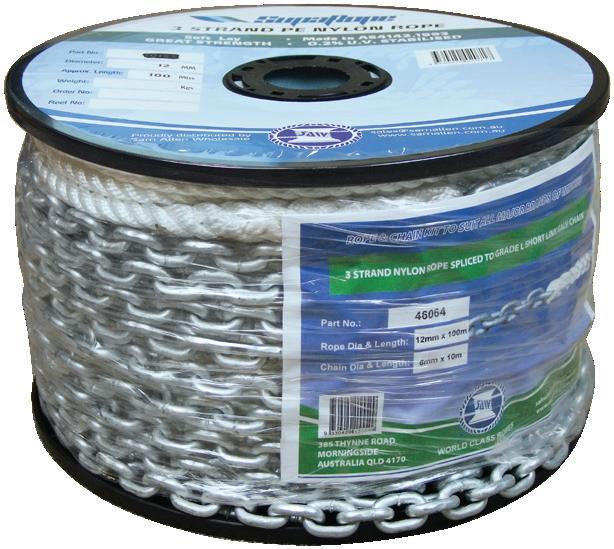

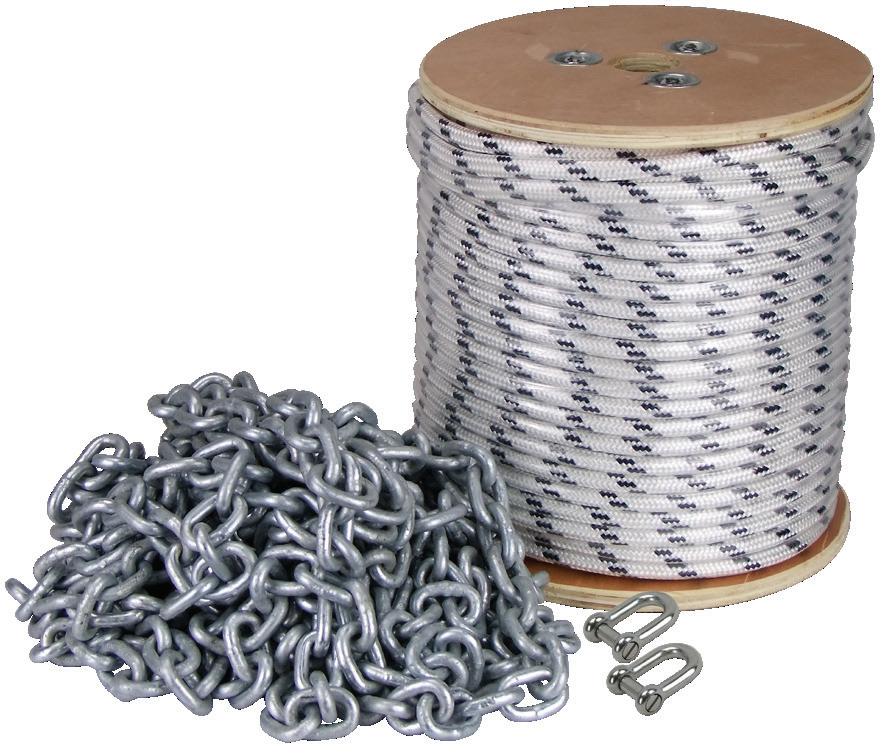

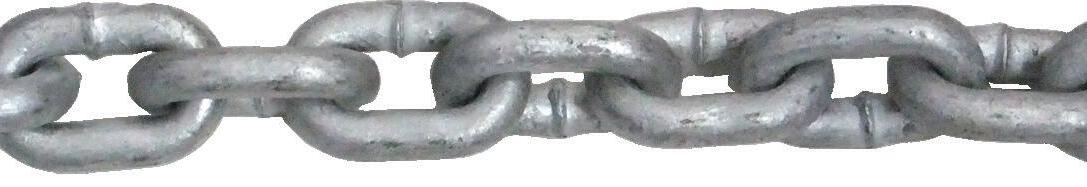

Anchor Chains & Accessories

Anchors & Mooring

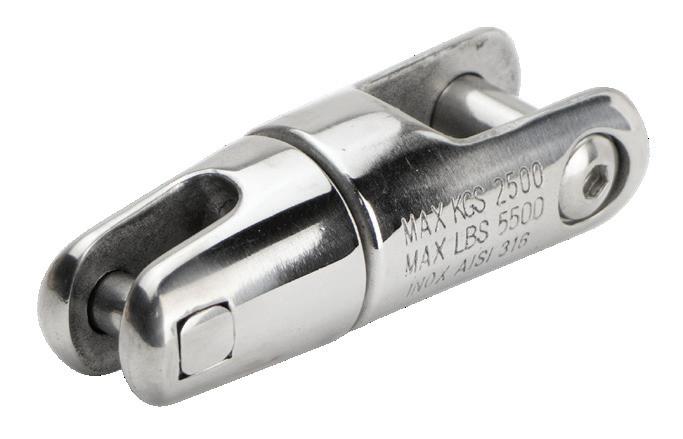

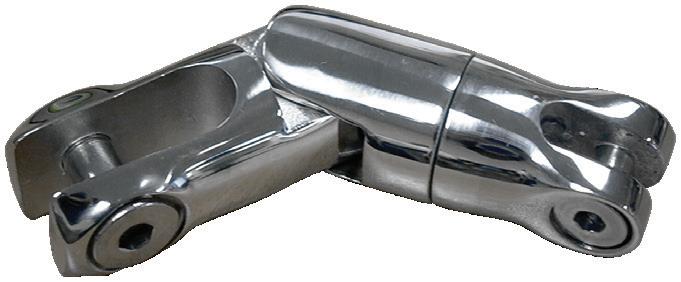

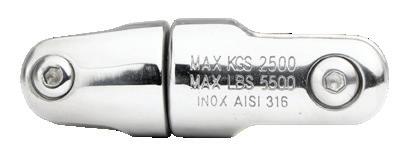

• Pulls easily over bow roller.

• Removable pins with allen key head.

• 316G stainless steel.

• Stamped with rated load.

NOTE: Use with Loctite thread adhesive

• 316G stainless steel mirror polished.

• Removable pins with allen key head.

NOTE: Use with Loctite thread adhesive

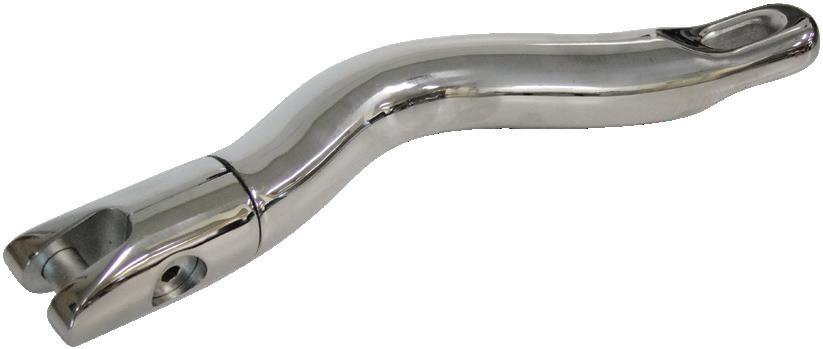

• Designed to ensure anchor will always come up vertical.

• 316G stainless steel mirror polished.

• Allows anchor to swivel freely to provide smooth entry into bow roller.

NOTE: Use with Loctite thread adhesive

•

•

•

•

• Not suitable for lifting.

NOTE: Sold per metre.

• Commonly used for anchor warps on winches.

• Suitable for many other marine and non-lifting industrial applications.

• Made to same dimensions as proof tested Grade 'L' chain.

*NOTE: Sold per metre - 26397, 26400, 26402, 26404, 26405 - Minimum 10 metre order

NOTE: Not available in cut lengths. Sold in complete drums only. Except for 16mm, part no 265414

Sold in Drums

Per Metre

Chain - Stainless Steel - Short Link - 316G

Chain - Galvanised - Calibrated Short Link

Chain - Galvanised - Regular Link

•

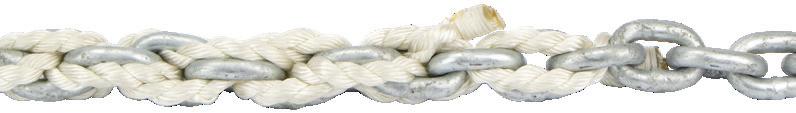

• Natural polyester double braid rope with black fleck.

• 6mm short link galvanised chain.

• Supplied ready to be transferred directly to the drum winch.

• Rope end with thimble eye is at inner end of reel to facilitate connection of chain and anchor once rope is fed onto winch.

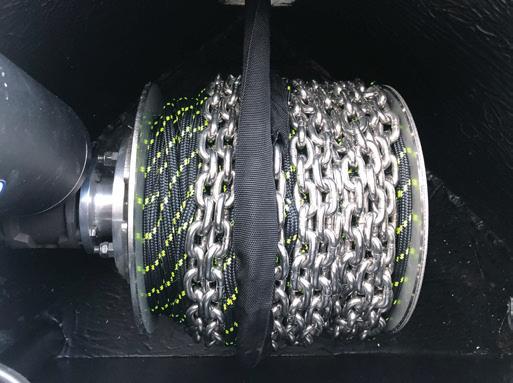

• Black polyester double braid rope.

• Glow in the dark fluorescent yellow fleck.

• 6mm short link stainless steel chain.

• Supplied ready to be transferred directly to the drum winch.

• Rope end with thimble eye is at inner end of reel to facilitate connection of chain and anchor once rope is fed onto winch.

• 2m long tubular polyester webbing sock protects the hull from chain damage.

•

Anchors & Mooring

Boat Hooks & Accessories

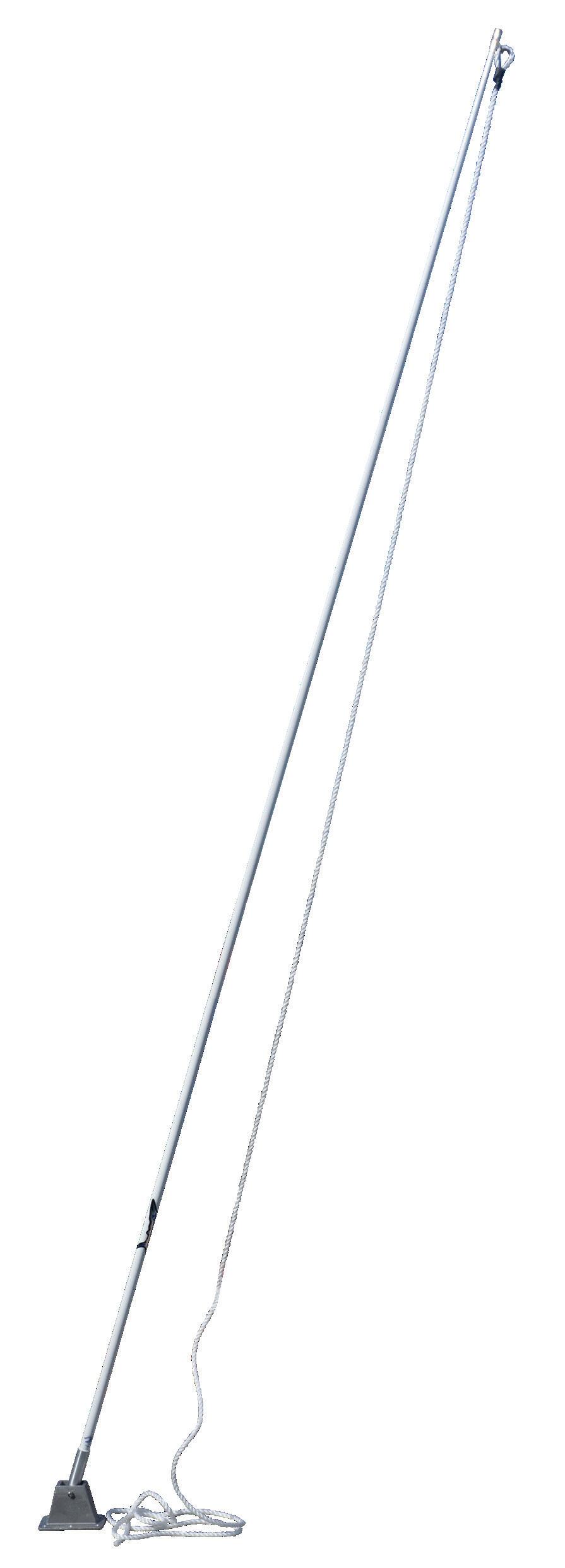

Boat Hooks

Boat Hook - Premium

Boat Hook - Anodised Aluminium

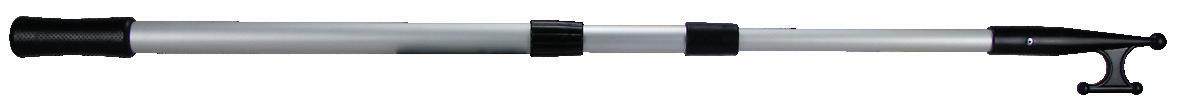

Boat Hook - Telescopic

Boat Hook - Extra Long Telescopic

Boat Hook - Telescopic S/S Head

•

•

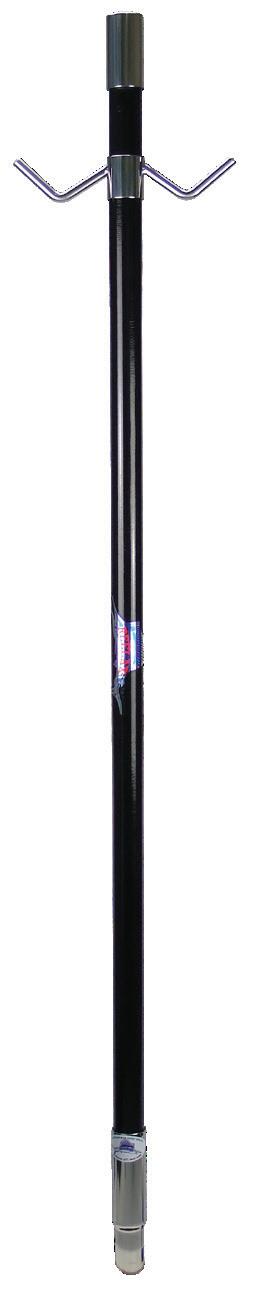

Double Boat Hook - S/S 316G Head Only

Boat Hook Accessories & Mooring Hook

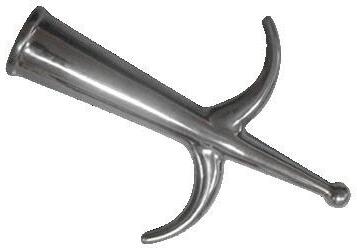

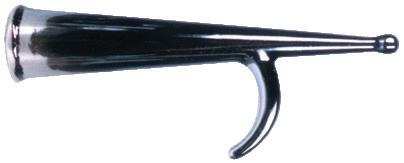

Boat Hook - Chrome Plated Brass Head Only

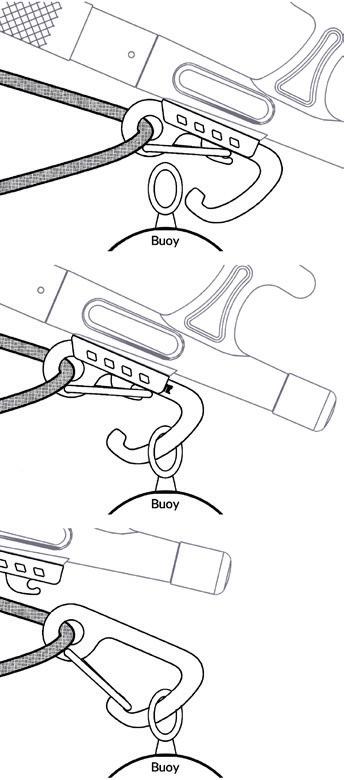

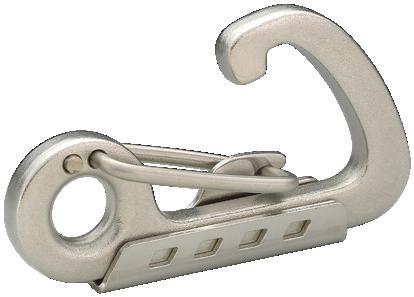

Mooring Spring Gate Snap Hook & Keeper Plate

• Provides convenient attachment of a retrieval line to a mooring buoy.

• Kit includes cast 316G stainless steel snap hook, keeper plate, and fasteners for attaching keeper plate to a boat hook.

NOTE: For temporary use only. Permanent mooring rigging must be used once buoy is retrieved

Anchors & Mooring

Anchor Retrieval

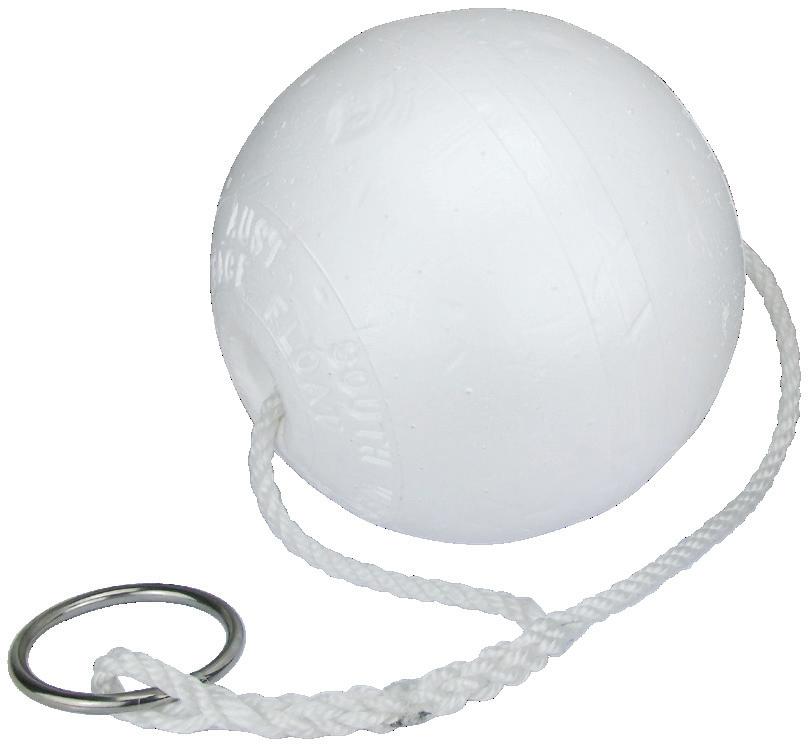

Anchor Retrieval Float Kit

• Available in 250mm and 300mm white styrene floats sizes with a choice of welded ring or large open ring and snap hook.

Attach to anchor line.

To retrieve simply drive the boat forward at 5-6 knots maintaining anchor rope parallel to the side of the boat but clear of the propeller.

Continue till anchor reaches buoy. Stop and retrieve rope and anchor hanging from the 'Quick Lift' ring. 37093

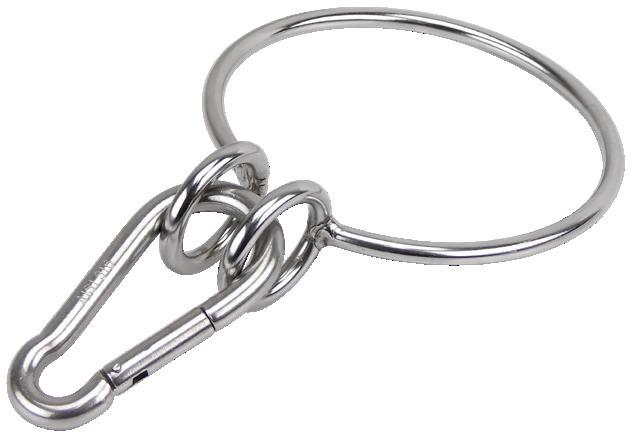

Anchor Retrieval Ring and Hook Set

• Large open stainless steel retrieval ring and snap hook.

• Designed to retrieve your anchor using the power of the boat and buoyancy.

• Makes retrieving the anchor a breeze - especially when fishing in deep water or when frequently changing fishing spots.

NOTE: Requires buoy and rope (not included).

Buoys & Floats Buoys

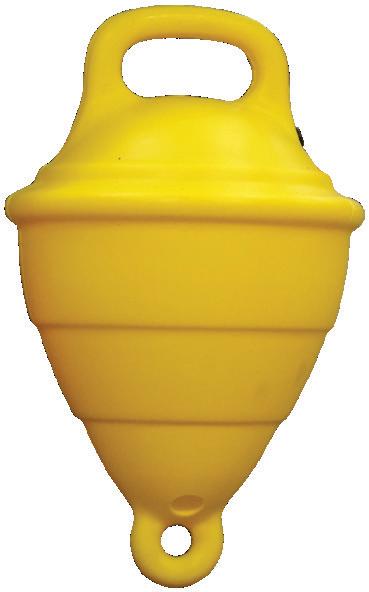

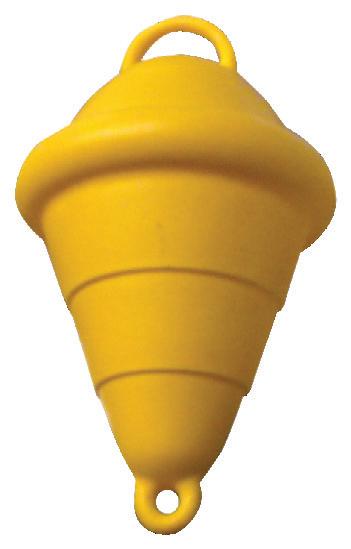

Buoys - Mooring & Marker

• Manufactured from high density UV stabilised polyethylene.

• Foam filling is closed cell polyurethane foam which allows floating even if the outer skin is damaged (where applicable).

• Available in yellow for standard pleasure boat moorings.

• Commercial mooring buoys are generally red or pink, depending on your states legislation.

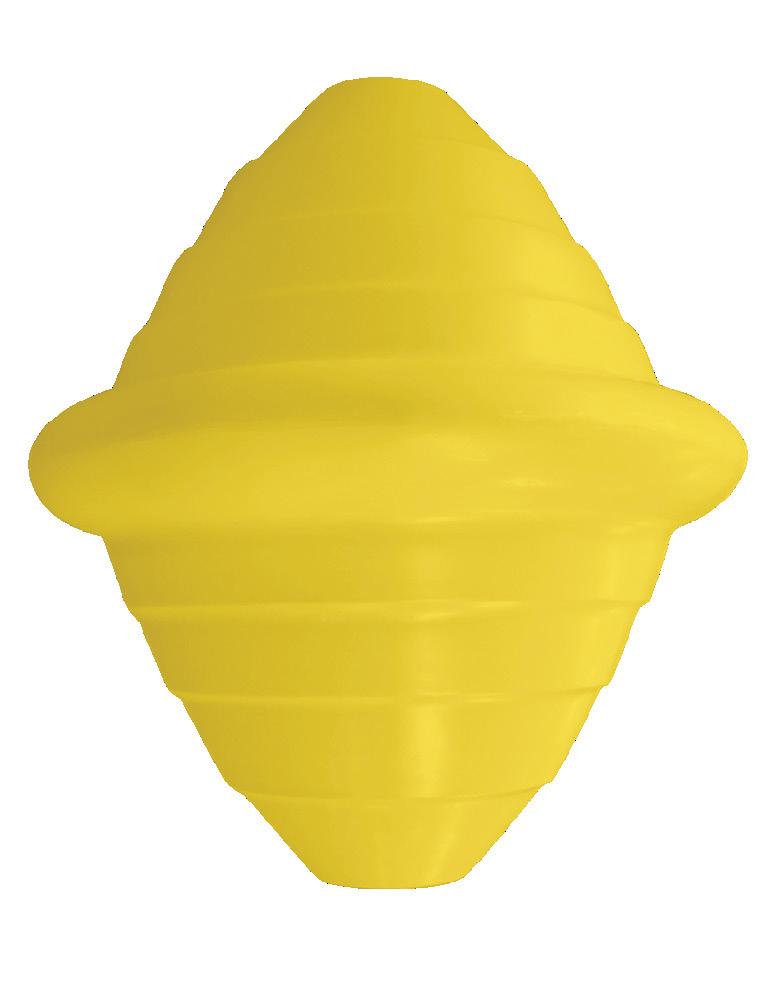

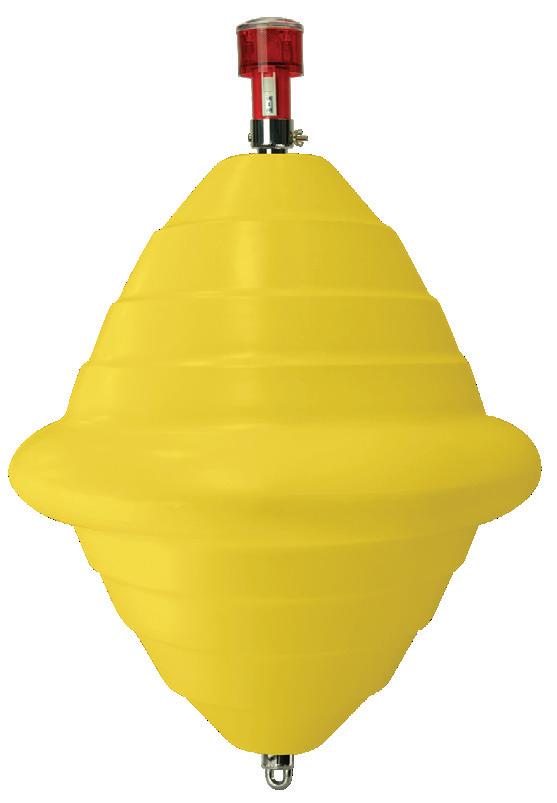

Buoys - Beehive Mooring

• Foam filled mooring buoy commonly used in commercial applications with charter boats and hire fleet craft.

• Bore Ø 35mm.

NOTE: For warning and marker lights that suit, refer to Safety Equipment Section.

Anchors

37118R / 37119R

37116 / 37117

37118 / 37119

Anchors & Mooring

Floats

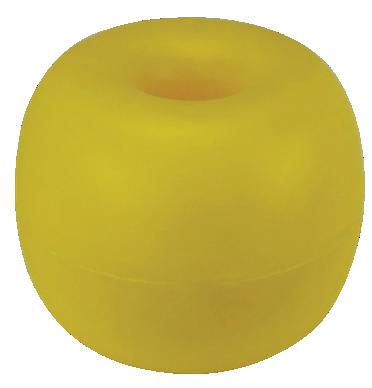

Floats - Through Hole

• Moulded from Ethylene Vinyl Acetate (EVA) which is superior to other materials.

• Resistant to extreme weather conditions with excellent elasticity.

• Will not break, shrink or deform.

• Light, soft & non-absorbent.

• Very high tensile strength which allows continuous use over long periods of time.

Fenders & Accessories

Castro Fenders & Accessories

• Moulded polyethylene.

• Hollow with through hole.

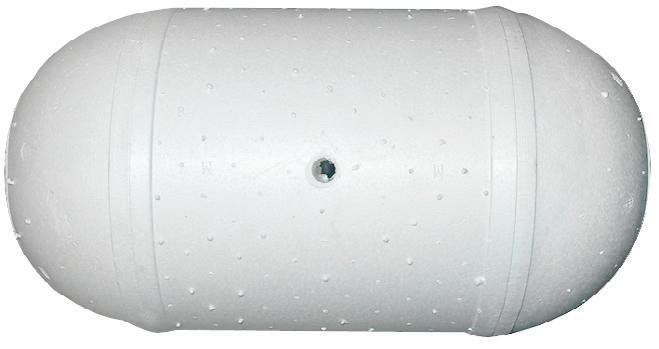

• Moulded from high density styrene.

• Resistant to exposure, impact and depth pressure.

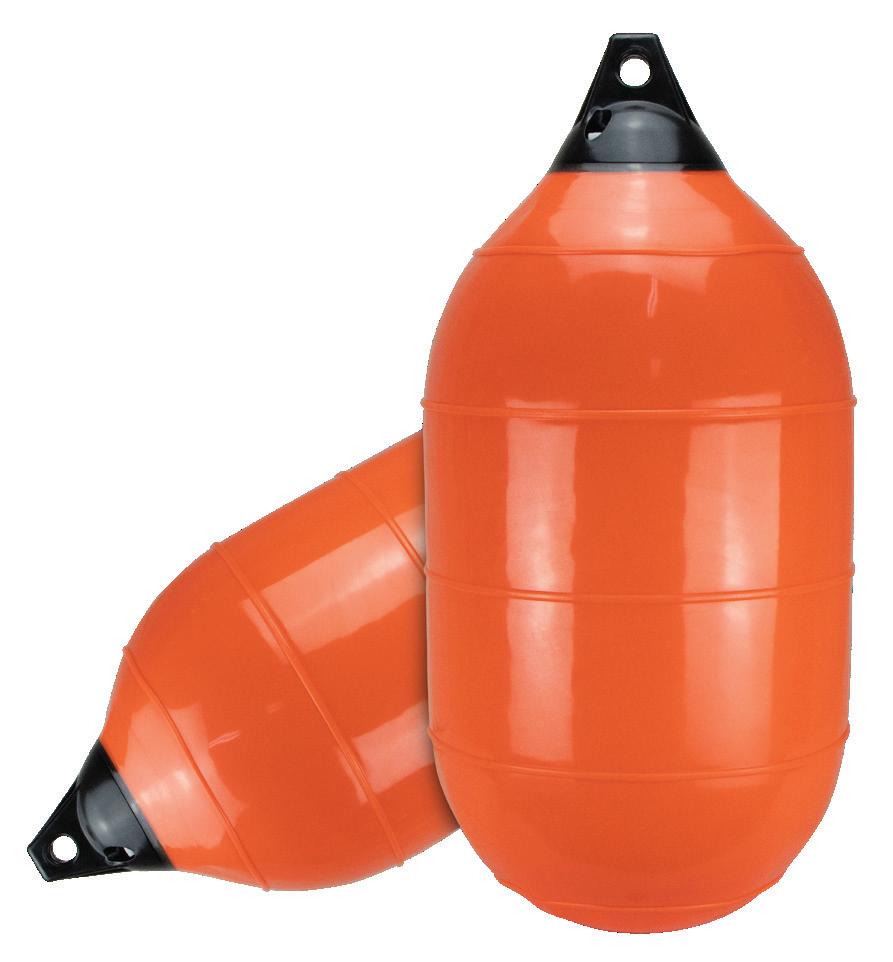

Castro® Fenders and Marker Buoys PA/R Series

• Moulded from durable and flexible vinyl with uniform wall thickness.

• Constructed for extreme strength and severe conditions.

• Solid ribbed injection moulded rope eye.

• Can be used as a fender or buoy.

• Specially designed to reduce drag when retrieving.

• High abrasion & UV resistance.

• Commonly used in commercial fishing in industry.

Castro® Fenders and Marker Buoys A-HD Series

• Castro "A-HD" series available in 6 different sizes and 3 colour combinations..

• Extra heavy duty solid rope eye.

• Moulded from durable and flexible vinyl.

• High abrasion resistance.

• Resistant to sunlight, common solvent and mineral oils.

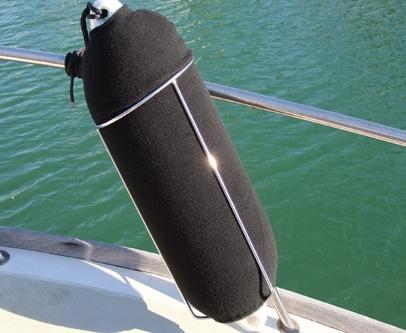

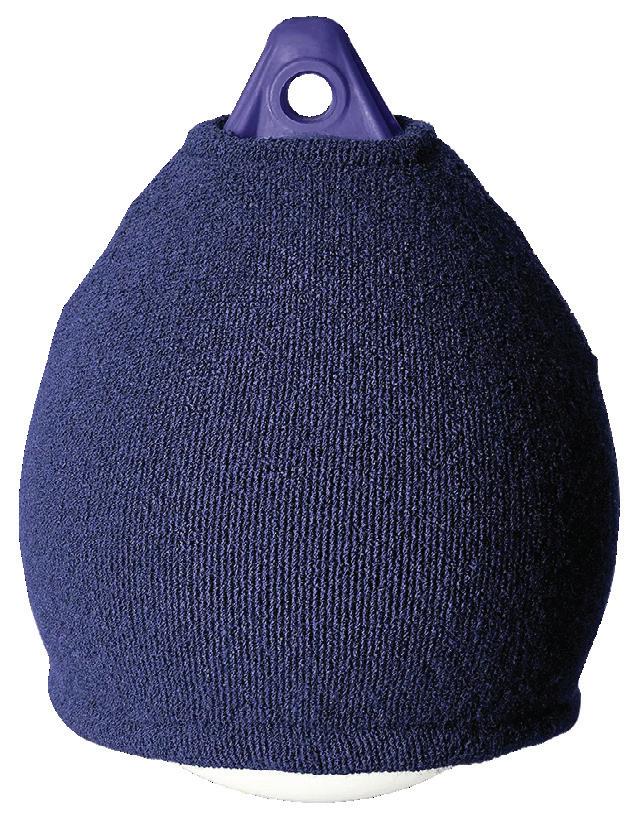

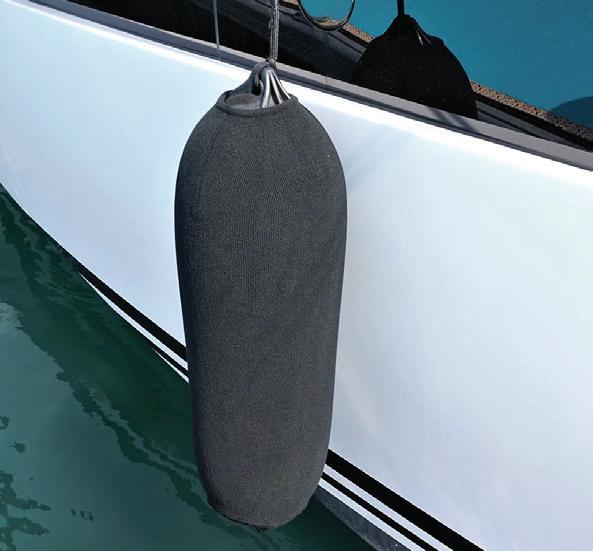

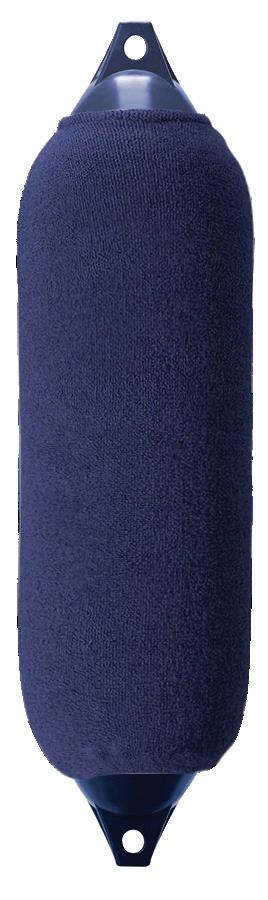

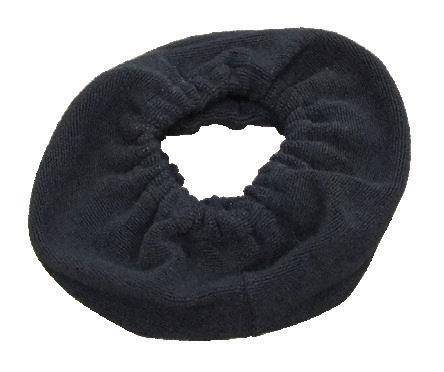

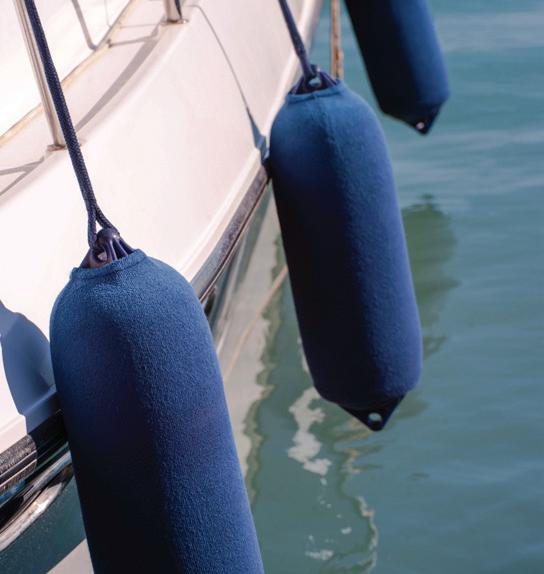

Fenderfits™ - A Series Fender Covers

• Double thickness for durability.

• Knitted from high quality, UV resistant acrylic yarn.

• Reversible and hand washable.

• Sold singly.

NOTE: Fenders are not included.

Castro Fenders & Accessories

Castro® Fenders - "F" Series

• Moulded from flexible and durable vinyl.

• Heavy duty end caps with strong rope eyes.

• Excellent UV resistance.

• Can also be used as floats and line marker buoys.

• Resistant to common solvents and mineral oils.

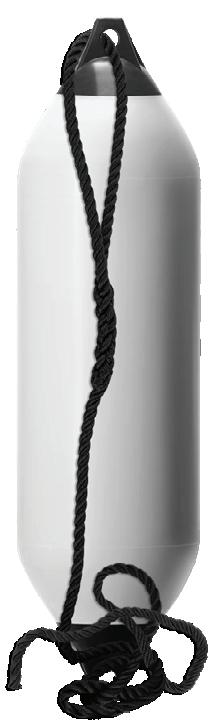

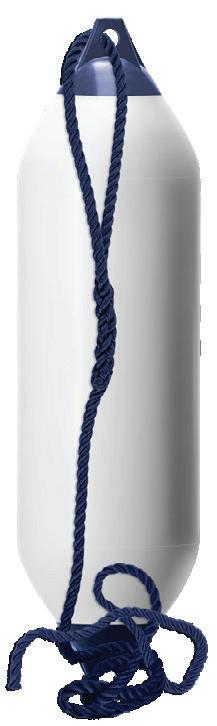

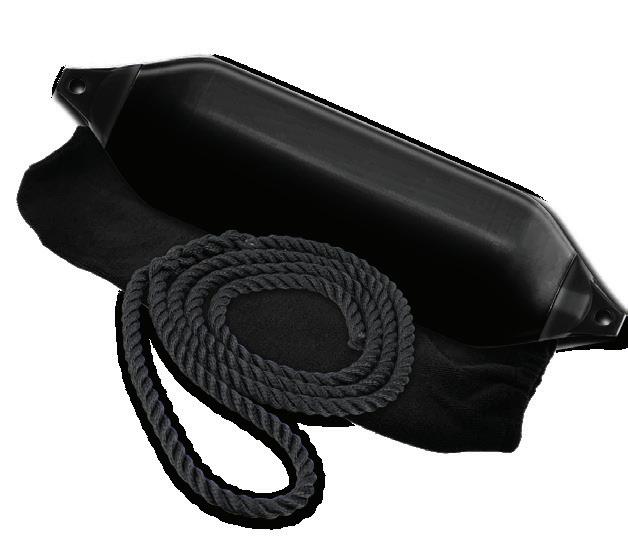

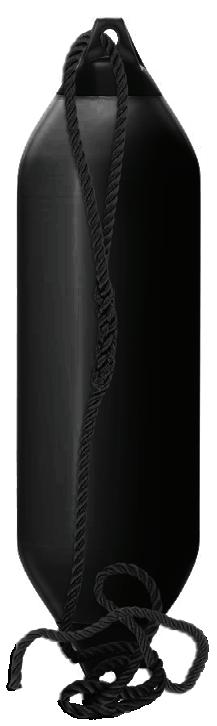

Fender with Rope

• Castro HD

37547BK-KIT

Kits Include:

• Castro HD Fender.

• 3 Strand Black or Blue Fender Line.

• Fenderfit Fender Cover.

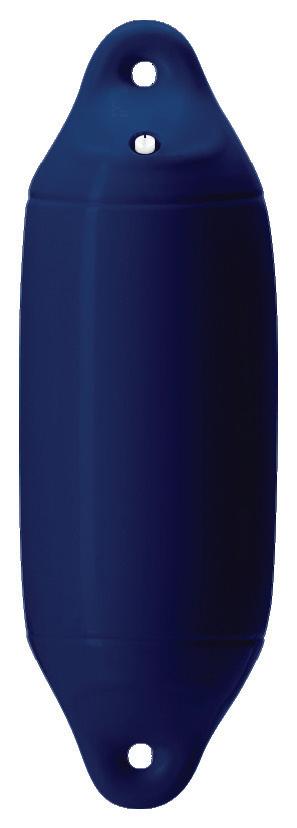

• Single piece rotomoulded PVC.

• Hollow reinforced eye.

• Twin-eye design for vertical or horizontal use.

• Uniform wall thickness.

• Highly resistant to abrasion and sunlight.

• Smooth surface and glossy finish.

• Flexible body material.

• High-quality valve.

Castro® Fender - "JP" Series

Castro Fenders & Accessories

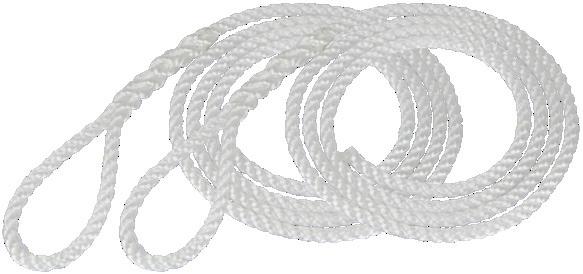

Fender Lines

Anchors & Mooring

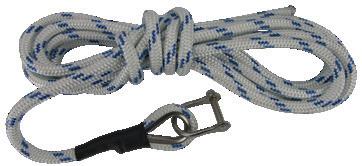

• 482600 / 482601 Black Braided UV stabilised polyester with 100mm spliced eye in one end to loop through eye in fender.

• 46000 3 strand Silver rope (PE) with a soft eye splice in one end to loop through eye in fender.

• 481100 - 482104 3 strand black or blue polyester rope with soft eye splice in one end to loop through eye in fender.

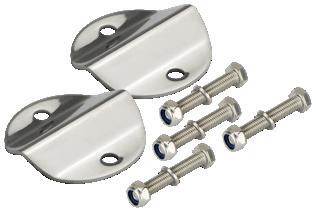

Replacement 4 x Screws & 2 x Clamps suit Fender Baskets

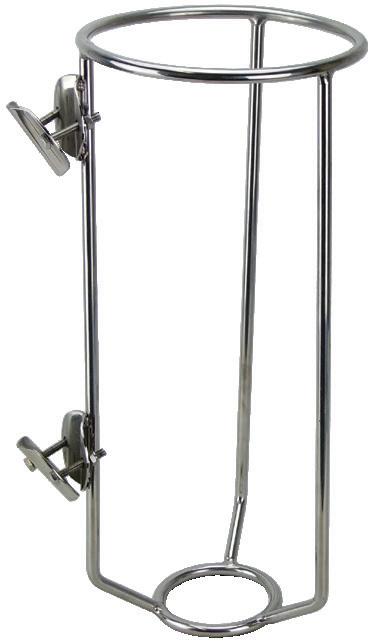

• Heavy duty fender baskets ideal for mounting on bow or stern rails.

• Robustly constructed from I0mm diameter 304G stainless steel.

• Complete with stainless steel rail clamps that suit 22, 25 & 32mm diameter rails.

• Enhance ease of use when docking or rafting up.

NOTE: Fenders are not included.

46000

482600 / 482601

481100 / 481102 / 481104

482100 / 482102 / 482104

Fender Baskets

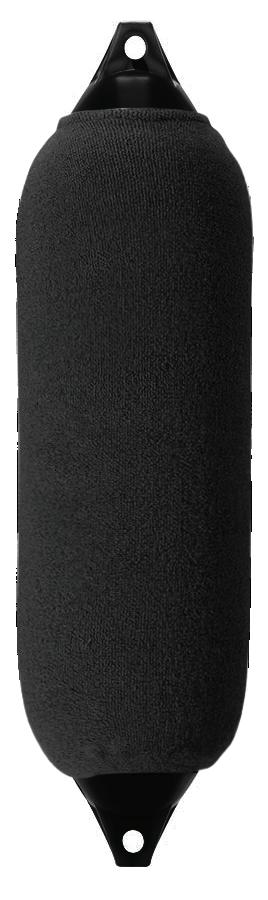

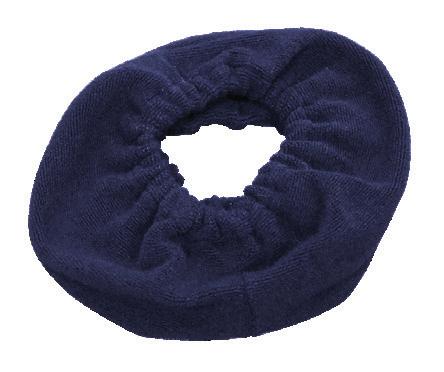

Fenderfits™ - "F" Series Fender Covers

Anchors & Mooring

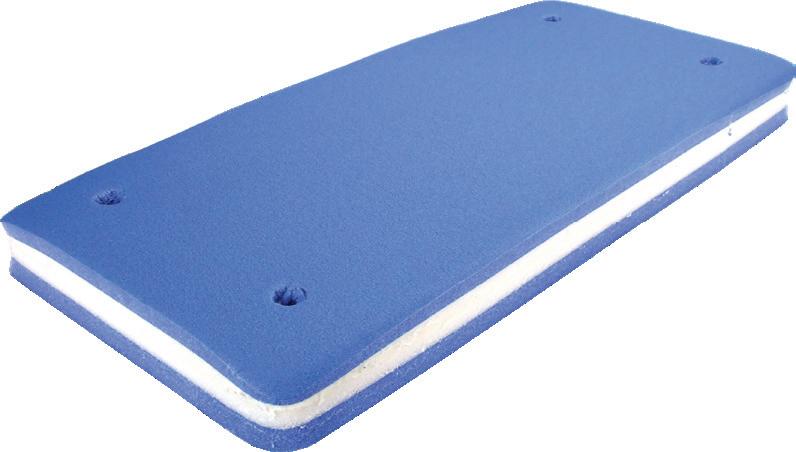

Fenders - Foam

EVA foam will not absorb oils or water

•

• Flat stacking, tough and light weight.

• Non-marking.

• No air inflation, will not puncture or deflate

• Shock absorbent.

• Knitted from high quality, UV resistant acrylic yarn.

• Reversible and hand washable.

• Large covers are supplied singular and double layered for durability and longevity.

• Smaller sizes are supplied in pairs.

NOTE: Fenders are not included.

Burke Fenders - PE Vinyl

• Vinyl covered closed cell foam.

Supafend® PVC Boat Fenders

Protect your hull with Supafend® PVC Boat Fenders! They provide cushioning against marina docks and other moored vessels.

Supafend® is proudly owned and operated by Sam Allen Wholesale.

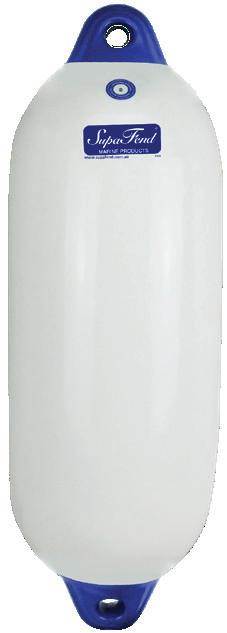

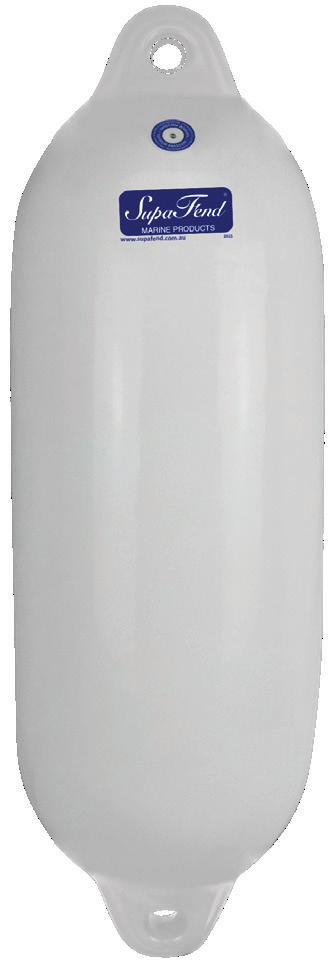

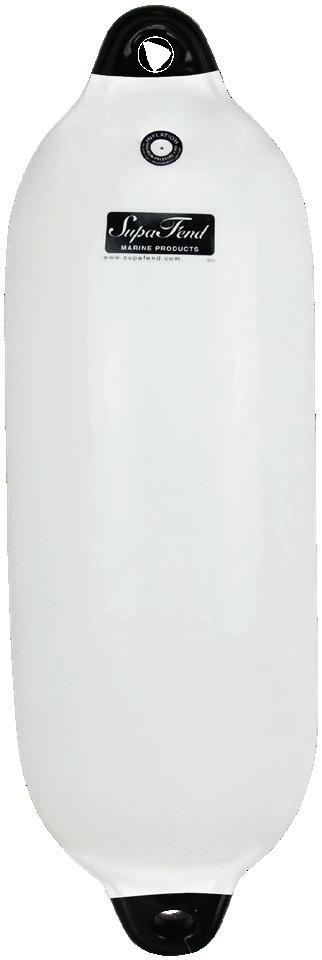

Supafend® PVC Boat Fenders

Supafend PVC Boat Fenders

• Supafend Boat Fenders are "one-piece" rotationally moulded with nonmarking, UV stabilised Marine Grade PVC.

• Consistent wall thickness and specially designed heavy-duty rope eyelet end.

• All fenders are factory tested prior to dispatch to ensure they provide maximum durability and reliability.

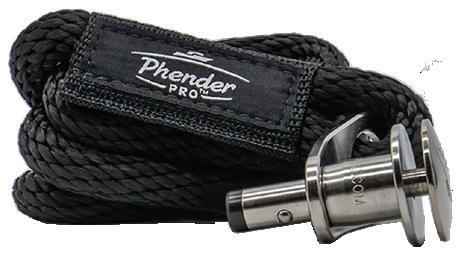

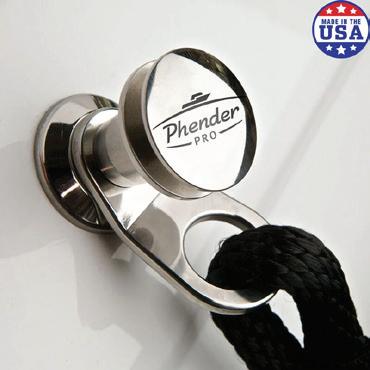

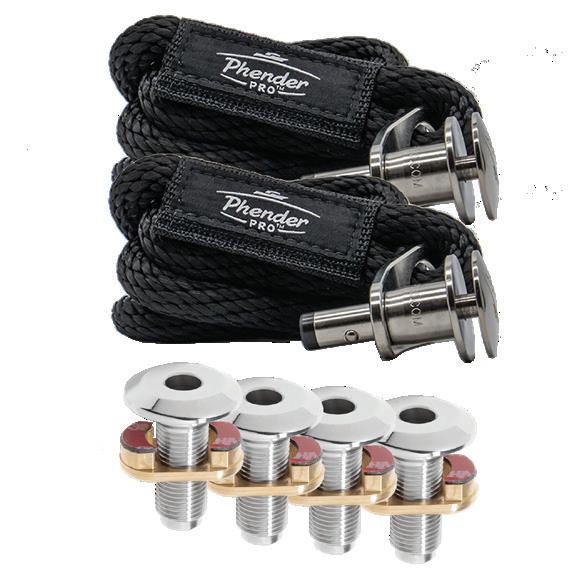

Phender Pro

3/8" Fender Mounts - Suitable for vessels up to 6.5m

PHENDER PRO® is "The Original" quick release fender set.

PHENDER PRO allows you to install and remove fenders with one simple click. Just attach your fender rope to the tab on the Phender Pro pin, insert the pin into the receiver, and your fender is securely held in place.

PHENDER PRO®'s unique, anti-wear design positions the pin above the receiver, protecting the highly polished finish, and the softened edges of the attachment tabs protect your line. The PHENDER PRO is expertly machined from stainless steel for maximum protection in fresh or salt water.

Sockets can be mounted either on a vertical or horizontal surface.

Polished Finish.

• Blind install, ideal for when you don't have access to the underside of a gunwale to use a conventional nut.

• Fully sealed base to ensure no water can get into the hull.

•

• Designed to suit 3/8" Pin.

• Can only be installed with access beneath deck.

• Fully sealed base to ensure no water can get into the hull.

• 316G Stainless Steel with Polished Finish.

• 3/8" pin diameter.

• 2 Fender pins with 8mm x 1.37m fender rope to attach to fender.

• Includes 4 sockets - either Retro-Fit (29047) or HD OEM (29049). OEM kits require access to the back side of the fitting to install.

• Suitable for boats up to 6.5m.

NOTE: Fenders not included.

29042

29044 Install Video

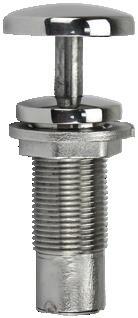

3/8" Fender Mount Quick Release Pin

3/8" Fender Mount Boat

•

•

•

•

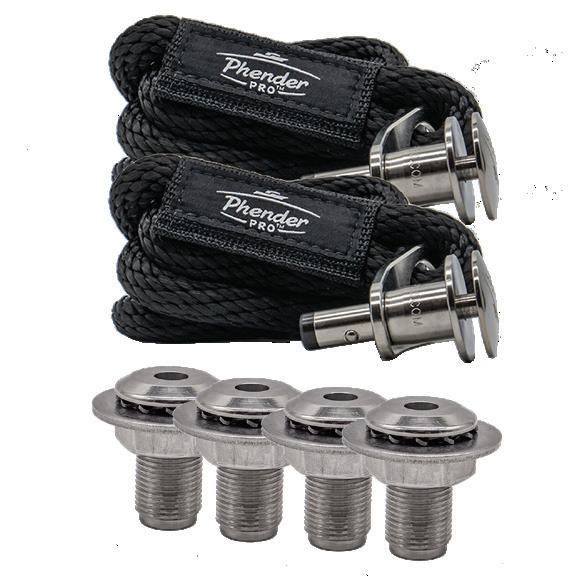

• Blind install, ideal for when you don't have access to the underside of a gunwale to use a conventional nut.

• Fully sealed base to ensure no water can get into the hull.

•

• 1/2" pin diameter.

• 2 Fender pins with 12mm x 1.37m fender rope to attach to fender.

• Includes 4 sockets - either Retro-Fit (29062) or HD OEM (29064). OEM kits require access to the back side of the fitting to install.

• Suitable for boats 6.5m+, use multiple kits for larger vessels.

NOTE: Fenders not included.

•

• Can only be installed with access beneath deck.

• Fully sealed base to ensure no water can get into the hull.

• Automatic valve to prevent water sitting in chamber.

29057

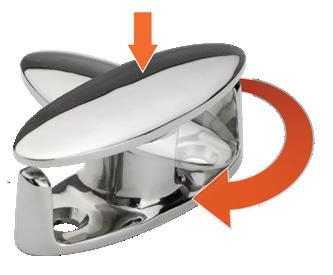

Fenders Hangers & Fender Cleats

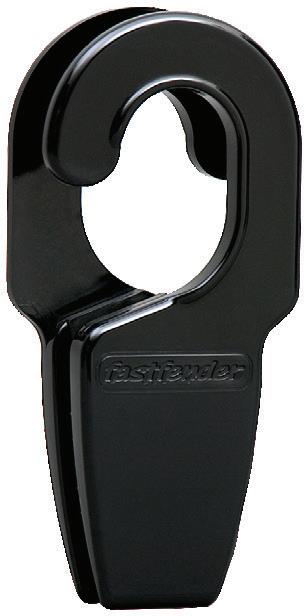

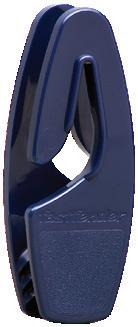

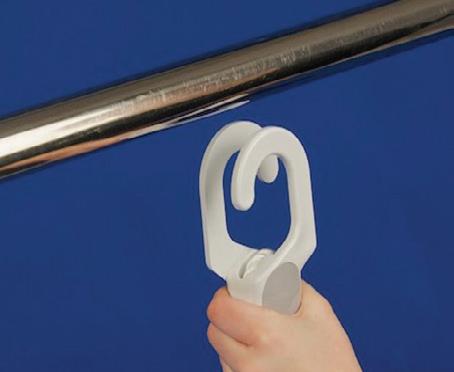

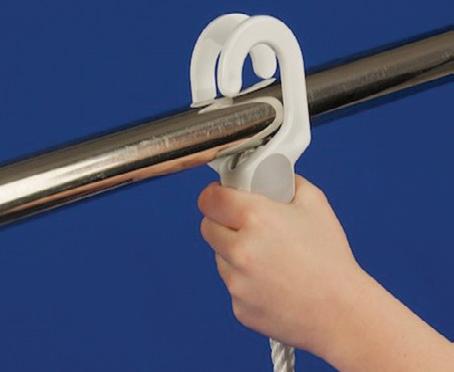

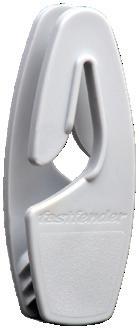

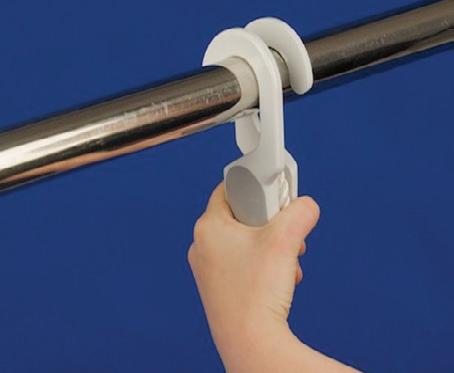

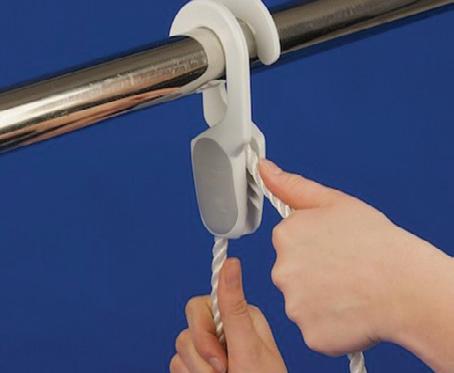

Fastfender Lifeline Hanger Clips

•

•

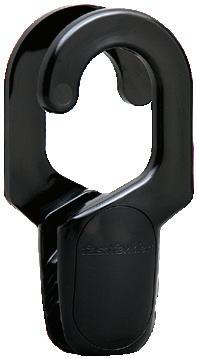

Fastfender 32 Hanger Clips

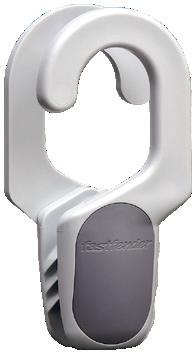

Fastfender 40 Hanger Clips

• Easy one hand use.

• Resistant

•

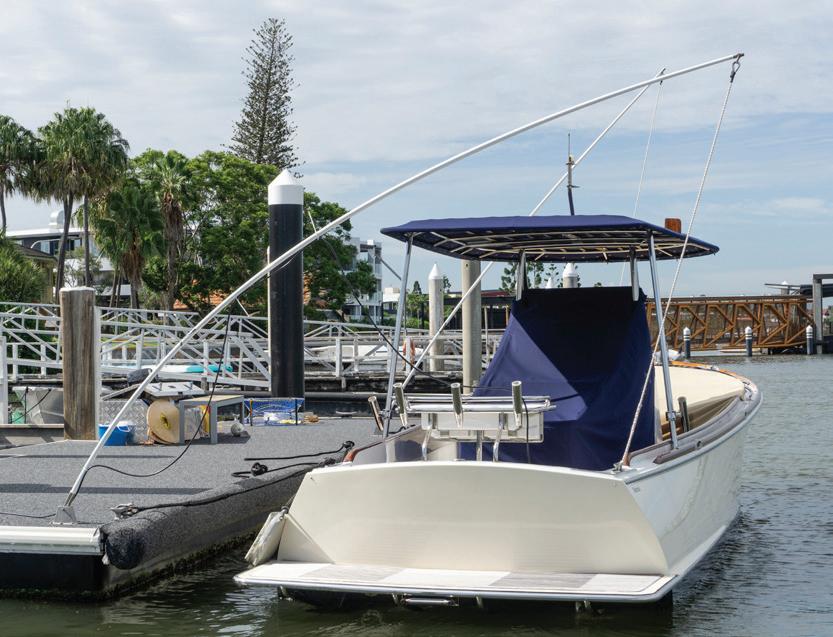

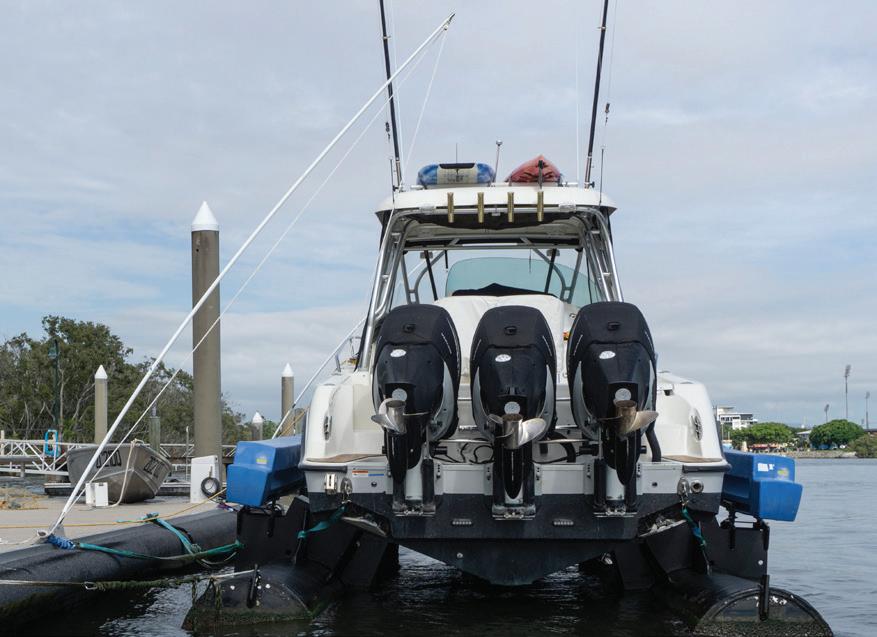

Supafend® Dock Fenders

Protect your craft from costly damage and make docking easier & safer. Supafend® Dock Fenders transform raw dock edges into protected zones.

Supafend® is proudly owned and operated by Sam Allen Wholesale.

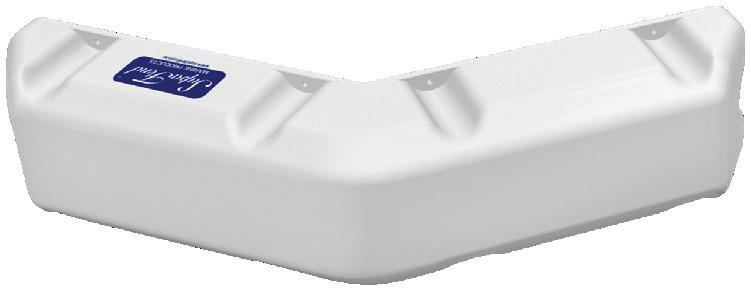

Supafend Dock Fenders & Bow Fender

Supafend® Dock Fenders

• Supafend Dock Fenders are "one-piece" rotationally moulded with nonmarking, UV stabilised Marine Grade PVC.

• All fenders are factory tested prior to dispatch to ensure they provide maximum durability and reliability.

• They have a long, slim design incorporating eleven lugs for permanent fixing.

• Stainless steel TEK screws supplied with each fender.

• They can be placed end to end for maximum protection, but can be spaced apart at any desired distance (we recommend not exceeding a 500mm gap between each fender).

• Fixing is easy with the use of only light hand tools. The TEK screws are self-drilling and self-tapping which facilitates quick installation.

• Inflated to 1 PSI.

• Single piece Rotomoulded PVC.

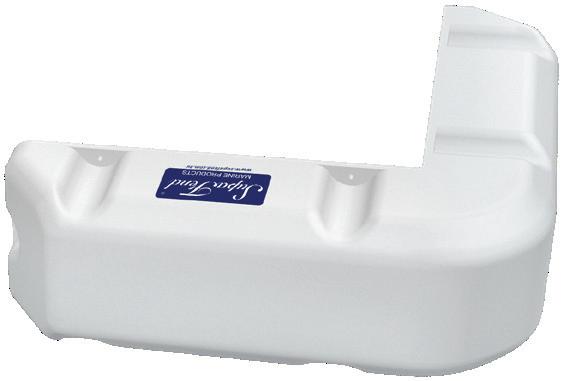

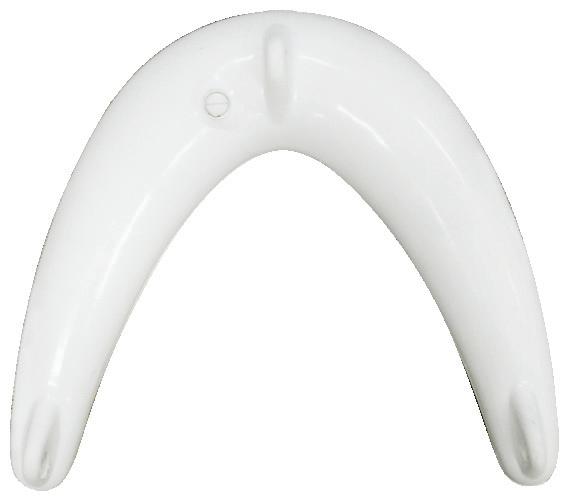

• Specially designed to cushion the bow of a rigid tender.

• 3 fender-line holes.

• Uniform wall thickness.

• Highly resistant to abrasion.

• Smooth surface and glossy finish.

• High-quality plastic valve.

NOTE: Normal inflation pressure of 0.15 bar at approximately 20 Degree Celsius Castro® Fender -

www.samallen.com.au

Anchors & Mooring

Dock Wheels / Accessories

Dock Wheels

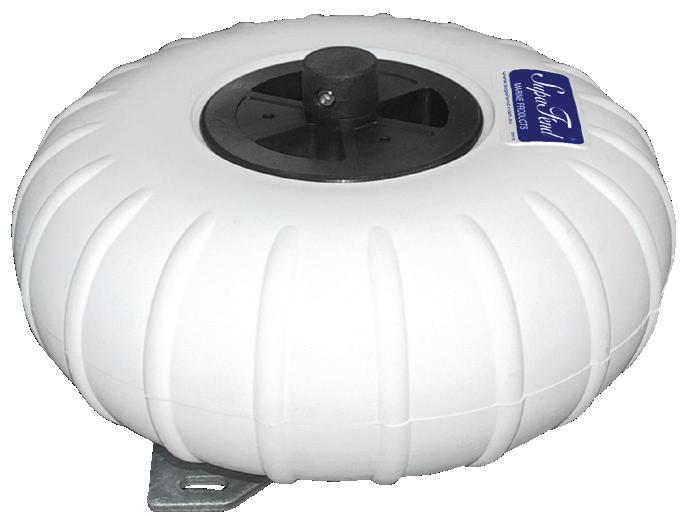

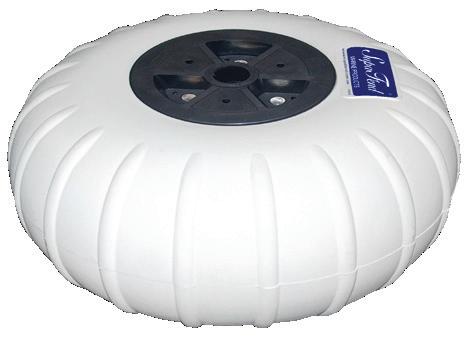

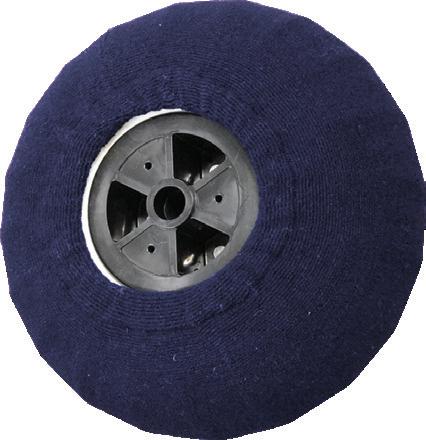

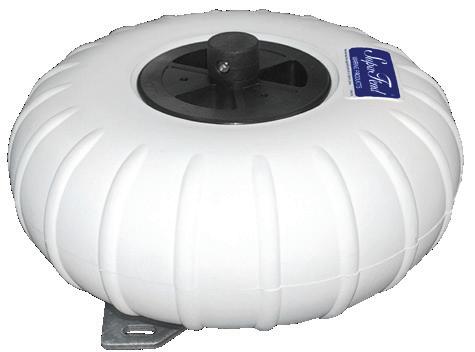

Supafend® Dock Wheels

Make docking easier with Supafend® Dock Wheels. Protect and guide your boat around the corners of marina berths.

Supafend® is proudly owned and operated by Sam Allen Wholesale.

Supafend® Dock Wheels

• Supafend Dock Wheels are designed to protect and guide your boat while manoeuvring in and out of your marina berth. This product is best located on the corner or "blind spot" and many boat owners are also locating them at intervals up the length of their berth.

• The wheel is non-marking and consists of a sealed one-piece rotationally moulded tyre made of Marine Grade PVC with ultra-high UV resistant additives.

• The unique closed-cell PU foam formulation and injection technique was designed exclusively for Supafend by the worlds leading global PU Foam specialist. This has ensured correct internal dispersion and adhesion of the foam to the PVC wheel while producing optimum cushioning.

• Dock Wheel hubs are made of DuPont™ Supertuff Zytel® Nylon that will not corrode or crack and does not require bearings, bushings or any form of lubrication. They are hard-wearing and will not seize against its axle.

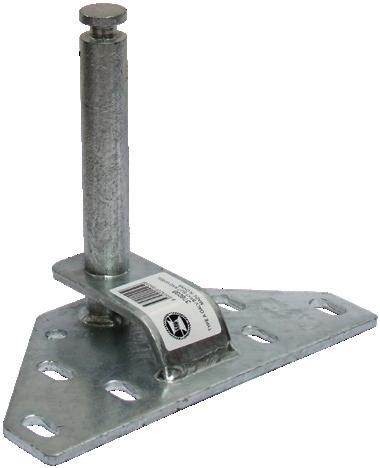

• Single Wheel Bracket is suited to most vessels up to 40 feet. It is designed and manufactured from Galvanised Steel for strength, MultiFit fixing, and anti-corrosive qualities. The PVC wheel can be removed/ reinstalled easily and securely into its axle via a unique injection moulded Nylon Cap.

• The Multi-Fit base plate with slotted bolting pattern enables it to be fixed simply to the top surface of most wooden marinas, including various "multi-layered" plank configurations. Four large galvanised coach screws are supplied with the Dock Wheel.

• Supafend Dock Wheels are designed to protect and guide your boat while manoeuvring in and out of your marina berth.

• Our latest "Fit & Forget" FOAM-FILLED design is a considerable upgrade of our time proven dock wheel that was first introduced back in 1999.

• Supafend Dock Wheels are best located on the corner or "blind spot" and many boat owners are also locating them at intervals along the length of their berth.

• Their capacity to protect and move with your boat is unrivalled.

• "The ultimate protection against sudden wind shifts and tidal currents."

• Especially useful for vessels with limited steering control during berthing.

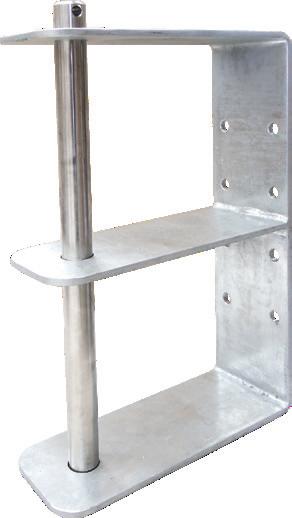

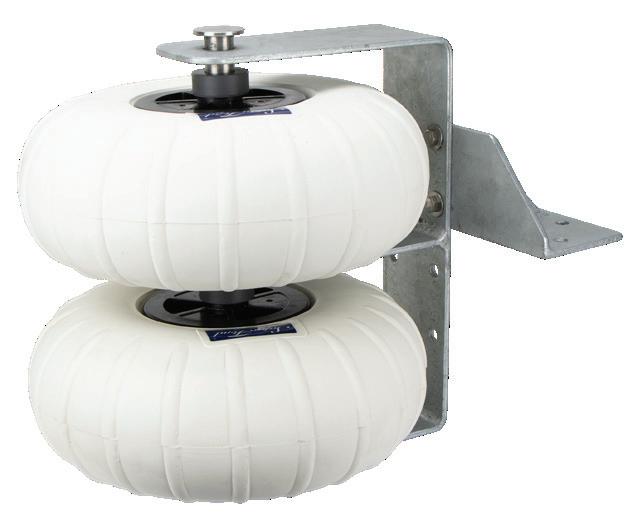

• The Dual Wheel Bracket is designed for mounting two dock wheels in tandem for heavy duty applications.

• 376007 bracket is designed to be mounted on the vertical "face" of the waler.

www.samallen.com.au

376002

376006

376039

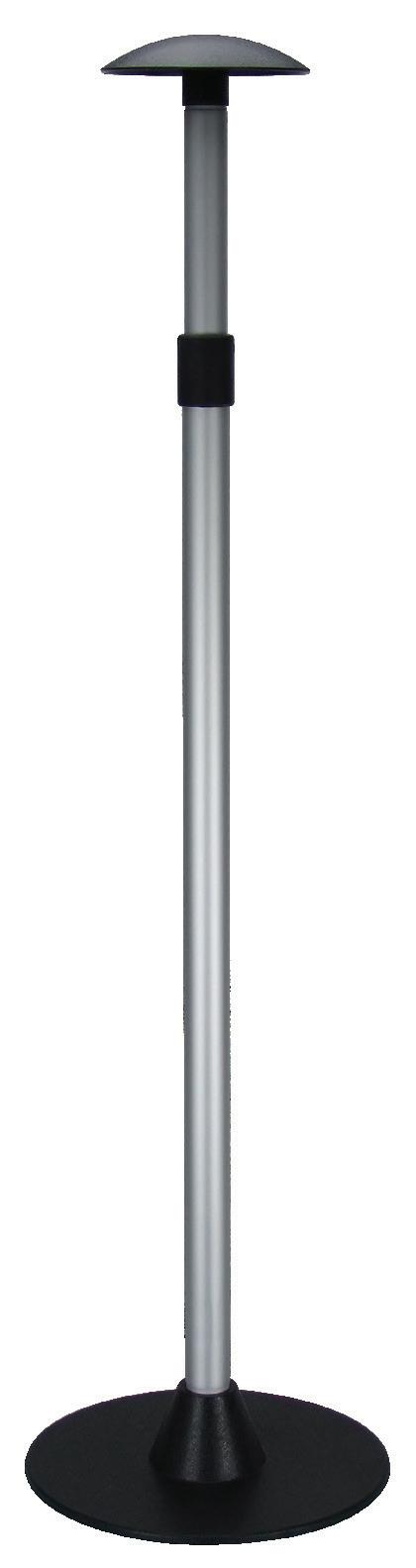

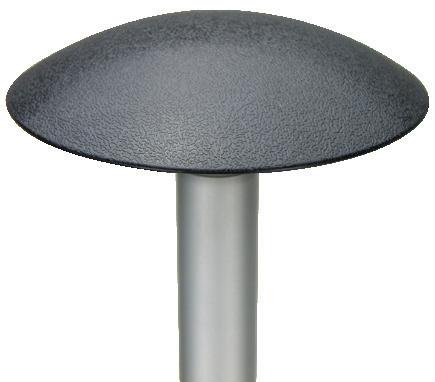

• Designed to suit any type of boat cover.

• Pole starts at 760mm and can be extended to 1370mm.

• 124mm diameter domed head reduces wear and tear on your boat cover.

• Prevents water from pooling in the cover.

• 230mm diameter support base.

• Easy to use, simply twist and pull to lengthen and twist back to lock.

Mooring Whips

Hassle Free Mooring!

Waterfront homes and canal properties encourage regular and extensive boating. However, despite the convenience of waterfront living, passing water traffic, bad weather, and strong winds, can take their toll on the most carefully secured craft.

Reelax Mooring Whips provide a simple, effective solution to the dilemma of needing to keep your boat tied up safely to the wharf for protection and convenience – and being able to slip her lines in just a few seconds. Reelax Mooring Whips are a cinch to secure and release, but effective in keeping the boat safely off the wharf. They are virtually maintenance free too.

Reelax Mooring Whips

• Mooring line holder positions the bow and stern lines or diagonal springers at a height that can be safely and comfortably reached from the boat or vessel with out disembarking.

• Keep your pontoon free from tangled unsightly ropes which pose a tripping hazard.

• Made from fibreglass and 316G stainless steel, mooring line holders are impervious to UV and salt.

Mooring Line Holders

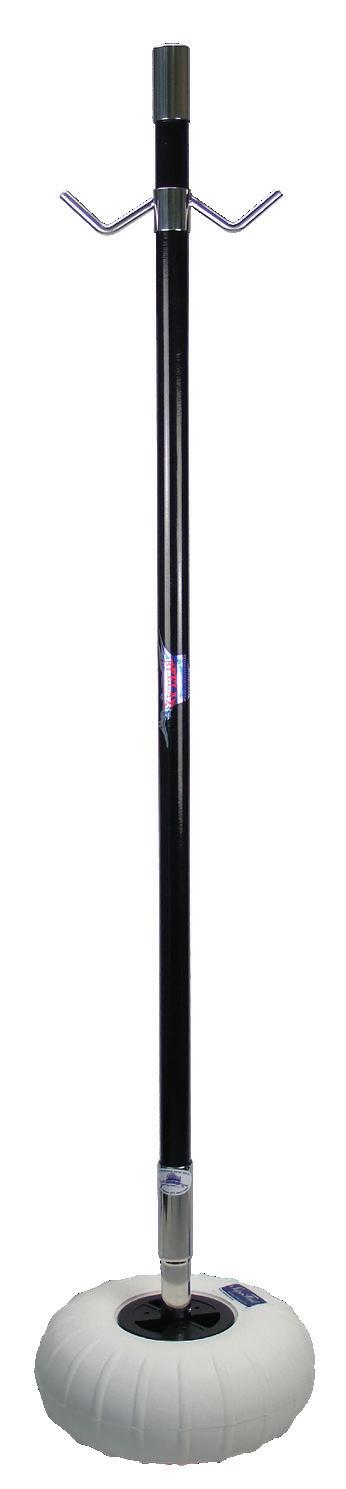

Reelax Mooring Line Holder with Dock Wheel

• Reelax has teamed up with Supafend to create a mooring line holder and Dock Wheel.

• The Supafend Dock Wheel is designed to protect and guide your boat while manoeuvring in and out of your marina berth.

• The Mooring Line Holder is ideal at keeping your pontoon free from tangled unsightly ropes which you will trip over.

• Made from fibreglass and 316G stainless steel, mooring line holders are impervious to UV and salt.

*NOTE: Suits Supafend® Dock Wheels only. To fit the Mooring Line Holder to the Dock Wheel, first loosen grub screws on Dock Wheel end cap and then remove. Next, connect the Mooring Line Holder to the Dock Wheel shaft and tighten grub screws on the Mooring Line Holder.
