2024 - Inflatable Boat Accessories
Inflatable Boat Accessories
Please Note:
Due to the multiple methods of installation of inflatable boat accessories please contact your local inflatable boat specialist for the best way to apply Inflatable Boat Attachments.
102 www.samallen.com.au
Contents Inflatable Boat Pumps 103 Electric Pumps 103 - 104 Foot & Hand Pumps 105-106 Valves, Adaptors & Pressure Gauges 106 Inflatable Boat Attachments 107 Dolly Wheels, Snap Davits & Accessories 107 Inflatable Boat Accessories 108 Inflatable Accessories 108 - 110
Inflatable Boat Pumps Electric Pumps

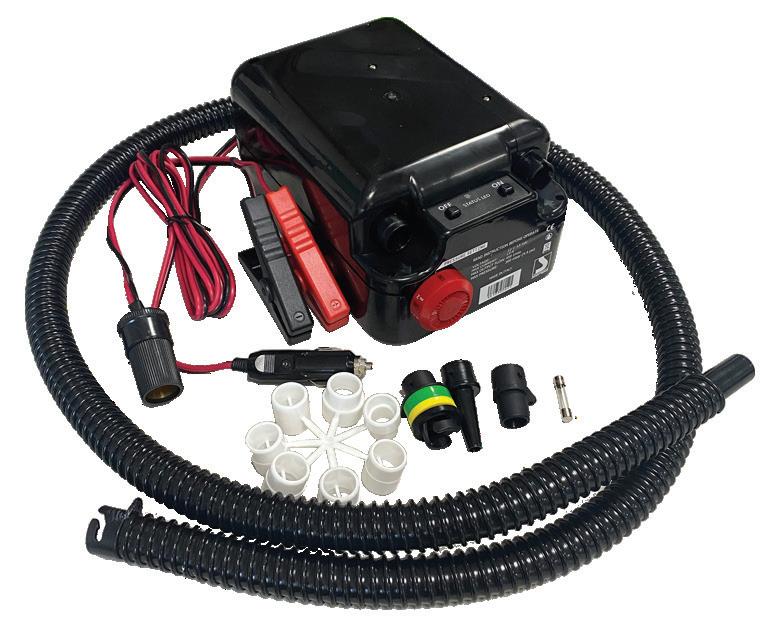

Air Pump - Turbo Max - Hard Wired
Inflatable Boat Accessories

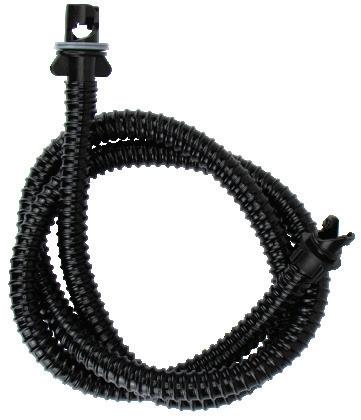

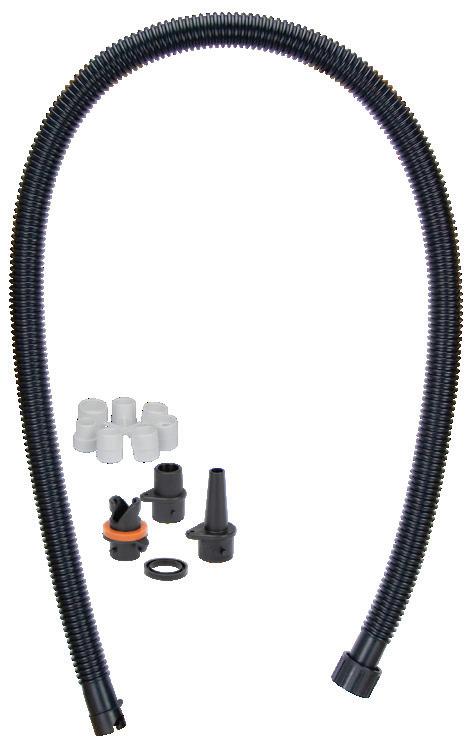

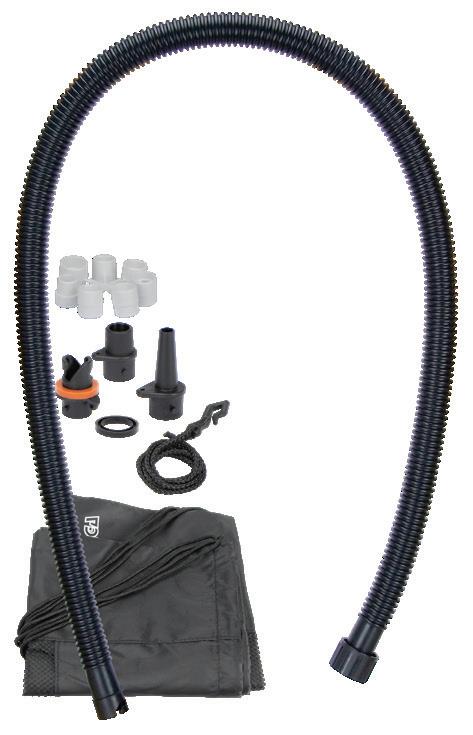

39225 3m x 25mm ID Hose with Connectors
• Inflates large rigid inflatables up to 14 metres.
• Inflates average 7m inflatable boat in approximately 6 mins.

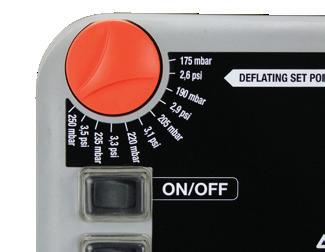

• Pressure can be regulated up to 3.6psi with automatic shutoff.
• Inflates and deflates.
• Hard wired with Deutsch Plug supplied.
• Supplied with hose connector fittings to suit 25mm ID hose.
• Includes universal adaptor kit.
• Bulkhead mount.
NOTE: Hose not included with 39218 & 39218A

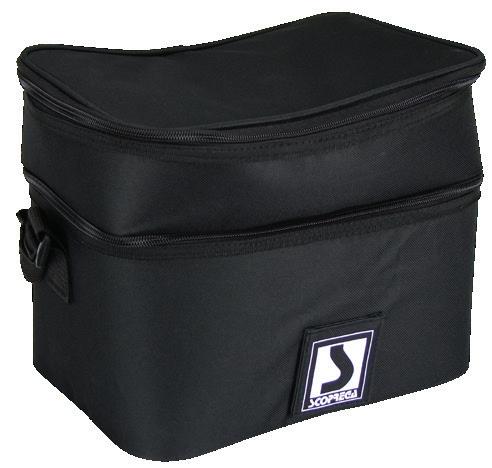

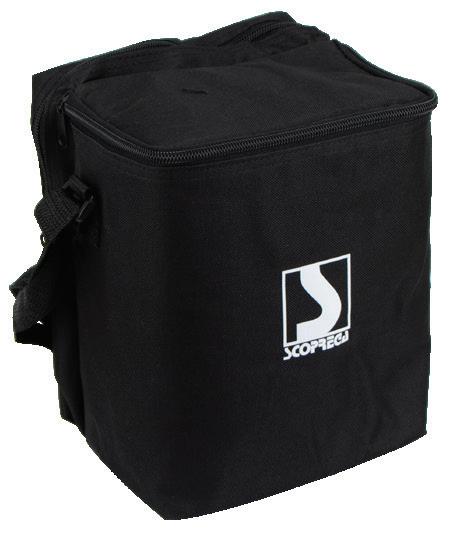

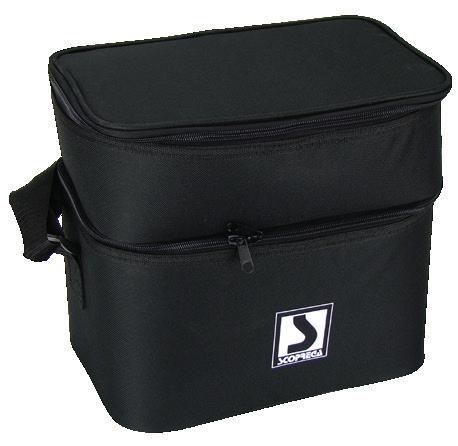

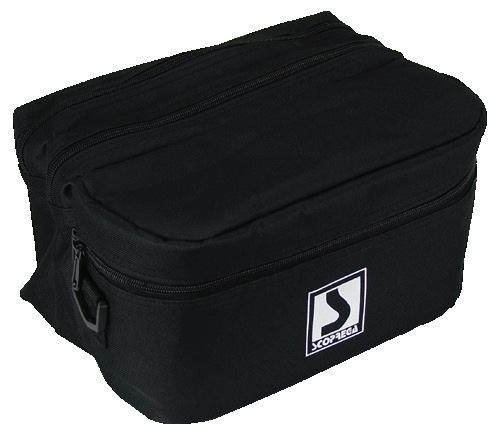

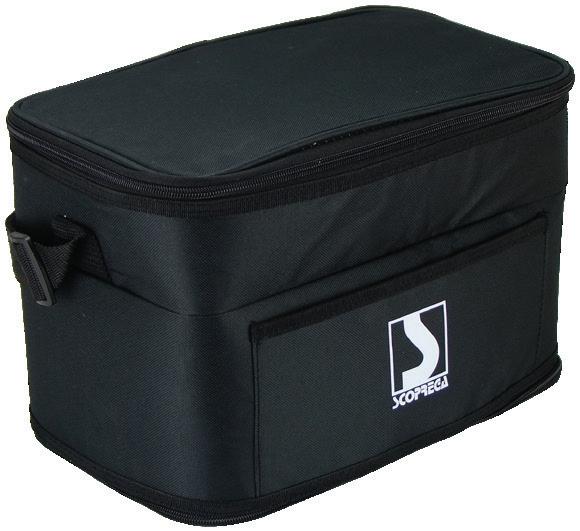

39224 Replacement Carry Bag
39225 3m x 25mm ID Hose with Connectors
• Inflates large rigid inflatables up to 14 metres.
• Inflates average 7m inflatable boat in approximately 6 mins.
• Pressure can be regulated up to 3.6psi with automatic shutoff.
• Inflates and deflates.
• Connects directly to battery via 3m lead with alligator clips.
• Supplied with hose, connectors and adaptor kit.
• Carry bag included.
• Portable electric inflator for high pressure applications.
• High efficiency and suppressed noise.
• Double piston pump.
• Integral pressure gauge.
• Automatic stop at preset pressure.
• LED indicators for battery status.
• Supplied with alligator clip and cigarette lighter plug leads for direct power supply from external 12V batteries, plus 240V charge adaptor.
• Built in rechargeable and replaceable 12V battery.
• Protective filtering system.
• Inflates only.
• Hose, connectors, adaptors and carry bag included.
www.samallen.com.au
103

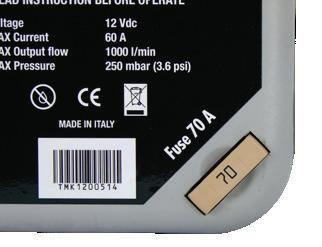

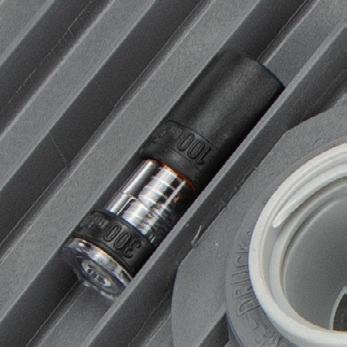

Multiple pressure ranges Hose lock-in adaptor included Fuse included Part No. Type Volts Output (Ltr/min) (Amps) Max Pressure (PSI) Weight (kg) Dimensions L x W x D (mm) 39218 Turbo Max 12 1000 60 3.6 3.5 290 x 160 x 127 39218A Turbo Max 24 1000 35 3.6 3.5 290 x 160 x 127 39218B

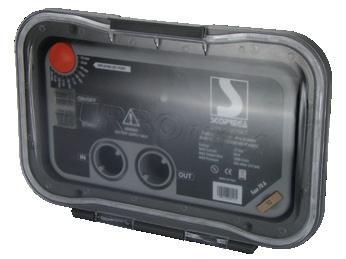

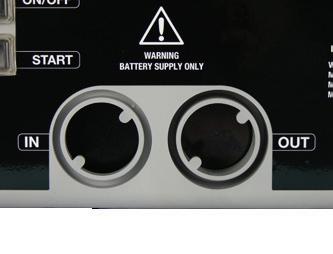

Turbo Max Recessed Box (Only)
Part No. Type Volts Output (Ltr/min) Max Pressure (PSI) Weight (kg) Dimensions L x H x D (mm) 39250 GE20-2 12 125 22 6.65 200 x 320 x 220
39218B - Pump not
included
Part No. Type Volts Output (Ltr/min) (Amps) Max Pressure (PSI) Weight (kg) Dimensions L x W x D (mm) 39217A Turbo Max 12 1000 60 3.6 3.5 310 x 180 x 190 39217 Turbo Max 24 1000 35 3.6 3.5 310 x 180 x 190
39218
39225

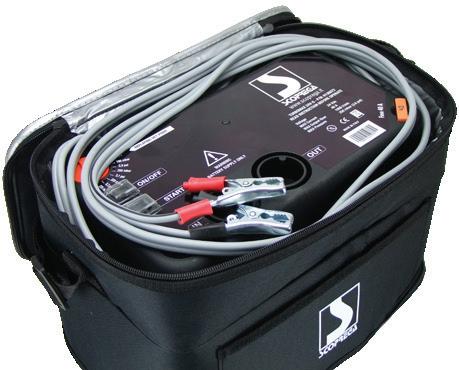

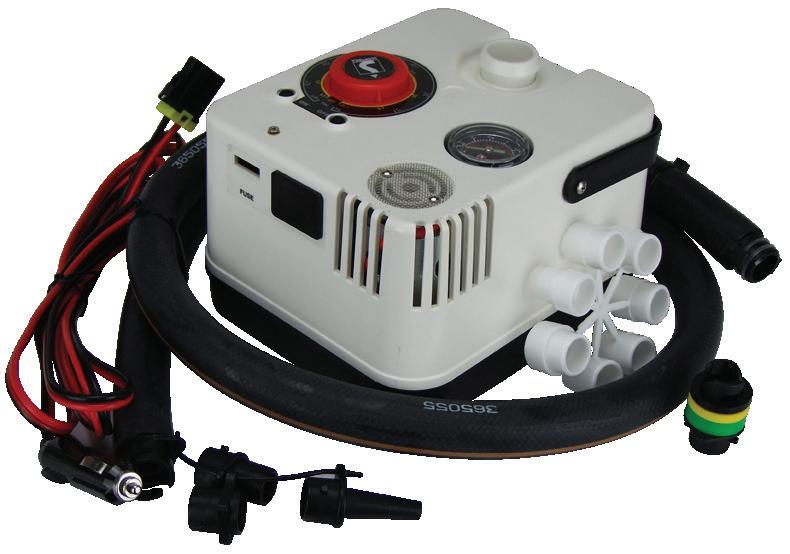

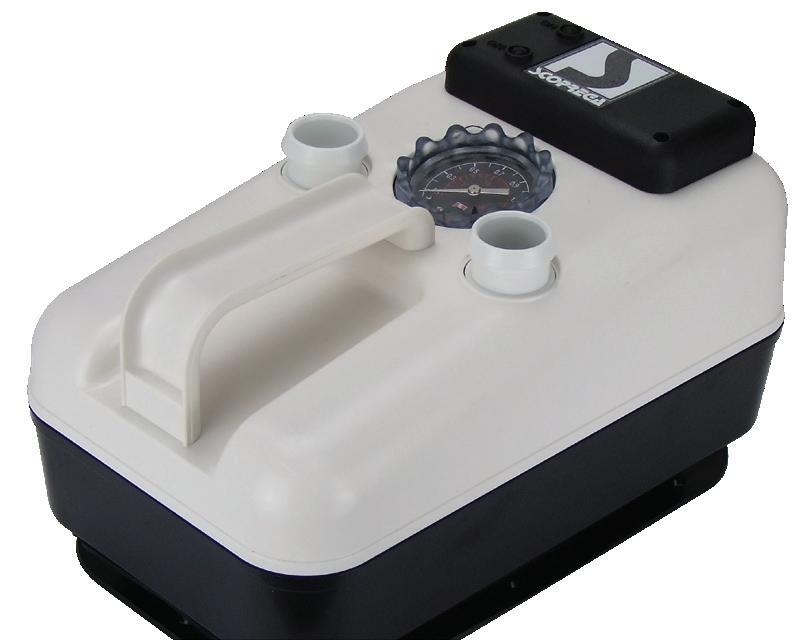

Air Pump - Turbo Max - Portable

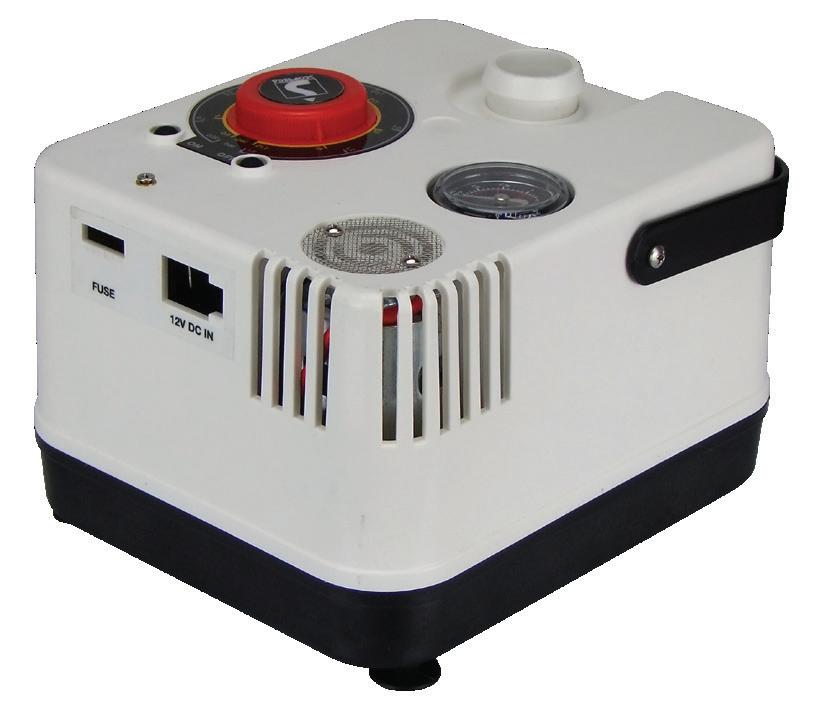

Air Pump - GE20-2
• Portable electric inflator for high pressure applications.
• Robust construction.
• Integral pressure gauge.
• Automatic stop at preset pressure.
• Built-in rechargeable and replaceable 12V battery.
• Includes 2.5m 12V power supply/charging lead with cigarette lighter plug and 240V charge adaptor.
• Inflates only.
• Includes 1.6m high pressure hose with connectors and adaptors.

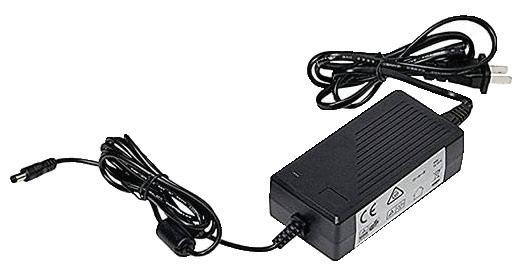

• Includes 240V battery charging adaptor.
• Carry bag included.
• Integral pressure gauge.
• Automatic stop at preset pressure.
• Inflates and deflates.
• Contains low pressure fan and high pressure pistons.
• Swaps between fan and pistons automatically.
• Variable output capacity:
120L/min - When operating on high pressure pistons.
420L/min - When operating on low pressure fan.
• Includes 1.3m hose, connectors and adaptor kit.
• Includes 2.5m 12V power lead with cigarette lighter plug and alligator clip adaptor.
• Built-in protective filters.
• Carry bag included.
• Automatic stop at preset pressure.
• Inflates and deflates.
• Includes hose, connectors and adaptor kit.
• Includes 2.5m 12V power lead with cigarette lighter plug and alligator clip adaptor.
• Built-in protective filters.
• Carry bag included.
104 Inflatable Boat Accessories www.samallen.com.au
Part No. Type Volts Output (Ltr/min) Max Pressure (PSI) Weight (kg) Dimensions L x H x D (mm) 39252 GE21-1 12 125 22 6.4 220 x 320 x 220
Electric Pumps
Part No. Type Volts Output (Ltr/min) Max Pressure (PSI) Weight (kg) Dimensions L x H x D (mm) 39221 GE BTP 12 120 - 420 14.5 2.6 190 x 100 x 130
Part No. Type Volts Output (Ltr/min) Max Pressure (PSI) Weight (kg) Dimensions L x H x D (mm) 39226 GE10-8 12 450 11.6 1.9 180 x 200 x 240

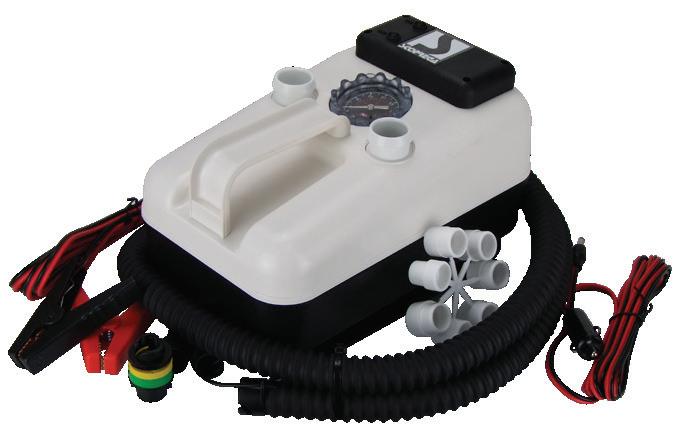

Air Pump - GE21-1
Air Pump - GE BTP
Air Pump - GE10-8
Foot & Hand Pumps

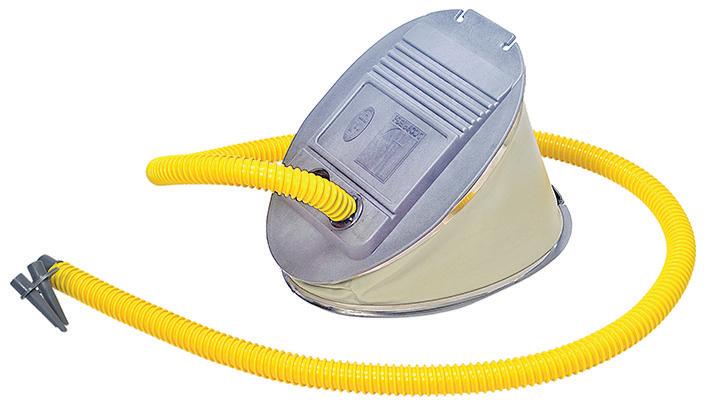

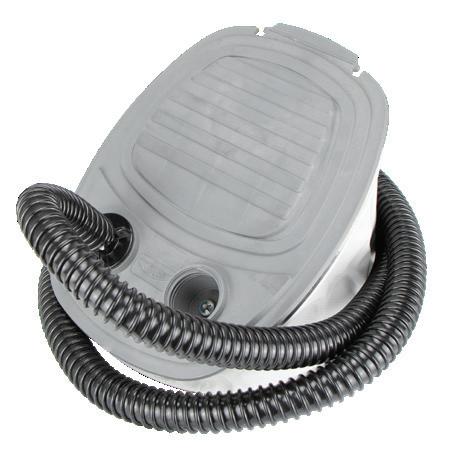

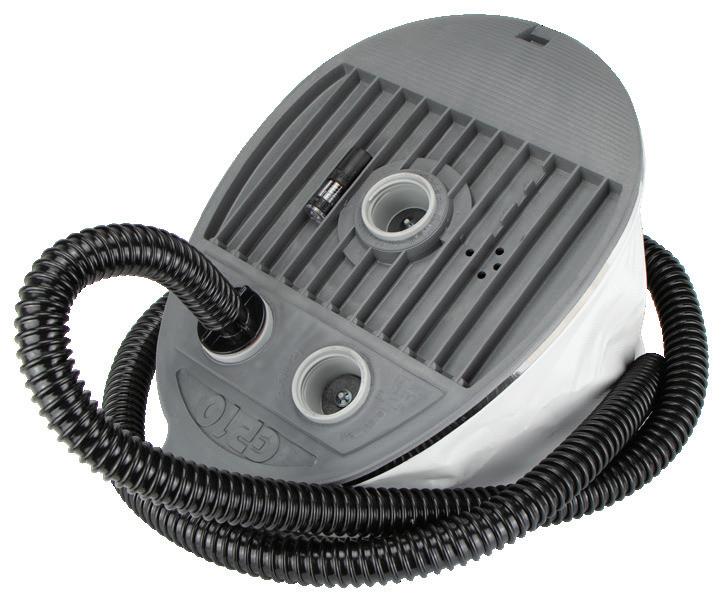

Air Pumps - Bravo - Foot Air Pump - Foot
• Single chamber with reinforced bellows.
• Glass filled nylon body.
• Anti-slip feet provides greater stability.
• Compact size makes them suitable for boats, life rafts, kayaks and SUPs.
• Inflates and deflates.
• Includes 1.7m hose and universal adaptors.
• Italian made.
Inflatable Boat Accessories
• Double chamber with reinforced bellows.
• Glass filled nylon body.
• Anti-slip feet provides stability.
• High pressure/low volume and low pressure/high volume options makes them ideal for both dinghies with inflatable floors and SUPs.
• Inflates and deflates.
• Includes 1.7m hose and universal adaptors.
• Italian made .
• Includes a visual over pressure indicator.
• Single chamber.
• Strong glass-filled nylon body.
• Includes 1.25m flexible, kink resistant hose with screw connector to pump and bayonet adaptor to suit most common inflatable watercraft valves.
• Inflation only.
• Italian Made.

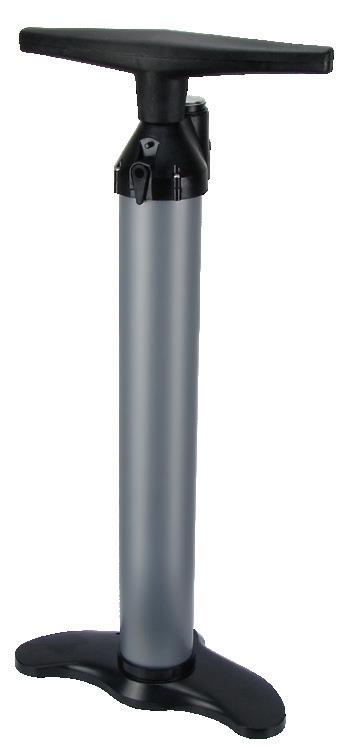

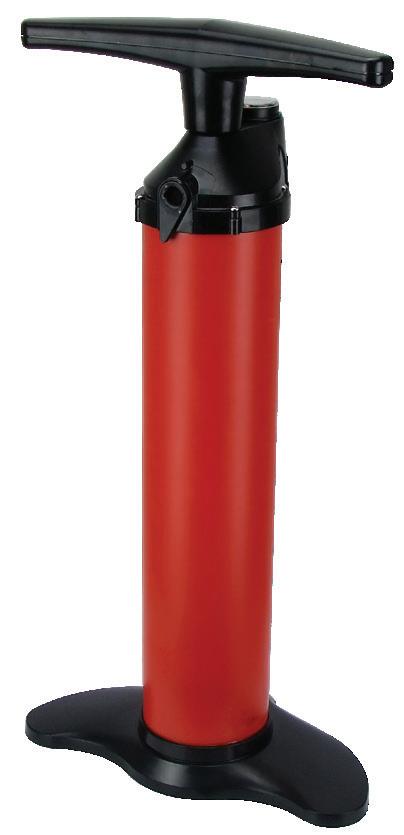

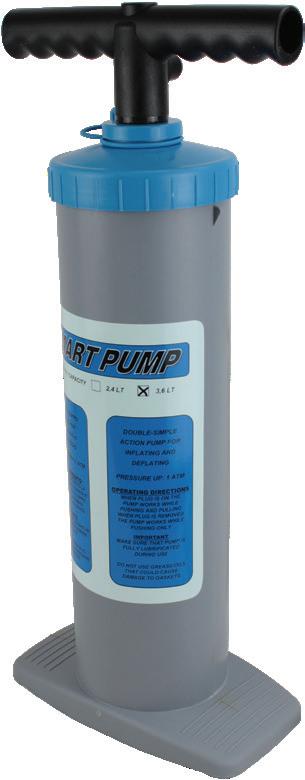

Air Pumps - Hand with Gauge
• Selectable double/single action inflates faster or with less effort.
• Ergonomic handle and large base provide stability.
• Built in pressure gauge.
• ABS and aluminium construction.
• Main shaft contains protective filter.
• Includes 1.25m flexible, kink resistant hose with screw connector to pump and bayonet adaptor to suit most common inflatable watercraft valves.
• Italian Made.
• 39233: Inflate only. Includes universal adaptor kit.
• 39234: Inflates and Deflates. Includes carry bag and universal adaptor kit.
105
www.samallen.com.au Double Chamber Part No. Type Bellows Capacity High Pressure/ Low Vol (PSI/Ltr) Low Pressure/ High Vol (PSI/Ltr) Length (mm) Width (mm) Closed Height (mm) 39210 Bravo 10 5.5 11.6/1.6 4.4/5.5 350 250 80 39213 Over Pressure Indicator suits 39210
Single Chamber Part No. Type Bellows Capacity Pressure (PSI) Length (mm) Width (mm) Closed Height (mm) 39208 Bravo 1 4 7.2 260 200 80 39240 GP5 5 5.8 290 220 80
Over pressure indicator
Part No. Type Bellows Capacity Pressure (PSI) Length (mm) Width (mm) Closed Height (mm) 23156 Foot Pump 5 2.9 310 240 110
39213
39210
Part No. Type Capacity (ltr) Pressure (PSI) Height (mm) Cylinder � (mm) 39233 Bravo 101 3 27.5 590 75 39234 Bravo 110 5 14.5 580 100
39234
39233
39208
39240
39233 / 39234
Hand Pumps, Valves, Adaptors
• Selectable double/single action inflates faster or with less effort.
• Inflates and deflates.
• Ergonomic handle and broad base provide stability.
• Includes 1.45m flexible, kink resistant hose with screw connector to pump and bayonet adaptor to suit most common inflatable watercraft valves.
• Italian made.

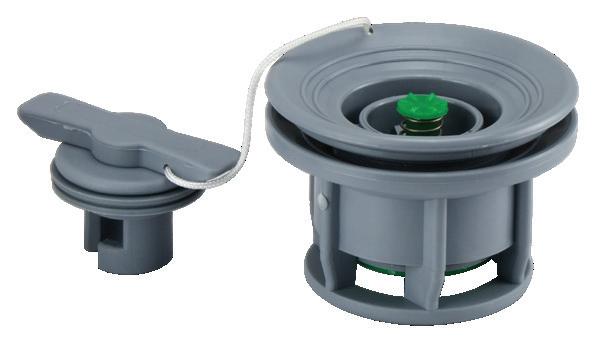

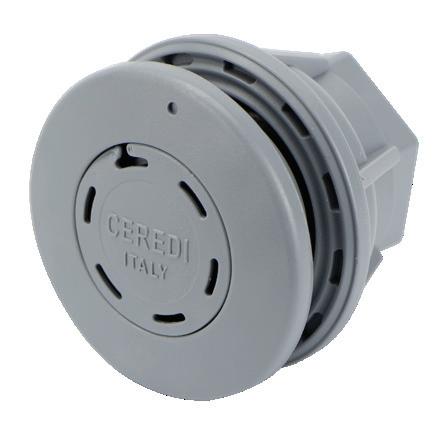

• Spring loaded inflate/deflate valve.
• Twist lock mechanism.
• 2 piece - screws together.
• Suits 36mm � cutout.
• Suitable for all types of inflatable watercraft.
• Designed to regulate inflation pressure due to air expanding.
• Prevents over inflation. Air
• Prevents over inflation.
• Fits most common inflators and watercraft valves with bayonet connections.
• Includes stepped inflator tails to suit 16mm and 20mm ID hoses.
NOTE: Has to be inserted between the inflatable boat and the air source. Insert the pressure relief valve into the inflation/deflation valve & the surplus air will be released.

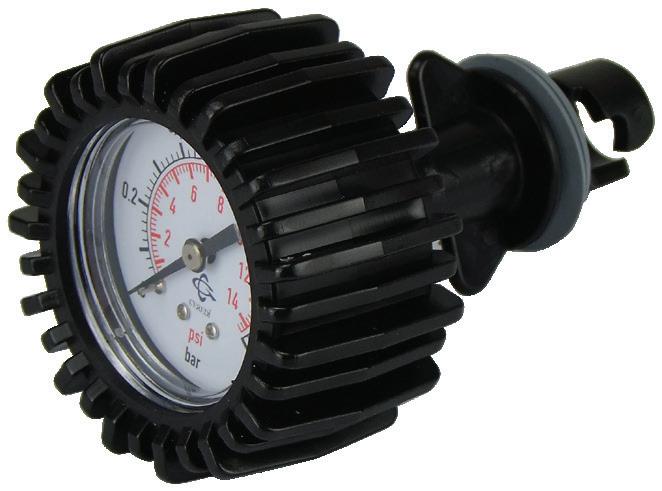

Pressure Gauge
•
• Inflating adaptor suits most common bayonet style valves.
• Stepped tails suit 17mm and 22mm ID foot and hand pump inflator hoses.
106 Inflatable Boat Accessories www.samallen.com.au
Part No. Type Capacity (ltr) Pressure (PSI) Height (mm) Cylinder � (mm) 23152 Hand Pump 3.6 14.5 490 115
Part No. Description Body Type Diameter (mm) Pressure Measurement 39182 Pressure Gauge ABS 63 Bar 0-1 PSI 1-14.5
watercraft valves.
• Connects directly into most common bayonet type inflatable
Rubber armoured. Part No. Description Face Diameter (mm) 39154 Inflate/Deflate Valve T Handle 62 39158 Inflate/Deflate Valve Domed Head 56
39154 39158 Part No. Description Suits Hose ID (mm) Max Pressure (PSI)
Inflation Pressure Relief Valve 16 & 20 3.52
39159
Part No. Description 39204 Bravo

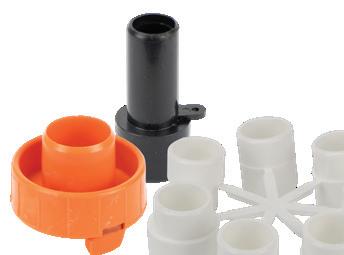

Pump Hose Adaptor
16mm 10mm 8mm 46mm 17mm 27mm 21mm Part No. Description Size Ø (mm) Cut Out Ø (mm) Max Pressure (PSI) 39152 Pressure Relief Valve 55 36 3.52
Pressure
Pump - Hand Inflation
Relief Valve
Air Pump
Adaptor
Boat
Relief Valve
- Hose
Inflatable
- Valve Pressure

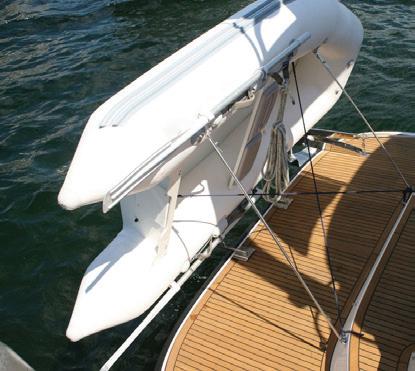

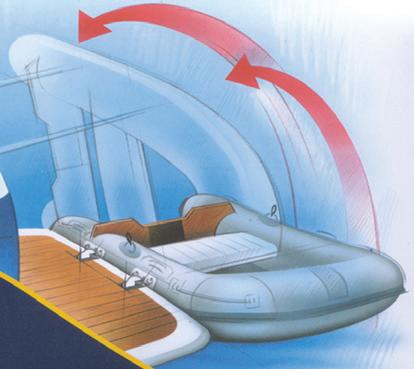

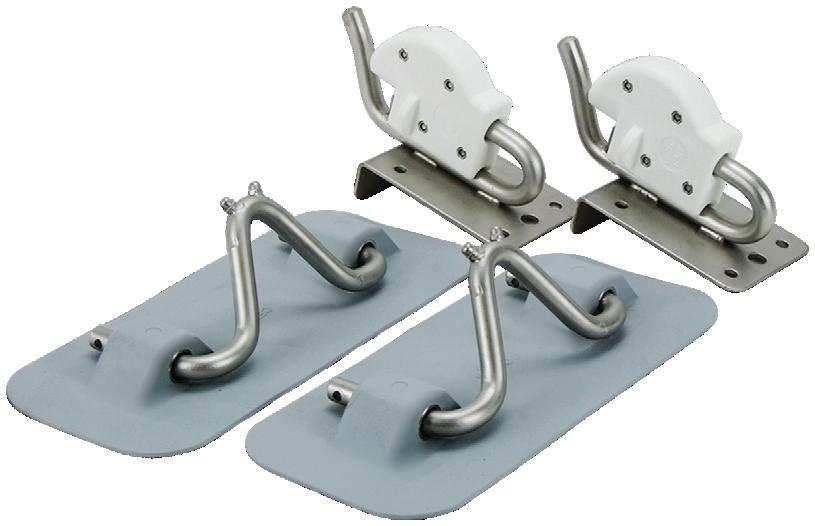

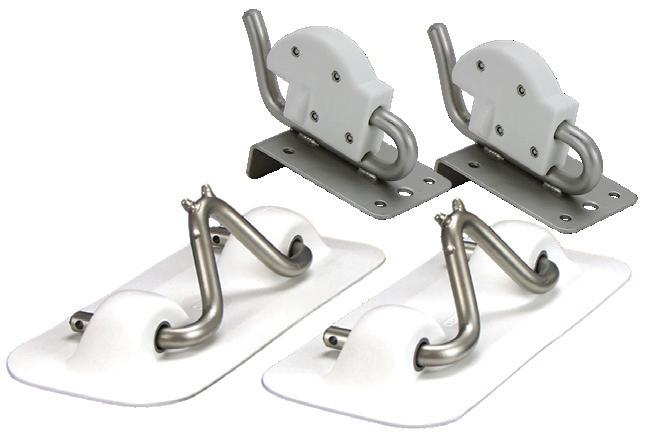

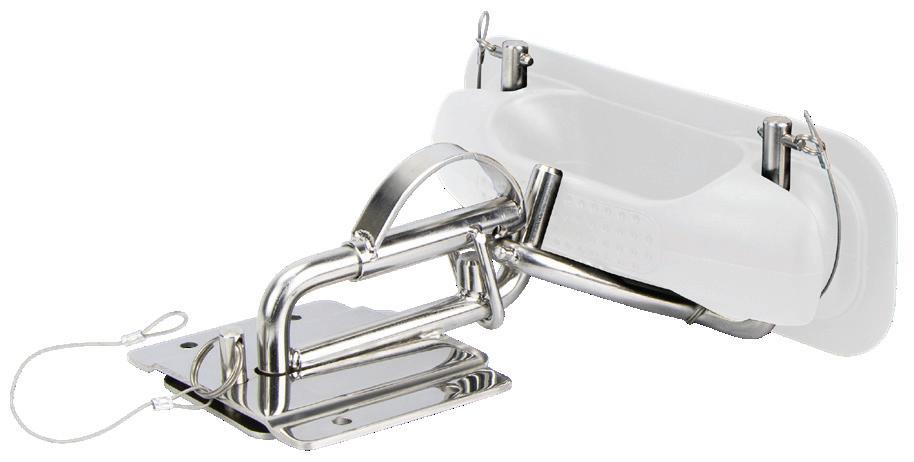

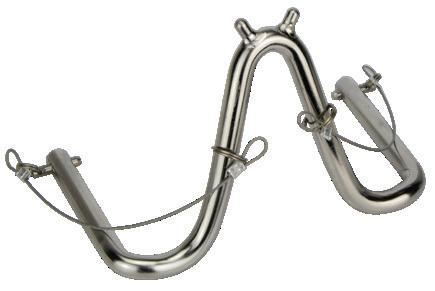

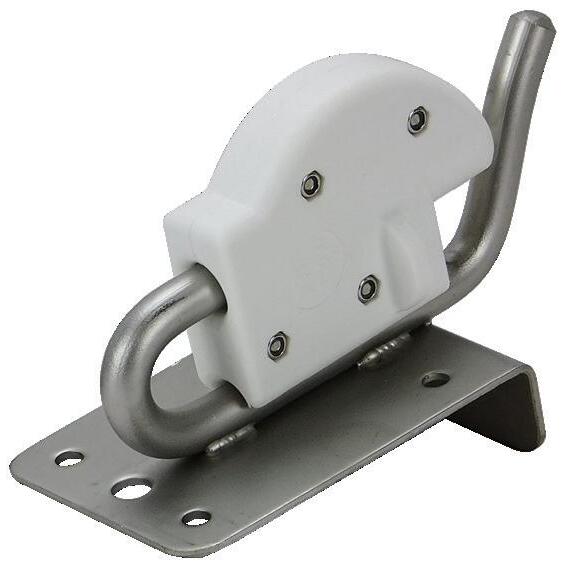

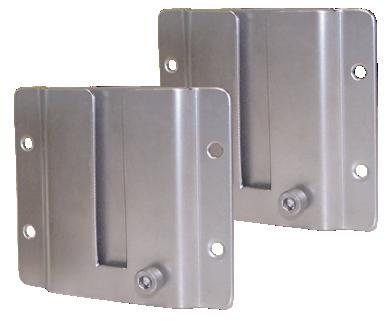

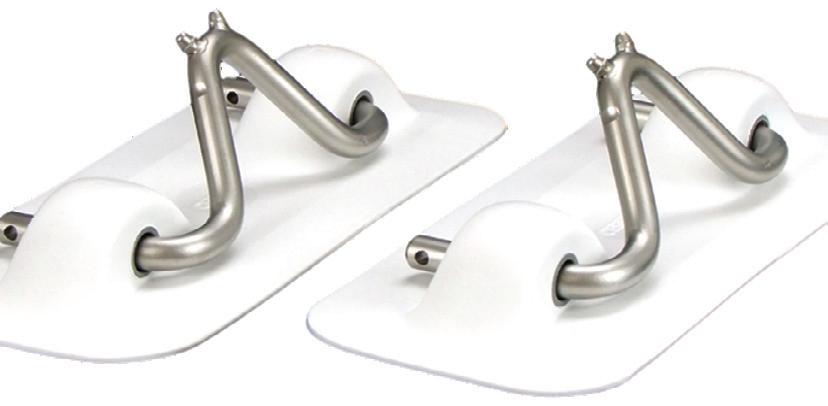

Inflatable Boat - Snap Davit Kits
• Models to suit PVC or Hypalon/CSM inflatables.
• Facilitates hinged storage of inflatable dinghy on duckboard.
• Nylon and stainless steel components.
• UV resistant.
• "W" bar pins are 150mm centres.
• Does not fit Weaver branded davits.
• Italian made.

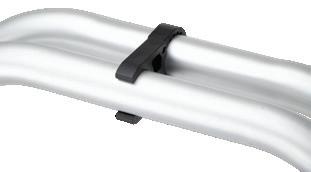

Inflatable Boat - Snap Davit Accessories & Spare Parts

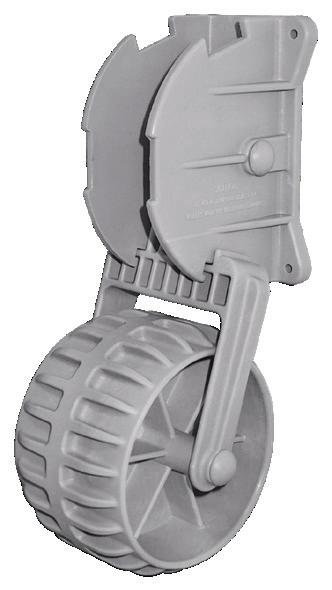

Inflatable Boat - Transom Wheel - Kit
• Perfect for small tinny's, inflatables, car toppers and tenders up to 100kg.
• 3 position design allows you to flip the wheels down for moving your boat around and flip the wheels up out of the way when the boat is in the water.
• UV stabilised, maintenance free and non-corrosive, lightweight components.
• Kit includes mounting hardware.
107
www.samallen.com.au
Part No. Description Mounting Holes (mm) Length (mm) Width (mm) 39193 White PVC Snap Davit Pad Only (Each) 14 267 120 39195 Grey Rubber Snap Davit Pad Only (Each) 14 267 120 39194 Stainless Steel Snap Davit Quick Release Plates (Pairs) 4 x Ø 7.8 125 110 39196 Snap Davit Platform Clip Assembly (Each) 4 x Ø 7 1 x Ø 10 110 74 39198 Stainless Steel Snap Davit Telescopic Holding Bars (Pairs) - 450-750 Ø 22 39199 Clips Only to Suit Snap Davits (Each) - 54 20 39197 Stainless Steel W Bar Suits Snap Davit Pad with Clips (Each) 39198 39197 39196 39199 39194 39193 39195 Part No. Description Material Colour Mounting Holes (mm) Clip Base (mm) Pad Base (mm) 39190 Snap Davit Kit suits PVC Inflatables PVC White 4 x Ø 7 1 x Ø 10 110 x 74 267 x 120 39192 Snap Davit Kit suits Hypalon/CSM Inflatables Rubber Grey 4 x Ø 7 1 x Ø 10 110 x 74 267 x 120
Inflatable Boat Accessories
Inflatable Boat Attachments Snap Davits, Accessories & Dolly Wheels
Part No. Description Overall Length (mm) Mounting Base A x B (mm) Edge of Base to Edge of Wheel C (mm) Wheel Diameter O.D. (mm) Wheel Width D (mm) Fixing Hole Centres E x F (mm) Colour Net Weight (kg) 39186 Dinghy Dolly Wheel Kit (Pair) 310 100 x 150 160 140 85 82 x 132 Grey 2.3 39187 Replacement Dolly Wheel (Each) 39188 Axle Repair Kit suits 39186
39188 E F 39186 A B C D 39192 39190
•
• High quality.
• UV resistant.
• Designed to retain shape.
• 39100, 39102 and 39104 include two lifeline holes - Ø 12mm.
•
•
108 Inflatable Boat Accessories www.samallen.com.au Part No. Material Colour Lifeline Holes Dimensions L x W x H (mm) 39100 Evolution Rubber Light Grey 2 260 x 95 x 60 39102 Evolution Rubber Black 2 260 x 95 x 60 39104 Evolution Rubber Grey 2 260 x 95 x 60 39112 Evolution Rubber Grey - 240 x 105 x 45
Synthesis Rubber Light Grey - 230 x 95 x 45
39120
Manufactured for inflatable boats.
39100 39102 39104 39112 39120 Part No. Material Colour Diameter Top / Bottom (mm) Height (mm) 39116 Rubber Grey 125 / 165 40
Manufactured for inflatable boats.

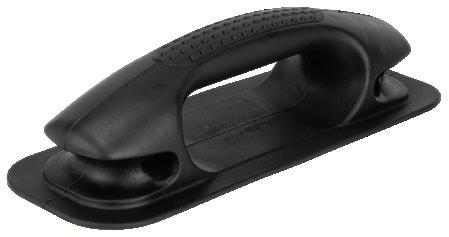

UV resistant. Inflatable Boat Accessories Inflatable Accessories Part No. Material Colour Hole Diameter (mm) Length (mm) Width (mm) Height (mm) 39124 Rubber Grey 12 95 95 45
Manufactured for inflatable boats.
UV resistant. Part No. Material Colour Length (mm) Width (mm) Height (mm) 39142 PVC Grey 100 70 33 39143 PVC Black 100 70 33
Manufactured for inflatable boats.
•
•
•
•
•
UV resistant.
Suitable
rope: 8mm
39142 39143 Rope knot slides into back pocket at oppostie end Order Online For The Most Competitive Prices On A Daily Basis www.samallen.com.au Part No. Material Colour D Ring W x H x � (mm) Length (mm) Width (mm) Height (mm) 39128 Rubber Grey 45 x 40 x 5 95 95 40 • Manufactured for inflatable boats. • UV resistant.

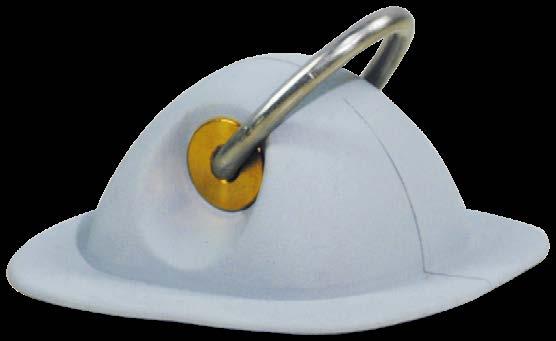

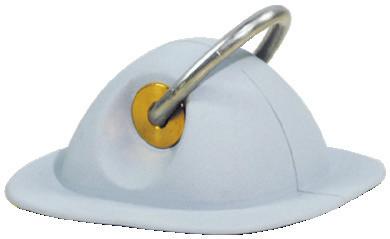

Stainless steel D ring. Part No. Material Colour Roll Length (m) Width (mm) Height (mm) 39164 Rubber Grey 24 60 16 • UV resistant. Handle - Rubber - Glue On Rope Stop - Glue On D Ring Block - Glue On Protection Strip - Glue On Pontoon End Cone - Glue On

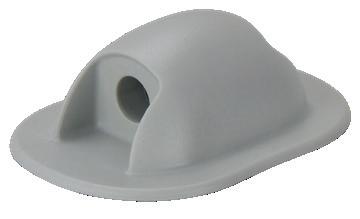

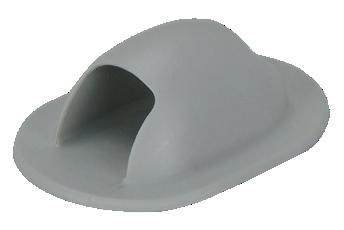

Guide - Glue On
for
- 12mm Ø.
•
Rope
Inflatable Accessories

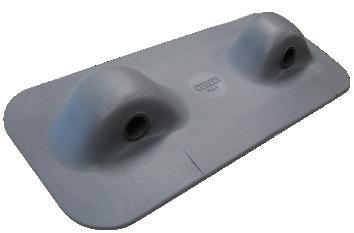

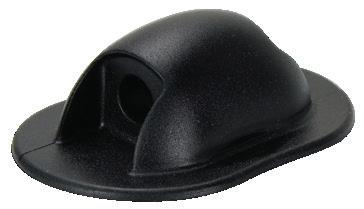

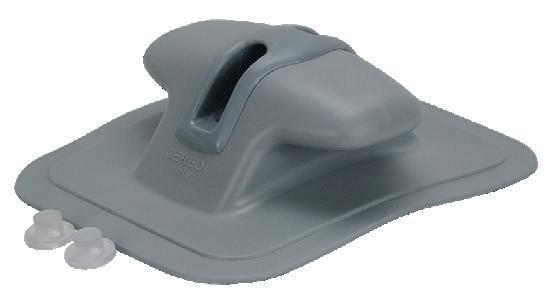

Rowlock - Glue On
• Manufactured for inflatable boats.
• UV resistant.
• Slotted to facilitate removal of oar.
• Suits telescopic paddle 39170
Inflatable Boat Accessories
•
•
•

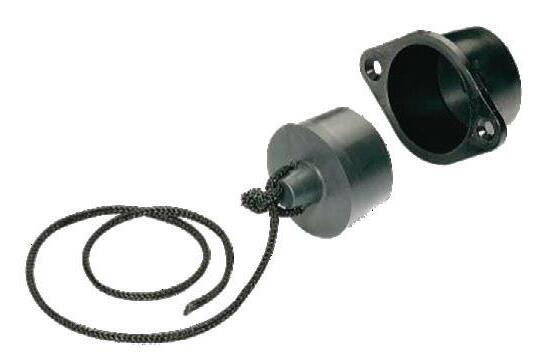

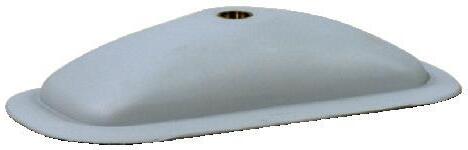

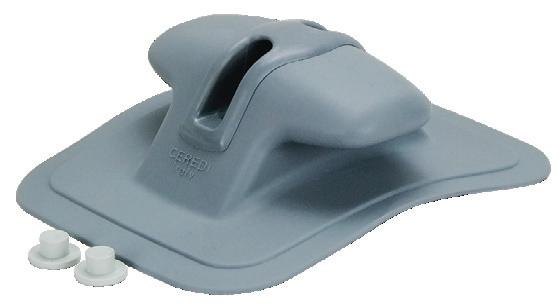

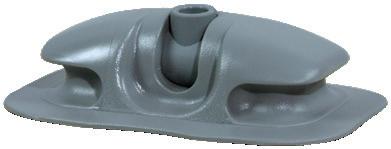

Rowlock Socket - Glue On

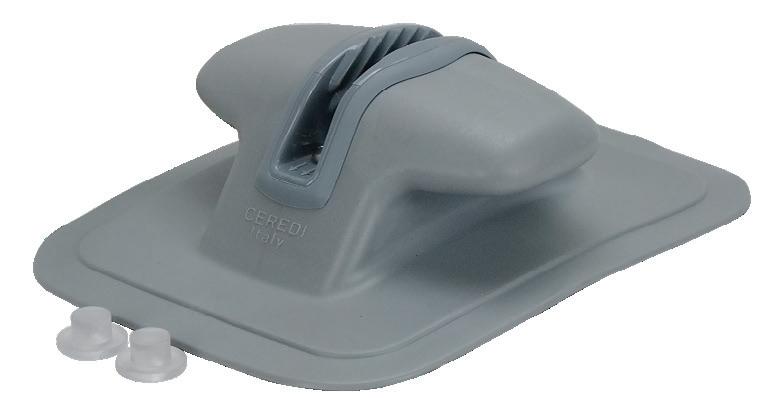

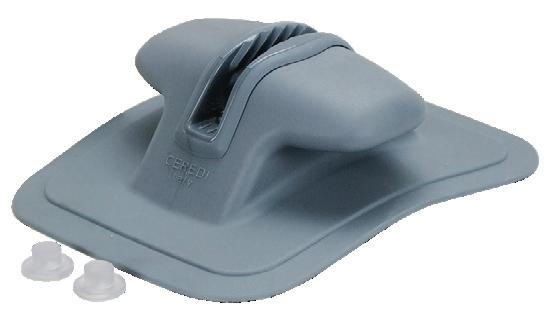

Inflatable Boat - Pulley / Bollard - Glue On
• Can be used as an anchor rope pulley or bollard.
• Manufactured for inflatable boats.
• UV resistant.
• Suitable for rope: 8mm - 14mm Ø.

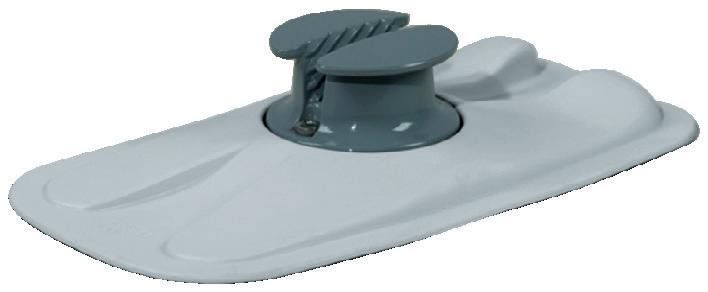

Inflatable Boat - Bollard/Cleat - Glue On

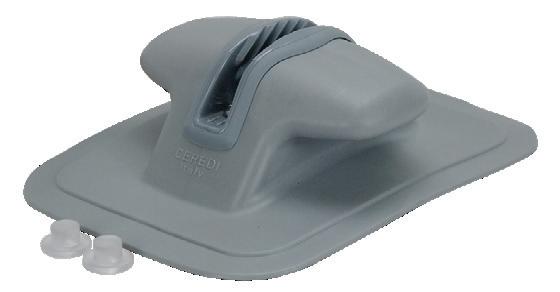

Inflatable Boat - Cleats - Glue On
• Manufactured for inflatable boats.
• Versatile bollard cleat for mooring.
• UV resistant.
• Suitable for rope: 8mm - 14mm Ø.
•
• Can be used as a V-jamb cleat or bollard.
• UV resistant.
• Suitable for rope: 8mm - 12mm Ø.

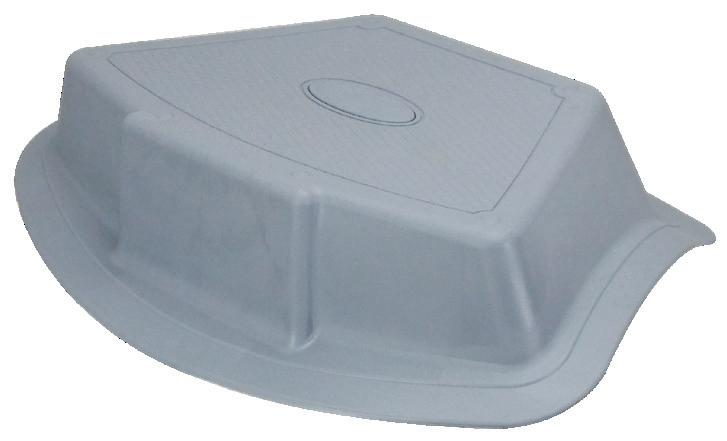

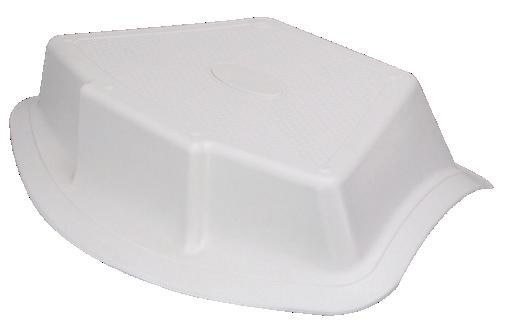

Inflatable Boat - Step - Glue On
• Bow step for inflatable boats in PVC material.
• Suitable for tubes from Ø 350 to 650mm.
• The rigid inner core allows Installation of lights, cleats, handles, hinges for ladders, supports and others accessories.
www.samallen.com.au
109
Part No. Material Colour Length (mm) Width (mm) Height (mm) 39138 Rubber Grey 240 192 70 39140 PVC Grey 240 192 70
Manufactured
for inflatable boats.
39138 39140 39145 Part No. Material Colour Length (mm) Width (mm) Height (mm) 39144 Rubber Grey 240 192 70 39145 PVC Grey 240 192 70
39108 Part No. Material Colour Hole Diameter (mm) Length (mm) Width (mm) Height (mm) 39108 Rubber Medium Grey 12 115 95 55 39136 Rubber Grey 12 200 95 35
Manufactured for inflatable boats.
UV resistant.
Suit rowlocks 39201 and 39202 Part No. Material Colour Hole Diameter (mm) Length (mm) Width (mm) Height (mm) 39132 Rubber Medium Grey 35 115 95 55
Part No. Material Colour Length (mm) Width (mm) Height (mm) 39147 Rubber Light Grey 320 160 60 39148 PVC Light Grey 320 160 60
Part No. Colour Material Dimensions L x W (mm) 39113 White PVC 460 x 340 39114 Grey PVC 460 x 340
39113
39114
Inflatable Accessories

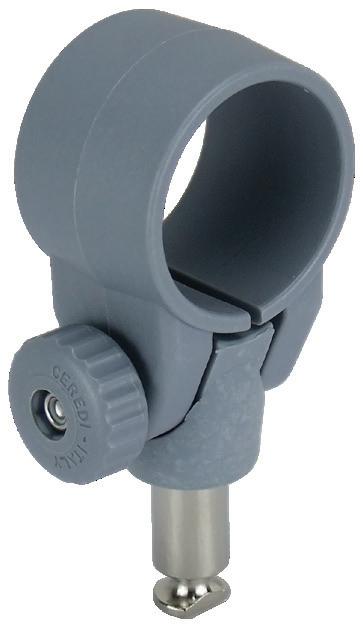

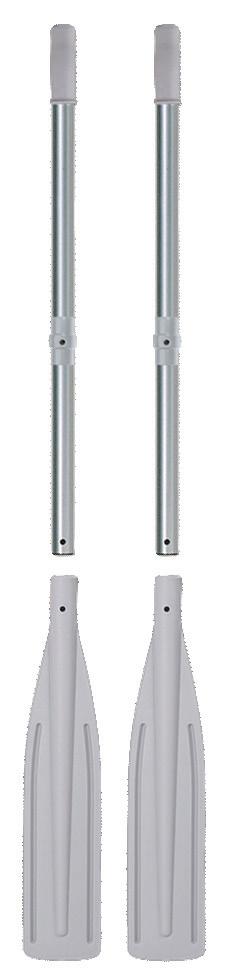

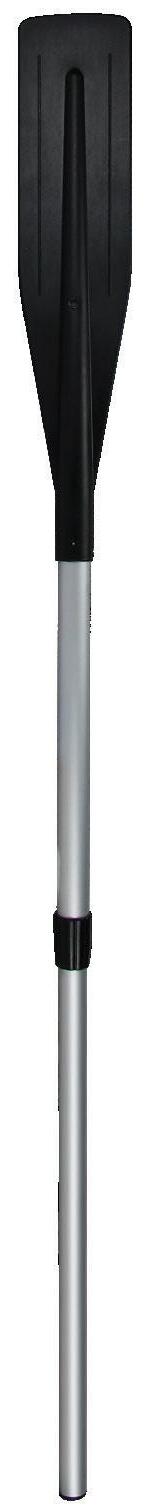

Paddle - Telescopic Rowlock - Adjustable
• Blade detaches from shaft providing easy storage.
• Telescopic anodised aluminium shaft.
• Minimum shaft length is 545mm.

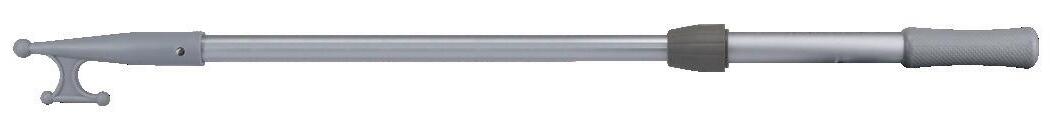

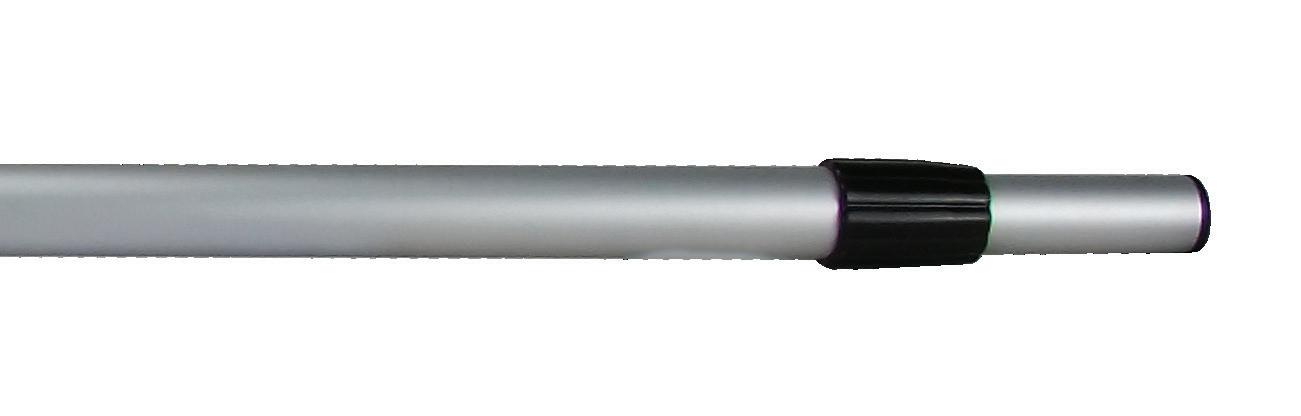

Boat Hook - Telescopic
• Anodised aluminium shaft.
• Nylon head.
• Rippled PVC hand grip.
• Twist to lock mechanism.
• Designed to fit into small spaces.
• 50917 - White powder coated finish.
plates. NOTE: Does not fit 39136 and 39108 sockets.

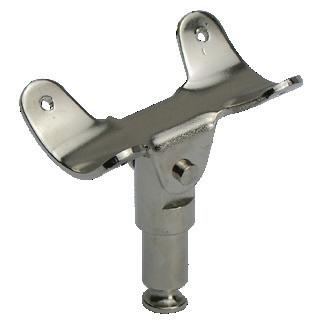

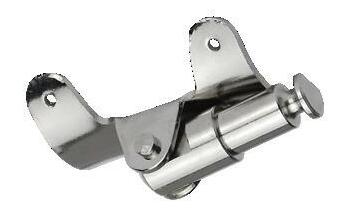

Rowlock - Adjustable with S/S Post
Rowlock - Fixed - Chrome Plated Brass
• Manufactured in chromium plated brass material.
• Suits most brands of inflatable boats.
• Suits 39136 and 39108

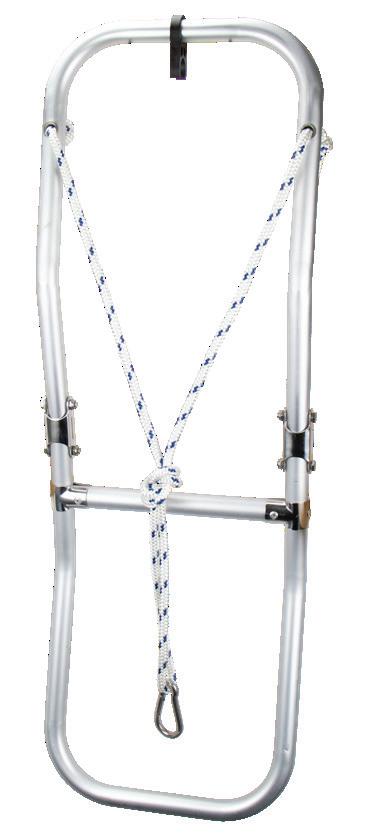

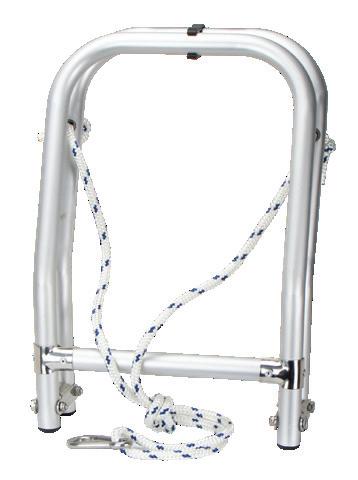

Ladder - Inflatable Boat Folding
• Manufactured in anodised aluminium.
• 2 step folding ladder for inflatable boats.
• Fastened to the boat using rope lanyard and hook.
110
www.samallen.com.au
Inflatable Boat Accessories
Part No. Material Colour Hole I.D. (mm) Post Diameter (mm) Height (mm) 39200 Nylon Grey 35 14.2 95 • Suits inflatables with 15mm ID twist to lock rowlock
Part No. Material Mounting Holes (mm) Suits Oar � (mm) Post Diameter (mm) 39202 Chrome Plated Brass 4 x Ø 3 38-40 11.7
Part No. Material Colour Hole I.D. (mm) Post Diameter (mm) Height (mm) 39201 Nylon/ Stainless Steel Grey 35 11.7 92 • UV resistant. • Stainless steel post. • Suits 39136 and 39108 sockets. Twist to lock/unlock Closed Extended Part No. Min./Max. Length (m) Shaft Dia. Ø (mm) Blade Size (mm) Shaft Colour Blade Colour 39170 1.15 - 1.53 35 / 30 610 x 125 Silver Black
Part No. Description Dia. Ø (mm) Min. Length (mm) Max Length (mm) 50914 Telescopic Boat Hook 30 / 25 700 1000
Part No. Steps Tube Ø (mm) Overall Extended L x W (mm) Overall Folded L x W (mm) 47283 2 25 890 x 352 442 x 352
