Style you can afford. Rail Compact NEW Deco NEW Plan range from Plumb Center CenterRad
The CenterRad range of heating products just got bigger and better, and now offers you even more choice. We are proud to introduce the new CenterRad Plan and Deco, which offer a contemporary alternative to the classic CenterRad Compact and the stylish CenterRail towel warmer. range from Plumb Center
Our radiators are premium products, chosen with our customers’ needs in mind, and they really are the best in the business. We offer more performance, more quality, more style and now more choice than ever before. All our products provide flexibility through the range of sizes and types available, and if they’re not in stock, we’ll get them in next day for you.
We guarantee the quality of our products by offering extensive warranties and we also guarantee they will reach you in perfect condition, as every care is taken to ensure our products are sent to you in hard wearing, durable packaging.
So make the smart choice and choose CenterRad from Plumb Center.
Calculate your heat outputs
The heat outputs shown in the tables are based on a mean water to air temperature difference of 50°C. When the difference is not 50°C, the output should be multiplied by the appropriate factor from within the table.
Rail P. 14 Compact P. 4 NEW Deco P. 11 NEW Plan P. 8 Centigrade 40 45 50 55 60 65 70 Factor 0.75 0.87 1.00 1.13 1.27 1.41 1.55 Quality approved to the highest European standards.
CenterRad
The nation’s favourite own brand radiator

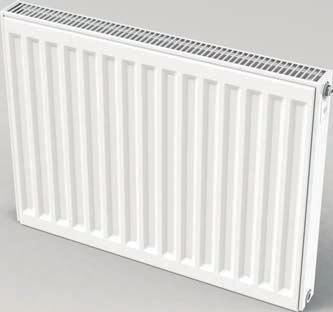

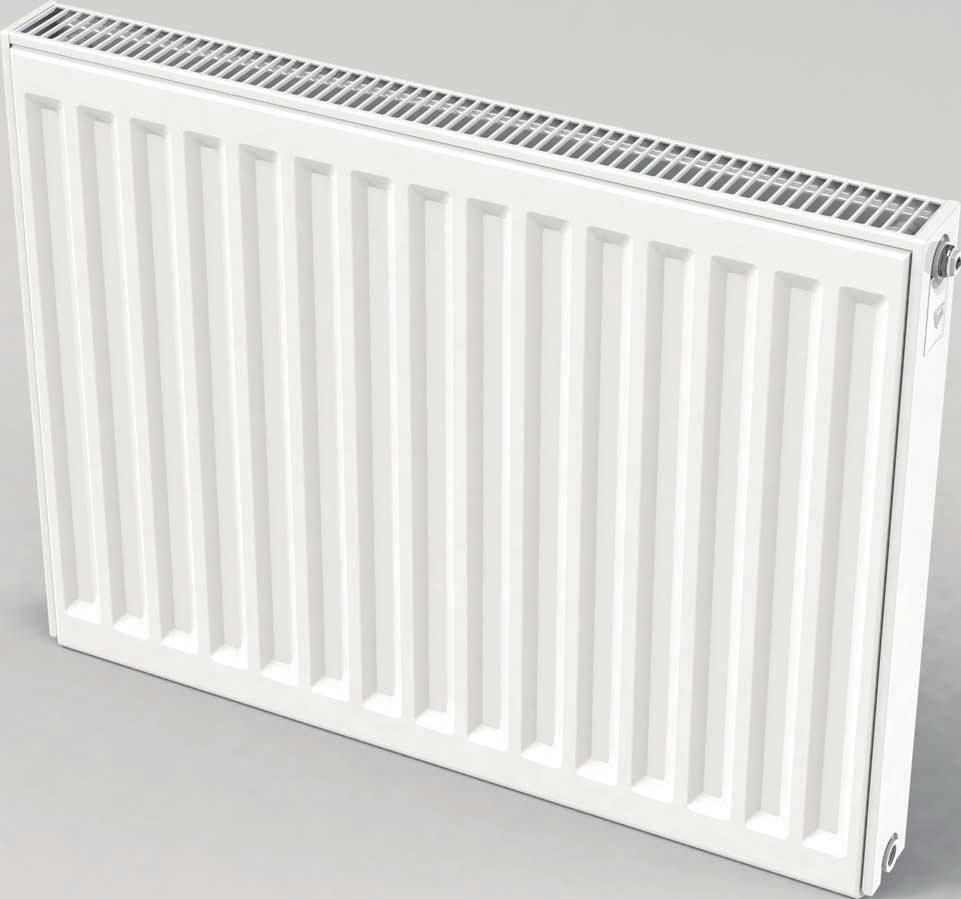

With over two million sold nationwide, the CenterRadCompact is the best-selling own brand radiator in the UK, and it’s easy to see why.
No other radiator range offers you immediate availability, great performance, high standards of UK manufacturing, attractive design and great value quite like the CenterRad Compact.
• Most widely stocked own brand radiator in the UK
• Same day collection on our main range and next day collection on our extended range
• High standards of UK manufacture
• Available in a wide range of types and sizes
• Compact design and attractive appearance
• Robust packaging
• Competitively priced to give unrivalled value
• Quality white (RAL 9016) finish that can be fitted without further painting
• Supplied with concealed wall mounted brackets
4
Weight and water contents per metre length
Connections
All CenterRad Compact radiators are fitted with 4 - 1/2inch BSP connections.
Air vents
An air vent and plug are packed with every radiator.
Operating pressures
Every CenterRad Compact radiator is tested to a pressure of 7 bar (101.5 psi) and is suitable for a working pressure of up to 5.4 bar (78psi).
Mounting positions, dimensions and wall brackets
Bracket positions and dimensions
HEIGHT (mm) 300 450 600 700 Weight (kg) Water Content (I) Weight (kg) Water Content (I) Weight (kg) Water Content (I) Weight (kg) Water Content (I) 9.4 2.8 13.5 3.4 18.3 4.1 21.2 4.9 15.1 5.7 21.9 6.7 28.9 8.3 33.4 9.9 18.1 5.7 25.3 6.7 34.2 8.3 39.7 9.9 TYPE 11 SG 21 XG 22 DG
NOMINAL HEIGHT (mm) A (mm) B (mm) C (mm) 300 243 300 59 450 393 450 134 600 543 600 217 700 643 700 307
300mm Rad Bracket 450/600/700mm Rad Bracket Long
11
&
All dimensions in mm. 52 37 Bracket Plan View 31.5 71.5 115 141 211 185 71.5 31.5 79 A 45 100 min 24 (60) (94) 65 A 70 100 min 24 111 81 A 83 135 100 min 24 106 C 143 143 B 5 Single Convector (SG)Double Panel “Xtra” (XG)Double Convector (DG)
leg suitable for hanging Type 11 (SG) radiators only. Short leg suitable for radiator Types
(SG), 21 (XG)
22 (DG). N.B. Only radiators 1800mm & 2000mm long have 3 sets of brackets as shown, with the 3rd set in the middle of the radiator.
(with factory fitted top grille and side panels) HEIGHT 300mm HEIGHT 450mm HEIGHT 600mm HEIGHT 700mm Type 11 (SG) OUTPUT (Watts) OUTPUT (Btu/h) ORDER CODE 241 823 268200 495 1690 268201 749 2554 268202 1003 3421 268203 1256 4285 268204 287 978 268214 362 1236 268215 438 1494 268216 513 1749 268217 588 2007 268218 663 2262 268219 739 2520 268220 814 2778 268221 889 3033 268222 1040 3547 268223 1191 4062 268224 1341 4576 268225 1492 5089 268226 368 1257 268248 466 1588 268249 563 1919 268250 659 2247 268251 756 2579 268252 852 2907 268253 949 3238 268254 1046 3569 268255 1142 3897 268256 1336 4557 268257 1530 5219 268258 1723 5879 268259 1916 6538 268260 307 1049 268287 421 1437 268288 533 1816 268289 644 2195 268290 754 2571 268291 865 2950 268292 975 3325 268293 1086 3704 268294 1197 4083 268295 1307 4458 268296 1528 5213 268297 1750 5971 268298 LENGTH (mm) 400 800 1200 1600 2000 400 500 600 700 800 900 1000 1100 1200 1400 1600 1800 2000 400 500 600 700 800 900 1000 1100 1200 1400 1600 1800 2000 300 400 500 600 700 800 900 1000 1100 1200 1400 1600 6
Single Convector
Type 21 (XG) Type 22 (DG) OUTPUT (Watts) OUTPUT (Btu/h) ORDER CODE 385 1312 268208 789 2692 268209 1193 4069 268211 1597 5450 268212 2001 6827 268213 539 1839 268235 681 2324 268236 823 2808 268237 964 3289 268238 1106 3773 268239 1247 4253 268240 1389 4738 268241 1531 5223 268242 1672 5703 268243 1954 6668 268244 2239 7637 268245 2521 8602 268246 2804 9567 268247 681 2323 268274 861 2936 268275 1040 3549 268276 1218 4155 268277 1397 4768 268278 1575 5374 268279 1755 5987 268280 1934 6599 268281 2112 7206 268282 2469 8425 268283 2828 9650 268284 3186 10869 268285 3543 12088 268286 562 1918 268310 769 2625 268311 972 3316 268312 1175 4008 268313 1376 4693 268314 1578 5385 268315 1779 6070 268316 1982 6762 268317 2185 7454 268318 2386 8139 268319 2789 9516 268320 3195 10900 268321 OUTPUT (Watts) OUTPUT (Btu/h) ORDER CODE 600 2048 268205 907 3095 268206 1215 4145 268207 843 2877 268227 950 3243 268228 1059 3612 268229 1167 3982 268230 1274 4348 268231 1490 5083 268232 1707 5823 268233 1922 6558 268234 519 1772 268261 656 2239 268262 793 2706 268263 929 3168 268264 1066 3635 268265 1201 4098 268266 1338 4565 268267 1475 5032 268268 1610 5494 268269 1883 6424 268270 2157 7358 268271 2429 8287 268272 2701 9217 268273 587 2001 268299 741 2529 268300 896 3057 268301 1049 3579 268302 1204 4107 268303 1357 4629 268304 1511 5157 268305 1666 5684 268306 1819 6207 268307 2127 7257 268308 2436 8312 268309 N.B. The tabulated heat outputs are quoted at a mean water to air temperature difference of 50 oC. 7
Double Panel “Xtra” (with factory fitted top grille and side panels) Double Convector (with factory fitted top grille and side panels)

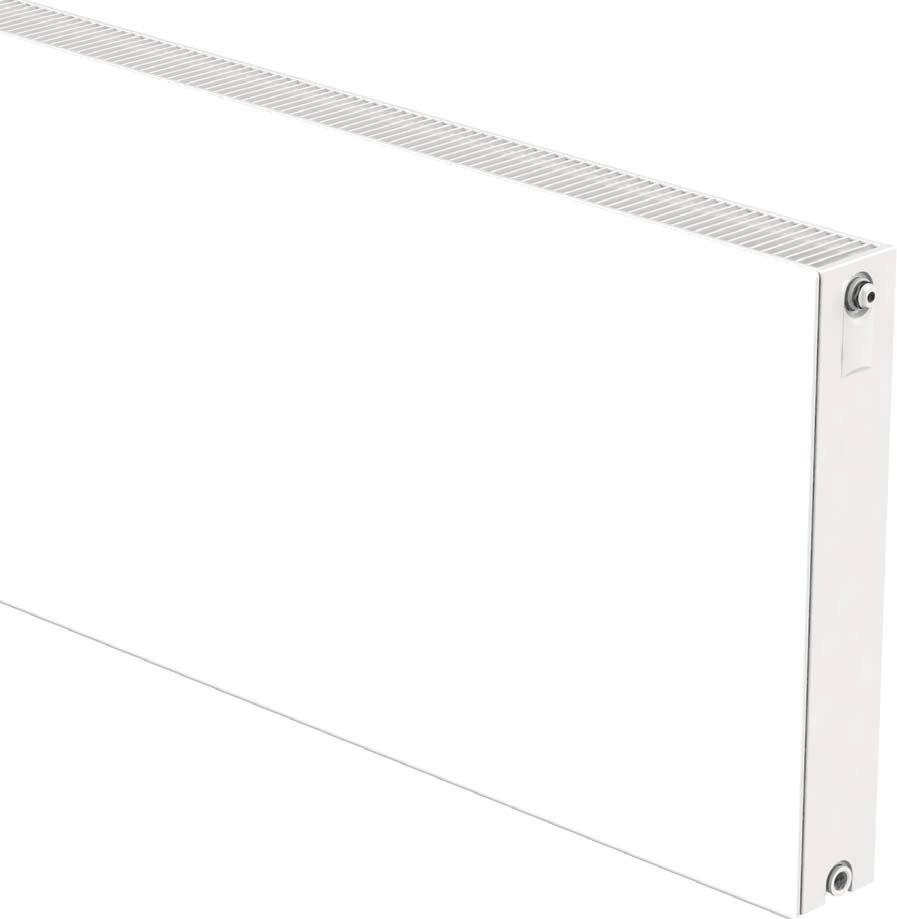

Brand new to the CenterRad range, the CenterRad Plan offers a stylish alternative to a traditional panel radiator.
It has a sleek, contemporary appearance and a glossy front panel. It has side panels and top grille that give it an attractive compact appearance.
The CenterRad Plan combines these good looks with high performance levels and quality manufacturing.
• Great value for money on like for like products
• High gloss flat front panel
• Combines high quality with great performance
• Large range of stocked types and sizes available for next day delivery
• Compact design and contemporary appearance
• Robust packaging
• Quality white (RAL 9016) finish that can fitted without further painting
• Supplied with concealed wall mounted brackets
8
Weight and water contents per metre length
Connections
All CenterRad Plan radiators are fitted with 4 - 1/2inch BSP connections.
Air vents
An air vent and plug are packed with every radiator.
Operating pressures
Every CenterRad Plan radiator is tested to a pressure of 7 bar (101.5 psi) and is suitable for a working pressure of up to 5.4 bar (78psi).
Mounting positions, dimensions and wall brackets
Bracket
HEIGHT (mm) 300 450 600 700 Weight (kg) Water Content (l) Weight (kg) Water Content (l) Weight (kg) Water Content (l) Weight (kg) Water Content (l) 12.32 2.8 18.21 3.4 24.27 4.1 28.47 4.9 20.67 5.7 29.87 6.7 39.83 8.3 48.27 9.9 TYPE 11 SG 22 DG
NOMINAL HEIGHT (mm) A (mm) B (mm) C (mm) 300 243 300 59 450 393 450 134 600 543 600 217 700 643 700 307
positions and
300mm Rad Bracket 450/600/700mm Rad Bracket Long leg suitable for hanging Type 11 (SG) radiators only. Short leg suitable for radiator Types 11 (SG) & 22 (DG). N.B. Only radiators 1800mm & 2000mm long have 3 sets of brackets as shown, with the 3rd set in the middle of the radiator. All dimensions in mm. 52 37 Bracket Plan View 81 (96) A 45 (60) 100 Min 67 24 137 24 83 108 A 100 Min 31.5 71.5 115 141 211 185 71.5 31.5 View Towards Wall C B 143 143 9 Single Convector (SG)Double Convector (DG)
dimensions
Single Convector (with factory fitted top grille and side panels) Double Convector (with factory fitted top grille and side panels) Type 11 (SG) Type 22 (DG) OUTPUT (Watts) OUTPUT (Btu/h) ORDER CODE 734 2503 239803 1109 3783 239804 1485 5066 239805 486 1660 239806 743 2535 239807 998 3405 239808 1253 4276 239809 1508 5147 239810 1764 6017 239811 2020 6892 239812 2275 7763 239813 610 2082 239814 771 2631 239815 932 3180 239816 1091 3723 239817 1252 4272 239818 1411 4816 239819 1572 5365 239820 1892 6457 239821 2213 7549 239822 2534 8647 239823 2854 9739 239824 3175 10831 239825 692 2361 239826 1057 3605 239827 1420 4844 239828 1783 6082 239829 2146 7321 239830 OUTPUT (Watts) OUTPUT (Btu/h) ORDER CODE 375 1279 239775 566 1933 239776 759 2588 239777 257 877 239778 392 1339 239779 527 1799 239780 662 2259 239781 797 2719 239782 932 3179 239783 1067 3641 239784 1202 4101 239785 325 1109 239786 411 1402 239787 496 1694 239788 581 1983 239789 667 2276 239790 752 2565 239791 837 2857 239792 1008 3439 239793 1179 4021 239794 1350 4606 239795 1520 5188 239796 1691 5769 239797 367 1253 239798 561 1914 239799 754 2571 239800 946 3228 239801 1139 3886 239802 HEIGHT 300mm HEIGHT 450mm HEIGHT 600mm HEIGHT 700mm LENGTH (mm) 800 1200 1600 400 600 800 1000 1200 1400 1600 1800 400 500 600 700 800 900 1000 1200 1400 1600 1800 2000 400 600 800 1000 1200 N.B. The tabulated heat outputs are quoted at a mean water to air temperature difference of 50 oC. All dimensions in mm. 10
Brand new

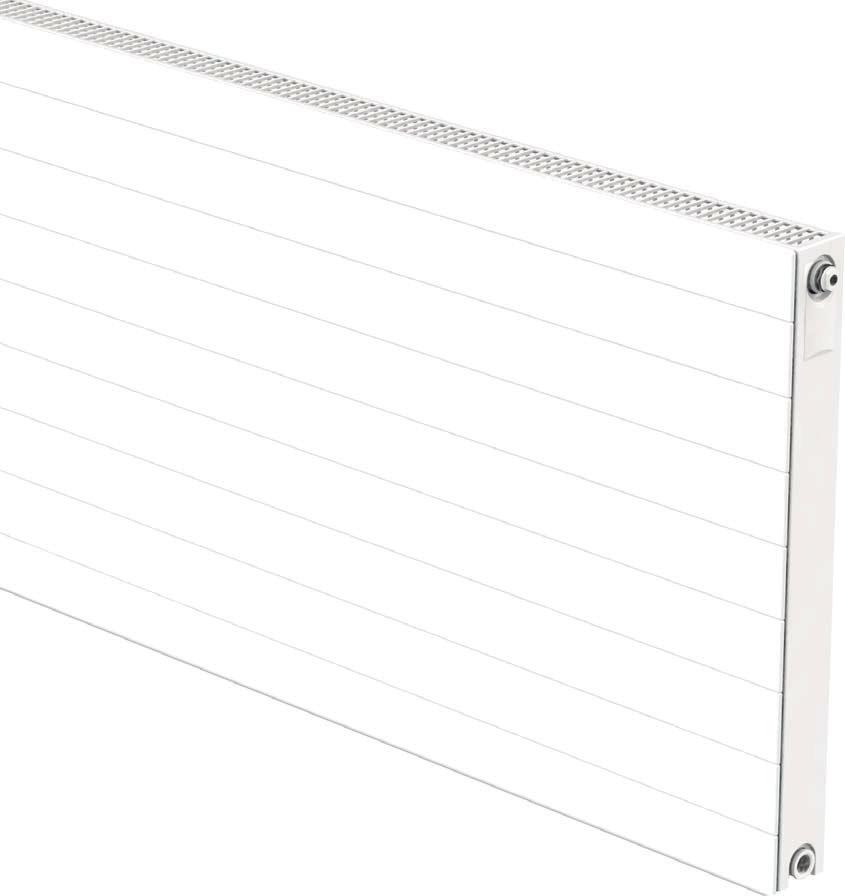

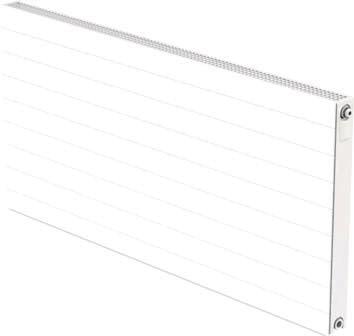

CenterRad Deco has the same great qualities as the CenterRad Plan, but with a decorative front panel for even more style.
The CenterRad Deco is perfect for when you need that special finishing touch but don’t want to compromise on performance. Great for commercial and domestic projects alike.
• Great value for money on like for like products
• Attractive glossy decorative front panel
• Combines high quality with great performance
• Large range of stocked types and sizes available for next day delivery
• Compact design and contemporary appearance
• Robust packaging
• Quality white (RAL 9016) finish that can fitted without further painting
• Supplied with concealed wall mounted brackets
11
Weight and water contents per metre length
Connections
All CenterRad Deco radiators are fitted with 4 - 1/2inch BSP connections.
Air vents
An air vent and plug are packed with every radiator.
Operating pressures
Every CenterRad Deco radiator is tested to a pressure of 7 bar (101.5 psi) and is suitable for a working pressure of up to 5.4 bar (78psi).
Mounting positions, dimensions and wall brackets
HEIGHT (mm) 300 450 600 700 Weight (kg) Water Content (l) Weight (kg) Water Content (l) Weight (kg) Water Content (l) Weight (kg) Water Content (l) 12.32 2.8 18.21 3.4 24.27 4.1 28.47 4.9 20.67 5.7 29.87 6.7 39.83 8.3 48.27 9.9 TYPE 11 SG 22 DG
NOMINAL HEIGHT (mm) A (mm) B (mm) C (mm) 300 243 300 59 450 393 450 134 600 543 600 217 700 643 700 307 Bracket positions and dimensions 300mm Rad Bracket 450/600/700mm Rad Bracket Long leg suitable for hanging Type 11 (SG) radiators only. Short leg suitable for radiator Types 11 (SG) & 22 (DG). N.B. Only radiators 1800mm & 2000mm long have 3 sets of brackets as shown, with the 3rd set in the middle of the radiator. All dimensions in mm. 52 37 Bracket Plan View 81 (96) A 45 (60) 100 Min 67 24 137 24 83 108 A 100 Min 31.5 71.5 115 141 211 185 71.5 31.5 View Towards Wall C B 143 143 12 Single Convector (SG)Double Convector (DG)
Single Convector (with factory fitted top grille and side panels) Double Convector (with factory fitted top grille and side panels) Type 11 (SG) Type 22 (DG) OUTPUT (Watts) OUTPUT (Btu/h) ORDER CODE 734 2503 241073 1109 3783 241074 1485 5066 241075 486 1660 241076 743 2535 241077 998 3405 241078 1253 4276 241079 1508 5147 241080 1764 6017 241081 2020 6892 241082 2275 7763 241083 610 2082 241084 771 2631 241085 932 3180 241086 1091 3723 241087 1252 4272 241088 1411 4816 241089 1572 5365 241090 1892 6457 241091 2213 7549 241092 2534 8647 241093 2854 9739 241094 3175 10831 241095 692 2361 241096 1057 3605 241097 1420 4844 241098 1783 6082 241099 2146 7321 241100 OUTPUT (Watts) OUTPUT (Btu/h) ORDER CODE 375 1279 241045 566 1933 241046 759 2588 241047 257 877 241048 392 1339 241049 527 1799 241050 662 2259 241051 797 2719 241052 932 3179 241053 1067 3641 241054 1202 4101 241055 325 1109 241056 411 1402 241057 496 1694 241058 581 1983 241059 667 2276 241060 752 2565 241061 837 2857 241062 1008 3439 241063 1179 4021 241064 1350 4606 241065 1520 5188 241066 1691 5769 241067 367 1253 241068 561 1914 241069 754 2571 241070 946 3228 241071 1139 3886 241072 HEIGHT 300mm HEIGHT 450mm HEIGHT 600mm HEIGHT 700mm LENGTH (mm) 800 1200 1600 400 600 800 1000 1200 1400 1600 1800 400 500 600 700 800 900 1000 1200 1400 1600 1800 2000 400 600 800 1000 1200 N.B. The tabulated heat outputs are quoted at a mean water to air temperature difference of 50 oC. 13

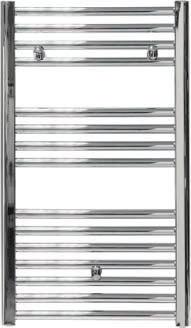

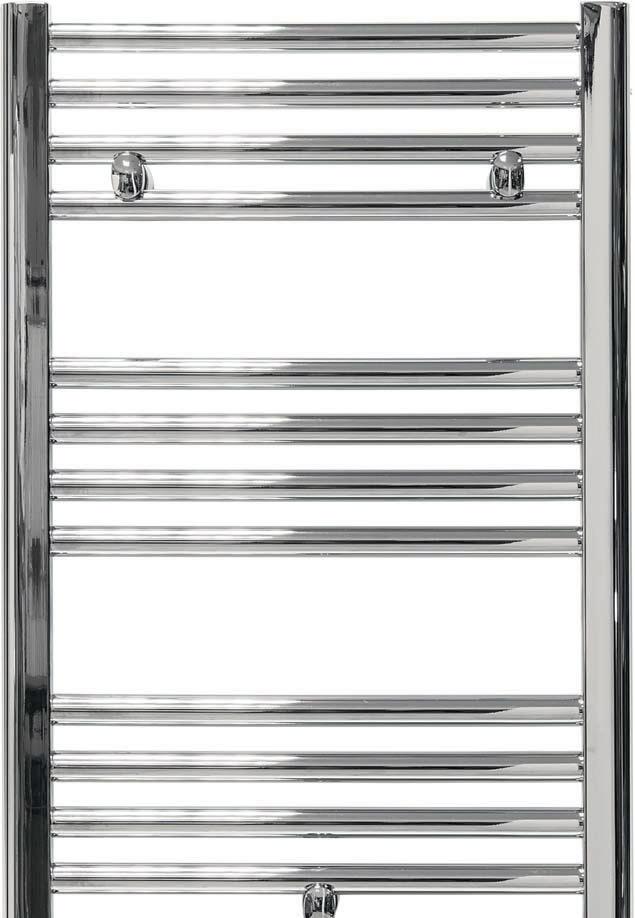

The CenterRail towel warmer
combines quality, performance and style, warming your whole bathroom, not just your towels.
CenterRail is a classic ladder rail manufactured from quality steel. It has 25mm tubes, making it not only attractive, but highly efficient and practical too.
• 22 different types and sizes available to suit every bathroom style and décor
• Comes in straight and curved models
• White or chrome finish available
• Large round tubes for optimum heat output
• Available from stock for next day delivery
14
Rail configurations, pipe centre tappings and projection
Ranges and Dimensions
HEIGHT = 1807mm Rail Configuration = 10-4-4-4-10 A Pipe Centre Tappings (mm) Projection (mm) C B D *Outputs based on Δ 50°C.
HEIGHT = 1222mm Rail Configuration = 6-4-4-7 HEIGHT = 862mm Rail Configuration = 4-4-7 CODE (W) WIDTH (mm) (H) HEIGHT (mm) MODEL FINISH WATTS* 219469 450 862 Straight White 361 219470 500 862 Straight White 394 219471 600 862 Straight White 460 219472 500 1222 Straight White 550 219473 600 1222 Straight White 641 219474 500 1807 Straight White 823 219475 600 1807 Straight White 959 219466 400 862 Straight Chrome 207 219476 450 862 Straight Chrome 238 219477 500 862 Straight Chrome 264 219478 600 862 Straight Chrome 316 219467 400 1222 Straight Chrome 285 219479 500 1222 Straight Chrome 393 219480 600 1222 Straight Chrome 463 219481 500 1807 Straight Chrome 542 219482 600 1807 Straight Chrome 632 219483 500 862 Curved Chrome 264 219484 600 862 Curved Chrome 316 219485 500 1222 Curved Chrome 393 219486 600 1222 Curved Chrome 463 219487 500 1807 Curved Chrome 542 219488 600 1807 Curved Chrome 632 STRAIGHT WHITE STRAIGHT CHROME CURVED CHROME WIDTH (mm) B (mm) C (mm) D (mm) 400 83-106 - 67-90 450 83-106 - 67-90 500 83-106 92-115 67-90 600 83-106 100-123 67-90 WIDTH (mm) A (mm) 400 355 450 405 500 455 600 555 B = Straight, C = Curved, D = Wall to Centre Straight and Curved 15
Application
CenterRad and CenterRail radiators are for use on two pipe pumped indirect domestic and commercial central heating installations, with a maximum working temperature of 100oC. The system should be designed in accordance with BS 5449 or BS 6880 as appropriate, with particular care taken to avoid air entry or water discharge.
We do not recommend the use of single feed indirect cylinders, as the possibility of aeration due to water interchange may lead to corrosion. The installation work must be carried out in accordance with recognised good practice, and precautions taken to avoid contamination which could lead to corrosion. If a corrosion inhibitor or other water treatment is to be used, the manufacturer’s instructions must be strictly followed.
The recommendations of BS 7593, Code of Practice for treatment of water in domestic hot water central heating systems, should be followed where appropriate.
Safety precautions
Radiators are hot when in use, and as such, present a risk of burns to users on prolonged contact. The temperature of a radiator is dependent on the temperature of the system water, as set by the system installer or user. Installers and users should ensure that those who may come into close proximity to hot radiators are aware of the risk of burns. Installers and users should take all necessary steps to minimise the risks of burns.
If the risk is significant, consideration should be given to installing low surface temperature radiators, or to placing guards in front of the radiators.
For further information telephone the Contact Centre on 0344 292 7057 or visit our website at www.plumbcenter.co.uk
Whilst every care has been taken to ensure that the information included in this document was accurate at the time of printing, we reserve the right to change specifications at any time. The photographs reproduced in this publication are within the constraints of the printing process and are NOT to be used for matching purposes. E&OE.
August 2016
