iRover2® for Interactive Flat Panels
New
Convert an iRover® cart into a wall mount using our NEW conversion kit!
New
Height Adjustable Wall Mount with Frame Cover (HAWM3)
Meet the iRover2® family Many schools are using flexible setups by rearranging furniture based on the activity and grade level. Educators will need their technology to be mobile. The iRover2 family offers a range of durable carts and wall mounts to allow interactive flat panels to be situated anywhere learning takes place.
2
iRover2® Premium Model
iRover2® Base Model
iRover2® Cart for 30-55” Flat Panels
Height-adjustable with electric lift
Fixed height–6 settings upon assembly
Fixed height-7 settings upon assembly
Height-Adjustable Wall Mount with Electric Lift Both mounting models (HAWM2 and HAWM2-SMK) have floor supports
NEW Height Adjustable Wall Mount with Frame Cover
iRover2® for Interactive Flat Panels Designed with input from our Idea Lab educator advisory team, the iRover2 family of carts offers durable and mobile options that allow teachers to move flat panels within their classroom or throughout a school.
Highlights Flexible
The iRover family provides schools with many options; the carts provide mobility for flexible learning spaces and the wall mounts can be installed on a variety of wall surfaces. The Premium model cart can now be converted into a wall mount using our NEW conversion kit.
Affordable
With several price points, the iRover family of interactive flat panel carts and height-adjustable wall mounts provide options for any budget.
Durable
The iRover family has been designed to ensure that your flat panel investment is securely protected. All carts are built with durable casters so the iRover2 can be moved wherever needed.
What else makes our Premium iRover2 cart different? Check out these features:
• Electric lift function with a 17” range to accommodate any grade level (shown in lowest position) • Laptop tray with rounded edges and laptop safety strap. Can be mounted to the back, right or left side of the unit and can be stowed during transport (includes one laptop tray with rounded edges)
to up els s ort an pp at p u S ” fl 86
• Low profile ergonomic handles to aid mobility and protect the screen from bumps, but can be removed if required for tight spaces
• Storage for classroom manipulatives (1 Small Open Tub)
Optional Sound bar mount add-on
• 6 outlet power strip with cable management
• Four 5” swivel casters - 2 with brakes

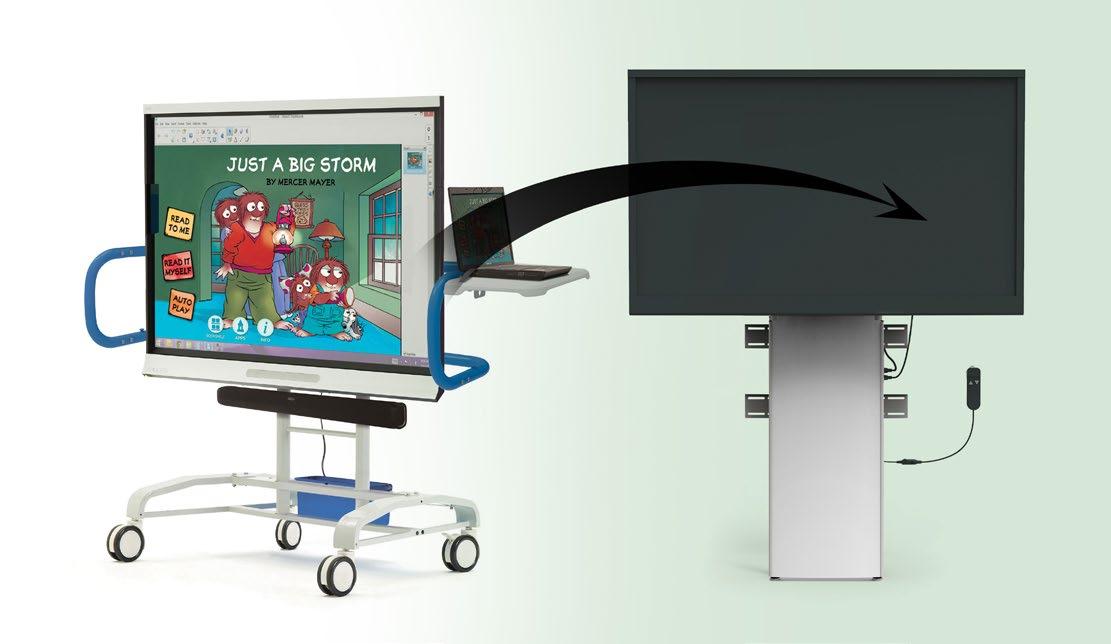

NEW Convert this model into a wall mount using our NEW Conversion Kit for Height Adjustable Wall Mount with Frame Cover (HAWM3-CK)
3

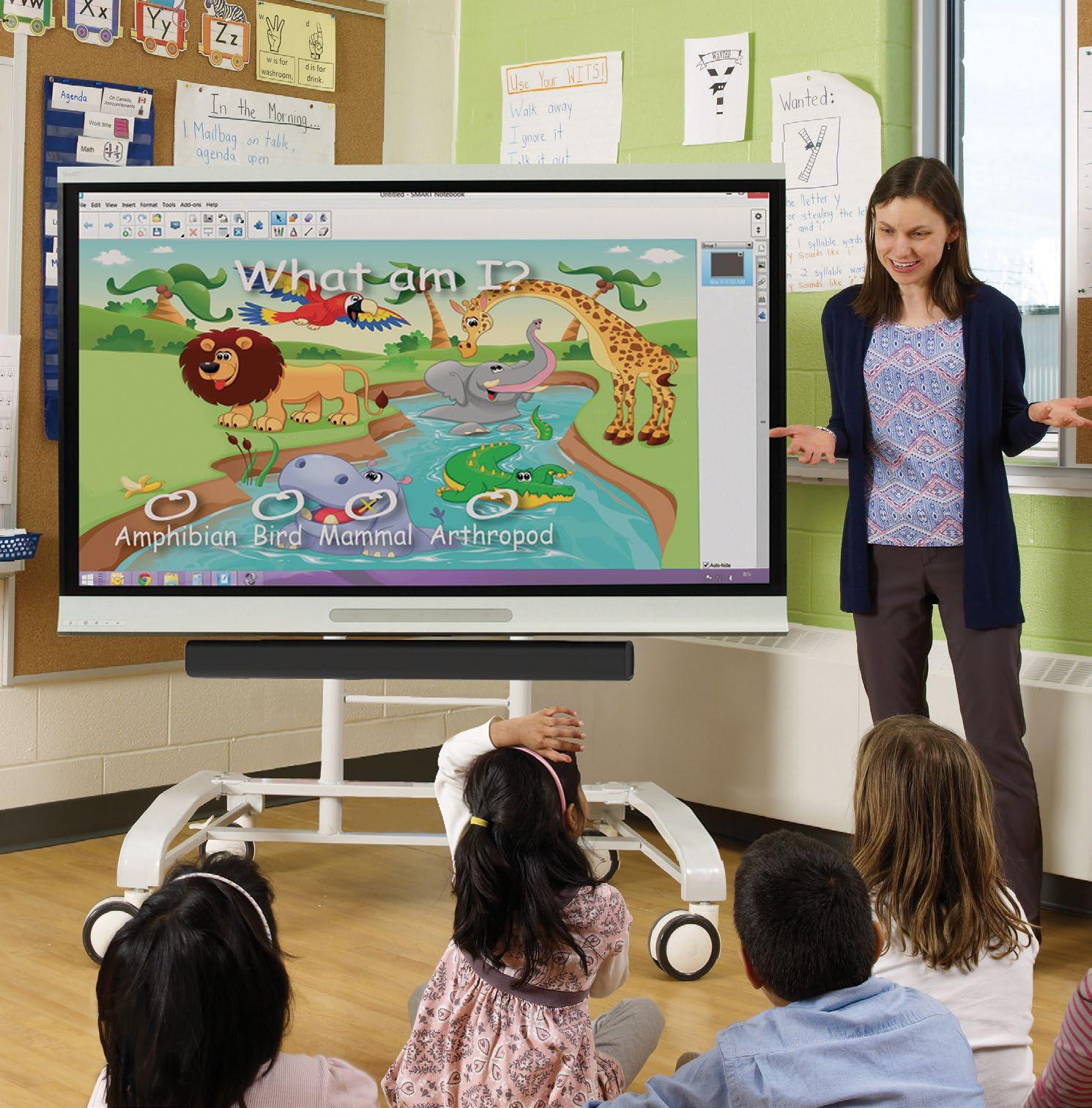

“Our classroom received an amazing new Smart Board cart! Our favorite part is that we can easily adjust the height of the board...we can lower it for students to display work or we can raise it high so that it can be seen from anywhere in the classroom! It’s on wheels (that lock) with safety bumpers so it can be moved around the room if needed. We can’t wait to continue exploring all of the possibilities to enhance our learning environment!” - Katelyn Dawes, Second Grade Teacher, Columbus, Ohio @sharingsmilesinsecond
4
Thinking of purchasing an inexpensive cart? It’s worth a second thought to consider iRover2®. Here is why:
Lifetime Warranty
Designed for Schools
Tried & Tested
Caster Size Matters
Lifetime warranty on the cart and a 5 year warranty on the electric lift.
We develop products in conjunction with our Idea Lab Educator Advisors. The iRover2 frame was designed to give all students, including those with special needs accommodation access to the flat panel.
iRovers are tested in actual classroom settings. We also carry out extreme product testing. Visit our YouTube channel to see what happened.
Teachers tell us that casters matter. Educators rearrange their classrooms monthly and some even bimonthly. So it is important to have durable casters to protect the expensive investment of a flat panel.
Full Lineup for Rollouts
Flexible
Affordable assembly service
Trust
Our height adjustable options are perfect for schools who share their flat panels. See page 2.
Safe
IFP550 UL Certified.
Down the road when your needs have changed, you can turn your cart into a wall mount. See page 10.
Let us save you precious time. Our assembly fee is very reasonable.
For over 30 years Copernicus has been a trusted manufacturer of classroom equipment. Call our Customer Service Representatives they will know the product, how to assemble it and how to help you with any troubleshooting you require.
Made in Canada & TAA compliant The Trade Agreements Act (TAA) is a designation that indicates that a product was made or significantly transformed in the US or a TAA compliant country, such as Canada. This compliance allows the iRover2 line to be specified on US Government bids.
5
6
iRover2® Premium Model iRover2 Premium Model for Interactive Flat Panels (IFP500) • Electric lift function to adjust the flat panel height with a 17” range so the flat panel can be easily viewed by different grade levels (requires power) • Fits through standard sized doorways • Laptop tray with rounded corners and a strap to secure the laptop • Laptop tray fits securely onto the arms and the back of the frame and can be stowed away during transport. Tray is suitable for all standard laptop sizes up to 17”. • One Small Open Tub • 6 outlet power strip • Hook and loop ties for cable management • Supports 55”- 86” flat panels with a maximum weight of 250lbs • Frame supports ease-of-access for all students, including those with special needs accommodations • Low-profile handles • Four 5” swivel casters to aid maneuverability (2 locking) • UL Listing pending
o p t ls u rts ne po t pa p Su ” fla 86
Additional accessories: • Sound bar mount (IFP-ACS2) can be mounted above or below flat panels up to 86” or smaller Flat Panel Compatibility Please check the IFP500 product page at copernicused.com for the VESA mounting patterns and compatibility chart Supports 55”- 86” flat panels with a maximum weight of 250lbs Dimensions Cart measures: 60” - 77” H x 68 5/8” W x 31 1/2” D (excluding laptop tray)
28” - 46” from floor to bottom of screen
Warranty Lifetime with 5 years on the electric lift Packaging Moving to plastic free packaging in 2024
NEW Convert this model into a wall mount using our NEW Conversion Kit for Height Adjustable Wall Mount with Frame Cover (HAWM3-CK)

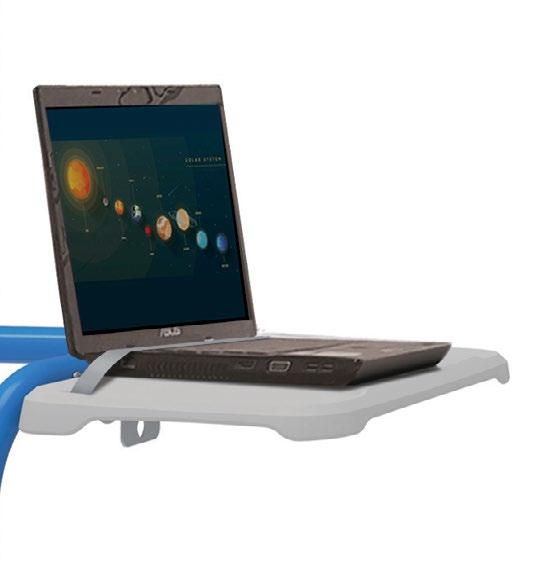

Laptop tray with corners and a strap to secure device when in use

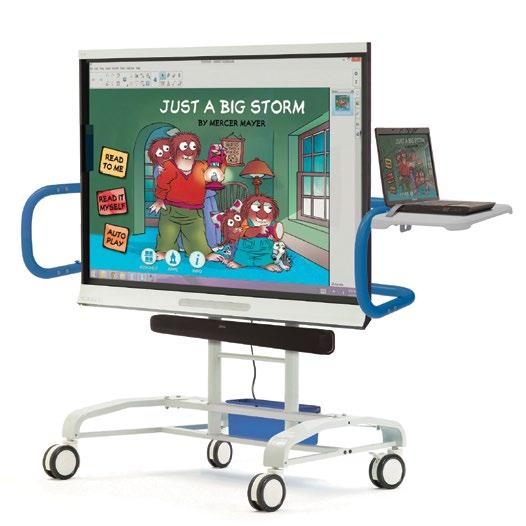

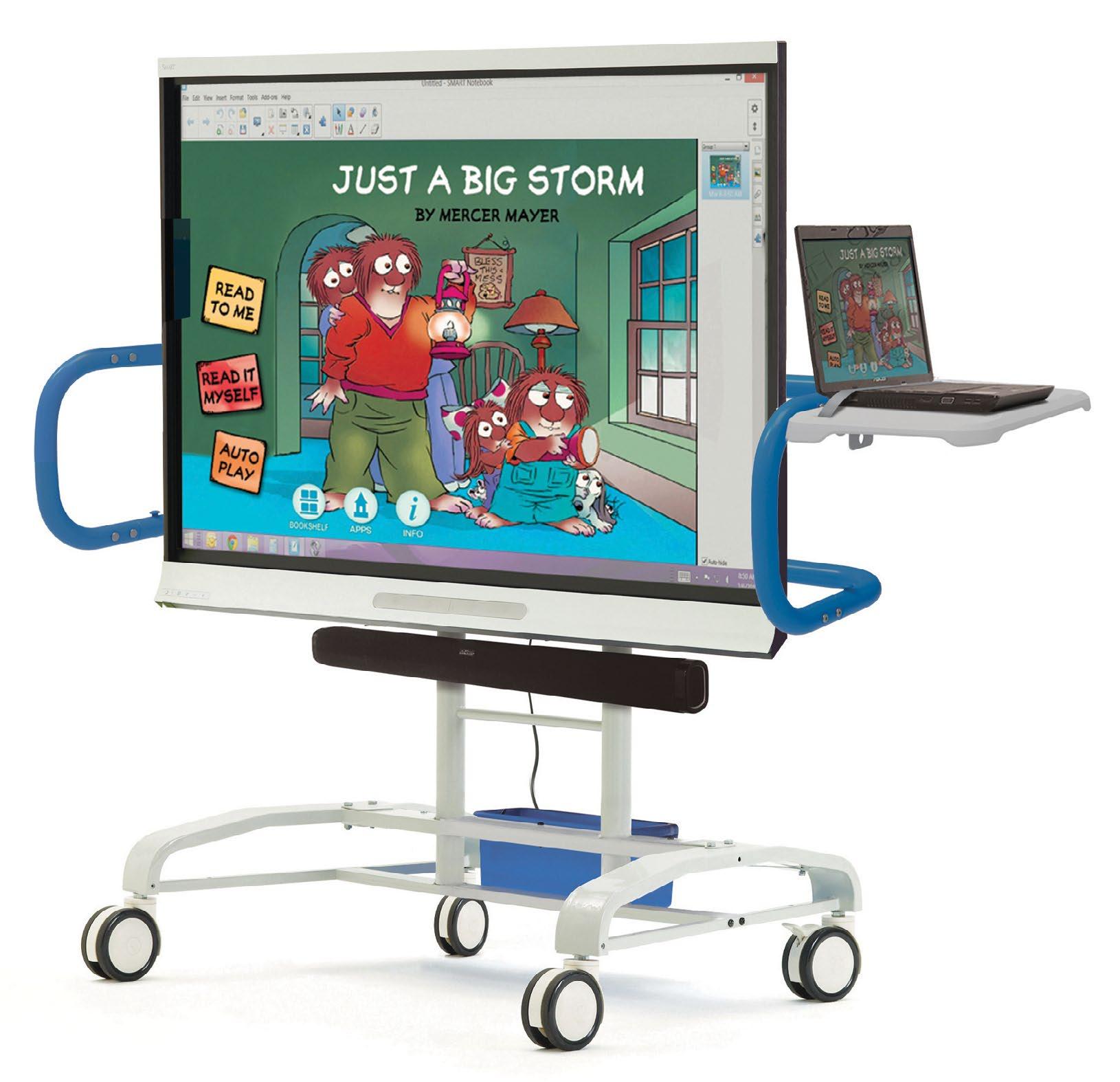

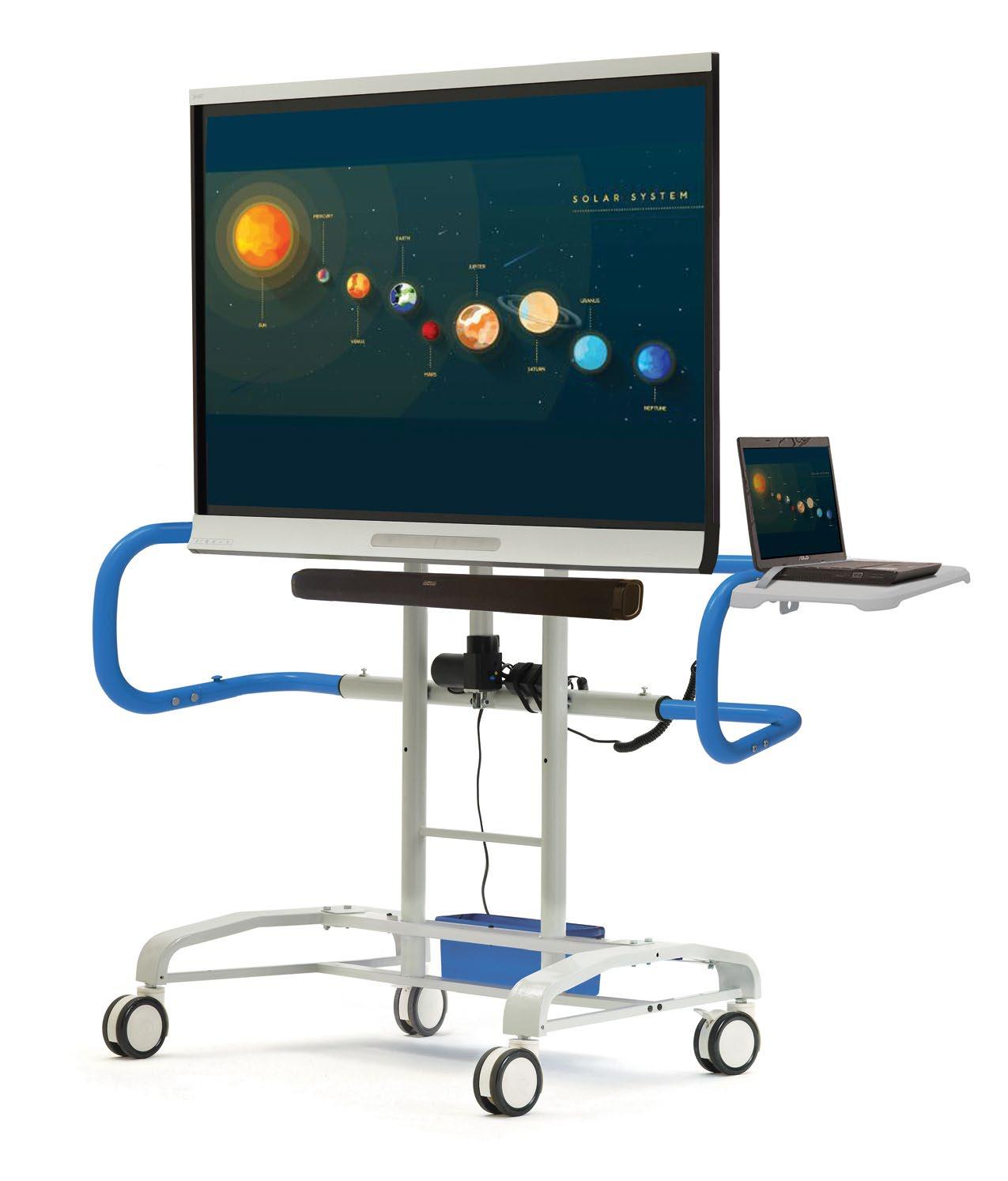

Premium model shown in highest position with optional sound bar mount (sold separately IFP-ACS2)

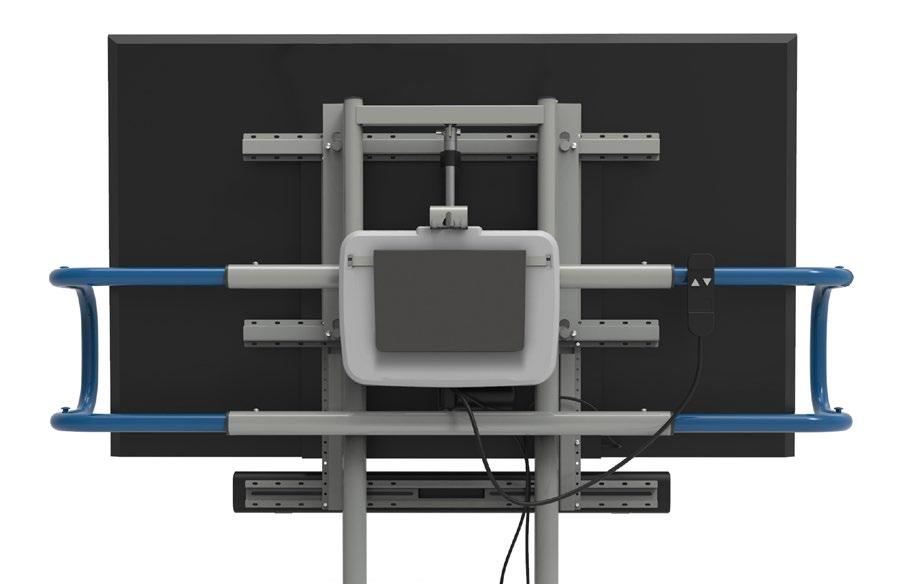

Laptop tray stores away on the back of the frame when not in use or on the move and a strap holds the device in place

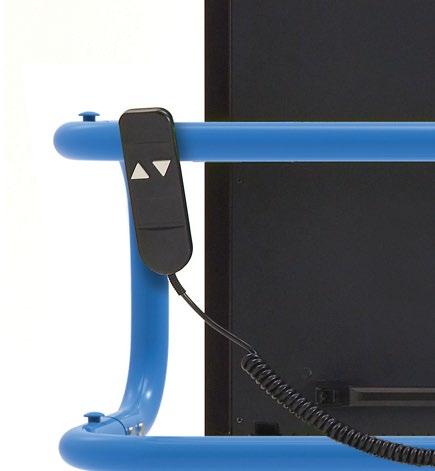

Electric height adjustment with wired remote control that clips to frame
7
iRover2® Base Model iRover2 Base Model for Interactive Flat Panels (IFP550) • Six different heights adjustable upon assembly with 10” range • Laptop tray with rounded corners and a strap to secure the laptop • Same features as the premium model but without the Small Open Tub, hook and loop ties, power strip, handles and electric lift function • UL Certified
o p t ls u rts ne po t pa p Su ” fla 86
Additional accessories: • Sound bar mount (IFP-ACS2) can be mounted above or below flat panels 86” or smaller Flat Panel Compatibility Please check the IFP550 product page at copernicused.com for the VESA mounting patterns and compatibility chart. Supports 55”- 86” flat panels with a maximum weight of 250lbs Dimensions Cart measures: 60” - 70” H x 46 1/2” W x 31 1/2” D (excluding laptop tray)
26” - 36” from floor to bottom of screen
Warranty Lifetime Packaging Moving to plastic free packaging in 2024

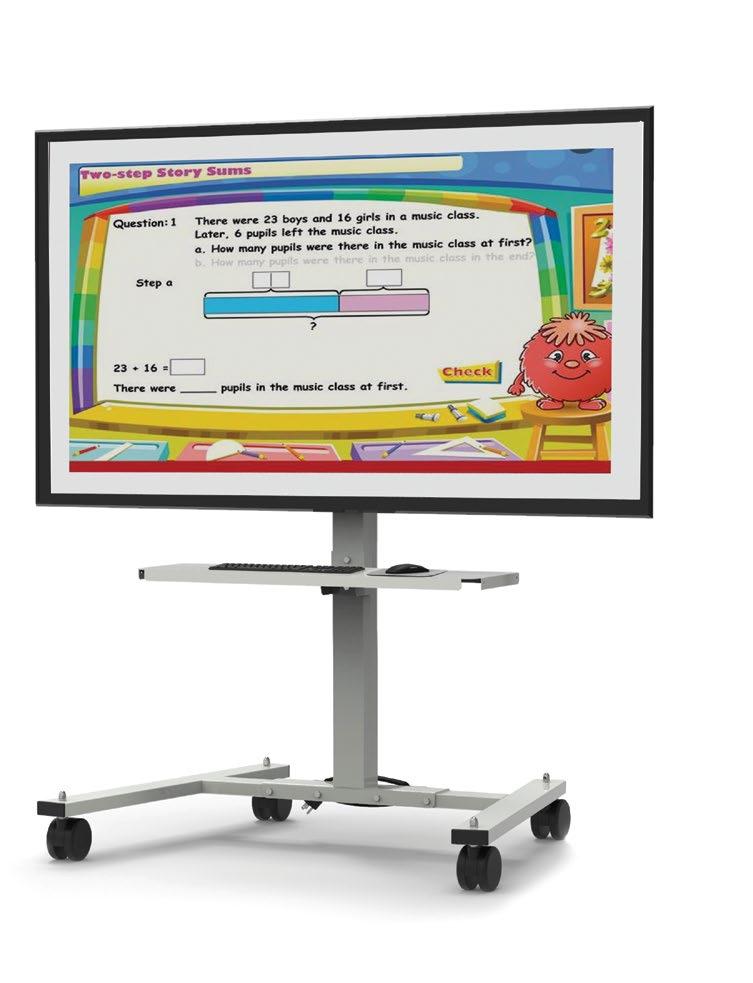

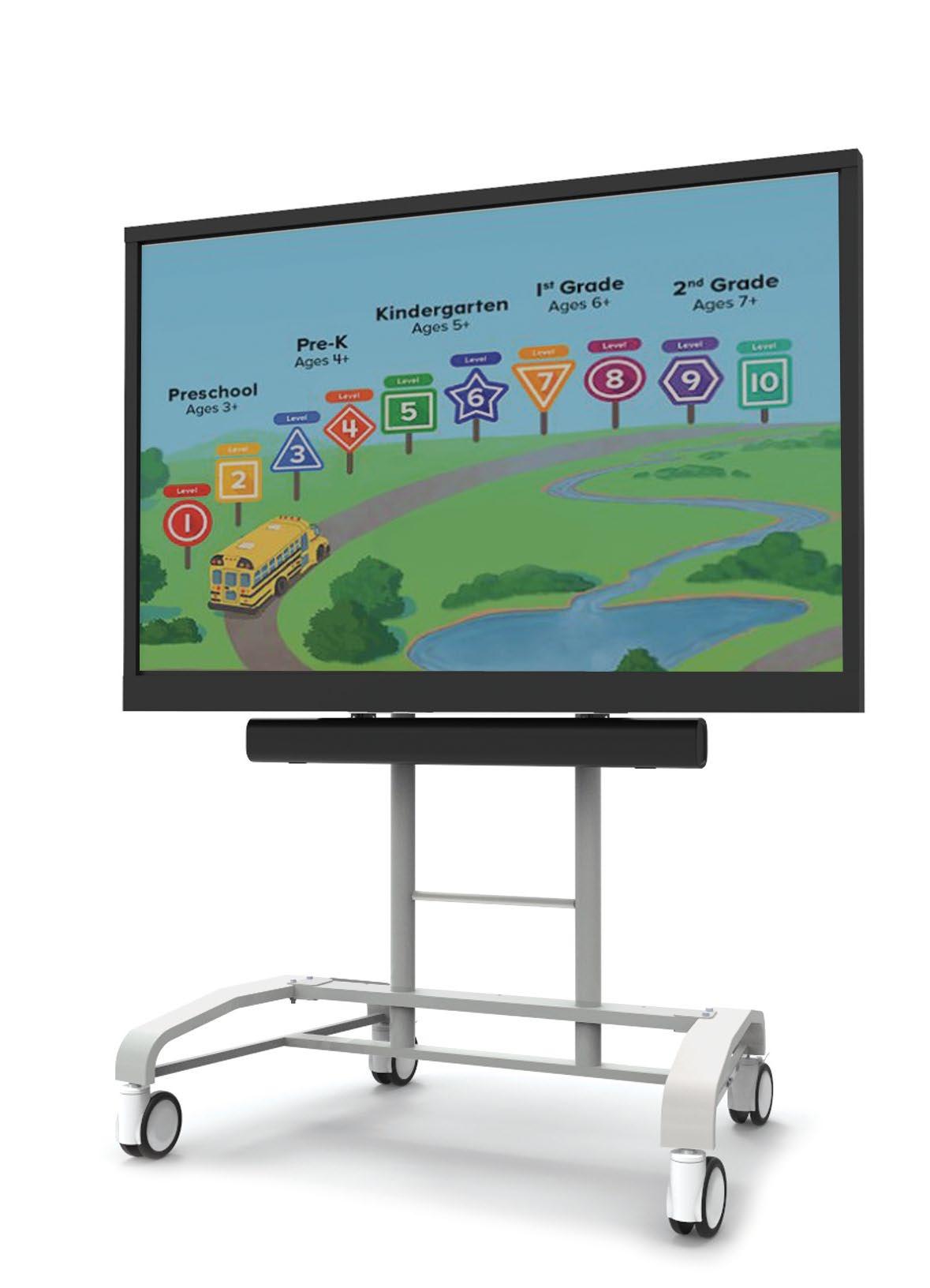

Flat panel shown in highest position with optional sound bar mount (sold separately IFP-ACS2)
Laptop tray fits securely to the back of the frame 8

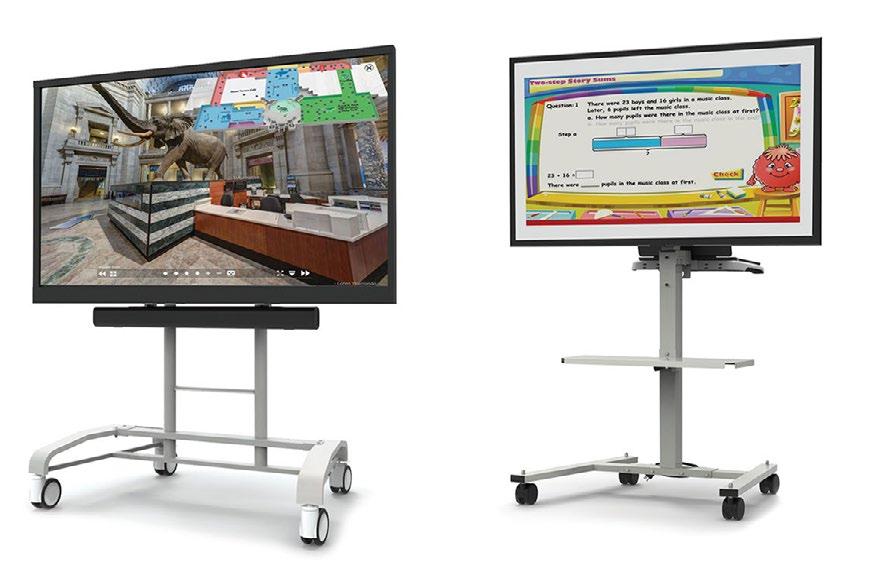

iRover2® Cart for 30-55” Flat Panels Move your small flat panel anywhere needed in your flexible workspace or school. Smaller flat panels are ideal for team huddles, breakout sessions and with the addition of a webcam, video conferencing can take place just about anywhere. This cart is also handy to help display wayfinding maps or as digital signage to aid employees and visitors as they navigate your facility.
36 1/2” from floor to bottom of screen (55” panel)
24 1/2” from floor to bottom of screen (55” panel)

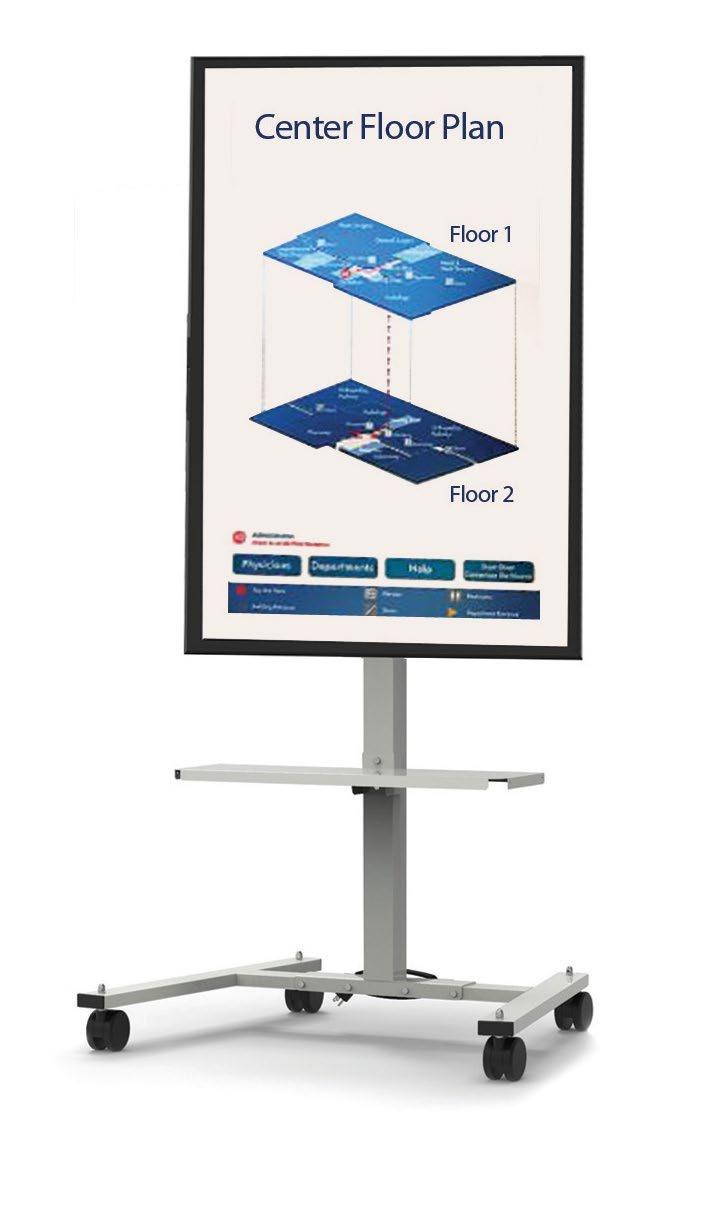

Flat panel can be set to portrait (with tools)
Shown in lowest position

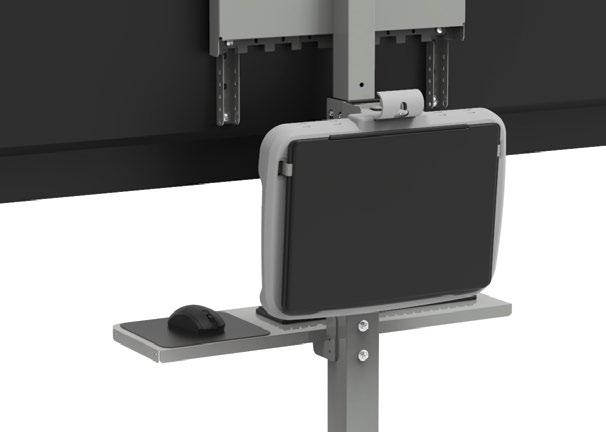

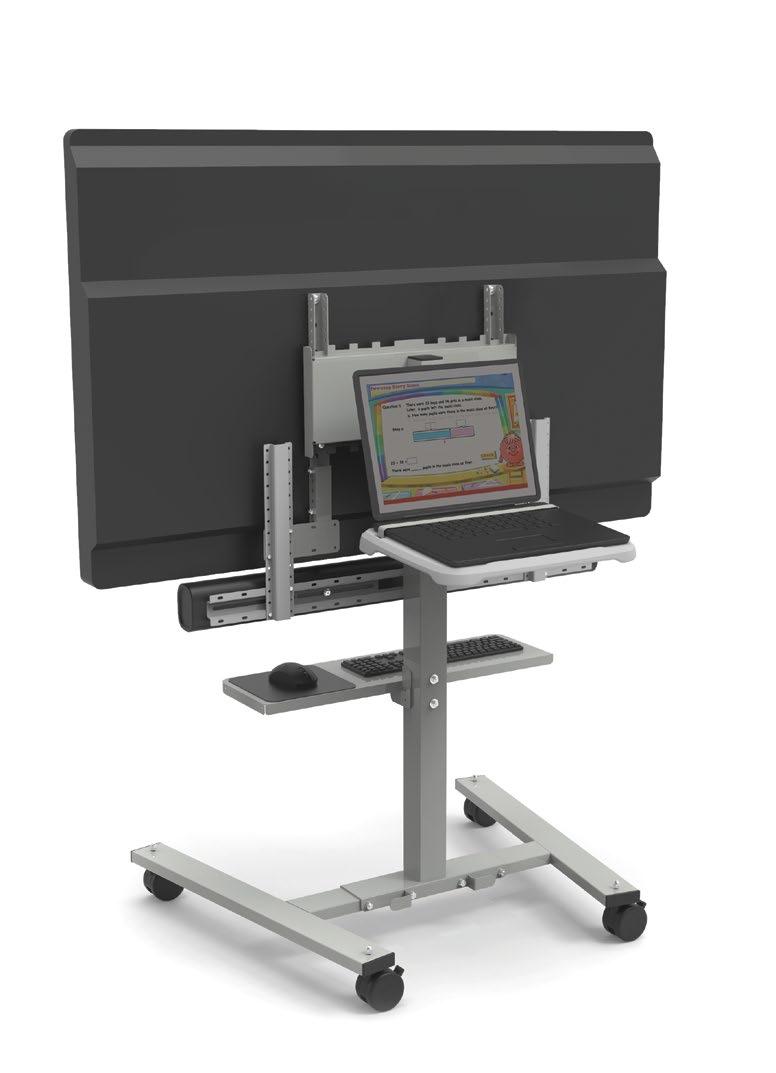

Back view with laptop tray in use
iRover2® Cart for 30-55” Flat Panels with Laptop Tray (IFP600) Features: • Laptop tray with rounded corners and strap to hold up to a 17” laptop and can be stowed • Sturdy frame that supports 30-55” flat panels with a maximum weight of 80lbs • Panel can be adjusted to landscape or portrait orientation (requires tools) • Shelf for placing accessories (remotes, keyboards, mouse, reference notes) • Height adjustable upon assembly with a range of 11 3/4” (30 cm) and seven fixed height settings, spaced 2” (5 cm) apart • Hook and loop ties for cable management • 3” twin wheel locking casters iRover2® Cart for 30-55” Flat Panels with Mini PC Mount (IFP650) Same features as the model above but with a Mini PC Mount instead of a laptop tray.

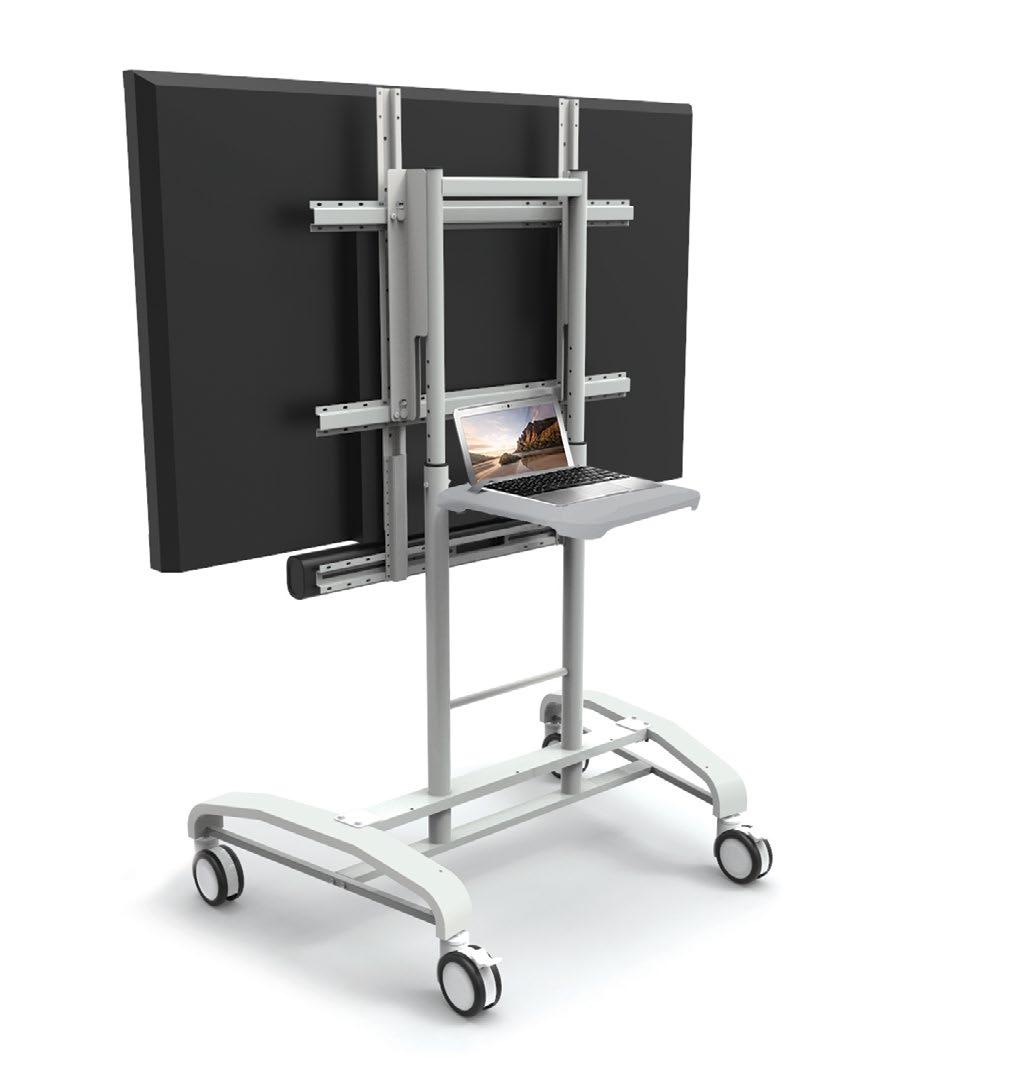

Back view with laptop tray stowed (IFP600)
Additional accessories • Sound bar mount (IFP6-SBM) (attaches to the flat panel) Dimensions 34 1/2” W x 33 1/2” D x 62 1/2” H (highest setting) Warranty Lifetime Packaging Moving to plastic free packaging in 2024

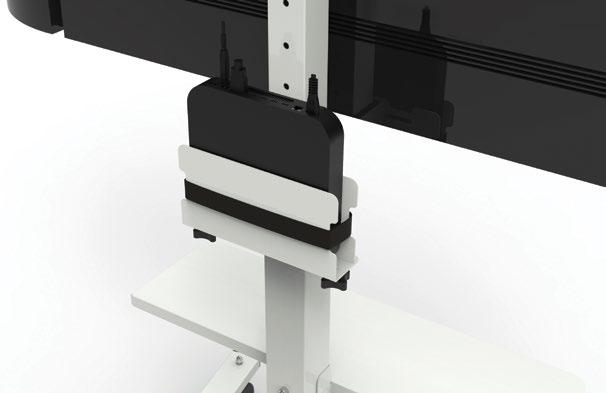

Mini PC Mount (IFP650)
9
NEW Height Adjustable Wall Mount with Frame Cover
NEW
Cords and support legs are concealed with a frame cover. There is a built-in clearance for mounting over marker ledges on whiteboards. This flexibility is also ideal in media and library spaces where many students participate in activities.

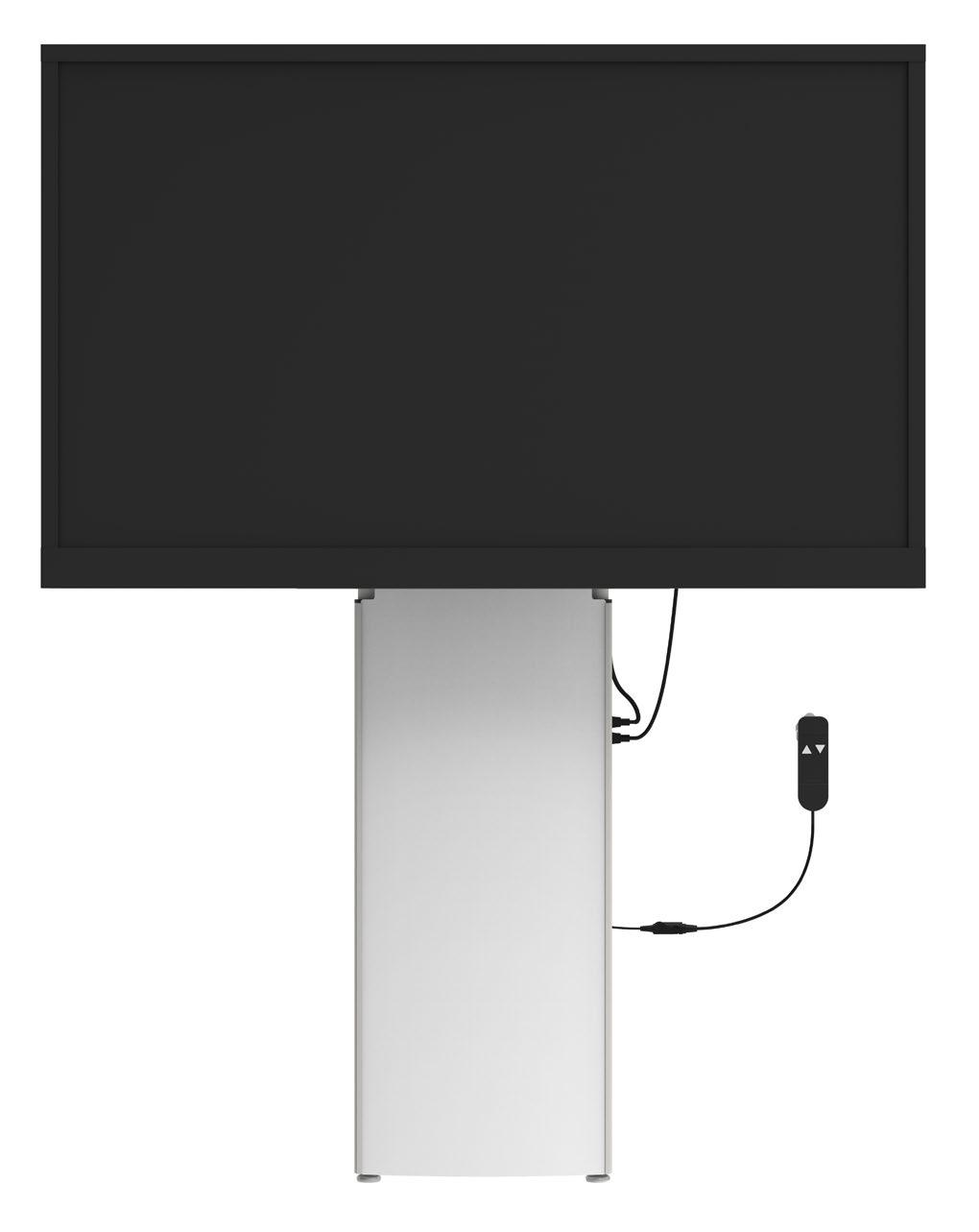

NEW Height-adjustable Wall Mount (HAWM3) This model is specifically for masonry walls. • Electric lift function to adjust the flat panel height with a 17” range so the flat panel can be easily viewed by different grade levels (requires power) • Remote mounting bracket • Built-in clearance for mounting over marker ledges • A 6-outlet power strip (UL listed) • Hook and loop ties for cable management • Supports up to 86” flat panels with a maximum weight of 250lbs • Includes a floor support kit • Frame Cover • Optional sound bar mount (IFP-ACS2) can be mounted above or below the flat panel • Do not install on steel studs Warranty Lifetime 5 year warranty on electric lift
Dimensions 351/4 ” W x 8” D x 78 1/2” H (highest setting)
Replacement Parts Program: Have a part that needs replacing? Keep your products in use longer, rather than sending your entire product to the landfill by using our Replacement Parts Program. Packaging: 100% plastic-free! NEW Conversion Kit for Height Adjustable Wall Mount with Frame Cover (HAWM3-CK) This conversion kit costs less than a brand-new height-adjustable wall mount. Educators can also use this design example to teach students a lesson about circular economies and their impact on the environment. By reusing parts of the iRover2 Cart for Interactive Flat Panels (IFP500), you are extending your products’ lifecycle instead of sending them to a landfill – a valuable lesson for future stewards of the environment. Features: • Allows an interactive flat panel to be converted from the iRover2 Interactive Flat Panel Cart (IFP500) to a wall mount at a lesser cost because a complete wall mount is not needed • Accepts a moving frame and an actuator from the iRover2 Cart for Interactive Flat Panels (IFP500) • Once assembled with a moving frame and an actuator, has all the same features as the previous Height Adjustable Wall Mount (HAWM) model • Mounts to masonry walls or wood stud walls (stud mounting kit, HAWM2-SMK, required for stud wall installation) • Floor supports with adjustable leveling feet • Frame Cover Warranty Lifetime
Environmental benefits: Reduces waste that might have gone to a landfill; lowering energy consumption and decreasing pollution because new parts don’t have to be produced Packaging: 100% plastic-free!
10

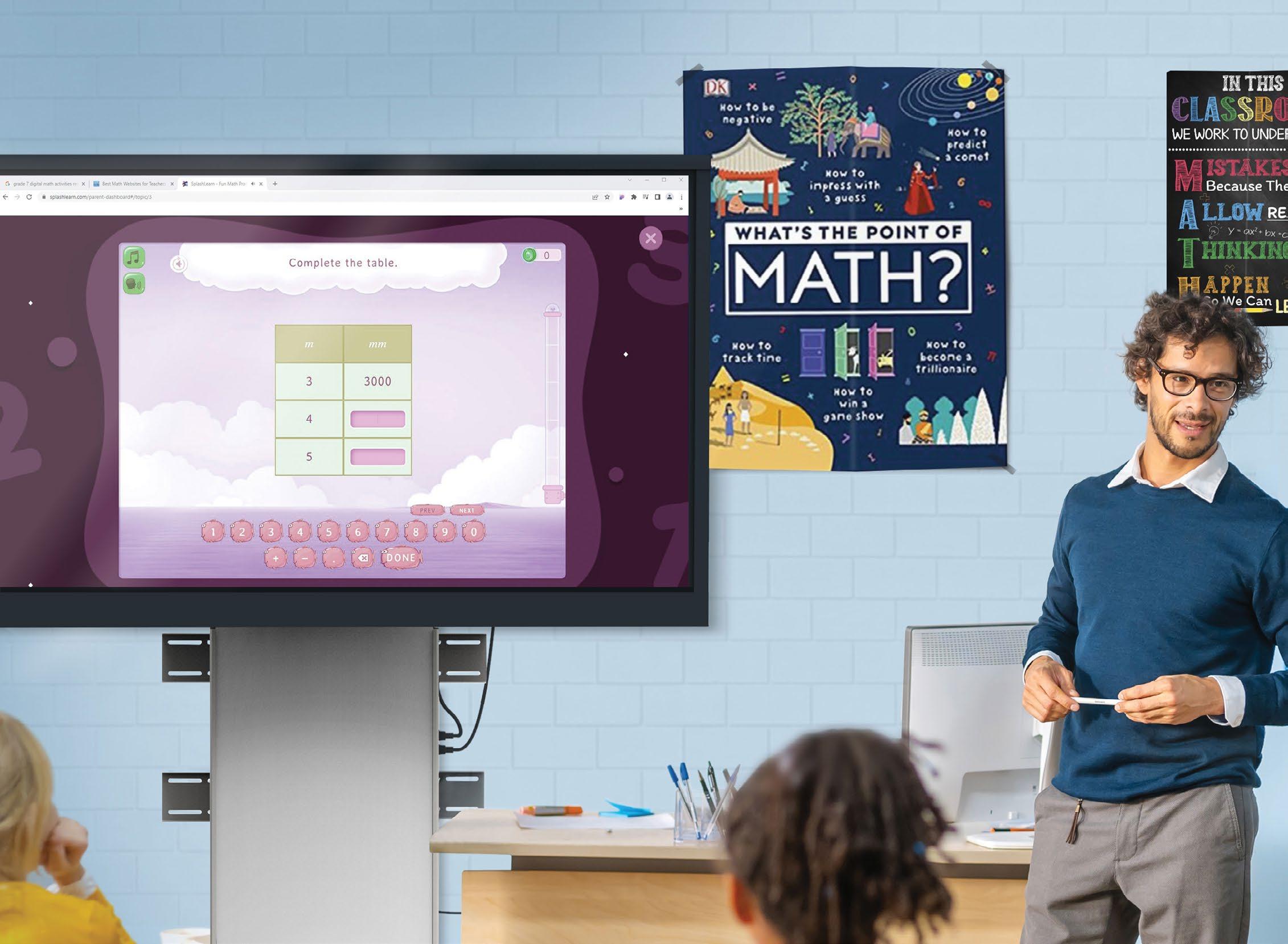

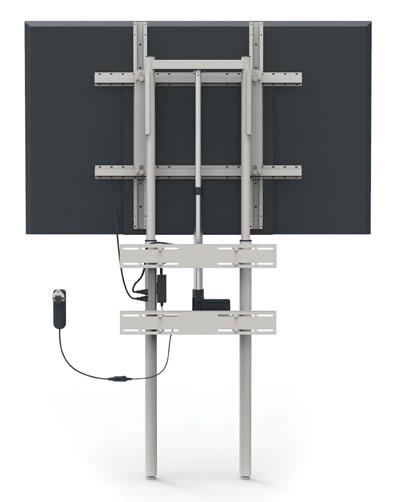

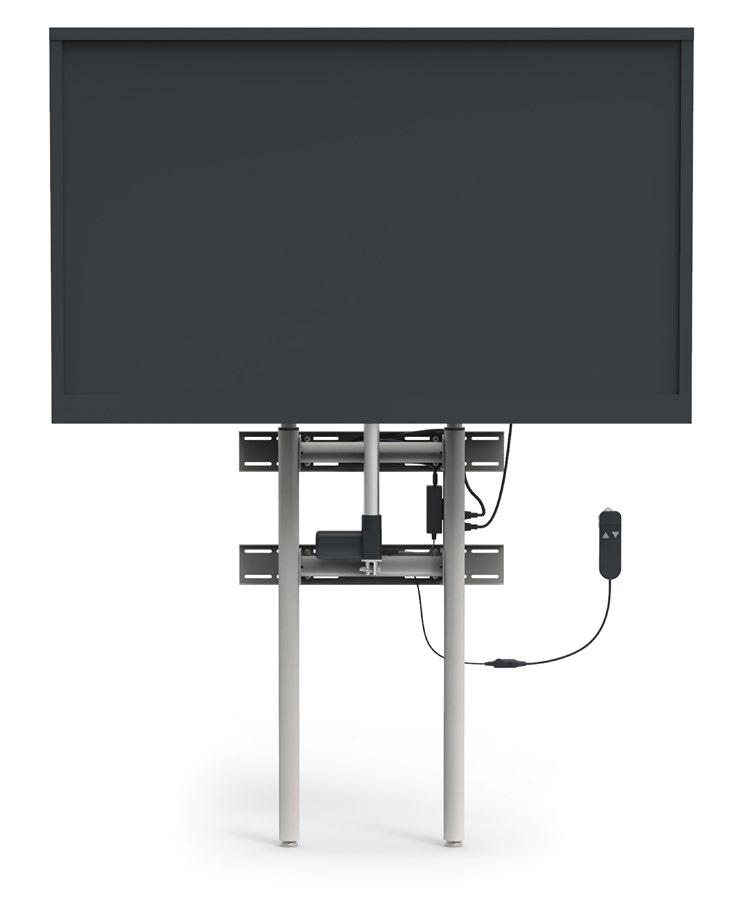

Height Adjustable Wall Mount This height-adjustable wall-mounted flat panel is important for the classroom because it not only saves valuable classroom floor space but can also accommodate students with different physical abilities and needs. Height-adjustable Wall Mount (HAWM2) This model is specifically for masonry walls. • Electric lift function to adjust the flat panel height with a 17” range so the flat panel can be easily viewed by different grade levels (requires power) • Remote mounting bracket • Built-in clearance for mounting over marker ledges • 6-outlet power strip (UL Listed) • Hook and loop ties for cable management • Supports up to 86” flat panels with a maximum weight of 250lbs • Includes a floor support kit • Optional sound bar mount (IFP-ACS2) can be mounted above or below the flat panel • Both mounting models (HAWM2 and HAWM2-SMK) have floor supports • Do not install on steel studs Warranty Lifetime 5 year warranty on electric lift
Visit our Youtube channel to see how to convert your iRover Cart to a Wall Mount
Dimensions 351/4” W x 8” D x 78 1/2” H (highest setting)
Replacement Parts Program: Have a part that needs replacing? Keep your products in use longer, rather than sending your entire product to the landfill by using our Replacement Parts Program. Packaging: 100% plastic-free!

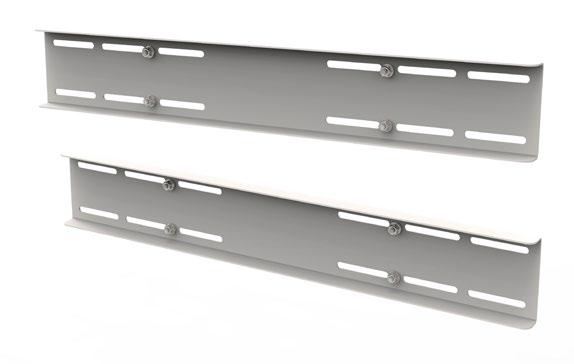

Stud Mounting Kit for Height Adjustable Wall Mount (HAWM2-SMK)
Conversion Kit for Height Adjustable Wall Mount (HAWM2-CK)
These steel brackets, specifically made for our Height Adjustable Wall Mount (HAWM2) facilitate the mounting of our iRover2 Carts for Interactive Flat Panels (IFP500) to wood stud walls.

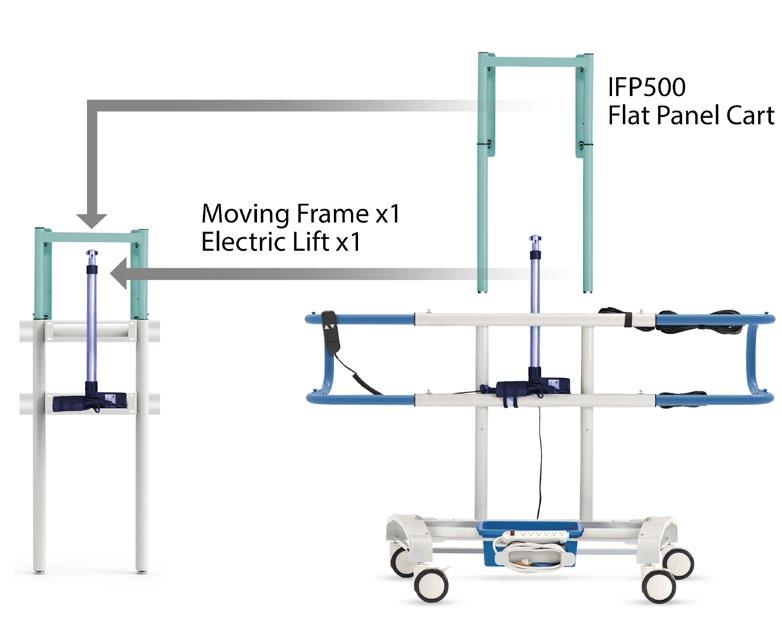

Customers with an existing iRover2 Cart for Interactive Flat Panels (IFP500) whose needs have changed can now mount the interactive flat panel onto a wood stud or masonry wall with this complete, easy-to-use conversion kit.
Their wide slot pattern makes it easy to attach directly to studs and position the wall mount where needed. Schools that have the Height Adjustable Wall Mount (HAWM2) from Copernicus can easily and securely affix it with the heavy-duty steel brackets included in this kit. Set of two steel brackets. Please note that this is only for wood studs installations: steel stud installations are not approved. Features: • Heavy duty steel brackets facilitate the mounting of HAWM2 to wood stud walls (for wood studs only, no steel stud installations) • Wide slot pattern makes it easy to attach directly into studs and position the HAWM2 • Mounting hardware for the main frame is included
Features: • Allows an interactive flat panel to be converted from the iRover2 cart to a wall mount at a lesser cost because a complete wallmount is not needed • Accepts a moving frame and an actuator from the iRover2 Cart for Interactive Flat Panels (IFP500) • Once assembled with a moving frame and an actuator, has all the same features as the previous Height Adjustable Wall Mount (HAWM) model • Mounts to masonry walls or wood stud walls (stud mounting kit, HAWM2-SMK, required for stud wall installation) • Floor supports with adjustable leveling feet
Warranty Lifetime
Warranty Lifetime
Packaging: 100% plastic-free!
Environmental benefits: Reduces waste that might have gone to a landfill; lowering energy consumption and decreasing pollution because new parts don’t have to be produced
10
Packaging: 100% plastic-free!
11
As a certified B Corp™, we are part of a community of like-minded businesses that want to use business as a force for good. We want to redefine what a successful business is by being directed and shaped through a social and environmental conscience.
Available at
Canada 8194 County Road 109, R.R. #3, Arthur, ON N0G 1A0 e: info@copernicused.com w: www.copernicused.com t: 1 800 267 8494 or 519 848 3664 f: 1 519 848 5516
Copernicus reserves the right to change or modify pricing and products specifications with or without prior notification. Illustrations and descriptions may not be exactly as shown. No part may be reproduced by any means without prior authorization of Copernicus Educational Products Inc. All rights reserved. 2024© Printed in Canada
IFPFLB-1119-V2
