XPOWER Restoration Catalogue

PRODUCT CATALOGUE

WHEN YOU JUST NEED SOME

AUSTRALIA’S FAVOURITE AIR MOVER FOR THE CLEANING INDUSTRY

FLOODING

DRY CARPETS

CIRCULATES AIR

DRY PAINT

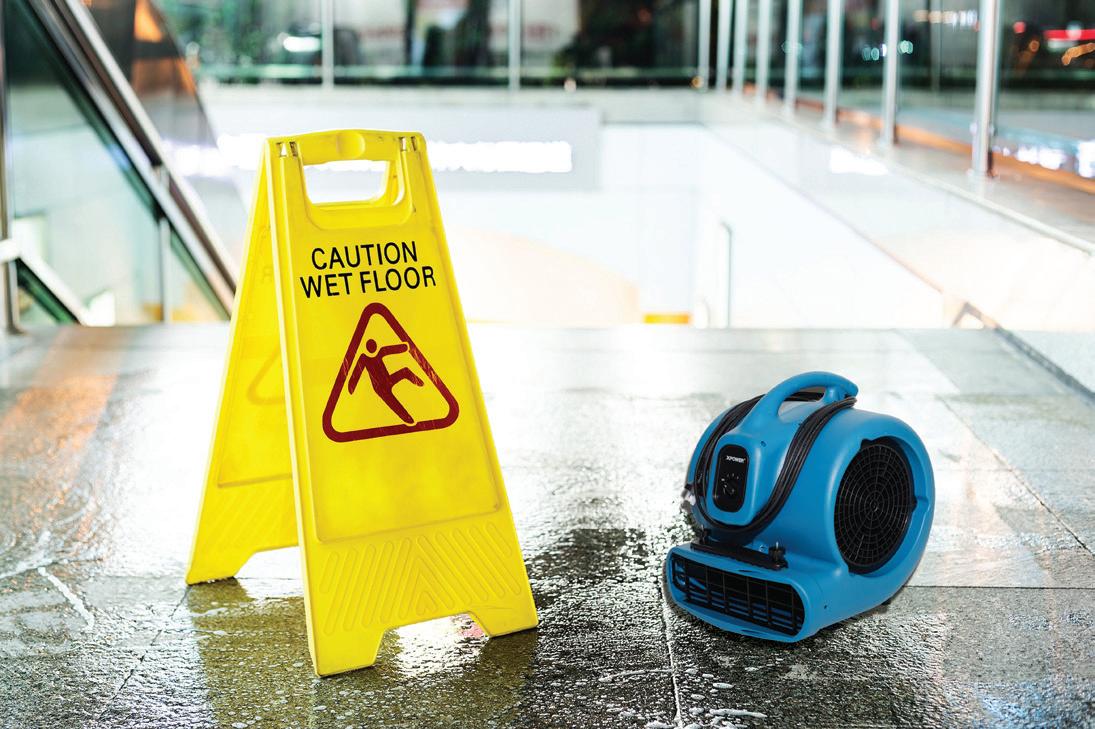

DRY WET FLOORS

DRIES FASTER

AIR MOVERS NOW CIRCULATING IN AUSTRALIA

XPOWER = dries faster = more productive = MORE PROFIT

All units have full Australian & NZ electrical approvals.

SCAN HERE TO SEE XPOWER AIR MOVERS IN ACTION

AIR MOVERS / DRYERS

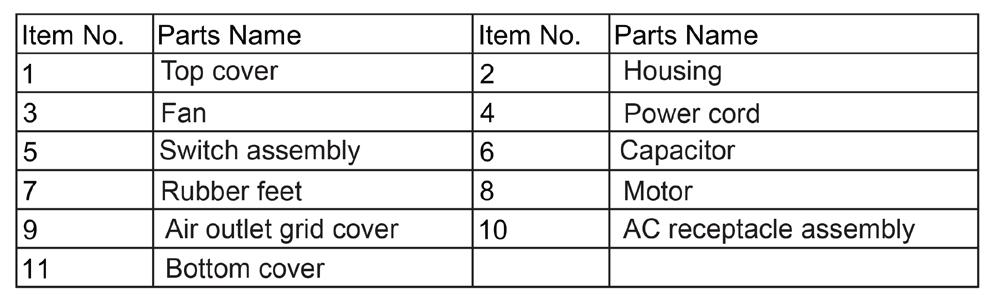

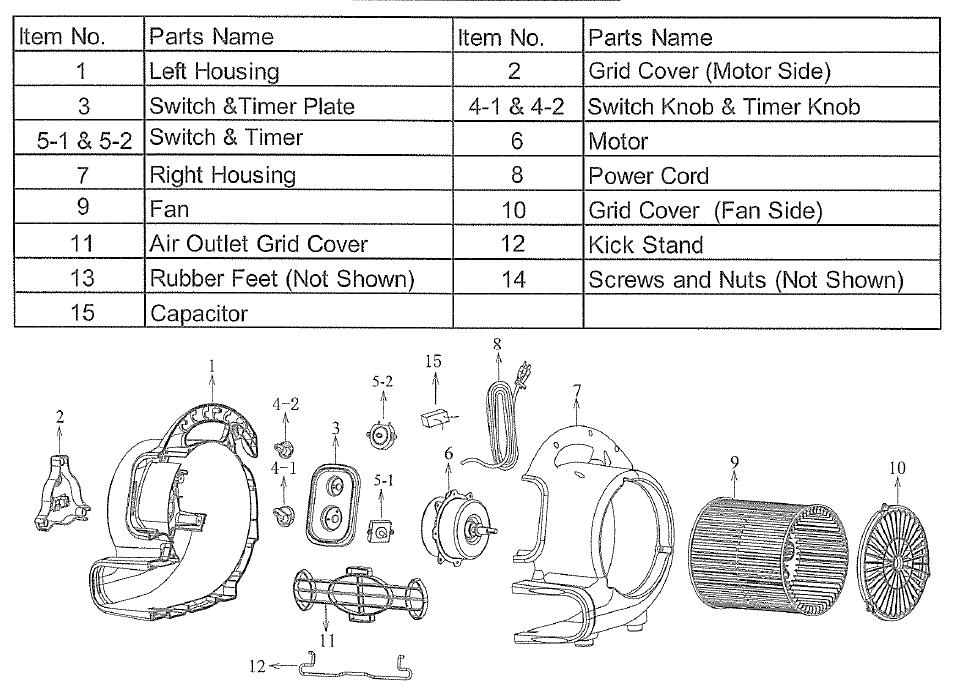

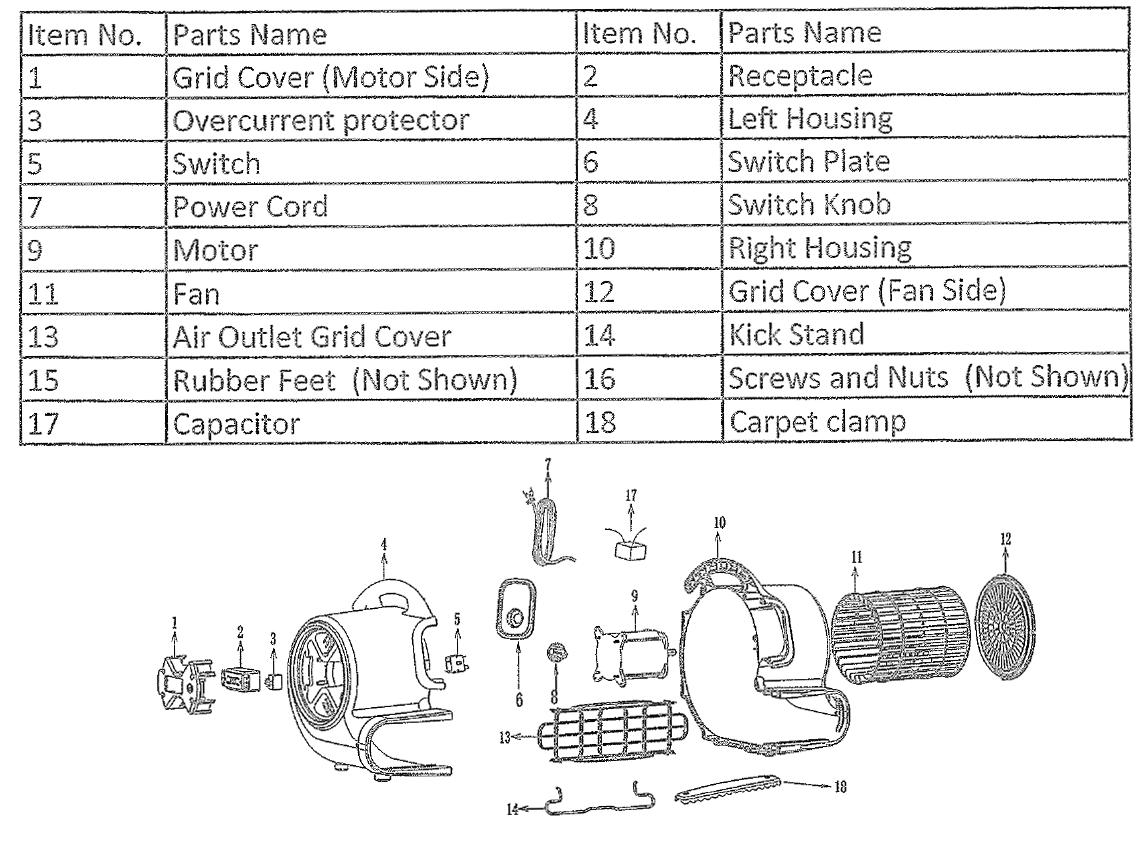

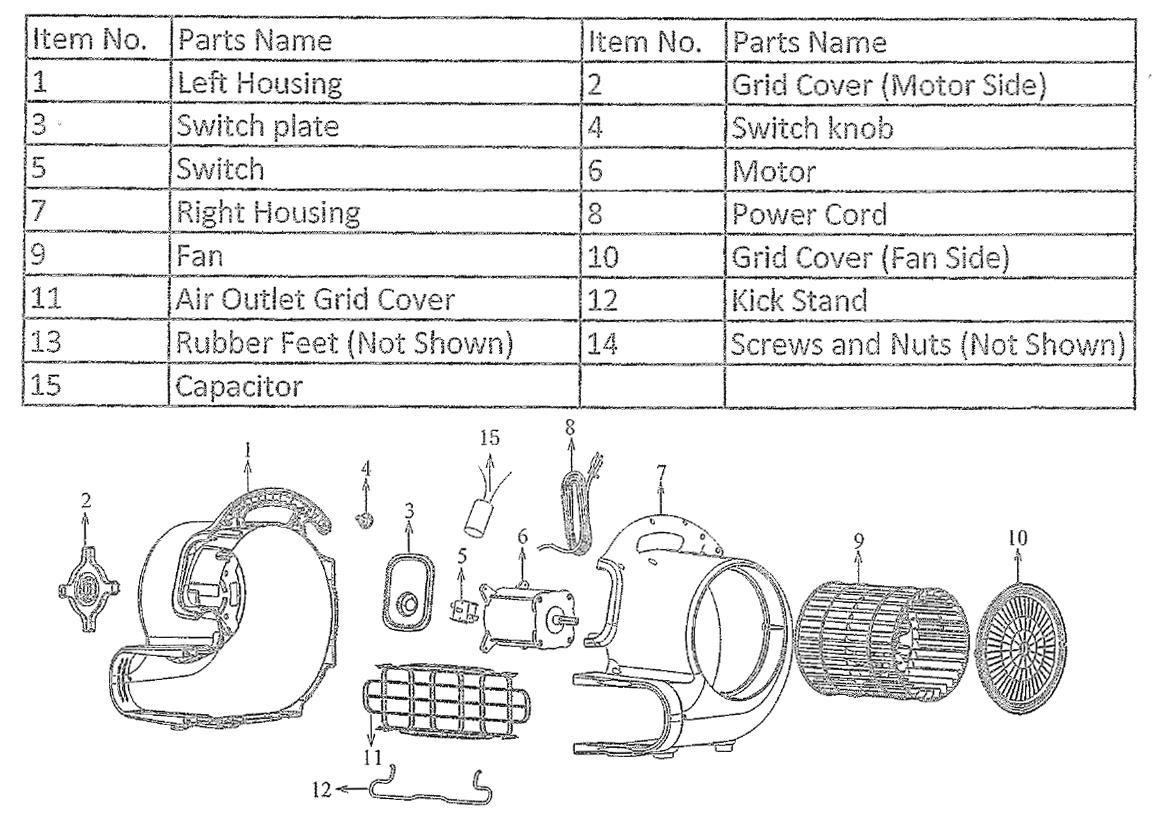

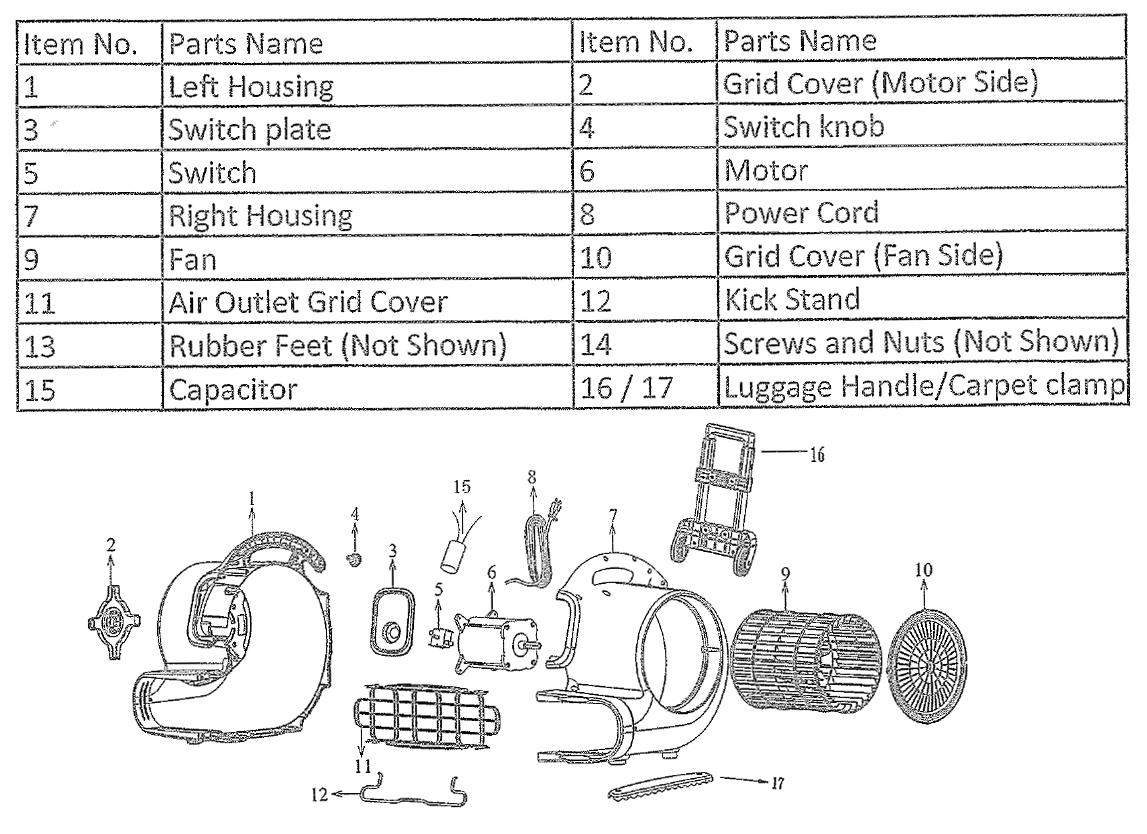

SPARE PARTS

P-230AT-02 Grill Cover (motor side)

P-230AT-04 Left Housing

P-230AT-07 Capacitor

P-230AT-08 3-Speed Switch

P-230AT-09 3-Hour Timer

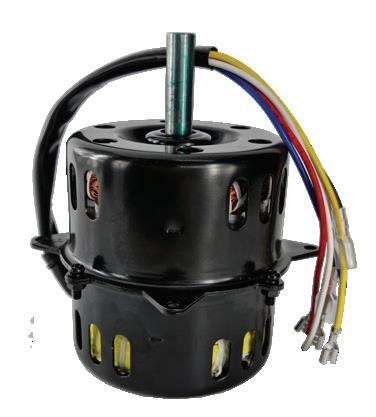

P-230AT-26 Motor

P-230AT-33 Switch Plate

P-230AT-37 Switch Knob

P-230AT-38 Timer Knob

P-230AT-39 Fan

P-230AT-43 Right Housing

P-230AT-44 Grill Cover (fan side)

X-800-8 Power Cord

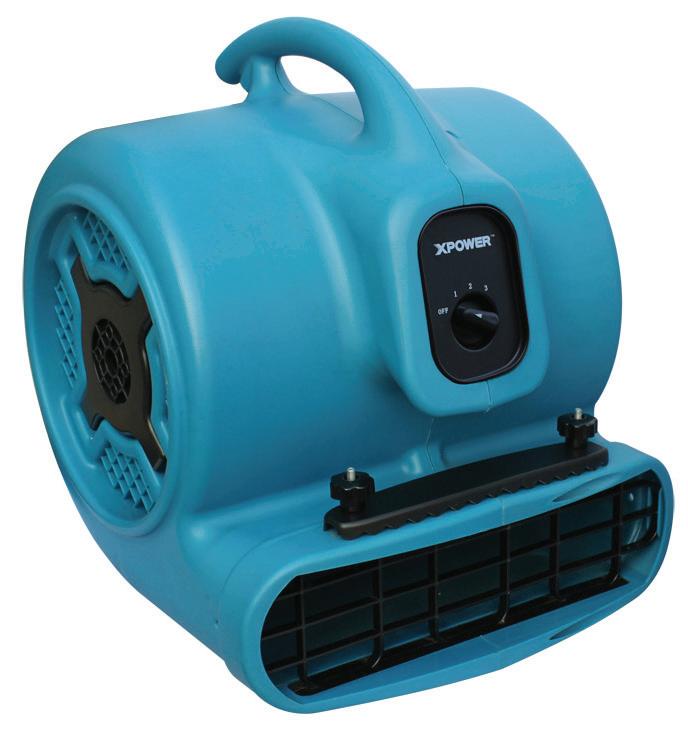

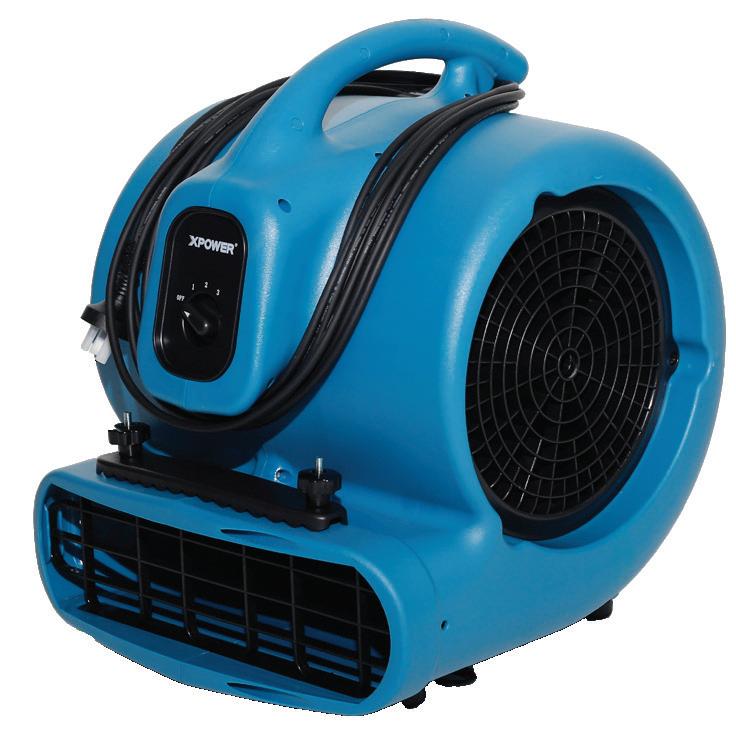

Model: X-400

X-400-03 Left Housing

X-400-04 Right Housing

X-400-23 Grill Cover (motor side)

X-400-29 Grill Cover (fan side)

X-400-33 3-Speed Switch

X-400-34 Switch Plate

X-400-36 Switch Knob

X-400-38 Motor

X-400-58 Fan

X-800-8 Power Cord

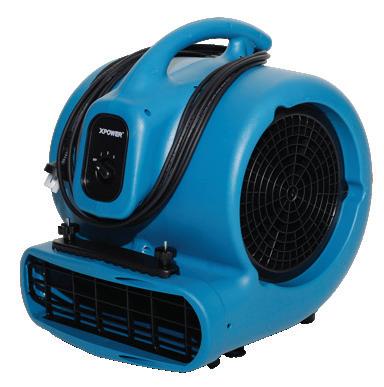

Models: X-800C / X-800HC

X-800-8 Power Cord

X-800-19 Left Housing

X-800-20 Right Housing

X-600-11 Left Housing

X-600-12 Right Housing

X-600-26 Grill Cover (motor side)

X-600-31 Grill Cover (fan side)

X-600-43 Motor

X-600-60 Fan

X-600-87 Capacitor

X-400-33 3-Speed Switch

X-400-34 Switch Plate

X-400-36 Switch Knob

X-800-8 Power Cord

X-800-27 Grill Cover (motor side)

X-800-32 Grill Cover (fan side)

X-800-89 Fan

X-800-90 Capacitor

X-800-HANDLE Handle

X-800-MOTOR Motor

X-400-33 3-Speed Switch

X-400-34 Switch Plate

X-400-36 Switch Knob

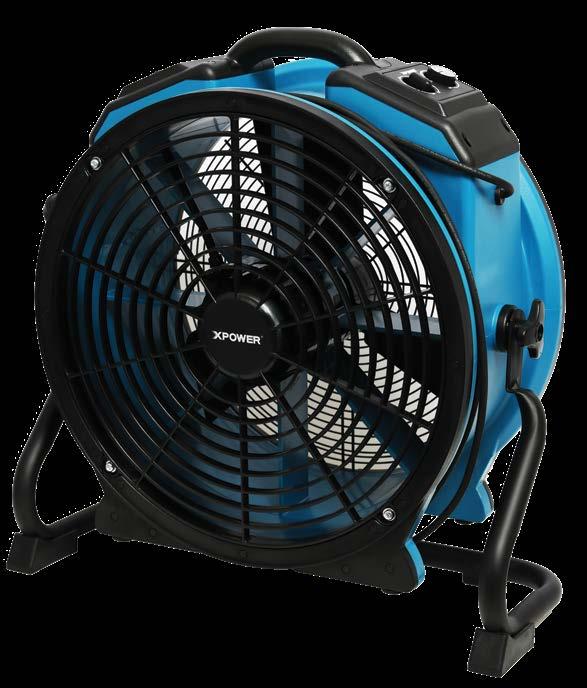

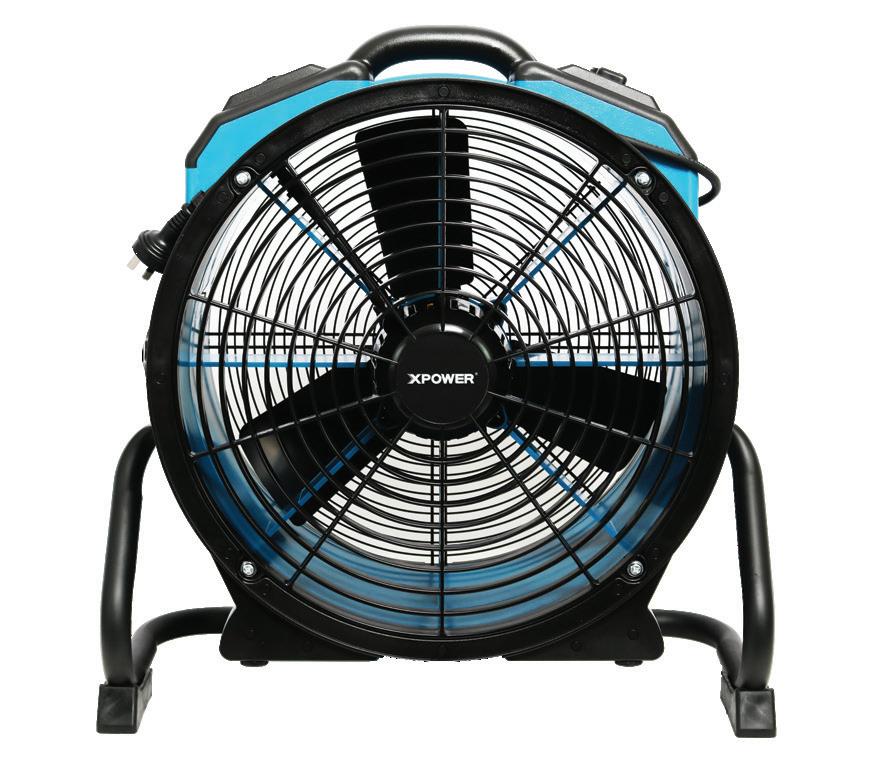

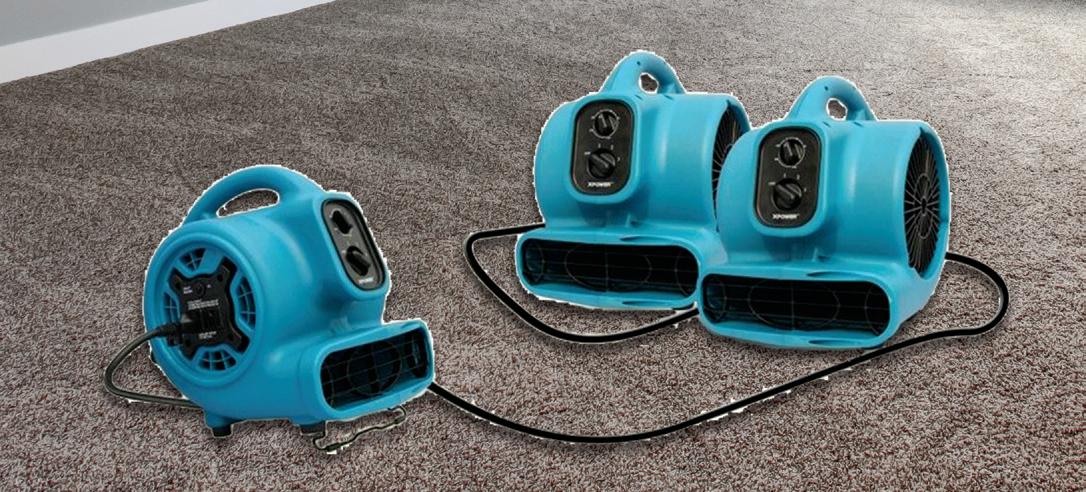

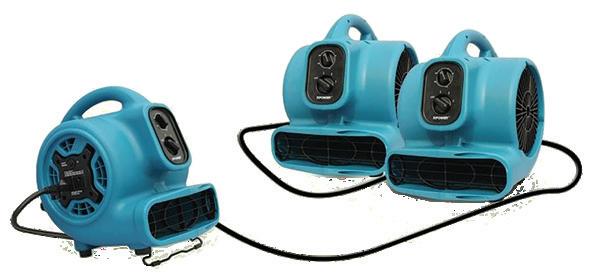

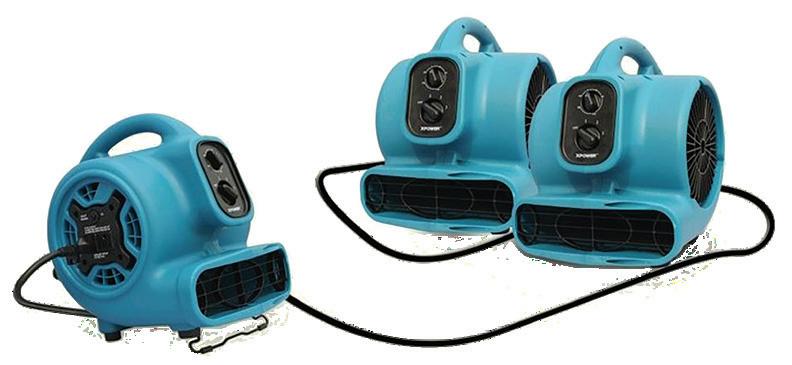

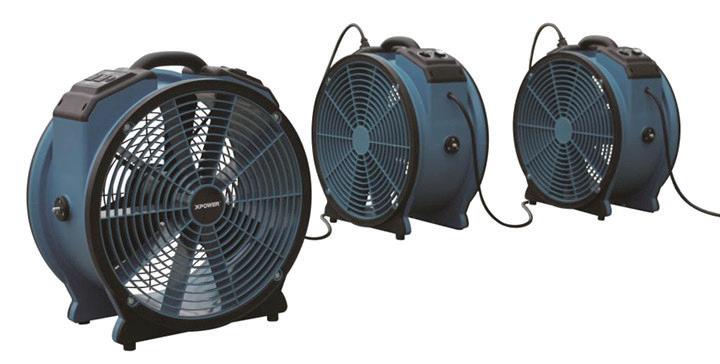

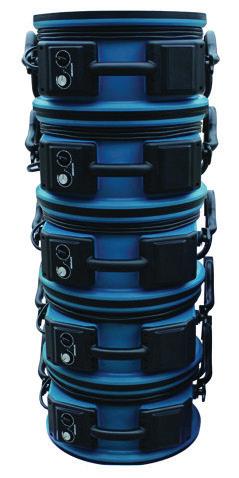

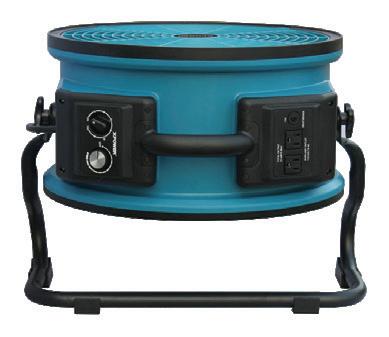

TURBO-PRO PROFESSIONAL AXIAL AIR MOVER DAISY CHAIN

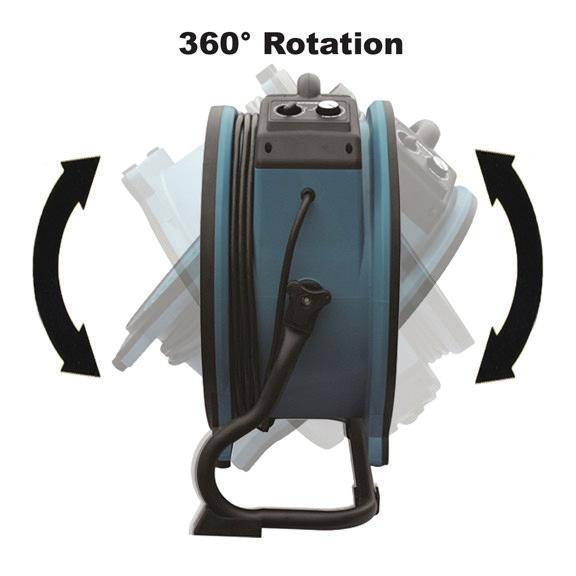

360° Rotation

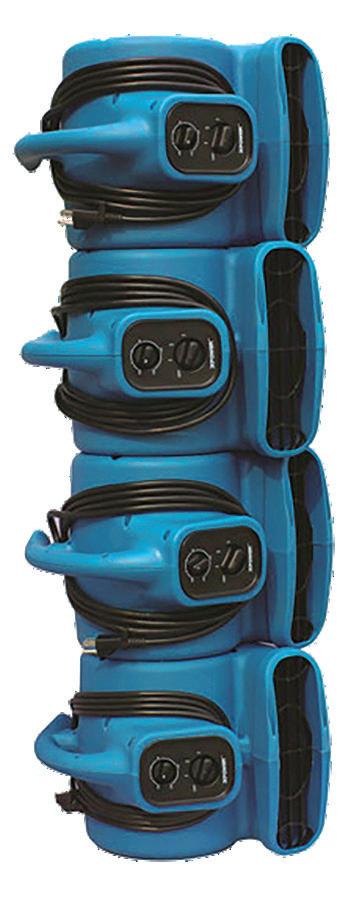

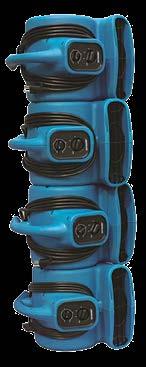

STACKABLE

Can be used to dry rooms quicker using 360° Rotation

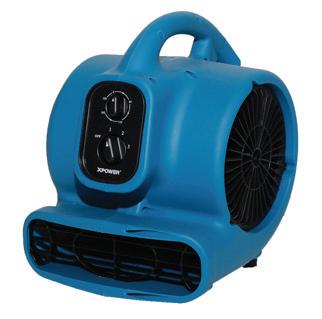

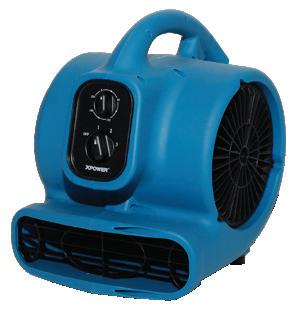

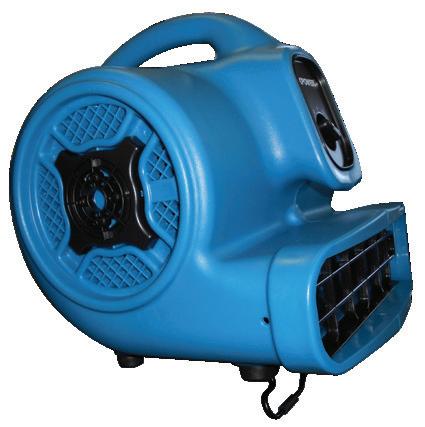

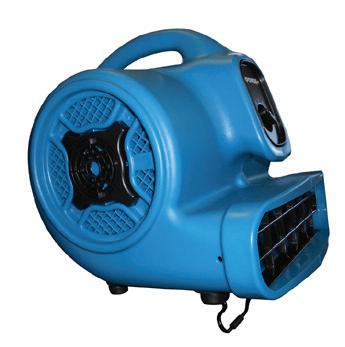

Model: P-230AT

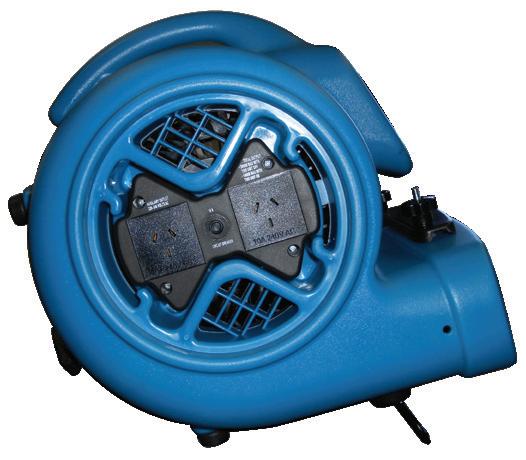

Model: X-600AC

P-230AT X-400

X-600AC

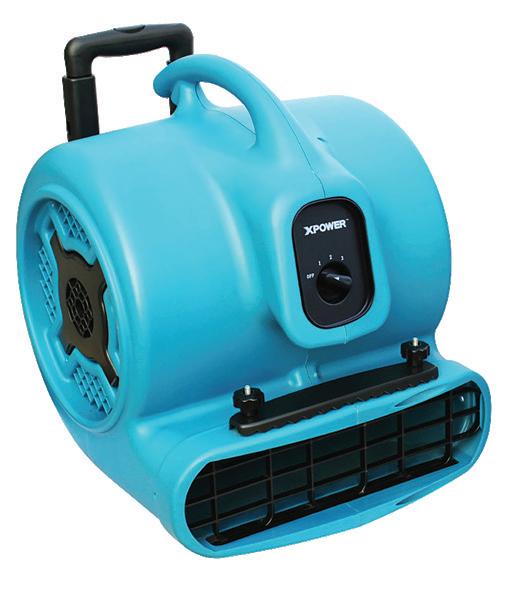

X-800C

X-800HC

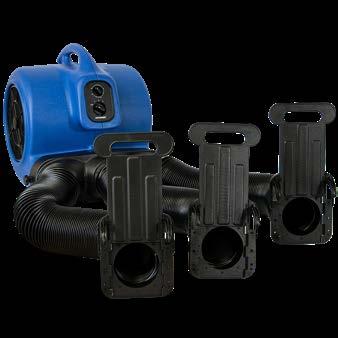

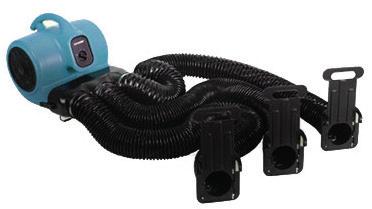

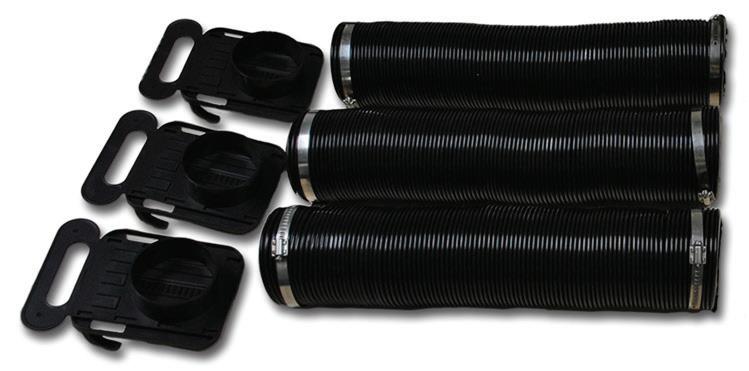

The XPOWER Multi-Drying Kits easily attach to X-400 and X-800 Series Air Movers and allow air flow to be directed in three different directions with adjustable air flow control 'gates' at the end of each hose.

(A)

They can also be used in janitorial or restoration applications to direct air flow anywhere where positioning a blower is not possible.

X-400-MDK

Part No: X-800-MDK

Part No:

Suits X-800 Air Movers

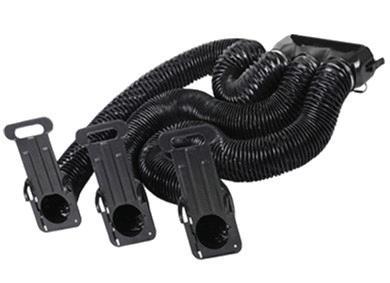

KIT INCLUDES:

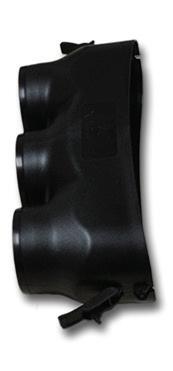

(A) Durable ABS Blower/Fan Adaptor with Locks

(B) 3 x High Quality and Flexible 2.7m Long Vinyl Hose

(C) 3 x Adjustable Airflow Control Gates

(D) 6 x Metal Hose Clamps

Use & Applications:

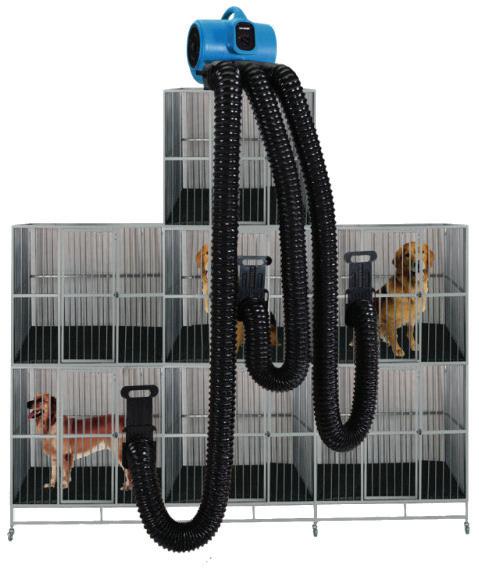

Multi-Drying Kit easily attaches to the front of the Air Mover Can be attached to a pet cage to dry multiple pets at the same time

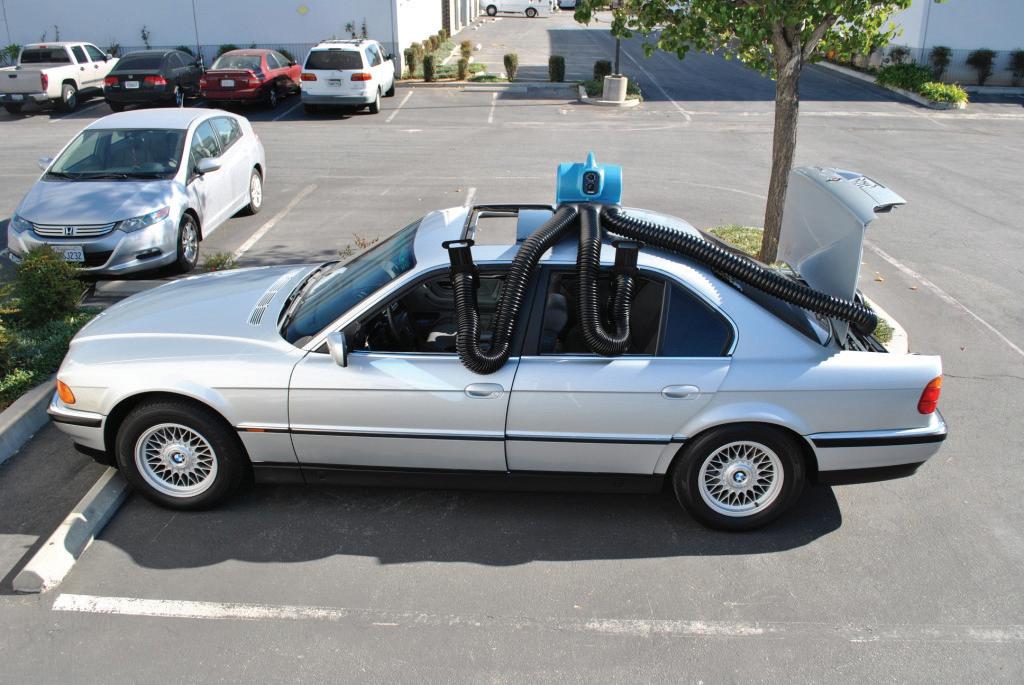

Ideal for drying the interior of a car after washing or cleaning

(B)

Suits X-400 Air Movers

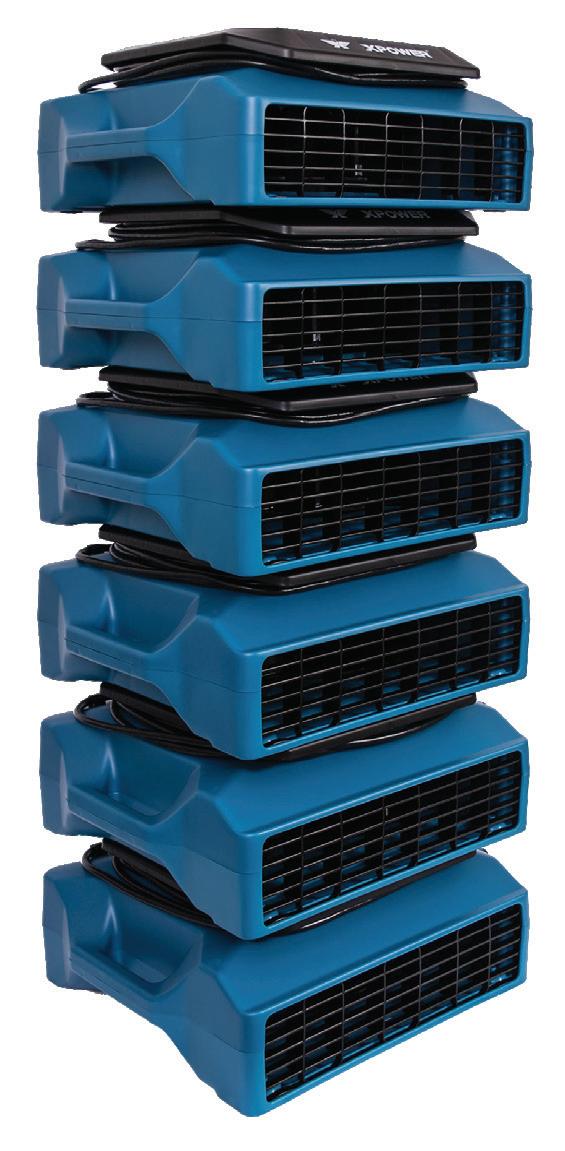

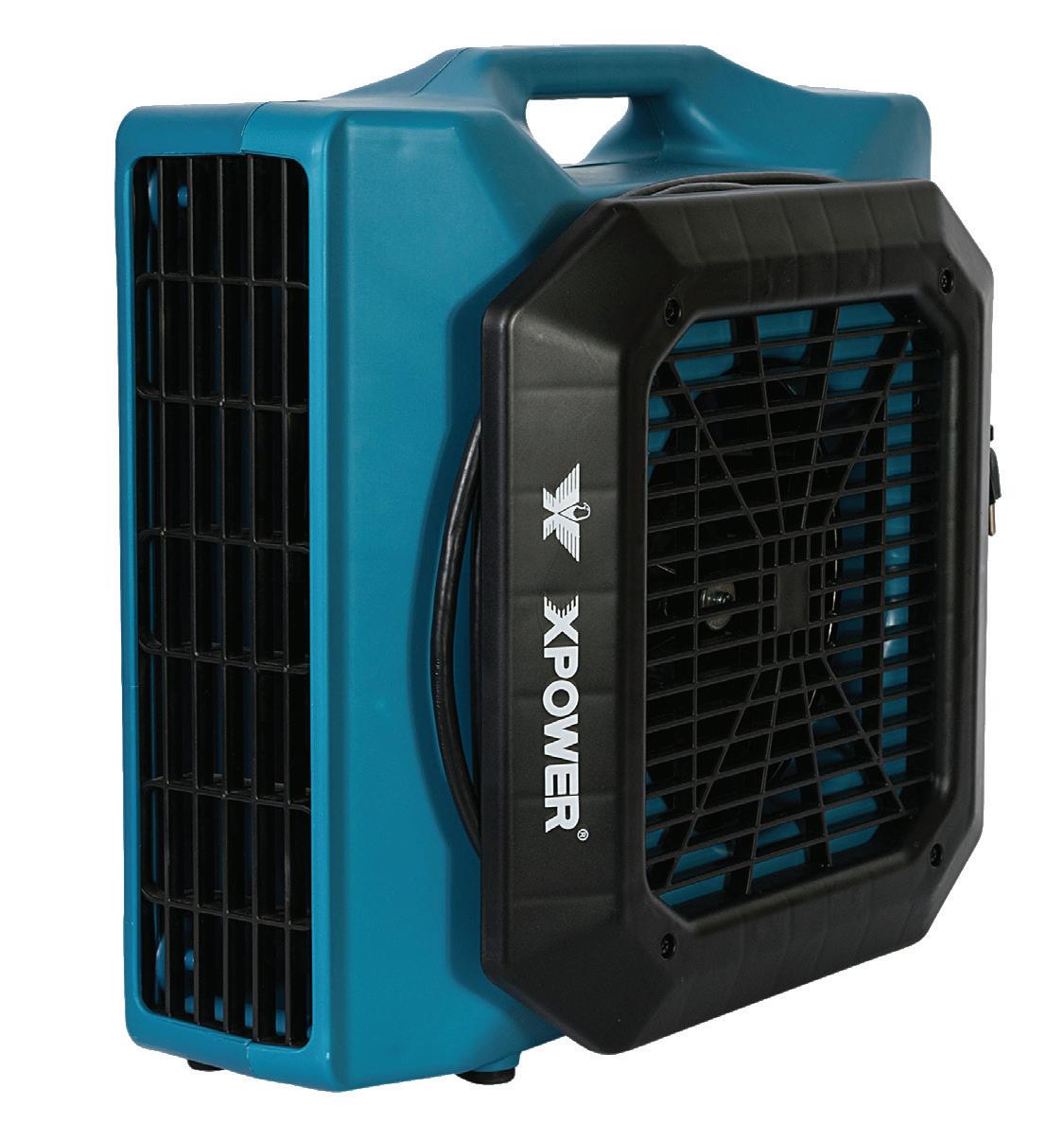

LOW PROFILE AIR MOVER

PL-700A Low Profile Air Mover

Motor 1/3HP

Power 240 Watt / 1.0 Amp

Rated Airflow (on high) 1000 CFM

Speed Control 3 speed switch

Power Cord Length 4.7 metres

Operating Positions 2 positions (Vertical & Horizontal)

Stackable Up to 6 units high

Unit Weight 8.7kg

Unit Size 45 x 45 x 21cm

Housing Polypropylene

Dual Thermal Protection Yes

Features powerful ventilation in a compact size that does not compromise on power. Able to operate and store vertically or horizontally, these high velocity low profile fans are ergonomically designed with an easy to carry moudled handle and made from durable and rugged polypropylene housing. Other features include wrap around cord design, non-slip rubber feet, quiet performance and stackability up to 6 units high, making it ideal for loading in a truck or on a hand cart. It also comes with a built-in power outlet for daisy chaining which will allow an additional six (6) of the same units to run on one circuit at the same time.

POWER

Included:

“THE MOST POWERFUL IN THE WORLD”

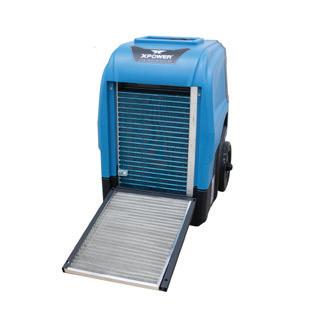

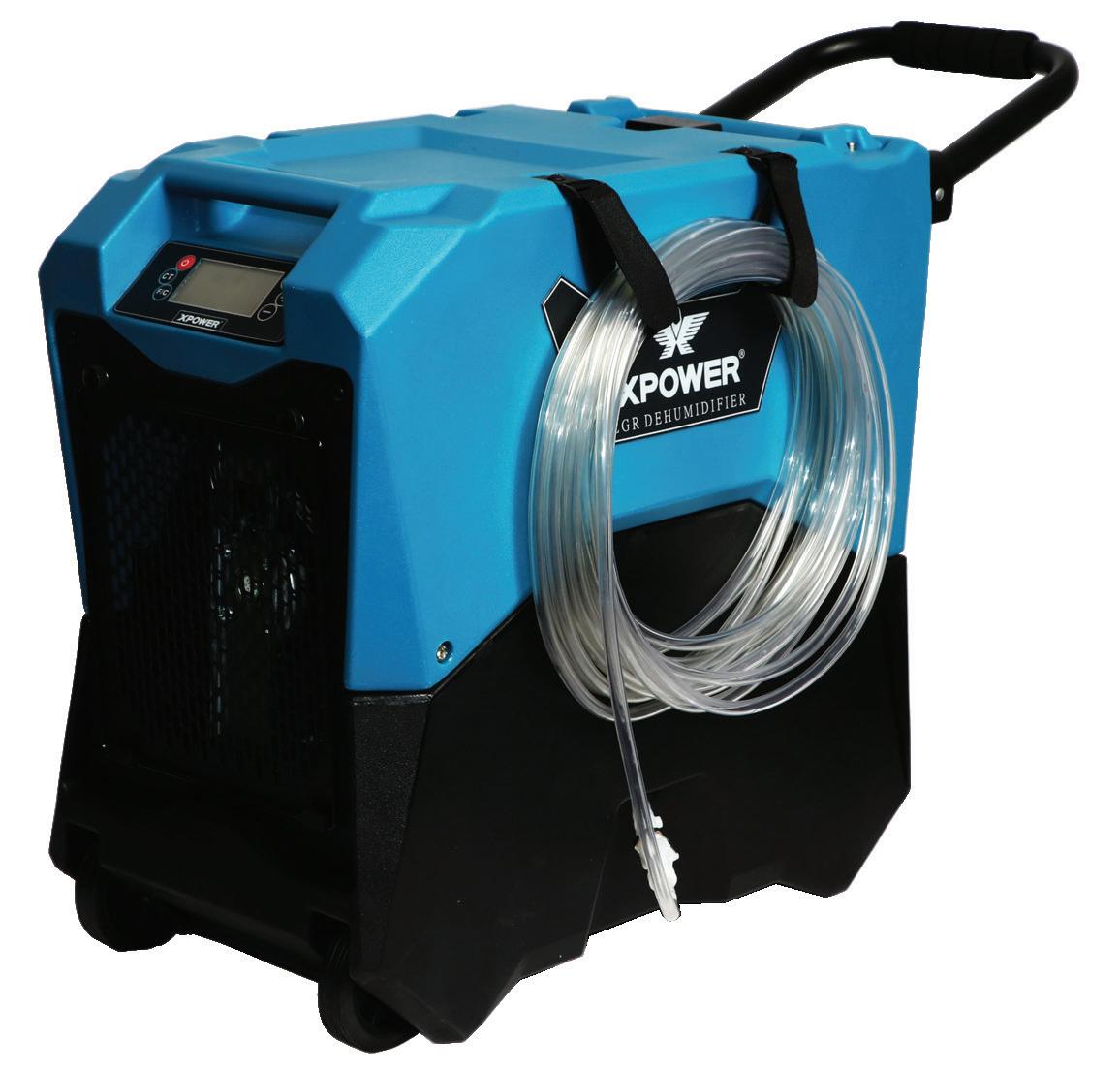

XD-85LH

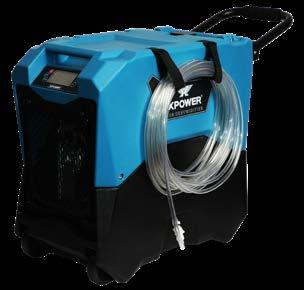

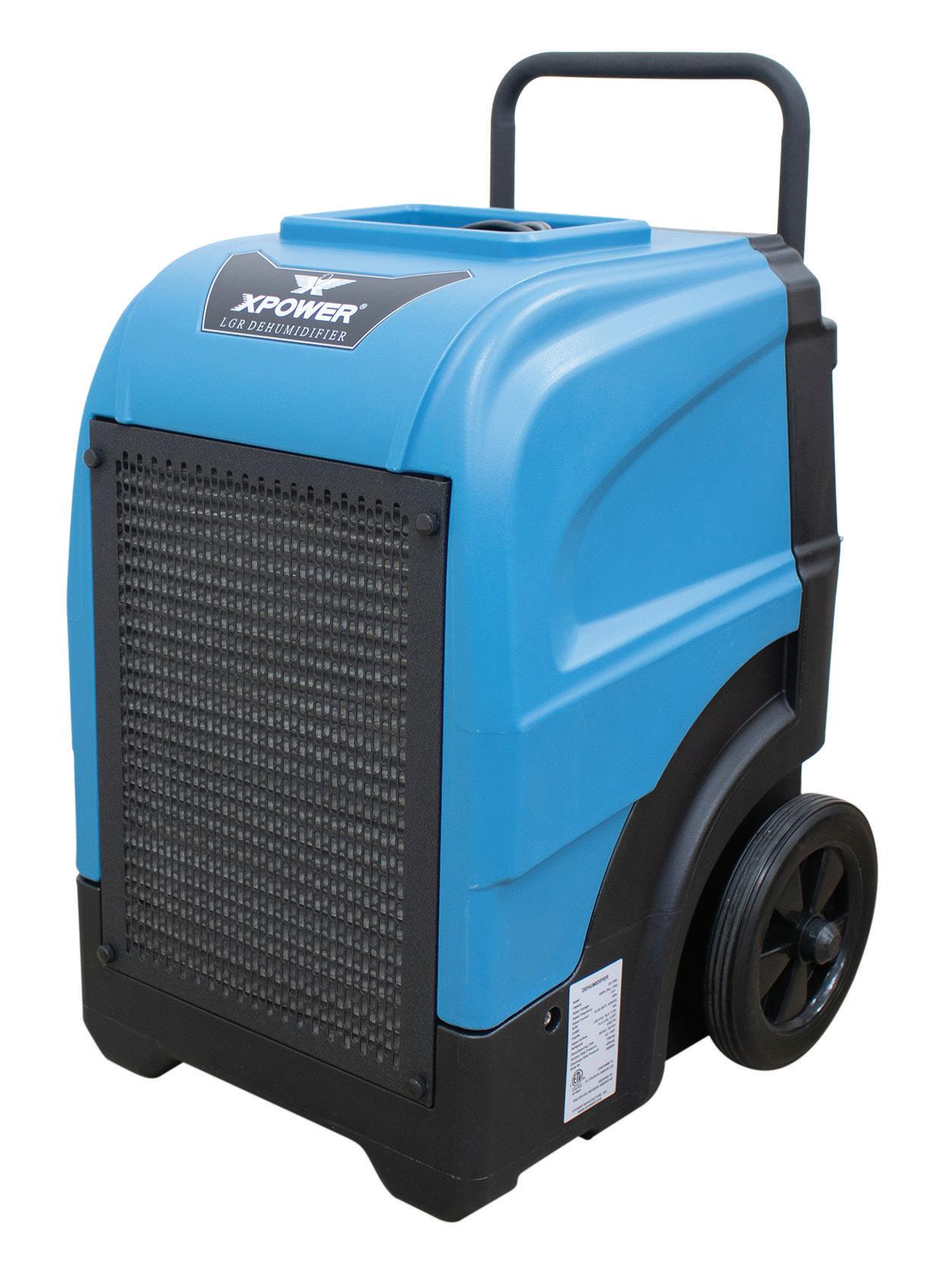

LGR DEHUMIDIFIER

Low Grain Refrigerant

Developed to excel in even the toughest water damage restoration environments, the professional grade XPOWER LGR Dehumidifier extracts more moisture than much larger commercial models. Features ‘Dual Intake Technology’ which boosts efficiency and perfomance in a wide range of operating conditions. Designed to maximise storage space, these compact units stack up to 3 high and features 2 molded handle grip points on the front and back. For added mobility, a separate model including wheels and handle is also available. A user friendly digital control panel monitors your job site’s current humidity and records operating time. Also features an auto purge pump with drainage hose that automatically purges when full, eliminating the task of monitoring collection tank levels.

Model XD-85LH

With wheels and mobility handle

XD-85LH-01 Water Pump Assembly XD-85LH-06 Motor with Fan

XD-85LH-13 Drying Leach

XD-85LH-17 Display Decal

XD-85LH-22 Primary Intake S/Steel Filter

XD-85LH-47 Water Pipe Female Connector

XD-85LH-INTAKEADAP Intake Adaptor

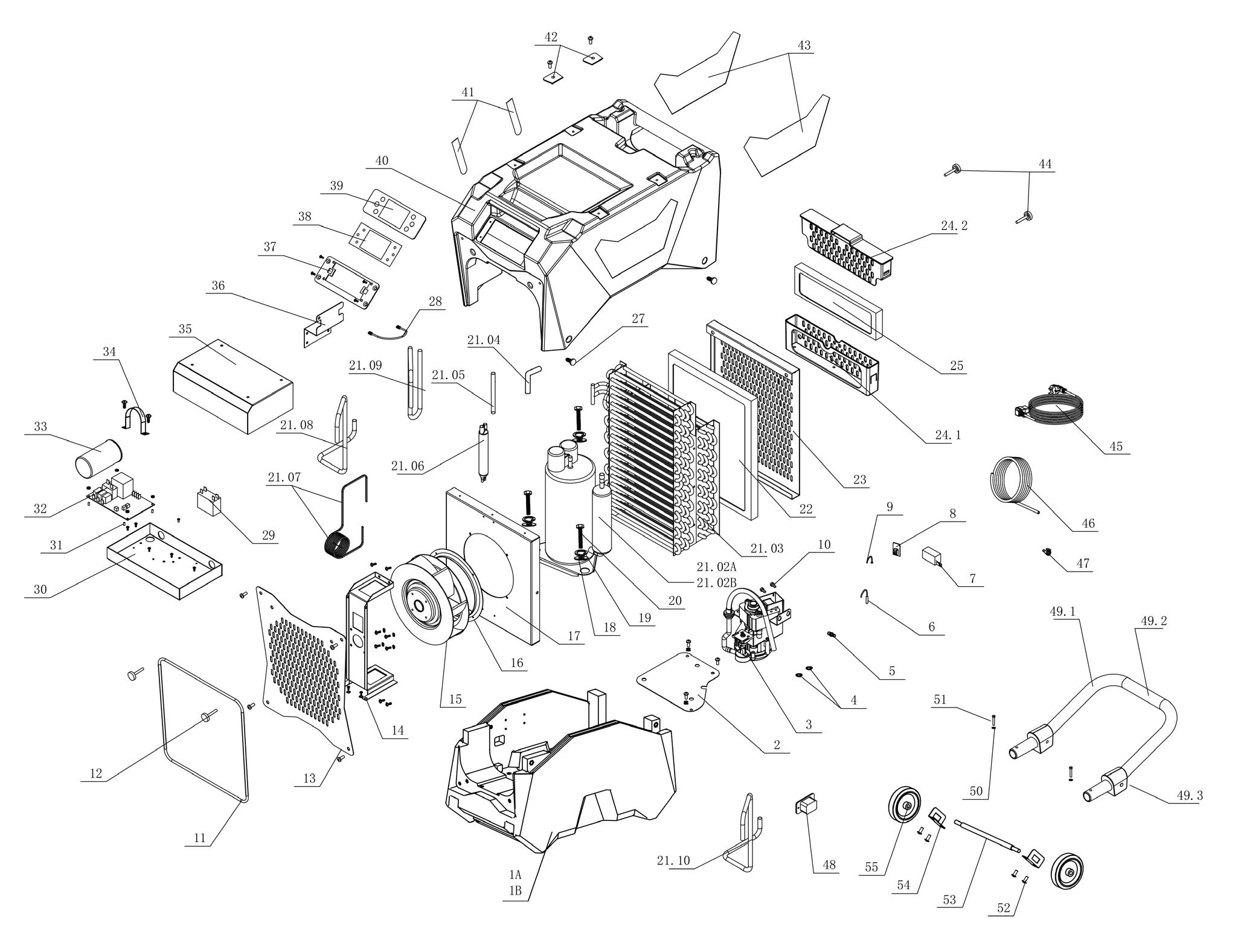

SPARE PARTS

Defrost Sensor

XD-85LH-07 Compressor

XD-85LH-14 E47 Control Circuit Board

XD-85LH-18 Power Cord

XD-85LH-25

Secondary Intake S/Steel Filter

XD-85LH-49 Foldable Trolley Handle

XD-85LH-04 Humidity Sensor

XD-85LH-08 Heating Exchanger

XD-85LH-15 Compressor Capacitor

XD-85LH-20

Water Pipe Male Connector

XD-85LH-41 Velcro Set

XD-85LH-55 Wheel Set

VD-65/85L-DHOSE Drain Hose

XD-85LH-05

Temperature Sensor

XD-85LH-11 Fan Capacitor

XD-85LH-16 E47 Display Circuit Board

XD-85LH-2107 Capillary

XD-85LH-46

12.2m Hose with Connector

XD-HF12

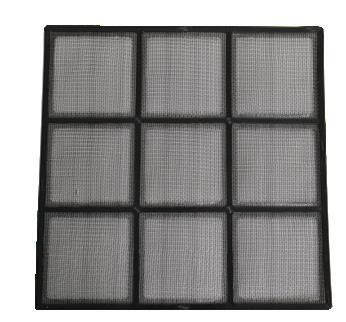

Primary Filter

XD-HF03

Secondary Filter

Photo coming soon!

Photo coming soon!

Photo coming soon!

Photo coming soon!

Photo coming soon!

Photo coming soon!

Photo coming soon!

Photo coming soon!

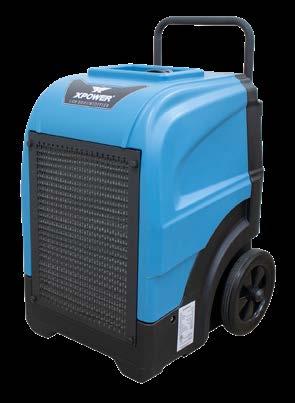

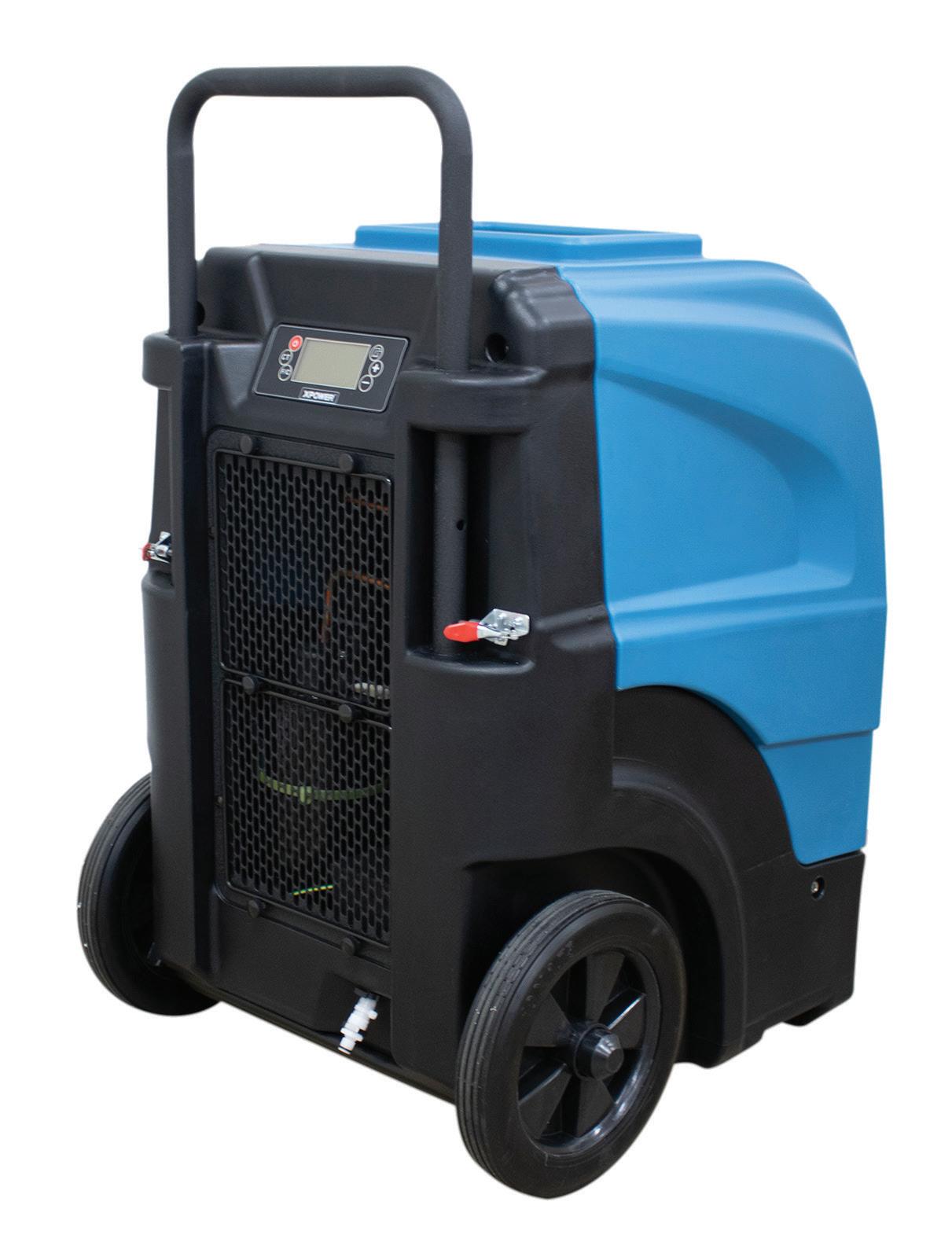

XD-165L LGR DEHUMIDIFIER

Low Grain Refrigerant ®

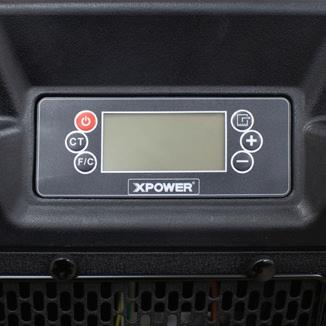

The XPOWER XD-165L Low Grain Refrigerant (LGR) Dehumidifier achieves maximum humidity control and water removal efficiency. This all new ‘XXL’ category unit is capable of removing up to 165 Pints/78 Litres per day @ AHAM (26.7°C, 60% RH) and 280 Pint/132 Litres per day at full saturation (32.2°C, 90% RH). The unit has an electronic display that assists in monitoring the temperature and humidity at the exhaust, as well as recording the total operating life of the dehumidifier. Lay flat ducting can be applied to the exhaust point of the dehumidifier with the dual ducting ring that is included on the unit to transport warm/dry air to where it is needed. Weighing 55kg with rugged wheels and telescoping handle, the ultra-mobile XD-165L gives you class leading LGR performance.

OTHER FEATURES:

• Digital display monitors current humidity and operating time

• Durable and rugged roto-mold housing

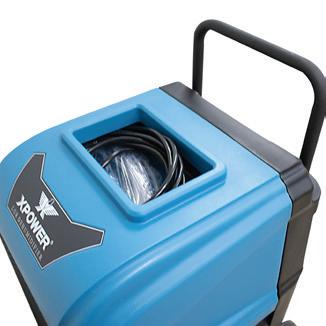

• Convenient power cord / drainage hose storage compartment

• Dual ducting adaptor exhaust capabilities

• Telescoping handle and large wheels for easy transportation

• Auto purge condensate pump with drainage hose automatically purges when full: no need to monitor collection tank levels

• Automatic speed control increases or decreases the fan speed based on the relative humidity and ambient temperature levels in the space requiring dehumidification

Model XD-165L

Water Removal Capacity 165 pints / 78 L /day at AHAM (26.7°C, 60% RH) 280 pints / 132 L /day at Saturation (32.2°C, 90% RH)

Volts/Hertz 220-240V / 50Hz

Amps 5.9 A (low efficient Amps draw)

Rated Airflow 430 CFM

Speed Automatic Speed Control

Filter Type Stainless Steel Filter

Cord Length 7.6 metres

Drain Hose 12 metres

Operating Range 0.6°- 40.6°C / 20% RH

Unit Weight 55kg Unit Size (LxWxH) 56 x 57 x 76cm

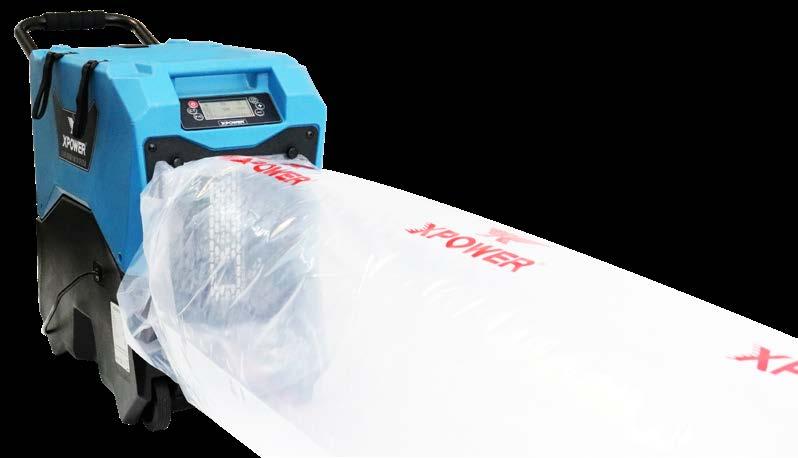

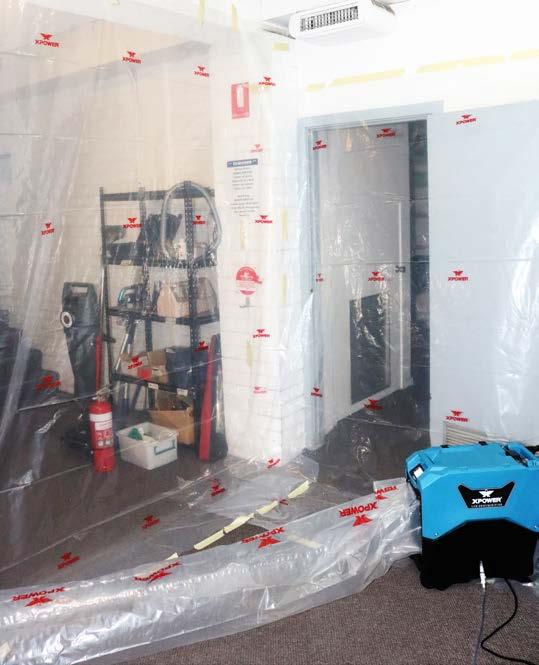

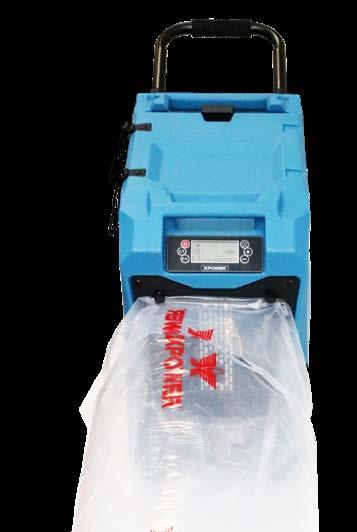

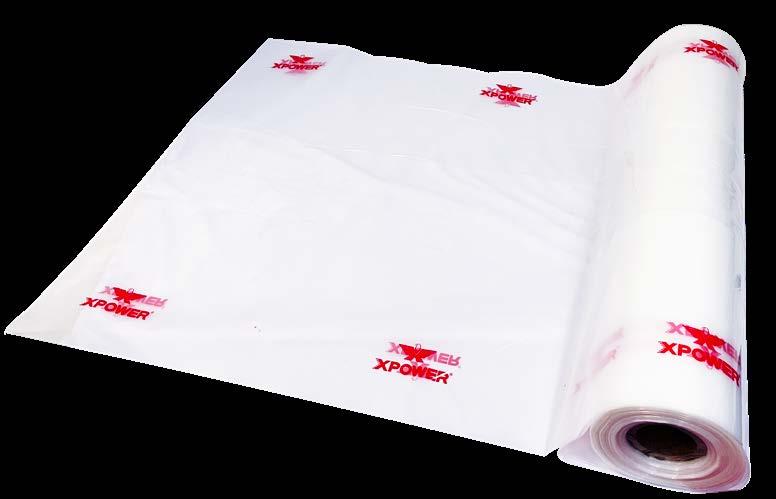

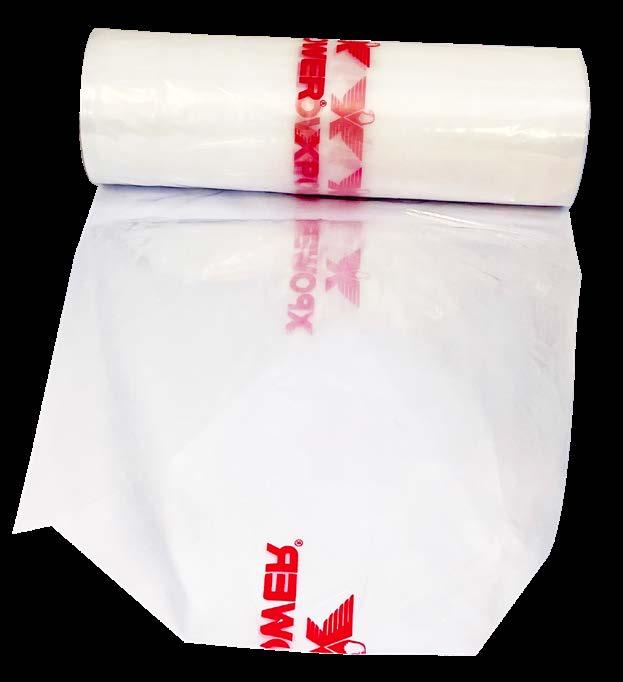

• 50 METRE ROLL • 3 METRE WIDTH • 100µm (MICRON)

®

# FILM-LF

• 110 METRE ROLL

• 560 MM WIDTH

• 90µm (MICRON)

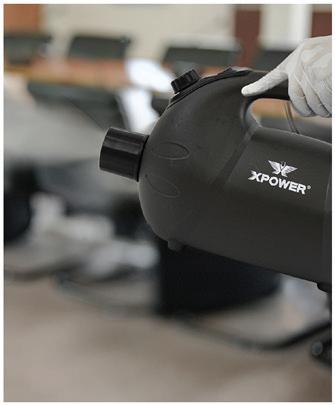

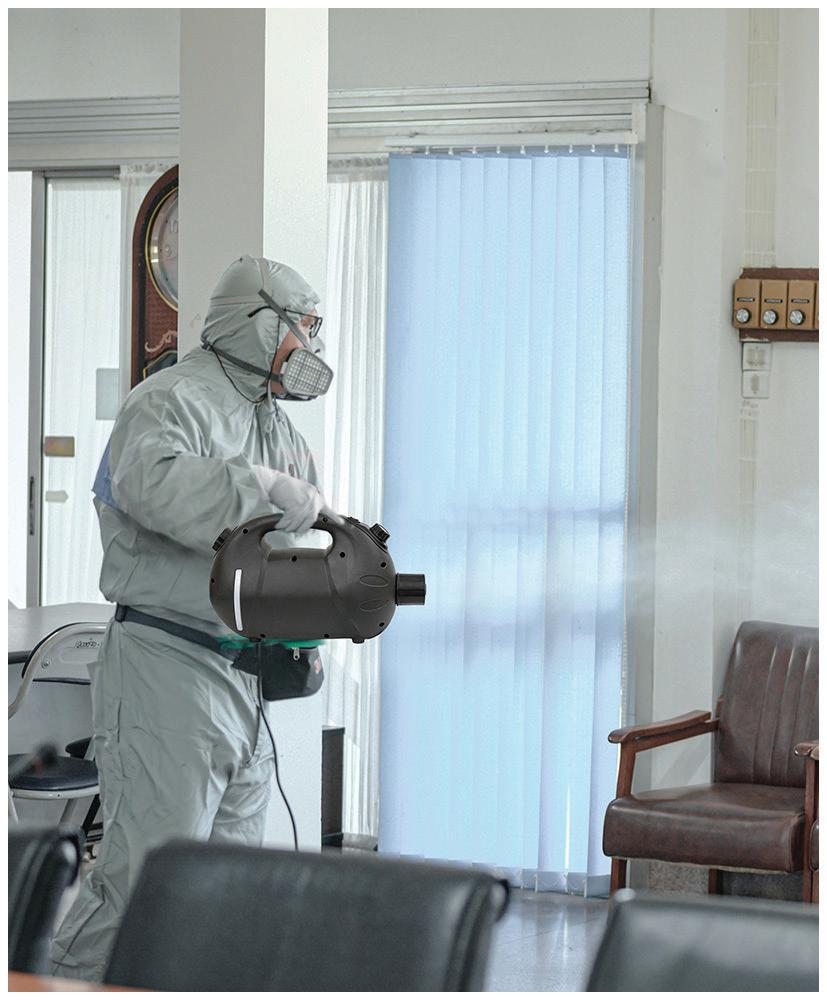

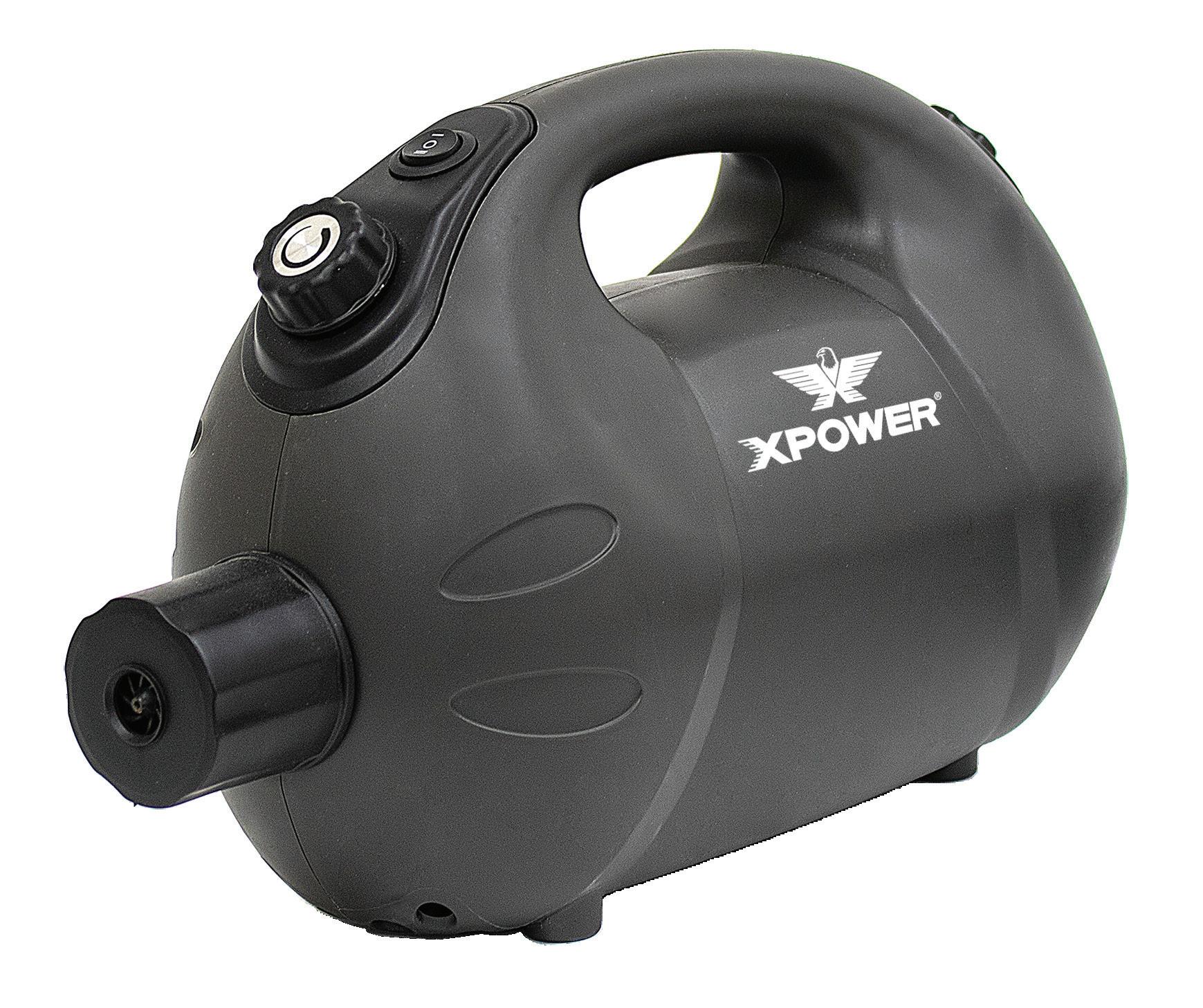

ULV FOGGER

Battery Powered

• Cold Fogger

• Cordless operation

• Battery operated (rechargeable)

• Fogging volume control

• Adjustable flow rate / droplet size

• Portable with carry handle

• Maximum coverage with minimal solution use

• Ideal for use in Disinfection, Pest and Odour Control applications

Battery Lithium ion (rechargeable)

Tank Capacity 1.2 Litres

Power 350 Watts

Droplet Size Average < 50 microns

Spray Distance Up to 8 Metres

Battery Life Up to 32 mins. run time (dispenses approx. 6.4L per battery charge)

Charging Time 3 Hours

Unit Weight Approx. 2.5kg

Housing Strong Polypropylene Body Comes with Charger & Spare Nozzle

NOTE: Consult your chemical manufacturer for relevant product/solution to use with the Fogger. Always refer to the Instruction Manual. Strictly NOT to be used with any corrosive, flammable, alcohol or oil based liquids which may cause a safety hazard or blockage of the fogging system.

Model # F16B

Model F16B

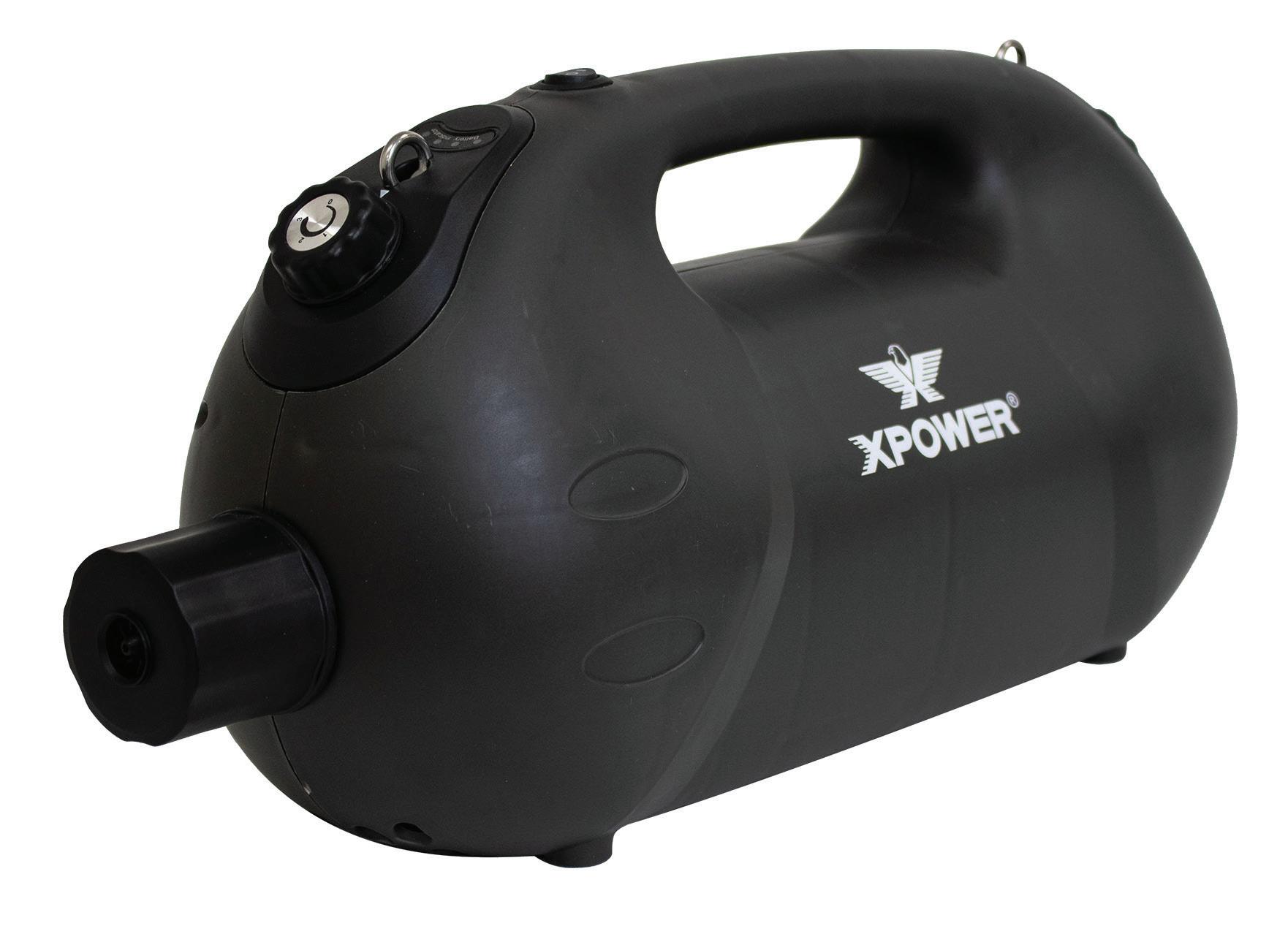

X-LARGE ULV FOGGER

Battery Powered F35B

Ultra Low Volume

Model F35B

Battery Lithium ion (rechargeable)

Tank Capacity LARGE 2.5 Litres

Power 320 Watts

Droplet Size Average < 50 microns

Spray Distance Up to 12 Metres

Battery Life Up to 85 mins. run time

Charging Time 3 Hours

Unit Weight Approx. 3.4kg

Housing Strong Polypropylene Body

Comes with Charger & Spare Nozzle

• Cold Fogger

• Cordless operation

• Battery operated (rechargeable)

• Fogging volume control

• Adjustable flow rate / droplet size

• Portable with carry handle

• Shoulder strap for convenience

• Brushless DC Motor

• 2-speed switch

• Battery indicator

• Maximum coverage with minimal solution use

• Ideal for use in Disinfection, Pest and Odour Control applications

NOTE: Consult your chemical manufacturer for relevant product/solution to use with the Fogger. Always refer to the Instruction Manual. Strictly NOT to be used with any corrosive, flammable, alcohol or oil based liquids which may cause a safety hazard or blockage of the fogging system.

Model # F35B

®

FOR HIGH PURITY INDOOR AIR, XPOWER DELIVER THE GOODS!

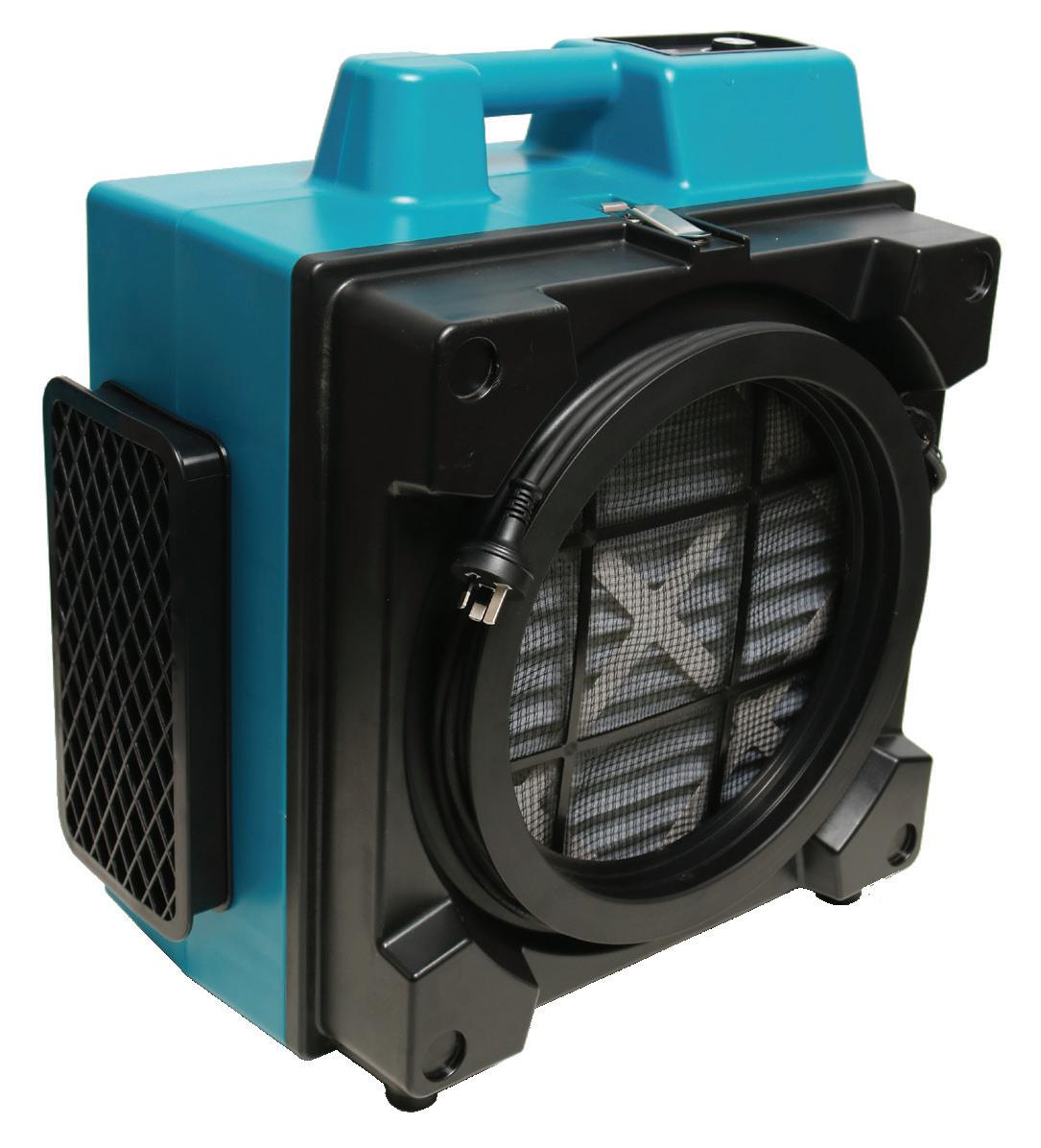

X-3400 Air Scrubber & Purifier

Motor 1/2 HP

Watts 220 W

Amp 1.0 A

Rated Airflow 650 CFM

Filter System 3-Stage Filtration

Speed Control Variable

Unit Size 50 (L) x 31 (W) x 55 (H) cm

Unit Weight 13.1 kg

Housing Durable & Rugged ABS Plastic

Stackable Up to 5 units high

• HEPA Filter Change Indicator Light

• Wrap Around Cord Design • Larger & Wider Air Outlet

• HEPA Filtration 99.975 efficiency

The XPOWER X-3400 Air Scrubber & Purifier is a Commercial Grade portable filtration system that draws air in from the surrounding environment and passes it through a series of filters to remove contaminants such as particles, gases, and/or chemicals. They are commonly used on restoration jobs where airborne contaminants are present or will be created/disturbed during the restoration process, such as mould, dust, fumes, etc. These hazardous particles can settle on carpet, upholstery and furnishings, or be drawn into the HVAC system and contaminate other parts of a building. They can also be used in Public Health Quarantine situations as Air Scrubbers help protect the health of workers and building occupants by providing a clean and healthy environment.

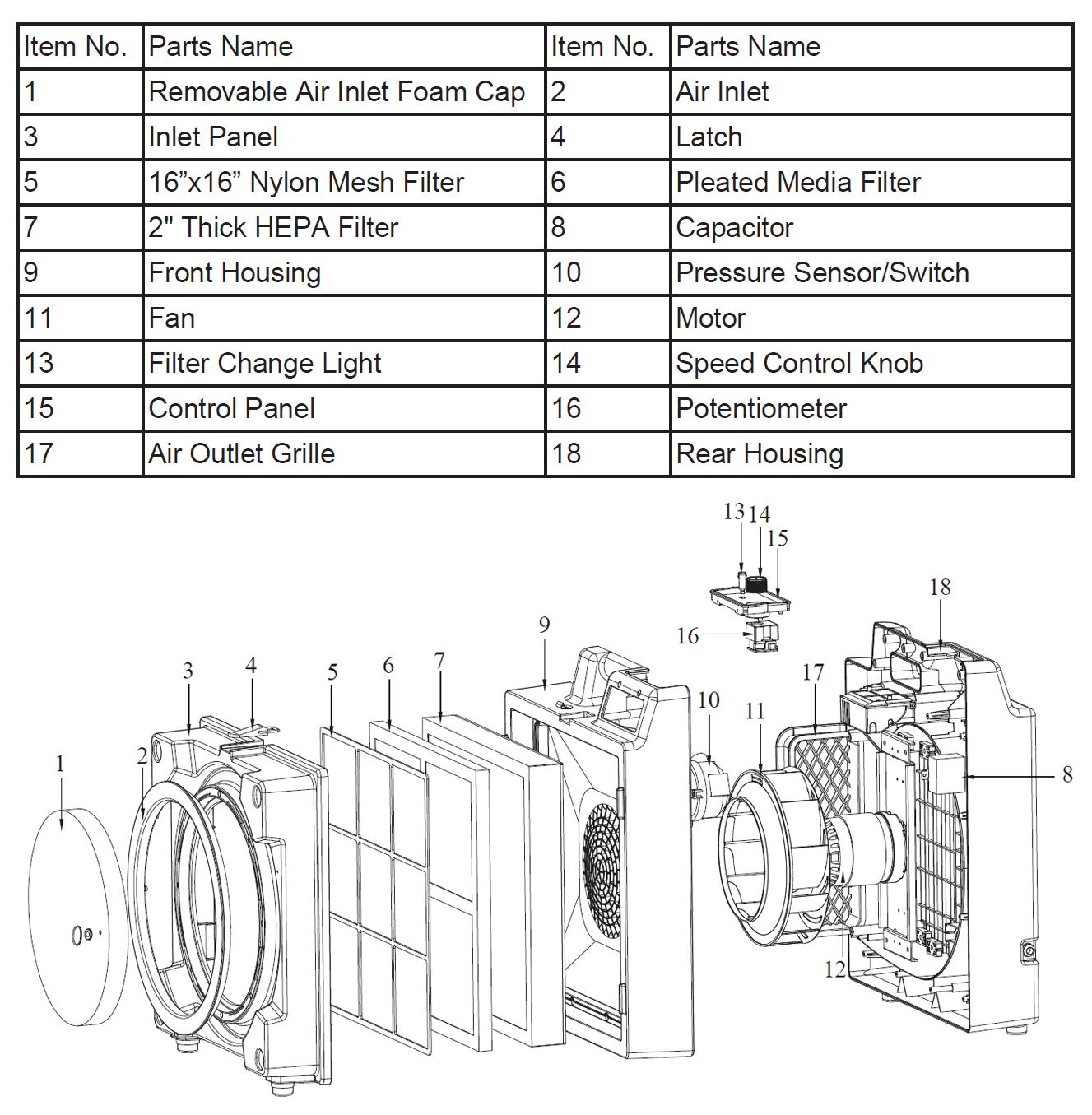

SPARE PARTS

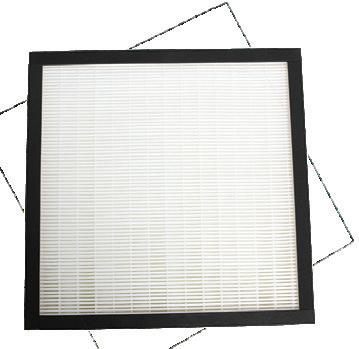

FILTERS (come as standard with machine)

ADDITIONAL FILTERS (sold seperately)

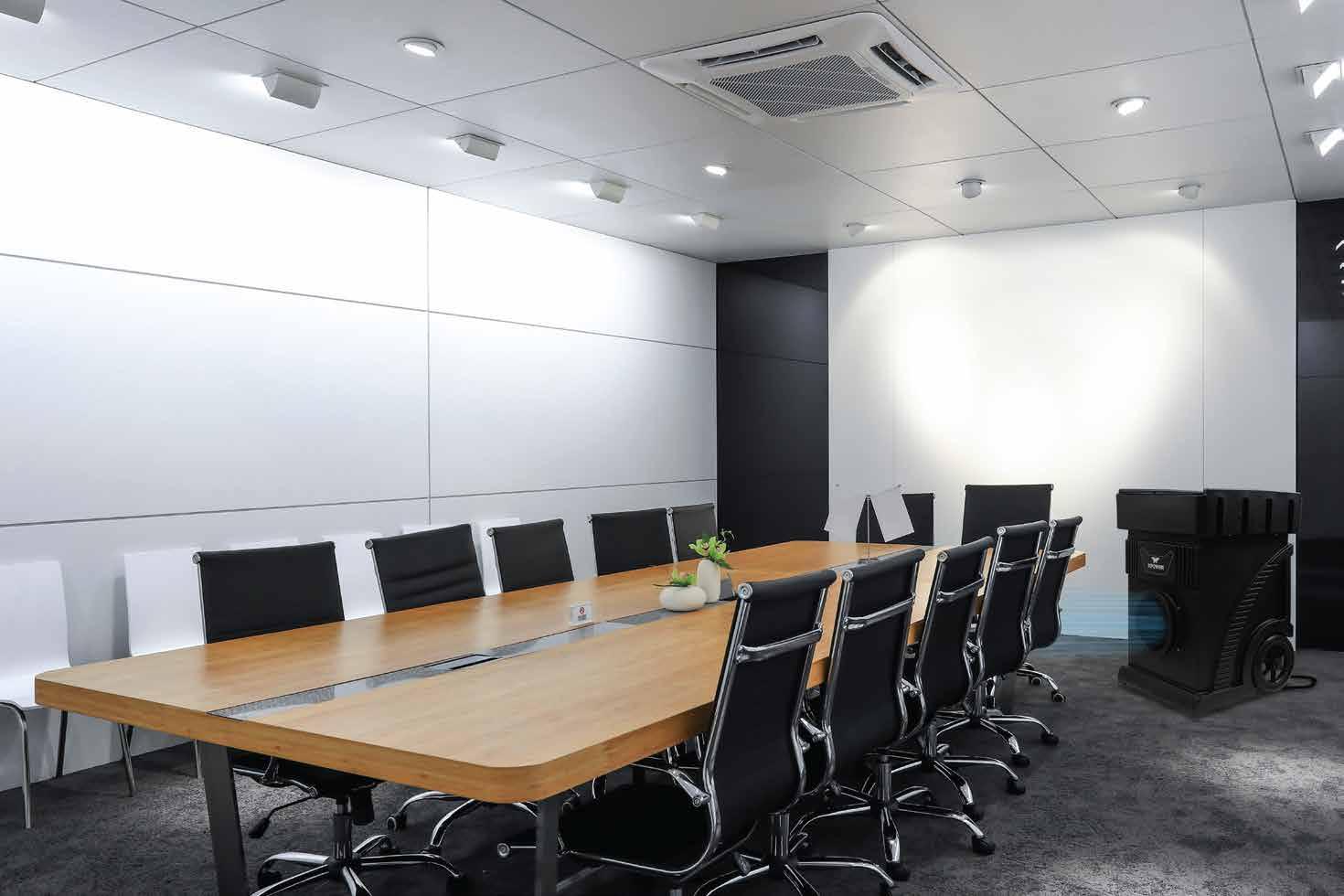

The AP-2500D Brushless DC Motor Large Volume HEPA Air Filtration System with PM2.5 Sensor provides all the power needed for large jobs, while being able to precisely control the speed to its lowest level for all day ultra-quiet operation in settings like classrooms, business, and in occupied facilities where noise level is important. All of this is accomplished through our revolutionary DC Brushless

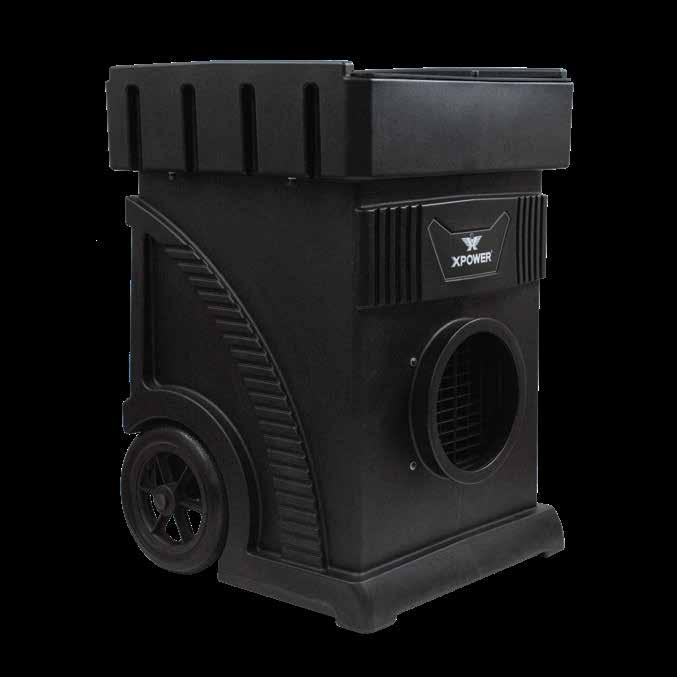

AP-2500D PORTABLE HEPA AIR FILTRATION SYSTEM

Motor, where power meets precision. While drawing only 8.0 Amps, and rated at 2000 CFM, the AP-2500D HEPA has the high volume air exchanges capabilities and ultimate versatility with its precise variable speed control. A new feature built-in the AP-2500D is our digital PM2.5 indoor air quality sensor. Color coded in green/orange/red with a digital readout to monitor your indoor air quality.

Features:

• The most revolutionary large volume ultra-quiet and powerful DC Brushless Motor air scrubber on the market

• Built-in digital PM2.5 air quality meter helps you monitor the air quality with an easy to read digital layout and color coded air quality meter

• Efficiently remediate large spaces such as: hospitals, schools, arenas, gyms, conference halls, hotels, and any other largely occupied areas

• Quiet enough for your everyday operation in settings like offices, schools, and businesses

XPOWER MANUFACTURE, INC

668 S. 6TH AVENUE, CITY OF INDUSTRY, CA, 91746

• Cord storage compartment and also durable aluminum kick plate for easy tilt function

• Easy change filters, no special tools required

• Duct-able 12” exhaust outlet for creating negative air applications

• One-piece durable roto-molded polyethylene housing with wheels for easy mobility

• Easy to service, clean, decontaminate eliminates the possibility of cross contamination

P-230AT X-400

X-600AC

X-800C and X-800HC

X-47ATR

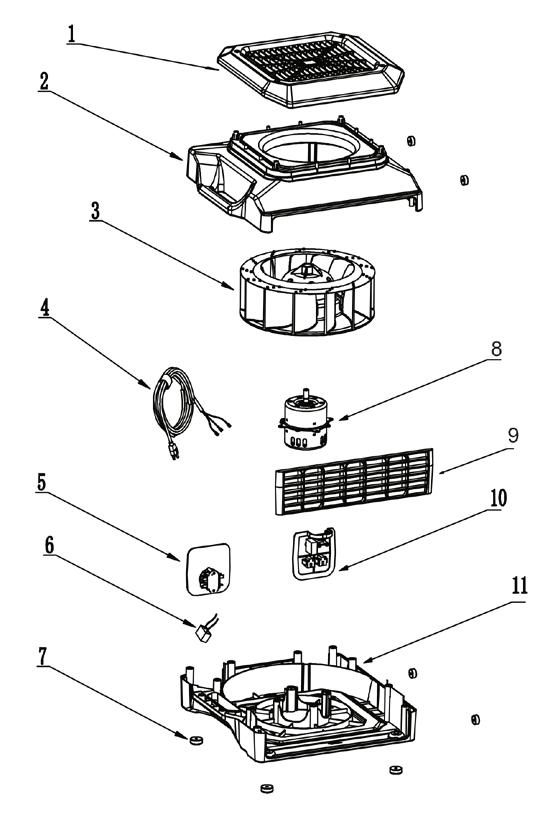

PL-700

PL-700A-08 Motor
