Some of the colour photography used in Building Innovations is provided and paid for by contributors. The publishers do not accept liability for errors that may appear in the publication. This edition is dedicated to our much-loved friend and colleague, Mike Mahon. Always one of us. No part of this publication may be reproduced or transmitted in any form or by any means without the consent of the publisher. Published by L2 Media Ltd, Parkfield Business Centre, Park Street, Stafford ST17 4AL Tel: 01785 223253 Fax: 0845 862 8639 www.l2media.uk

Bloomsbury Mansion Apartment, London - LLI Design

LLI Design were commissioned to completely redesign and refurbish a period apartment in a grand mansion block in the heart of Bloomsbury London. Situated in the historic heartland of the west end and close to the theatres of Covent Garden this 2 bedroom apartment hadn’t been renovated in many years so was in effect a blank canvas to create a beautiful pied a terre for the clients. The brief was to keep and enhance the period details of the apartment, incorporating the clients' inherited furniture pieces and combining them with new contemporary pieces to create an eclectic mix that suited the clients aesthetic.

By way of reconfiguration, clever use of colour and lighting together with bespoke joinery elements throughout, this property was completely transformed from a dark tired apartment into a light filled pied a terre for the clients. It was essential that the apartment kept its character and atmosphere and by taking an holistic and sensitive approach to the design and layout LLI Design created a warm, friendly and practical apartment for the clients whilst staying true to the character of this grand mansion block.

As with the majority of LLI Design’s projects, the construction, joinery and home automation were carried out by their in-house vertically integrated teams - Pegasus Property & Pegasus Automation. LLI Design offers a comprehensive design service, taking projects from briefing through to Handover; creating beautifully crafted interiors for discerning clients. The creative team is led by Co-founder and Design Director Linda Levene. Her background as a fashion and textile designer is reflected in her love of form, texture and colour.

Recent projects include the interior design and modernisation of properties in Hampstead, Belgravia and Highgate including a 10,000 sq ft Victorian residence, a 12,000 sqft new build home and the co-joining and re-planning of two apartments to provide a single luxury penthouse. www.llidesign.co.uk

FHP Secures London’s Greenest Logistics Hub

Building services and engineering consultants FHP has completed a contract to support the multi-millionpound design and construction of the most sustainable logistics hub in London.

The work saw FHP provide a package of RIBA Stage 5 mechanical, public health and 3D Revit design services to the leading developer of modern warehouses and industrial property SEGRO, which recently completed the development of eight grade ‘A’ industrial units with office accommodation and landscaped outdoor terraces on a Zone 3 site in Tottenham.

Achieving a BREEAM ‘Outstanding’ status and an EPC ‘A+’ rating, SEGRO Park Tottenham, which offers almost 200,000 sq. ft. of commercial space incorporating photovoltaic cells, green walls and external amenity areas, reflects a new generation of industrial and logistics parks on the fringes of central London.

FHP was closely involved in the construction design phase to meet occupiers’ wellness and wellbeing needs; utilising carbon negative concepts to improve energy efficiency while delivering high levels of water services, ventilation and drainage across the site building occupiers. This is the latest success for rapidly growing FHP, which currently employs 52 people and continues to recruit staff to strengthen its team to meet strong demand as it targets revenues in excess of £3.5 million in 2022.

Tony Hewitt, managing director, said: “This is another major project for us, reflecting our ability to maintain a strategic view of development projects from an MEP perspective, while delivering detailed quality design work for clients. “We are continuing to develop our commercial offering and this latest success with SEGRO comes at a time when we will continue a growth trajectory over the next 18 months on the back of new work across the UK.”

The director of Pinnacle MEP Jody Parker, said: “We engaged the services of FHP on our SEGRO Park Tottenham project for the design and co-ordination of the Mechanical Services installation. The design had to be undertaken in Revit within a common environment, with complicated interactions across multiple interfaces.

“The FHP team were extremely helpful and knowledgeable throughout the design process, offering multiple solutions to the varying issues we came across. We would recommend their services to anyone looking for a single solution to complicated engineering services design.” www.fhpp.com

Marchini Curran Associates Delivers Landmark Design Works For

£6.7M Expansion Of Leicester Cinema And Arts Venue

The award-winning architects and interior designers at Marchini Curran Associates, have led on design services for the expansion of the independent Phoenix cinema and art centre in Leicester. The pivotal scheme, funded by Arts Council England, Leicester City Council and the European Regional Development Fund (ERDF), alongside independent funding organisations, has transformed the city centre venue with an extension of the Midland Street site, which has been the cinema’s purpose-built home since its relocation to Leicester’s Cultural Quarter in 2009.

The project, which started in September 2021 under the Scape National Construction Framework has involved adding two new cinema screens, a large digital art gallery, extended café bar, a multi-purpose events space and rooftop terrace bar, to accommodate more visitors and expand the programme of this much-loved independent cinema and arts venue which has been part of Leicester’s cultural scene for 60 years.

The client design brief was a fully inclusive environment catering for the diverse spectrum of user groups, staff, and visitors - to create a multi-functional space that changes its personality from the day into the evenings. The integration of spaces was key and the concept of the building was designed to counterbalance the enhanced box office within the existing building with a new café bar space, forming a bookend within the new extension, to create a seamless harmonisation between old and new.

To achieve this Marchini Curran introduced a new two storey spine wall that runs from the two existing cinema screens through the building to link the gallery, café bars and new screens together. A feature staircase runs up the side of the spine wall giving visual access to the upper floor roof terrace, allowing natural light to penetrate the centre of the ground floor dining area.

Andrew Bull, Director at Marchini Curran Associates, said: “Phoenix is an integral part of the city, offering invaluable space for the independent film and arts scene to thrive and we’ve treasured delivering architectural and interior design works for such a renowned cultural arts space in the city of Leicester.”

John Rance, Phoenix Chief Executive, said: “People love the new spaces. The reactions of our diverse customer groups and stakeholders has been very positive.” To find out more about Marchini Curran Associates and Marchini Interiors please visit: www.mc-a.co.uk and www.mc-a.co.uk/interiors

1 Wood Crescent Completed At Television Centre

Stanhope, on behalf of investors Mitsui Fudosan and Alberta Investment Management Corporation (AIMCo), and some of their clients, is announcing today the completion of 1 Wood Crescent at Television Centre in West London and its availability for letting to prospective tenants.

1 Wood Crescent is a new nine storey building comprising 112,247 sq ft of prime office space located on the west side of the Television Centre campus which includes multiple terraces, all with views over Hammersmith Park and the surrounding White City area and beyond. The building is designed by architects Morris+Company and constructed by Laing O’Rourke. PVH Corp., parent company to brands including Calvin Klein and Tommy Hilfiger, has already leased the top five floors of the brand-new building as its new UK headquarters, totaling 50,000 sq ft of office space.

Jonathan Trout, Property & Commercial Director, Stanhope said: “We are looking forward to welcoming PVH Corp. to the completed 1 Wood Crescent building, providing the fashion and lifestyle powerhouse a Grade A, BREEAM ‘Excellent’ building as the base of its UK operations. The creative giant is an invaluable addition both to Television Centre and White City Place which attract global brands as occupiers across the media and sciences sectors.”

Tomoo Nakamura, Managing Director, Mitsui Fudosan UK said: “We are proud of the delivery of 1 Wood Crescent only two years following the start of construction. It is another successful milestone in the redevelopment of Television Centre. Mitsui Fudosan are delighted to be offering worldclass facilities to creative companies looking to move to a growing innovation and business hub in West London.”

1 Wood Crescent will take its place at Television Centre, a thriving estate at the heart of an £8 billion regeneration of White City. The unique mixed-use site has rapidly become one of the UK’s most forward-thinking hubs for creative industries, café and restaurants, apartments and a hotel attracting some of the UK’s best creative talent and businesses, alongside the neighbouring business, creative and life sciences innovation district at White City Place.

www.stanhopeplc.com

STRAND HARDWARE GETS TOP MARKS FOR SERVICE

Customer service is what sets Strand Hardware apart from its competitors – for 32 years it has gone above and beyond for its clients, providing technical advice and expertise with fast and efficient service. It continues to set the bar ever higher by measuring its performance against rigorous targets to ‘add value’ to the sale of its specialist hardware for doors and windows. In the past year, it has achieved a 99.54% on time, in full (OTIF) average on its orders - exceeding its 98% target.

Operations Director Jo Wallis said that customer service was Strand’s differential. “Operating within a business-to-business environment, we talk to all sorts of prospective customers and clients: from architects and developers to architectural ironmongers and installers. Every person will have different levels of knowledge which may require varying advice and support. Fortunately, we have an experienced team with extensive experience across the business. Our customer service starts with that first contact, carefully listening to what a customer wants to achieve and asking the right questions to guide them to the best possible solutions.” For more information of Strand Hardware’s range of specialist architectural ironmongery contact: info@strandhardware.co.uk or call: 01922 639111

SCHLÜTER-SYSTEMS - INSTALLER SHOW PREVIEW

At this year’s Installer Show, Schlüter-Systems (stand H20, Birmingham NEC, 27-29 June 2023) will be focusing on their impressive range of underfloor heating solutions which comprise both electric and hydronic (water-fed) systems. The new DITRA-HEAT-PS is a peel and stick version of the company’s established electric system. The membrane enables simple, clean and quick installation of electric underfloor heating with a thin layer of pre-applied pressure sensitive adhesive on the underside.

It is a great solution when tiling on P5 or green chipboard; and will work with other substrates provided they are rigid, even, load bearing, clean and dust-free. In addition, Schlüter-Systems will demonstrate Schlüter®-BEKOTEC-THERM, the water-fed underfloor heating solution with low construction height. The modular system results in an energy-efficient heated floor system with low water supply temperatures. The team will be conducting practical demonstrations throughout the show. The sales and technical teams will be on the stand to answer queries and there will be lots of samples to see and take away. www.schluter.co.uk

RARE LE CORBUSIER £1K LITHOGRAPH POSTER TO BE WON WITH CRITTALL

Steel windows and doors manufacturer Crittall Windows is offering architects a unique chance to win a rare original lithograph poster that celebrates the work of the famous Swiss architect Le Corbusier. Valued at £1000, “Tapisseries en L’eglise de Chateau

Fellentin Creuse“ is a rich and beautiful traditional stone lithograph exhibition poster printed in 1963 by Atelier Mourlot. The free, simple-to-enter competition, which closes on 20th June 2023, is open to all UK registered architects. www.crittall-windows.co.uk

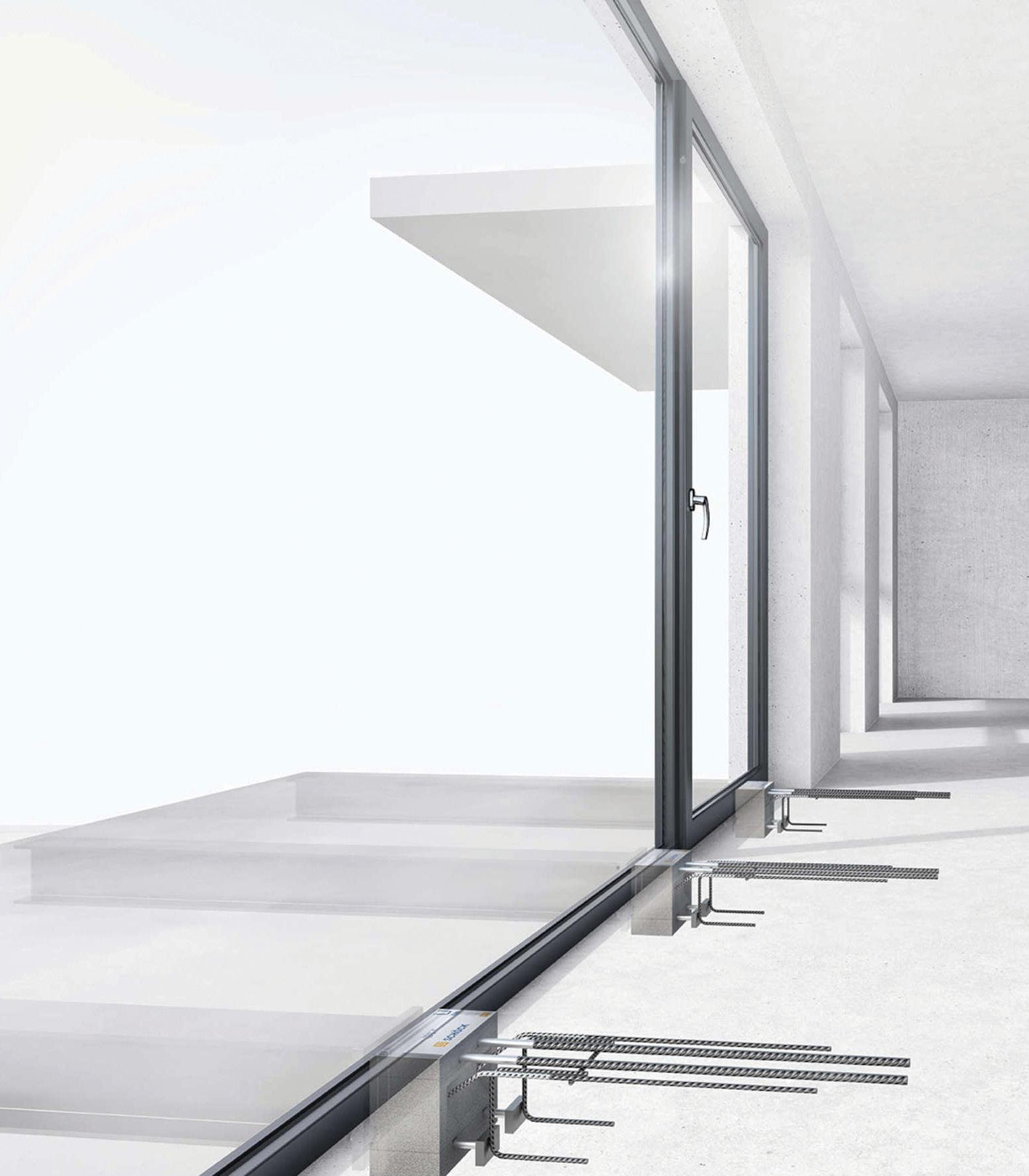

MODULAR HOUSE BUILDER OPENS THE WINDOW TO NEW ISO CHEMIE WINFRAMER SPECIFICATION

ISO Chemie’s thermal insulating and load bearing bracket support system has been specified by a leading modular house builder for installation in its new designs. The development sees WINFRAMER units along with WIN2WALL multilevel sealing tape supplied to CoreHaus, as part of the company’s plan to produce around 1,000 precision engineered units a year built using modern methods of construction.

Passivhaus certified and fire rated to up to 30 minutes, WINFRAMER is a prefabricated installation frame, manufactured to accommodate cavities up to 250mm that allows windows to be supported independently from the face of the wall regardless of any external cladding being in place. www.iso-chemie.eu/en-GB/home/

STYLE'S SCOTT MCKENNA RUNS FOR STRONGMEN CHARITY

Scott McKenna, Style south’s specification manager, recently completed his first official half marathon in 2hrs 20mins, raising money for the StrongMen charity which provides support for men suffering from bereavement.

The StrongMen charity provides support to men who can often be overlooked after a bereavement and can suffer severe emotional and physical health conditions. Many men can struggle with crippling anxiety, depression and PTSD but do so in silence as there is often an assumption that they are OK. The charity was co-founded by Efrem Brynin who, as well as running the charity day to day, also prioritises working with certain key clients for Style making it one of particular personal importance to everyone in their business. www.strongmen.org.uk

THE SASH WINDOW WORKSHOP LAUNCH ‘A’ RATED TIMBER WINDOWS

With the increasing focus on how to improve energy efficiency within UK homes, The Sash Window Workshop are proud to announce the launch of their new ‘A’ rated timber windows. The windows are designed to improve energy efficiency while also being period appropriate. New windows are doubleglazed and draught proofed, with excellent attention to detail to ensure that the traditional appearance is retained. The company use Accoya wood, which comes with a 50year anti-rot guarantee and is known for its stability and durability. www.sashwindow.com

UZIN are excited to announce the launch of UZIN L2 Contract, a new cost effective 2 part smoothing compound. UZIN L2 Contract is a cement based 2 part smoothing compound for use up to 15 mm. It is quick setting allowing fit on the next day as well as providing excellent flow and workability.

It is ready to receive most floor coverings after only 6 hours, has good strength and produces a smooth finish. It is ideal for refurbishing over old floors as it can be applied over a variety of different subfloors when the substrate is primed with a suitable primer. Please visit https://uk.uzin.com/ for more information

UZIN LAUNCH UZIN L2 CONTRACT

Access 360 Celebrates CPD Success

Access 360, one of the UK’s leading access solutions manufacturers, delivered over 150 Continuing Professional Development (CPD) seminars throughout 2022, sharing expert knowledge and advice with over 3,000 architects, specifiers and contractors. As a building products manufacturer positioned at the forefront of industry advancements, Access 360’s complete suite of RIBA-accredited CPDs provide industry professionals with the very latest guidance on regulations and best practice.

3,153 professionals attended 156 CPDs last year, which were delivered by Access 360’s experienced team of Specifcation Sales Managers as part of online webinars or in person seminars. This includes its most popular CPD, Fire & Smoke Access Solutions, which explores the fundementals of fire ratings and certification, in addition to successfully managing access, fire safety and security requirements for commercial and residential buildings.

The Roof Access and Natural Smoke Ventilation for Flat Roofs CPD outlines current practice regarding the provision of smoke ventilation and roof access, whilst discussing new design considerations and applications as a result of latest Building Regulations. It also provides best practice guidance on the installation of roof safety products.

Access 360’s flagship CPD, Safe, Practical and Aesthetic Roof, Celing, Wall and Floor Access Solutions, provides an essential guide to the specification of access solutions. Exploring the purpose and reason for access, whilst also identifying and overcoming access challenges, the

CPD advises professionals on how to successfully meet the requirements of all project types. Marcus Parnham, Commercial Director for Access 360, said: “As one of the industry’s leading manufacturers of access solutions, we have a repsonsbility to ensure we are supporting industry professionals in achieving successful and compliant specifications for every project."

“That’s why we are committed to delivering an extensive CPD programme that addresses the very latest regulatory changes, in addition to current industry trends and requirements. Throughout 2023, we will be building on last year’s success to provide even more professionals with the advice and guidance they require.”

Access 360 will be extending its CPD programme throughout 2023 and is encouraging construction professionals to contact them regarding topics they require information and support on. To submit a suggestion, or to sign up to an online CPD, or arrange for one of Access 360’s Specification Sales Managers to deliver a CPD seminar in person, please email cpd@ access-360.co.uk.

Access 360 comprises of Bilco UK, Profab Access and Howe Green, which together provide a total manufacturing solution for roof, ceiling, wall and floor access products to the construction industry. For further information on Access 360 visit www.access-360.co.uk

SIDERISE ACCREDITATION SUCCESS WITH ISO 45001

Siderise Special Products has demonstrated its ongoing commitment to excellence in occupational health and safety, achieving certification under the globally recognised ISO 45001:2018 for its primary production site in Suffolk. ISO 45001:2018 is the leading international benchmark for occupational health and safety (OH&S) management systems, developed to support and recognise organisations that are serious about improving employee safety, reducing workplace risks and creating better, safer working conditions.

It enables organisations to proactively improve occupational health and safety management and provides reassurance to employees and customers that workplace safety is a priority. To achieve certification, the site underwent a rigorous, independent assessment covering a range of areas including risk assessment, emergency preparedness and staff training, confirming that it provides a safe and healthy working environment for staff and is committed to continually raising its practice.

Achievement of the ISO 45001 accreditation supports and further enhances Siderise’s management system, which is certified to ISO 9001 (quality) and ISO 14001 (environment). In addition to demonstrating commitment to continual excellence and improvement of internal operations, the standard also contributes to a number of the UN Sustainable Development Goals, including Good Health and Wellbeing and Decent Work and Economic Growth. www.siderise.com

HADDONSTONE'S SPECIALIST ARCHITECTURAL AND GARDEN STONEWORK

Haddonstone is a trusted, established specialist, with an enviable heritage, in the design and manufacture of architectural and garden stonework. The ranges comprise cast stone architecture in traditional, classical and contemporary designs for residential and commercial projects; and beautiful formal and informal garden, home and landscape products.

All products are made to order in Northamptonshire with UK-sourced materials and are available in both standard and bespoke designs and colours. Stunning Show Gardens are located in East Haddon, near to the manufacturing facility. Since the company's conception 50 years ago, the company has grown to become an international market leader, with factories across the UK and US and distribution to over 15 countries.

Bespoke designs to almost any specification can be produced, with unique moulds, in three different materials which cater for all requirements including large structural units or light-weight retro-fit units. The colour and material matching service, alongside a combination of the latest 3D technology and more traditional techniques, create exact replicas of original components. Haddonstone is the perfect choice for Grade II, II* and I restoration and extension projects. www.haddonstone.com

Metrotile Launches Innovative New Fully-Integrated Solar Tile

Metrotile UK, a leading supplier and manufacturer of lightweight steel roofing systems has launched its innovative, fullyintegrated solar tile, the ‘eQube’, providing an easy to install, efficient and stylistic option for renewable energy solutions.

The eQube tile, manufactured in partnership with Verditek who produce the solar cells, has been specially pressed into Metrotile’s popular Qube profile to provide an integrated, sleek solar panel that is designed to be installed all in one installation, making the process of providing solar power to homes a less daunting and more efficient task. The benefits of a fully-integrated solar tile means it adds no additional height, therefore providing an attractive aesthetic design whilst reducing the need for retrofitting traditional photovoltaic panels to an existing roof system.

Traditional PV panels also raise weight bearing concerns to roofs, which the eQube overcomes with each tile adding only 1kg to the roof –roughly 6 times lighter than conventional PV panels. The lightweight nature and ease of installation and transport makes it a viable option for providing solar power for offsite

and modular construction. From a technical perspective, Metrotile can guarantee the eQube for 25 years, whilst also offering a 10-year peak performance warranty. Each tile provides 67W of power - 60 tiles for 4kwh - generating enough power for a standard detached house, providing the same efficiency per square metre as many traditional PV systems. Metrotile designed the eQube with many of the normal drawbacks of conventional solar panels in mind.

There are 21 individual multicristaline cells per tile, ensuring that if one fails, the rest of the cells keep working. The state of the art thinfilm busbar filament technology confirms the tiles as self-cleaning, with no requirement for maintenance as dirt and silt won’t stick to the panels. Another main benefit of the eQube is that it runs on daylight energy, not sunlight like many traditional panels, a major plus in the UK with the volume of gloomy days year round! www.metrotile.co.uk

NULLIFIRE EXPANDS INTO A NEW SAFE SPACE

The commitment towards protecting both people and buildings from fire takes Nullifire, a brand of CPG UK, once again one-step further in its fire stopping product offering, with the launch of a new safe space to stop fire spread! Cavity barriers have been in high demand due to their role and importance in safeguarding buildings. Cavity barriers are passive fire protection products made of fire-resistant materials, they are used to seal cavities and therefore, prevent the spread of flames and smoke through spaces within the cavities of the building.

This process slows the spread of a fire, increasing the time people are able to evacuate the building and allowing the fire fighters to get the fire under control on a faster time frame, thus reducing the damage to the building. Launched at the Fire Safety Event 2023, and new to Nullifire’s fire stopping product portfolio is the following diverse product range: FJ260 Cavity Barrier, FV025 Small Ventilated Cavity Barrier, FV050 Small Ventilated Cavity Barrier, FV125 Large Ventilated Cavity Barrier, FV225 Large Ventilated Cavity Barrier, FV144 Large Ventilated Cavity Barrier and FV065 Small Ventilated Cavity Barrier Roll. These products are the only product range that has testing with SFS (steel frame system) systems. These new additions represent an important step in Nullifire’s approach to supplying the complete fire stopping solution, which help support the increasing demands for supply chain efficiencies and certified fire protection solutions. More details at nullifire.com/en-gb/products-systems/fire-stopping/cavity-barriers/.

Flowcrete are pleased to announce the launch of a new RIBA approved Continuing Professional Development (CPD) seminar, The Importance of Protecting Car Park Structures. The newly launched CPD covers some of the common methods of waterproofing car park structures such as polyurethane, asphalt and polymethyl methacrylate along with their benefits and pitfalls. Participants are also provided with key guidance when specifying resin waterproofing for multi-storey car parks such as slip-resistance and fire safety which are important factors in the design of construction projects such as car parks. The presentation goes further to break down the different considerations depending on whether it’s a new build or refurbishment car park project, and how this makes a difference to how much remedial work is required and the overall costs.

Finally, the seminar discusses what manufacturers can do to assist in sustainable architecture to minimise environmental impact. The 60-minute session can be delivered virtually or face to face by one of Flowcrete flooring experts. Rejoice Chikosi, Flowcrete PR and communications manager says, “Though car parks might look like solid stable constructions, they are quite vulnerable due to several issues and our new CPD has been designed to help you make informed product and system choices on your upcoming car park projects. “Training and development are cornerstones of our business, and we are pleased to expand our CPD portfolio to building professionals.” To book a CPD seminar, visit www.flowcrete.eu/en-gb/campaigns/flowcrete-and-riba/riba-cpd-seminars-booking-request-form

CPG’S FLOWCRETE LAUNCHES NEW RIBA APPROVED CAR PARK CPD SEMINAR

Leading Sussex Brickmaker Joins The Brick Development Association

Sussex Handmade Brick, one of the most successful independent brickmakers in the south of England, has joined the Brick Development Association (BDA). The BDA is the national authority on clay bricks and pavers, advising and promoting the interests of its members, who comprise all the leading brickmakers in the UK.

Harry Harrison, director of Sussex Handmade, based at Three Oaks, near Hastings, explained: “We have been considering joining the BDA for the past couple of years now. We will now have the opportunity to enter the BDA’s prestigious Brick Awards, the Oscars of the brick industry, and to showcase our products and skills to the right customer base, especially architects and housebuilders.” The company, established in 1896, produces 2.25 million handmade bricks a year in 14 different styles.

Bespoke bricks can also be created for customers. Keith Aldis, the chief executive of the BDA, commented: “We are delighted to welcome Sussex Handmade Brick as a new member. The company has an illustrious history and has recently completed some absolutely stunning projects of which they are rightly proud. “We look forward to working with Sussex Handmade to promote their products, look after their interests and to engage with them on two of our key campaigns - one on sustainability and one on anti-slavery."

“We are committed to a sustainable future for the brick industry and we have launched an anti-slavery campaign to combat the terrible conditions in which bricks are made in S-E Asia and then sold over here as British bricks. Sussex |Handmade have already indicated they will support both campaigns.” Mr Harrison commented: “Joining the BDA is a significant new chapter in the proud history of our company. As we continue to successfully restore and to renovate existing period buildings as well as creating sensitive new builds, it will be very reassuring to have the support of the BDA.”

Sussex Handmade have recently completed three prestigious projects. They are: Athlone House in Highgate – formally known as Caen Wood Towers - was built in the 1870s and has been the home of several important industrialists. It has recently been transformed from a derelict house to the impressive grande mansion, estimated to be worth in excess of £130m.The company provided over 200,000 handmade bricks and 40,000 bespoke handmade brick specials and worked with another BDA member, Marshmoor Bricks on this magnificent project.

Winchester College is an all-boys private school with approximately 700 pupils. This modern housing project, which was undertaken by architects Cowper Griffiths presented many challenges. Located close to the Kings Gate area of the college, the development comprised 11 beautifully designed terraced houses.

Sussex Handmade Brick manufactured over 70,000 bricks and specials in a bespoke blend of Guestling Red, Waverely Orange and Westfield Bricks to echo the area’s rich history.

The Galleries, Brentwood, Essex. Originally built in the 1850s as a hospital, it closed its doors in 2001. After standing derelict for 14 years, City & Country painstakingly and sympathetically restored the buildings. After helping with several of City and Country’s projects, Sussex Handmade was approached to assist with this particularly challenging project and provided in excess of 150,000 bricks in a blend of Guestling Red, Waverley Orange as well as blue glazed headers to restore and renovate the existing period buildings onsite as well as creating sensitive new builds.

Mr Harrison concluded: “We are very proud of our part in these three projects and our role in keeping the art of handmaking bricks alive. All our bricks are hand thrown into traditional hardwood moulds, sanded and cut and turned by hand. Now, thanks to our membership of the BDA, our story is going to reach a much wider audience.”

www.sussexhandmadebrick.co.uk

Tile of Spain – Tile Trends from Cevisma 2023

Tile of Spain – Tile Trends from Cevisma 2023

After a two year hiatus, the Cevisama tile fair in Valencia returned with a flourish in 2023 and with 436 exhibitors. Exciting new designs, innovative technologies, inventive formats and inspiring trends were all present at a buzzing show that welcomed 74,115 visitors (25% from outside Spain). Exhibitors, organisers and attendees alike proclaimed the event a significant success. From decorative drama to subtle elegance, from the latest metallic effects to the sophistication of luxe stone looks, the tiles on display had something for everyone.

Colour trends ranged from vibrant yellows to pastel pinks and from serene sea greens to beautiful blues. Pattern was vividly present, either with an ultramodern edge or as a contemporary homage to traditional fabrics and wallpapers. Linear looks were strikingly directional as were volumetric reliefs. A cautiously optimistic mood from the industry looked forward to overcoming the issues from the fuel crisis to the pandemic to supply chain challenges.

Expectations were that a return to growth would be fuelled in part by applying the creative energy so typical of the Spanish tile industry and also by adapting to evolving markets. Furthermore, sustainability remains a core ethos for Spanish manufacturers, combining hightech solutions with enduring and reliable quality.

Tile of Spain is the voice of the Spanish tile industry, encompassing more than 120 tile manufacturers. Renowned worldwide for an inspiring blend of aesthetic and technical innovation, Spanish tiles draw on a rich heritage of skill and creativity, while remaining at the cutting edge of design.

Manufactured in Spain and widely available in the UK, these products embody the spirit of an industry that prides itself on proposing beautiful, meaningful and highperformance solutions to flooring, wall coverings, furnishing and external paving and cladding. For further information on Tile of Spain: www.tileofspain.com

Skyfold Divides Glasgow University Lecture Theatre

As one of the top 100 universities in the world, Glasgow is continually investing in its facilities. One of the most significant developments in recent years was the opening of the £90m, state-of-the-art James McCune Smith learning and teaching hub, with space for over 2,500 students. Working with architects, HLM, and contractor, Multiplex, Style was specified to install a fully automatic, Skyfold moveable wall to divide the hub’s cavernous lecture theatre.

Skyfold is a world-leading vertically rising moveable wall that is uniquely housed in a ceiling cavity when not in use, meaning that it is completely hidden from view and takes up no room space at all. At the push of a button, it descends gracefully into position, dividing the lecture theatre into two separate rooms with an incredible 51dB acoustic rating, allowing lectures and events to take place either side, completely undisturbed. “This is a really impressive moveable wall system that delivers on all fronts – practicality, acoustic performance and

aesthetics,” said David Louden, Style’s director for Scotland. “It takes less than 5 minutes to divide the room and as you watch it descend into position it really is a truly magnificent mechanism for dividing space. Its ability to cater for stepped lecture theatres is also a huge benefit as that can be a limiting factor with many other types of moveable wall. “

Once in situ, the acoustic seals are automatically applied to the correct pressure, offering the optimum acoustic barrier, and the painted steel finish is the perfect complement to the bright, open atmosphere of the room. “With space being an issue for all Universities, this is a superb solution for quickly dividing the lecture theatre into two, enabling them to cater for varying numbers of students and classes each week.”

Style is the exclusive UK partner to Skyfold, Dorma Hüppe and SWG, offering an extensive portfolio of moveable, folding and partitioning walls for all requirements and budgets.

www.style-partitions.co.uk

MAPEI AIDS A SAFE FLOOR INSTALLATION AT SUNNINGDALE

A Mapei system has been used by Titan Flooring to promote a fast and safe floor installation at Sunningdale SEN School in Sunderland. The project, which included installation of vinyl and carpet tiles throughout the £12.5 million new-build school, was completed for Kier, a leading UK infrastructure services, construction and property group. Sunningdale SEN School is the city’s only specialist school for children with severe, profound and multiple learning difficulties, aged 2-11. The new school replaces an existing facility and now provides extensive therapy provisions including rebound therapy, hydrotherapy pool, sensory facilities and soft play.

During the installation, Titan Flooring installed Mapeproof One Coat – a single application damp proof membrane - to protect the new floor coverings from residual moisture. All-purpose primer, ECO Prim T Plus, was then applied to bond the damp proof membrane to the levelling and smoothing compound - Latexplan Trade. ECO Prim T Plus features a solvent-free, low odour formulation, with EMICODE EC1 Plus for very low emissions of VOC. Following installation of the Latexplan Trade – which benefits from a low odour and protein-free formulation - Titan used two Mapei adhesives for the floor installation: solvent-free Ultrabond ECO Tack TX+ carpet tile tackifier and Ultrabond ECO V4 Evolution all-in-one adhesive for the vinyl. www.mapei.co.uk

STELRAD ENTERS ELECTRIC RADIATOR MARKETPLACE

Leading radiator manufacturer - Stelrad - has taken another major step in meeting the demands of its customer base across the UK and Ireland with the launch of a range of electric radiators – its Electric Series. It’s the first time the Stelrad brand has ventured into the electric marketplace, and it brings with it the quality and brand values associated with its radiator products since it began manufacturing in 1936. Stelrad is the number one brand within central heating radiators and is now setting its sights on the electric market with a highly competitive range of both steel and aluminium electric radiators. The new Electric Series range will be available through merchants from September 2023.

The range will include a dozen or so different models with a number of sizes of each model available, with standard radiators for any room along with a selection of towel rails specifically targeted at bathrooms and ensuites. As well as offering effective, functional heating in the home, as you would expect from Stelrad, the radiators in the electric series are aesthetically appealing and provide attractive options for the décor in the home and come with a five-year warranty on the heating parts and a two-year warranty on the electric components.

www.stelrad.com

DRU Expands The Dik Geurts Vidar Triple Range Of Wood Stoves With Six New Models

rated energy label and easy manual air slide control. The Vidar Triple series now includes small, medium and large models, each with a freestanding or wall-mounted option. The freestanding models have ample wood storage capacity and all models have optional external air connection for clean burning and high efficiency.

Dik Geurts is a name that has been synonymous with wood fires and stoves for over 40 years. Founded in the Netherlands in 1981, the Dik Geurts range is now produced by DRU, established in 1754 and one of Europe’s leading fireplace companies.

The Vidar Triple, with a panoramic, 3-sided fire view, is one of the most popular stoves in the Dik Geurts range. It is Ecodesign compliant with an A

All versions also have infrared side windows, which enable high flames and comfortable heating. In addition, the small Vidar Triple models have an average 4.9 kW heat output, which means, under UK regulations, there is no need to install extra ventilation points in the room.

Dik Geurts wood fires and stoves are available from a national UK network of fireplace dealers. www.drufire.com

REVEAL THE TEXTURE OF LIGHT WITH IVC COMMERCIAL’S NEW CARPET TILE

Light Art is the affordable new carpet tile from IVC Commercial, with designs that express the interplay between natural light and woven textiles. The changing hues and balances of cast daylight bring new meaning to the woven organic textiles that inspire Light Art, the new carpet tile from IVC Commercial that’s available in two mix and match designs. In Flare, flashes of bright highlight give structure to its woven effect. Striated highs express light’s influence broken by shadows that bring depth to a floor design with dynamic texture.

Reflect is a design where light casts organic flows across its wovenlike texture, expressing light’s ability to expose and conceal, for a sense of natural movement. Flare and Reflect are available in eight mix and match colourways, so you can design layouts which respond to the needs of today’s agile office interiors in a carpet tile that’s affordable. With grey, blue, green and natural tones, Light Art’s colours are highly functional and adaptable to most design schemes.

Made from solution-dyed nylon, Light Art is colourfast and lightfast, as well as stain- resistant. TIVC Commercial has been able to create the designs in a low pile weight that still delivers impressive performance, with both achieving a Class 33 wear classification. The low weight reduces the amount of yarn and so the environmental footprint of the carpet tile. www.ivc-commercial.com

SCHLÜTER® KERDI-BOARD OFFERS VERSATILE, LIGHTWEIGHT AND WATERPROOF TILE BACKERBOARD OPTION

As one of the most versatile and widely specified products from Schlüter-Systems, Schluter-KERDI-BOARD finds applications for both retrofit and new-build installations, with different thicknesses of the extruded polystyrene (XPS) panel providing a stable and waterproof substrate for natural stone and ceramic tiling. The panels are available in thicknesses of 5, 9, 12.5, 19, 28, 38 and 50mm and are easily installed across existing masonry, concrete, timber stud frames or lightweight metal framing, with panels featuring parallel grooves also available for creating rounded surfaces.

With all thicknesses available in 1.25 m or 2.6 m lengths, both by 62.5 cm wide, KERDI-BOARD is frequently used to create worksurfaces, breakfast bars, islands and vanities. A handy guide can be downloaded from the Schlüter-Systems website which can assist both specifiers and tradespeople in picking the right panel for an application. For instance, 12.5 mm is the minimum thickness recommended for use where a stud frame is constructed to 400 mm centres.

The largest three thicknesses should be considered for construction purposes, while there are also special L-shaped and U-shaped panels for use as pipe boxing, and prefabricated niches in different sizes - with or without lighting - to create storage within walls. KERDI-BOARD is BBA certified. www.schluter.co.uk

Silestone® Introduces New Urban Crush Collection

Silestone® by Cosentino introduces its new series Urban Crush, a collection full of colour and design inspired by the heartbeat of the city and new urban trends. Lime Delight, Concrete Pulse, Brass Relish and Cinder Craze make up this collection of dusty tones that creates an ideal industrial backdrop, the perfect partner for raw and eclectic spaces. 

Urban Crush is produced with HybriQ+® technology, which uses a more sustainable manufacturing process with 99% recycled water, 100% electric energy from renewable sources and a minimum of 20% recycled materials in its composition.

Two years since its last release, Silestone® by Cosentino, the world’s leading hybrid mineral surface for architecture and design, returns stronger than ever to present its new collection: Urban Crush. (cont...)

(cont...) A commitment to elegance, colour and innovation, the new collection has been designed to suit new urban spaces with its modern, vibrant aesthetics. Contemporary and understated, Urban Crush introduces dusty tones to create an ideal industrial backdrop; a natural complement for raw, eclectic spaces.

When you look closer, the Urban Crush designs burst with intensity, breathing life into spaces. Recreating the look of limestone and sandstone, the stylish collection comprises four colourwaysLime Delight, Concrete Pulse, Brass Relish and Cinder Craze - inspired by the textures of the city.

Lime Delight: The textured beige tones of Lime Delight provide a versatile base for any interior, from calm and minimal spaces to unexpected, bold looks. Warm and bright, it replicates the beauty and luminosity of the renowned Marbella limestone.

Concrete Pulse: Cool and refined, Concrete Pulse is ideal for eclectic interiors, helping to create a vibrant show of contrasts. Its natural raw grey tone brings the effects of light and shadow play to any setting.

Brass Relish: The grainy brown of Brass Relish blends seamlessly with the colours and design elements of modern vintage style. This sophisticated elegant colourway embodies finely grained sandstone.

Cinder Craze: A modern reinterpretation of black sandstone, Cinder Craze brings style and personality to industrial-inspired interiors with its dark and dramatic tone.

www.cosentino.com/en-gb/silestone

Bold Design Takes On A Dramatic Effect With Palermo

Bold Design Takes On A Dramatic Effect With Palermo

A sophisticated and stunning choice of worktop for any kitchen décor, marble- inspired surfaces continue to be on-trend, with Palermo, the latest launch in the CRL Quartz range from CRL Stone being no exception. Opulence and luxury in interior design is defined with Palermo. A crisp white background is the perfect setting for bold, veining that adds instant character and eye-catching detail to any setting. Inspired by nature, the quartz surface elevates any interior into a fresh, sophisticated space. Bookmatch options are also available, to create the glorious look of marble in large spaces.

This CRL Quartz surface features dramatic patterning, inspired by stones found in nature, designed with modern trends and modern lifestyles in mind. CRL Quartz is an ideal material for use in any setting, including kitchens and bathrooms. Highly resistant to knocks and impacts, it is heat, scratch and stain resistant, and no extra care or special products are needed to clean it.

Stains can be removed with water or mild cleaning products and, because it is a non-porous surface, the build-up of bacteria or mould is prevented, making it hygienic and easy to maintain. As such, CRL Quartz Palermo is the ideal way to offer consumers the durability and style they are looking for from a worktop. For more information call CRL Stone on 01706 863 600 or visit www.crlstone.co.uk

Howe Green Supports Successful Specification At Bond Street Station

As one of nine new stations developed as part of the construction of the Elizabeth line, Bond Street Station will facilitate up to 137,000 passengers per day, with up to 22 trains passing through the station every hour at peak times from November 6 this year and up to 24 trains per hour from May 2023.

Providing interchanges for the Central and Jubilee lines, the newly constructed Bond Street station will significantly improve accessibility for travellers, whilst simultaneously increasing capacity at one of the busiest shopping districts in the UK.

The development of the station included the specification of 200 Howe Green stainless steel floor access covers as part of the structural and architectural design process to provide secure and concealed access to under-floor services. Installed throughout the entire station, which includes two newly constructed ticket halls at street

level and all underground passenger platforms that can be as long as 255 metres, the medium-duty 7500 Series Floor Access Covers were manufactured to meet the project’s extensive requirements.

With over 50 kilometres of communications cabling, 200 CCTV cameras, 66 information displays, 200 radio antennas, 750 loudspeakers and 50 help points, an essential element of the specification process was ensuring the covers were tamper proof, without preventing contractors from gaining quick and easy access to the services below.

Manufactured with unobtrusive barrel cover lifting points that can only be accessed with unique lifting and securing keys, the access covers are protected from unauthorised access, without impacting the overall design scheme, as only the securing bolt and barrel edge are visible.

The method of removing the covers also ensures the products can be handled easily and safely by contractors, eliminating any potential strain or harm, regardless of the covers’ combined weight with the hard flooring finishes. This is due to the lifting blocks being anchored to the inner frame. Throughout maintenance-only areas, the lifting mechanisms of the floor access covers are mechanically assisted with pistons so engineers can securely lift the covers from underneath.

Installed in conjunction with terrazzo flooring across the platforms, and Portuguese granite throughout the ground floor public areas, the 7500 Series Floor Access Covers seamlessly blend with the architectural finishes of the station for a streamlined visual effect. This sleek aesthetic is further enhanced by the tiling modules, which create a unified and cohesive finish, simultaneously eradicating any potential trip hazards, as the access covers are

installed entirely flush with the hard flooring. The minimal profile of the edges also reflects the dimension of the joins between the tiles to create a perfect finish, even when working with the radial sections of stone tiling on curved passages and walkways, which required individual access covers constructed of curvilinear profiles to deliver a high quality, bespoke finish.

Each of the covers withstand up to five tonne pneumatic tyre wheel loads. Manufactured to BS 476: Part 22: 1987, the covers’ ability to eliminate the potential transmission of smoke and fire from the underground services in the event of a fire was another key consideration of the specification process. www.howegreen.com

Photo credits above and below - Darren Almond Artwork for TfL

Creating The Perfect Backdrop For Showing CuttingEdge Commercial Interior Design

In the heart of Clerkenwell - acknowledged as the global epicentre for design - is the newly-refurbished Brunner showroom. Here, Armourcoat’s sustainable luxury finishes are creating an elegant and sophisticated backdrop to Brunner’s progressive, multifunctional workspace pieces. The London showroom occupies three floors of a former Victorian warehouse that in its lifetime has also been a brewery and cinema.

The space has enabled the formation of a sophisticated hospitality ambience for receptions and presentations, with vaulted bays providing vignettes of today’s modern, agile workspaces whilst allowing more intimate areas for meetings. To blend the industrial heritage of the building with its progressive design particularly in the lounge space,

Brunner chose its collaborator Armourcoat. Armourcoat Acoustic Plaster, Polished Plaster and cast panels combine to enhance the stylish, relaxed environment aesthetically, physically and psychologically, optimising the health & wellbeing of the occupants.

This has been complemented by sculptural Cast Panels in Corinth with a concrete look- a design of finely contoured linear scallops and flattened peaks. Observes Oliver Shinegold, Brunner Sales Director: “We have partnered with Armourcoat for more than a decade. Its reputation precedes it as being the leading supplier of polished plaster and concrete surface finishes.

The Armourcoat team's exceptional and dependable service, extending from the installation process to the final outcome, has consistently met and exceeded our expectations. Their commitment to sustainability, durability, and longevity is second to none."

"For our refurbishment, Armourcoat's skilled artisans were able to craft a prefabricated fluted polished plaster tile that seamlessly integrates with the surrounding space. The result is a dualaspect textured wall finish, with inset framed images and dramatic shadowing that embellishes the space that we are confident will become a ‘go to’ venue for the commercial design industry.”

www.armourcoat.com

Introducing The New Pressalit Matrix Height And Sideways Adjustable Washbasin

In any accessible bathroom, space is key, and with Pressalit’s new height and sideways adjustable MATRIX washbasin, creating space quickly and hygienically has just got easier. The world leading manufacturer and designer Pressalit has introduced the MATRIX washbasin bracket with a choice of integrated basin styles, the MATRIX MEDIUM, or MATRIX ANGLE DEEP, featuring a new, simple to use, discreet adjustment for both height and sideways movement.

The MATRIX washbasin makes the best use of space in the bathroom whilst accommodating the changing needs of both users and caregivers. Supporting self-reliance, space optimisation and a sense of security in the bathroom, the new adjustable washbasin has been designed for use in a wide variety of installations, from a private home, care setting, institution or a hospital. Whether for a seated or standing user, or when a carer is assisting, the new MATRIX washbasin offers a flexible solution and safe working environment, offering the commitment to quality, practicality and design that Pressalit makes its priority.

The easy-to-move washbasin can be adjusted smoothly sideways to a range of 500mm, to create greater access when using the shower or toilet for a wheelchair user and carer, by means of a discreet handle located underneath the basin. Adjustment can be carried out safely with one hand, and requires very little hand strength to operate.

The vertical rise and fall allows for a variation of 300mm, with options available for either a manual handle or intuitive electric power button. The latter is recommended for a care or hospital setting where frequent adjustment is required, offering huge time saving benefits and improved working conditions for staff, whilst the manual solution is suitable for a bathroom where there’s only one user, or multiple users with the same needs.

The MATRIX MEDIUM AND MATRIX DEEP ANGLE washbasins both feature integrated handles for additional user support. With both hygiene and aesthetics in mind, the discreet MATRIX bracket’s operating panel fits tightly against the wall and snugly against the washbasin, preventing dust and dirt from settling in hard-to-reach places. All surfaces are large, smooth and easy to wipe.

Andrew Lowndes, Sales Director for Pressalit in the UK says, “Some people need a lot of help in the bathroom, others little or none. The new MATRIX basin bracket is a flexible solution, taking into account the specific needs of the user at any given time. By simple adjustment for height, or to create space sideways for greater access to the shower or toilet for wheelchairs, this helps create situations that boost self-reliance and help provide a greater degree of freedom.”

Pressalit has many years of experience and expertise in the field of designing accessible bathrooms and provides advice on everything from space optimisation to rules and guidelines for design and the choice of solution and installation, creating the best conditions for the user, and carer or health professional. https://pressalit.com/en-uk/products/matrix-adjustable-washbasin-solution/

Industrial Loft Doors From Hörmann UK Glass And Steel In Perfect Harmony

Combining large, glazed panels with high quality slim steel profiles, industrial loft style doors from Hörmann UK offer specifiers and consumers endless opportunities to create modern doors and room screening for a feeling of space and light. The loft door range is an internal glazed door system which has been developed in response to the growing trend for slimline, heritage-style doors and screening in the interior design market. The range was exhibited for the first time in the UK on the Hörmann stand during the FIT Show in May. The loft doors can be designed as single or double leaf options and can be either hinged or sliding. The addition of side elements and transoms means that large opening spaces can be created to provide an unobstructive view between living areas. Glazing is available in either Clear or Clear white, with the steel profiles supplied in RAL 9005 Jet black matt as standard, five preferred colours including Traffic white and Anthracite grey or RAL colours of choice.

Textured and pearl-effect finishes together with the addition of handles and fittings from the Hörmann black.edition provides further opportunity for creativity and style. David O’Mara, Marketing Manager at Hörmann UK comments, “Our loft door system is the ideal product for creating bespoke interior glazed doors, partitions and dividers. This all culminates in helping to separate living spaces whilst maintaining optimum levels of natural light.

Whilst particularly suited for domestic properties the system can also be used in commercial situations such as entrances, offices and studios. Hörmann can now offer the market an interior glazed door system which combines creativity and flexibility with the Hörmann guarantee of quality.” www.hormann.co.uk

When architects Scott Brownrigg were given a brief to create a new gateway to Cambridge Science Park they knew the building had to be impressive to attract the desired high tech and Research and Development companies. The design features a colonnade sweeping across the front of the building echoing the curve of the spine road and a new public space. The column spacing guides occupants and visitors to the entrance – a GEZE Slimdrive SCR curved automatic sliding door.

The building has a BREEAM Excellent rating for its design so the Slimdrive SCR was the perfect complement. The circular entrance features two sets of automatic biparting curved glass sliding doors, creating a lobby that minimises heat loss or gain and so helps to contribute to the building’s environmental credentials. In addition the Slimdrive SCR automatic curved sliding door provides a light and airy all-glass lobby entrance which blends seamlessly into the façade and the large glass atrium, it combines high performance with unobtrusive operation.

Inside the operator’s deep canopy an integrated air curtain was installed to further minimise any heat loss and maintain the aesthetics of the building. The Slimdrive SCR automatic operator also provides uninhibited access

GEZE Brings Curves To Cambridge Science Park

and so meets the demands of Part M, BS 8300 and EN 16005, whilst the access control system ensures security. Recognising the outstanding design of the building, the Cambridge Science Park has been shortlisted for the 2023 British Council for Offices (BCO) Awards. The BCO’s primary objective is to define excellence in office space.

Ross Mcwatt, Associate Architect at Scott Brownrigg said ‘We have worked with GEZE several times, they have the same focus as we do in terms combining sustainability, accessibility and aesthetics. Richard Richardson-Derry, National Specification Manager at GEZE UK added ‘This is an outstanding building, that meets many demands, we were delighted to play a part in creating an entrance and achieving the criteria of the brief."

For more information about GEZE UK’s comprehensive range of automatic and manual door closers call 01543 443000 or visit www.geze.co.uk

ENERGY EFFICIENT WOODEN WINDOWS AND DOORS

Consumers are increasingly looking to upgrade their home to be more energy efficient. For period properties this is especially a problem, with many having draughty, single glazed windows. However, providing planning permissions allow it, there is no reason why period properties cannot benefit from double glazed windows and doors while also retaining their traditional style. The Sash Window Workshop were contacted to help upgrade 17 windows and some French doors at a neo-Georgian property in a Conservation Area in West London.

The new joinery needed to be double glazed but otherwise a replica of the original windows and door. Most of the window frames were in a good condition, so a quotation was provided for a mixture of new sashes into the existing frames and, for items where the frame had deteriorated, complete replacement. The customer decided to proceed with the work and a survey was arranged to confirm the measurements before the windows and door were manufactured and installed. After the work was completed, they commented: “The new windows and doors are exactly what we had hoped for, and we are very pleased with the installation.” www.sashwindow.com

Rundum Meir Façade Doors Uniquely Reflect Manchester Landmark’s Heritage

A bronze façade featuring integrated Rundum Meir garage doors for two new townhouses in central Manchester has been uniquely designed to reflect the architecture of the nearby John Rylands Library, one of the city’s most famous neo-Gothic buildings.

The duo of four storey, high specification private dwellings designed by Snook Architects for regeneration specialist Watch This Space have given new purpose to an unused site nestling between two post-industrial buildings close to Deansgate. Their full height bronze façade delivers a striking external appearance that takes a distinctive visual cue from the library, located opposite.

The houses are designed around an inverted living approach, enabling the architects to maximise the footprint of the site and use the space to its full potential. Above the garages are floors accommodating the bedrooms, with the living, dining and kitchen areas on the upper floors, and a rooftop courtyard/garden completing the arrangement.

Photos © Andrew Haslam Photography (andyhaslam.com)

The aluminium façade of both townhouses features laser cut and acid-etched lacy blind tracery patterns that match those in the windows of the library, a late Victorian neo-Gothic building which opened in 1900 and is now part of the University of Manchester. The lacy pattern extends over the full height of the façade which includes large folding/sliding shutters.

These balance privacy with natural light requirements for residents during the day whilst being eye-catching at night as internal light shines through the laser cut pattern. This design extends into the twin side sliding sectional garage doors manufactured and installed by Rundum Meir, which effectively deliver a sliding façade at street level.

Working closely with architect Neil Dawson, Rundum Meir’s designers were able to replicate the design with total consistency and manufacture in Germany using acid etching across the six aluminium sections. Neil Dawson of Snook Architects said: “Watch This Space approached us to look at how they could transform this

city centre site and we immediately saw the potential to take design inspiration from the nearby John Rylands Library. The resulting façade is unique, and through the movement of the shutters and garage doors during daily life it is constantly moving and changing."

“The laser cut pattern means that the building really comes to life at night as the internal light makes the intricate façade design a stunning feature. To be able to match this styling in the garage doors was crucially important and the result reflects the bespoke craftsmanship provided by Rundum Meir.” The twin Rundum Meir sliding garage doors each provide a clear opening of 3.8 m for easy vehicle access from the street.

Hand made using extruded aluminium, the fully automated bespoke garage doors have an automated pedestrian door as well as the side sliding door that demonstrate the design flexibility offered by Rundum Meir, who create every garage door to meet project requirements. www.rundum.co.uk

Crittall’s End Of The Pier Show

Crittall steel framed windows more than a mile out to sea at the mouth of the Thames Estuary are looking as good as new. The company’s managing director Russell Ager made the discovery on a recent visit to Southend when on a bracing stroll to the end of the world’s longest pier.

Crittall windows were installed in the pier’s narrow gauge railway station in 2009. “The mile walk out to sea was tinged with trepidation,” admits Russell. “What condition will the windows be in?” But there was no cause for concern. “Thirteen years into their service life and the windows look incredible, as good as the day they were installed,” he says.

Coping with the hostile salty environment and a continuous battering by easterly winds proved no problem for the galvanised, powder-coated windows. The powder coating is a dual-coat system featuring a primer and topcoat specially formulated to perform in aggressive environments by Akzo Nobel and applied by Crittall’s expert in-house coating team. www.crittall-windows.co.uk

Outdoor Living Made Easy With CRL Glass Rooms And Louvred Pergolas

The CRL Outdoor Living Collection offers a wealth of opportunities to make the most of a property’s exterior, whatever the weather. All year round CRL Glass Rooms and Louvred Pergolas provide a comfortable environment to enjoy outdoor areas, while protecting from the changing seasons, whether it be sun, wind or rain.

CRL Glass Rooms are completely bespoke, with a range of fitting options now available. The wall-supported option can be chosen with just two vertical supports with a projection of up to 6m and a simple two-post design for a minimalistic look, while using three or more vertical supports the CRL Glass Room can span even the largest of spaces.

Tricky corners can be negotiated with a wall-supported Glass Room with a 90° Corner, giving a dual aspect across the outdoor area. For even more flexibility in outdoor living design, the new CRL Freestanding Glass Room can span areas up to 6m by 4.5m with a maximum height of 3m, ideal to cover

hot tubs, pools and outdoor kitchens and allowing them to be used even in inclement weather. By combining multiple Freestanding Glass Rooms large areas can be spanned, ideal for commercial purposes.

Just as flexible are CRL Louvred Pergolas. The remote-controlled bioclimatic slats on the freestanding structure are easily adjustable to let light through and promote airflow while keeping out harsh glare or can be completely closed for protection from the rain. CRL Glass Rooms and Pergolas have a modern progressive design, all the individual components such as rafters and wall connectors have been designed to complement each other perfectly, creating a sophisticated and modern appearance.

Its timeless design integrates seamlessly with almost all types of architecture and with the range of optional extras, including blinds, heating, and lighting, it is simple to create an outdoor living space in keeping with its surroundings.

www.crlglassrooms.co.uk

New Product Launches At P C Henderson Limited

Sliding and folding door hardware manufacturer, P C Henderson, has demonstrated a continual improvement ethos by introducing three new products to the market. With over 100 years’ experience in the design, development and manufacture of door hardware systems, P C Henderson has demonstrable experience in the builders merchant sector.

Working creatively from a foundation of robust market research, the business operates on an agile model able to adapt and enhance its products to deliver exceptional finishes for domestic, commercial or industrial applications. With a strong focus on innovation, the market leading company strives to exceed customer expectations in both product and service.

All products are rigorously tested, in excess of industry standards, to maintain their market leading position. Each component undergoes Finite Element Analysis, a process that applies virtual forces to the product, to guarantee the very best solution.

Certified to ISO 9001, the manufacturing centre of excellence in the UK ensures all aspects of each door hardware system delivered is of the very highest quality. Customer service and technical support teams are always on hand to offer advice for door hardware projects and have exceptional product knowledge and capability.

Further support is offered by comprehensive fitting instructions and installation videos, all available on their website, and training provided when required. The company has delivered projects across a range of sectors to customers globally and as such can provide advice for the most complex and ambitious of projects. The team can support at any point, from the initial planning stages to the implementation of the system. Their versatile systems, cater for wooden doors in internal and external applications.

Perfect for residential and light commercial projects, the newly launched Husky 120 Pro is a straight sliding system with low initial friction for a smooth door glide and has a range of enhancements such as simultaneous action and a soft close feature. For flexible living,

Roomflex 40, is an interior folding door hardware system for doors weighing up to 40kgs that is perfect for dividing rooms and is available in a range of door configurations. Pocket Door Pro has been redesigned and updated to include a smooth-running track with low initial friction. Suitable for wooden doors weighing 120kgs, kits can be enhanced with a dual soft close mechanism. www.pchenderson.com

HAMWORTHY HEATING PROVIDES SHASTID ENERGY WITH A QUICK AND RELIABLE SOLUTION

Following a long and established relationship, Hamworthy Heating, a trusted British manufacturer and supplier of commercial heating and hot water products has supplied Shastid Energy with a Tyneham Air Source Heat Pump for installation at its premises in Cambridgeshire. The Tyneham heat pump range offers superb operational reliability, excellent quality, and outstanding performance backed up by engineering excellence and lifetime support. One of the lightest commercial heat pumps on the market, it features a co-efficiency of performance (COP) rating of up to 4.85, to

provide efficient, low-carbon heating. The seven models in the range have six nominal outputs of between 14 to 70kW, which can also be cascaded to achieve higher outputs in larger installations. Incorporating an inverter controller compressor to accurately match the heat demand, Tyneham heat pumps use R32 refrigerant to deliver increased efficiencies. Familiar with delivering quick solutions to its own customers, Shastid Energy was confronted with an unusual dilemma when it came to maintaining its own commercial heating system.

Faced with a fault on their existing heat pump and unable to source a company willing to provide a quote to repair it, Shastid Energy decided to replace its entire heat pump system. However, confronted with long expected delivery dates, John Atkinson from Shastid Energy turned to Hamworthy Heating for advice. Quick to resolve the issue, a new 14kW air source heat pump was delivered to the Shastid offices within three days, ready for installation straight out of the box. Tyneham heat pump components are conveniently housed in the main unit which is compact and lightweight for ease of commission and installation. The new system was successfully up and running within two days. www.hamworthy-heating.com

DOMUS VENTILATION MVHR SYSTEMS PROVE IDEAL RETROFIT SOLUTION FOR LONDON RENTAL DEVELOPMENT

Domus Ventilation’s HRXE-HERA® Mechanical Ventilation with Heat Recovery (MVHR) systems have been specified for the be:here Hayes build-to-rent residential development in West London. When the building was designed, Domus Ventilation’s Silavent MVHR ceiling mounted units were installed. These are now being gradually replaced with Domus Ventilation’s latest MVHR model, HRXE-HERA®. As a retrofit solution, HRXE-HERA® has proven ideal for be:here Hayes as they readily use the existing Domus ducting.

Domus Ventilation’s HRXE-HERA® MVHR have proved an ideal solution. It filters and pre-warms fresh air drawn into the apartment using the heat from waste stale air extracted from the kitchen and bathroom using a heat exchanger. It’s advanced heat exchange proficiency enables up to 95% of waste heat to be recovered. www.domusventilation.co.uk

TAKE A CLOSER LOOK AT EXHAUST AIR HEAT PUMPS

There’s a new kind of heat pump – one that doesn’t require an external unit in the garden or fixed to the exterior of a property – that is getting rave reviews in some sections of the heating industry – and one of the first of its kind is available now from renewable heating specialists Unitherm. Exhaust Air Heat Pumps work by drawing pre-heated, stale and humid air from your bathrooms, utilities, kitchens and other wet areas of your home, passing it through a heat pump, which extracts the energy, and exhausting the cold stale air out of your home through a vent. The energy extracted by the heat pump is then used to heat your radiators or underfloor heating, as well as your hot water cylinder, which is contained inside the all-in-one exhaust air unit.

An advantage of using an exhaust air heat pump is that you use the indoor air, which is always warm, as an energy source. The energy content of this indoor air is considerably higher than cold outdoor air. Another advantage is that the dwelling’s extract ventilation is provided for within the heating system. The indoor air becomes comfortable and no separate ventilation fan is needed. While exhaust air heat pump systems are relatively new to the market, Unitherm is no stranger to the technology. Unitherm selects its exhaust air heat pump suppliers based on two key parameters, their system performance, and the innovation present in their units.

The design and integration of exhaust air heat pumps into any project requires a total building evaluation and careful attention to detail. Unitherm’s team of engineers is an industry expert in exhaust air heat pump technology and has developed its own in-house software ‘Unicalc’, to design systems to the highest standards with particular emphasis placed on enthalpy calculations. From system design, to compliance and commissioning, you’re covered with Unitherm. The EAHP has a COP (efficiency) of 500%+ - that’s 9 TIMES more than a central plant and 6 TIMES more than a gas boiler. The savings to the end user are substantial over the lifetime of the system. The new exhaust air heat pumps from Unitherm are the e-VEN 3.5kW and 5kW units that ventilate your home, collecting energy from the air before it leaves the building. It handles the ventilation via its duct connection, provides domestic hot water and space heating with control of up to two independent heating zones.

The capacitive graphical touch screen, the Bluetooth and the wi-fi connection and the intuitive cloud based Android/ios/ web applicatioin makes this system easy to use and monitor. You can see the new exhaust air heat pumps on show at the Unitherm stand at Installer Live exhibition at the NEC from 27th-29th June. Head for stand number E110.

Also brand new on the stand you’ll find the new Phase Change Material (Heat Battery) – eSTOR which is a thermal energy storage cylinder and heat battery system available in 5kW and 10kW options that is tuned for use with a low temperature heat pump but compatible with multiple heat sources – heat pumps, boilers and solar PV systems. It offers emergency backup storage of thermal energy and offers load shifting ability to help reduce costs by lowering tariffs. www.unitherm.co.uk

GEBERIT LAUNCHES INNOVATIVE FLOWFIT PIPING SYSTEM

Geberit has launched a new multi-layer supply piping system to the UK market after eight years of intensive research and development. Geberit FlowFit is the manufacturer’s biggest product launch to the UK in recent years and will combine the versatility of Geberit’s multi-layer piping system together with the installation benefits of Geberit’s unique press-fit method. FlowFit is suitable for both potable water and heating applications. The pipe consists of three layers, a central aluminium layer which makes the pipe strong yet flexible, with a plastic (PE-RT) layer either side of this to prevent corrosion and ensure a smooth internal bore.

Geberit FlowFit also marks a huge step in the manufacturer’s sustainability journey. Geberit has developed new facilities with injection moulding technologies at the manufacturing stage to reduce energy intensity and cut journeys throughout production processes to help minimise carbon footprint of the new product. In addition, the manufacturer has also incorporated a bag to collect discarded pressing indicators into the design process for the first time to make it simpler for teams to return plastic parts and reduce waste on-site. www.geberit.co.uk/FlowFit

OMNIE ADDS AL HEX HEAT DIFFUSER TECHNOLOGY TO UFH SYSTEMS

OMNIE, the award-winning UK underfloor heating specialist, will be incorporating the advanced AL HEX aluminium diffuser technology on all its foiled underfloor heating systems, as standard, with immediate effect. The patented AL HEX foil, with its trademark hexagonal patten, increases the in-channel foiled surface area that is in contact with the warm water pipe. The result is greater heat output, faster heat transfer and a more even heat distribution across a floor area, plus it avoids the risk of damage due to heat ‘striping’.

Striping is caused when heat in the warm water pipe doesn’t diffuse into the floor panel effectively and, instead, creates hot spots and hot lines on the floor surface finish. Prolonged exposure to striping can damage both the floor finish and the subfloor, particularly if the installer raises the temperature of the water to try and improve the diffusion.

Says Brendan Hourican, OMNIE’s Managing Director, “because it is so efficient at transferring heat, AL HEX works very well with lower water temperatures. This means it improves the performance of the underfloor heating, which is a huge benefit when the system is paired with a heat pump. AL HEX is manufactured by OMNIE’s parent company RIDGESPEAR and used under licence by OMNIE. www.omnie.co.uk www.al-hex.com

NEW PROGRAMMABLE ROOM THERMOSTAT

LAUNCHED BY ESI

ESi has responded to the current economic climate with the introduction of its latest quality heating control – the RTP4 Touch programmable room thermostat. This latest introduction is capable of controlling heating and hot water systems via combi, system or heat only boilers. When installed with the ESi WIFI hub, homeowners and tenants heating and hot water can be controlled via Alexa or the ESi Centro App. Vitally, the load compensation functionality, available via OpenTherm technology, modulates the flow temperature dependant on the desired room temperature, saving up to 15% on gas usage – a benefit not to be overlooked in the current situation where energy prices have leapt to a huge new high in the UK.

The 4 Touch has a large backlit LCD display and touch screen making it simple-to-use and programme. It offers optimum start/ stop and delayed start functions offering additional cost savings for users, 7 day, 5/2 day or 24 hour options to suit the homeowner or tenants lifestyles, automatic summer/winter change settings and has home, manual, away, sleep and holiday modes long with its popular landlord service interval reminder. The new unit is battery controlled and comes with a low power indicator to show simply when the battery needs replacing. www.esicontrols.co.uk

DOMUS VENTILATION EXPANDS HRXE MVHR RANGE WITH ZEUS

Domus Ventilation has expanded its HRXE range of Mechanical Ventilation with Heat Recovery (MVHR) units with the launch of HRXE-ZEUS. HRXE-ZEUS has been introduced to meet ventilation requirements for large residential properties, which require a more powerful system to deliver the airflow required to meet Building Regulations Part F. HRXE-ZEUS high performance MVHR system combines supply and extract ventilation in one system. Using an advanced heat exchanger, up to 95% of the heat typically lost in waste, stale air is efficiently recovered and used to temper the fresh air drawn into the building.

The filtered, pre-warmed air is distributed to areas of the home such as living rooms and bedrooms, effectively meeting part of the heating load in energy efficient dwellings. The system features two independent fans which have full-speed control for background and boost ventilation rates. HRXE-ZEUS comes with 100% thermal bypass which automatically activates when the air temperature reaches a pre-set level, allowing in cooler, fresh, filtered air without warming it through the heat exchanger – ideal for increasingly air tight properties that are prone to overheating in summer. The smart design of HRXEZEUS means there is no reduction in airflow when operating in bypass mode. www.domusventilation.co.uk

Circular Construction Requires Effort Every Step Of The Way

The construction industry cannot minimise its way out of the climate crisis. There is a need for buildings with a low carbon footprint – and for healthy, durable materials which can create value in new cycles. Troldtekt A/S has interviewed frontrunners of the circular economy for an online feature.

They point to data and more respectful consumption of resources as some of the keys to more balanced construction. It will take more than just efficiency enhancements and process optimisation for us to achieve our goal of sustainable building. This is the message from the well-known Dutch architect Thomas Rau, who established RAU Architects, and in 2013 was named Architect of the Year in the Netherlands.

The transformation he is calling for fundamentally changes our role as humans on Planet Earth. “The biggest misconception is that we think we have to build buildings. In future, buildings will be a product of a logistics process,” he says.

“In the same way, raw materials will not be raw materials either, but nature’s works of art or limited editions, and in future we will need to regard buildings as repositories of such ‘limited editions’,” he says.

The interview with Thomas Rau is part of a new online feature from Troldtekt A/S which produces acoustic wall and ceiling solutions. In the feature, leading players in architecture and property development share their views on the path to circular construction. It is a path that requires effort at every stage of the life cycle of buildings – from the production of materials, through the construction process, the operational phase and right up until the recycling or reutilisation of materials.

Healthy materials and the need for data - In the feature, Martha Lewis, Head of Materials at leading architectural firm Henning Larsen, points to the vital importance of healthy materials and comprehensive data. “Data increase the value of building materials in the circular economy. Information about the building materials is entered in material passports, so we know, for example, how many times an acoustic panel has been painted – and with what.

The information from the material passports is transferred to a building passport that keeps track of any new materials that come into the building, and what happens to the materials which are already there,” she explains, adding that the material manufacturers have an important role to play in this respect: “It’s very valuable that a company like Troldtekt has EPDs for most of their products. In fact, it’s crucial, because in the building industry we need to know more about the climate impact from the production of building materials, and the EPDs provide this information,” says Martha Lewis.

In early 2023, at the Circular Build Forum, the Danish construction industry’s new material passport was presented. The material passport declares important information about construction products – for example, have chemicals or anything else been used in production that may be of relevance when assessing whether a product can form part of a circular economy in new buildings.

EPDs ensure transparency - The new online feature describes how Troldtekt works with a range of sustainability initiatives in the production of acoustic panels – and environmental product declarations (EPDs) are a key tool here. The environmental impact of raw materials, transport, production, use, disposal and the potential for recycling are reflected in the life cycle analysis on

which the EPDs are based. Accordingly, the EPDs are a useful tool for consultants and clients when gathering and assessing documentation about building materials. “Transparency and thoroughness have been keywords for us in working with our EPDs. Among other things, we have chosen to have separate EPDs for our various products rather than just working with average values,” says Vibeke Pedersen, Head of Engineering Department at Troldtekt A/S.

Cement type with reduced carbon footprint - In an interview with the cement manufacturer Aalborg Portland’s CEO Michael Lundgaard Thomsen, the feature also looks behind the scenes at the development of the new FUTURECEM™ cement type, which has a 30 per cent lower carbon footprint than conventional cement.

Since early 2022, it has been possible to choose Troldtekt acoustic panels based on FUTURECEM –and the panels have carbon footprints that are 26 and 38 per cent lower than those of Troldtekt based on grey and white cement, respectively, measured throughout the entire life cycle of the acoustic panels. Finally, the feature includes reports from a number of inspiring buildings that have been certified according to leading sustainable building standards. tkr@troldtekt.dk

Powering Up More Sustainable, Healthier Outdoor Public Spaces

Many of the UK’s town and city centres are being redefined to ensure they fit more closely with today’s urban lifestyles and the expectations of tourists. The changing retail landscape, driven by the growth of online shopping, more people working from home and an increasing number of people choosing to live in city centres, means that previous models for the design of streetscapes, public parks, plazas and other pedestrianised spaces are needing to undergo significant change. But it is not just reaction to social change that is at the heart of redesigns – sustainability and a growing movement to capitalise on the health benefits of being outdoors, in whatever form that takes, are also part of this fresh thinking to redesign our public spaces.

There is extensive evidence to show that providing safe, secure and attractive outdoor spaces is important to help people be more active and maintain and extend social interaction to benefit their mental health. Flood prevention and ensuring that water is managed efficiently in urban areas is becoming increasingly important due to climate change. Hence, SuDS (sustainable urban drainage systems) are being integrated and there is an increased use of planters in spaces that were previously dominated by tarmac, pavers and concrete, encouraging biodiversity in the process.

But there is also another important consideration in making these new outdoor public spaces as popular and versatile as possible to maximise their potential – access to on-demand power sockets.

Events can play a big role in increasing the use of outdoor spaces and attracting local people as well as tourists. Food and drink fairs, children’s fun days, market stalls, music gigs and light shows – events such as these can be a major draw and help strengthen local communities and they are easier to stage (even at relatively short notice) when easy access to power sockets is provided.

This is why a power infrastructure is a must for any redevelopment scheme or new development, and Pop Up Power Supplies® can help through a range of pop-up, in-ground and bollard power units. By incorporating a power access where there is an opportunity for events at all times of the year, there is no need to hire generators, which can be expensive and may not fit with the local sustainability agenda. The pop up (retractable) and in-ground power distribution units are permanently submerged in the ground, discreetly installed with a lid that matches surrounding surfaces so they are barely noticeable when not it use.

When a power connection is needed, such as to provide electricity to a street food kiosk, the lid can be unlocked by an authorised user to allow power leads to connected. The pop up unit is raised up using a turning handle, whereas the in-ground unit stays below the surface, accessed via a flip lid. As soon as vendors finish serving, or when events are over, the power leads can be simply disconnected and the power unit can be securely locked again to prevent unauthorised access and vandalism.

The third option from Pop Up Power Supplies® is the power bollard. This elegantly designed bollard will integrate with other street furniture as part of an attractive streetscape, whilst providing the benefit of access to electricity when required through its sockets behind a locked cover. www.popuppower.co.uk

Accelerating Permeable Paving

Wider application of concrete block permeable paving to reverse the sealing-up of our towns and cities is heralded by imminent SuDS requirements on developments, as well as action on renewal of existing impermeable paving, as Interpave’s Chris Hodson explains.

The 2010 ‘Flood and Water Management Act’ included provisions for mandatory sustainable drainage systems (SuDS) on developments, controlled by local authority ‘SuDS Approval Bodies’ (SABs).

But these provisions were not implemented at the time in England under Schedule 3 of the Act – although they were in Wales – relying instead on planning policies for flood protection. Under mounting pressure and recognising that the planning-based system has not worked, government is now moving towards implementing Schedule 3 in England to make SuDS mandatory, announced in a review from Defra in January. Public consultation later this year will help to shape the new approach, with implementation expected during 2024.

Mandatory SuDS - National SuDS Standards and other related changes will then be applied to England and SABs will be set up within unitary authorities or county councils. SAB approval will be required before construction of drainage systems on new and redeveloped sites (except single buildings or permitted development, under 100 square metres), or connection to public sewers.

Photo: Chris Hodson

This is an important step forward, not just in the fight against flooding but also in enabling the numerous multifunctional benefits of well-designed SuDS to be realised, particularly in response to climate change. To demonstrate the government’s ‘SuDS approach’, Defra’s report cited one particular project as an exemplar: Lamb Drove in Cambourne, Cambridgeshire, a monitored SuDS demonstration project. An Interpave case study on this innovative scheme is available at www.paving.org.uk. Completed in 2006, Lamb Drove is a 35-homes development on a 1-hectare site, with a conventional layout but still delivering SuDS. It was compared with a similar, neighbouring development using piped drainage.

Lamb Drove demonstrates various techniques to collect, clean, convey and infiltrate, or store and release water at greenfield runoff rates (2 l/s/hectare) from developments to watercourses or sewers. The design is considered as two discrete sub-catchments, each with a micro-catchment of concrete block permeable paved roads – all managed by flow control chambers. This enables full storage within landscape features and permeable paving, while roof-water discharges directly to green space. Lamb Drove is an integrated SuDS system with predictable performance and is still operating successfully today.

The monitoring report highlights lower capital costs – saving £314 per property at the time –and lower maintenance costs, with potential for further improvements and savings. It identifies that the scheme successfully attenuates surface water flows and significantly reduces peak flows, with reductions in concentrations of pollutants and other water quality indicators, and with an increase in wildlife species and diversity. The report also confirms that with only minimal maintenance: ‘The permeable pavement infiltration study specifically illustrates the robustness of the performance of this feature to limited maintenance. The infiltration capacity of the permeable pavement is able to adequately cope with the highest recorded rainfall intensity at the Study Site’.

Action on Paving Renewal & Replacement - The welcome move towards wider use of permeable surfaces will also help to reverse the “sealing-up” our towns and cities, highlighted in a November 2022 National Infrastructure Commission (NIC) report on reducing flooding from surface water. This recommends urgent action to move away from impermeable surfaces, both for new developments and in existing settings. The NIC is an executive agency of the Treasury and provides government

with impartial, expert advice on major long term infrastructure challenges including water, drainage and flood risk management. The NIC report highlights that, currently, around 325,000 properties in England are in areas at the highest risk (with more than 60 per cent chance of surface water flooding) in the next 30 years and that, without action, up to 295,000 more properties could also be put at risk.

The report aims to ensure that: ‘We should not let surface water flooding continue as a stealth threat. We have the means to address it – what’s largely required is impetus for a range of bodies to act, and better coordination between them’. The NIC also recognises that, by 2055, some 50,000-65,000 properties may be put in areas at high risk due to “unplanned” increases in impermeable surfaces, such as front gardens being paved over, which increase the volumes of water entering drainage. Although planning permitted development rights for replacement or new paving around existing homes and some other properties have been removed for impermeable surfaces for some time, enforcement and compliance have been limited.

So, a review is recommended of options for managing unplanned increases in impermeable surfaces and potential policy changes to prevent it adding to the problem. In addition, some water companies already apply “area-based charging” to commercial properties where impermeable paving drains to sewers and Ofwat is encouraging trials with residential customers as well. Clearly, we shall soon see a much wider application of permeable surfaces – notably concrete block permeable paving – reversing the sealing-up of urban areas.

The Key to SuDS - Having proven itself over decades of successful use around the world, concrete block permeable paving is unique as a SuDS technique in combining proven engineering design solutions with nature-based water management near the surface. Replacing the impermeable surfaces that cause the runoff issues SuDS seek to address, it not only provides a particularly useful source control technique at the head of a SuDS “management train” but also achieves all four required pillars of SuDS: Quantity… Quality…Amenity…Biodiversity.

Of course, safe and attractive hard surfaces are needed in any development. But concrete block permeable paving offers the potential for multifunctionality and integration with SuDS – without additional land-take. Its unique capabilities offer the potential of a gradual supply of clean, treated water for safe, open SuDS features, landscapes and amenity. It can also meet the latest planning requirements for street trees with long-term maintenance, providing diffuse rainwater infiltration and retention, plus free air movement to roots without surface disruption. www.paving.org.uk

Lamb Drove Site Plan courtesy of Robert Bray Associates

Photo: Chris Hodson

Leading London Accountancy Firm Adds Space Flexibility

Mazars is a leading international audit, tax and advisory firm. With the London team nearly doubling in size in the last 15 years, the company has recently relocated to new premises next to the Old Bailey. Aiming to support an integrated, hybrid way of working, partitioning experts Style worked with architects, HLW and contractor, BW, to create flexibility within the meeting rooms. Dorma Hüppe Variflex moveable walls intersect to form a T-shape, allowing up to three individual meetings rooms to be created.

With semi-automatic operation, the acoustic seals expand to exactly the required pressure to deliver an impressive acoustic performance of 55db Rw, allowing meetings to take place either side of the partition entirely undisturbed. Finished in a stretched Kvadrat fabric, the moveable walls blend seamlessly with the chic office interior décor.

The new Old Bailey offices will provide a vibrant, modern home for the rapidly growing London team of over 1,200 employees. In addition to state-of-the-art collaboration, innovation and audio-visual spaces, the new office encompasses an amphitheatre, study areas and a café. The meeting rooms have been named by employee polls, reflecting Mazars’ international and sustainability culture. “Office space in major cities comes at a premium and this is a great example of how you can get the most out of your meeting areas by adapting them for groups of different sizes,” said Michael Porter, Style’s group sales director.

“The semi-automatic Variflex is an exceptional moveable wall of the highest quality and is effortless to manoeuvre into position, which means the space can be easily changed several times a day if necessary.” This was the second time that Style had been chosen by Mazars, having previously installed a glass moveable wall at their offices in Chamberlain Square, Birmingham. www.style-partitions.co.uk

TRITON SYSTEMS SHIELDS SHOWROOM BASEMENT CONVERSION

The renovation and conversion of a former workshop and car storage facility, into a stylish basement space as part of a high-spec residential property, is making extensive use of fully compatible products from the range of Triton Systems. The work to remodel the one-time purpose-built motor garage and independent car dealership at Lytham St. Annes in Lancashire is being led by Elite Basements Ltd., whose highly experienced team of ground-workers, joiners and other tradespeople are reconfiguring the upper floors as well as transforming half the old undercroft into habitable space.

The Preston-based specialist is employing Triton’s anti-lime coating to treat the newly laid basement slab, followed by a layer of the manufacturer’s TM20 profiled membrane to remove water to the floor perimeter, where it is conducted to a sump using Aqua Channel. This PVC-U profile also takes run-off from the Triton Platon P8 lining the basement walls, with a pair of Triton’s 240 volt Aqua Pump Pro Plus units and 24v battery back-up, ready to remove the water to mains drainage. In addition to installing insulated dry-lining throughout the basement, Elite’s operatives have carried out structural repairs and applied red oxide paint with an airless sprayer to all of the original steel columns and beams after they were shotblasted by others. These beams and posts support the ground floor slab/ block and beam floor above. Triton Stretch Tape was stretched around the bottom end to form a waterproof and vapour proof barrier. www.tritonsystems.co.uk

AIRTIGHTNESS SIMPLIFIED FOR RESIDENTIAL DEVELOPMENT IN DUBLIN NEW TOWN

Wraptite®, the only self-adhering vapour permeable air barrier certified by the BBA, is at the heart of an innovative mixed-use town centre development in south Dublin. The Cherrywood project is a Strategic Development Zone that will create a new town including over 7,700 new homes, six schools, three major parks, and retail and leisure facilities. Partition and ceiling specialist contractor Platt Reilly installed the Wraptite System as an external air barrier and alternative to a traditional standard breather membrane. The Wraptite self-adhesive membrane was applied externally, quickly and easily to the external steel frame in continuous pieces.

The self-adhered nature of Wraptite and its high level of water resistance and simplified detailing made it an ideal choice. Wraptite is designed as an effective vapour permeable air barrier to maximise the energy efficiency of buildings, combining the critical properties of vapour permeability and airtightness in one self-adhering membrane.

Wraptite is applied externally, quickly and efficiently as part of the cladding system. Traditional internal air barriers will need to accommodate building services such as electrical, lighting, heating and drainage systems, increasing the gap between as designed and built. However, installing the Wraptite membrane allows bonding to virtually any substrate and requires no mechanical attachment, seals or tapes to suppress air leakage around junctions or penetrations. www.proctorgroup.com

Aldi Enhances Trademark Grey With A Natural Slate Solution

CUPA PIZARRAS’ CUPACLAD® 101 Logic was specified as part of the construction of a new Aldi store in Truro, Cornwall. The natural slate cladding product was chosen for an aesthetic that was entirely in-keeping with the surrounding Cornish town, as well as its impressive fire-resistant properties.

Aldi tasked construction consultancy company Kendall Kingscott with designing and overseeing the creation of a new store in Garras Wharf, Truro. Kendall Kingscott became aware of CUPA PIZARRAS and its products after the slate provider presented a CPD to the team in their Bristol office.

Keen to utilise the company’s natural slate products, Kendall Kingscott contacted its Technical Sales Manager for the South West, Stuart Black. “The team at Kendall Kingscott wanted to use natural slate for two reasons,” said Stuart.

“Firstly, hanging slate cladding is very popular in the local area so specifying this material would allow the store to blend in with some of the surrounding buildings. Secondly, natural slate scores highly when it comes to fire resistance.”

Consequently, Stuart recommended CUPACLAD® Logic 101, which utilises CUPA PIZARRAS’ natural slate. At 7.65mm thick, it is a robust slate product and is ideal for locations that regularly experience high winds and heavy rain. Furthermore, CUPA PIZARRAS natural slate is classed as A1 non-combustible in accordance with the European standard EN 13501-1 – the highest possible fire rating. Once the 150m2 of CUPA PIZARRAS’ natural slate was delivered to site – it was installed by Spectrum Building Envelope & Facades.

As is required for CUPACLAD® Logic 101, the slates were fixed horizontally using self-drilling screws that have been specially designed to optimise installation. Post-application the screws are invisible, to ensure they do not detract from the natural slate’s appealing aesthetic. Architect James Stanfield from Kendall Kingscott commented: “CUPA PIZARRAS worked closely with our design team to produce a bespoke solution that provides a sharp and contemporary public facing façade.

“The slate provides texture and uniformity to the building frontage, which ties it into the local context. We were very pleased with the finish provided by CUPACLAD® Logic 101 and how CUPA PIZARRAS helped to deliver the project and fulfil the brief.” What’s more, thanks to its natural resistance and durability, CUPA PIZARRAS’ slate does not lose its colour over time and it continues to perform. As such, it is maintenance free and guaranteed to last up to 100 years. www.cupapizarras.com/uk/rainscreen-cladding

Sto

Strengthens

Sustainability And Aesthetics At Ireland’s Largest Urban Development

More than 20,000m of Sto’s external wall insulation system has been specified for two residential schemes at Cherrywood, Ireland’s largest urban development driven forward by real estate group Hines and its joint venture partners, APG Asset Management over the past seven years. Located on a 360-hectare site to the south of Dublin, Cherrywood is expected to serve a population of 25,000 people, offering more than 7,700 new homes, six schools, three parks and leisure facilities. Henry J Lyons Architects selected the StoTherm Mineral insulation system for apartment blocks forming part of the first and second phase of the residential construction. Now complete, the first scheme comprises 431 homes divided into two equally-sized blocks.

The second consists of 520 units spread across three blocks and is due to be completed in Summer 2023. Sto installation work was carried out by applicators Platt Reilly. Consisting of mineral fibre insulation boards, the StoTherm Mineral system provides a high level of thermal performance and fire protection. It has been installed onto lightweight steel frames using Sto-Rotofix Plus. Thanks to a unique spiral design, these fixings help to create a seamless façade across all the blocks as well as a cavity behind the insulation board allowing any excess moisture to drain.

Using the Sto-Rotofix-Plus, any unevenness in the substrate can be easily rectified by adjusting the insulation boards after they have been installed. This means there is no need for unsightly expansion joints and a smooth

surface can be created ready for applying the render. All the apartment blocks will be finished with the StoSilco silicone resin render to provide high levels of water repellence and resistance to algae and fungus growth.

Stephen Hedderman,

Senior Architectural Technologist at Henry J Lyons Architects, said: “Sustainability is at the heart of Cherrywood’s design and this is reflected across the residential developments. The StoTherm Mineral system will help to reduce carbon emissions and energy use by thermally insulating the exterior walls. Combined with the high-performance render, this will ensure the structural fabric is kept warm and dry. “The large seamless façades also strengthen the aesthetics of each scheme, ensuring a highquality finish that will last for generations.”

Cherrywood’s sustainability commitments include a focus on highly efficient buildings with extremely low energy demand. The design and construction teams are targeting BREEAM Excellent Certification, and Cherrywood town centre is set to achieve Ireland’s first Well Community certification from the International WELL Building Institute. www.sto.co.uk

STERLINGOSB ZERO’S SHEAR STRENGTH LEADS TO SELECTION FOR WIKIHOUSE SWITCH

A programme of testing being carried out by one of the country’s leading research universities is expected to verify the team’s early findings around the WikiHouse offsite building system – indicating that West Fraser’s SterlingOSB Zero panels offer superior performance benefits for the production of their large format blocks, beams and other components. The material’s compressive and shear strength have proved key to the successful outcomes. WikiHouse has been developed to provide an economic and sustainable means of constructing low-rise housing and other accommodation which is straightforward to manufacture and erect.

WikiHouse is a zero-carbon building system, maintained in the UK by Open System Lab, and offers a comprehensive selection of key components which can be shared as code and produced in small local workshops, rather than a large factory. Crucially, the WikiHouse blocks are produced to an accuracy of 0.1mm and can be rapidly assembled by a small site team, requiring none of the traditional trade skills. SterlingOSB Zero has outstanding environmental credentials. Both the 18- and 22-mm thick panels are strong enough to meet most load-bearing applications, are BBA Approved and recognized under the NHBC Technical Standard for housing applications. SterlingOSB Zero T&G also bears the coveted UKTFA Q-mark. https://uk.westfraser.com

MARMOX MULTIBOARDS LINE NEW

The construction of a stylish and sensitively designed riverside leisure centre in Northumberland is making full use of high performance tilebacker boards from the range of Marmox Ltd. throughout all of its wet areas: selected as a lining to blockwork walls in place of traditional render. The Morpeth Leisure Centre is being built by Willmott Dixon for the Advance Northumberland body. P. Plunkett Tiling Contractors Ltd. is the North-east based specialist sub-contractor involved, which carries out challenging commercial contracts of this scale across the country, while the company’s Managing Director, Steven Allsopp, proposed the use of Multiboard to the project team.

A total area of 2,600 square metres of Multiboards are being installed using 10,000 of the special Marmox dowels and Marmox waterproofing tape, ready for the installation of mainly white ceramic tiles to complete a fully waterproof lining to the poolside walls and other wet areas. Marmox Multiboards are manufactured from extruded polystyrene (XPS) covered in a layer of polymer concrete which offers an ideal surface across which to fix tiles, while they can be combined with the manufacturer’s special tapes and multipurpose sealant to create fully waterproof wetroom installations. www.marmox.co.uk

XL ALUMINIUM

CAST IRON

Semicircular Balcony Demands Resolved By Schöck

All apartments at the Triptych Bankside development, next to the Thames in Southwark, benefit from spacious balconies, with an emphasis on the quality of the finishes. However, their highly unconventional and dramatic semicircular profiling meant Schöck had to demonstrate its design expertise in meeting the structural load-bearing thermal break requirements. Triptych Bankside is at 185 Park Street, in Southwark.

It comprises three elegant building forms within a landscaped park setting and is a close neighbour of the Tate Modern, the Millenium Bridge and the Globe Theatre. The mixed-use development provides two residential blocks – fifteen and nineteen storeys respectively – along with office accomodation and creative workspace in a ten storey building. There are also retail and cultural amenities at ground level.

A subtle twisting form, combined with undulating curved terraces wrapping around the exterior, affords the buildings a considered architectual elegance – but central to the residential buildings design is also its ability to be adaptive and maximise both amenity space and local views.

The development has a commitment to the local community too and Triptych Bankside is facilitating the delivery of 57 new, purpose-built almshouses, to be operated by the United St Saviour’s Charity, which has been working in Southwark since 1541. In addition the design reinstates the lost historic street, Emerson Place, which creates new pedestrian connections through the site to the River Thames and which features a continuous flow of green spaces including a central public square.

Special demands need a special solution - The special demands of the Triptych Bankside semicircular balcony profiling required bespoke Isokorb T type SK units to be designed with specific postional load capacities, using built-in steel reinforcement. The T type SK is a complete system structural thermal break for minimising thermal bridges between cantilevered steel constructions on reinforced concrete components. Since it can be prefabricated to a large degree, installation time on the building site is reduced.

Also, due to its superb load-bearing capacity, the engineering and structural design is ideal, even for heavy modern balconies. It is capable of absorbing large bending moments and shear forces; and is certified as a safe and verifiable solution through independent third party evaluations from the BBA and Oxford Brookes University. At present, no other UK product for concreteto-steel applications meets these load-bearing requirements, or meets the current and future thermal performance required by building standards (Part L).

Minimising thermal bridging is critical - The entire project is built very much with sustainability in mind and minimising any risk of thermal bridging at the balcony detailing is critical for a number of reasons. Namely, local heat loss will result in more energy being required to maintain the internal temperature of the building. Also, low internal surface temperatures in the area of any thermal bridge can cause condensation and this in turn is likely to result in structural integrity problems. Mould growth too is a possible risk, which in a residential situation can cause asthma and allergies.

A dependable and fully compliant product range - The Schöck Isokorb range of structural thermal break solutions is the largest in Europe and in the UK helps projects meet full compliance with the necessary Building Regulations (and the impending Future Homes Standard criteria where relevant). In addition to the Isokorb type used on this project, there are also solutions for concrete-to-concrete, steel-to-steel, renovation projects, Passive House – and even a maintenance free alternative to wrapped parapets. All products have the security of independent BBA Certification, which provides NHBC approval. The temperature factor requirement (fRSI) used to indicate condensation risk, which must be equal to, or greater than 0.75 for residential buildings, is also easily met by incorporating the Isokorb.

www.schoeck.com

Bilco UK Sets The Standard For Safety At Glasgow Housing Development

Glasgow’s latest redevelopment project, located on Langside Road, is built upon the former site of the city’s Victoria Infirmary and consists of a large housing development that includes 413 flats, offices and retail space.

The 3.75 hectare site, which is situated next to Queen’s Park on the south side of the city, forms an important part of the Battlefield area’s character, with the buildings’ exterior reflecting and complementing the surrounding heritage by using the city's traditional blonde coloured sandstone. As part of the construction process,

Bilco UK was commissioned to supply six ESW-50REM Smoke Vents, in addition to seven E-50TB Roof Access Hatches, to provide the highest standards of safety and efficiency, whilst being sympathetic to the project’s overall design. Installed onto the roof areas of four blocks of flats by Scottish contractors, Procladd Small Works Ltd, Bilco UK’s ESW-50REM

Smoke Vents were specified to provide essential ventilation in the event of a building fire. Featuring a linear actuator operating mechanism that opens the cover to 140 degrees within 60 seconds, the smoke vents ensure compliance with Building Regulations Approved Document B, BS9999 and EN12101-2.

The built-in wind deflector also provides protection against smoke being blown back into the vent in the event of a fire., whilst the newly-designed closedcell EPDM sponge gasket helps meet Building Regulation air leakage targets by providing a better seal of the cover to the curb. With the addition of a fixed vertical ladder, the smoke vents can also be used by maintenance engineers for roof access.

Billy Baillie, Managing Director at Procladd Small Works Ltd, said: “We have a longstanding relationship of over 20 years with Bilco UK, and will continue to do so over the forthcoming years, due to their impressive product quality and outstanding service. Bilco UK’s Roof Access Hatches and Smoke Vents were incredibly easy to install, and knowing they’re engineered to meet the highest industry standards, it provided both ourselves and the client with the confidence that the installation would set the standard for performance and longevity.”

Constructed with corrosion-resistant materials, Bilco UK’s E-50TB Roof Access Hatches were also installed to provide engineers with safe, regular and convenient access to the roof to conduct essential maintenance. Engineered with compression spring operators to provide easy one-hand operation, the roof access hatch meets the requirements of Manual Handling Regulations, whilst the automatic hold-open arm locks the cover in the open position to ensure safe egress.

The overlapping cover design, fully welded corners and insulated cover also ensure weathertightness and energy efficiency to deliver the highest standards of resilience. Mark Baird, Sales Operations Manager at Bilco UK, said: “Drawing on our longstanding relationship with Procladd Small Works Ltd, it was fantastic to work together on this project, which has been designed to positively impact the city’s culture. The products installed were manufactured with fire safety and efficiency in mind, delivering assurance of the durability and suitability of the installation for years to come.” www.bilcouk.co.uk

A Nordic Royal Beacon

Ireland’s first Tibetan Buddhist Temple takes a step towards completion with installation of distinctive tiered roofs clad in Nordic Royal – an innovative golden copper alloy from Aurubis. At the heart of the Dzogchen Beara Buddhist Meditation Centre on the Beara Peninsula overlooking the Atlantic Ocean in West Cork, the new building was designed in the style of a traditional Tibetan temple acting as an inspiring symbol of the Buddha’s teachings. But unlike the traditional form it also includes large windows to provide extensive views of Bantry Bay.

Highly Visible Nordic Royal Roofs - The temple is built over three floors, each defined by a Nordic Royal clad roof with a curved-profile and deep overhanging eaves. Dragon heads and other sacred ornaments with deep spiritual meaning, hand-crafted from copper in northern India then gilded with gold leaf by members of the Dzogchen Beara community, adorn projecting corners and the top roof ridge.

The project’s architect Giles Oliver, who passed away three years ago, envisaged the building as: ‘a beacon of wisdom and compassion’ and the stunning new copper roofs will be seen for miles along the coastline and from boats at sea. With its exceptional longevity and durability proven in the most extreme environments, copper was the natural choice for the temple roofs.

A natural element within the earth’s crust, copper has been incorporated into living organisms throughout the evolutionary process and is essential for all life. Its ability to be recycled repeatedly, without any loss in performance, is an important benefit: 100% of architectural copper products are manufactured from recycled raw material. (cont...)

Photo: Derek Corr

Photo: Leon Rossiter

Photo: Leon Rossiter

(cont...) Marine Environment Trials - There are numerous copper surfaces and alloys to choose from today. Leon Rossiter, one of the Directors and heading up the Temple project, explained: ‘Giles Oliver, the Temple Architect, sent a sample of the Nordic Royal asking me to look into it. We trialled different styles of copper by placing samples out on the cliff behind the temple, to face our harsh marine environment. For 18 months, the Nordic Royal sat there alongside classic copper, with and without a lacquer on it, and we tried gilding the copper as well. ‘But only the Nordic Royal delivered just what we were looking for in a roofing material. As it says in the manufacturer’s specification, we found that this copper alloy provides a matt golden colour that perfectly complements the gilded ornaments. It’s shine and brilliance changes throughout the day as the sun courses through the sky. Even on a rainy day, somehow the most golden glow is exhibited. In essence, we are overjoyed that such a material exists, as we don’t think we could have achieved the look of the temple’s roofs if we had used any other material’. The innovative Nordic Royal is an alloy of copper with aluminium and zinc, giving it a rich golden through-colour and making it very stable. It has a thin protective oxide layer containing all three alloy elements when produced. As a result, the surface retains its colour and simply loses some of its sheen over time, as the oxide layer thickens with exposure to the atmosphere to give a matt finish.

Photo: Derek Corr

Local Links - Although a recently developed and innovative material, Nordic Royal has been installed at Beara using traditional, hand-crafted techniques. All the crafts people involved were locally based including Wychbro Coppersmiths from Clonakilty, Stroker Fabrications from Enniskeane and the main contractor Beara Building Services, from Eyeries. The local area also has long historical links with copper. The nearby Allihies Copper Mine Museum presented Dzogchen Beara Temple with one of two surviving copper ingots that were mined deep beneath the area during the 1800s. This was inserted for posterity into the main sacred ornament on top of the temple at a special ceremony.

Extensive Architectural Range - The Nordic Copper range of architectural copper and alloy products is available from Aurubis, part of the world’s leading integrated copper group and largest copper recycler. It includes Nordic Standard ‘mill finish’ and Nordic Brown pre-oxidised copper offering lighter (Nordic Brown Light) or darker shades of brown determined by the thickness of the oxide layer.

The extensive Nordic Blue, Nordic Green and Nordic Turquoise ranges have been developed with properties and colours based on the same brochantite mineralogy found in natural patinas all over the world. As well as the solid patina colours, ‘Living’ surfaces are available for each with other intensities of patina flecks revealing some of the dark oxidised background material. In addition to Nordic Royal, other copper alloys include Nordic Bronze and Nordic Brass which can be preweathered.

A growing series of on-line ‘copper stories’ showcase the diversity of surfaces, forms and applications available with Nordic Copper today for all architectural typologies. www.nordiccopper.com or email: NordicCopper@aurubis.com

Photo: Derek Corr

Photo: Leon Rossiter

RMIG Brings The Countryside To The Town

Dorset County Hospital is located just outside Dorchester town centre. This modern hospital provides a full range of district general services, including an accident and emergency department, and links with satellite units in five community hospitals. As the main provider of acute hospital services to a population of around 300,000, ample parking space is required at all times. It was decided that a multi-storey car park (MSCP) should be built to keep pace with demand. Due to new and stricter public regulations combined with the desire for aesthetic freedom, the task presented several challenges. The design and construction of multi-storey car parks are receiving a lot of attention in the UK. It gives status to develop aesthetic garages and prizes are awarded every year for the best MSCP architecture –RMIG Solutions has contributed to many significant projects within this field. At the same time, the regulations and legislation for MSCPs are being tightened all the time in the UK.

This applies to the guidelines for light and ventilation, and to a large extent to the rules for fire safety. RMIG Solutions joined the project at an early stage and their experience and expertise within this field was a great advantage, enabling those involved to find the best possible solution. After a public vote, three images from the beautiful Dorset countryside had been selected for illustration on the facade, and had to be processed so that the perforated pattern creating the images could meet the requirements for open areas for light and ventilation. The images were successfully processed and the results were remarkable!

Through a bit of wizardry, it was possible to change the photos to landscape format and at the same time let in light and air for the users. This made it possible to merge the creative wishes of the architects with what was technically possible. It is always a compromise when it comes to MSCPs, but even though ventilation requirements reduce the contrast in the images, they still stand out and give residents a great impression of the Dorset landscapes. Finally, numbers could be stamped directly on each element in the production line so there was never any doubt as to where and in what order they should be installed. This made the on-site mounting process much easier. www.rmig.com/en

Santiago Bernabeu Stadium Renovation Supported By Lindapter

In 2019 Real Madrid Football Club unveiled plans for a 525 million renovation project of its iconic Santiago Bernabéu Stadium. The huge renovation project would include increasing the capacity by 4,000 with an extra tier being added, increasing the height of the stadium by 10 metres, adding a retractable roof, major exterior developments and installation of a 360° video board and lighting that would encircle the entire roof area. The vision was to transform the Bernabéu into a modern, avant-garde stadium, with maximum comfort, safety and state-of-theart technology.

One of the distinctive features of the stadium was the new lighting that needed to be safely and securely attached to the roof. The design involved connecting the lighting to the steel columns of the original stadium structure via structural hollow sections (SHS).

The contractor wanted to avoid onsite welding or drilling at height for many reasons including time, cost and safety therefore an alternative connection method was required. Lindapter’s technical support team were approached by FHECOR, the consulting engineer for the project, and asked to submit a steelwork clamping design solution.

After receiving details of the existing structural columns, the SHS framework and lighting equipment, Lindapter’s technical support team were able to propose a solution. This involved welding pre-drilled steel plates to the sides of the SHS framework offsite at the fabricators and connecting these to the structural steel columns onsite with clamps. The connection design included Lindapter Type AAF adjustable high slip resistance girder clamps with M16 diameter, grade 10.9 bolts in a standard 4-bolt configuration.

Quicker, safer and easier - The ready-to-install reinforcement element consists of double-headed studs with spacing bars to ensure correct positioning. Spacers allow installation on the formwork and as a result, installation on the construction site and in the precast plant is therefore quicker, safer and easier to achieve.

The contractor used 1,800 Type AAF Girder Clamps to connect the SHS framework and lighting equipment to the structural columns via the “end” plates. Installation was quick and easy as the connection assemblies could be positioned close to where they were needed before final adjustments were made and the clamps fully tightened using a calibrated torque wrench.

Type AAF Girder Clamps provided an excellent solution that avoided the need for welding or drilling onsite. This offered many benefits to the contractor including a safer working environment, as no heavy tools or equipment were required, especially important as the installation was carried out at significant height. Other benefits were the time saved by clamping which resulted in lower labour costs. www.lindapter.com

A Stella Sea View Next To The Home Of Golf

Standing proudly on one of St Andrews’most desirable streets, Gillespie Terrace, Step Rock House is understood to date back to 1850 and was originally the residence of Lady Playfair, wife of the first Baron of St Andrews. The stunning Grade B Listed property is among a key group of buildings listed as ‘significant’ within the St Andrews Conservation Area. The property enjoys a unique location overlooking West Sands beach, (famed for the opening scenes of the film Chariots of Fire), and backing onto the oldest and most iconic golf course in the world, St Andrews Old Course.

Following a major renovation project recently undertaken by renowned local contractor, Alpha Projects, Step Rock House has now been divided into two separate apartments over two floors. All works were completed to an exceptionally high standard, ensuring appropriate materials were used to maintain the many period features throughout. The complete internal refurbishment of the property involved the installation of a new staircase, improved insulation, new flooring, cornices, kitchens, bathroom and ensuites.

Externally, the sympathetic renovation works to this distinctive building involved the complete removal and reforming of the existing roof to provide increased head

height and floor area. A major part of the external works included the refurbishment and replacement of the existing sash and case bow windows which extend the full height of both storeys, along with the installation of a genuine conservation rooflight, sitting flush to the roof tiles in between two tall curved slated parapets.

Preserving the original character of the building and surrounding Conservation Area was of hugely significant architectural importance. As such project architects, Muir Walker Pride, specified a bespoke Stella conservation rooflight, constructed using316L stainless steel with a self-clean high performance glazing unit.

This would not only provide maximum protection against the harsh coastal elements, but due to the rooflight’s slender steel sight lines, genuine glazing bar and original Victorian design, it also satisfied the strict requirements of the Local Conservation Officer.

The Stella rooflight not only looks magnificent from the outside, but provides a stunning internal feature, which floods the space with natural daylight and makes the most of the spectacular views across West Sands beach and inland across the golf courses. www.stellarooflight.co.uk

Cupa Heavy 3 Slate Provides The Key To Scottish Bothy’s Grand Renovation

Heavy 3 slate has been specified as part of a unique self-build residential home in the Scottish countryside. Showcased on the latest series of Channel 4’s Grand Designs, Heavy 3 was selected to renovate the roof of a Grade II listed bothy that had to be incorporated into the property’s overall design. The slate was the ideal solution to replicate the aesthetic of the original Scottish slate. Architect Iain Shillady, Director at Staran Architects, decided to carry out an ambitious conversion of the bothy – a form of basic accommodation for gardeners working on country estates – and walled garden, turning it into his ideal family home.

However, planning permission dictated that the architectural heritage of the property must be maintained, meaning that the bothy and garden wall had to be preserved to allow the project to take place.

As a result, Iain developed an innovative architectural design that divided the family home into two separate sections, split by a 13-metre skylight. In this design, the bothy, which was positioned against the garden wall, would be restored to house several bedrooms and act as an entrance to the property, with the rest of the house built within the large garden, hidden on the other side of the wall.

Due to the bothy’s lack of upkeep, the original roof slates were damaged beyond repair and several sarking boards and head ends had succumbed to rot. However, the main ridge was salvageable. Iain approached Allan Liddell, CUPA PIZARRAS Technical Sales Manager for Scotland, to work with the project team and find a slate solution that would maintain the bothy’s original aesthetic.

Allan recommended Heavy 3, a popular choice for projects needing a durable building material and a similar aesthetic to traditional Ballachulish Scottish slate. “Once we replaced the sarking boards and head ends, installing the Heavy 3 slates was a very straightforward process,” commented John Carey, Director at Carey Roofers. “CUPA PIZARRAS offers the best slate on the market so I’m happy to install its products whenever possible.”

Approximately 6,000 Heavy 3 slates were nail fixed to the bothy’s roof. Produced in two thicknesses, in this case the extra thickness and weight of the 7-8mm variant provides the strength to withstand the high wind speeds and driving rain that is common throughout Scotland. Also available in a number of sizes, Heavy 3 size 300 x 200mm slate is widely used on conservation projects and comes with a 100-year warranty as standard.

“I’m very pleased with the final result,” commented Iain. “The quality and the aesthetic of the slate were essential. I was already familiar with Heavy 3 as it is a common choice for our listed building work, so I was confident in the product. We opted for a slightly smaller format to closely replicate the Scottish slate originally removed from the bothy.” The project is now complete and has recently aired on the latest series of Channel 4’s architectural housebuilding programme Grand Designs, presented by Kevin McCloud. www.cupapizarras.com/uk

● Elegant partitioning with maximum transparency

● Single- and double-leaf doors and fixed glazing up to 5000 × 4000 mm

● Sliding doors for a space-saving way to link two rooms
