The Hub
Presented By Kyi Phone Htet 65120500040

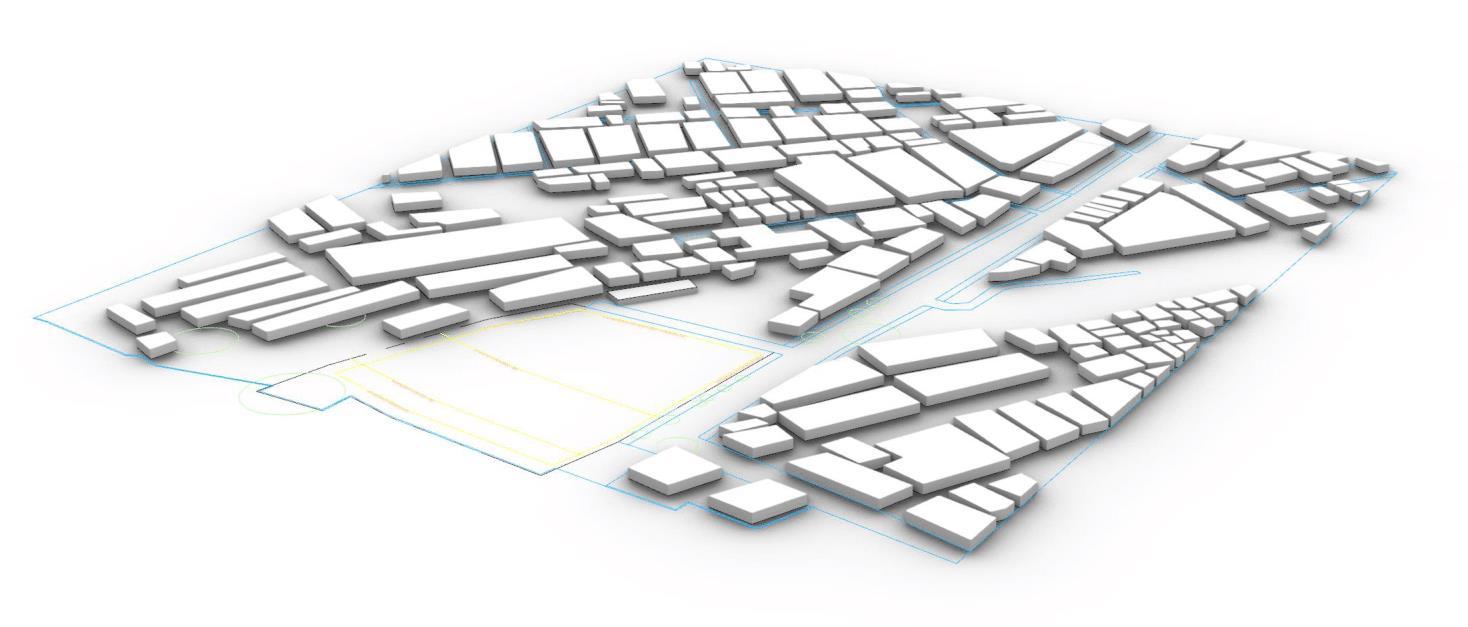

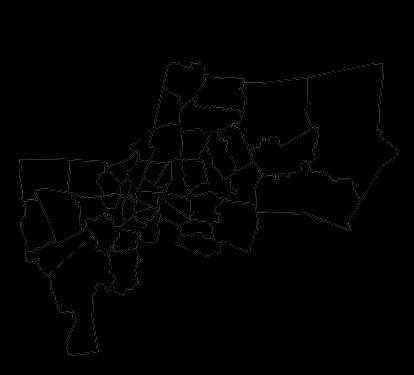

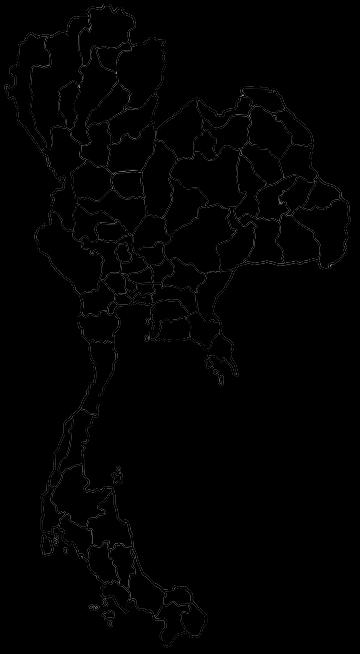

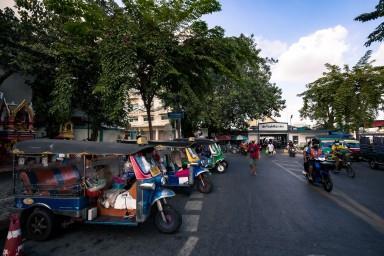

Site Location and site analysis
S.W.O.T Analysis
Strength
Heritage Site
Chao Phaya River View
Weakness
Security Problem
Less Green Space
Opportunites
Creating New Environment for New generstions
Creste land mark
Threat
Narrow Street and pavement
Noise and smell
polution from surroundings
User Analysis
Thoughtful
Starving for equality
Expecting Better Quality
Love social interaction
Quality Living
Equal Quality of Living Standard
Private Spaces
Shared Spaces
Social Interaction
Substainable Design
Green Spaces
X and Gen Y Creative People
Gen
Area Ratio
Commercial Spaces – 660sqm
Residence Shared Spaces – 1135 sqm
Basement Car Parking – 1700 sqm
Residences Spaces - 9510 sqm
Living Spaces – 5325 sqm
Unit Types – Studio , One Bed Room , Two Bed Room
Studio – 110Rooms
One Bed Room - 18 Rooms
Two Bed Room -30 Rooms
Total GFA – 13005 sqm
Efficiency –Approx 55.9%
Commercial Residence shared Car Parking Residence Spaces Living
GFA

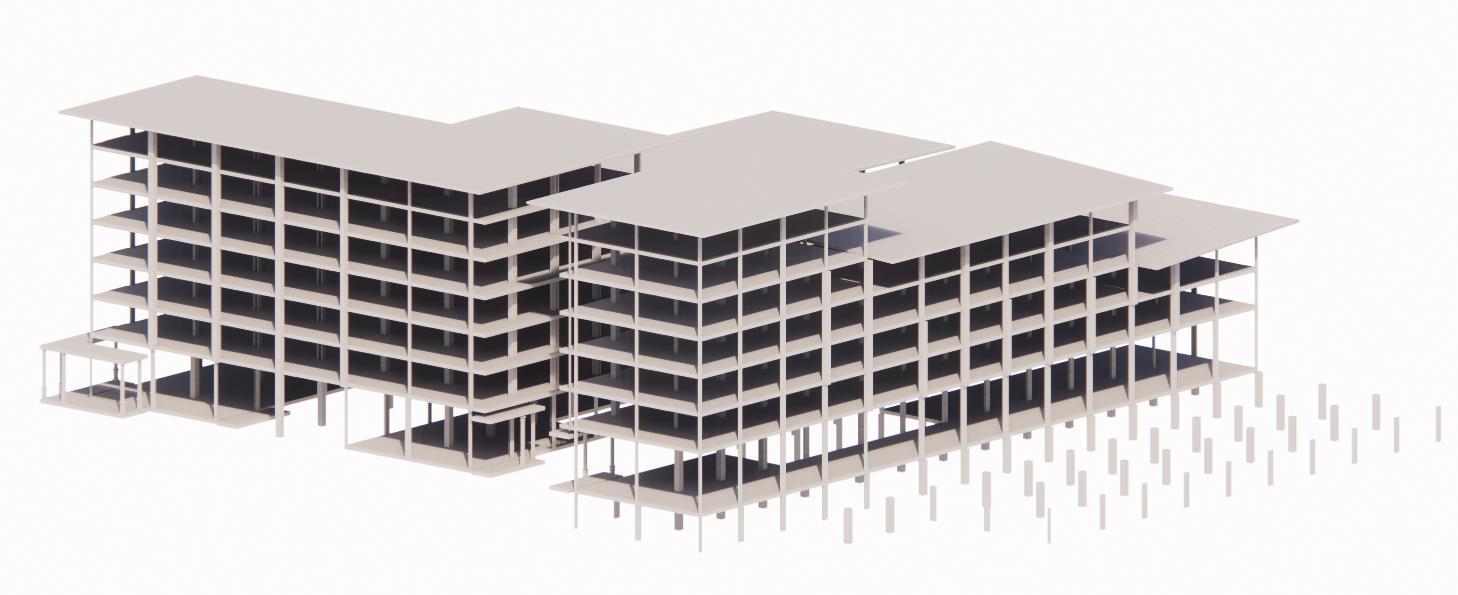

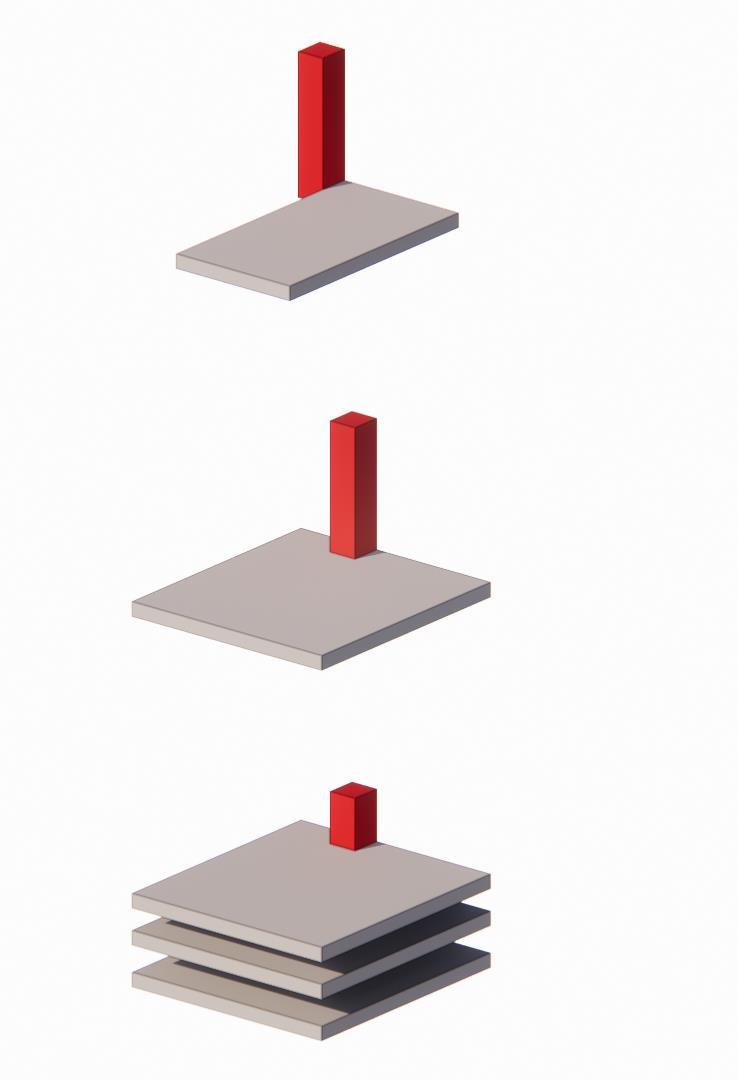

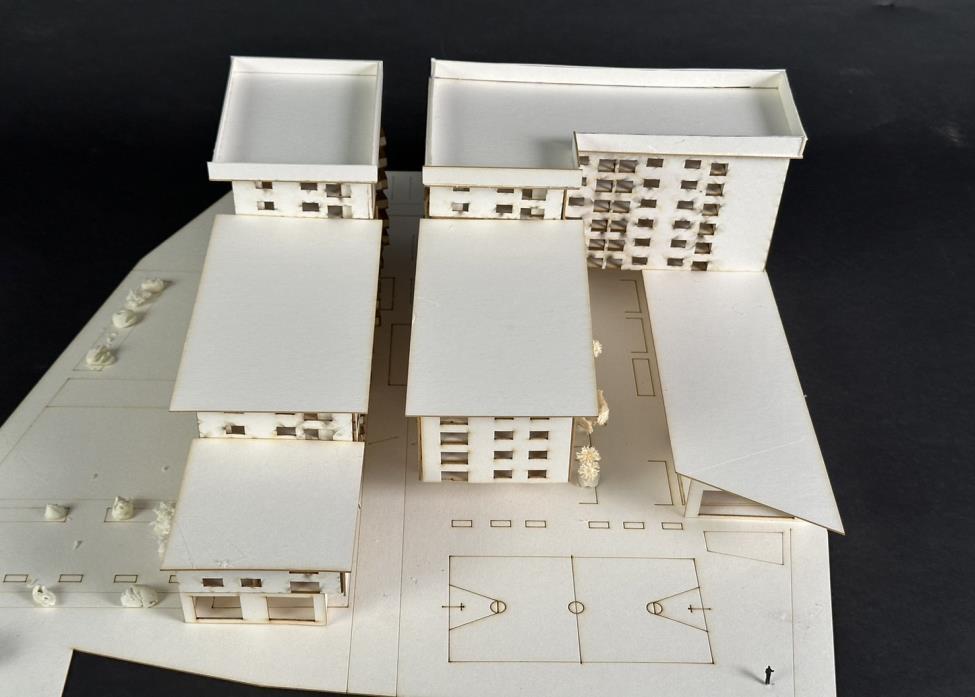

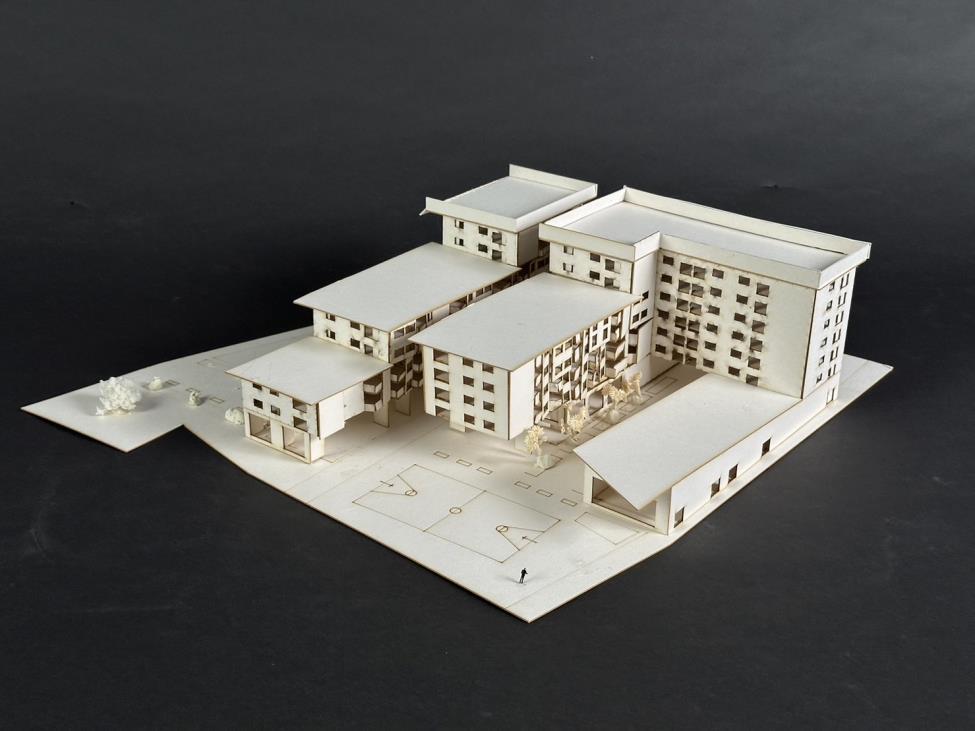

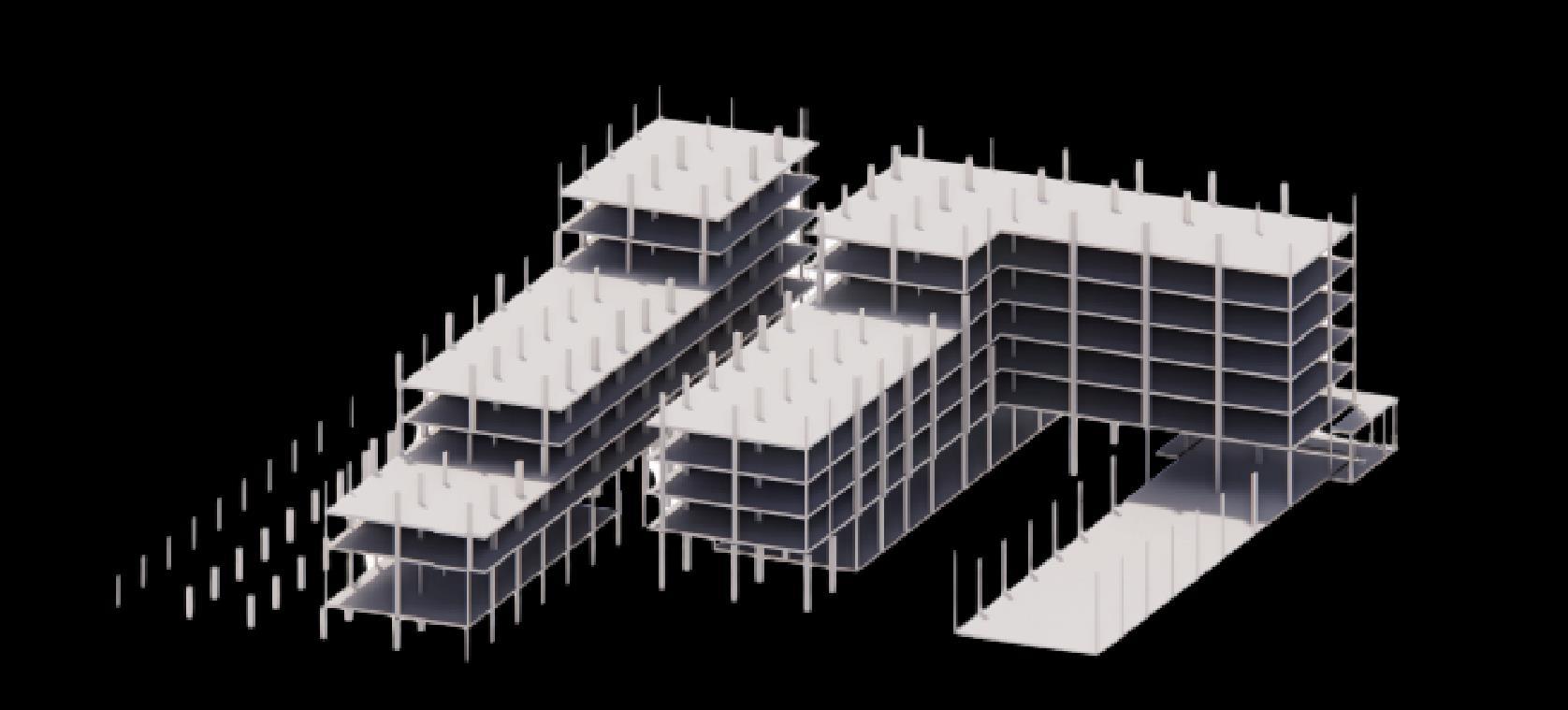

Design Approach - - - CONNECTION
Residence Commercial and Publilc

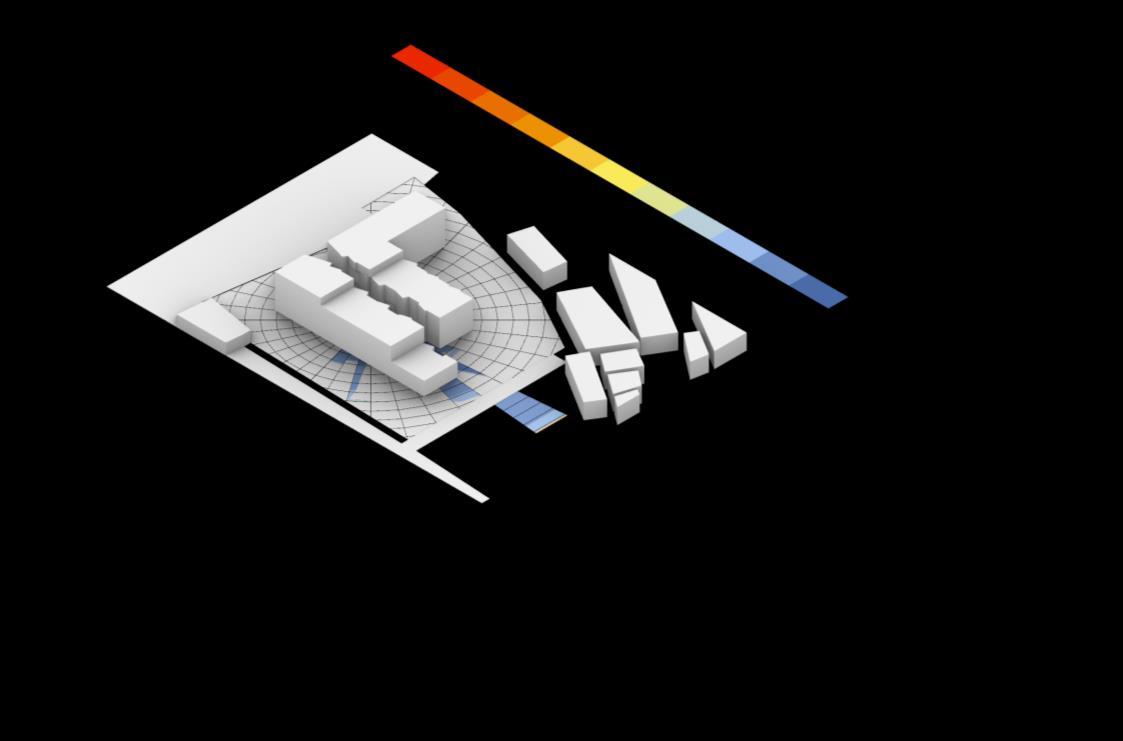

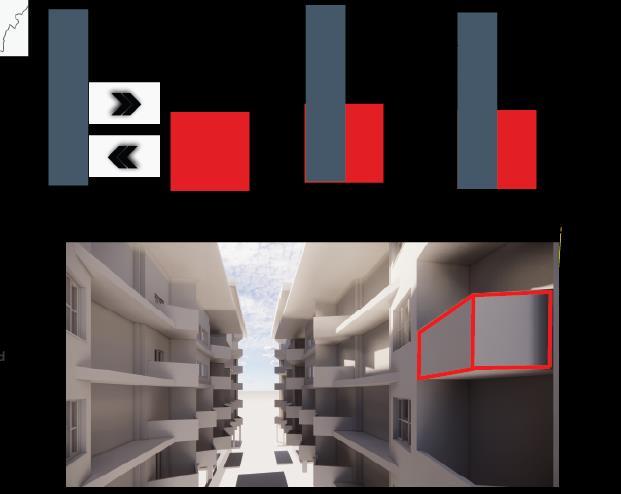

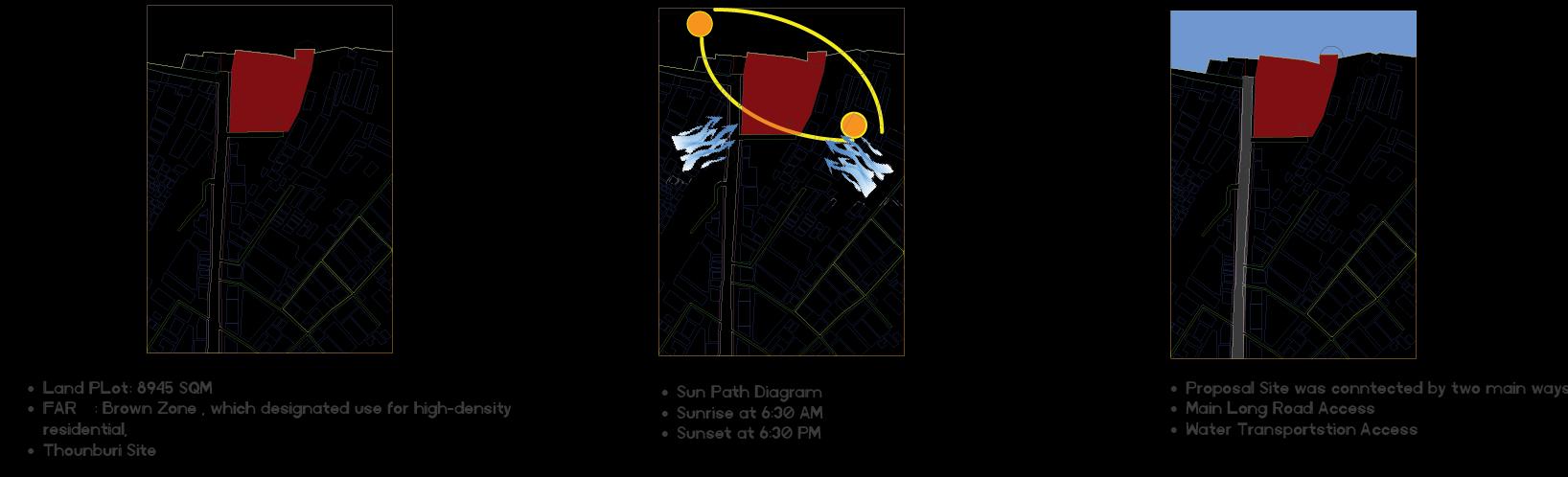

Sun Analysis of schematic design

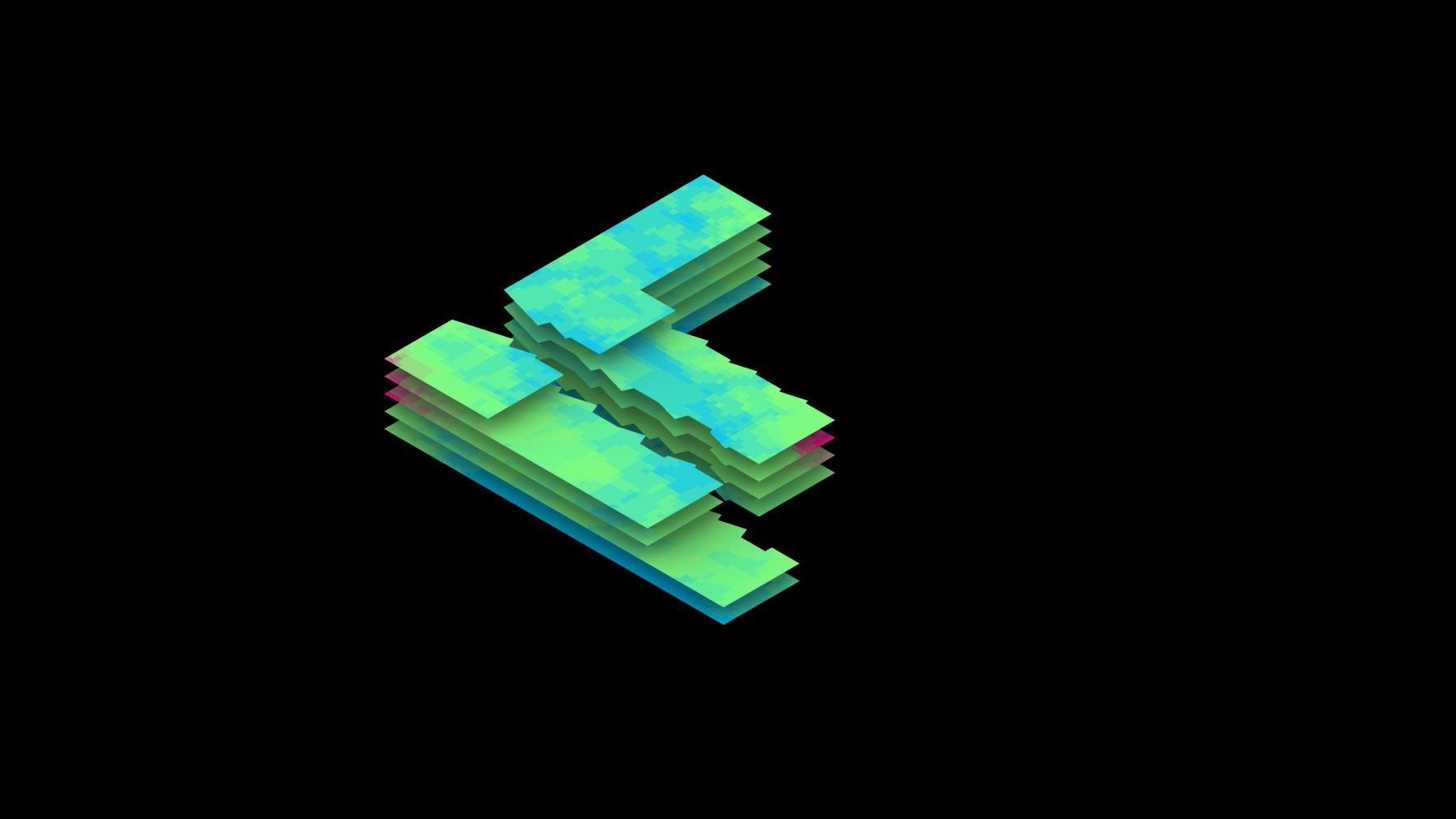

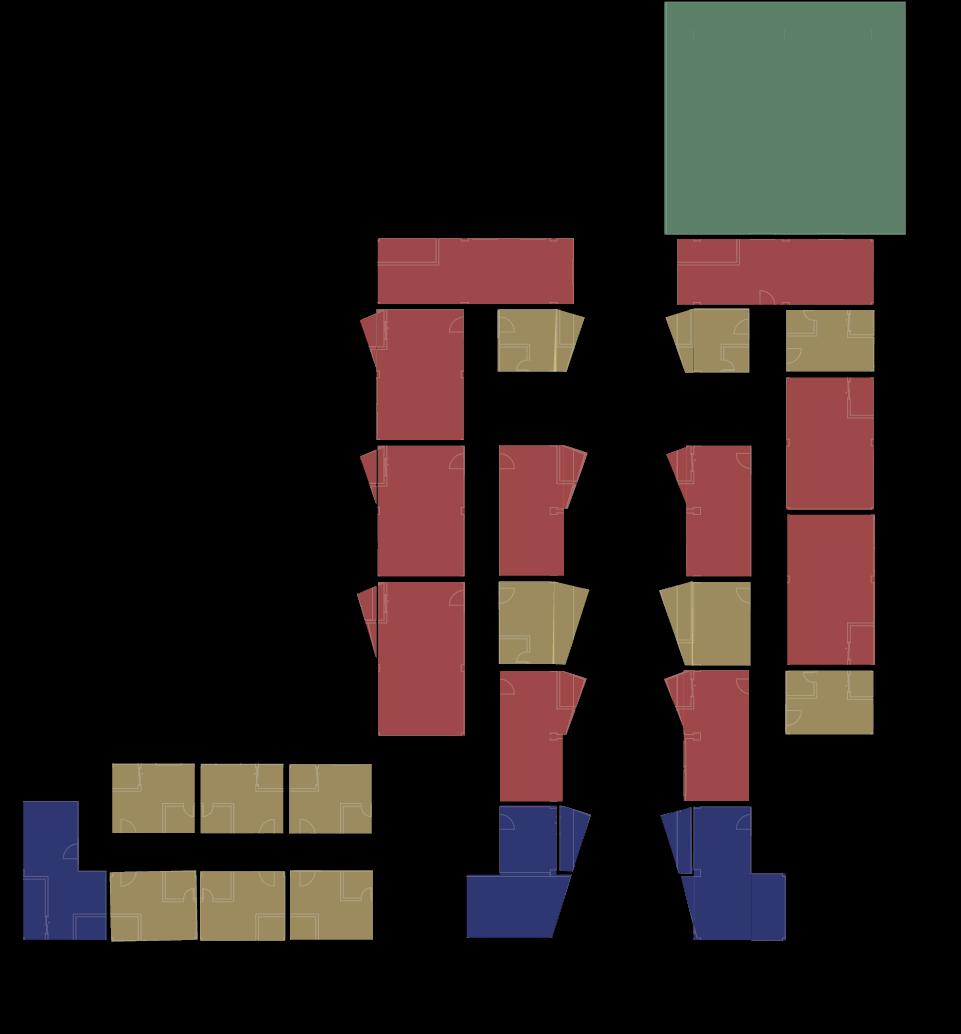

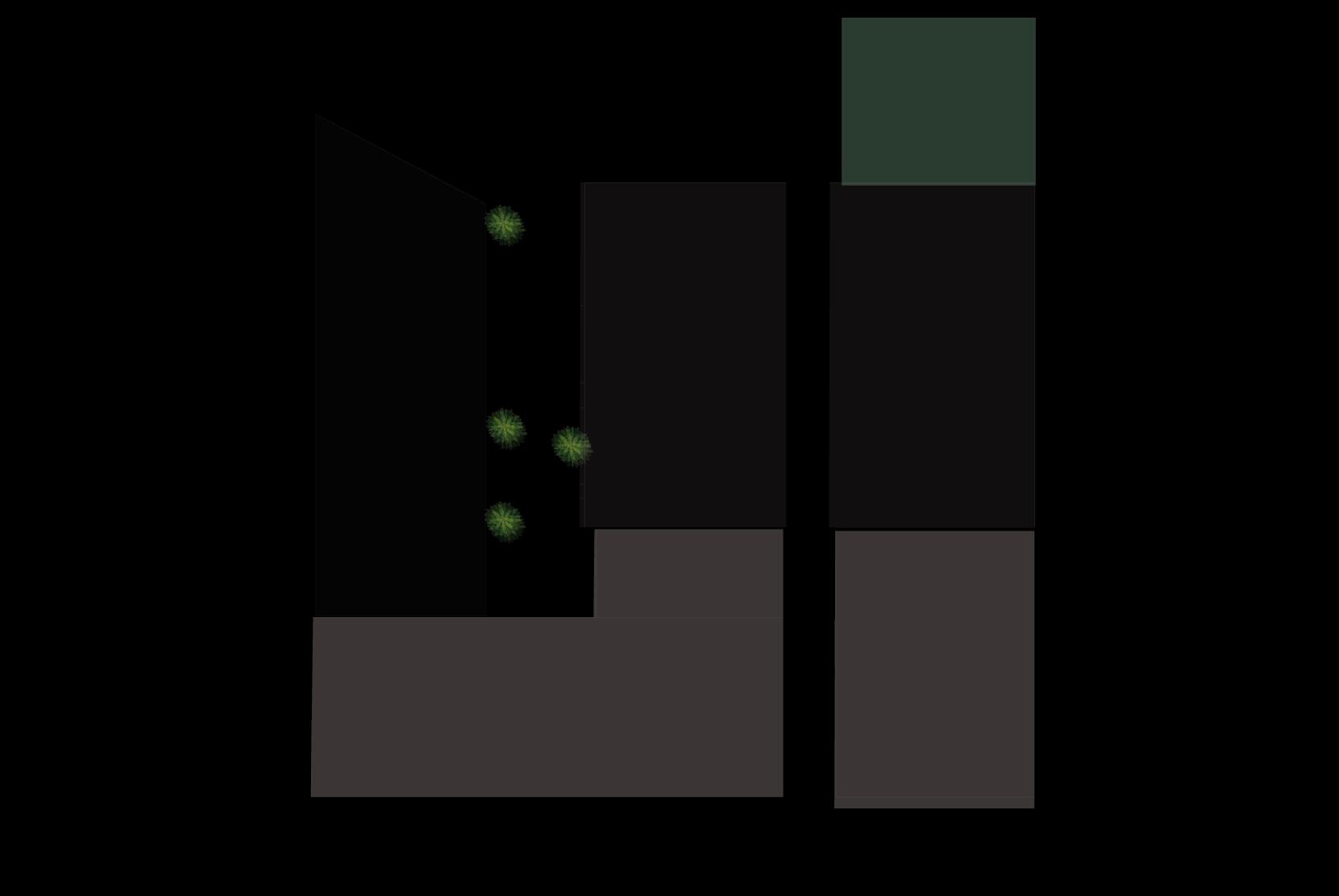

Zoning Diagram
Public Spaces (Commercial) Semi Private Residences’ shared spaces Private Spaces Residences

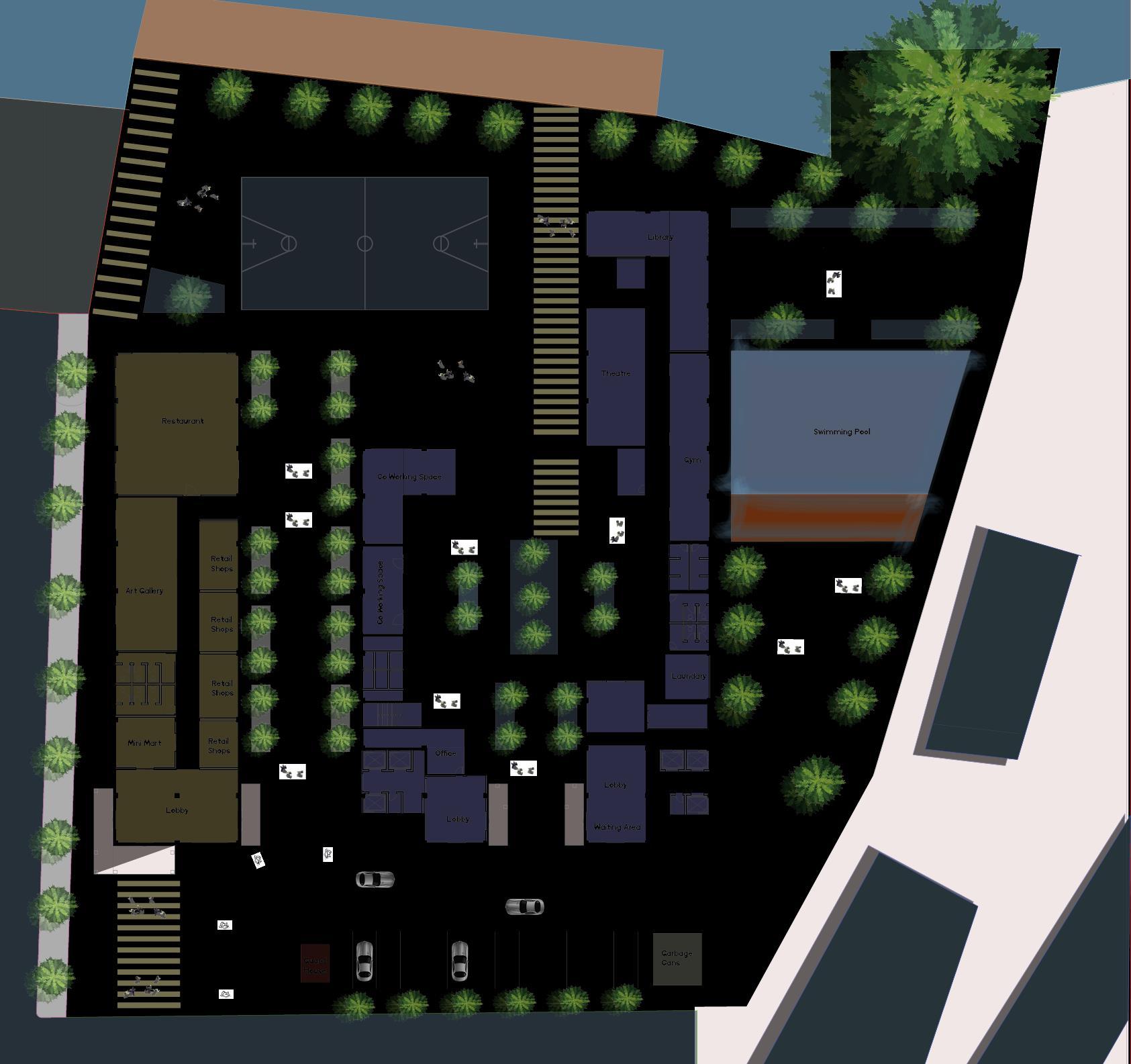

Site Plan

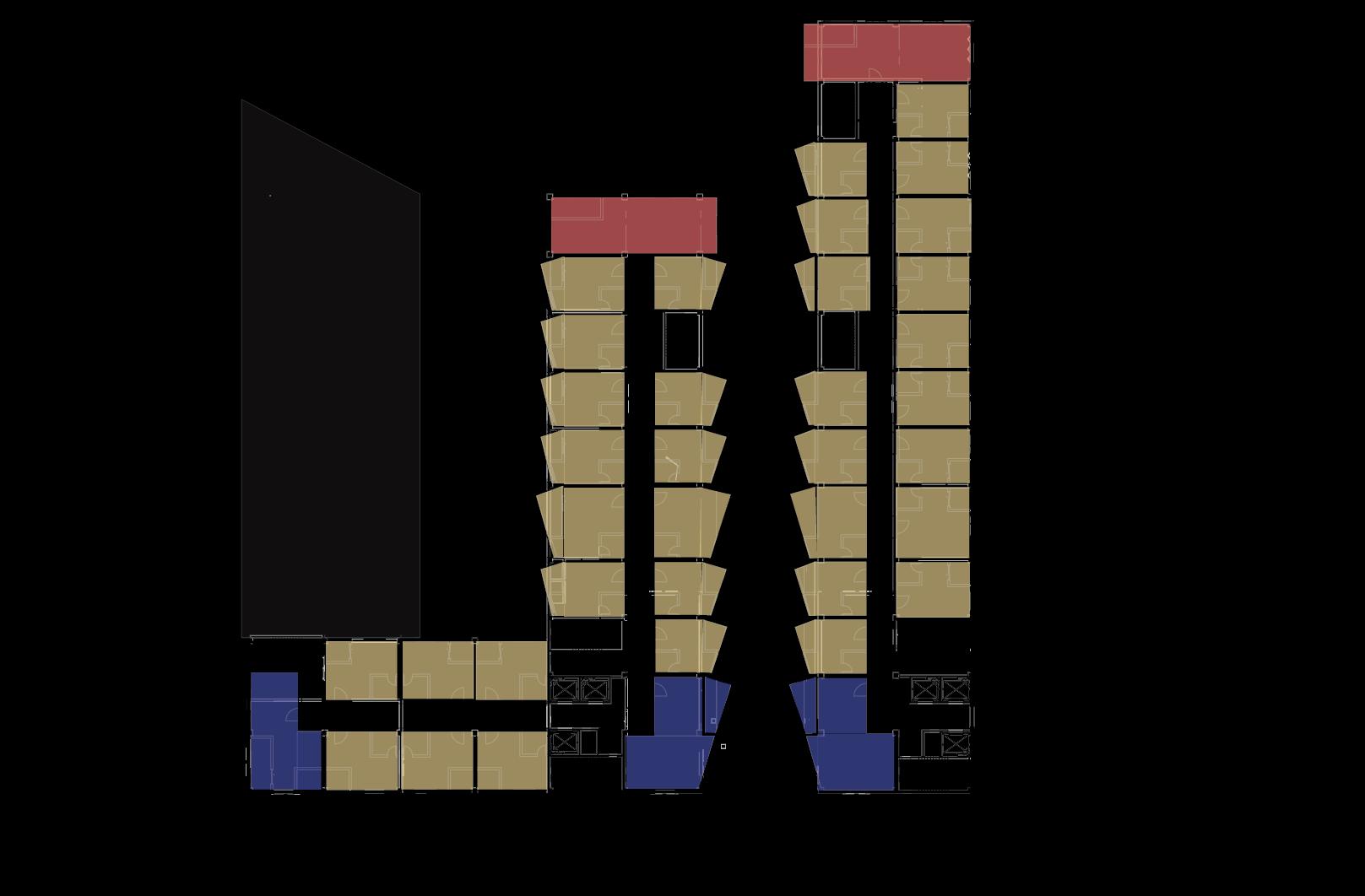

Floor Plans
Floor Plans
Roof Plan

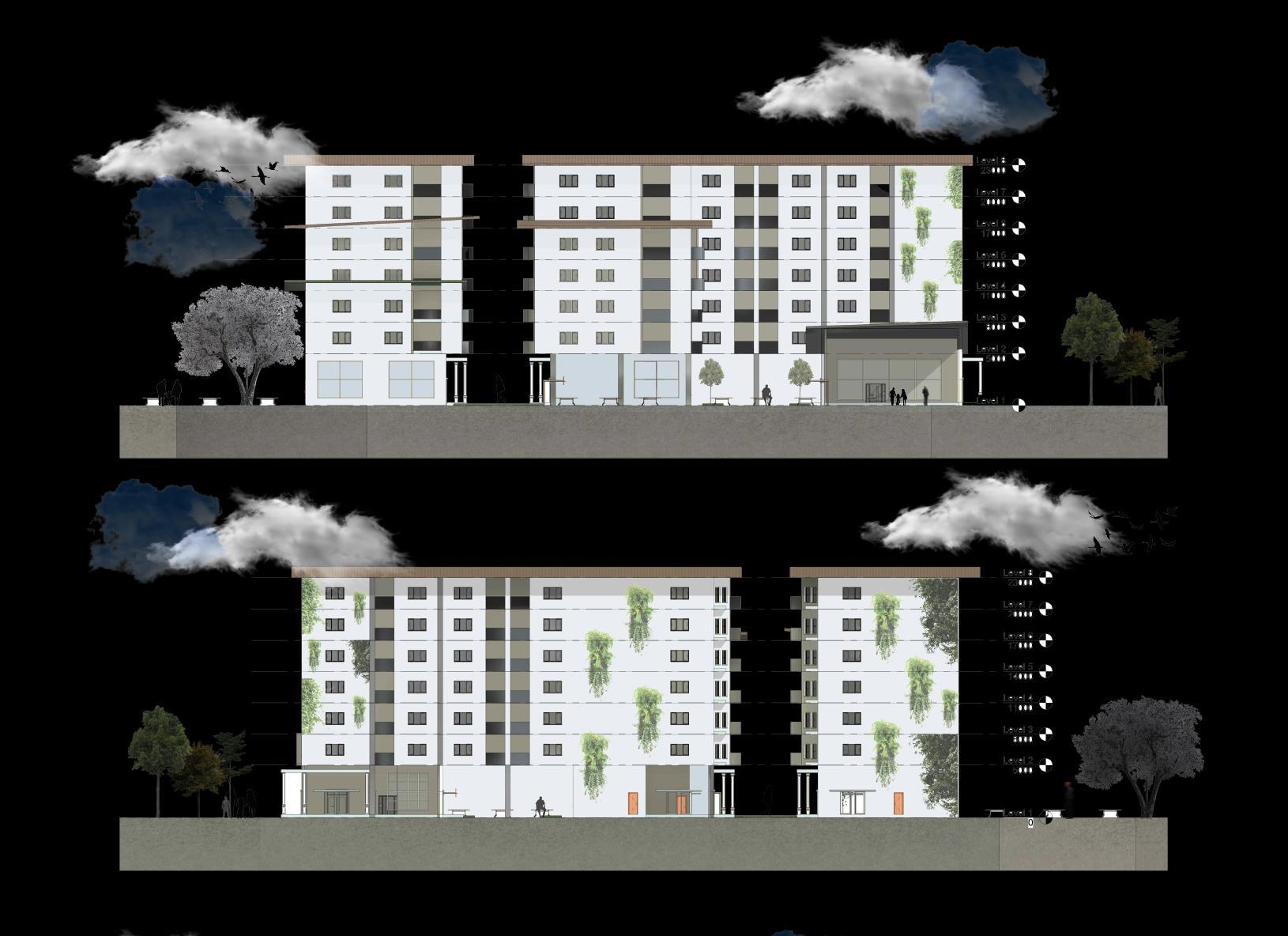

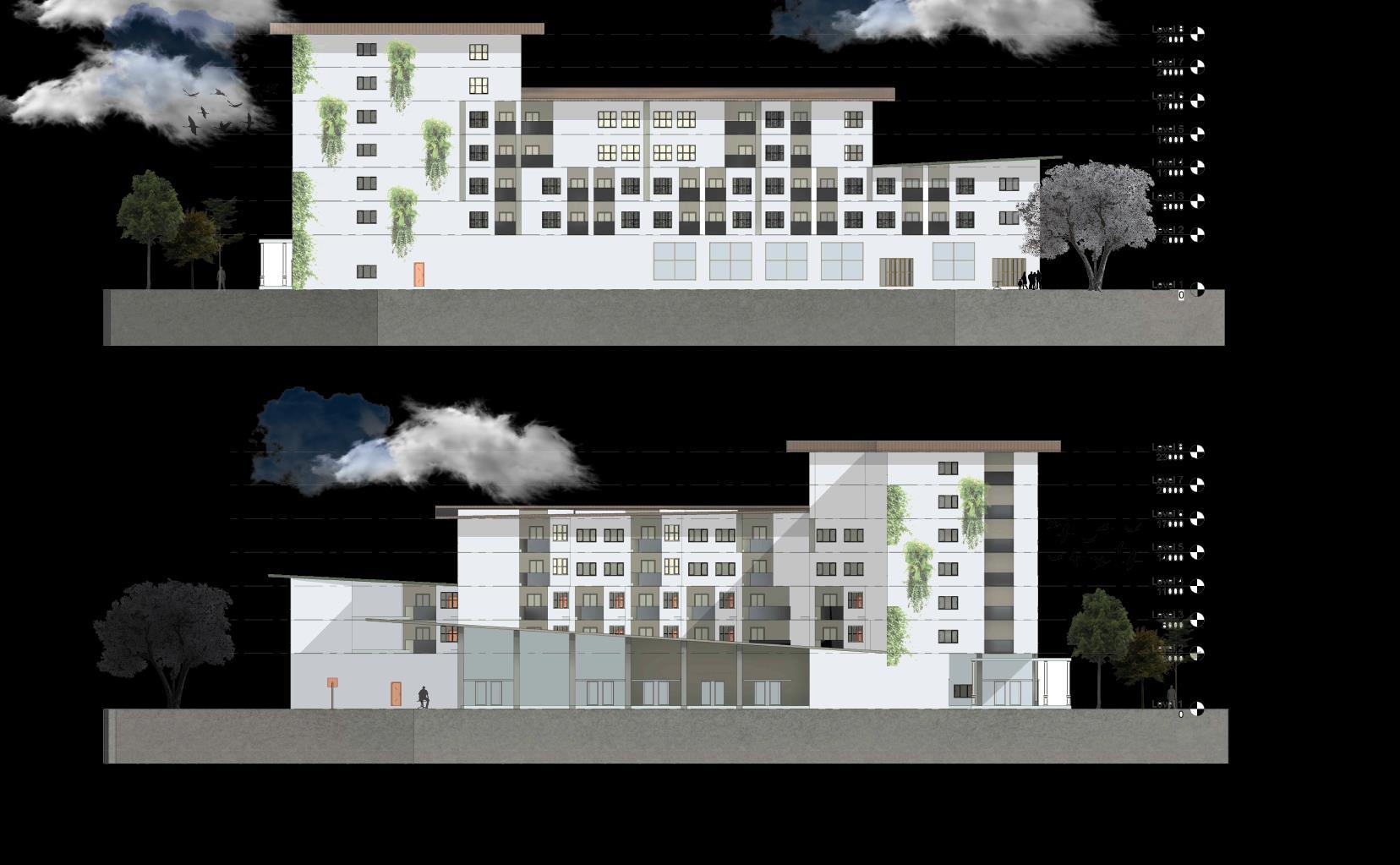

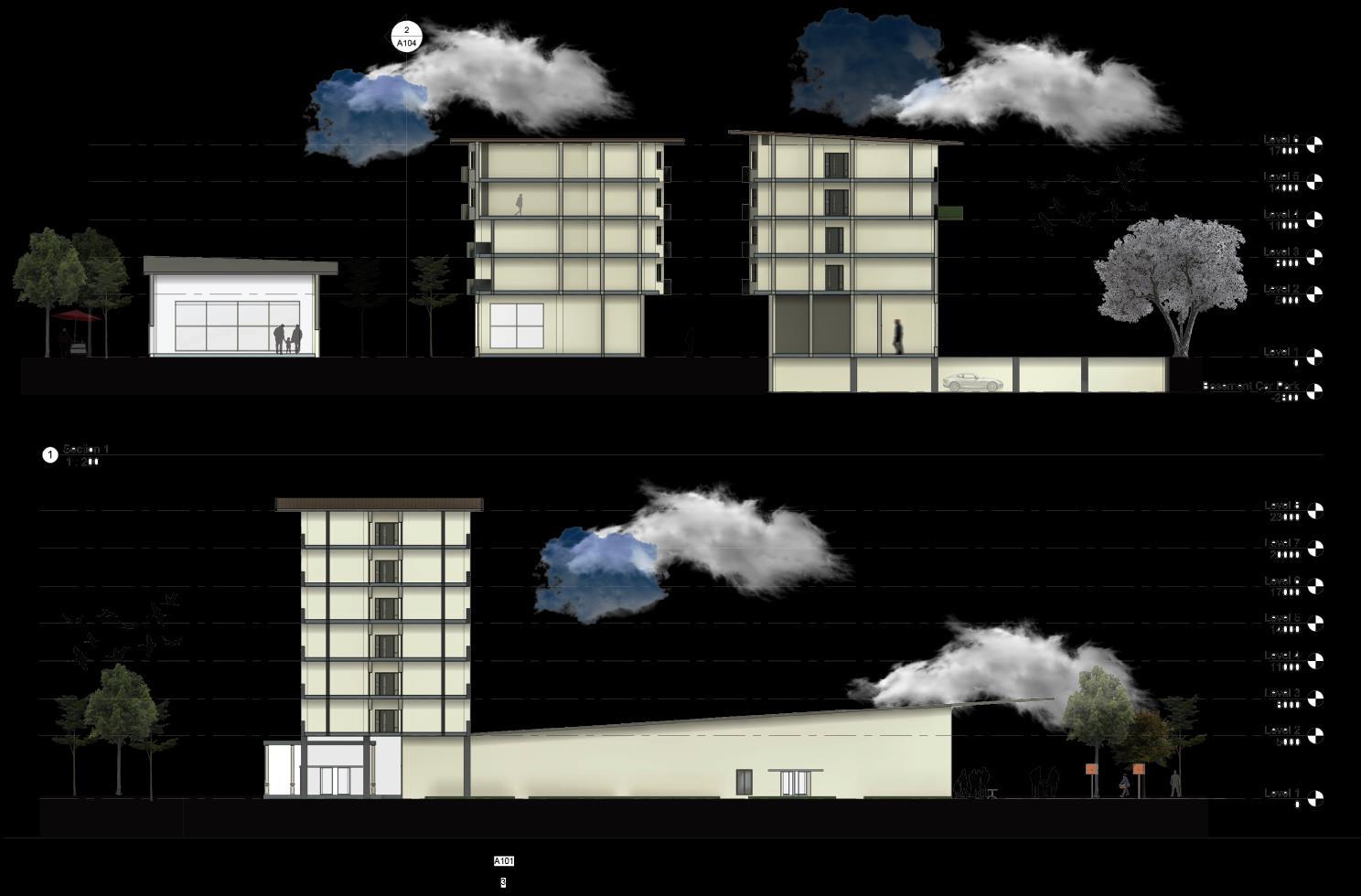

Elevations
Elevations
Section View
Typical Room Layouts
30 sqm
32 sqm
60 sqm
Typical Room Layouts

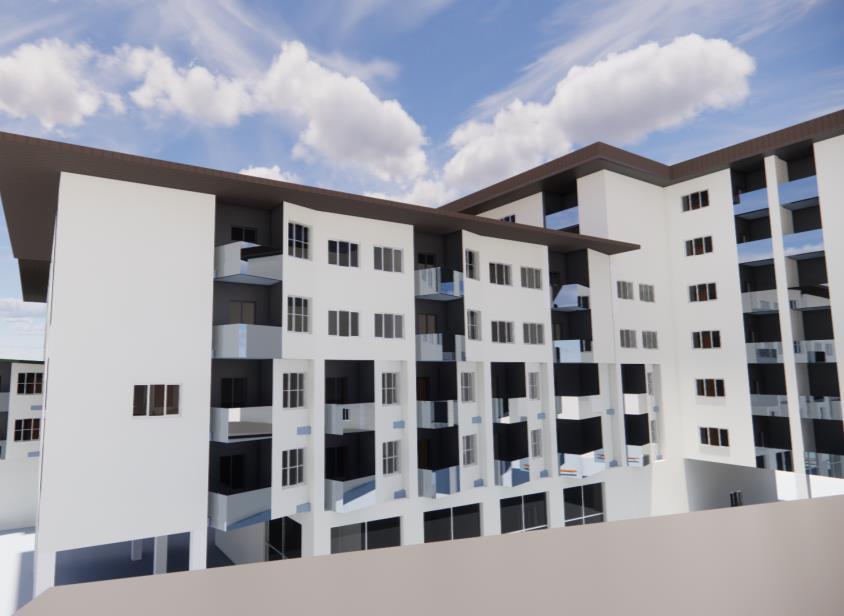

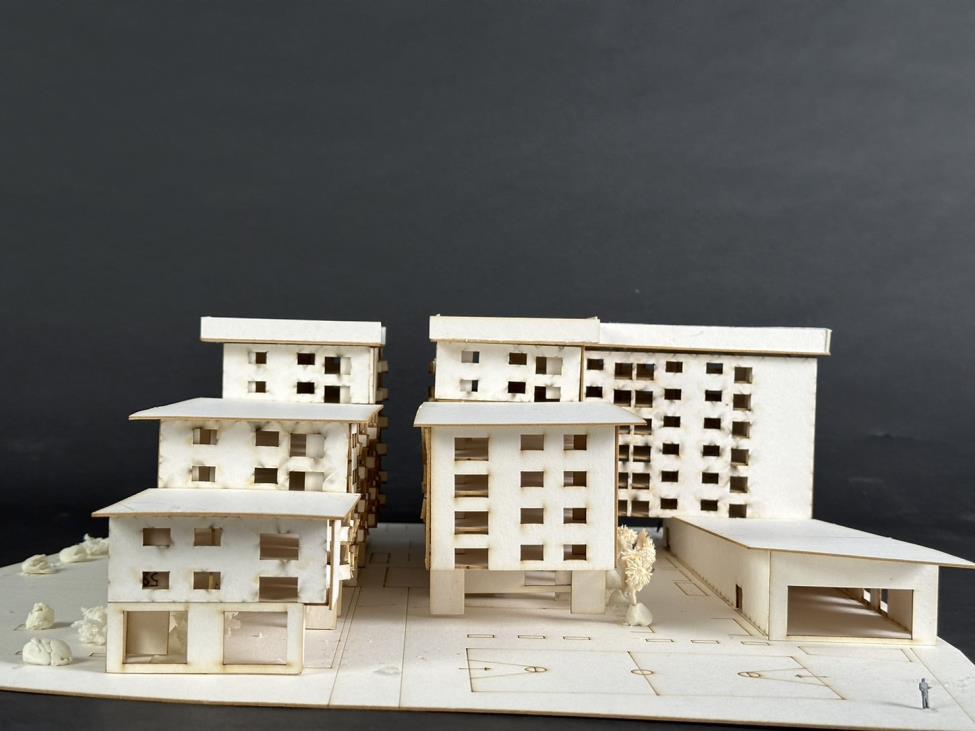

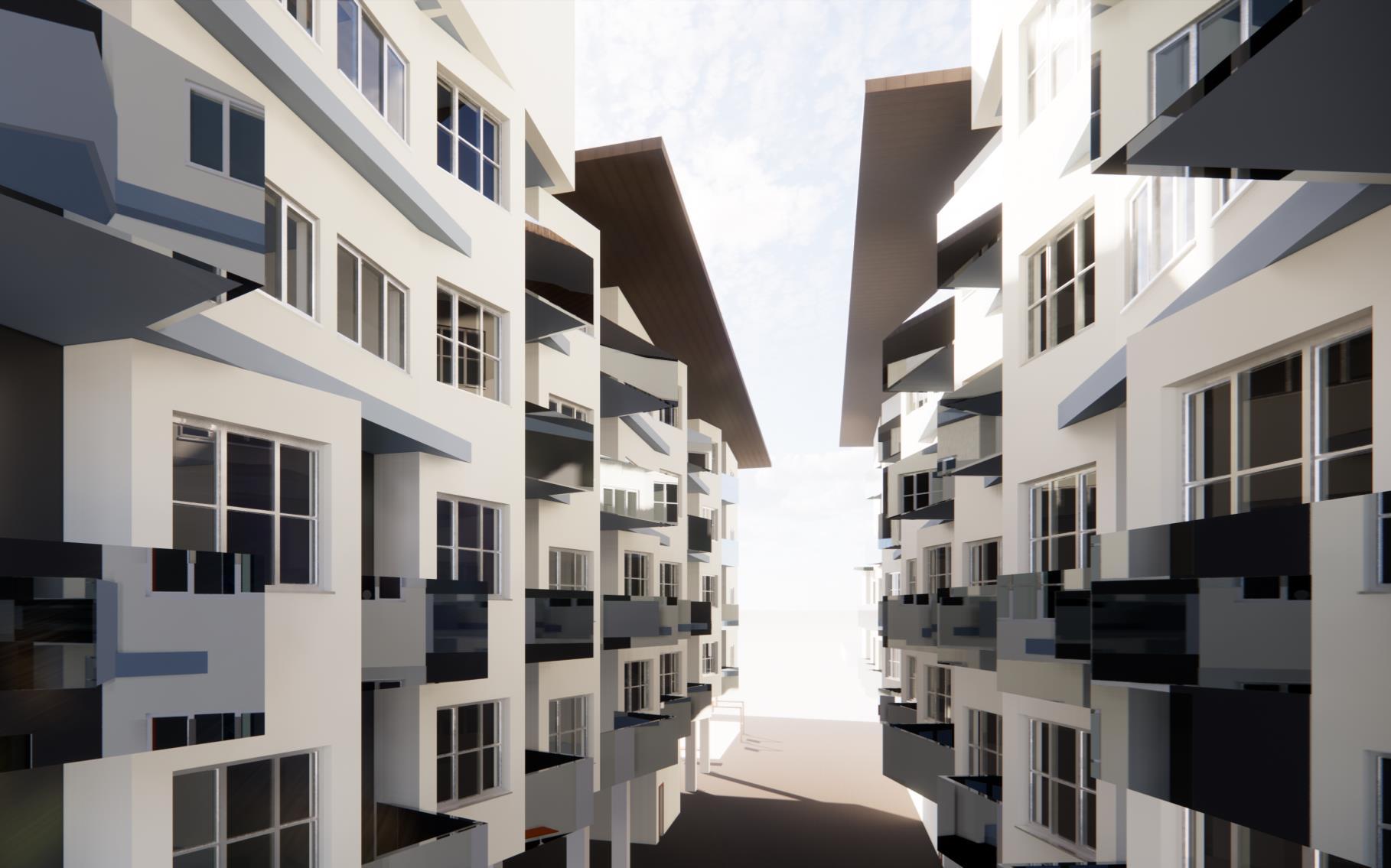

Perspective View

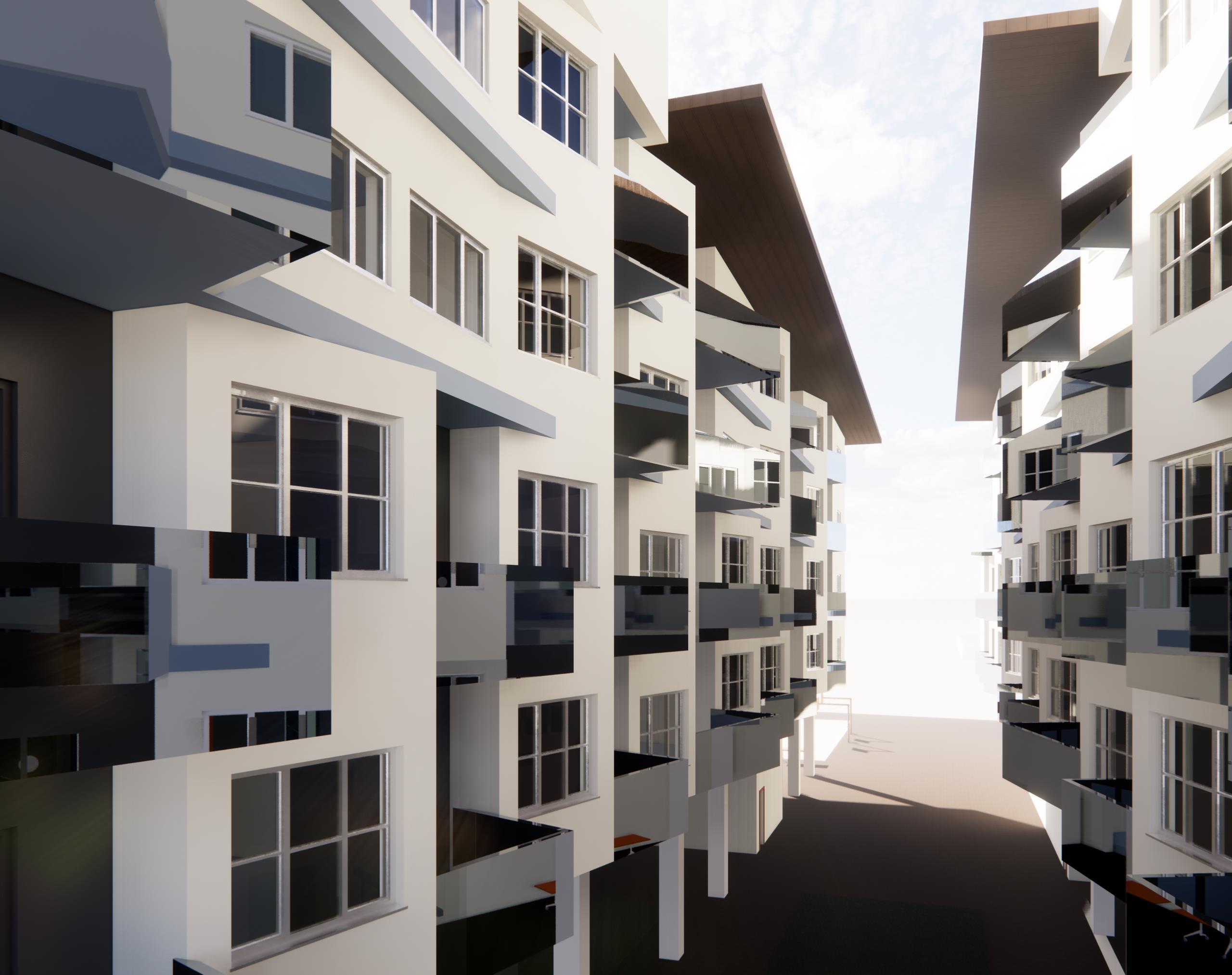

Perspective View

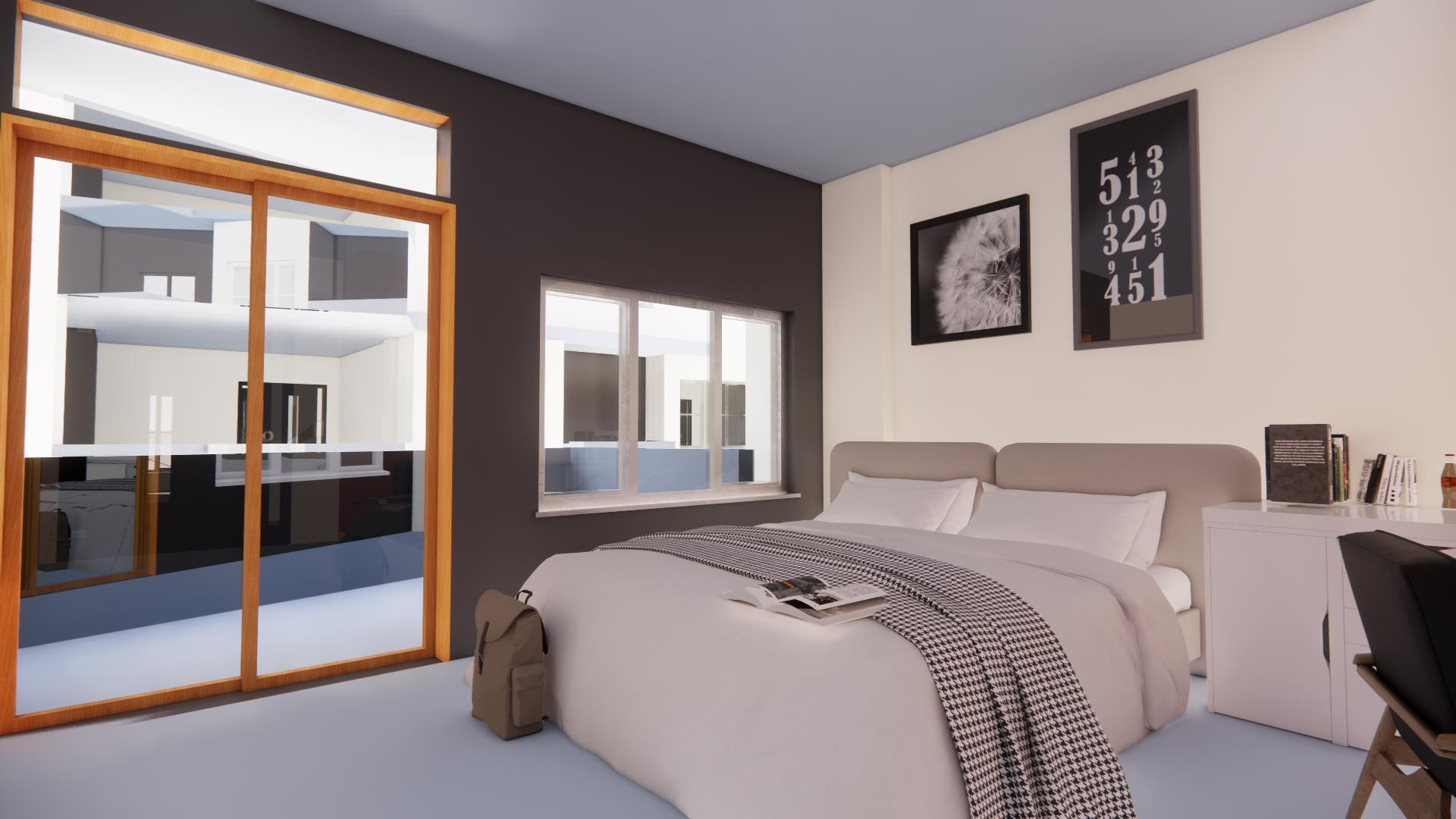

32 sqm

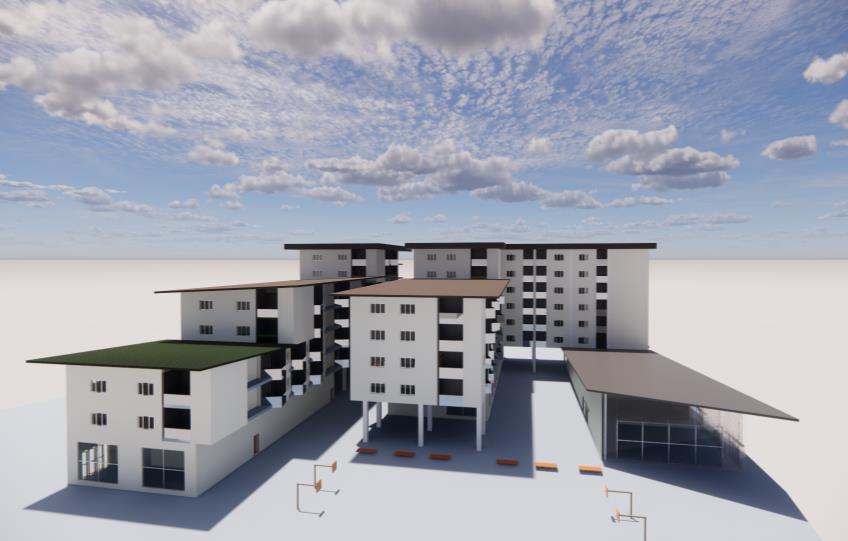

Perspective View

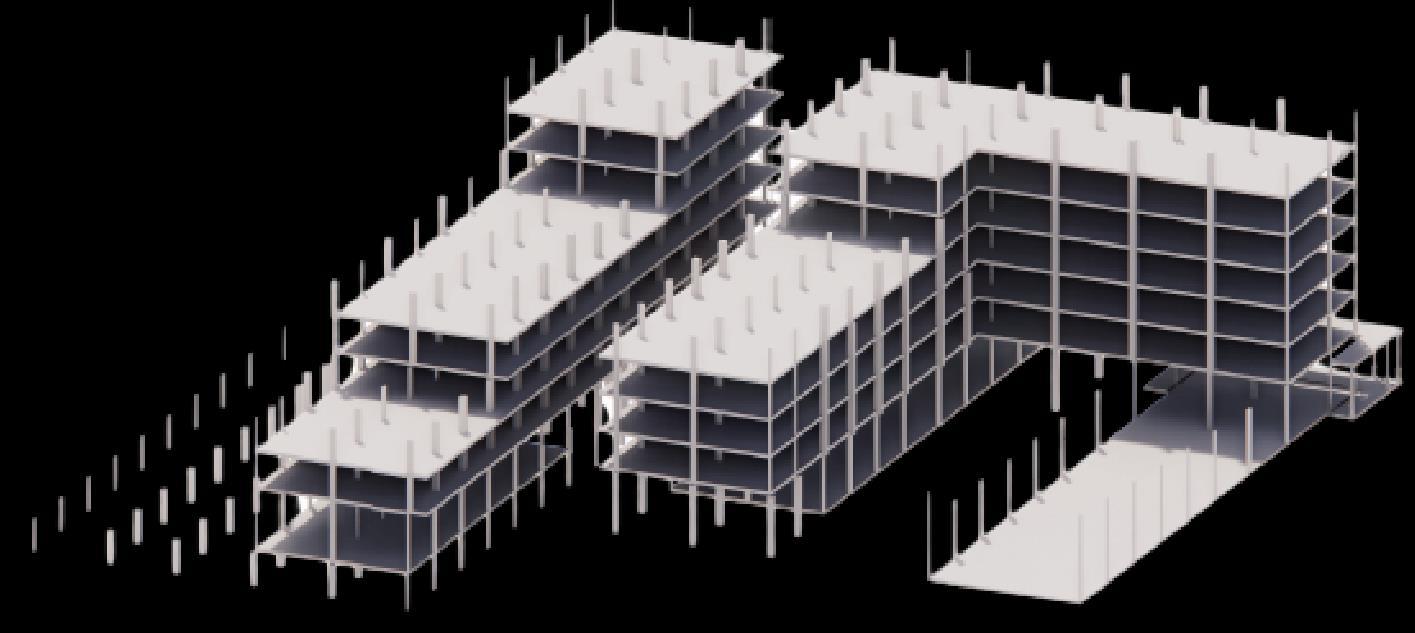

Lift Electrical
