EXTRACTION EQUIPMENT Cleanstar XPOWER 59 Radford Rd, Reservoir VIC 3073 ph: 03 9460 5655 e: sales@cleanstar.com.au www.cleanstar.com.au www.activ8clean.com.au FULL CATALOGUE Parts & accessories are available for our equipment Nationwide service network available PRODUCT CATALOGUE
30 Litre Carpet Extraction Machine
MADE IN ITA LY
The Cutlass is a professional extraction machine for cleaning medium areas of carpet and upholstery. Its high-waterlift vacuum system allows users to recover the maximum quantity of dirt from carpet and to get the shortest drying time. Strong, compact and easy to carry, this 30L unit is ideal for cleaning companies. Its small width makes it particularly suitable for cleaning in trains, buses, cinemas and planes, as well as other common areas such as hotels, restaurants, clubs, pubs, offices, banks, shops, rental companies, theatres, boats, ships and schools.
Comes standard with:
CONTACT CLEANSTAR FOR YOUR NEAREST STOCKIST (03) 9460 5655 sales@cleanstar.com.au cleanstar.com.au

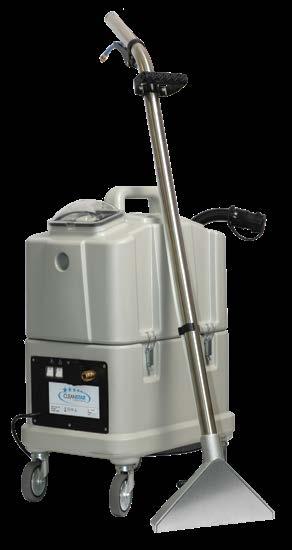

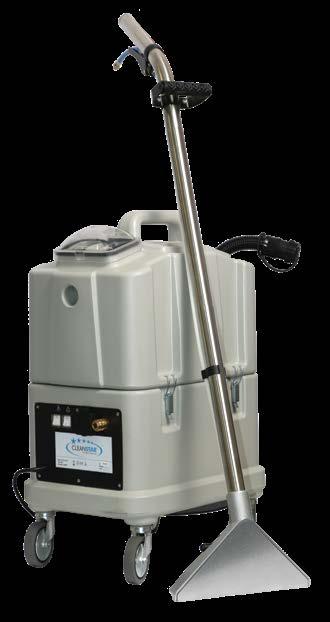

CUTLASS
Model: VCUTLASS

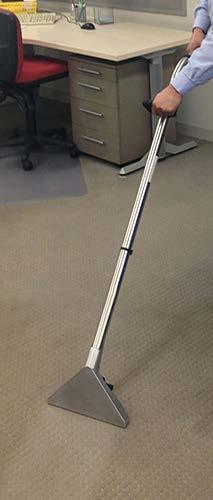

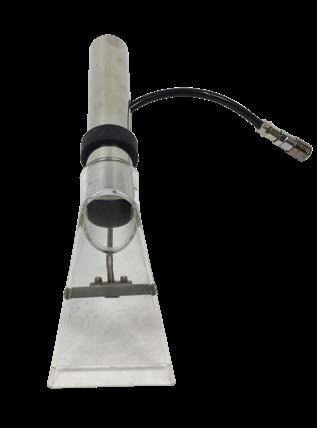

Aluminium Carpet Floor Wand (300mm wide)
5m Long Extraction Hose
a.k.a. SABRINA-MAXI

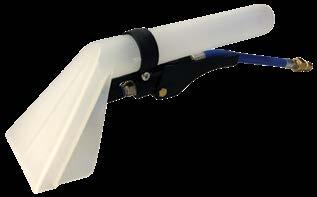

4-inch Plastic Extraction Upholstery Tool
Litre Portable Carpet Extraction
CUTLASS (03) 9460 5655 sales@cleanstar.com.au cleanstar.com.au
Tank Capacity 30L (recovery) / 30L (solution) Watts 1500 W Motor 2 Stage - High Water Lift Max Water Lift 3000mm H2O Max Air Flow 50 L/sec Pump with Bypass Membrane / 130 PSI Power 80 W Max Pressure 9 bar Max Water Flow 4.5 L/min Floor Wand Included - Aluminium Head (300mm cleaning width with 3 nozzles) Upholstery Tool Included - 4-inch Plastic Cable Length 10 metres Hose Length 5 metres (Solution and Vac) Weight of machine 24 kg Dimensions 38 x 50 x 78 cm Tank Construction High density polyethylene Carpet cleaning Upholstery cleaning
30
Machine
TECHNICAL SPECIFICATIONS

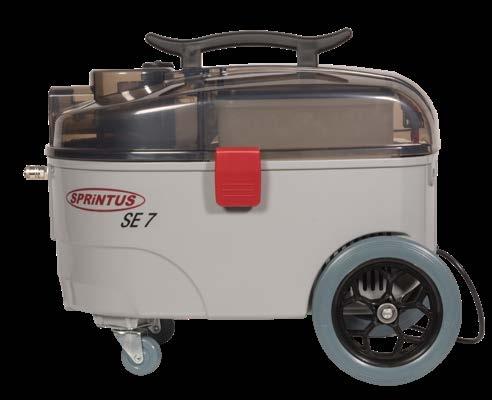

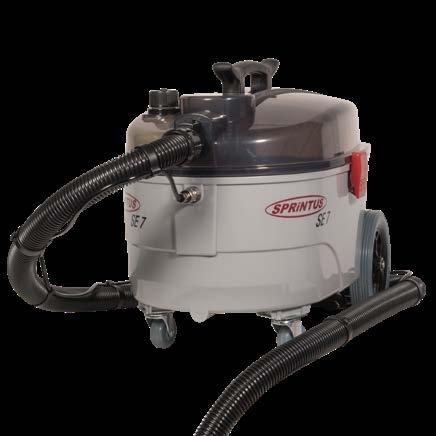

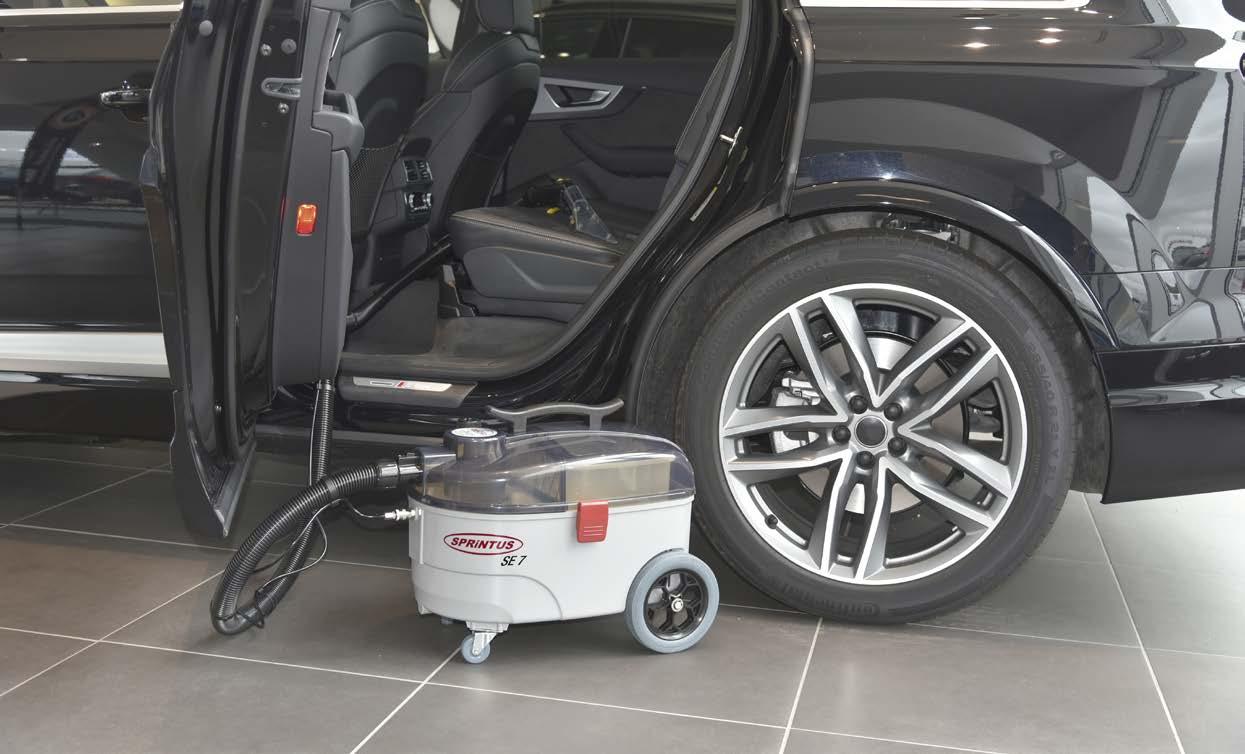

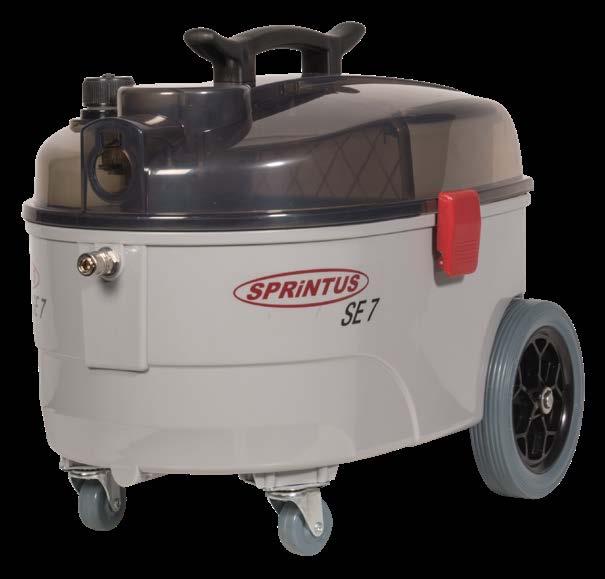

Spray-extraction cleaner with a separate anti-foaming tank

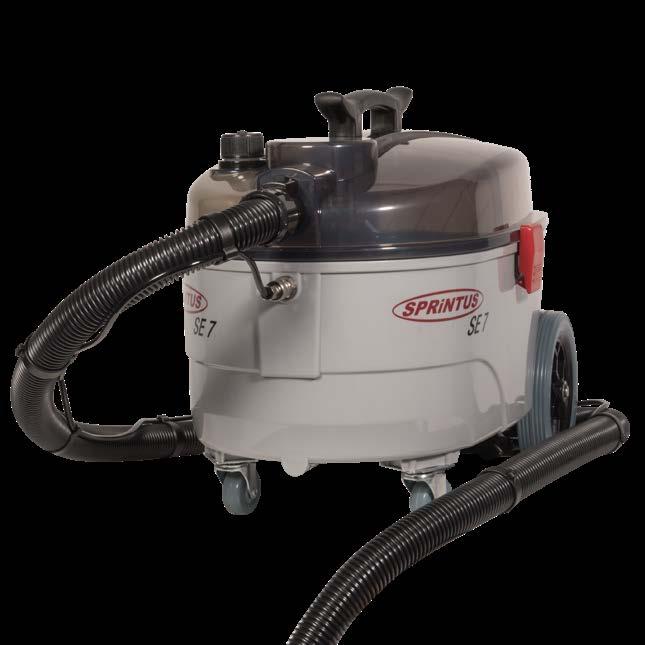

SE 7
RUGS, CARPET, UPHOLSTERY
SPRAY EXTRACTION CLEANER
(03) 9460 5655 sales@cleanstar.com.au cleanstar.com.au
SPRAY EXTRACTION CLEANER
• Thorough cleaning through the 4 bar spray pressure and 230 mbar suction power
• Removeable clean water and waste water tanks (6.5L capacity each) for easy filling and emptying without having to carry the whole unit around
• Separate anti-foaming tank
• Max. 1100 Watt power
• Power pump 50 W
• Spray and extraction functions are operated separately
• Rubber castor wheels and large back wheels
• 2.5m suction/solution hose
• 38mm hose | 38mm tools/accessories
• Floor wand (250mm wide) | 3-piece
• Clear upholstery nozzle (105mm wide)
• 7.5m power cord length
(03) 9460 5655 sales@cleanstar.com.au cleanstar.com.au
Spray and extraction functions can be operated separately
SE 7
Separate tank allows for the use of anti-foaming agents and guarantees problem free work

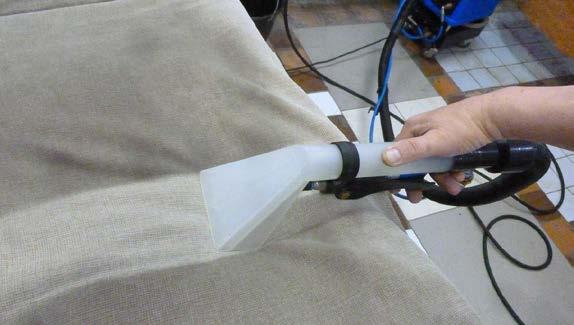

Clear upholstery nozzle with adjustable spray function
Floor spray nozzle with long extraction hose
Model: V-SE7
• 1200 Watt Power
• 35L Tank Capacity
• Powerful Pump
- 48 watt - 5 bar spray pressure - 0.65L/min spray rate
• Seperated Pump Control
• Upholstery Spray Nozzle
• 3.5m Solution Hose
• 10 Metre Lead
• 12L Removable Solution Tank
• Large Heavy Duty Rubber Back Wheels
• 58 Litres Per Second Airflow Rate
• Light - only 17kg
• Quiet - only 62dbA
Comes with:
• 3 Metre Vac Hose
• 2 x Suction Tubes
• Hard Floor Brush
• Squeegee Floor Tool
• Upholstery Tool
• Hand Spray Tool
• Dusting Brush
• Crevice Tool
• Solution Hose
OPTIONAL ACCESSORIES:
Ph: (03) 9460 5655 sales@cleanstar.com.au www.cleanstar.com.au

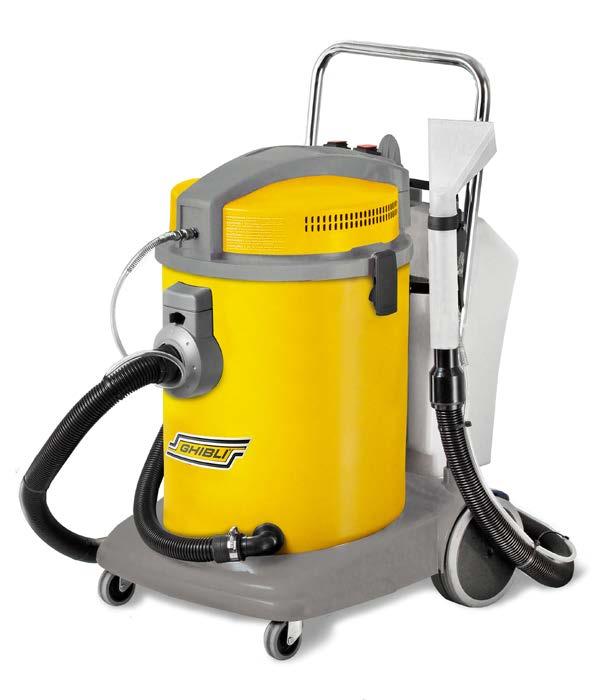

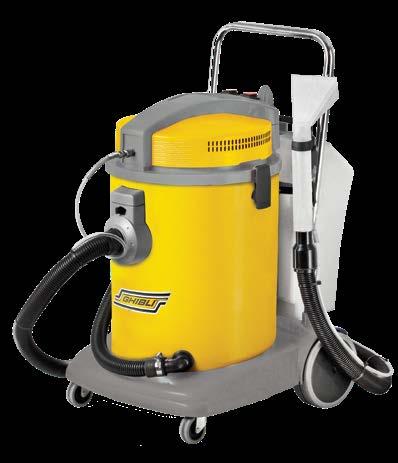

MADE IN ITA LY V-M9P 1200 Watt 35L Wet ‘n’ Dry Spray-Extraction Vacuum with Shampooer

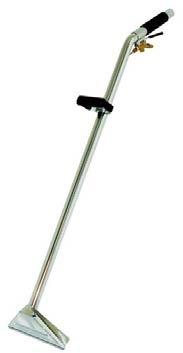

V-M9P-WAND
Steel 1-Jet Classic Wand to suit V-M9P
Stainless
V-M9P
V-M9P-SET 1-Jet Classic Wand & V-M9P Machine Set Uses
AF1086S
Part No:
#
• 80 Litre Capacity Extractor
• Wet and Dry Vacuum
• Stainless Steel Tank
• Twin Motor (2000 Watt)
• Comes with Stainless Steel Extraction wand (250mm head width)
• Upholstery Tool (85mm head width)
• Dump Valve, drainage hose
• 20 Litre solution tank
• 2.5 Metre long hose
Comes With:
Dry Floor Tool & Wet Squeegee Floor Tool Crevice Tool & Dusting Brush

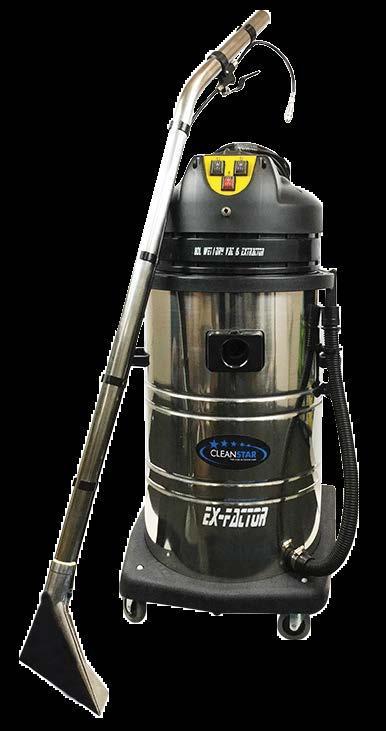

(03) 9460 5655 sales@cleanstar.com.au cleanstar.com.au CONTACT US FOR YOUR NEAREST STOCKIST Uses # AF1086S Model: VC80LX 80 LITRE EXTRACTOR WET AND DRY VAC EX-FACTOR
SEE
RUGS,
EX-FACTOR

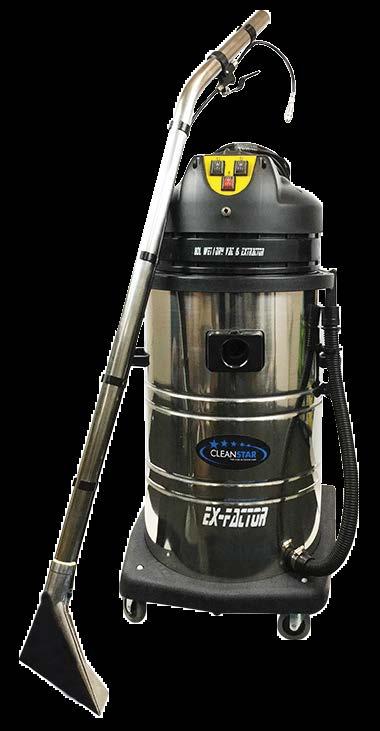

80L Carpet Extractor Wet & Dry Vacuum 2000 Watt (Twin Motor)
Carpet Wand & Upholstery Tool
SE 7
Spray-extraction cleaner with a separate anti-foaming tank
CARPET,UPHOLSTERY
IT IN ACTION ON YOUTUBE EXTRACTION MACHINES CUTLASS
•
30L Portable Carpet Extractor 1500 Watt
High Water Lift
V-M9P
35LSprayExtractor/Wet&DryVacuum 1200Watt
•PowerfulPump•Upholstery
Tool
(AlsoavailablewithCarpetWandV-M9P-SET~$1,145)
Upholstery Tool (Available seperately) $124.95
UTCE-5 (03) 9460 5655 (03) 9460 5666 sales@cleanstar.com.au cleanstar.com.au
VC80LX VCUTLASS
#
High-performance pump vacuum with an extremely high flow volume
N51/1 KPS

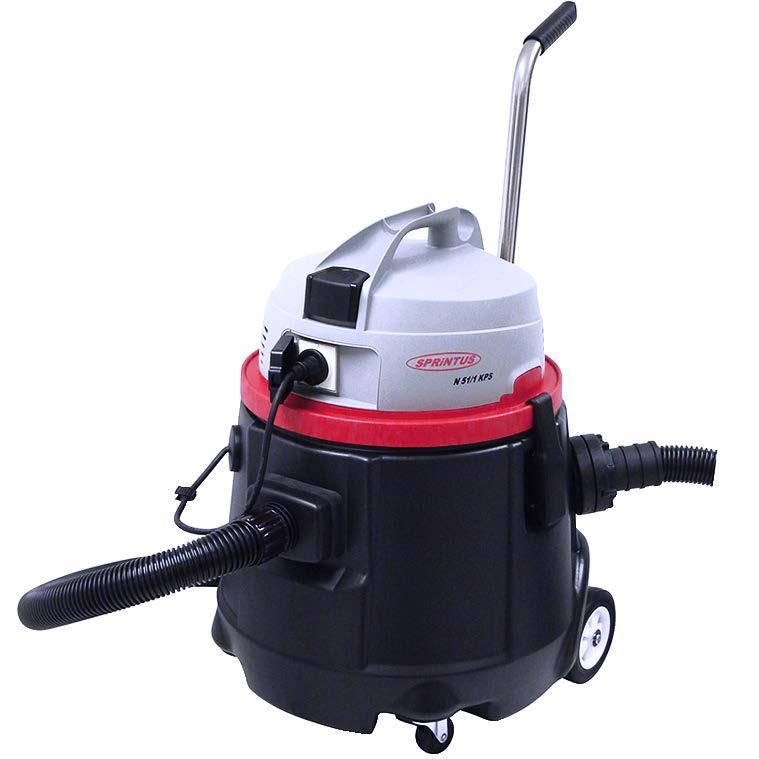

50 LITRE POWERFUL WET VACUUM CLEANER with PUMP
(03) 9460 5655 sales@cleanstar.com.au cleanstar.com.au
N51/1 KPS
50L POWERFUL WET VACUUM CLEANER WITH PUMP

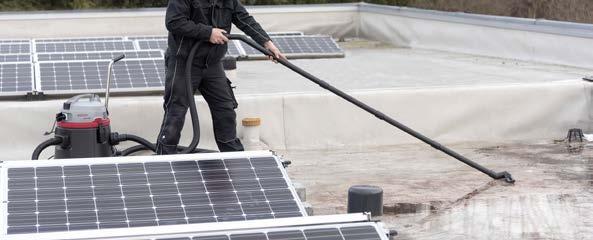

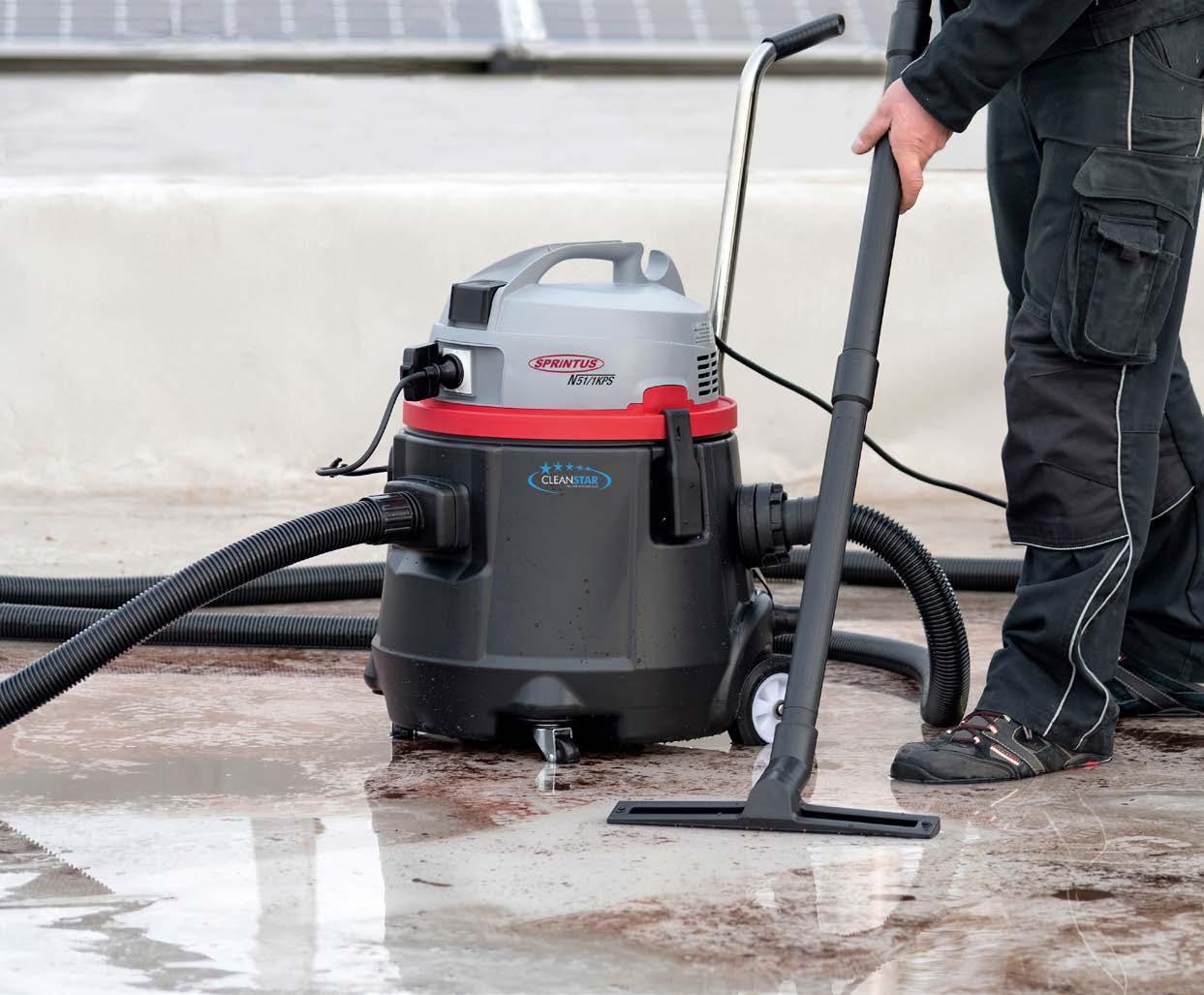

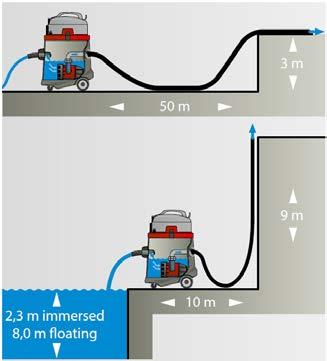

Great for pumping out water after floods or water main breaks, washing flat roofs, pond or pool sanitation, and other cleaning duties
The N51/1 KPS, with its 50 litre container volume, is ideal for tough, professional use. The integrated pump with a flow volume of up to 14,000 litres per hour can be directly attached to the vacuum’s power socket. A filter net prevents leaves, wood, and smaller objects from entering the container and prevents blockages.
The filter net can be emptied via the robust zipper. Wastewater is continually drained from the container through the provided 10m wastewater hose. The C-tube connection of the wastewater hose is a standard size that also fits fire department and technical emergency service (THW) hoses.
The N 51/1 KPS can also be used as a normal vacuum cleaner and achieves a suction power of 230 mbar.

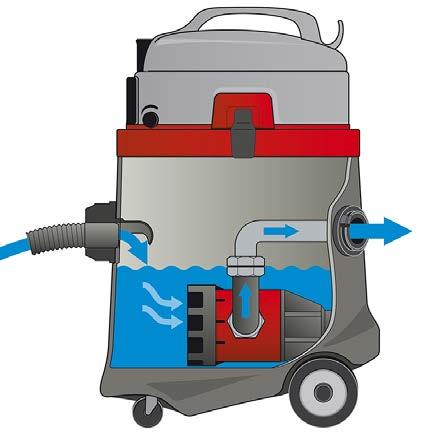

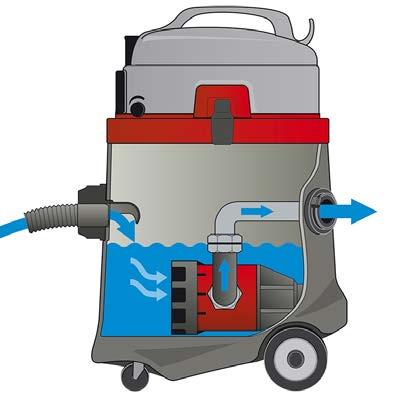

Water is pumped in through the vacuum hose. The integrated water pump then draws the collected wastewater immediately through the C-tube connection and out through the backside of the device.
(03) 9460 5655 sales@cleanstar.com.au cleanstar.com.au
N51/1 KPS
• 50L tank capacity
• Robust container made of impact-proof plastic
• High-performance pump with a flow volume of up to 14,000 Litres per hour
• Total power - 2200 Watts
• Device - 1300W / Pump - 900W
• Weight - 15kg
• Trolley handle for easy transportation
• Wet floor nozzle (360mm wide)
• 4 x 50cm plastic suction tubes (38mm)
• 7m suction hose length
• 10m wastewater hose length with C-tube connection
• Crevice nozzle, pond nozzle & dusting brush
• Volume flow rate - 70L/sec
• Max. suction - 230 mbar
• 38mm tools/accessories
• 7.5m power cord length
• Power cord incl. GFCI interrupter
• Separate filter net with zipper for rough particles
• Also suitable for normal vacuum use
Model: V-N51
FEATURES:
(03) 9460 5655 sales@cleanstar.com.au cleanstar.com.au
The powerful pump inside the vacuum cleaner has a capacity of up to 14,000 litres of waste water output per hour
360mm wide wet floor nozzle
C-tube connection for 10m wastewater hose, suitable for fire service hose
The filter net protects the pump from leaves and other coarse particles
Transparent pond nozzle is wellsuited for pool cleaning and for removing water after floods
# V-N51-110048
